Locomotive-Specs
ACEC CFL 1800 – photo 1© trainspo.com
Diesel locomotive

ACEC CFL 1800

Built by ACEC, BN, GM, SEMG

Top speed
120 km/h
75 mph
Power output
1,435 kW
1,924 hp
Weight
110 t
242,508 lb
Length
19.55 m
64 ft 2 in
Track gauge
1,435 mm
Standard gauge
Years built
1963–1964
20 units

Overview of the ACEC CFL 1800

Discover the robust CFL 1800, a powerful diesel locomotive with a distinguished service history in Luxembourg.

Built between 1963 and 1964, this locomotive boasts a top speed of 120 km/h and operates on a standard gauge of 1435 mm. Its impressive UIC axle configuration of Co'Co' and a substantial weight of 110 tonnes underscore its capability.

Powered by an EMD 16-567C prime mover, the CFL 1800 delivers a formidable 1435 kW of power, making it a reliable workhorse for Luxembourg Railways and CFL Cargo. This enduring class is a testament to classic locomotive engineering.

ACEC CFL 1800 technical specifications

Value
SeriesSNCB 55
Built byACEC, BN, GM, SEMG · 1963–196420 units
Top speed120 km/h75 mph
Power output1,435 kW1,924 hp
Prime moverEMD 16-567C
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangementCo'Co'
Length19.55 m64 ft 2 in
Weight110 t242,508 lb
Source of the data: lb.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the ACEC CFL 1800

Railway companies that have operated the CFL 1800, with the class designation used by each of them.

OperatorClassCountry
CFL CargoCFL Cargo 1800Luxembourg
Luxembourg RailwaysCFL 1800Luxembourg

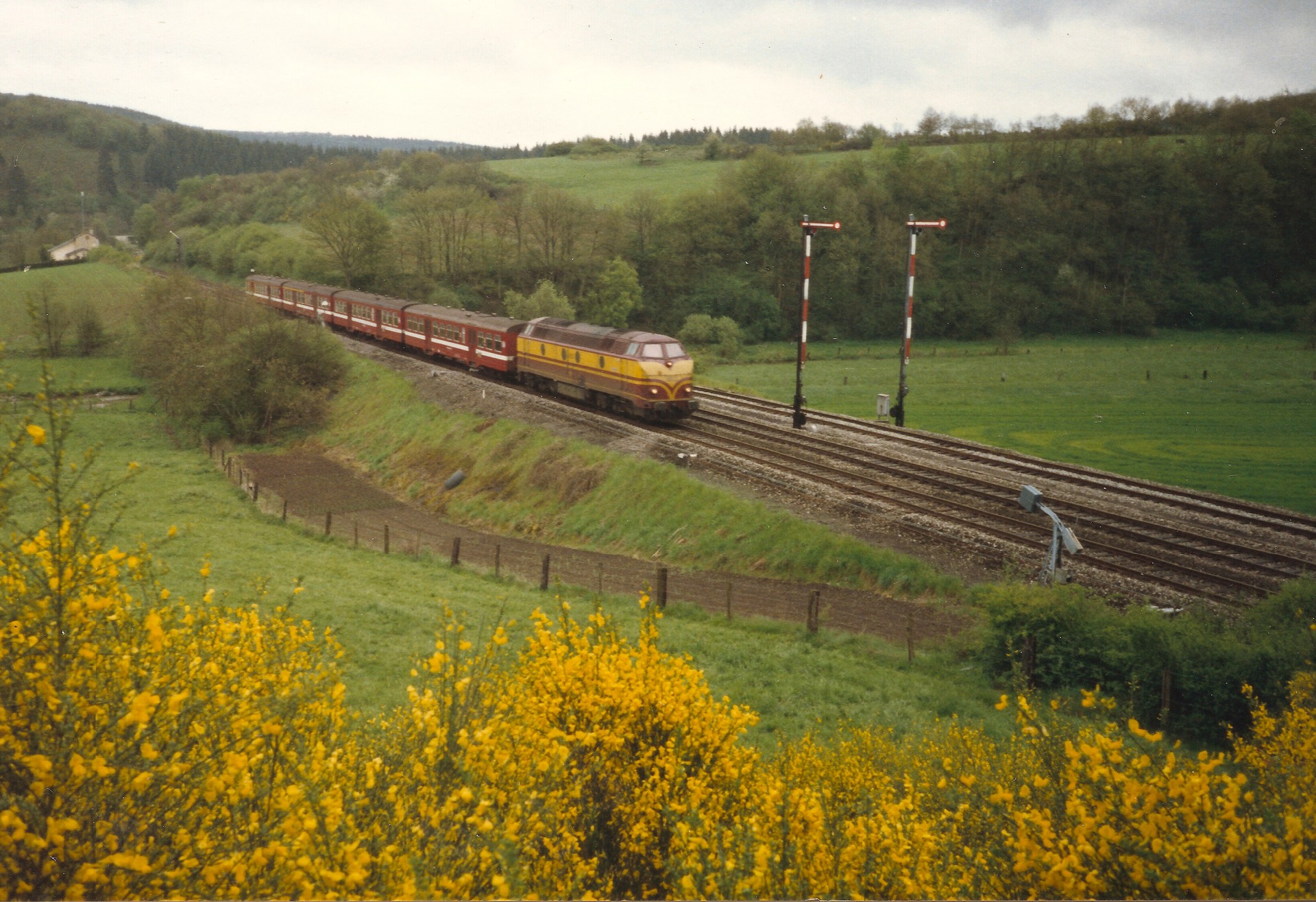

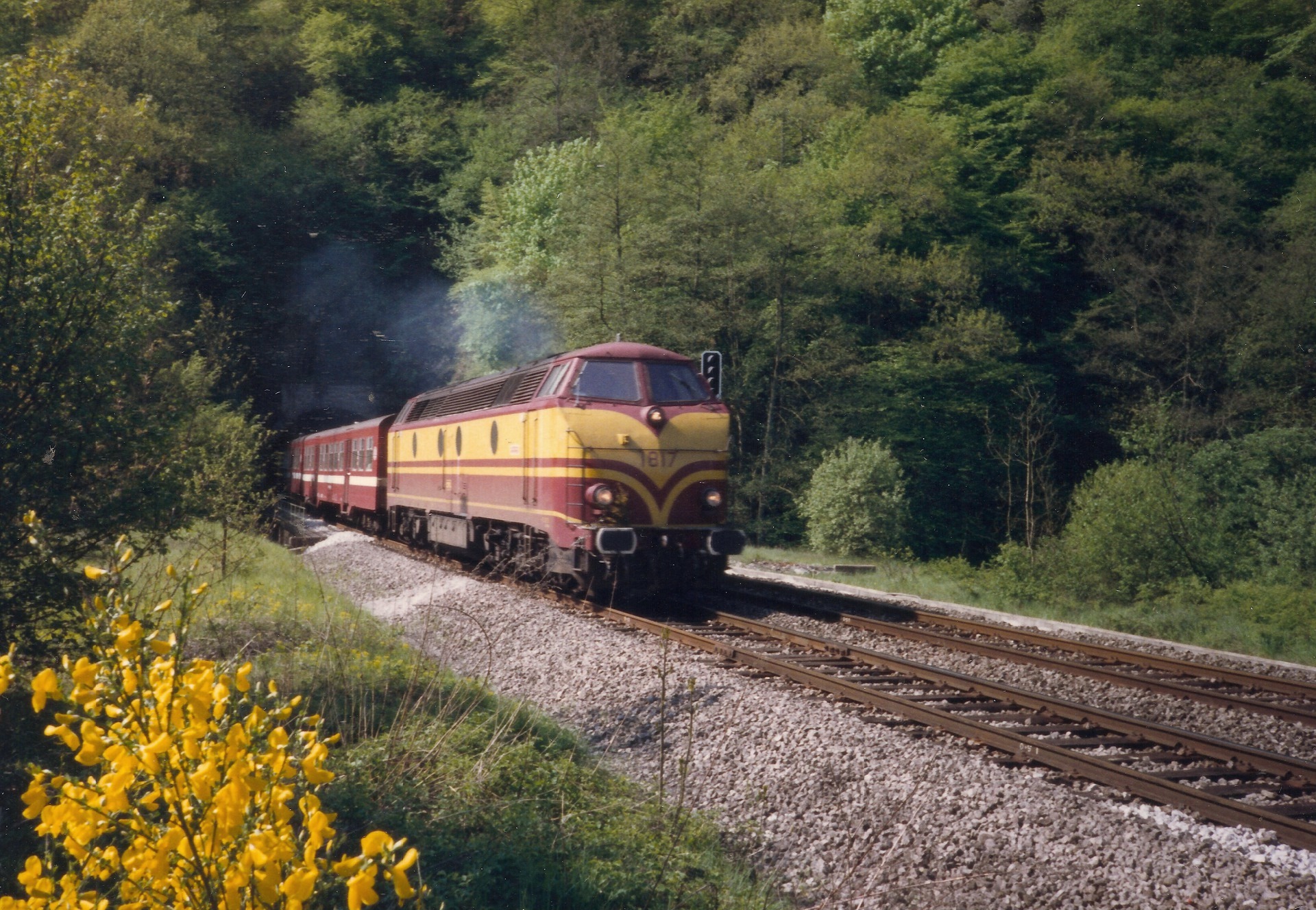

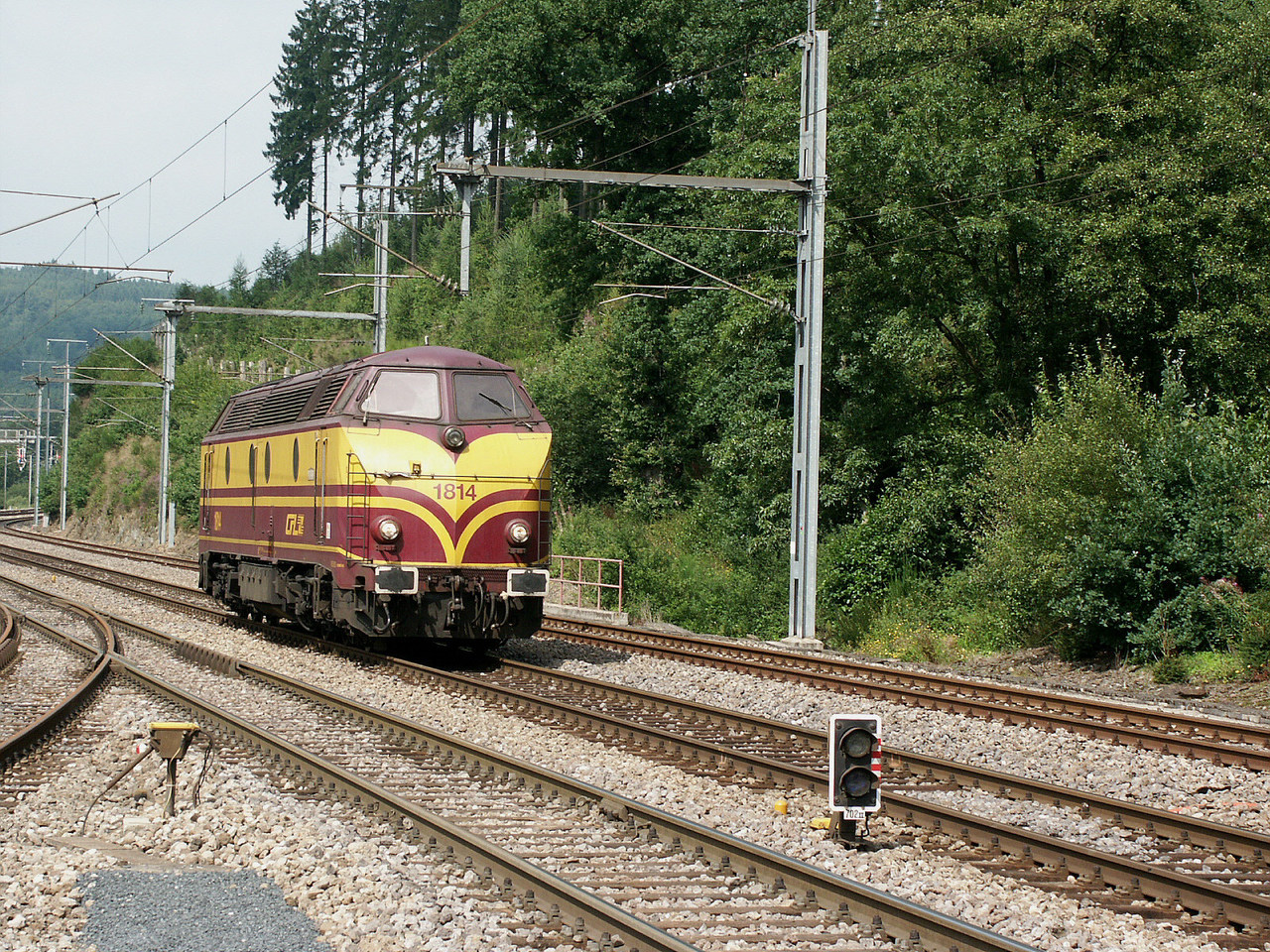

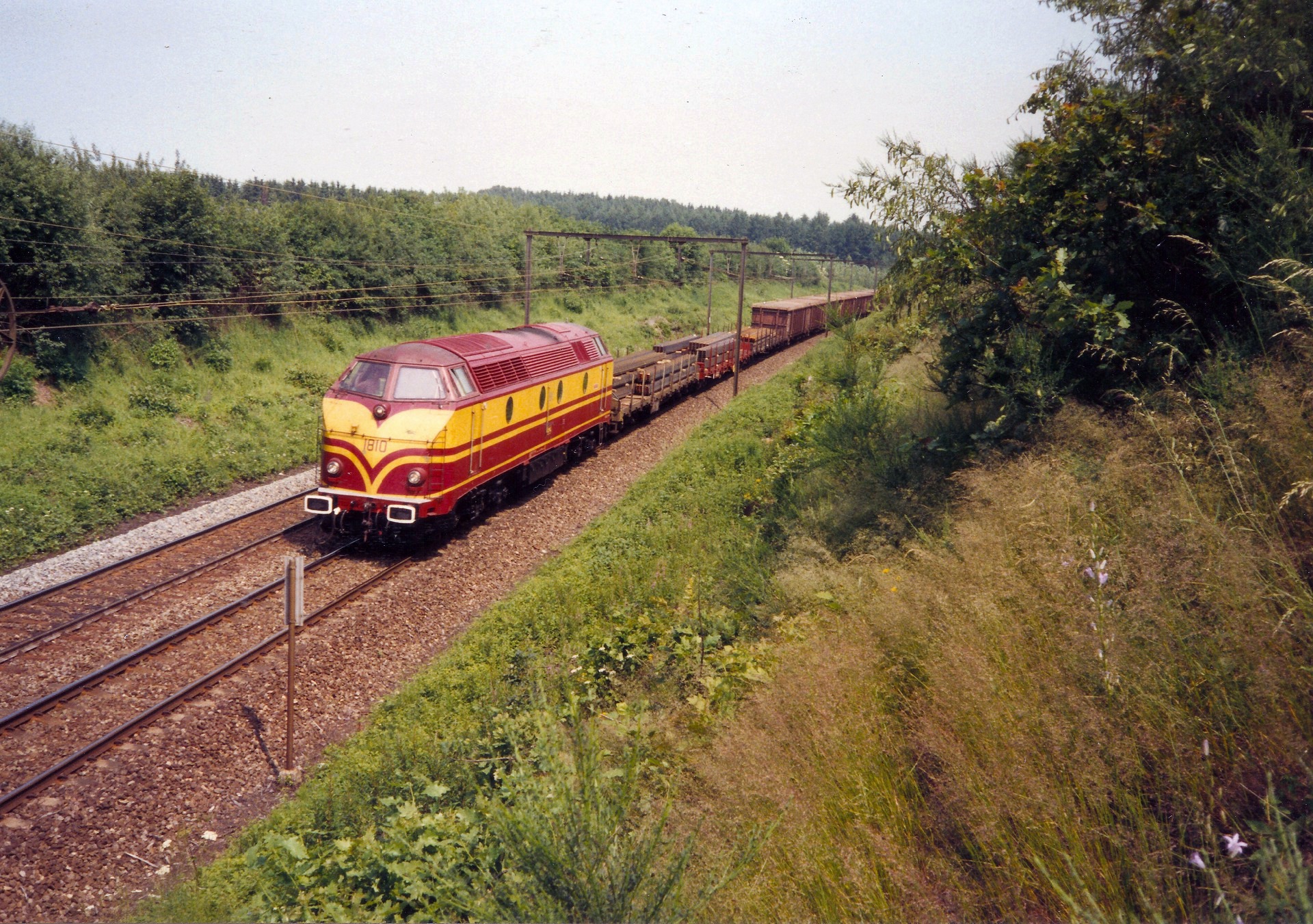

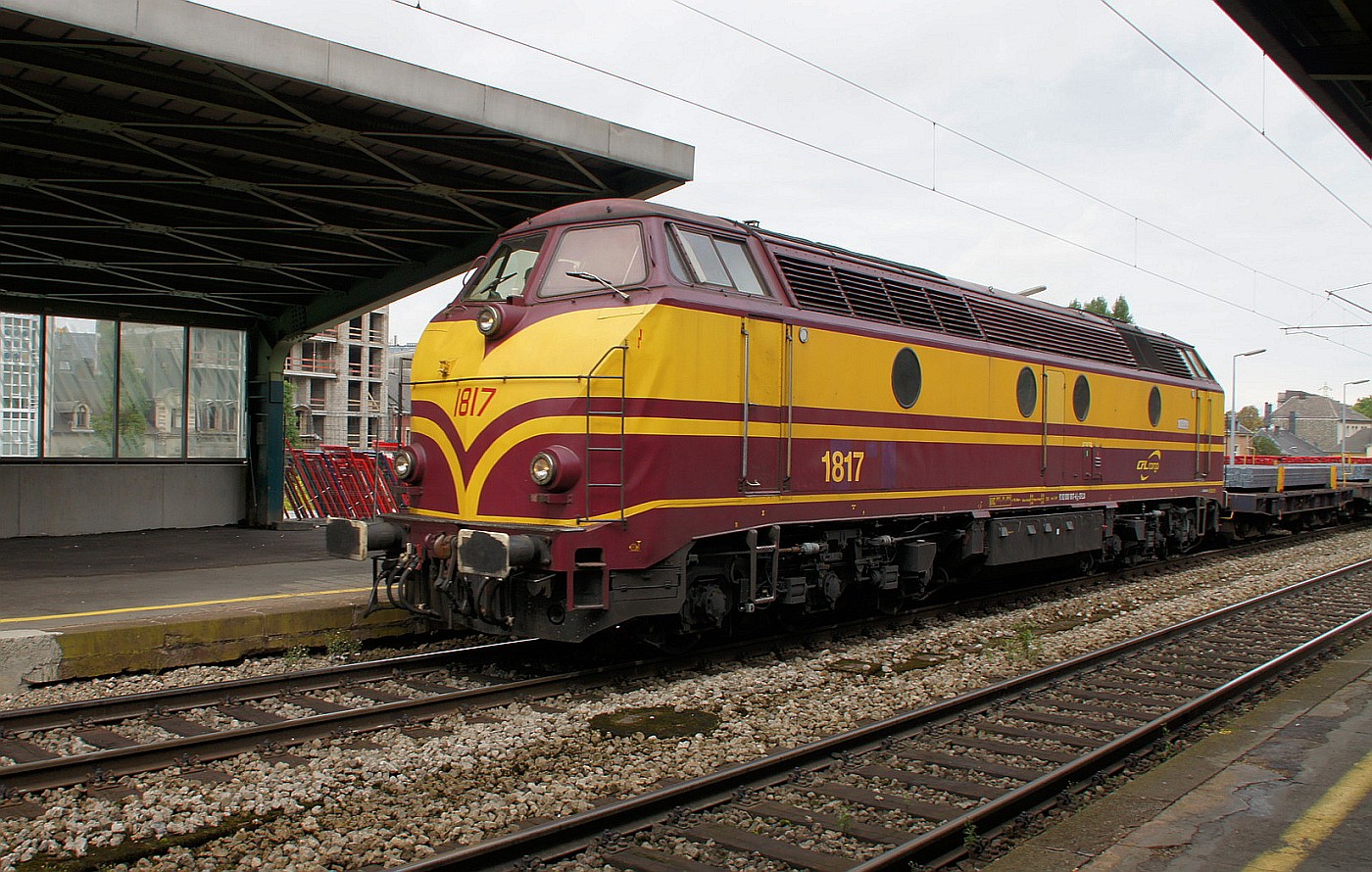

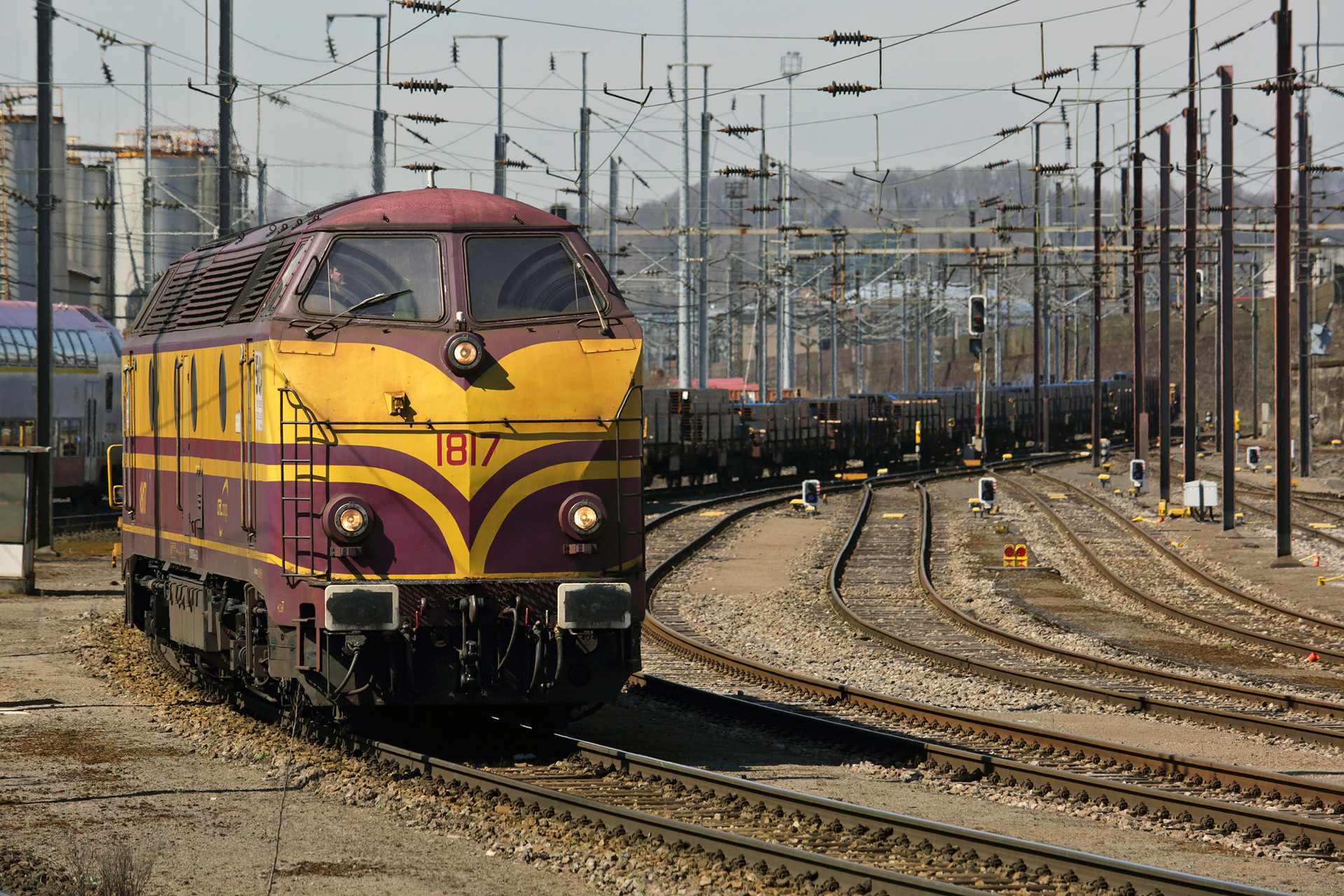

ACEC CFL 1800 photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
