ACEC SNCB 22 – photo 1© trainspo.com
Electric locomotive

ACEC SNCB 22

Built by ACEC, Niv, SEMG

Top speed
130 km/h
81 mph
Power output
1,740 kW
2,333 hp
Weight
87 t
191,802 lb
Length
18 m
59 ft 1 in
Track gauge
1,435 mm
Standard gauge
Years built
1953–1954
50 units

Overview of the ACEC SNCB 22

Discover the SNCB 22, an iconic electric locomotive that has shaped Belgian railway history.

Built between 1953 and 1954 by ACEC, Niv, SEMG, this powerful machine boasts 1740 kW of power and can reach speeds of up to 130 km/h.

With a length of 18 meters and a weight of 87 tons, the SNCB 22 operates on 1435 mm gauge tracks and uses a 3 kV DC electric system.

Its Bo'Bo' axle configuration provides excellent adhesion, making it ideal for heavy traction duties.

Explore the legacy and performance of this reliable and impressive locomotive.

ACEC SNCB 22 technical specifications

Value
Built byACEC, Niv, SEMG · 1953–195450 units
Top speed130 km/h81 mph
Power output1,740 kW2,333 hp
Tractive effort314 kN70,590 lbf
Electric systems
  • 3 kV DC
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangementBo'Bo'
Length18 m59 ft 1 in
Weight87 t191,802 lb
Source of the data: en.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the ACEC SNCB 22

Railway companies that have operated the SNCB 22, with the class designation used by each of them.

OperatorClassCountry
SNCB/NMBSSNCB 22Belgium

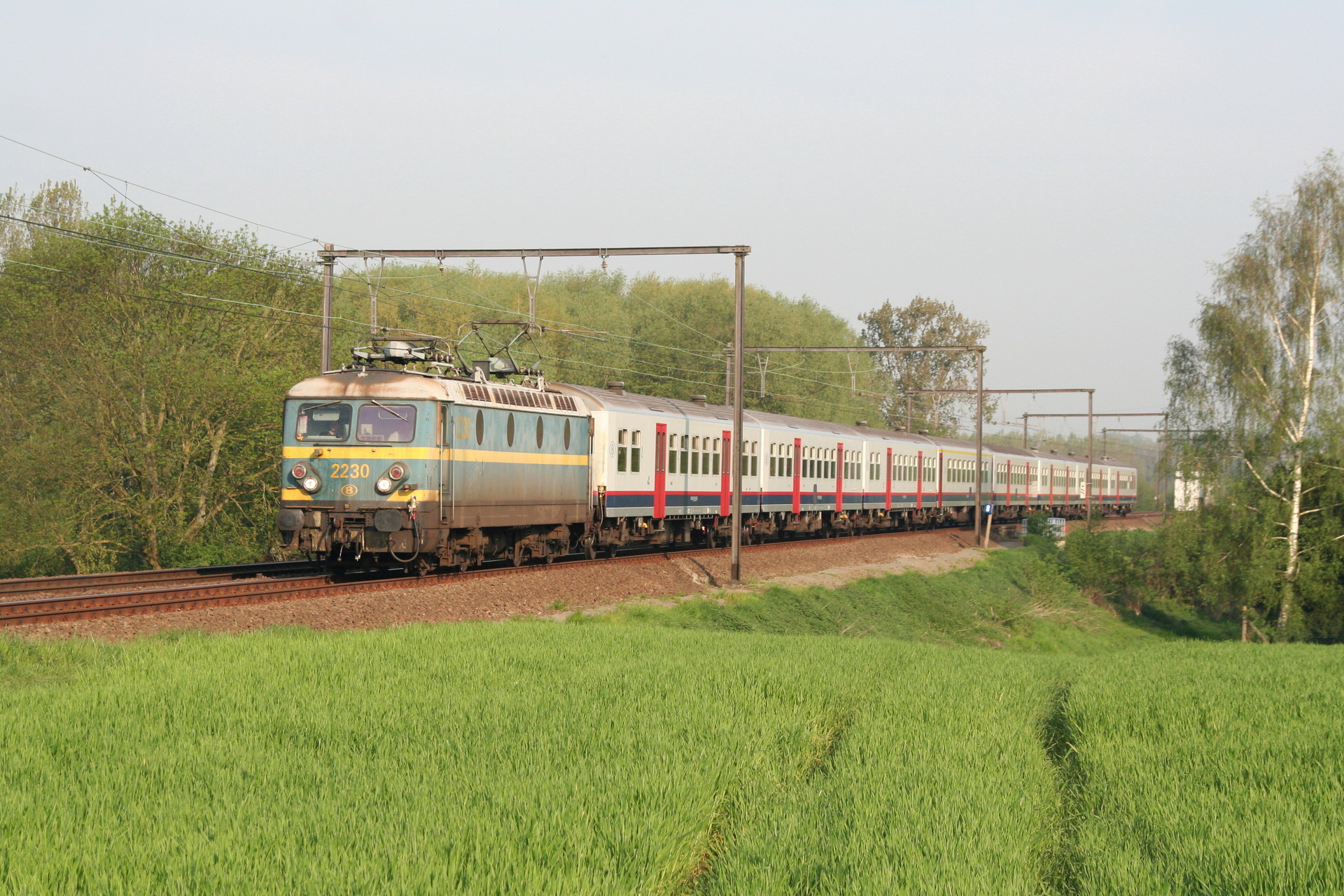

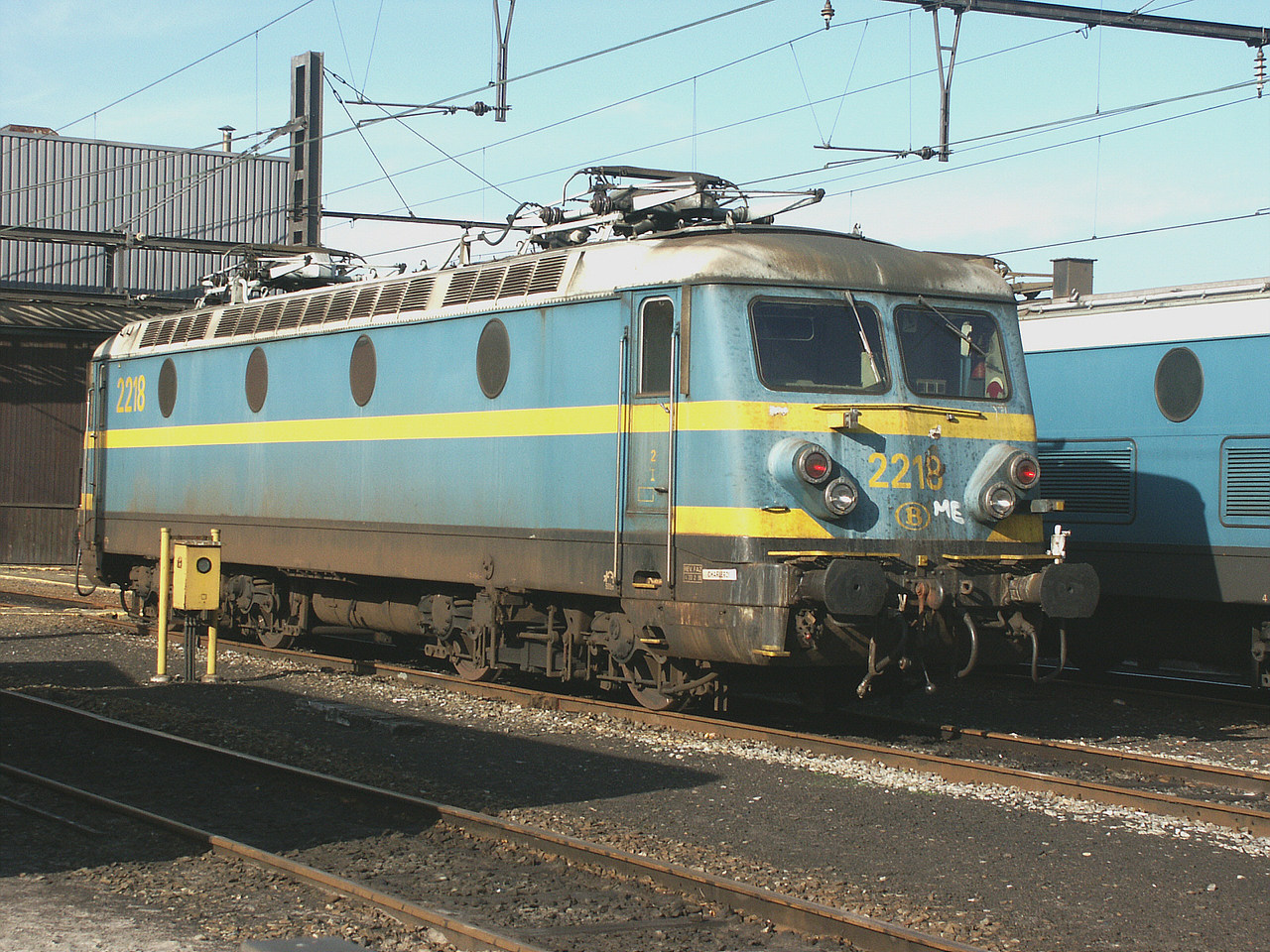

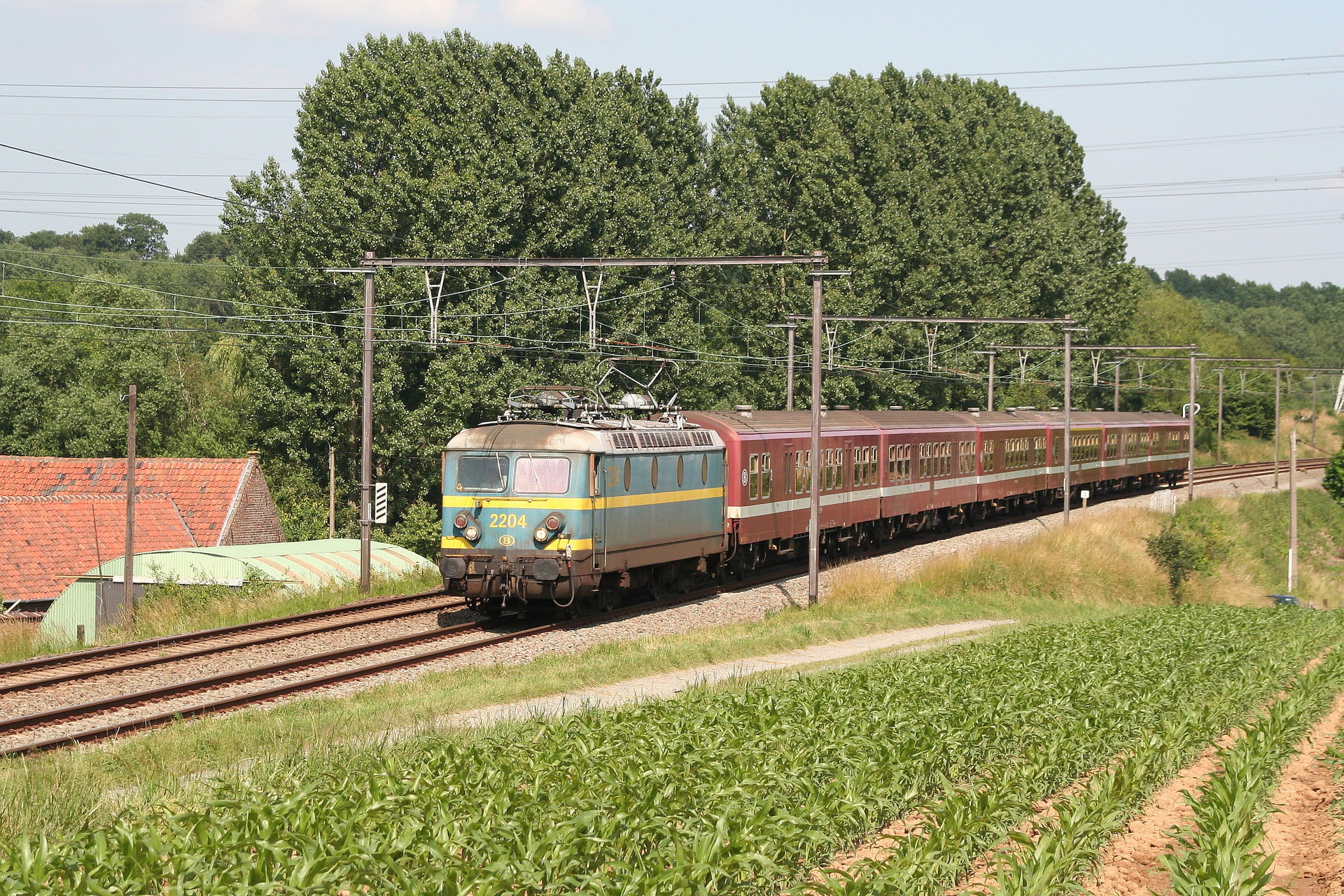

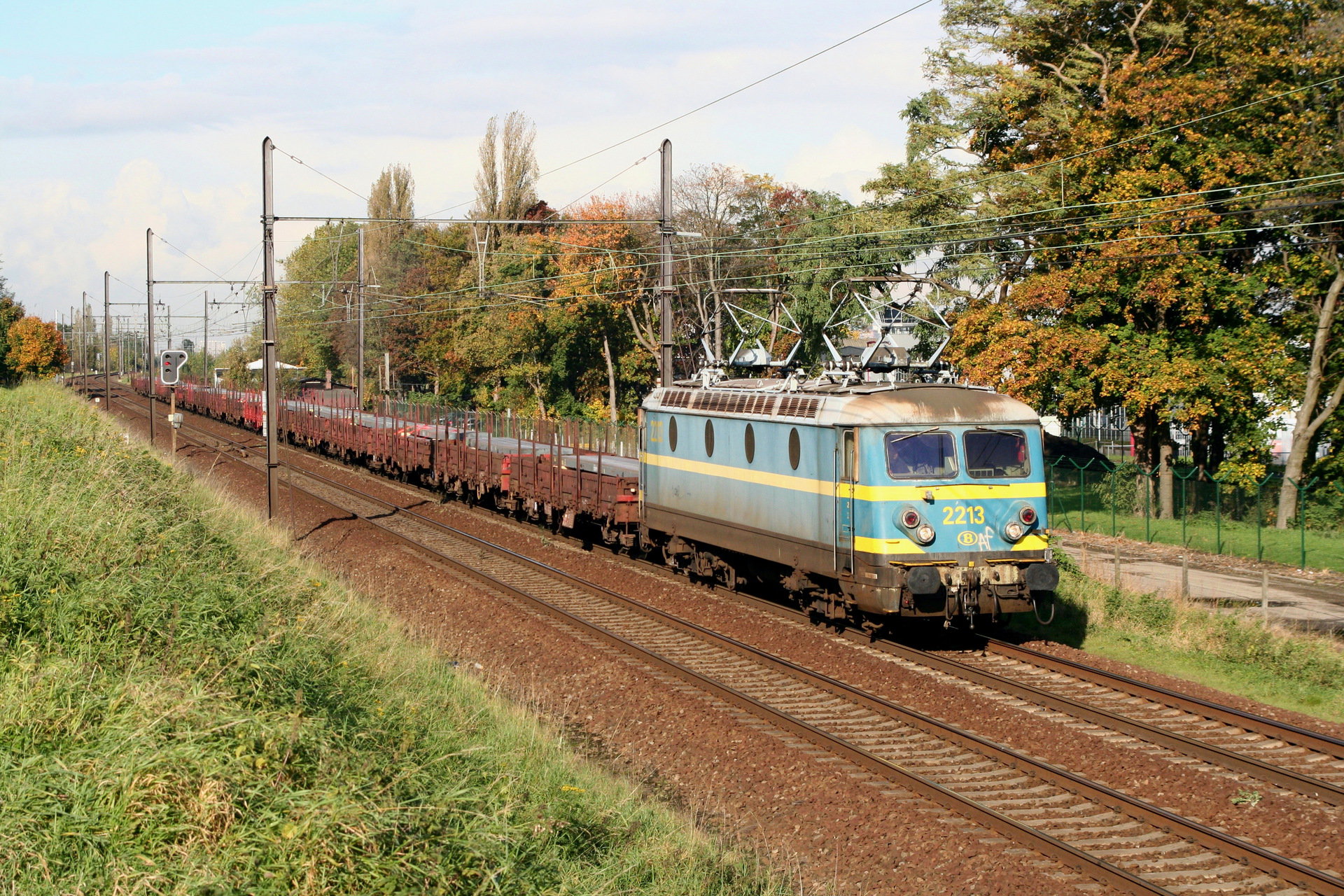

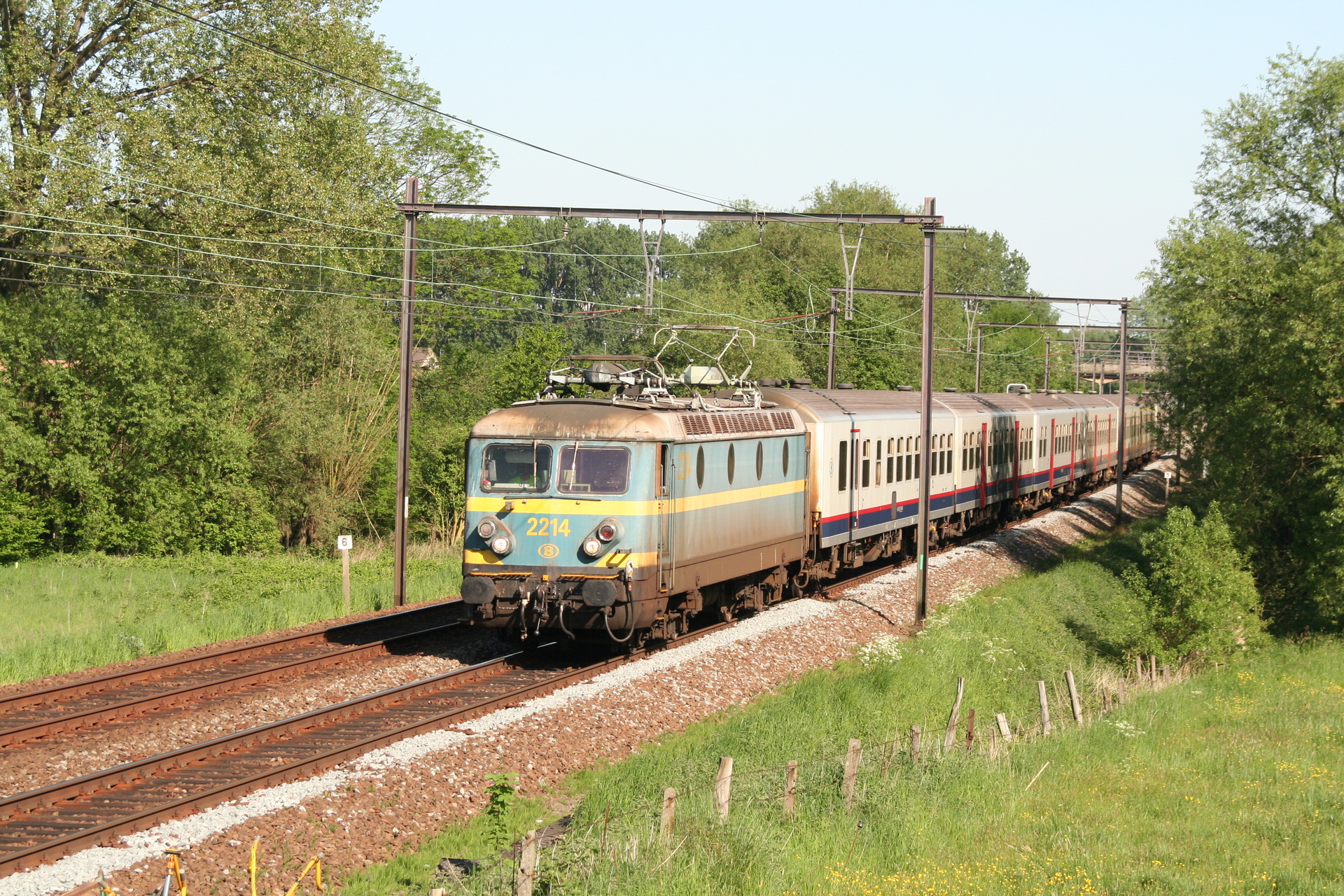

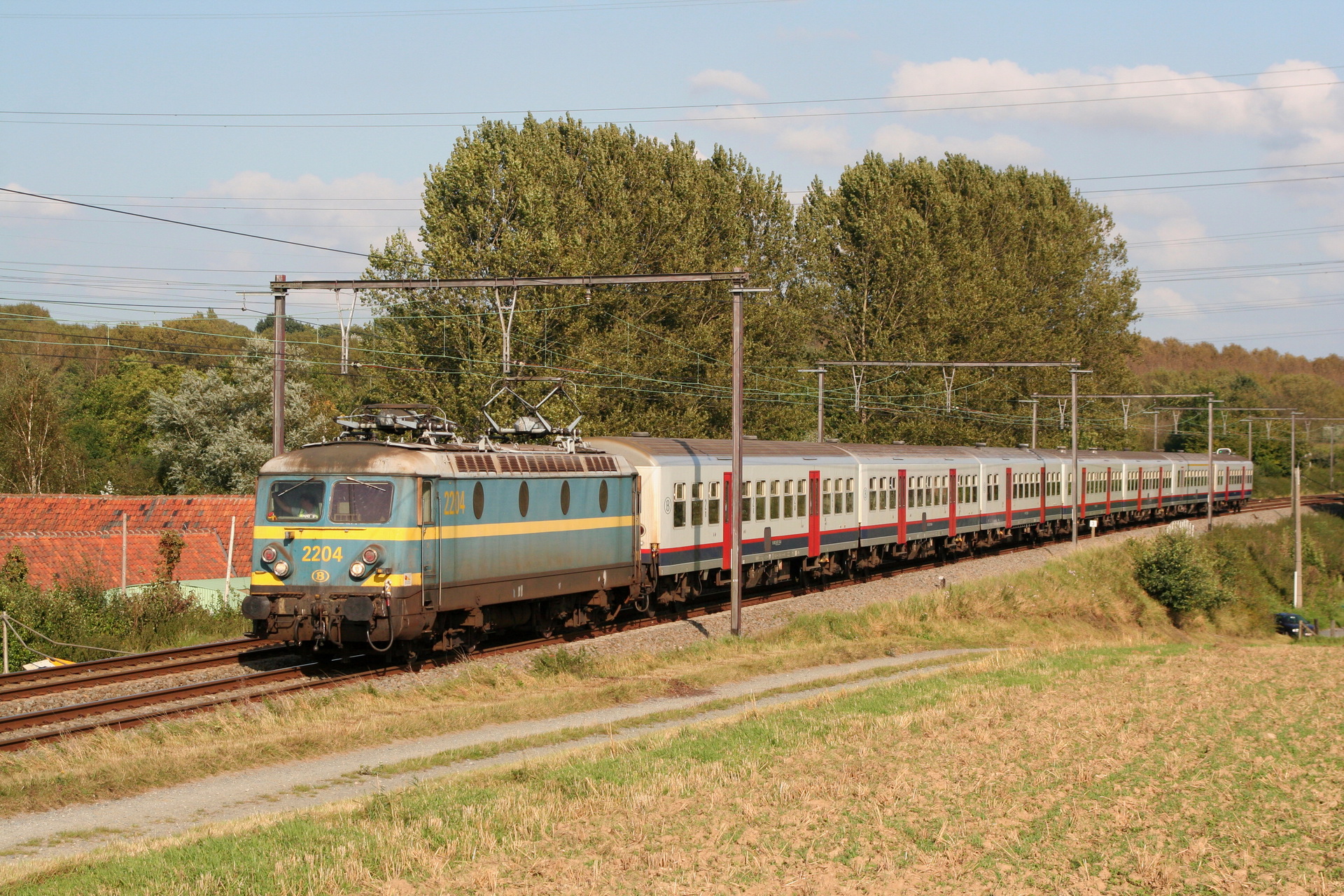

ACEC SNCB 22 photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
