Locomotive-Specs
Ansaldo HZ 1061.1 – photo 1© trainspo.com
Electric locomotive

Ansaldo HZ 1061.1

Built by Breda, Ansaldo

Top speed
120 km/h
75 mph
Power output
2,875 kW
3,855 hp
Weight
108 t
238,099 lb
Length
19.44 m
63 ft 9 in
Track gauge
1,435 mm
Standard gauge
Years built
1968
10 units

Overview of the Ansaldo HZ 1061.1

Discover the HZ 1061.1, a powerful electric locomotive serving Croatian Railways.

This robust machine, built by Breda and Ansaldo in 1968, boasts a distinctive Bo'Bo'Bo' axle arrangement and a length of 19.44 meters.

With a top speed of 120 km/h and a weight of 108 tons, it is powered by a 2875 kW electric system operating on 3 kV DC.

The HZ 1061.1 offers an impressive tractive effort of 360 kN, making it an efficient and reliable workhorse for standard gauge railways of 1435 mm.

Ansaldo HZ 1061.1 technical specifications

Value
SeriesE636
Built byBreda, Ansaldo · 196810 units
Top speed120 km/h75 mph
Power output2,875 kW3,855 hp
Tractive effort360 kN80,931 lbf
Electric systems
  • 3 kV DC
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangementBo'Bo'Bo'
Length19.44 m63 ft 9 in
Width3 m9 ft 10 in
Height3.38 m11 ft 1 in
Weight108 t238,099 lb
Source of the data: en.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the Ansaldo HZ 1061.1

Railway companies that have operated the HZ 1061.1, with the class designation used by each of them.

OperatorClassCountry
Croatian RailwaysHŽ 1061.1Croatia

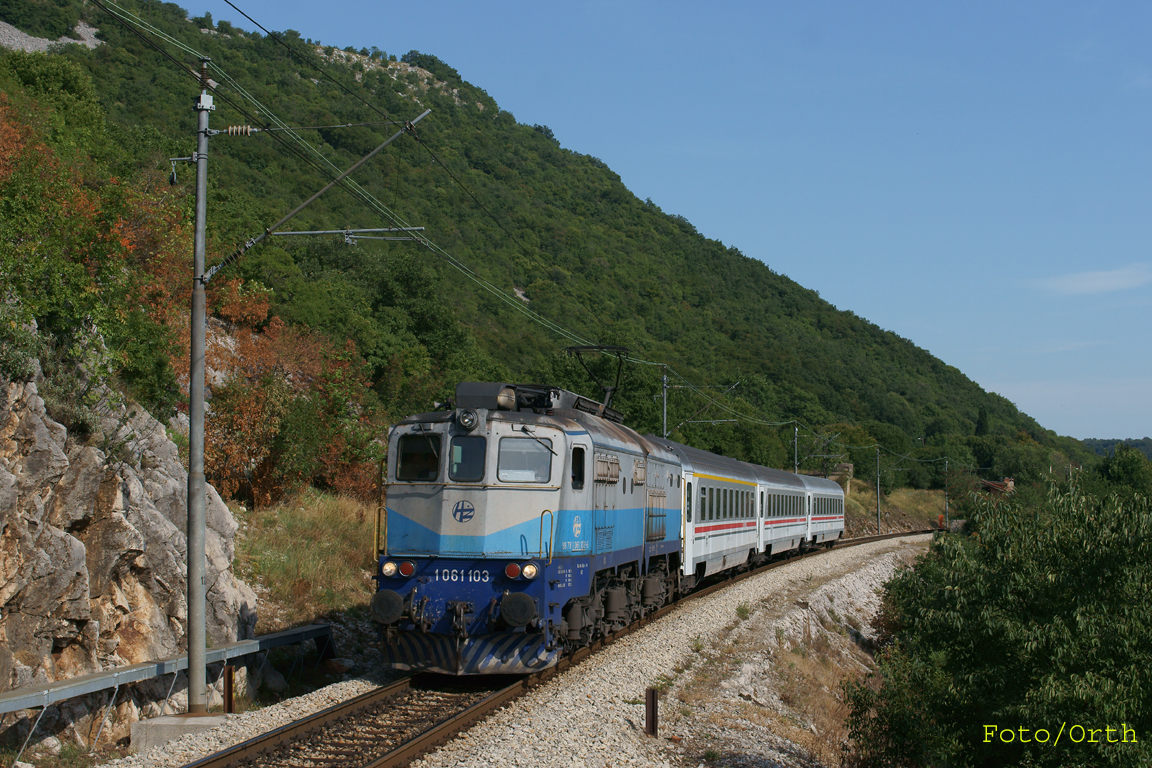

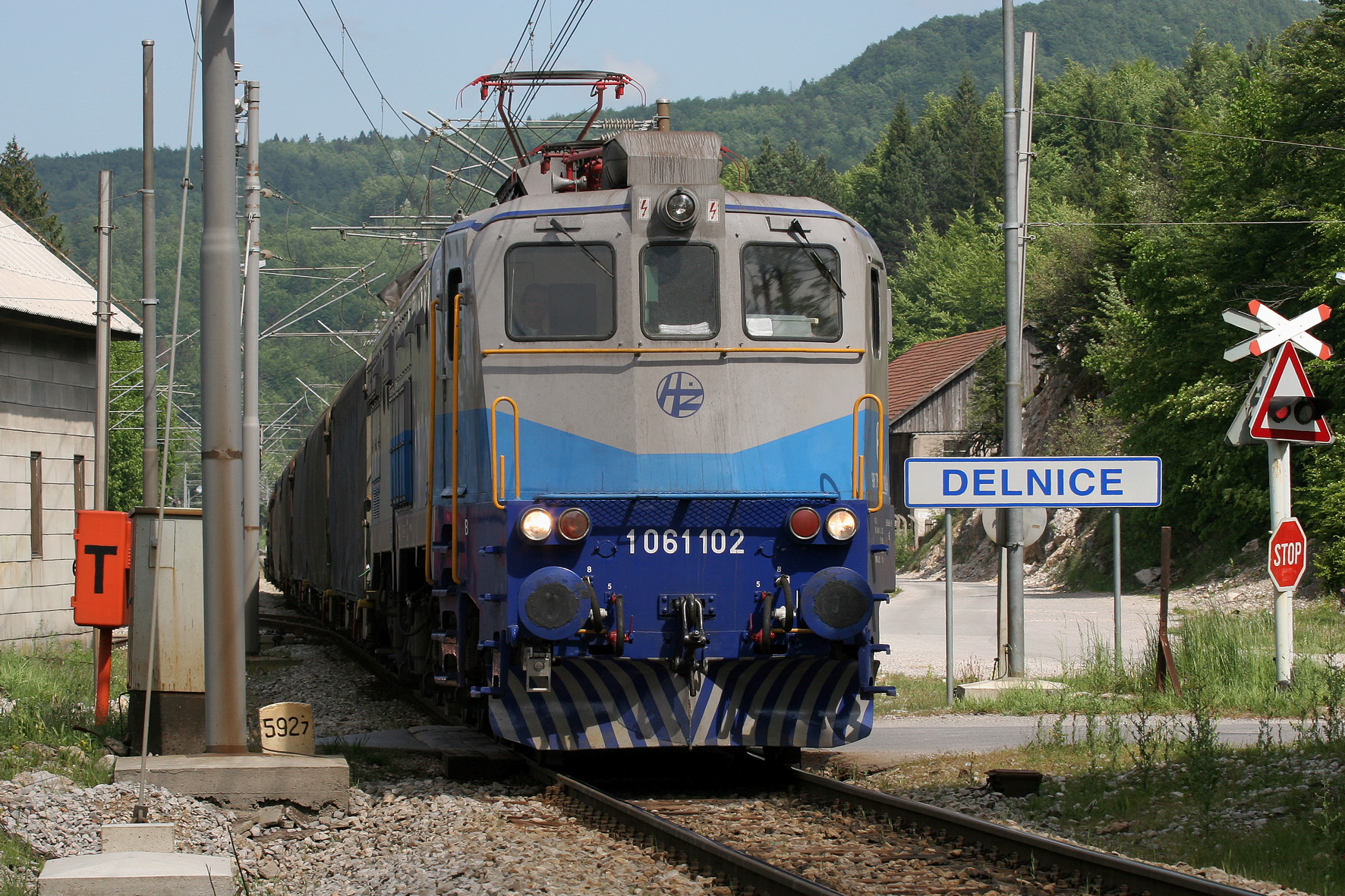

Ansaldo HZ 1061.1 photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
