Locomotive-Specs
Bombardier ALP-46A – photo 1© trainspo.com
Electric locomotive

Bombardier ALP-46A

Built by Bombardier

Top speed
201 km/h
125 mph
Power output
5,600 kW
7,510 hp
Weight
92 t
202,825 lb
Length
19.9 m
65 ft 3 in
Track gauge
1,435 mm
Standard gauge
Years built
2009–2011

Overview of the Bombardier ALP-46A

Discover the powerful ALP-46A electric locomotive, a Bombardier masterpiece built between 2009 and 2011.

Operating with New Jersey Transit in the United States, this locomotive exemplifies advanced railway engineering.

With a top speed of 201 km/h and an impressive 5600 kW power output, the ALP-46A is engineered to meet the demands of modern rail transport.

Its robust construction, weighing 92 tons and measuring 19.9 meters in length, ensures reliability and exceptional performance.

The ALP-46A is compatible with various AC electrical systems, offering versatility and adaptability to different rail infrastructures.

This locomotive stands as a prime example of cutting-edge electric technology in the railway sector.

Bombardier ALP-46A technical specifications

Value
SeriesDB 101
Built byBombardier · 2009–2011
Top speed201 km/h125 mph
Power output5,600 kW7,510 hp
Tractive effort316 kN71,040 lbf
Electric systems
  • 12 kV AC 25 Hz
  • 12.5 kV AC 60 Hz
  • 25 kV AC 60 Hz
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangementBo'Bo'
Length19.9 m65 ft 3 in
Width2.95 m9 ft 8 in
Weight92 t202,825 lb
Source of the data: en.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the Bombardier ALP-46A

Railway companies that have operated the ALP-46A, with the class designation used by each of them.

OperatorClassCountry
New Jersey TransitNJT ALP-46AUnited States

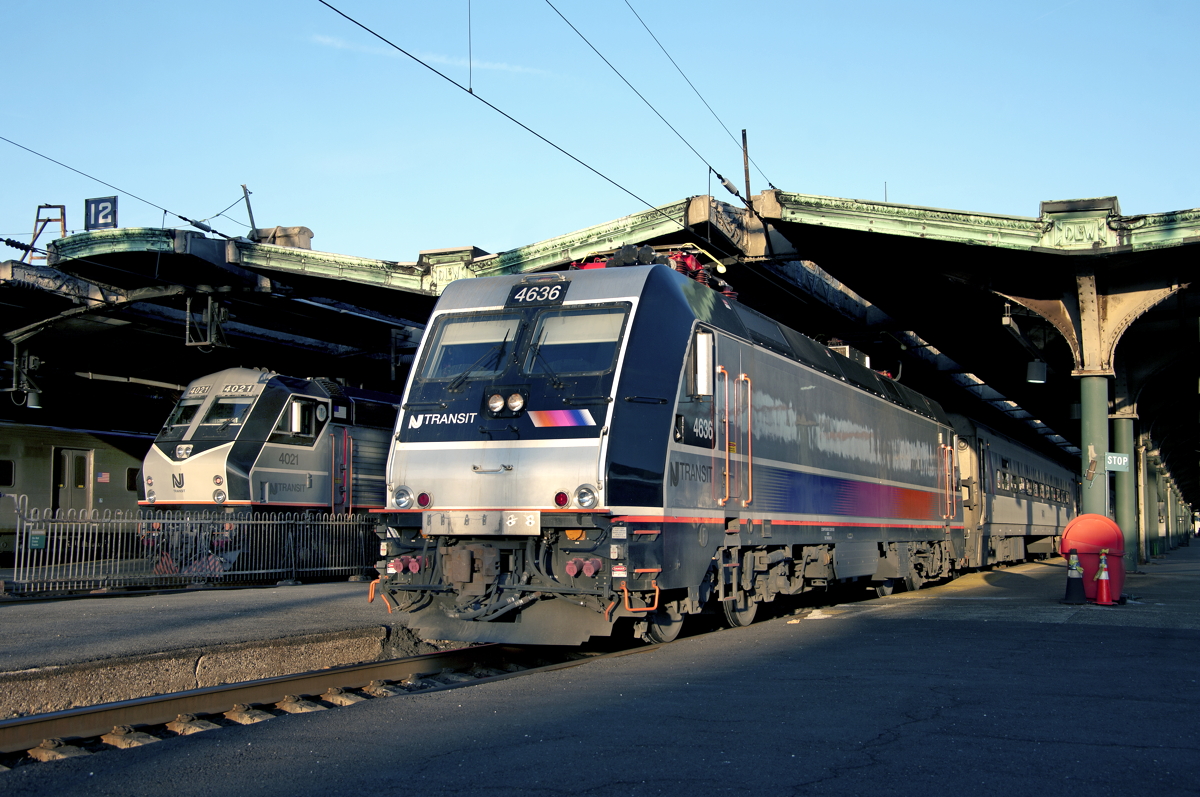

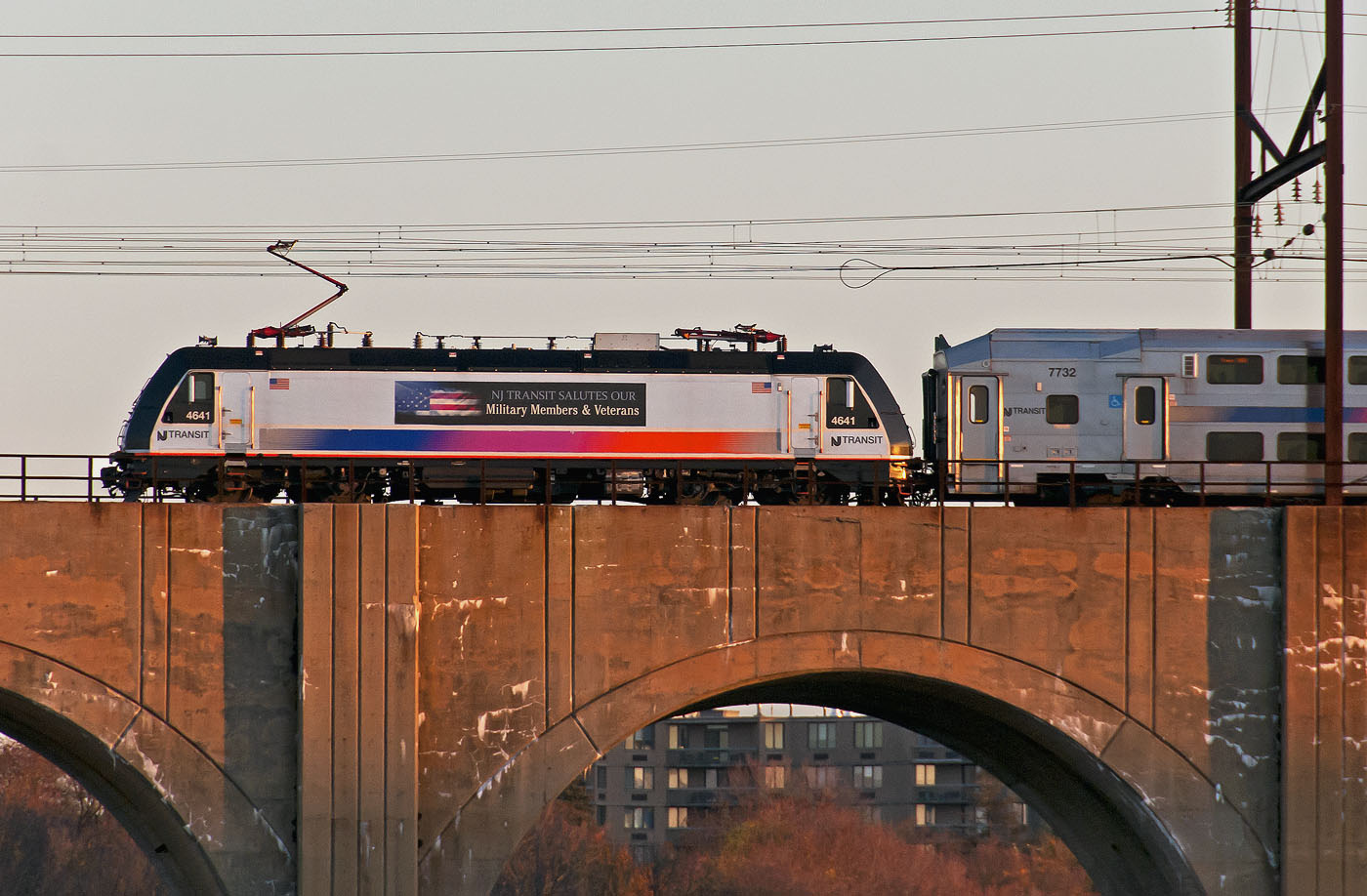

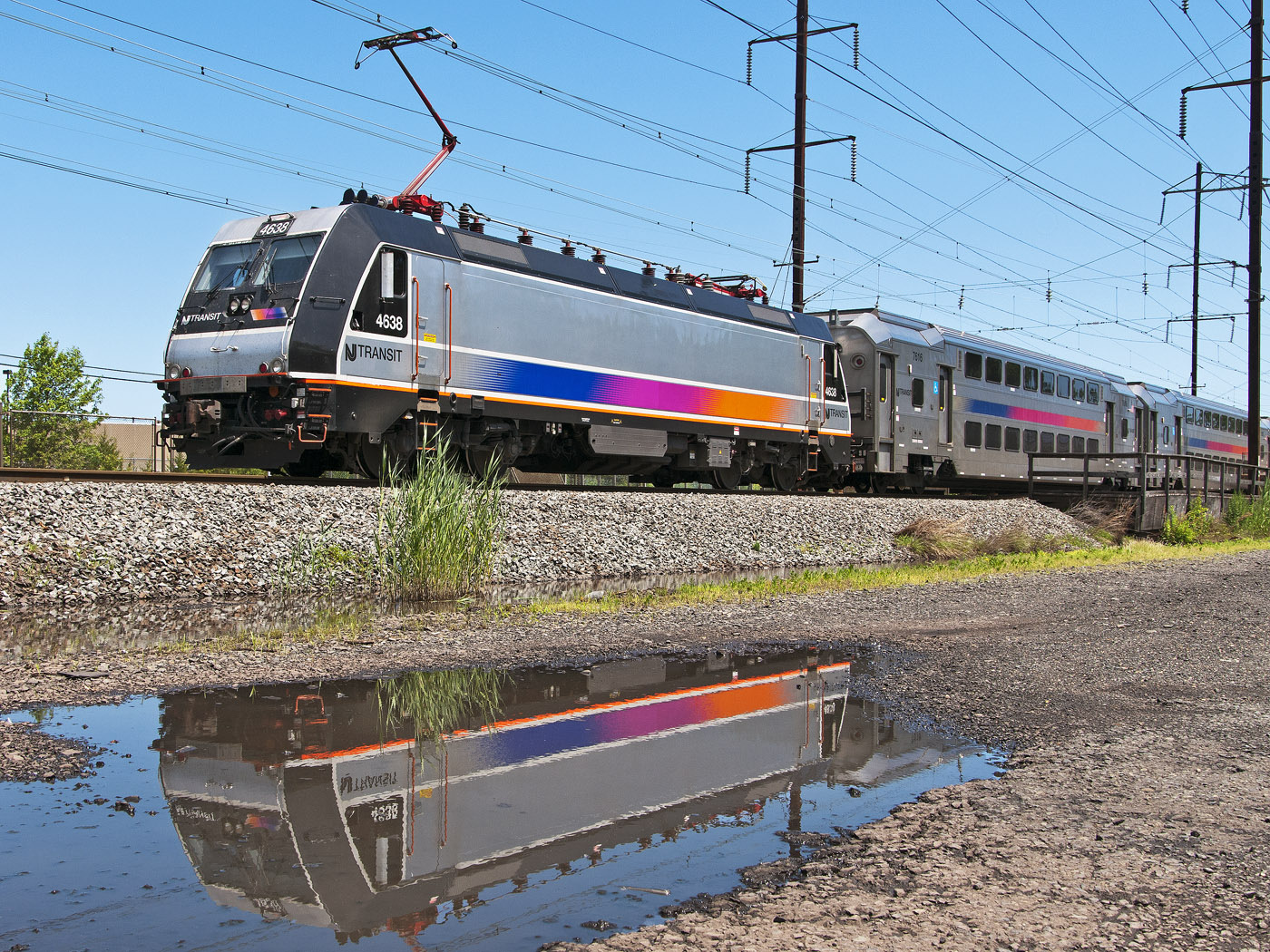

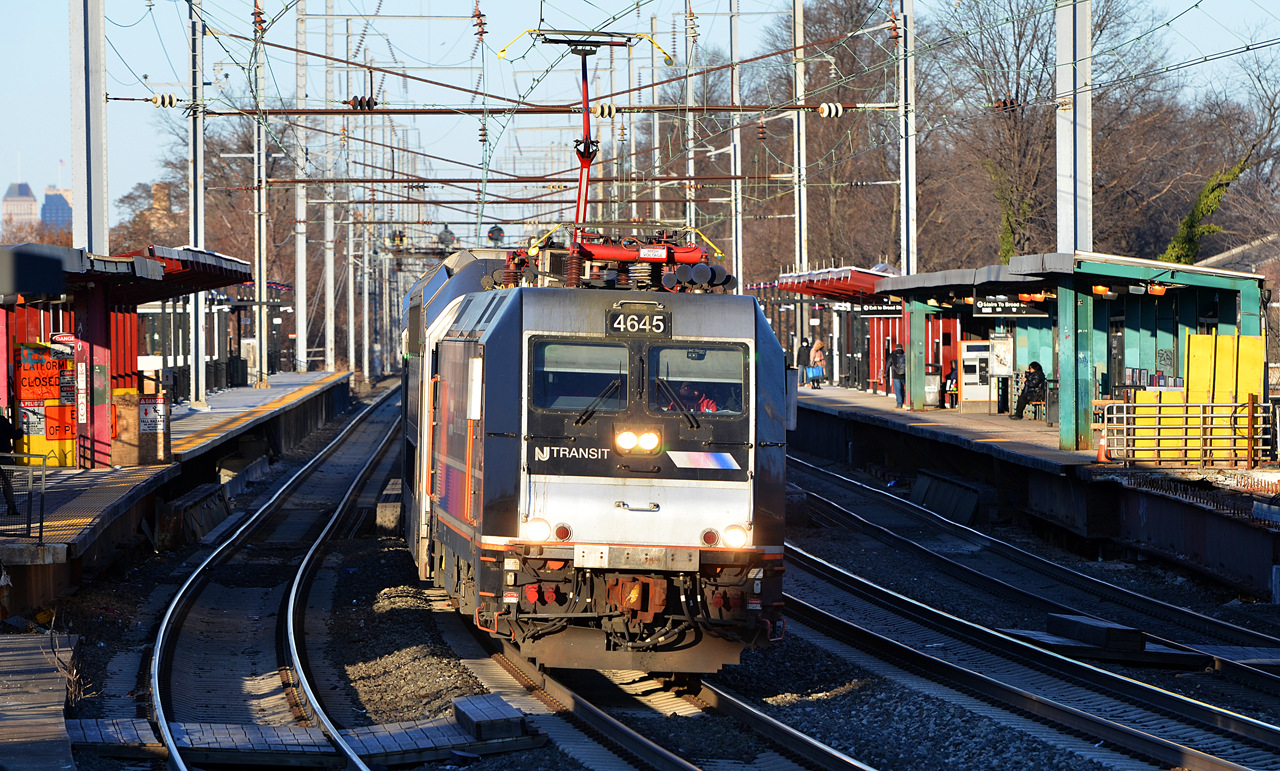

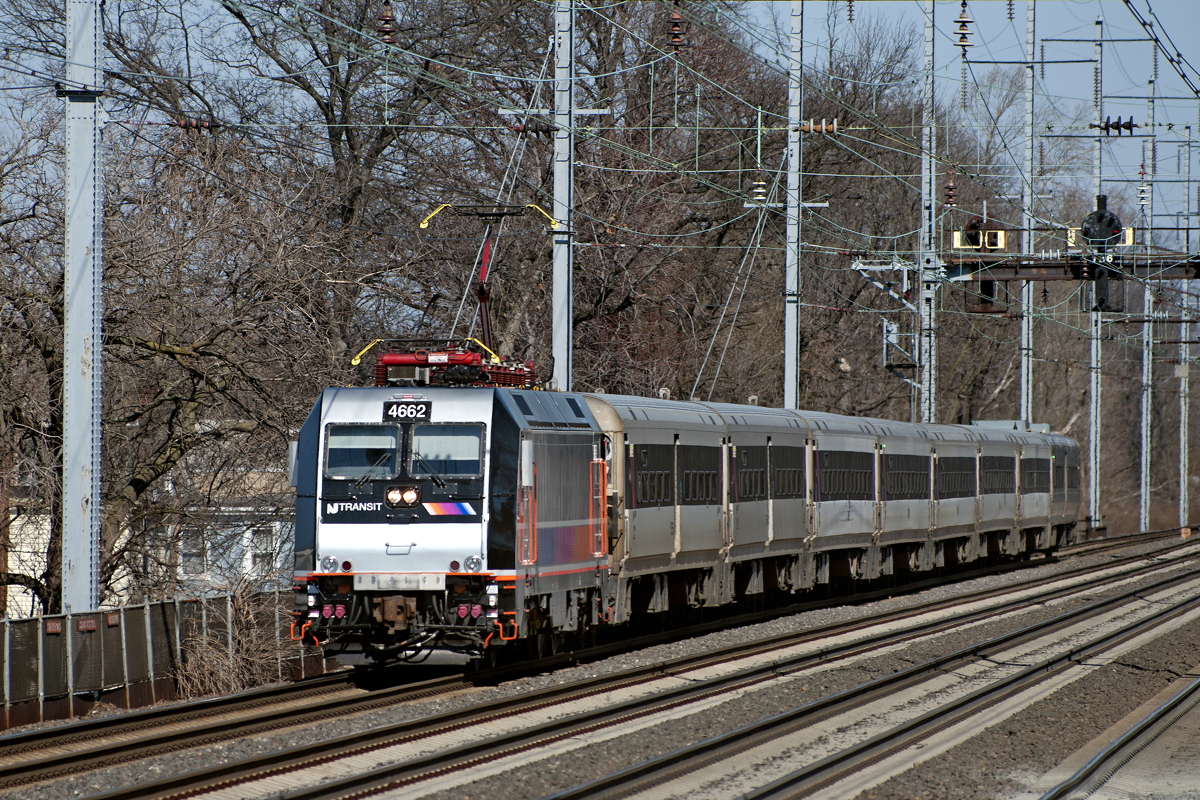

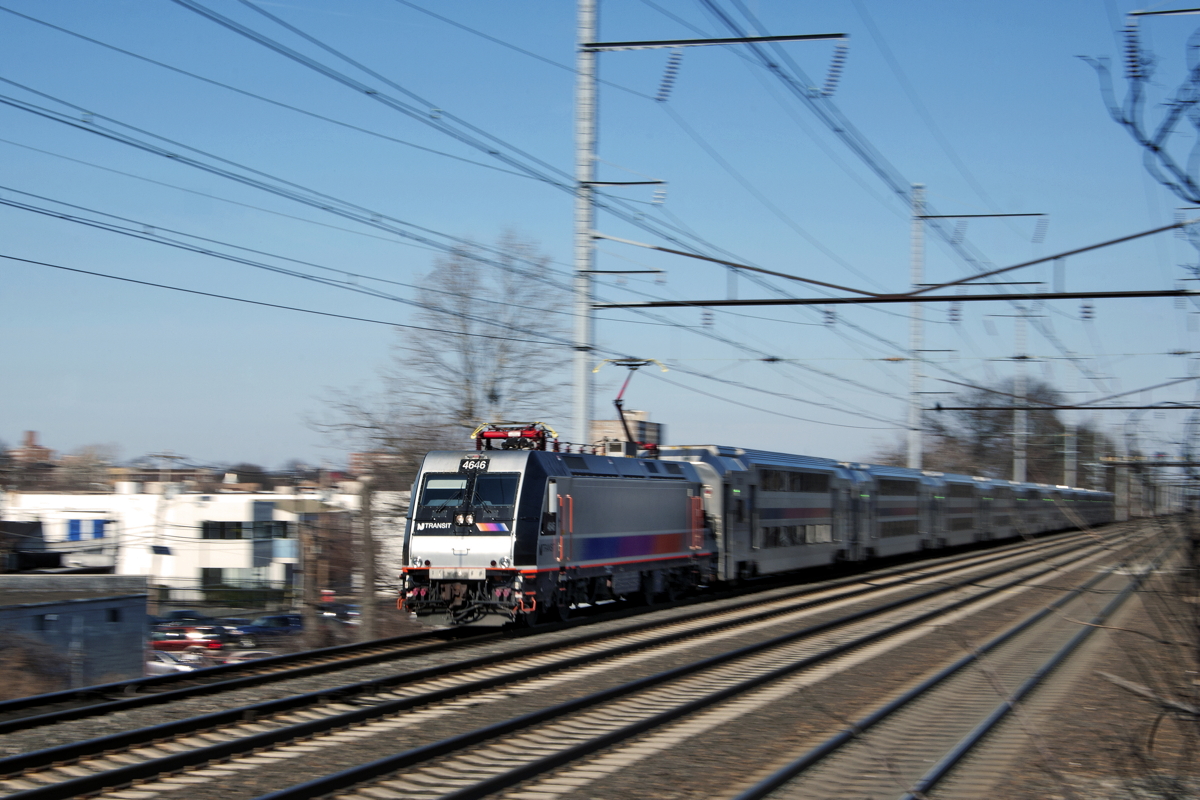

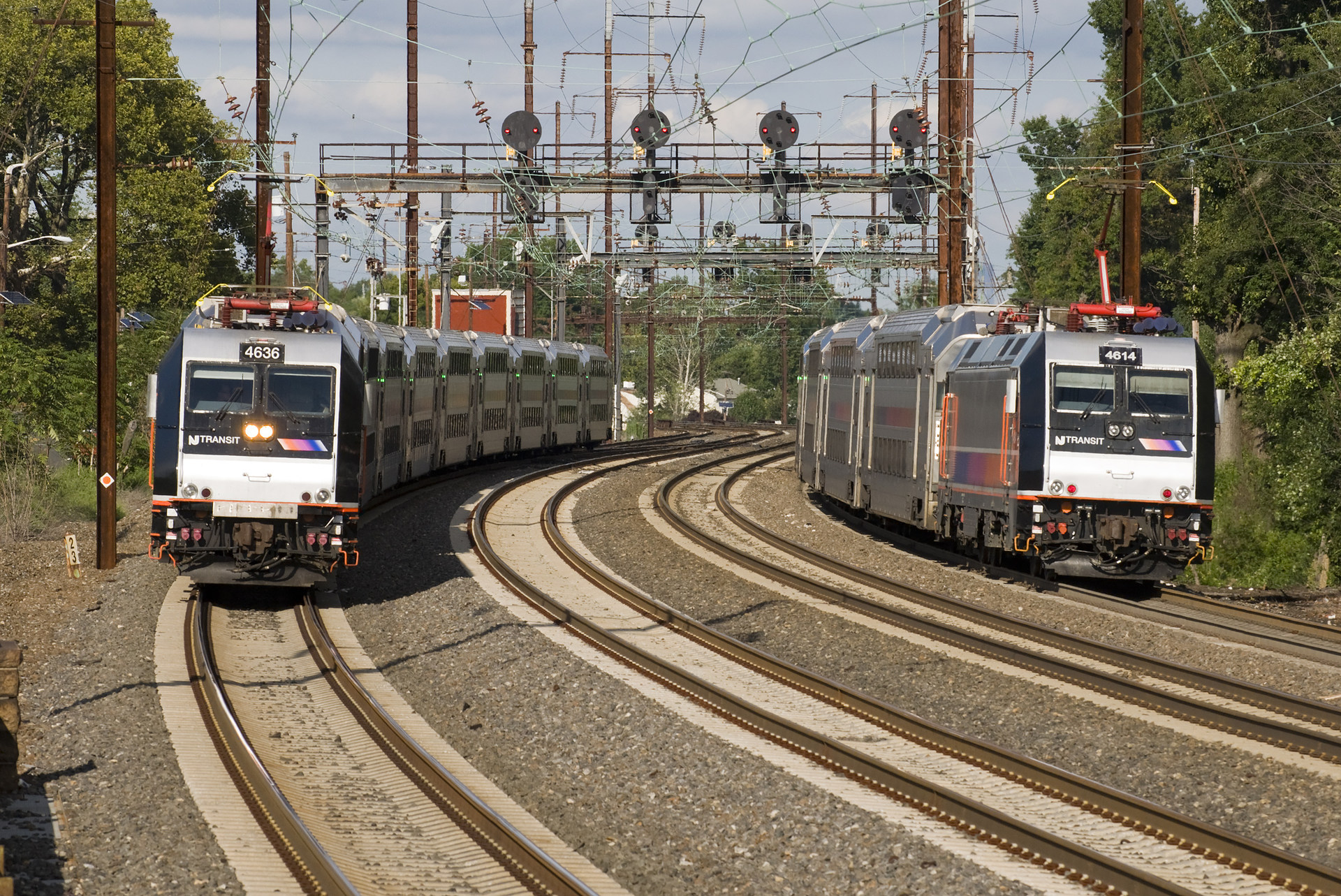

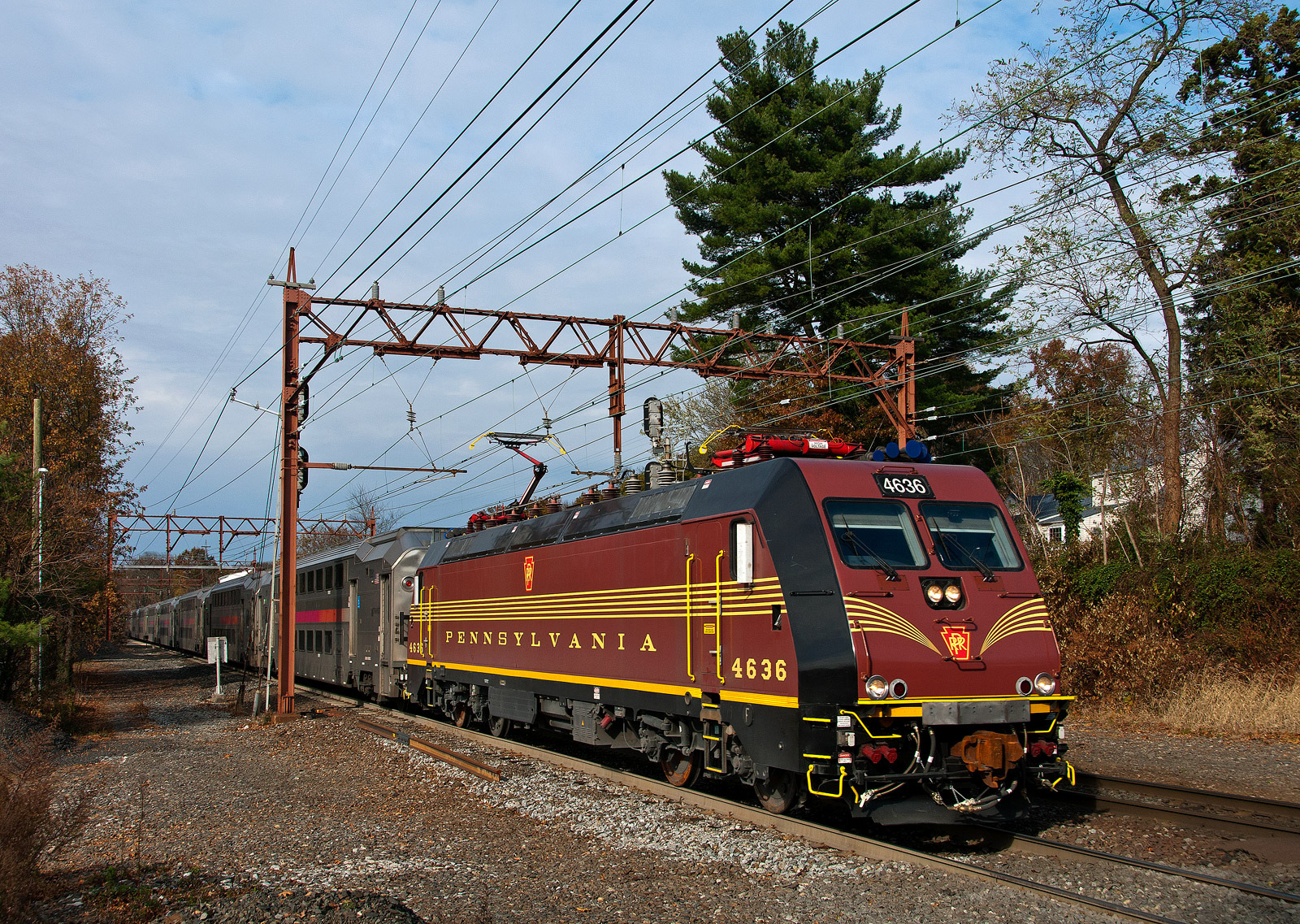

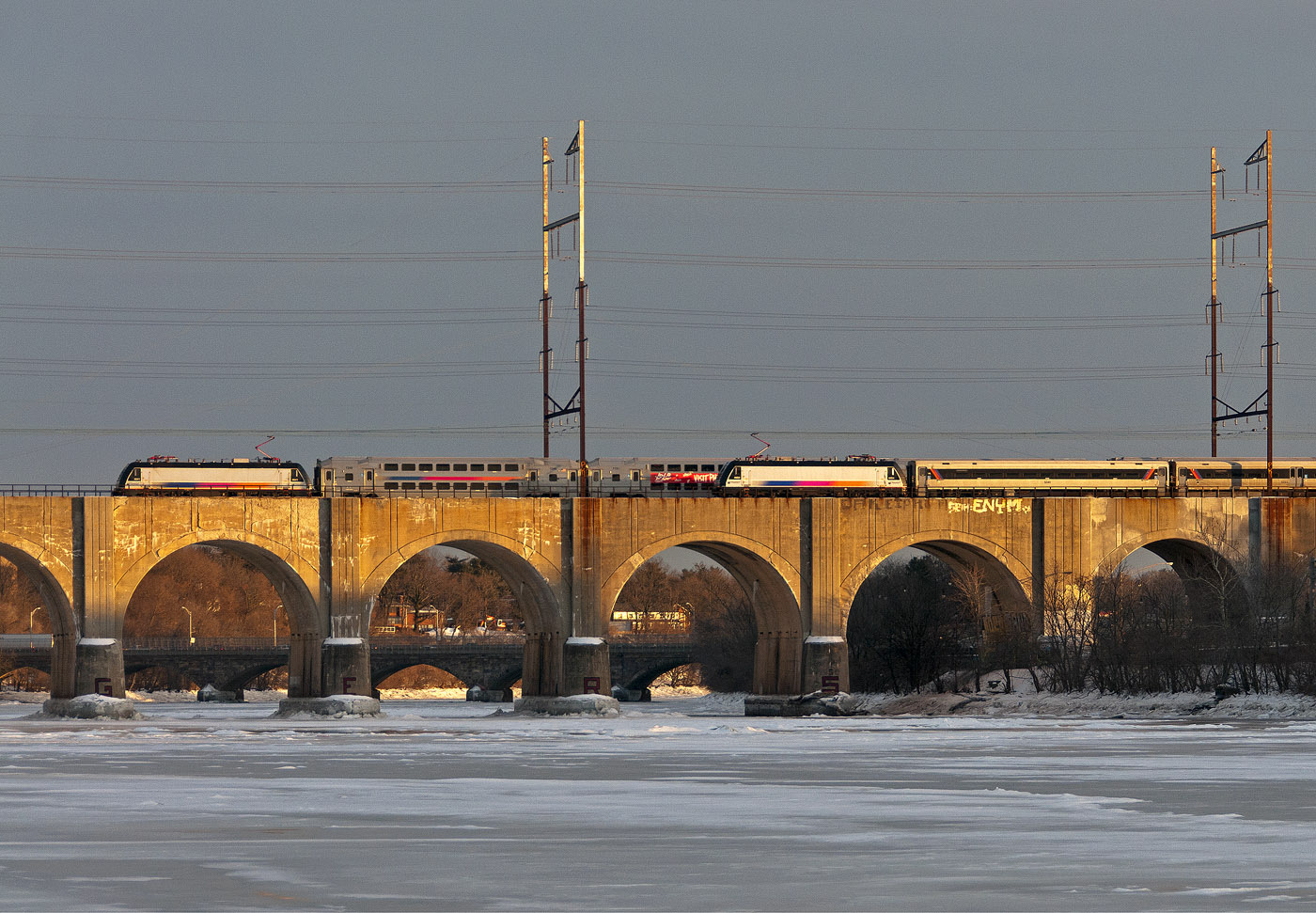

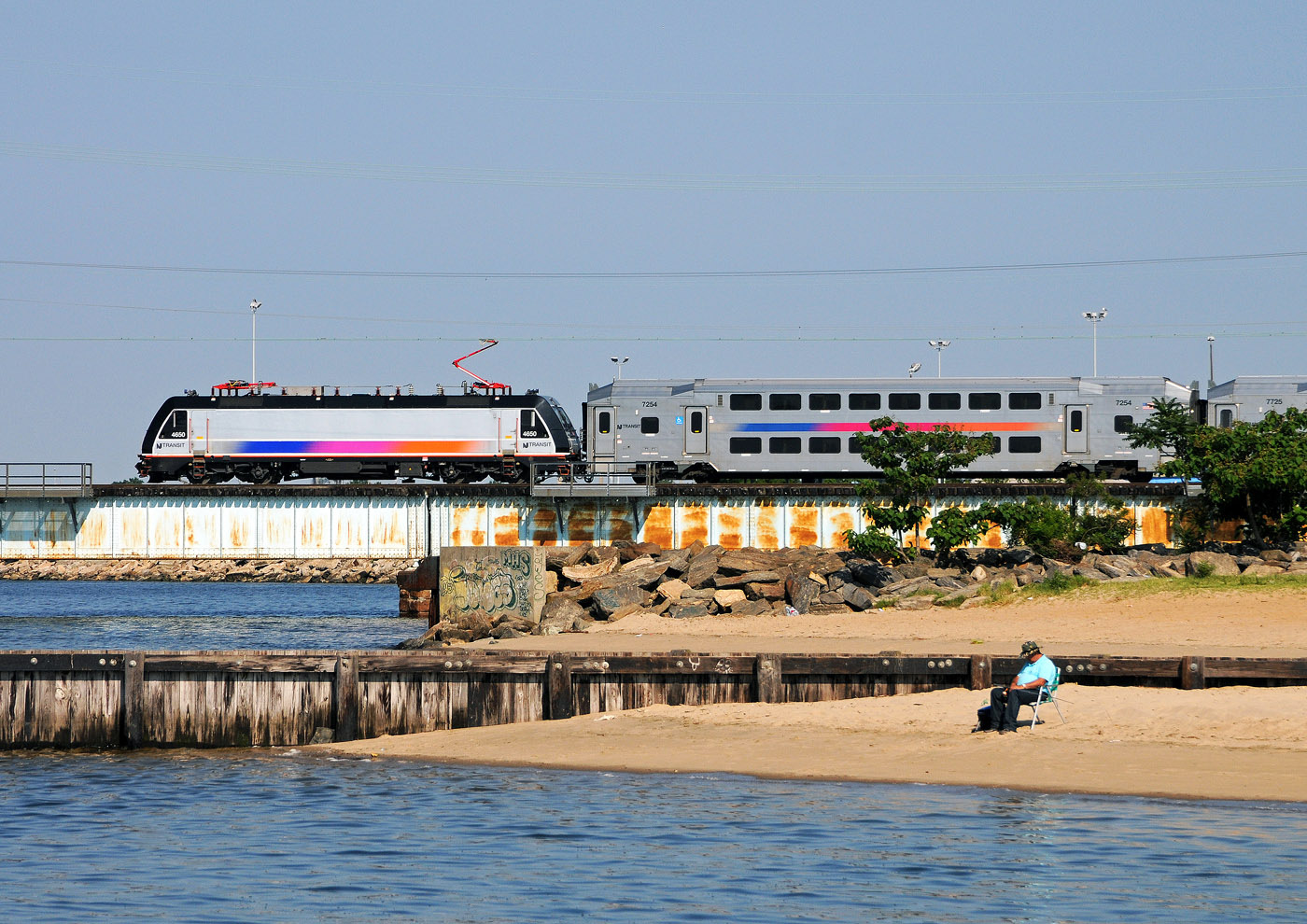

Bombardier ALP-46A photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
