CAF New Zealand AM

Built by CAF

Top speed

110 km/h

68 mph

Weight

132 t

291,010 lb

Length

71.8 m

235 ft 7 in

Track gauge

1,067 mm

Cape gauge

Years built

2013–2020

72 units

Axle arrangement

Bo'Bo'+2'2'+Bo'Bo

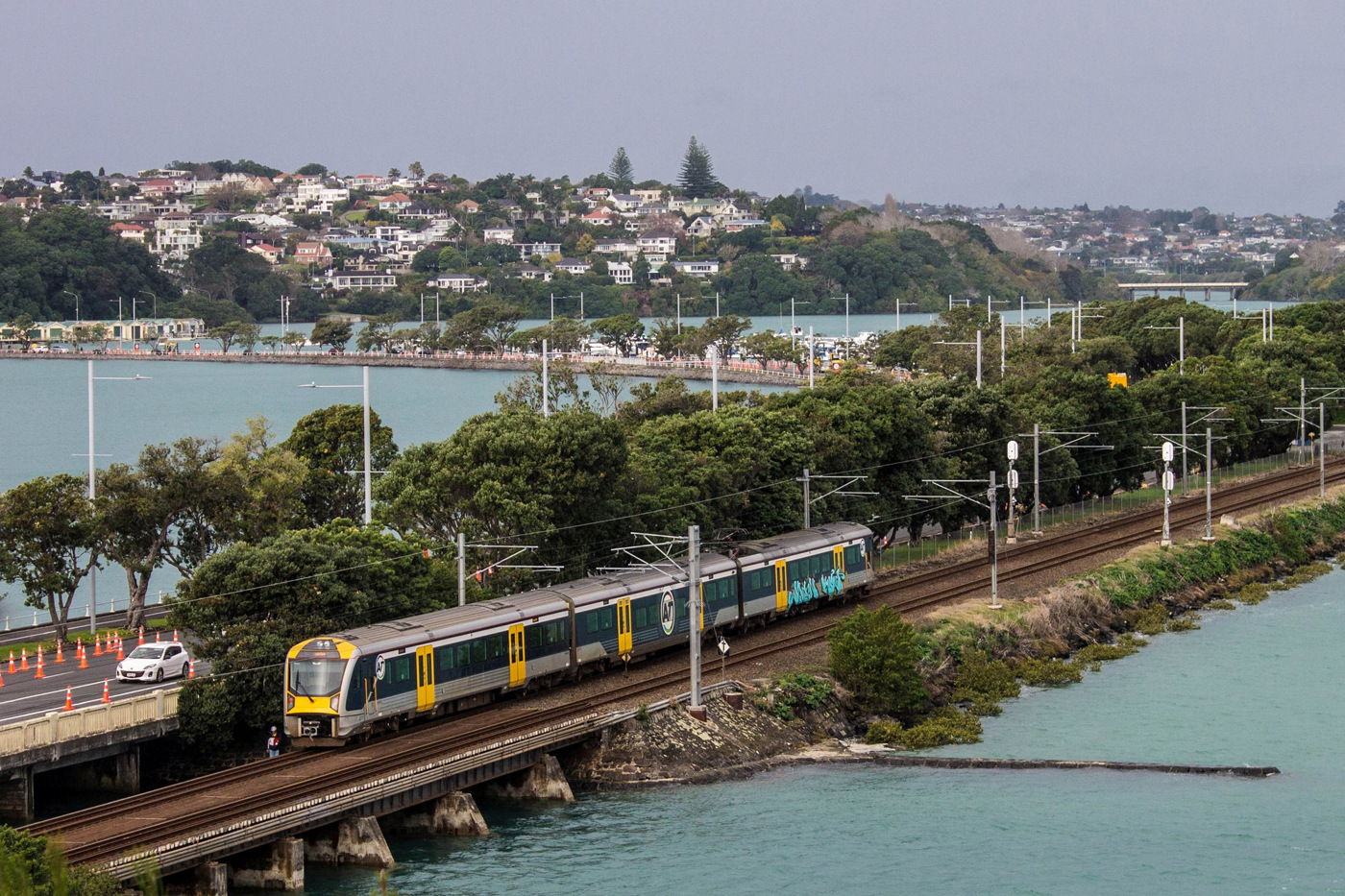

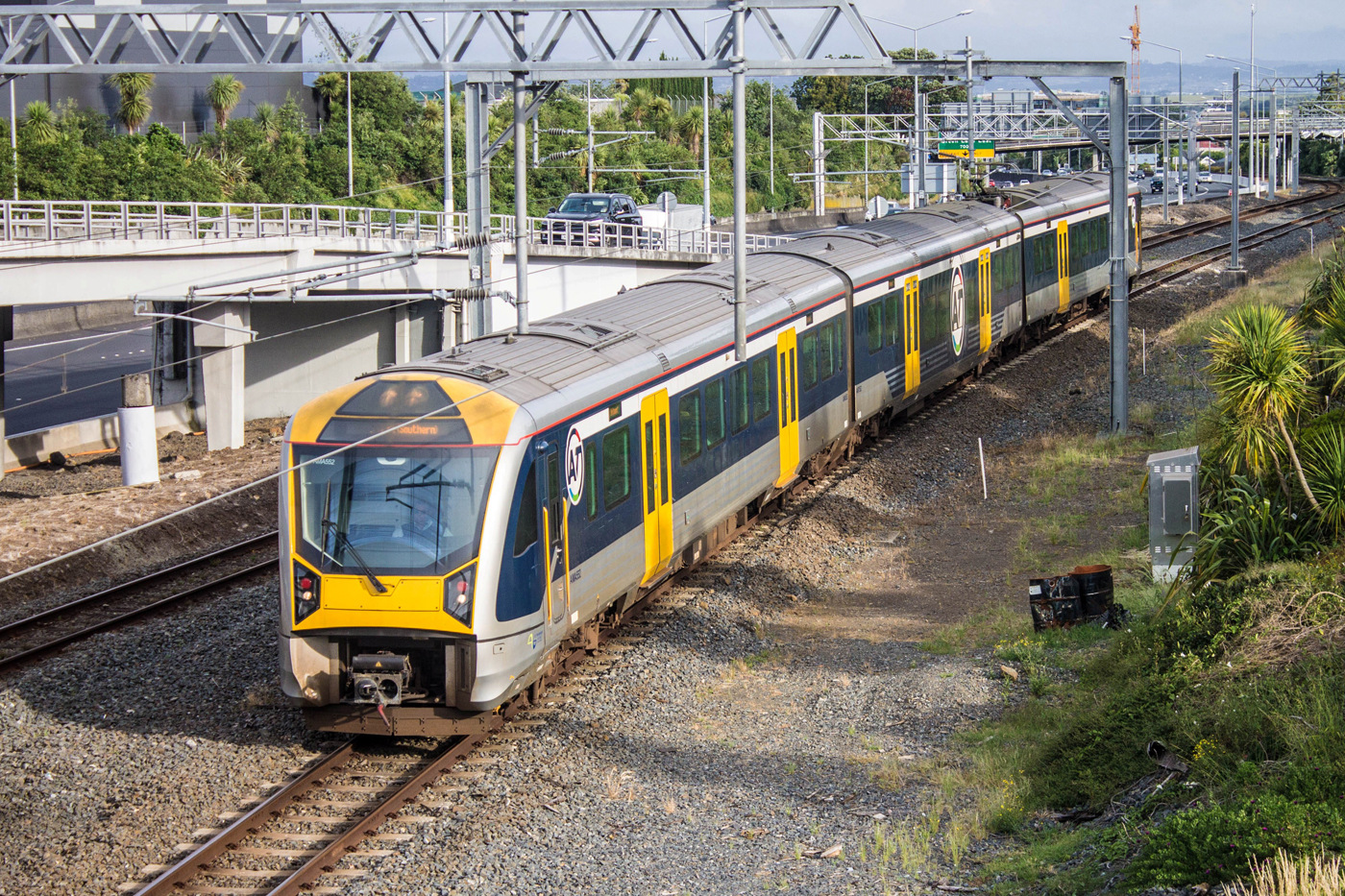

Overview of the CAF New Zealand AM

Explore the New Zealand AM EMU, a modern electric multiple unit designed for passenger transport in New Zealand.

These trains, built by CAF between 2013 and 2020, operate on a 1067 mm gauge and reach a top speed of 110 km/h.

With a formation of 3 cars and a capacity of 230 seats, the AM EMU is an efficient and comfortable choice for urban commuting.

Featuring advanced 25 kV AC 50 Hz electric systems and a total train length of 71.8 meters, these units are a significant part of Auckland Transport's fleet.

CAF New Zealand AM technical specifications

	Value	Imperial / US
Series	CxK
Built by	CAF · 2013–202072 units
Top speed	110 km/h68 mph	68 mph
Electric systems	25 kV AC 50 Hz (1520 kW)
Track gauge	1,067 mmCape gauge3 ft 6 in	3 ft 6 in
UIC axle arrangement	Bo'Bo'+2'2'+Bo'Bo
Formation	3 cars (2M1T)
Capacity	230 seats
Car length	24.3 m79 ft 9 in	79 ft 9 in
Train length	71.8 m235 ft 7 in	235 ft 7 in
Width	2.76 m9 ft 1 in	9 ft 1 in
Height	3.99 m13 ft 1 in	13 ft 1 in
Weight	132 t291,010 lb	291,010 lb
