CRRC Ziyang CKD9C

Built by Ziyang

Top speed

100 km/h

62 mph

Power output

5,300 kW

7,107 hp

Weight

276 t

608,475 lb

Length

44.48 m

145 ft 11 in

Track gauge

1,520 mm

Russian broad gauge

Years built

2005–2010

52 units

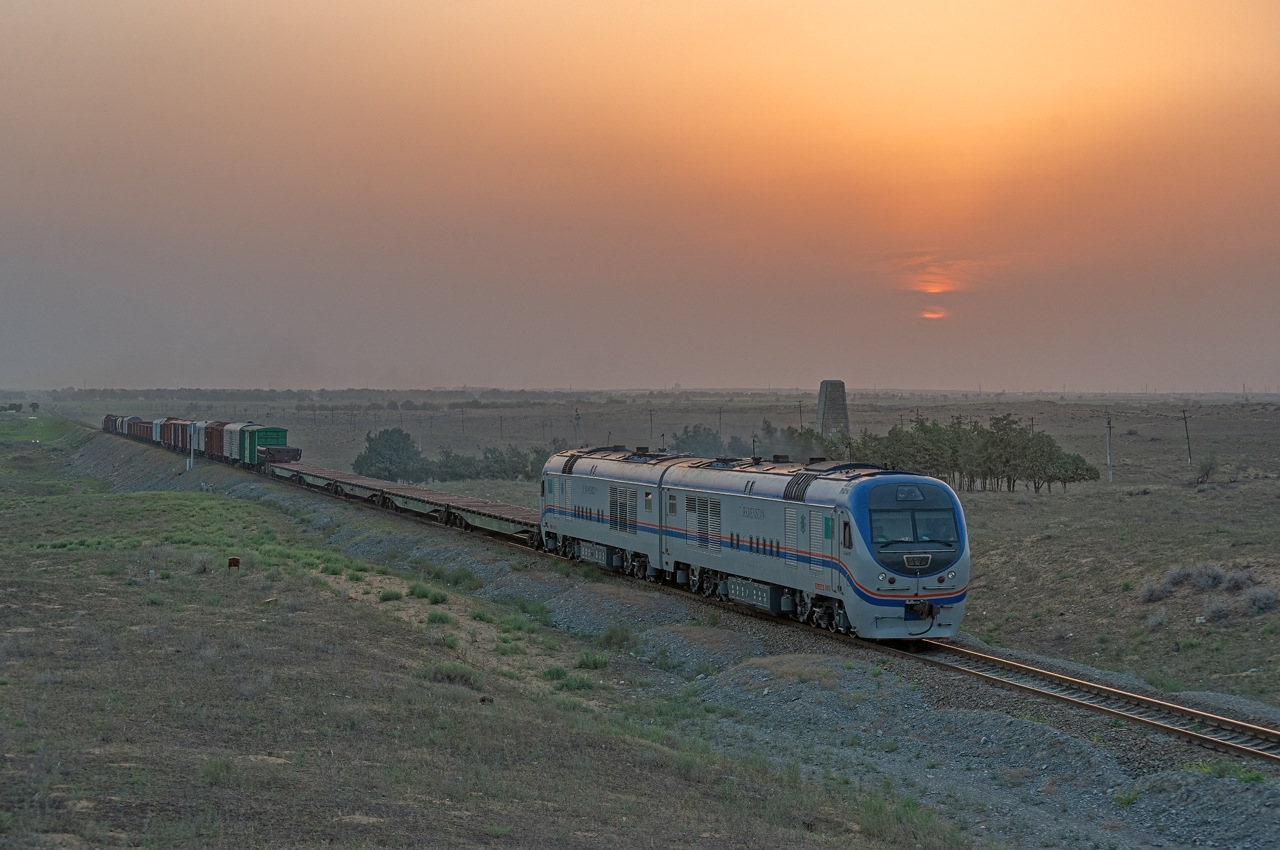

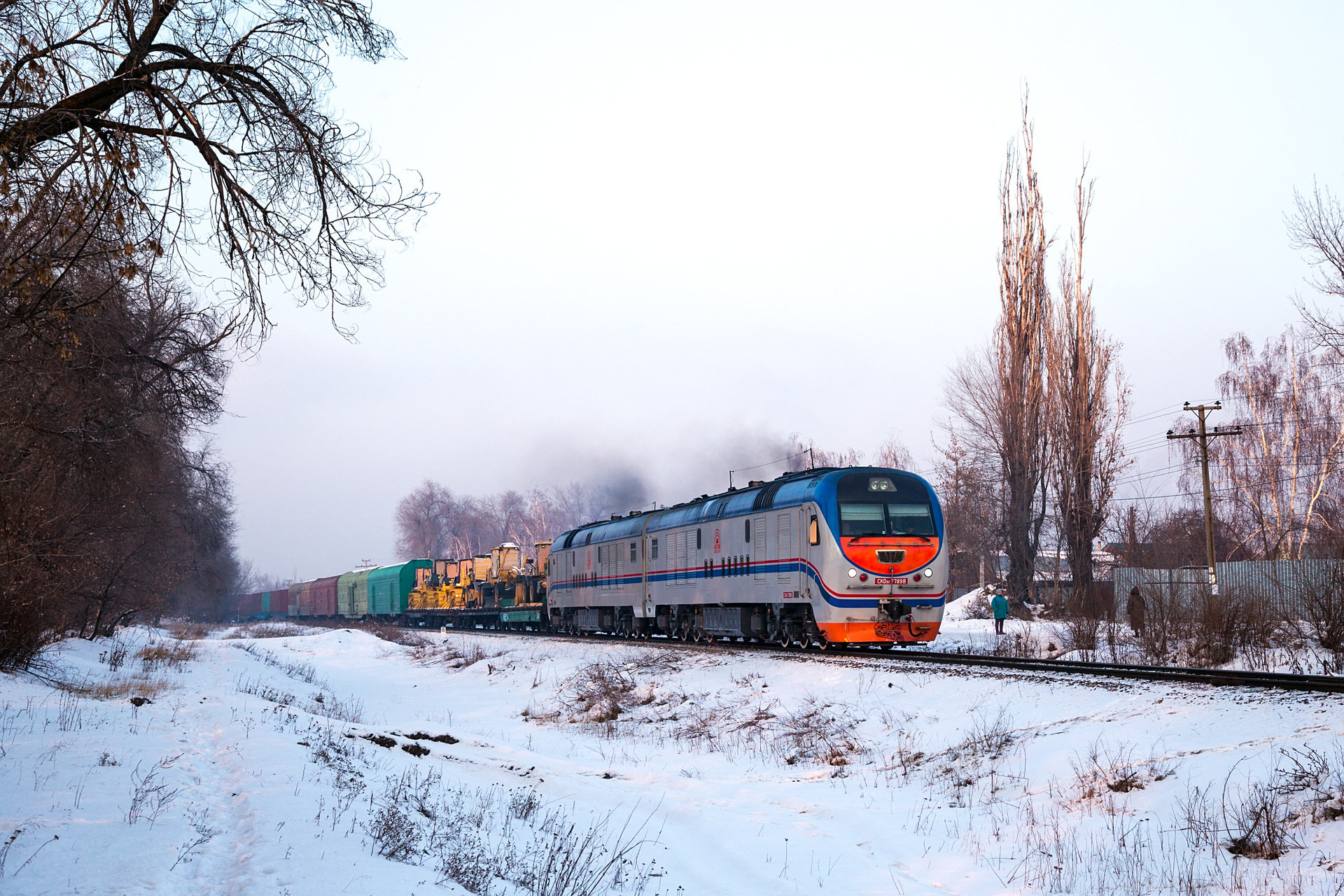

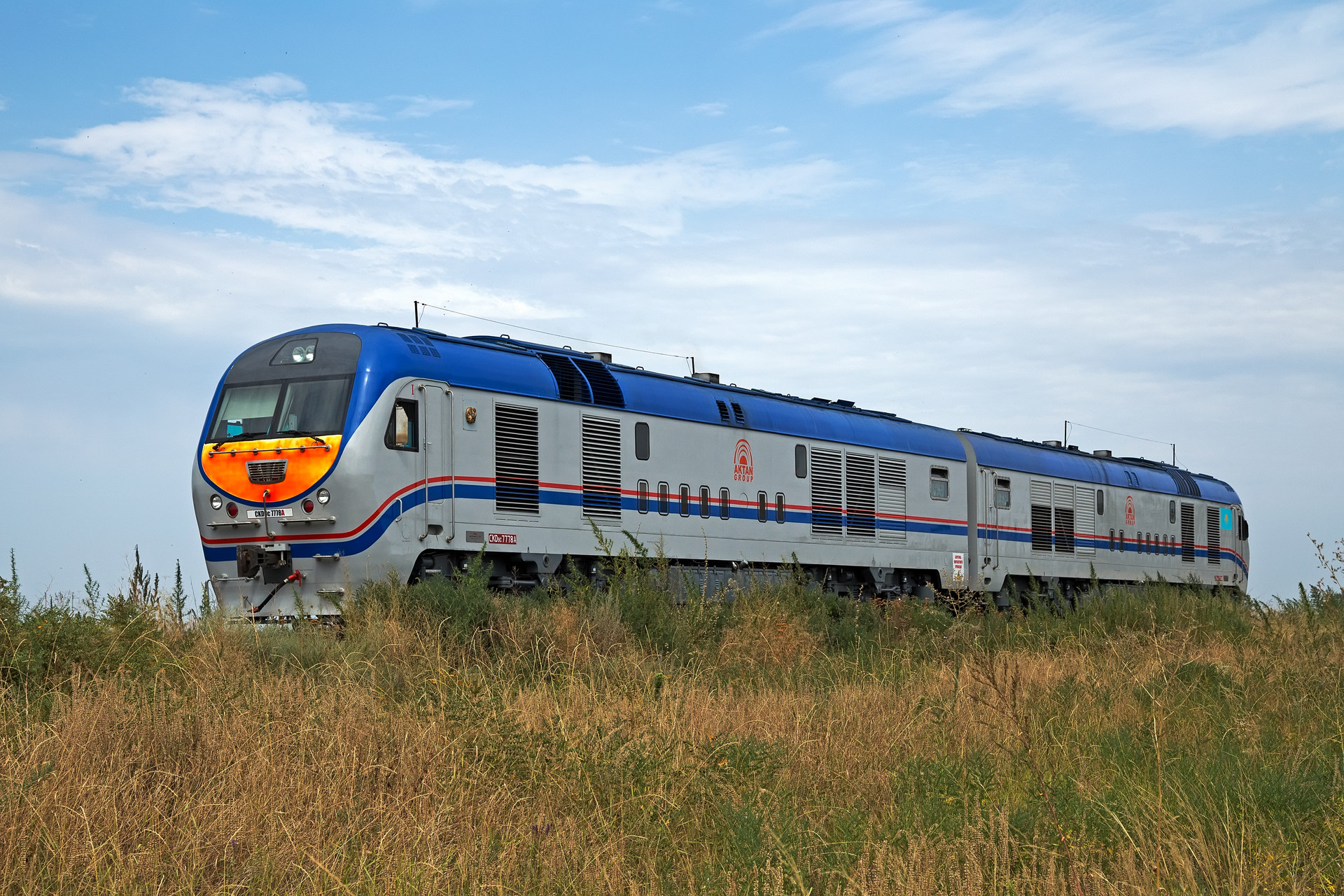

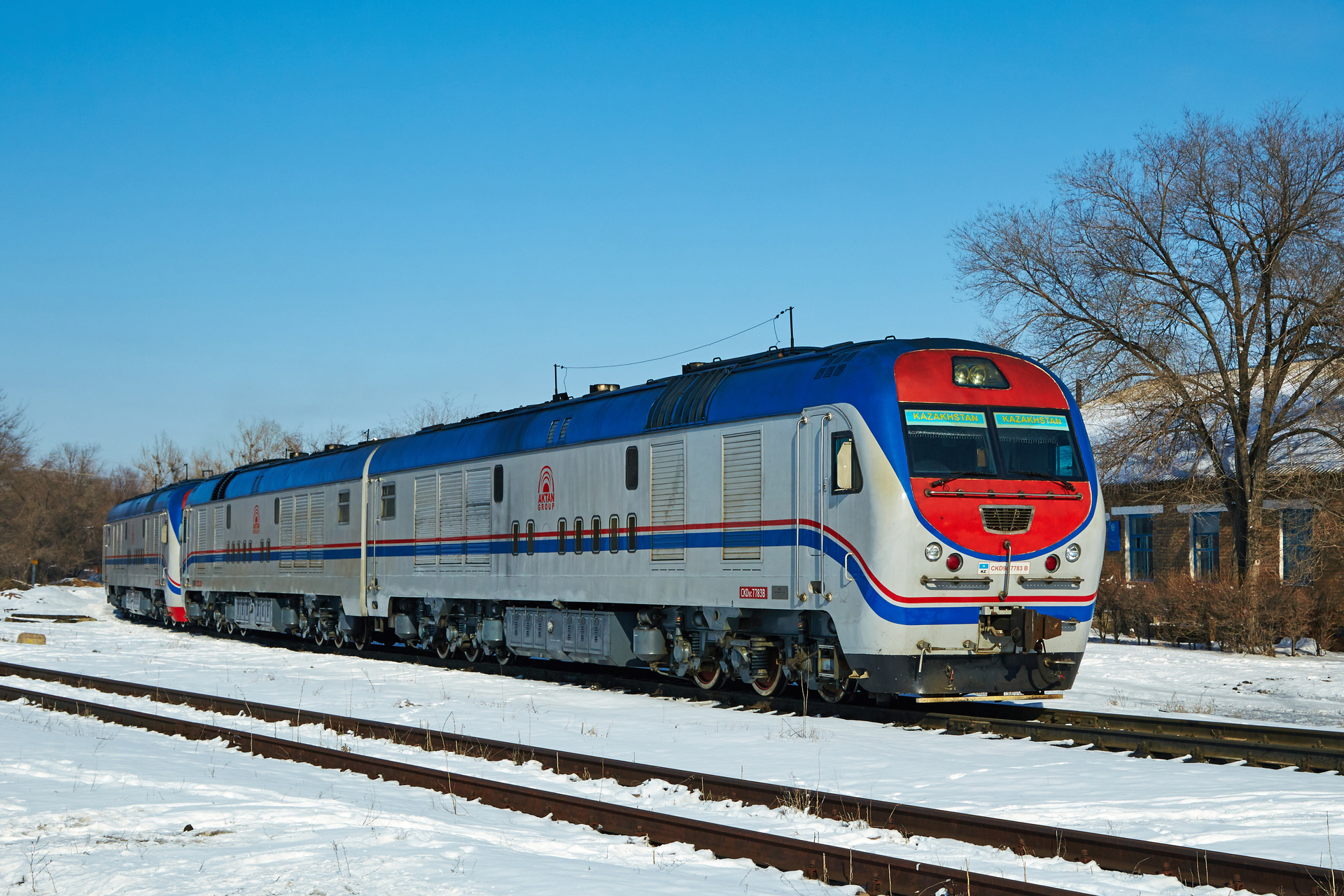

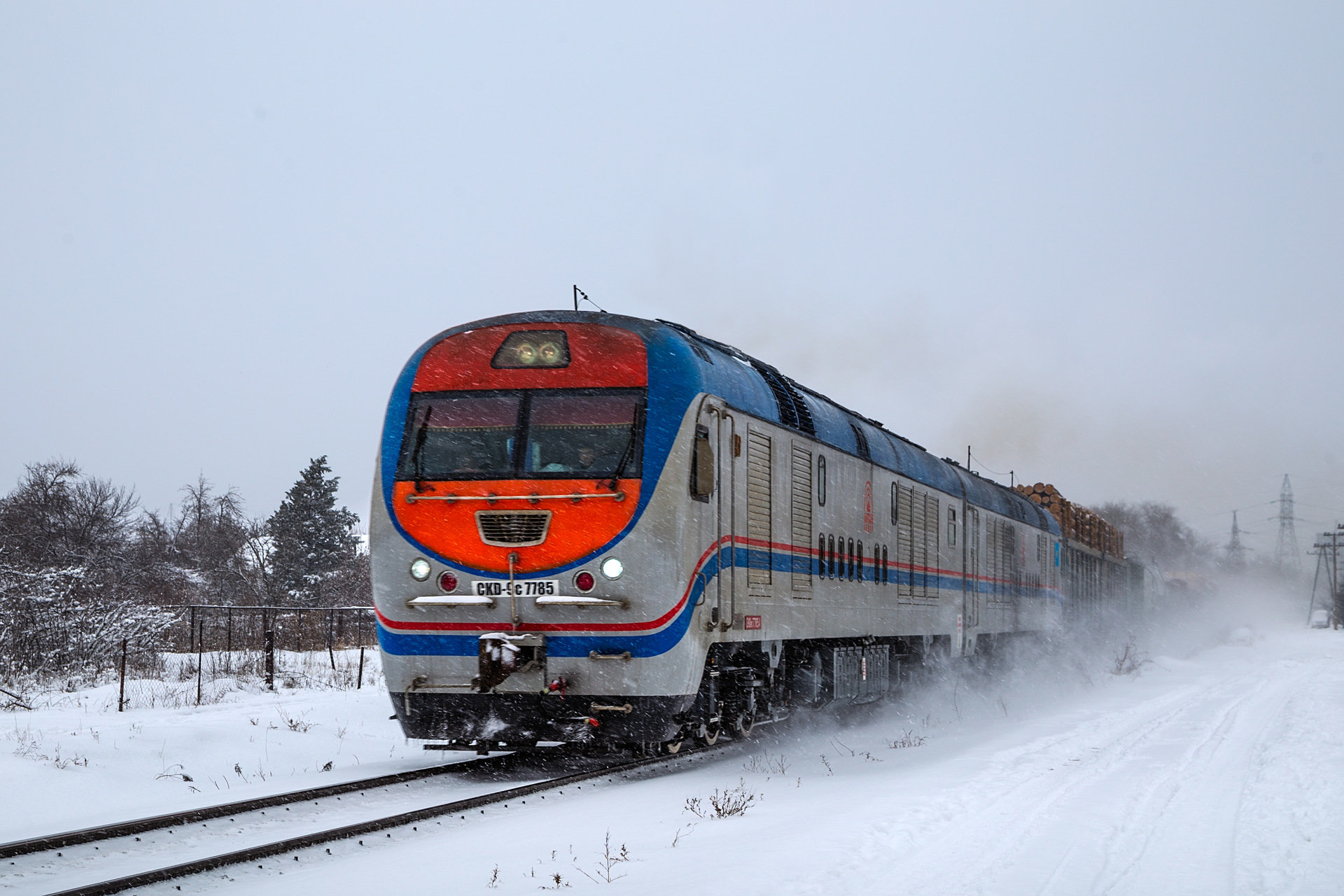

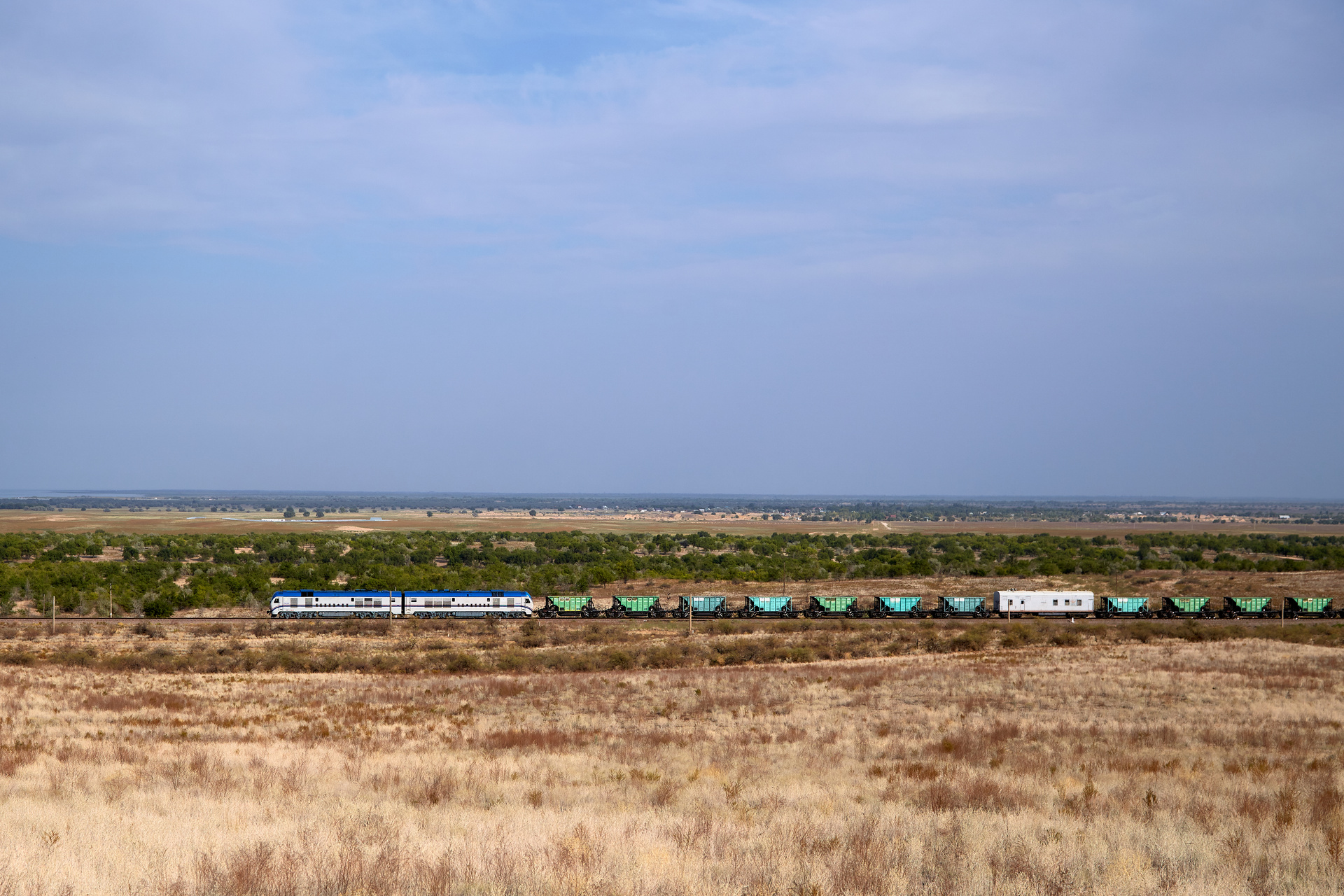

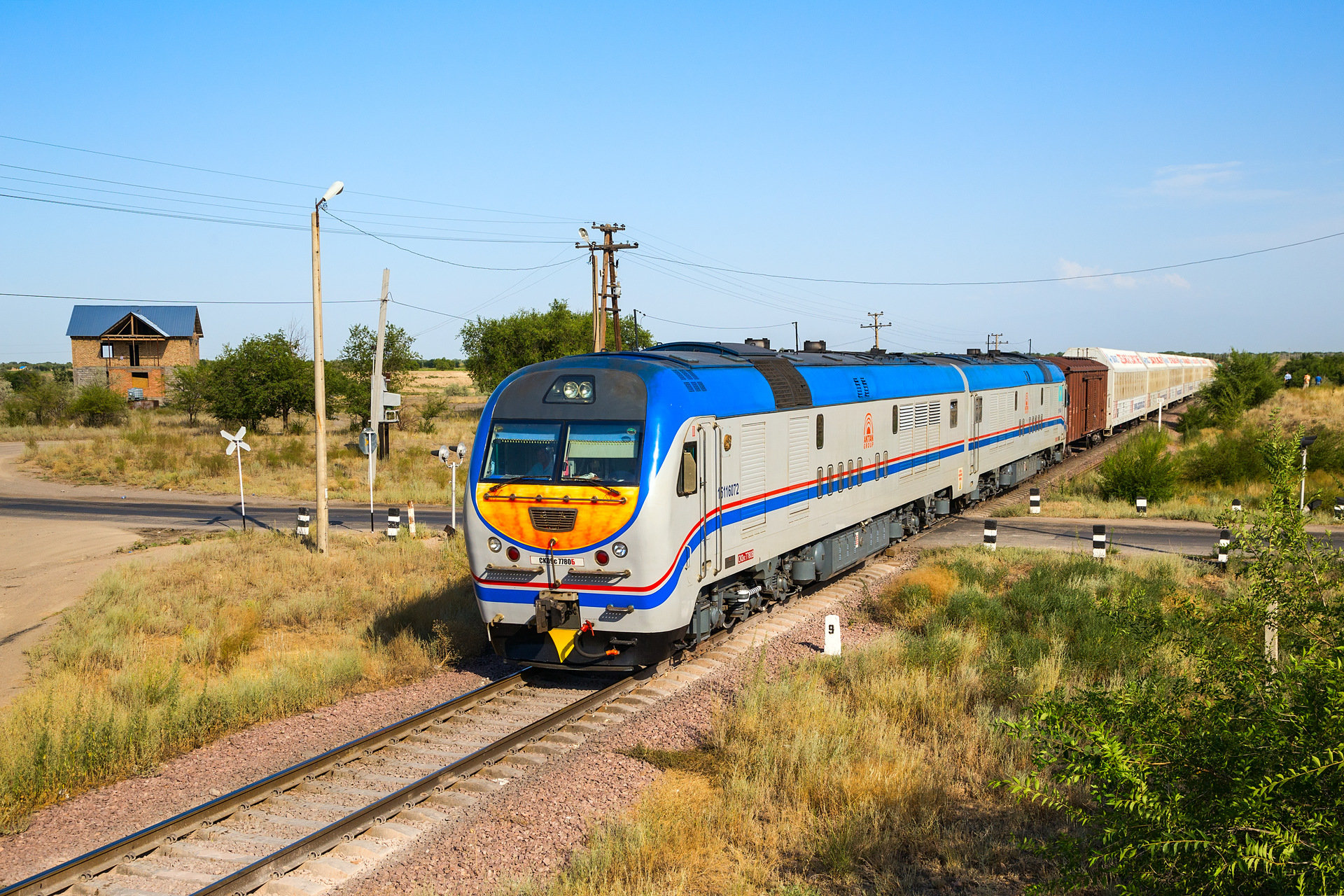

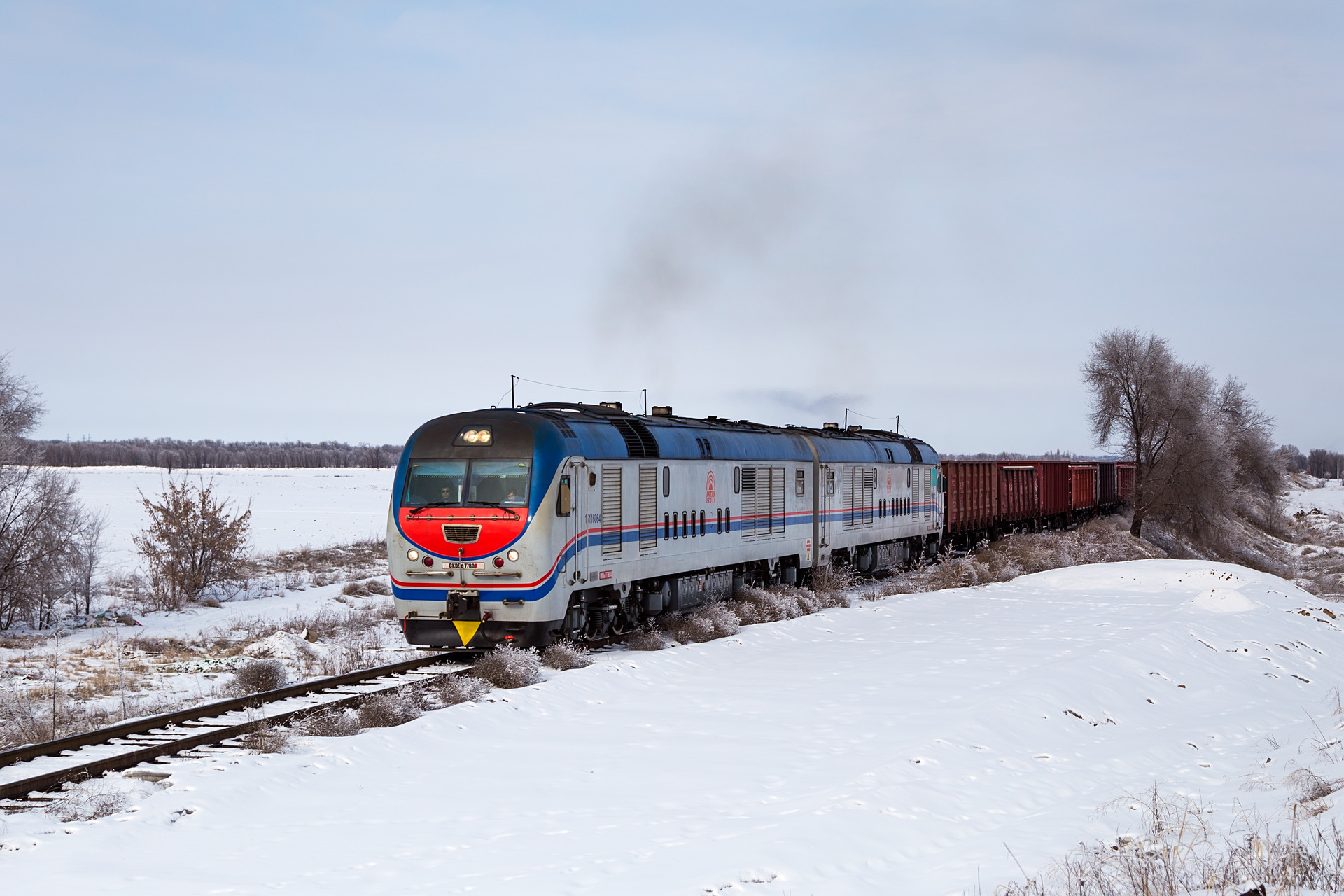

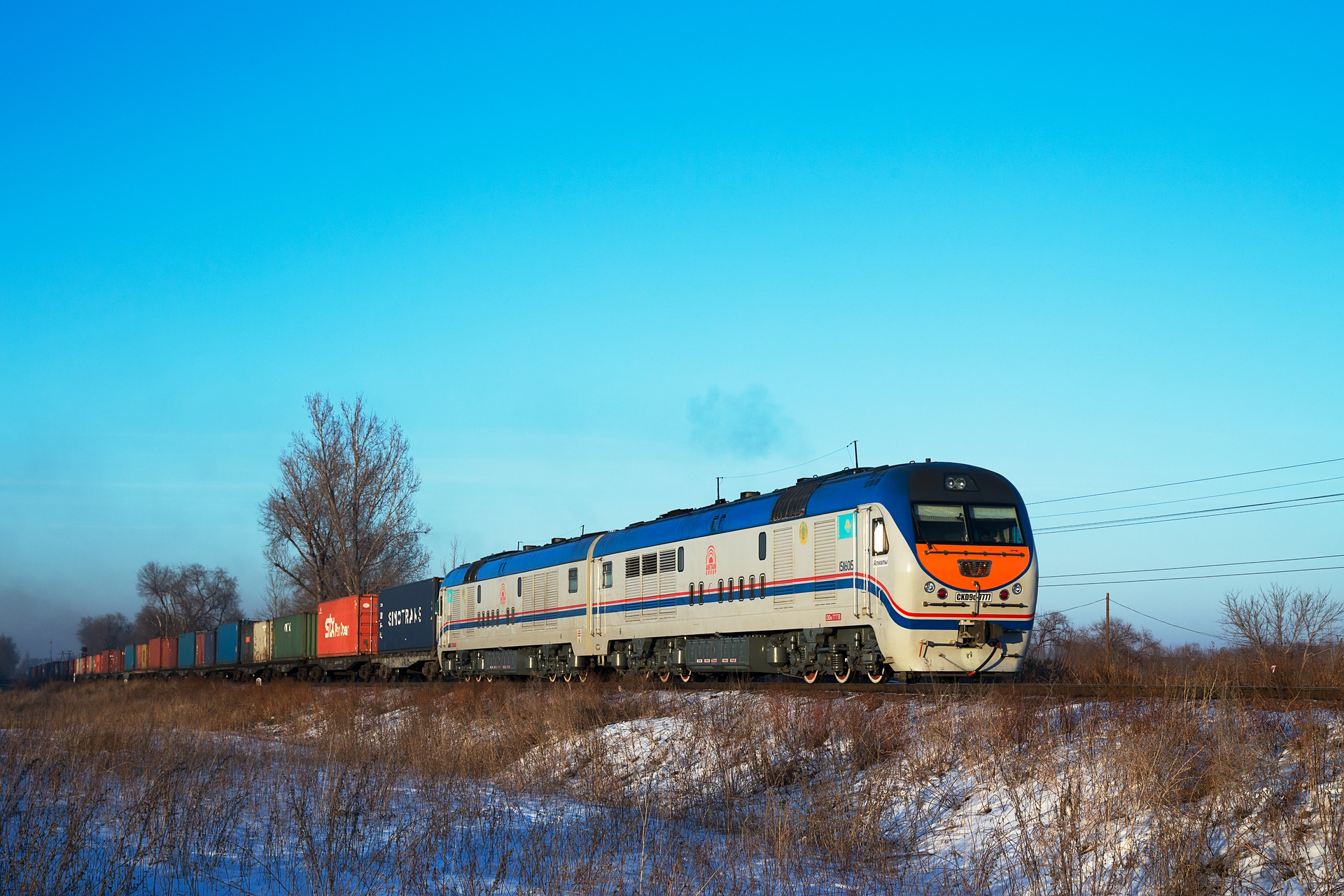

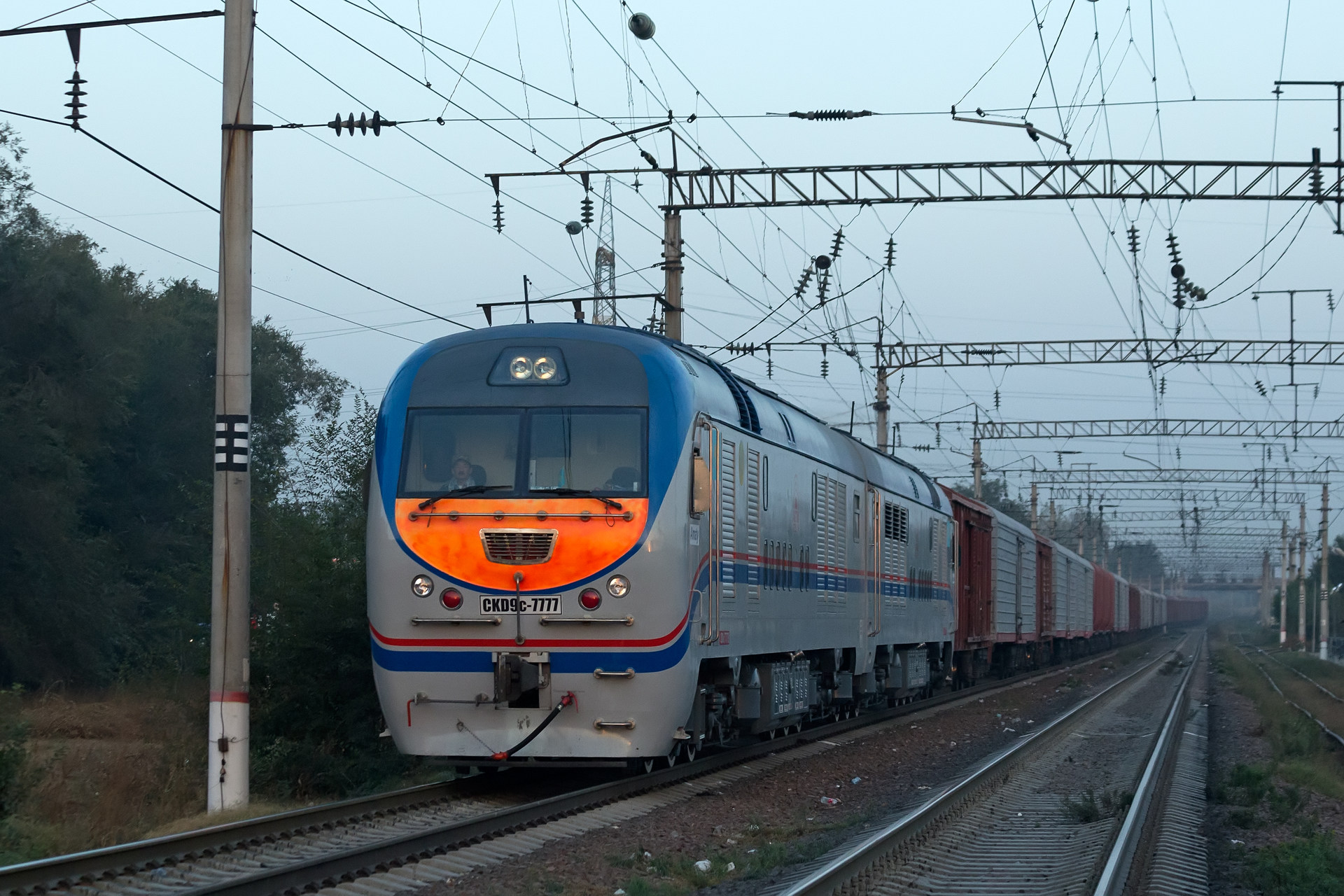

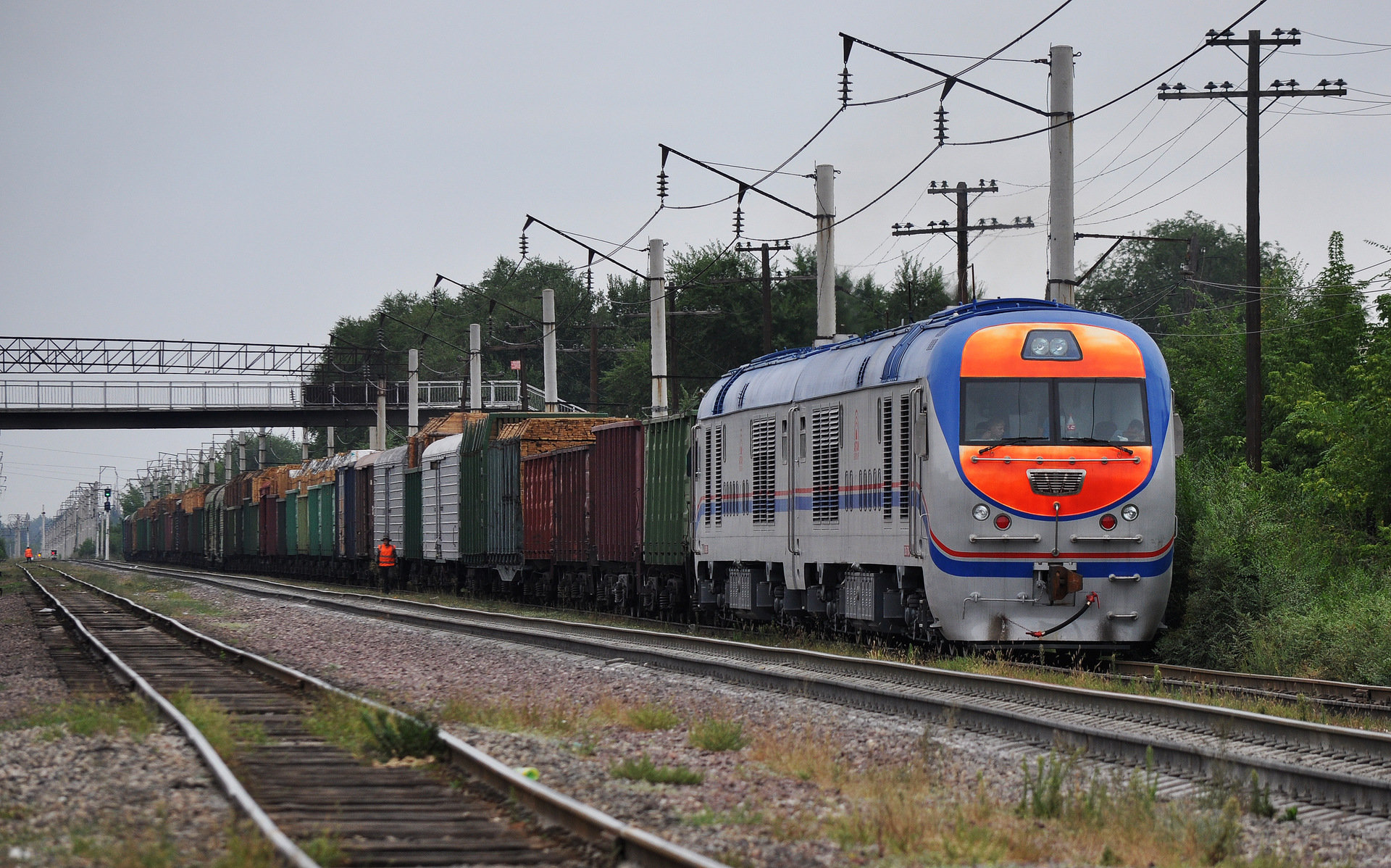

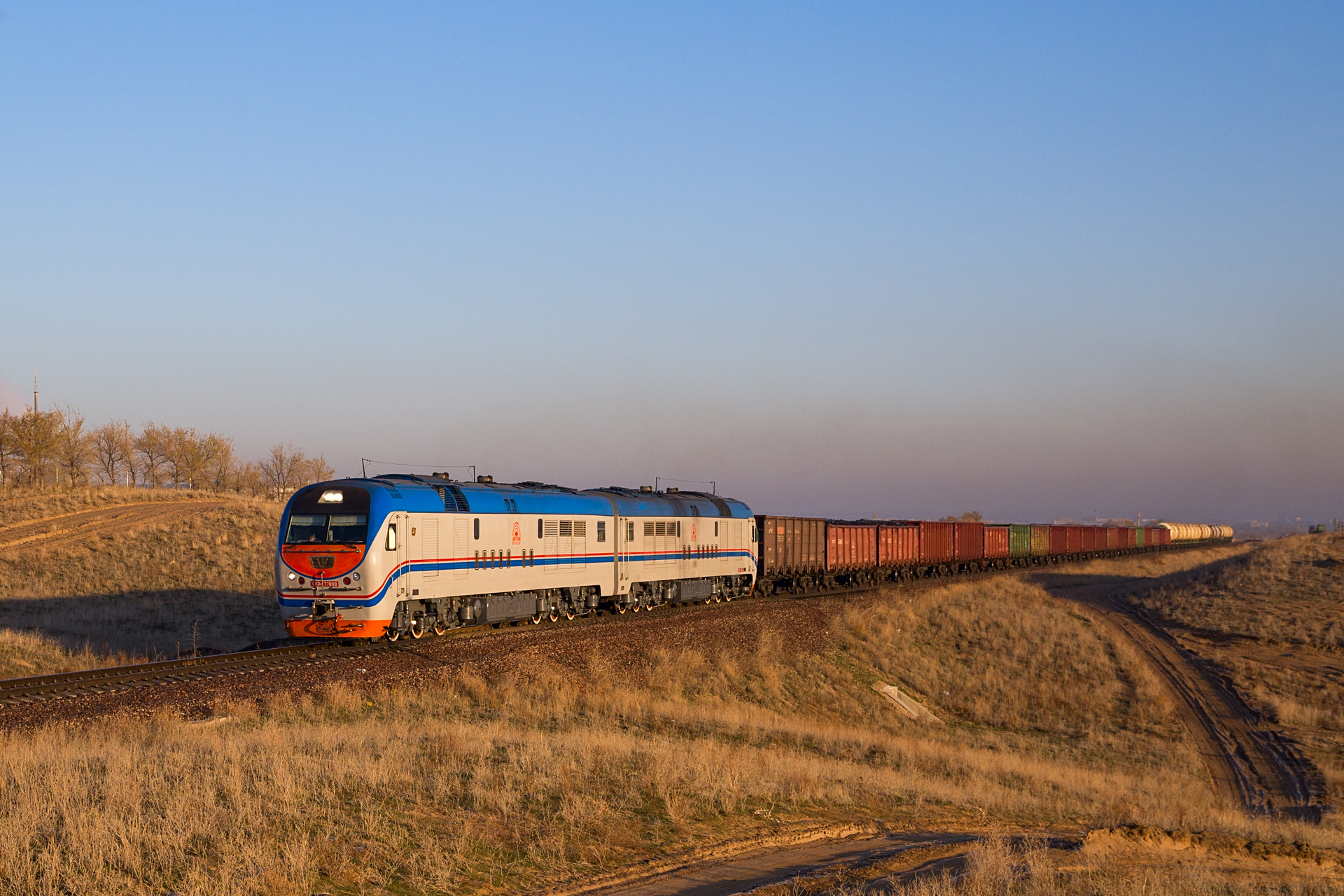

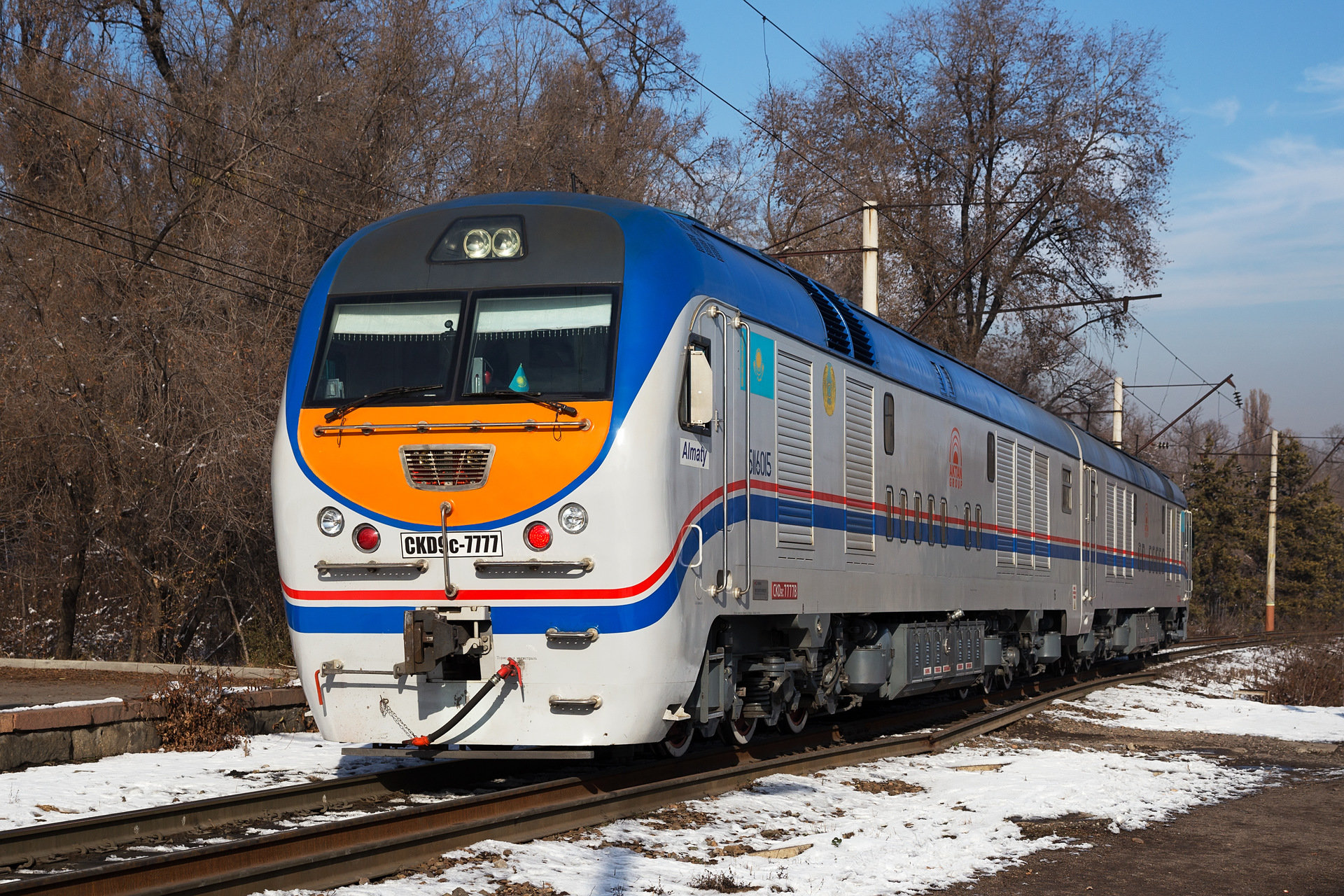

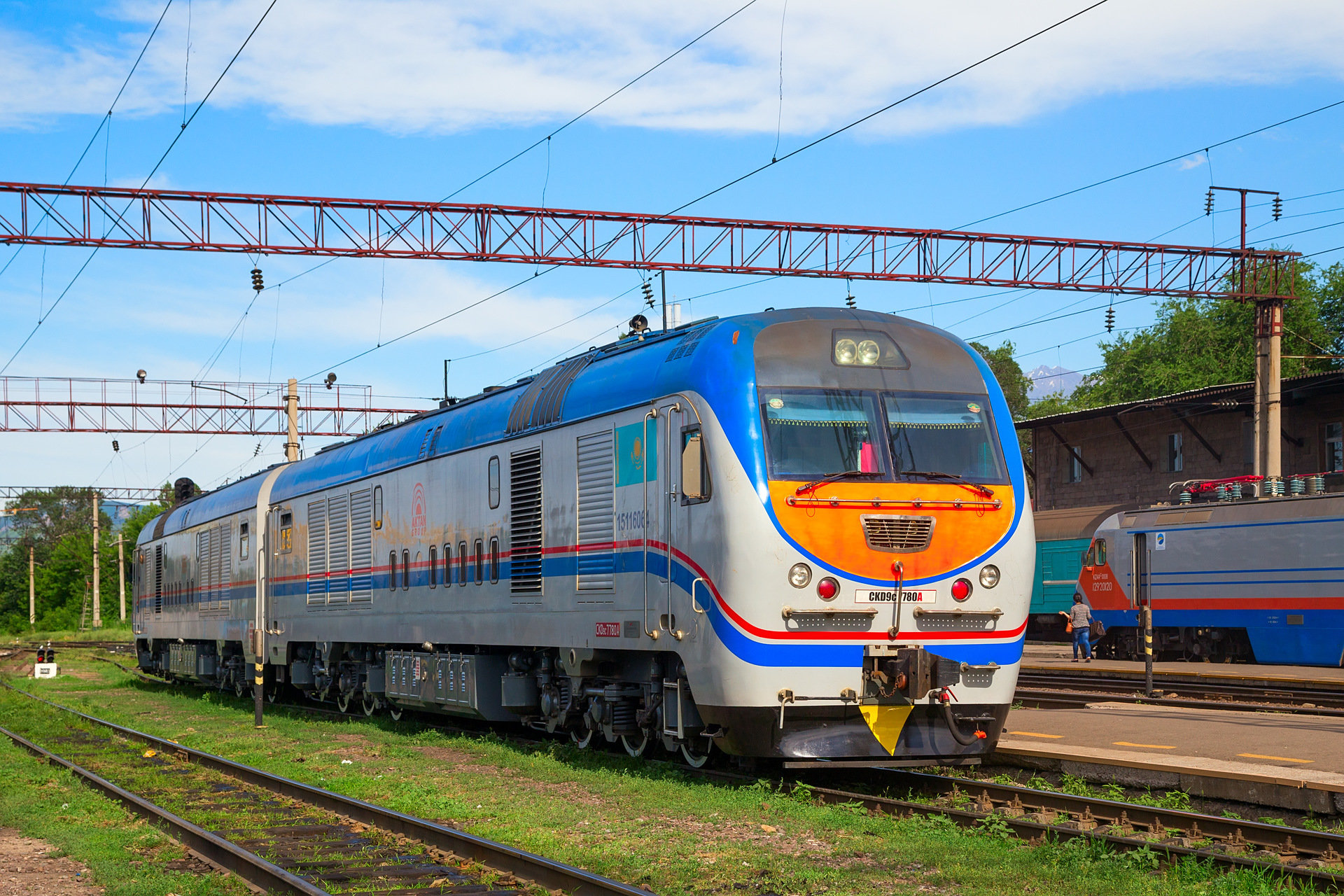

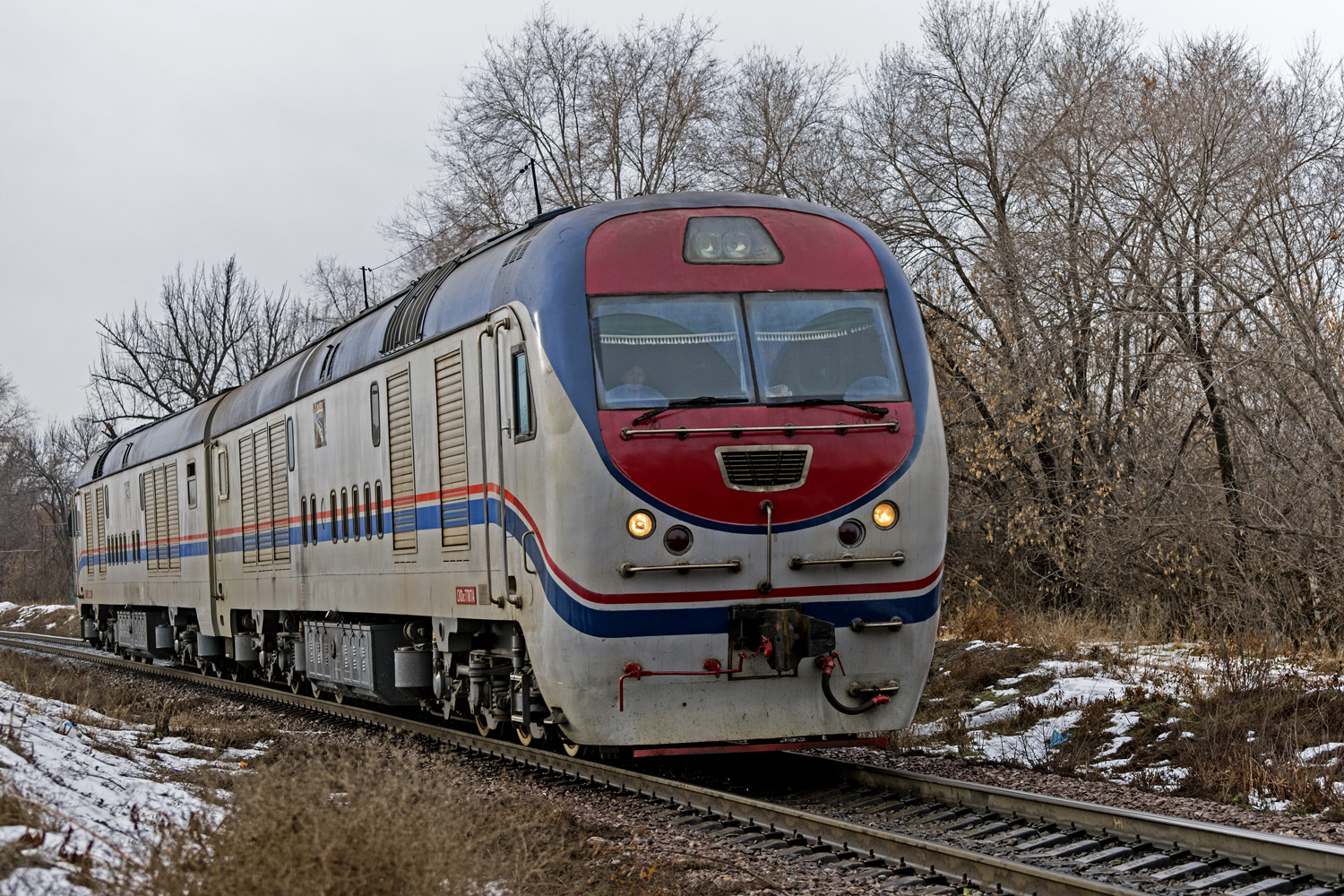

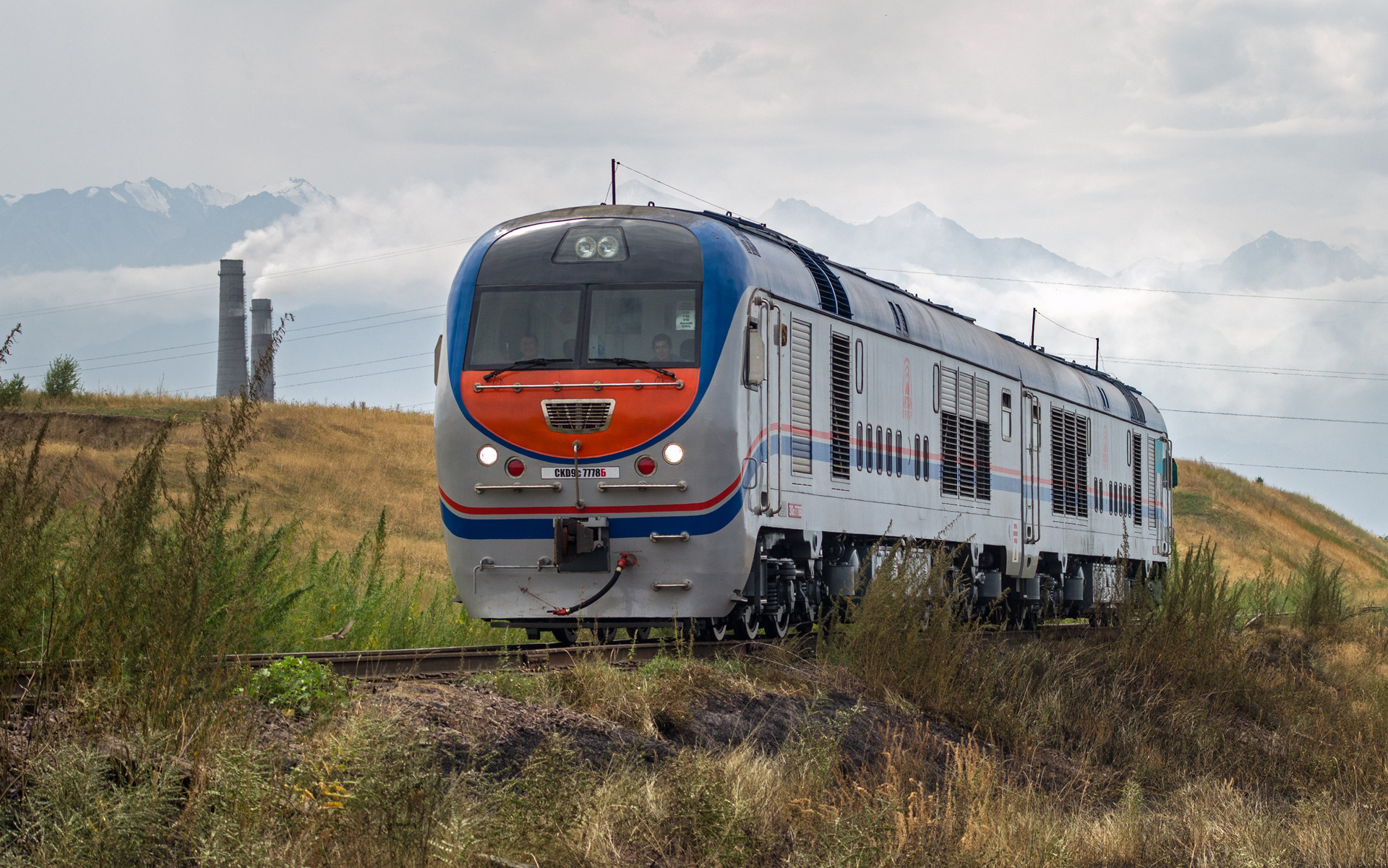

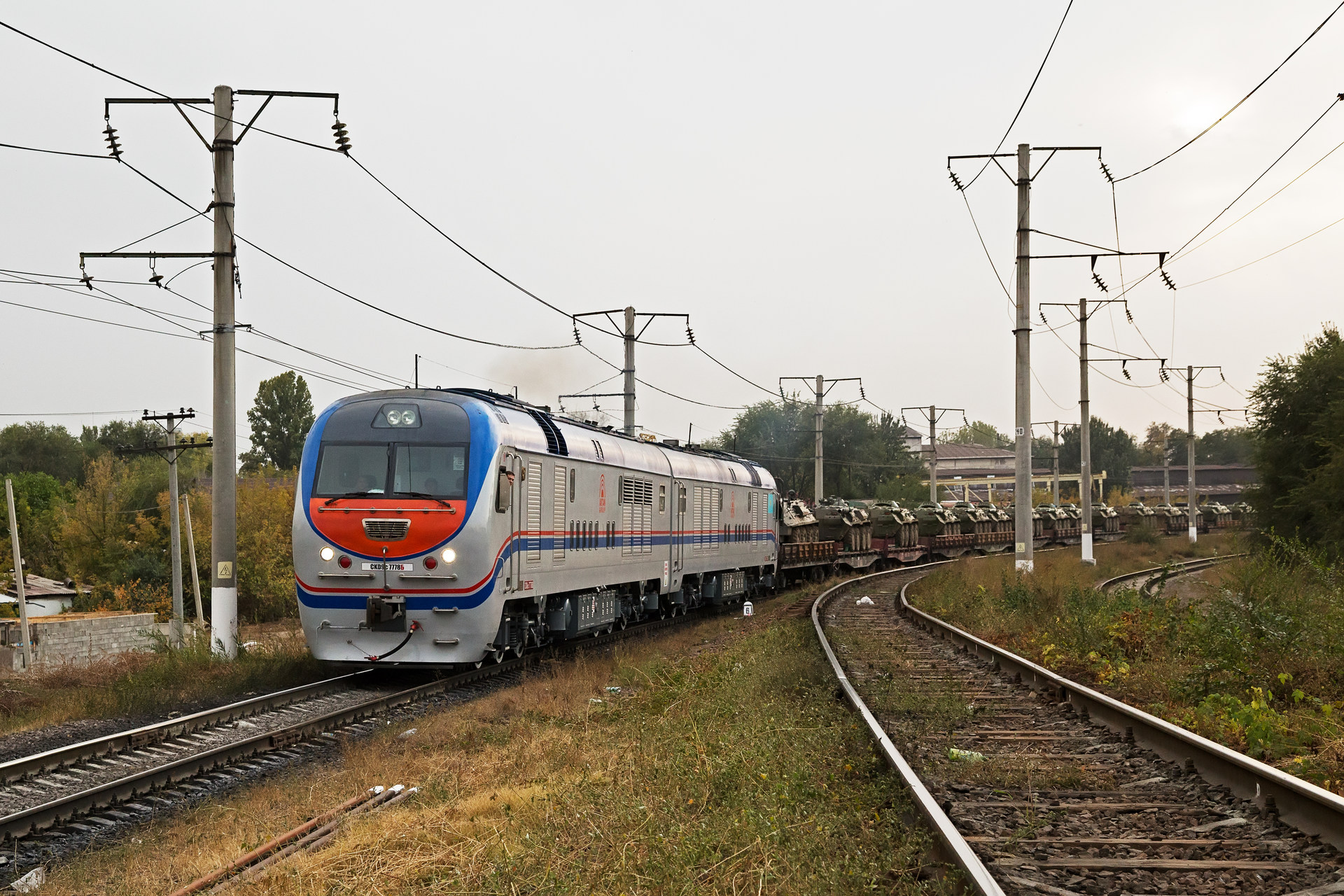

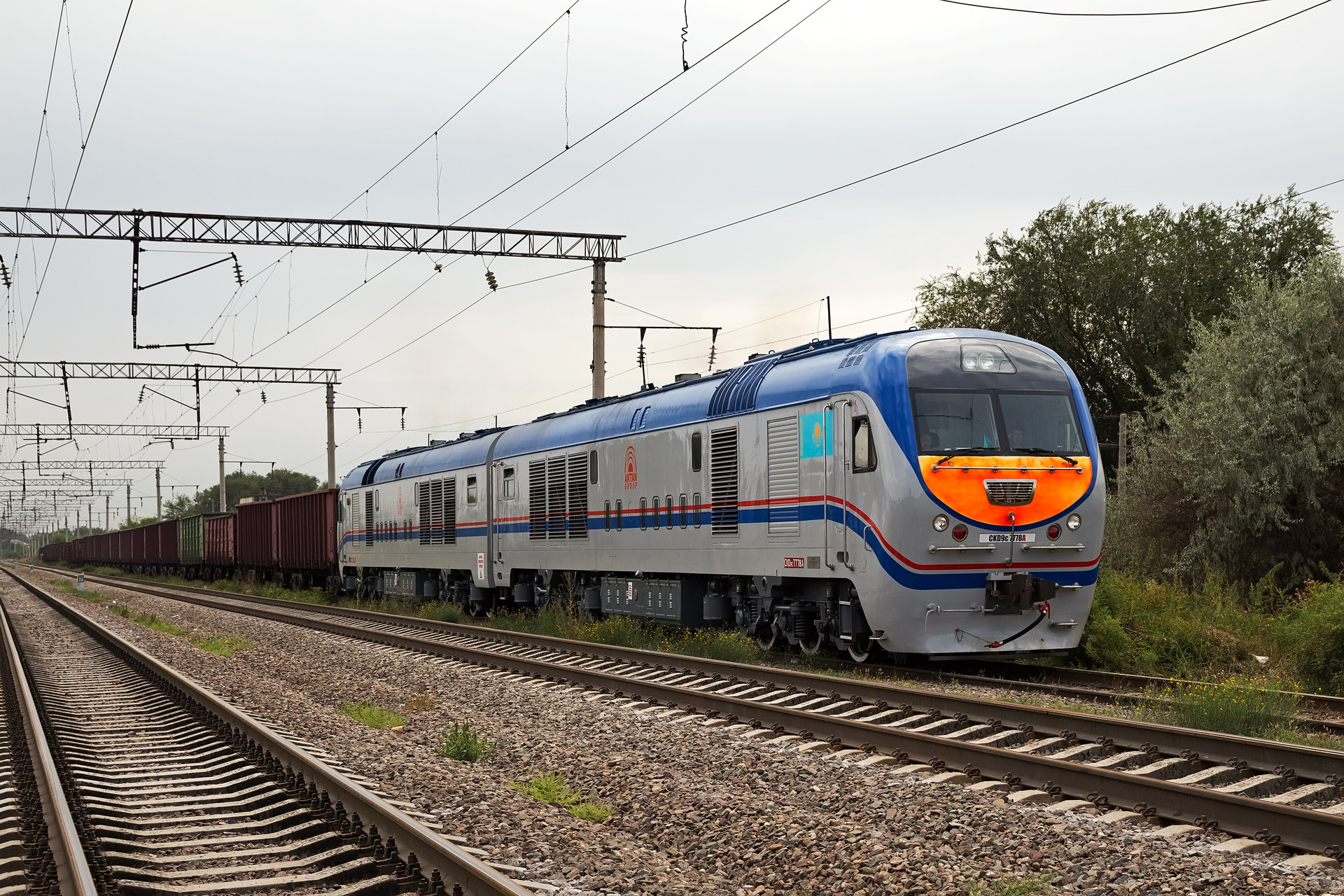

Overview of the CRRC Ziyang CKD9C

Discover the CKD9C diesel locomotive, a powerful and versatile machine designed for the 1520 mm broad gauge railways.

Built by Ziyang between 2005 and 2010, this locomotive boasts an impressive length of 44.48 meters and weighs 276 tons, ensuring stability and pulling power.

With a top speed of 100 km/h and a substantial power output of 5300 kW, the CKD9C is ideally suited for heavy transport tasks.

Its Co'Co'+Co'Co' axle configuration guarantees excellent traction and maneuverability on various track types.

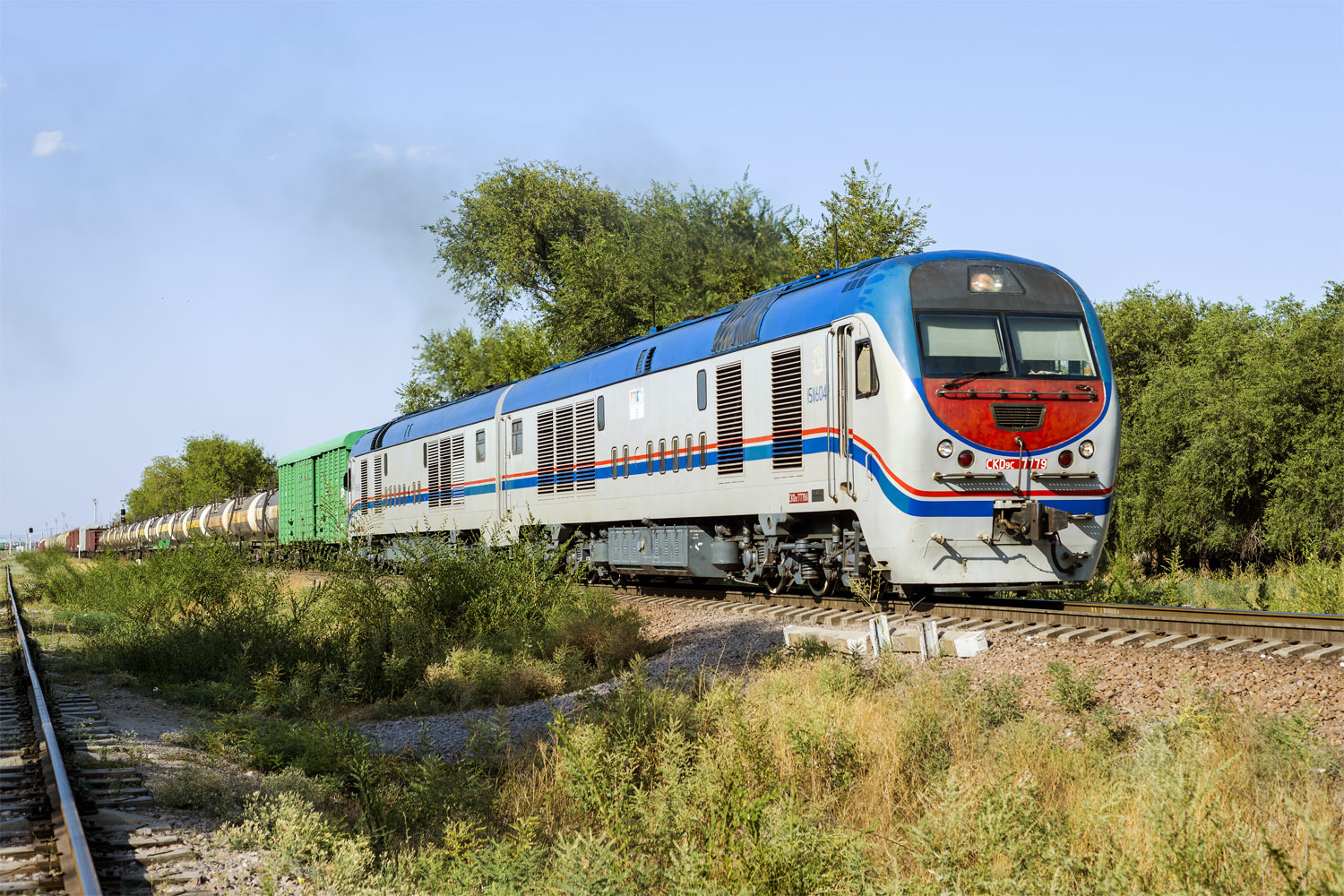

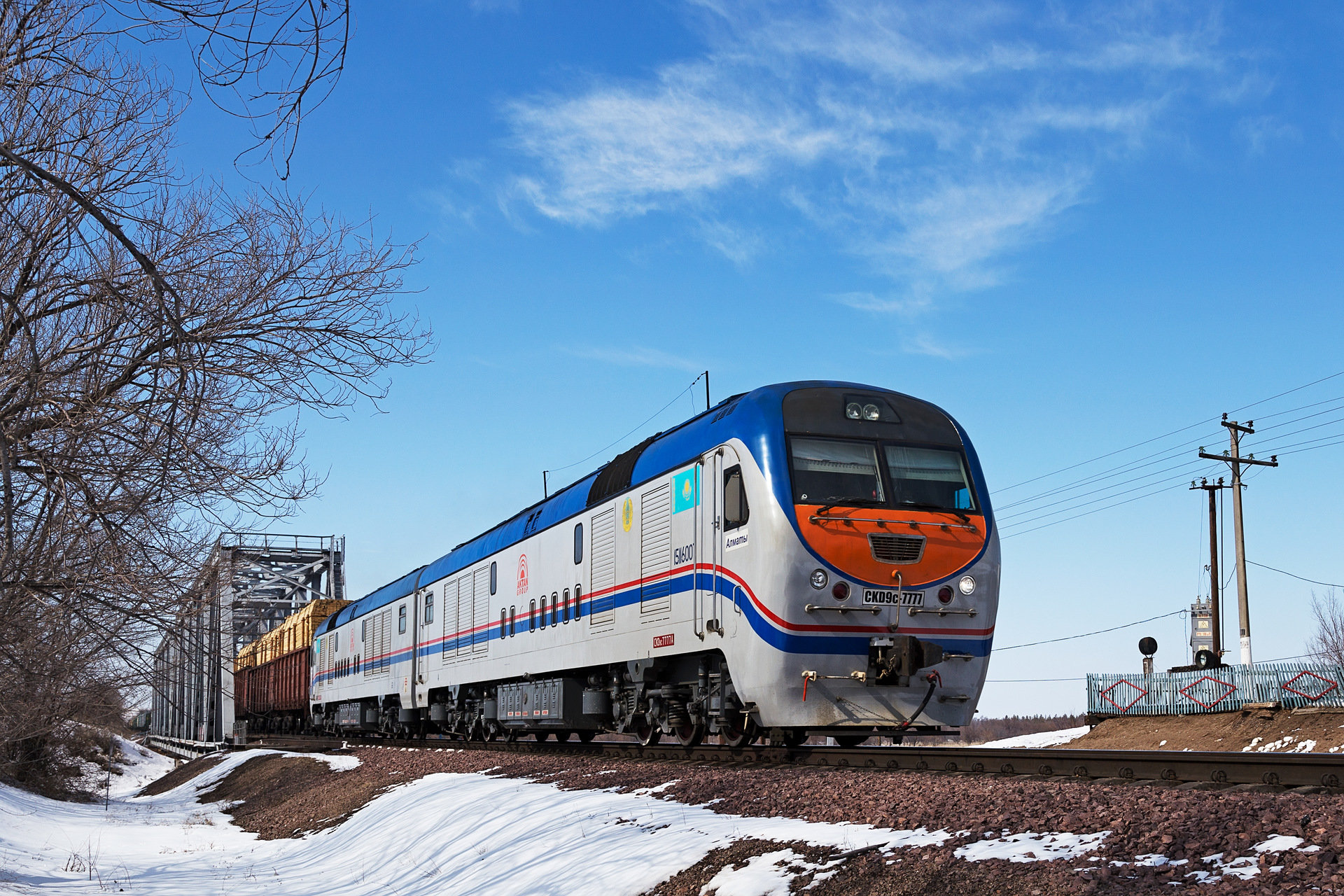

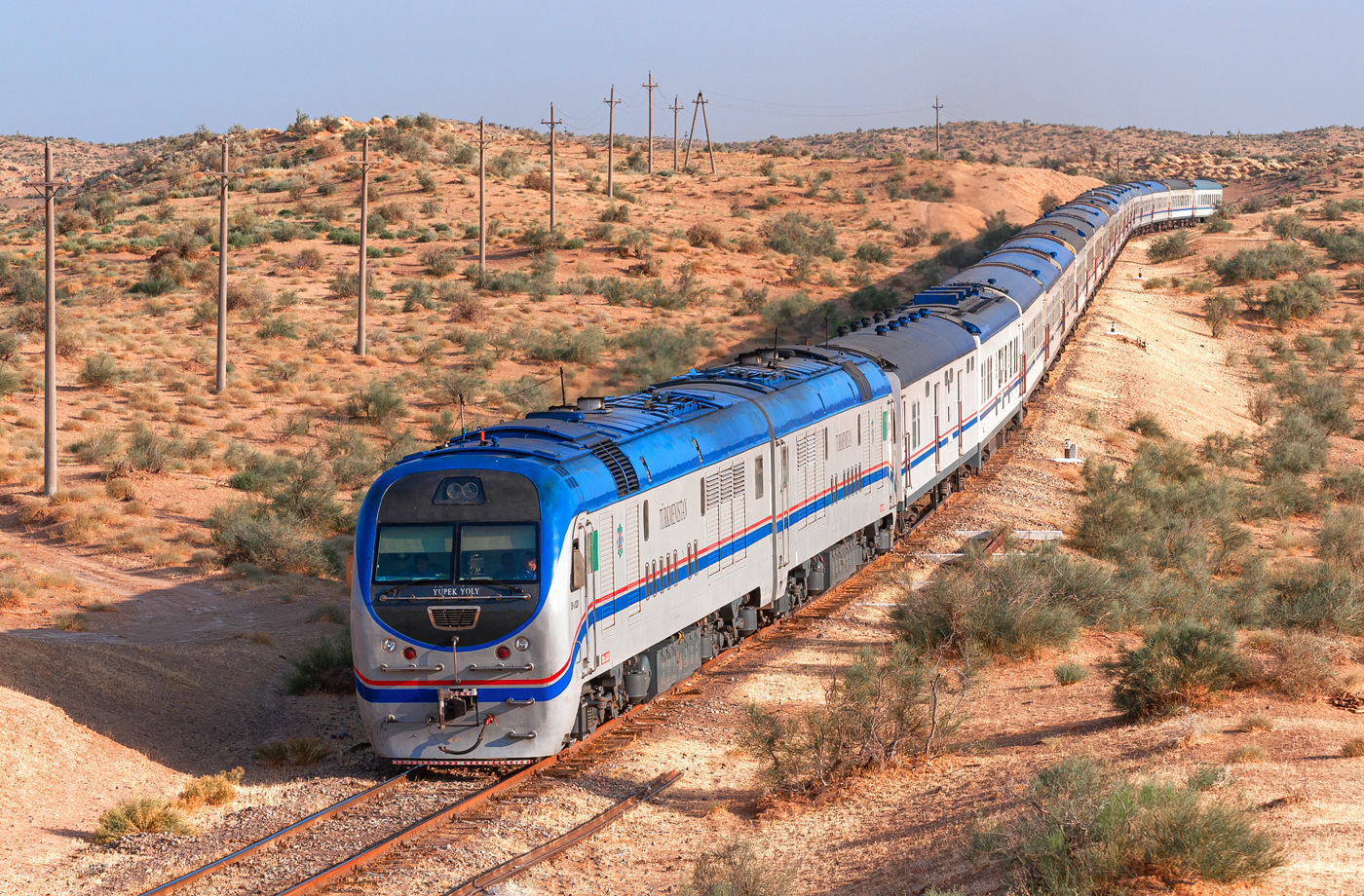

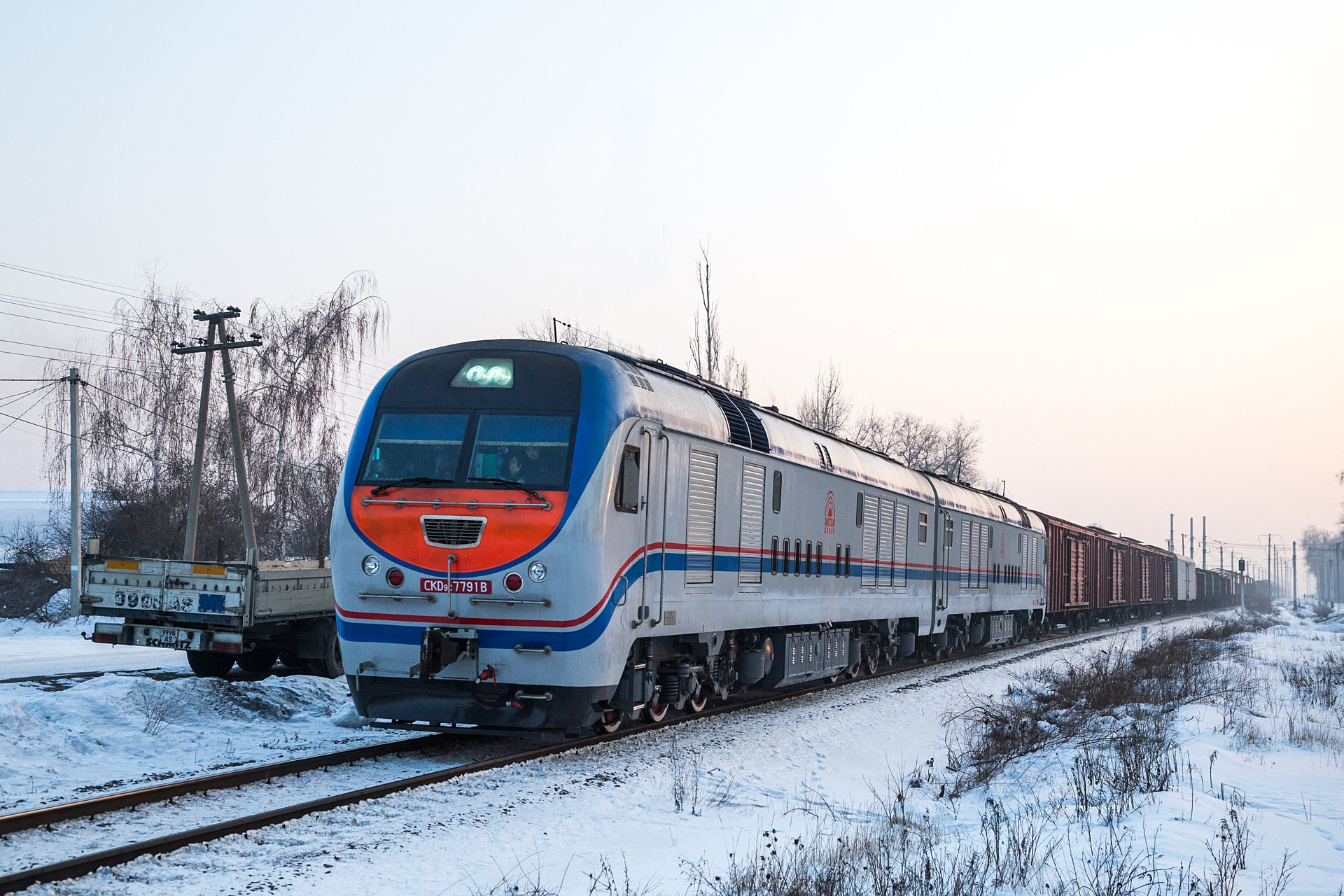

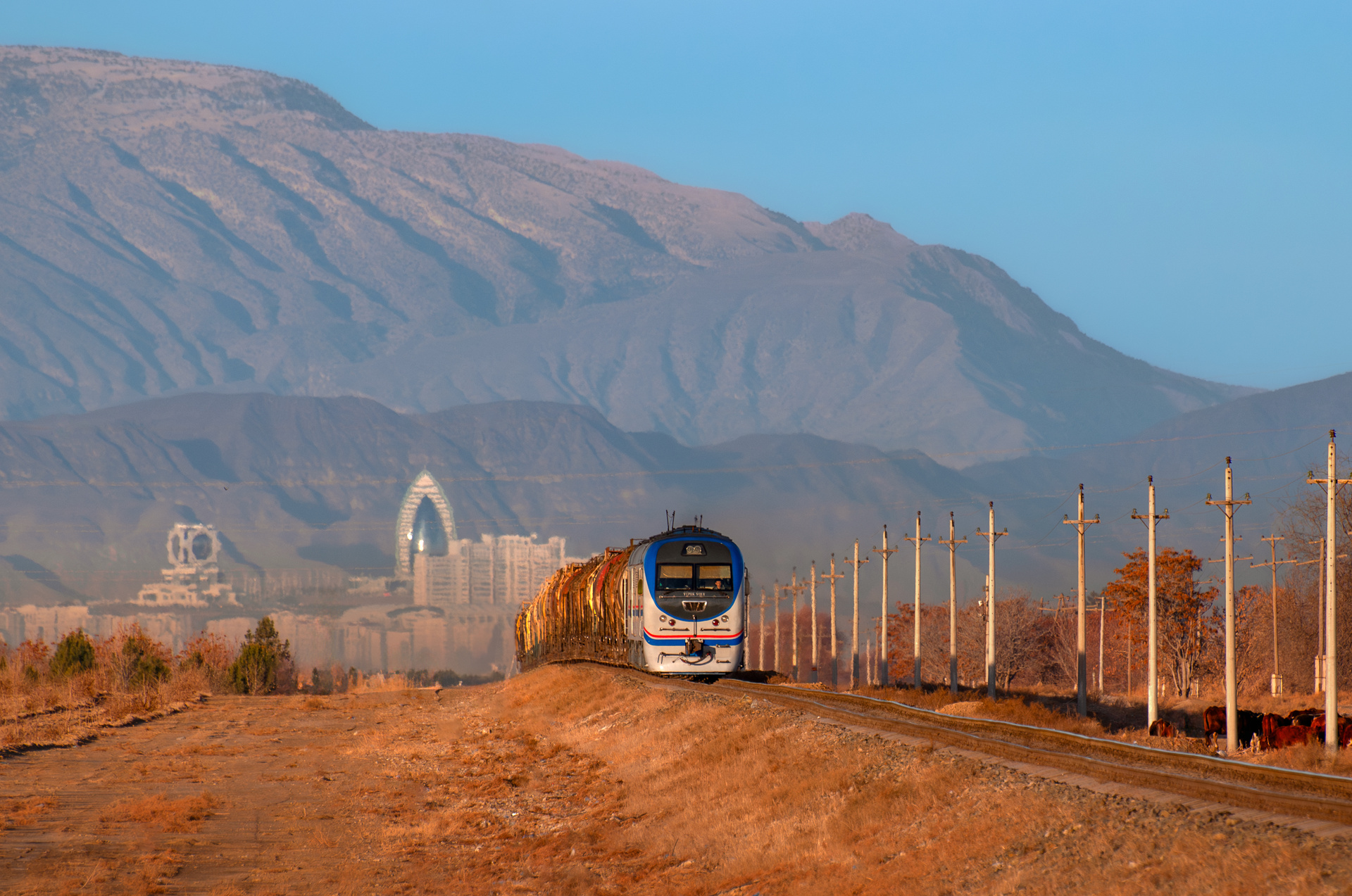

These locomotives are in service in Kazakhstan with private owner groups and in Turkmenistan with Turkmen Railways, contributing to freight transportation.

CRRC Ziyang CKD9C technical specifications

	Value	Imperial / US
Built by	Ziyang · 2005–201052 units
Top speed	100 km/h62 mph	62 mph
Power output	5,300 kW7,107 hp	7,107 hp
Tractive effort	870 kN195,584 lbf	195,584 lbf
Prime mover	CSR 16V240ZJB
Track gauge	1,520 mmRussian broad gauge4 ft 11⅞ in	4 ft 11⅞ in
UIC axle arrangement	Co'Co'+Co'Co'
Length	44.48 m145 ft 11 in	145 ft 11 in
Width	3.34 m10 ft 11 in	10 ft 11 in
Height	4.74 m15 ft 7 in	15 ft 7 in
Weight	276 t608,475 lb	608,475 lb
Axle load	23 t50,706 lb	50,706 lb
