Locomotive-Specs

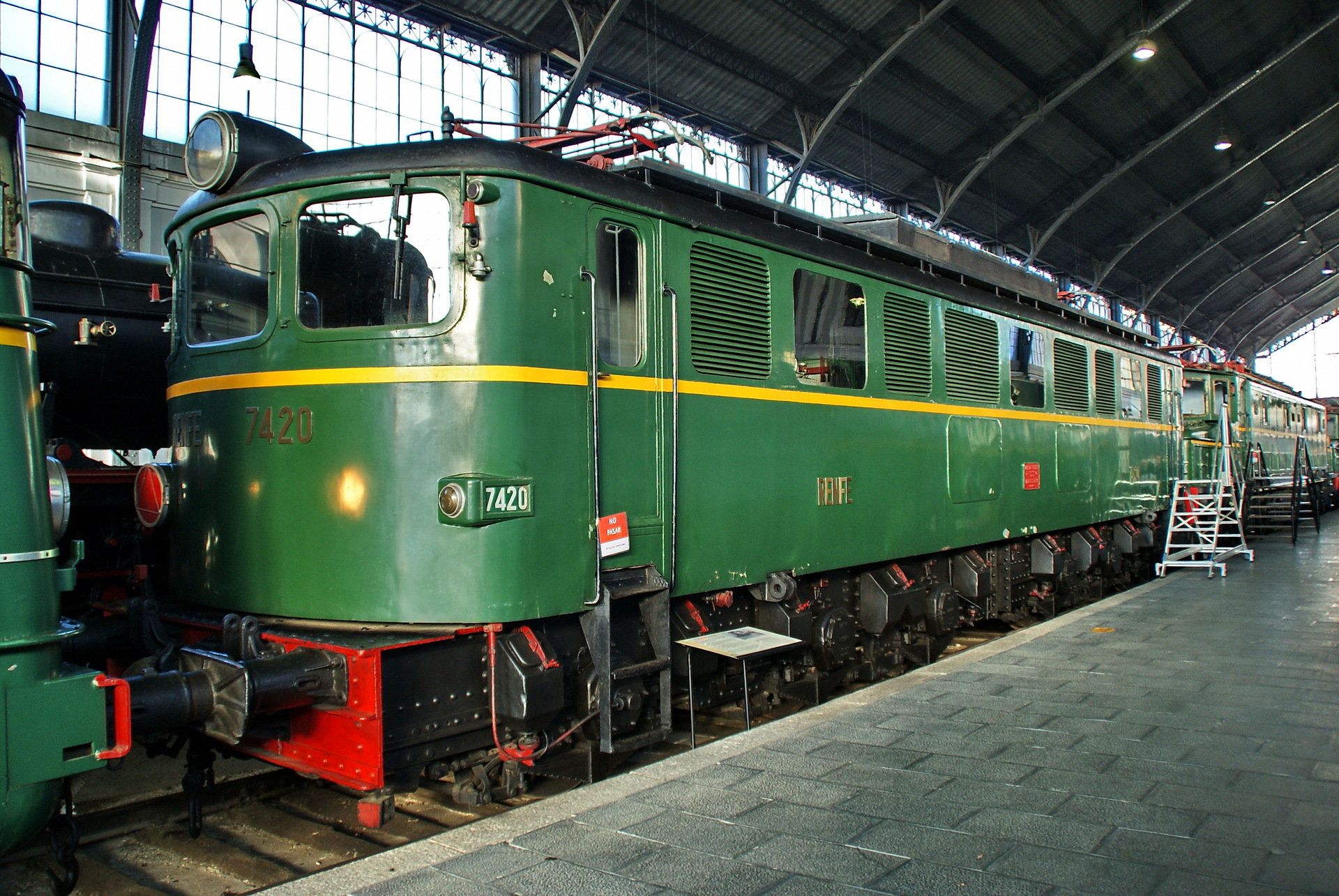

Devis RENFE 274 – photo 1© trainspo.com
Electric locomotive

Devis RENFE 274

Built by Devis, Sécheron

Top speed
90 km/h
56 mph
Power output
1,760 kW
2,360 hp
Weight
99 t
218,257 lb
Length
17.02 m
55 ft 10 in
Track gauge
1,668 mm
Iberian gauge
Years built
1944–1947

Overview of the Devis RENFE 274

Discover the RENFE 274, an iconic electric locomotive built between 1944 and 1947 by Devis and Sécheron.

This powerful machine, measuring 17.02 meters in length and weighing 99 tons, operated in Spain for Renfe Operadora.

The RENFE 274 featured a 1.5 kV DC electrical system, delivering an output of 1760 kW and reaching a top speed of 90 km/h.

Its Co'Co' wheel arrangement and a broad 1668 mm gauge made it perfectly suited for the demands of Spanish railway lines.

Devis RENFE 274 technical specifications

Value
Built byDevis, Sécheron · 1944–1947
Top speed90 km/h56 mph
Power output1,760 kW2,360 hp
Electric systems
  • 1.5 kV DC
Track gauge1,668 mmIberian gauge5 ft 5⅝ in
UIC axle arrangementCo'Co'
Length17.02 m55 ft 10 in
Weight99 t218,257 lb
View this model on trainspo.com Spotted an error? Let us know

Operators of the Devis RENFE 274

Railway companies that have operated the RENFE 274, with the class designation used by each of them.

OperatorClassCountry
Renfe OperadoraRENFE 274Spain
