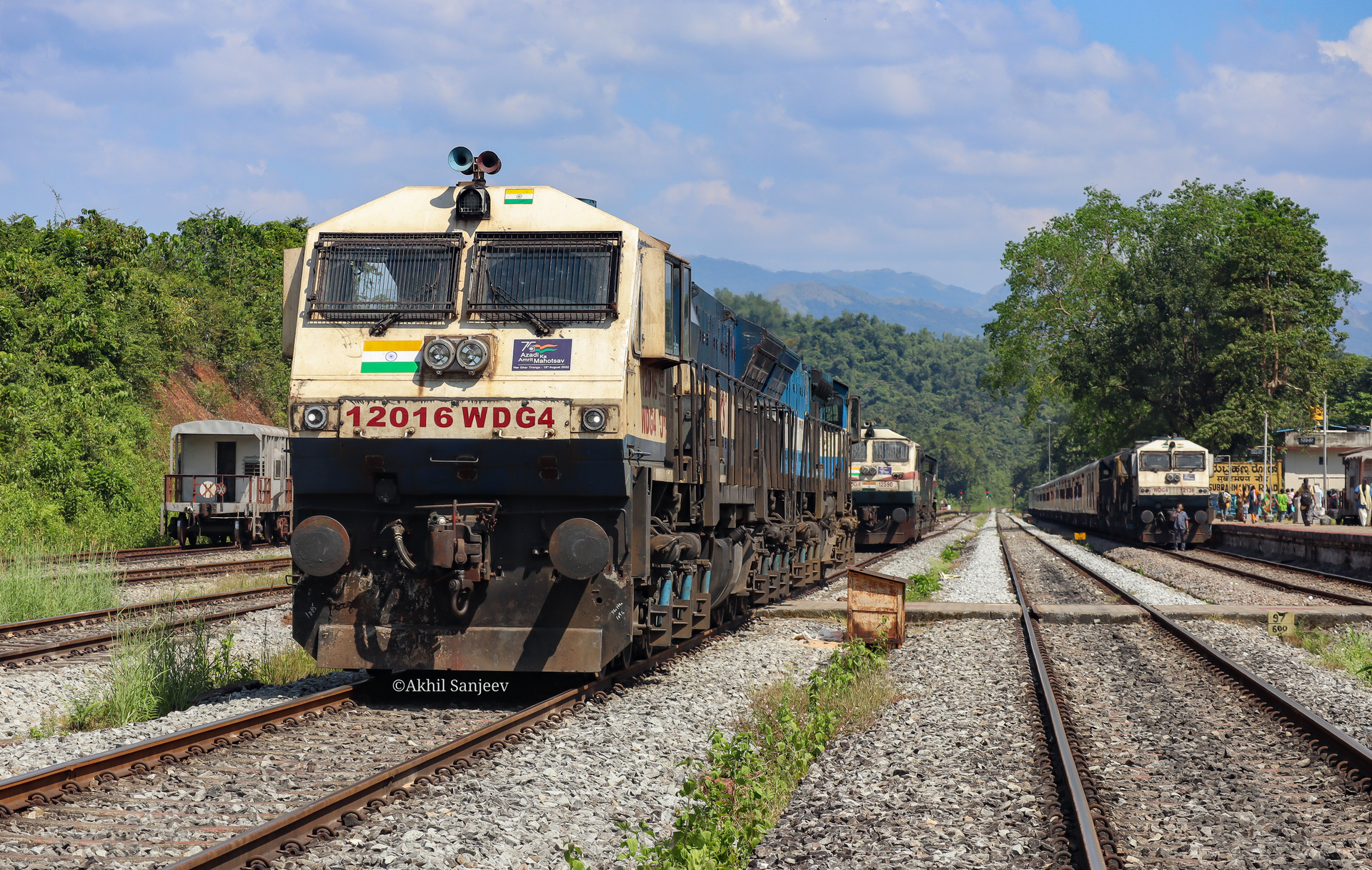

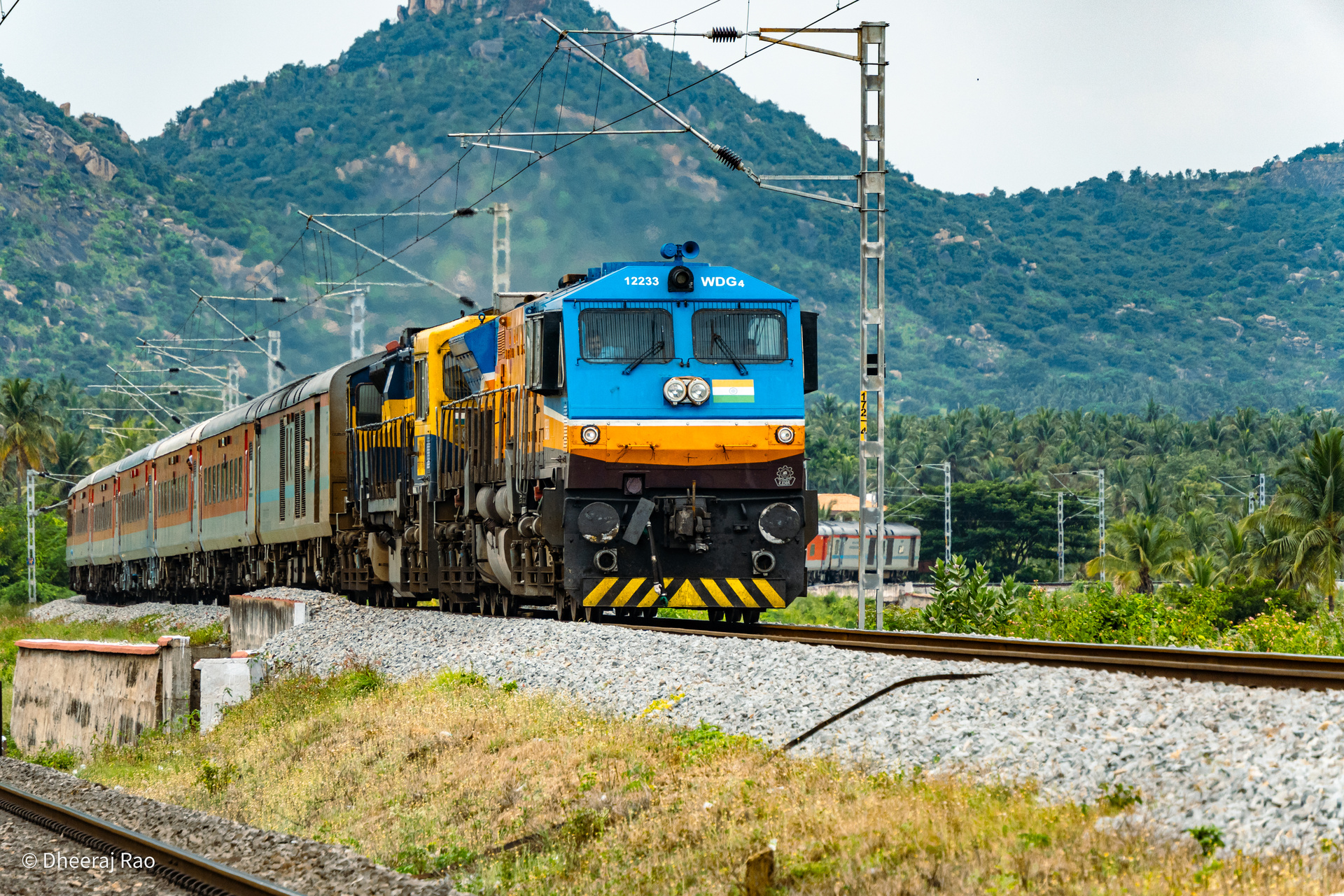

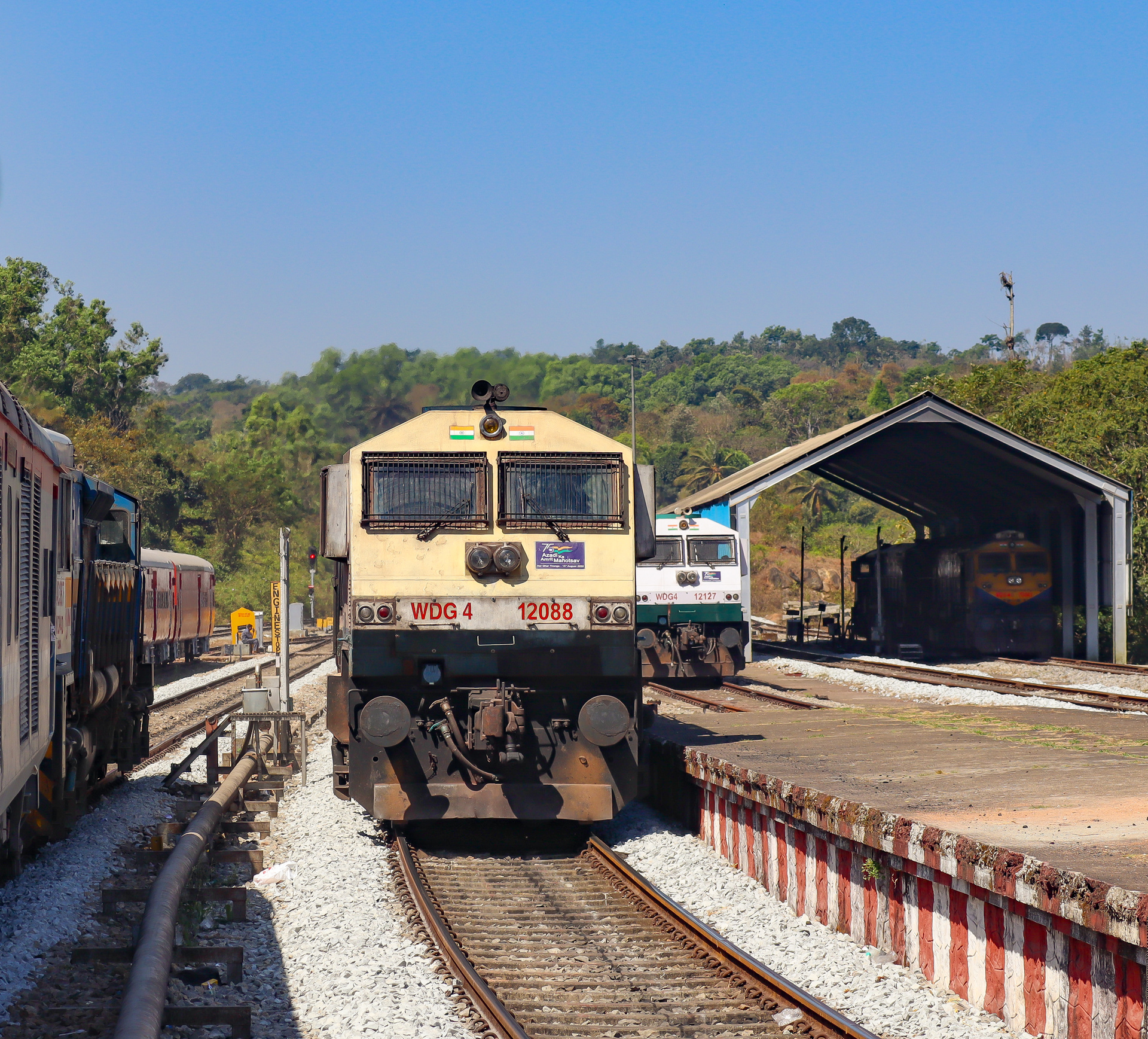

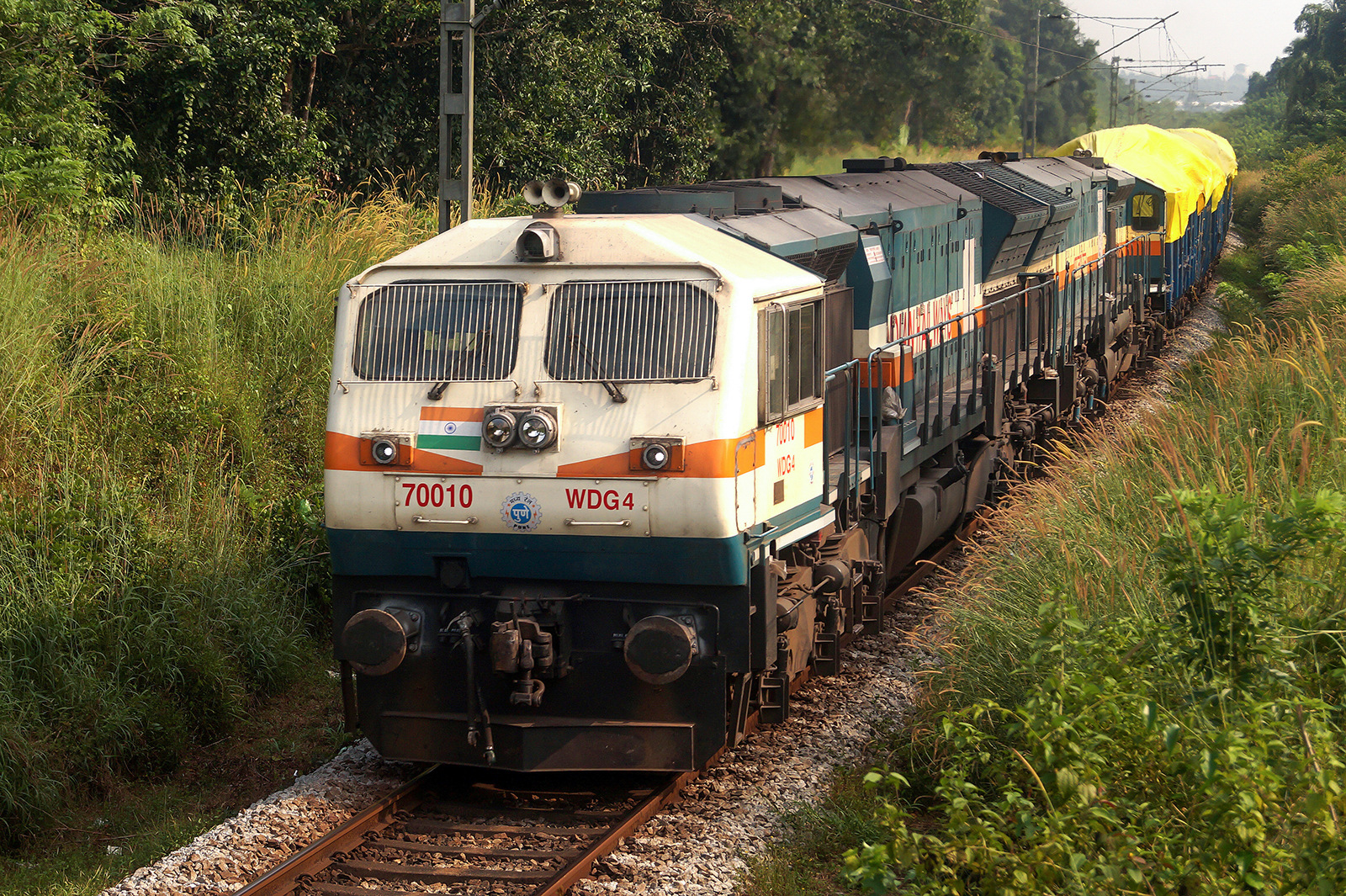

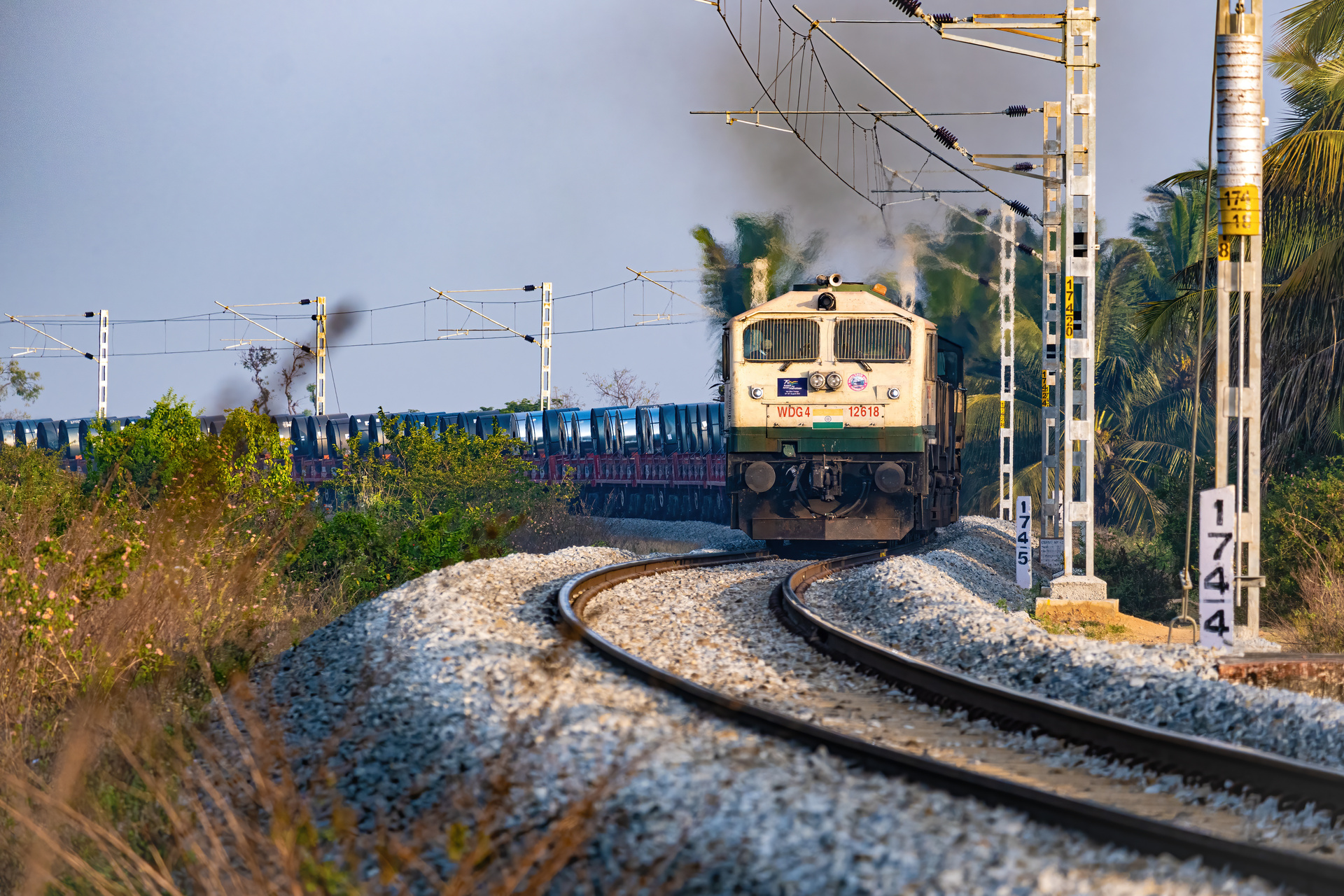

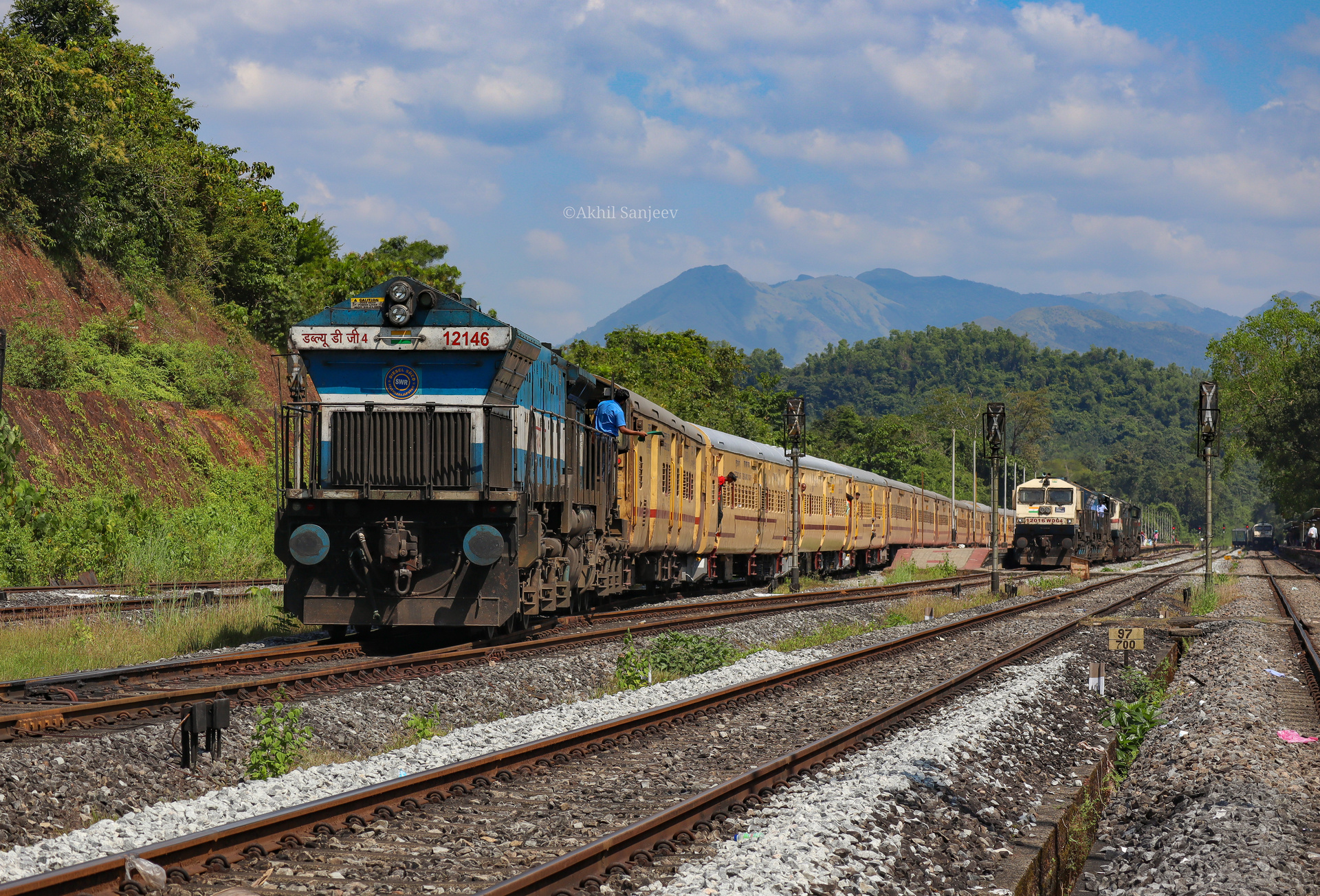

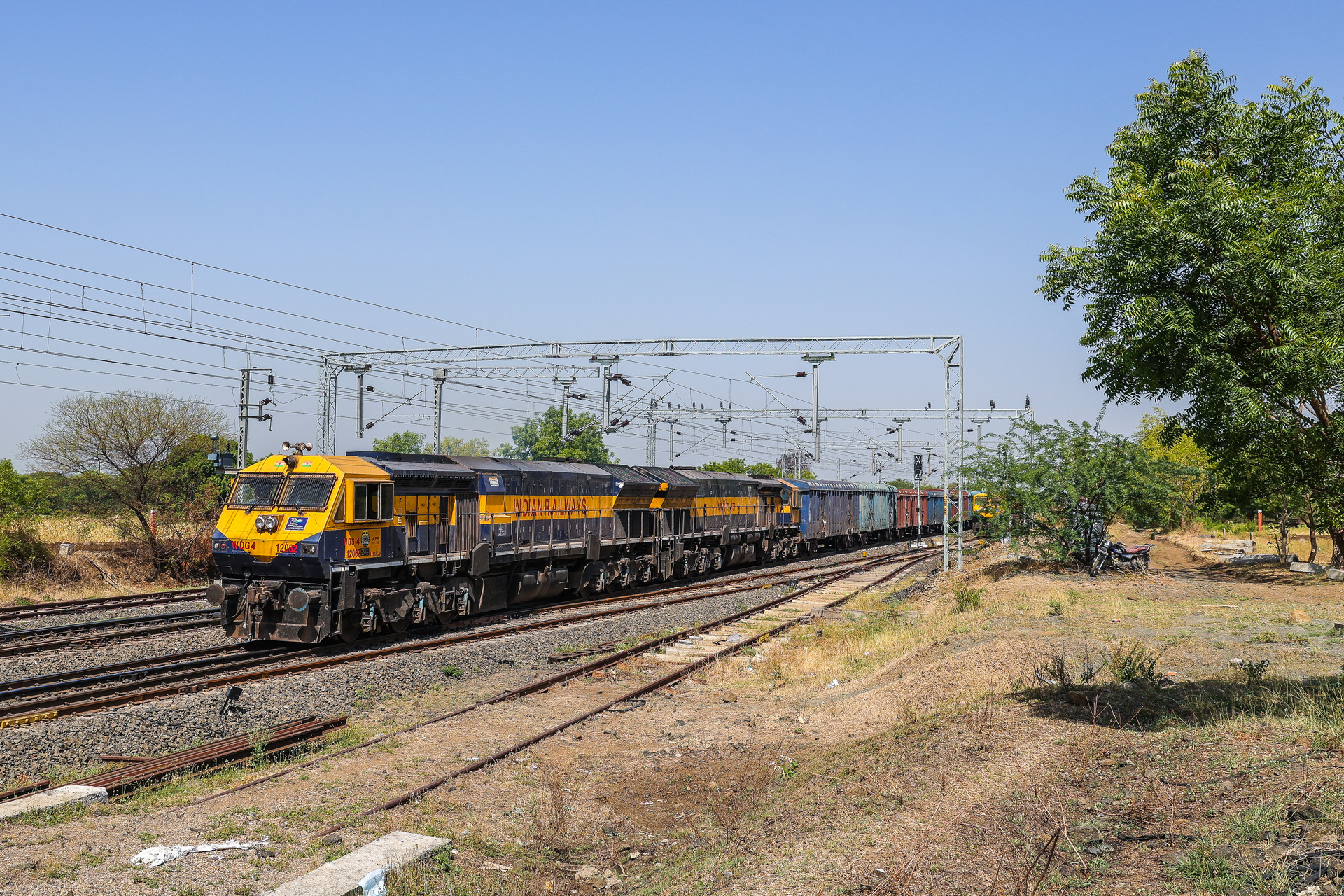

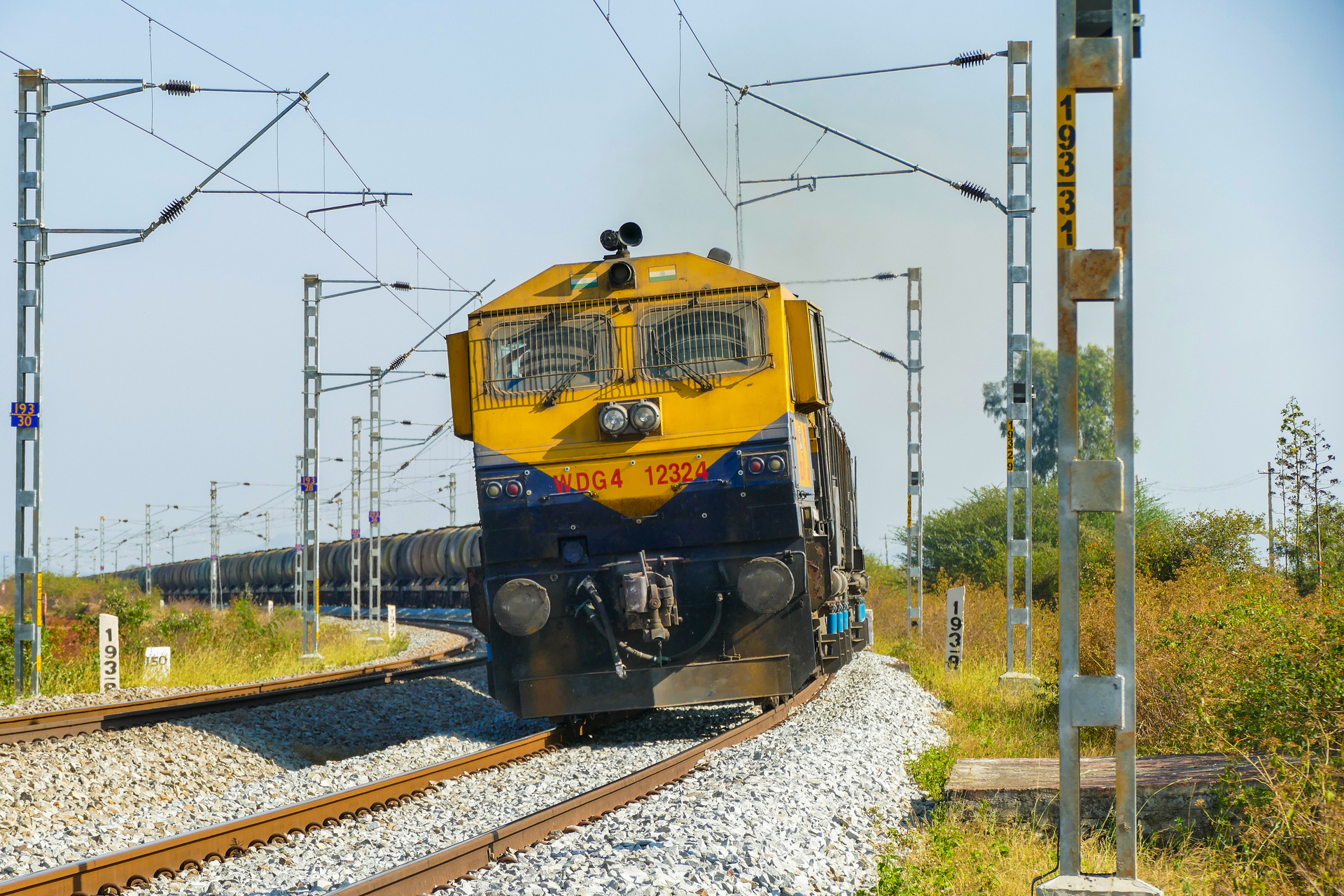

EMD GT46MAC

Built by DLW, EMD

Top speed

120 km/h

75 mph

Power output

3,000 kW

4,023 hp

Weight

126 t

277,782 lb

Length

21.3 m

69 ft 11 in

Track gauge

1,676 mm

Indian broad gauge

Years built

1999

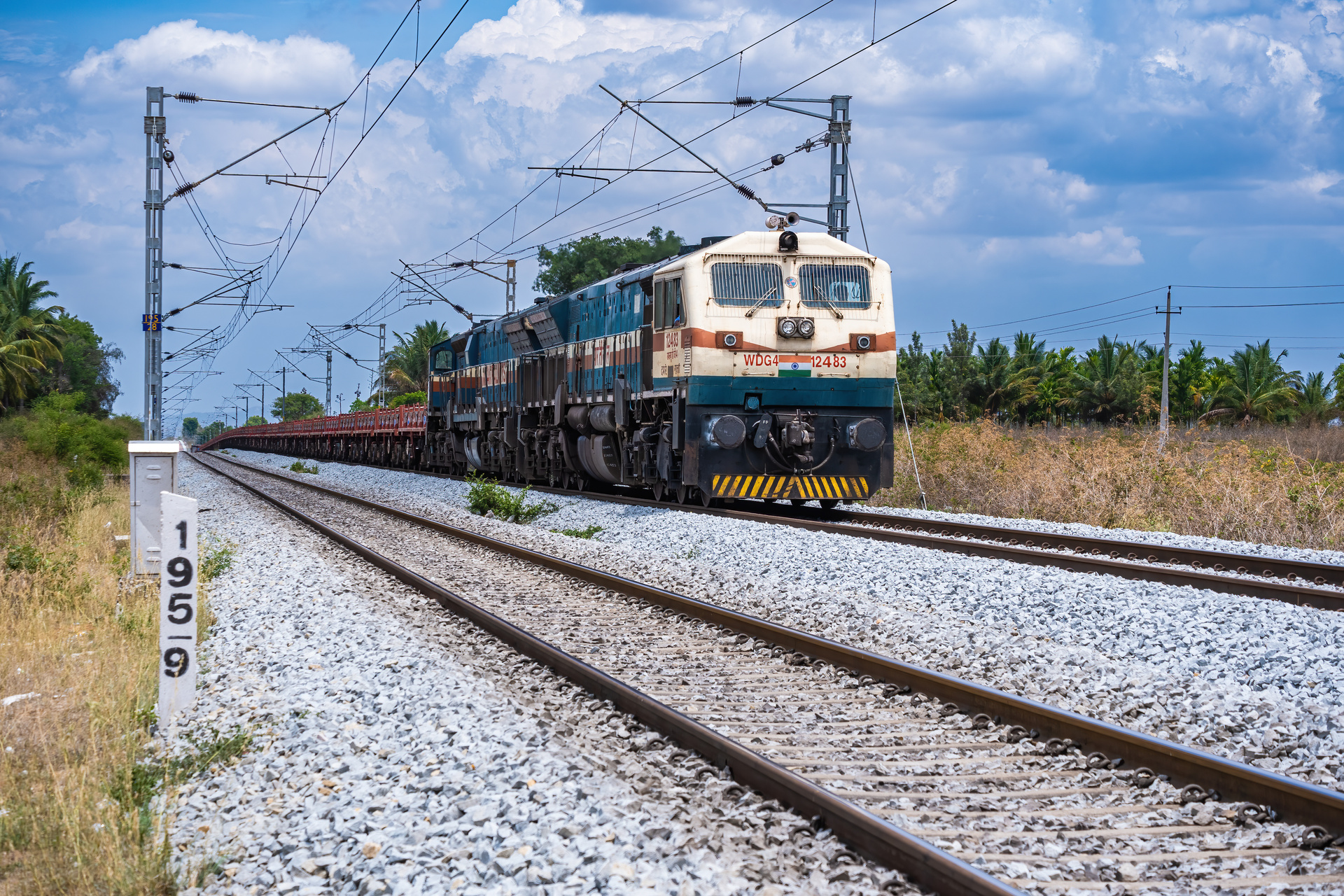

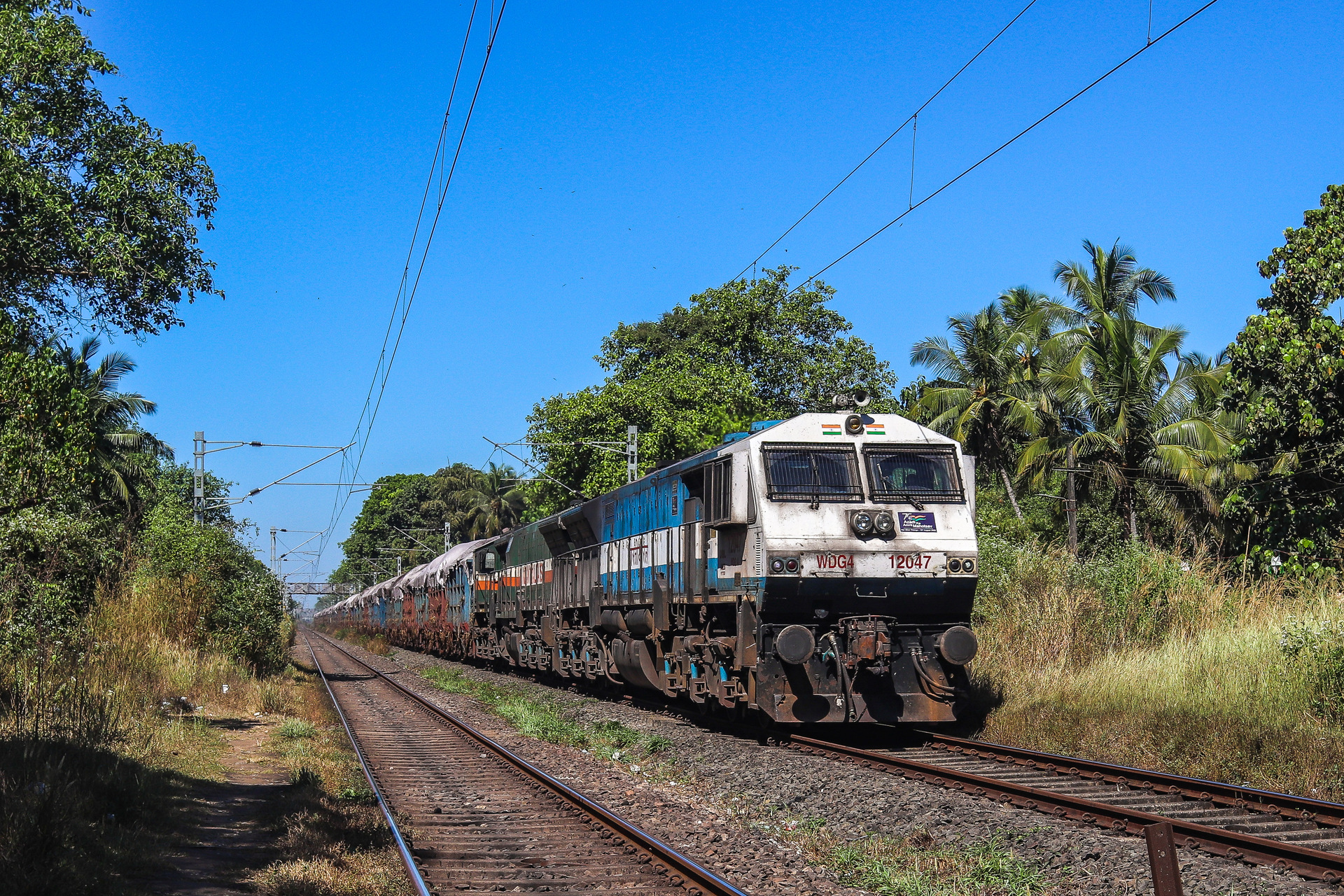

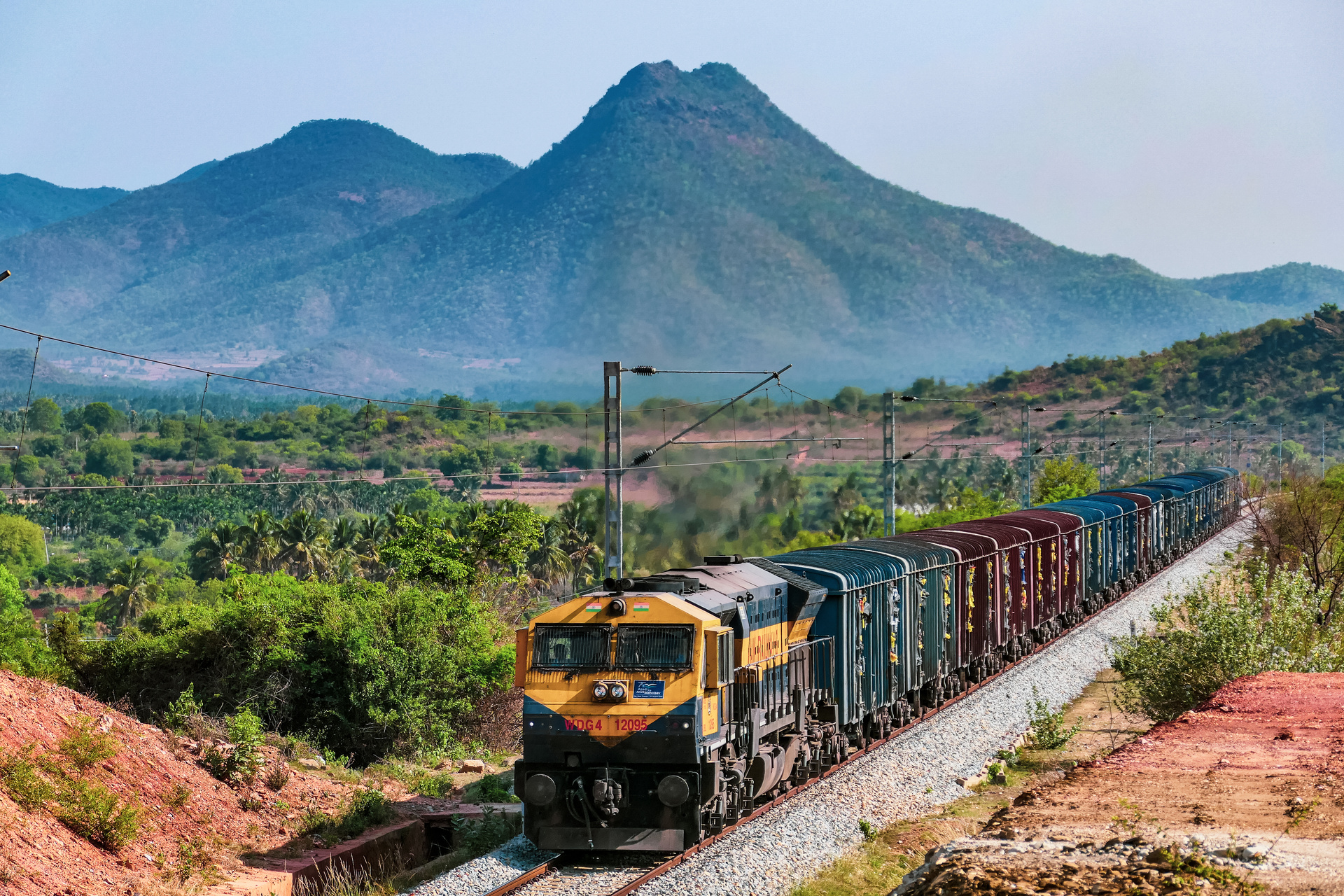

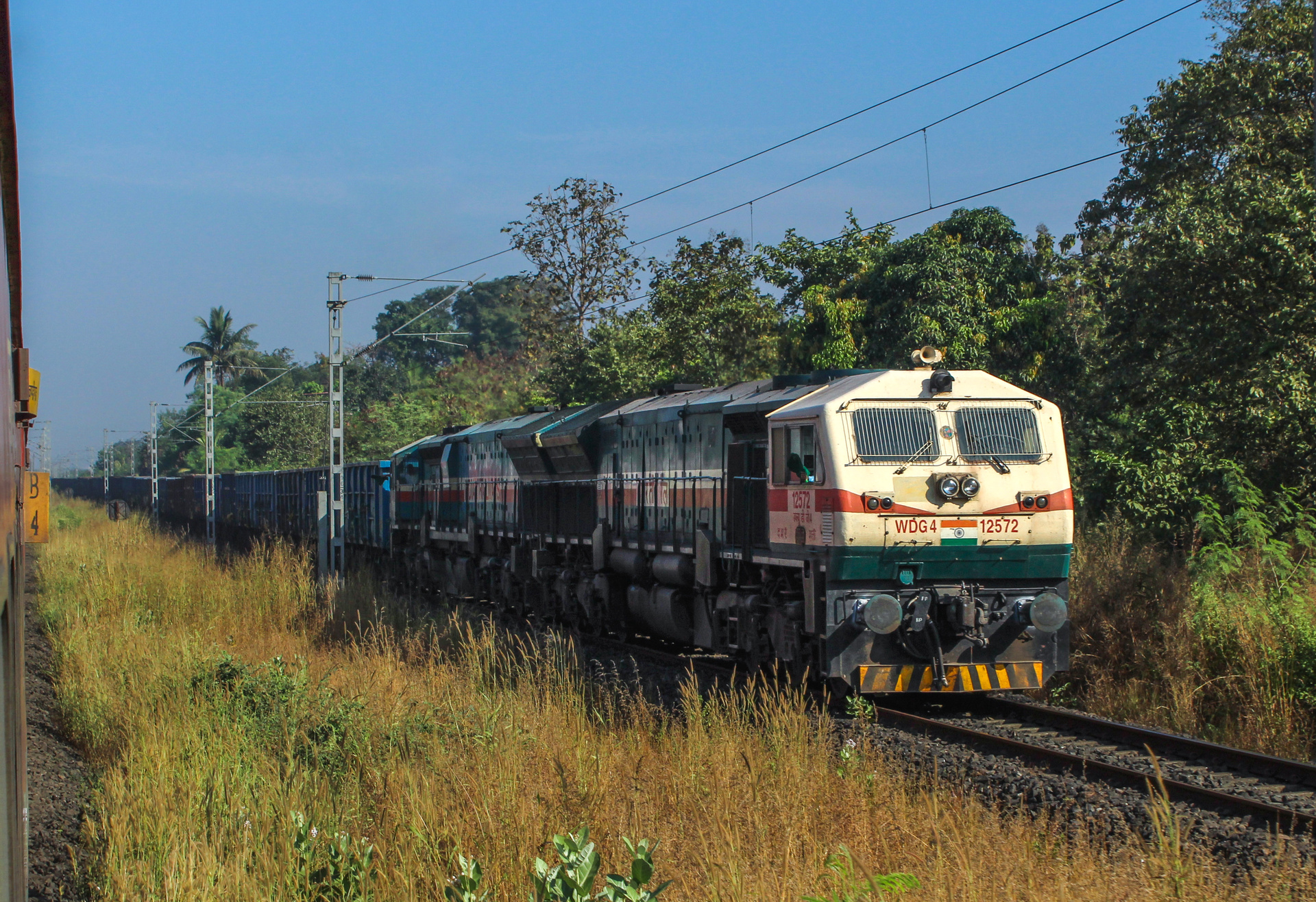

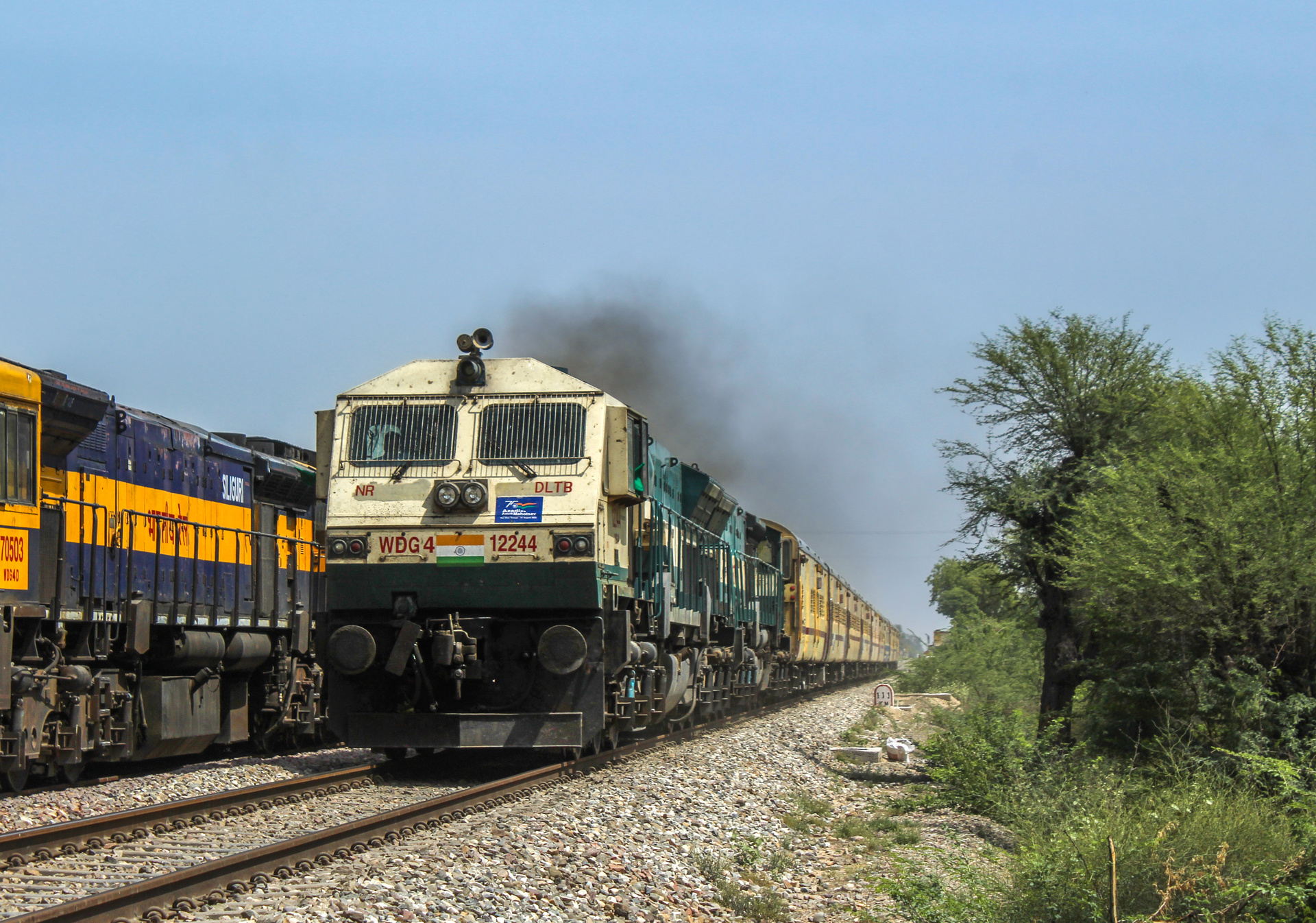

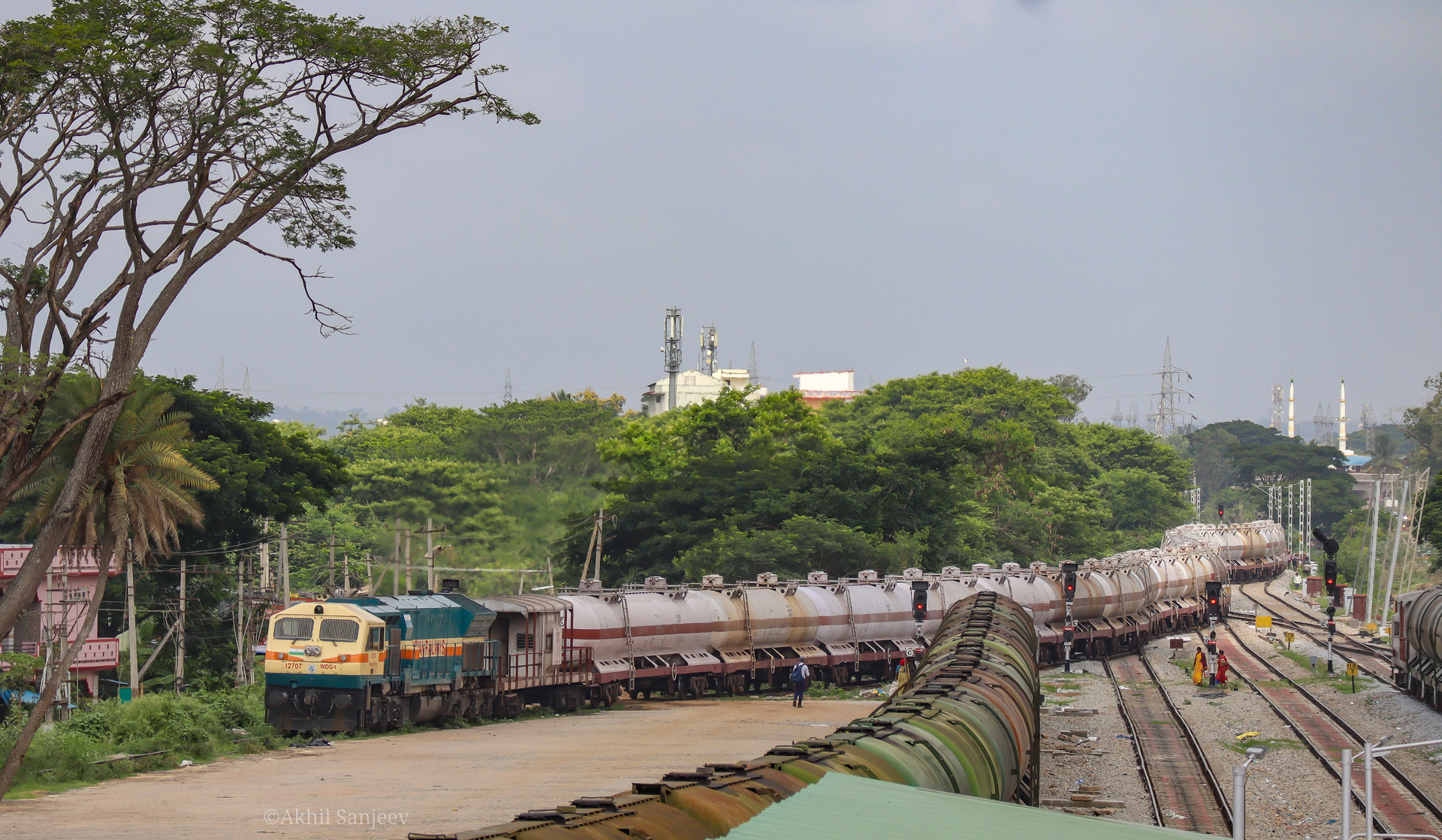

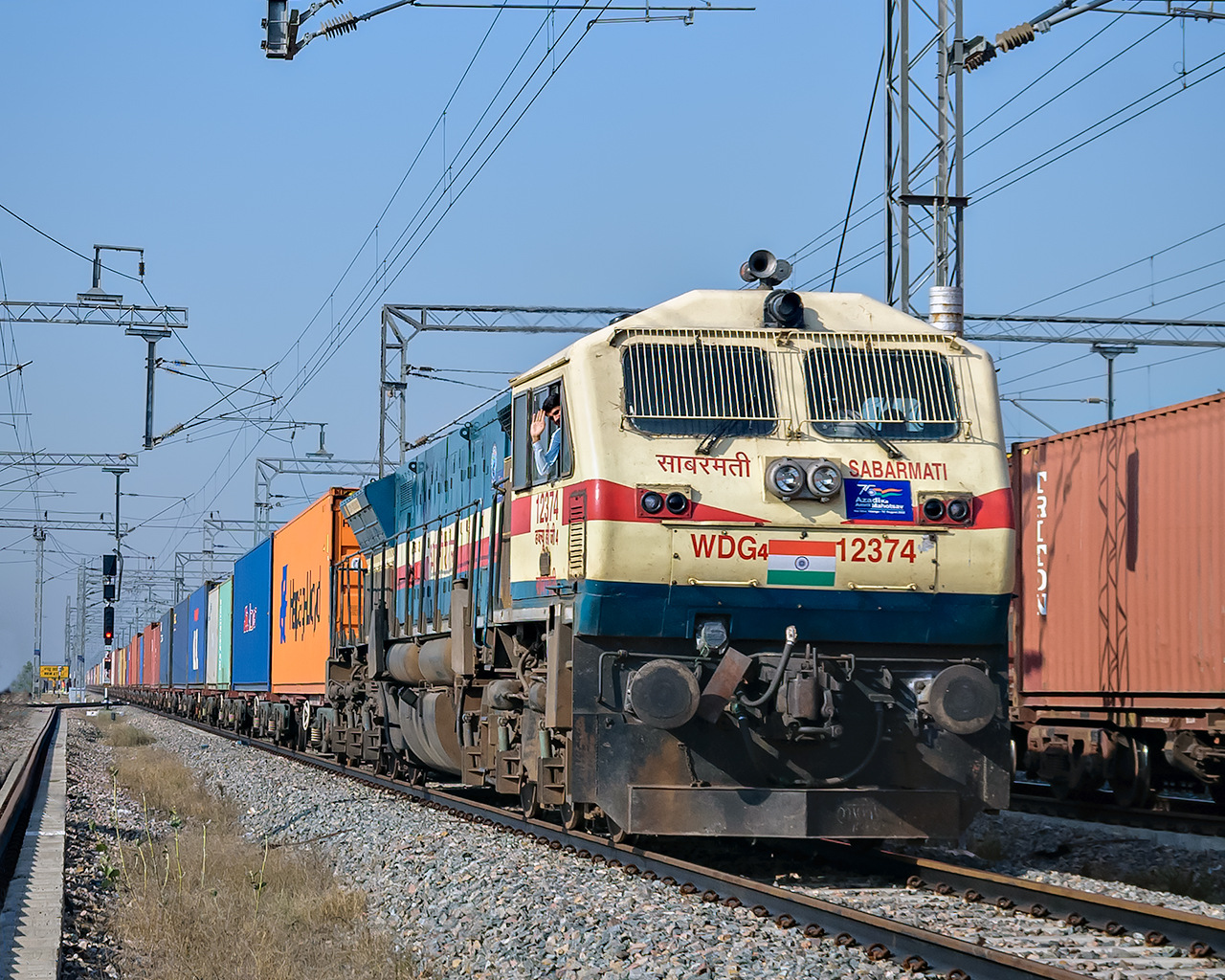

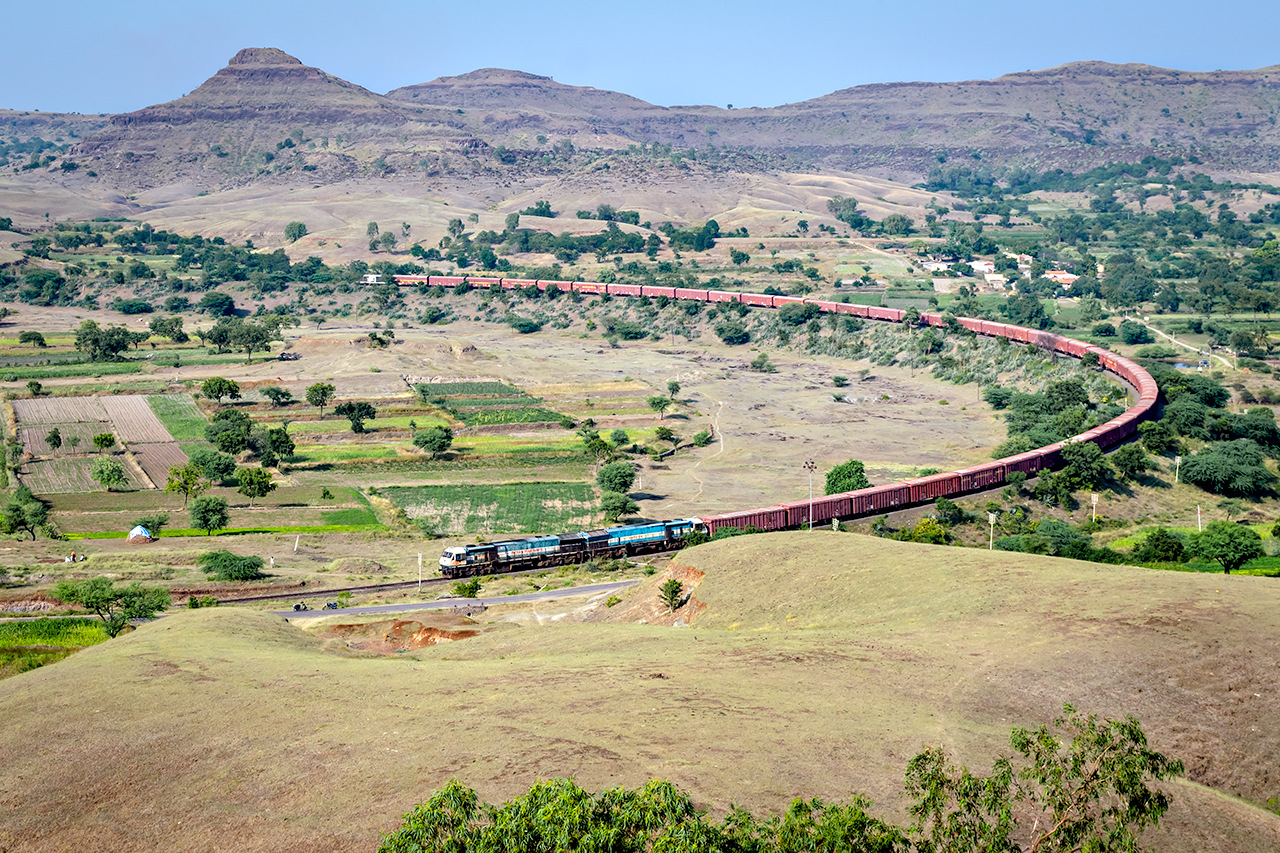

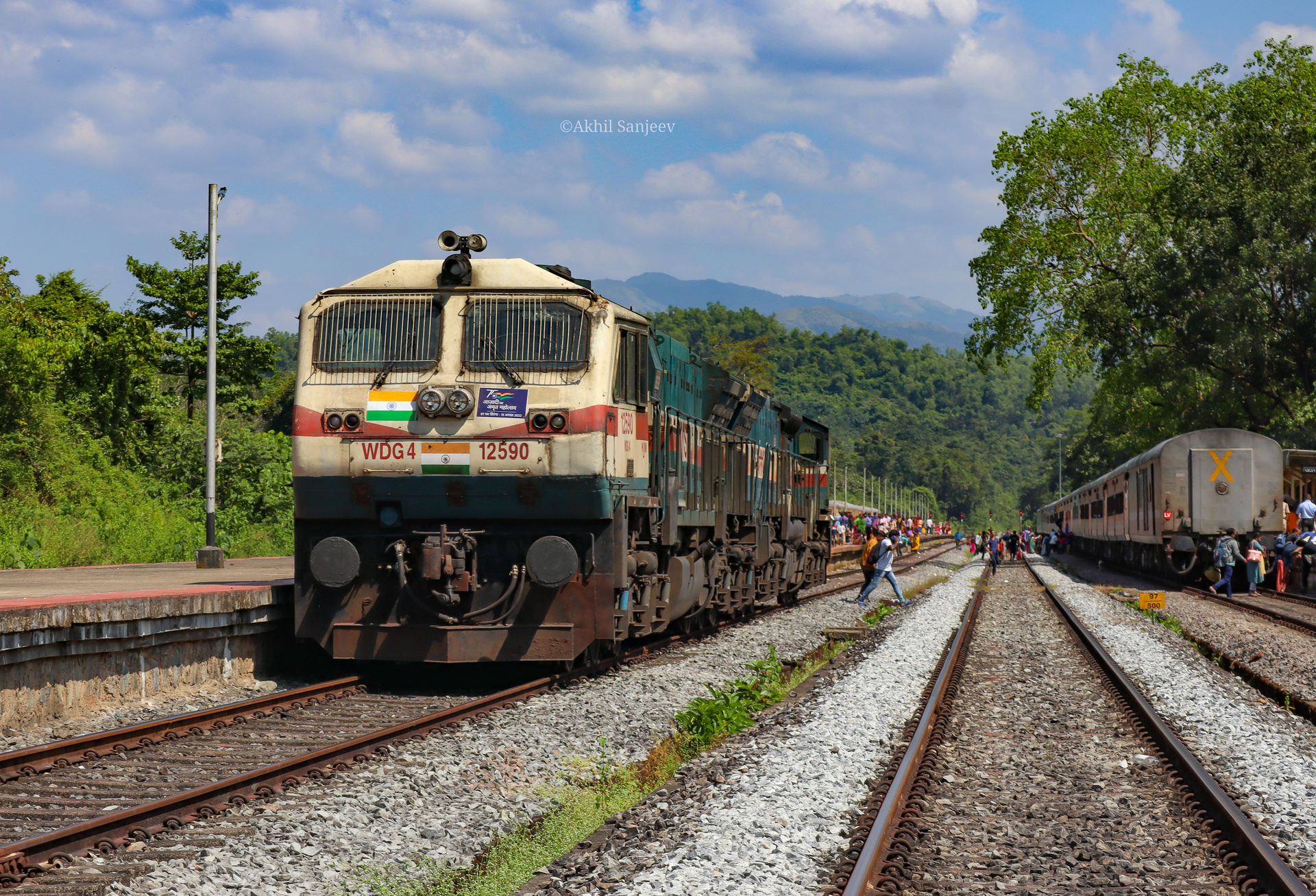

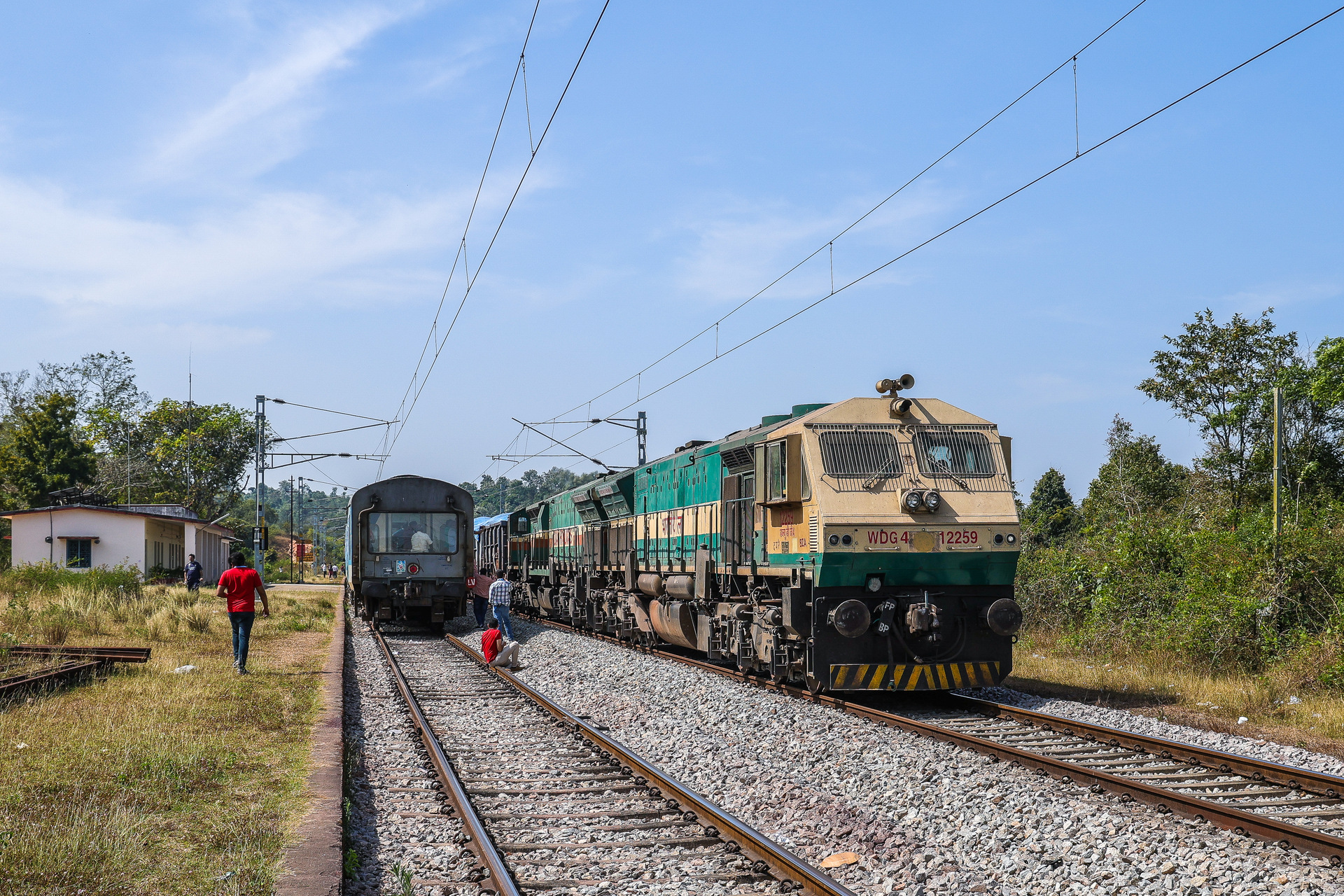

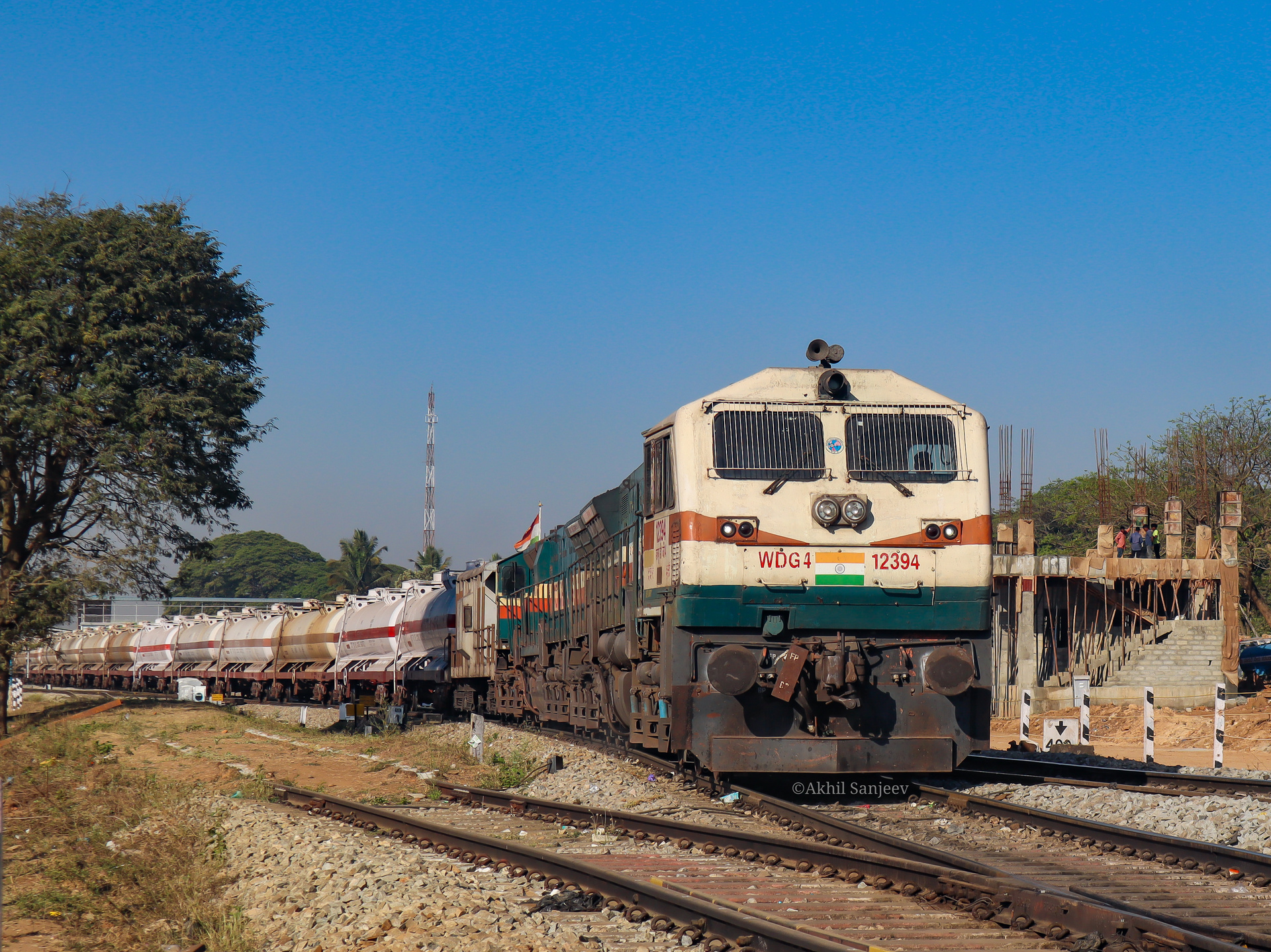

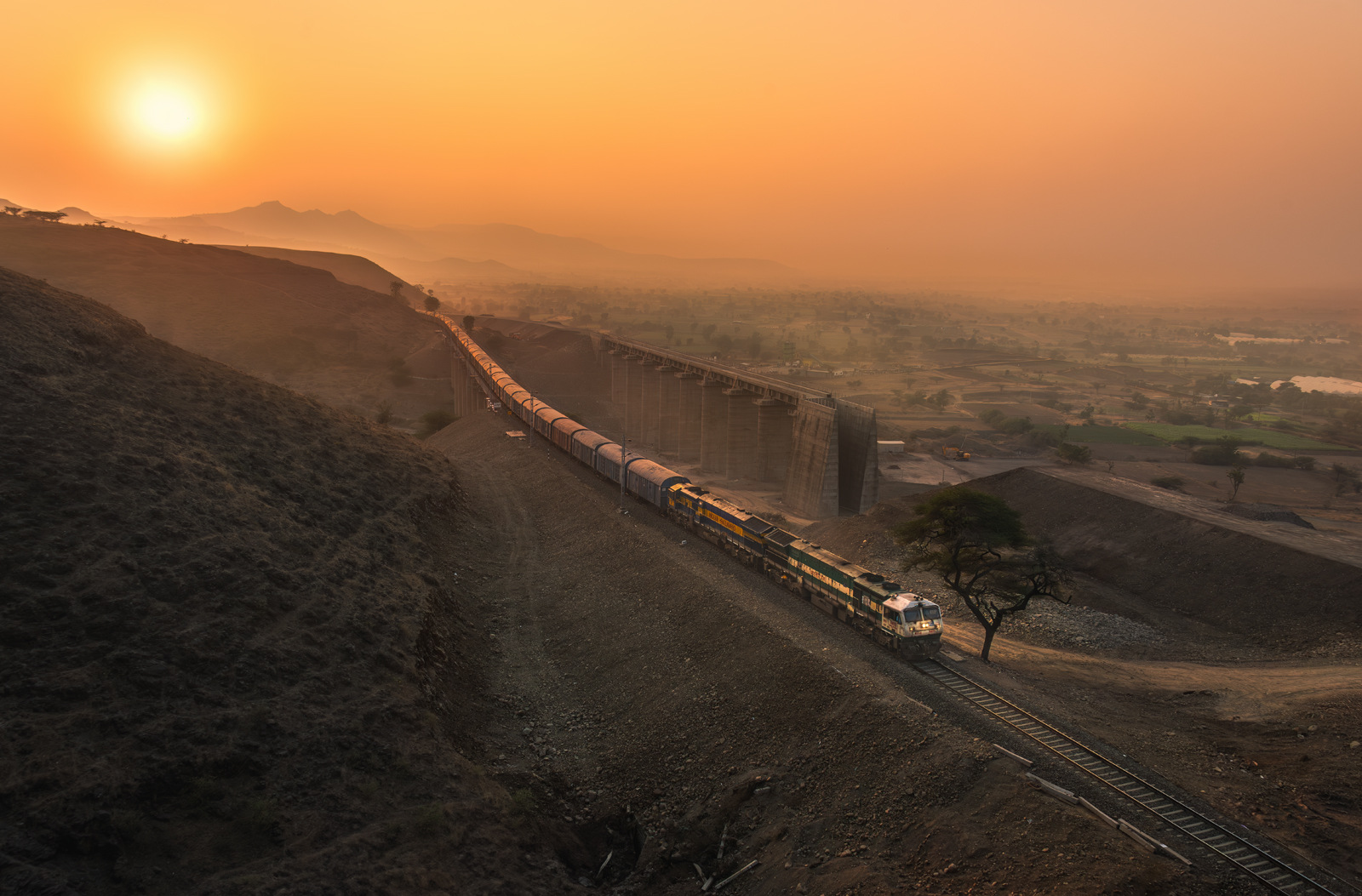

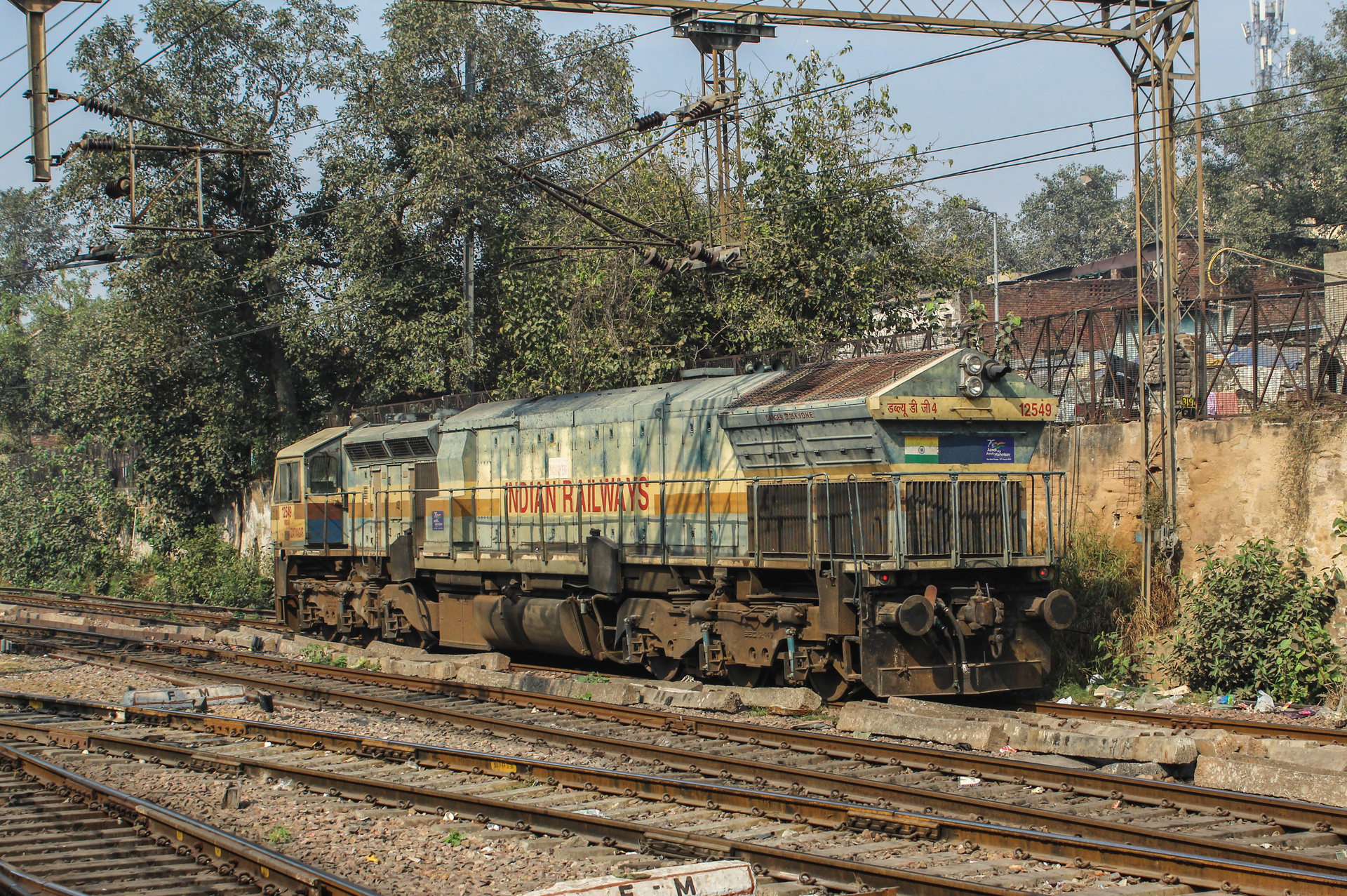

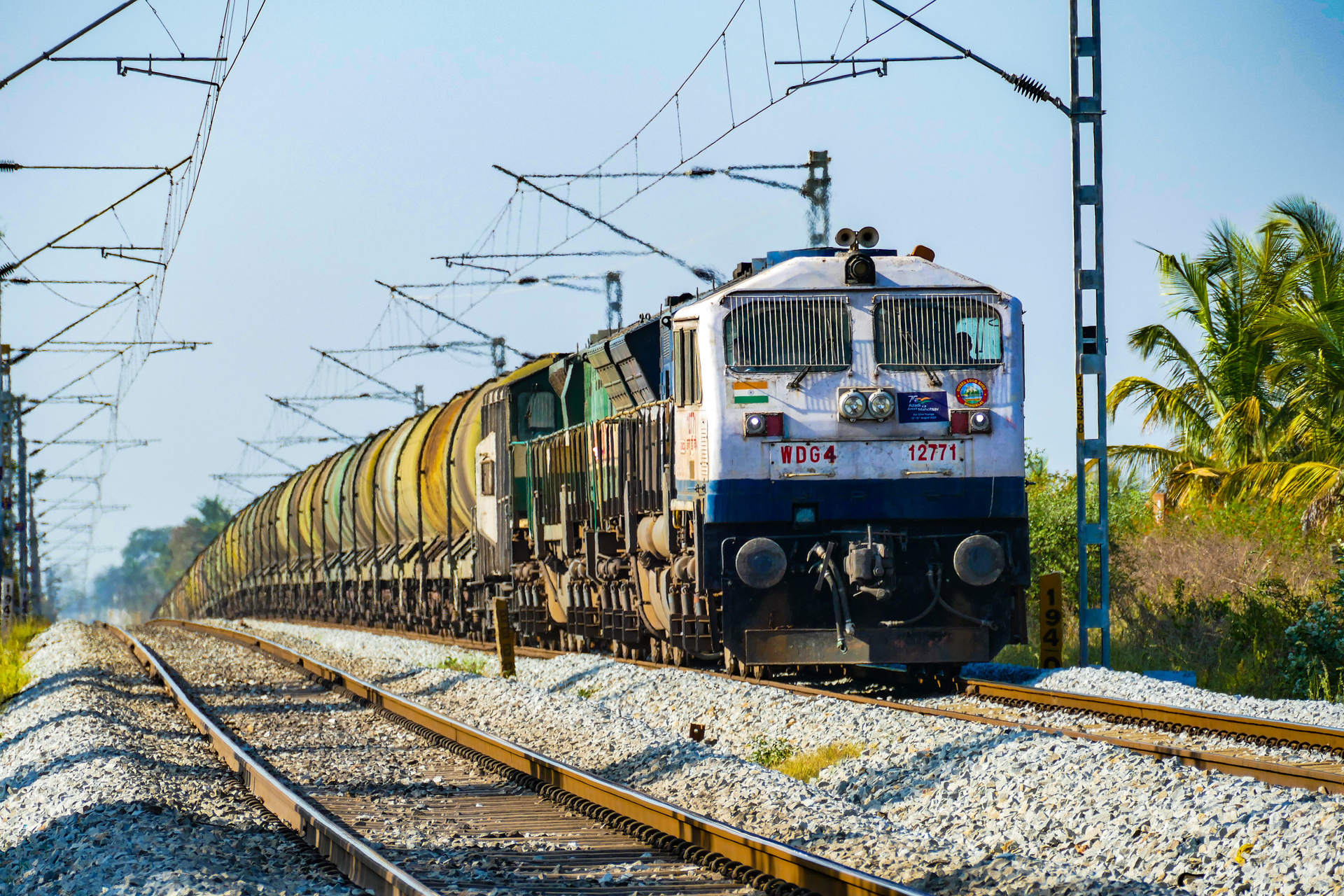

Overview of the EMD GT46MAC

Discover the powerful GT46MAC diesel locomotive, a versatile workhorse designed for heavy-duty operations.

This impressive machine, built by DLW and EMD, boasts a robust EMD 16-710G3B prime mover delivering a formidable 3000 kW of power output.

With a top speed of 120 km/h and a substantial tractive effort of 540 kN, the GT46MAC is engineered for efficiency and performance on the broad 1676 mm gauge.

Serving with Indian Railways as the IR WDG-4 class, this Co'Co' articulated locomotive plays a crucial role in freight transportation, showcasing its reliable engineering and enduring legacy in the rail industry.

Its substantial weight of 126 tons and impressive length of 21.3 meters underscore its capacity for demanding railway applications.

EMD GT46MAC technical specifications

	Value	Imperial / US
Series	GT46
Built by	DLW, EMD · 1999
Top speed	120 km/h75 mph	75 mph
Power output	3,000 kW4,023 hp	4,023 hp
Tractive effort	540 kN121,397 lbf	121,397 lbf
Prime mover	EMD 16-710G3B
Track gauge	1,676 mmIndian broad gauge5 ft 6 in	5 ft 6 in
UIC axle arrangement	Co'Co'
Length	21.3 m69 ft 11 in	69 ft 11 in
Height	4.12 m13 ft 6 in	13 ft 6 in
Weight	126 t277,782 lb	277,782 lb
