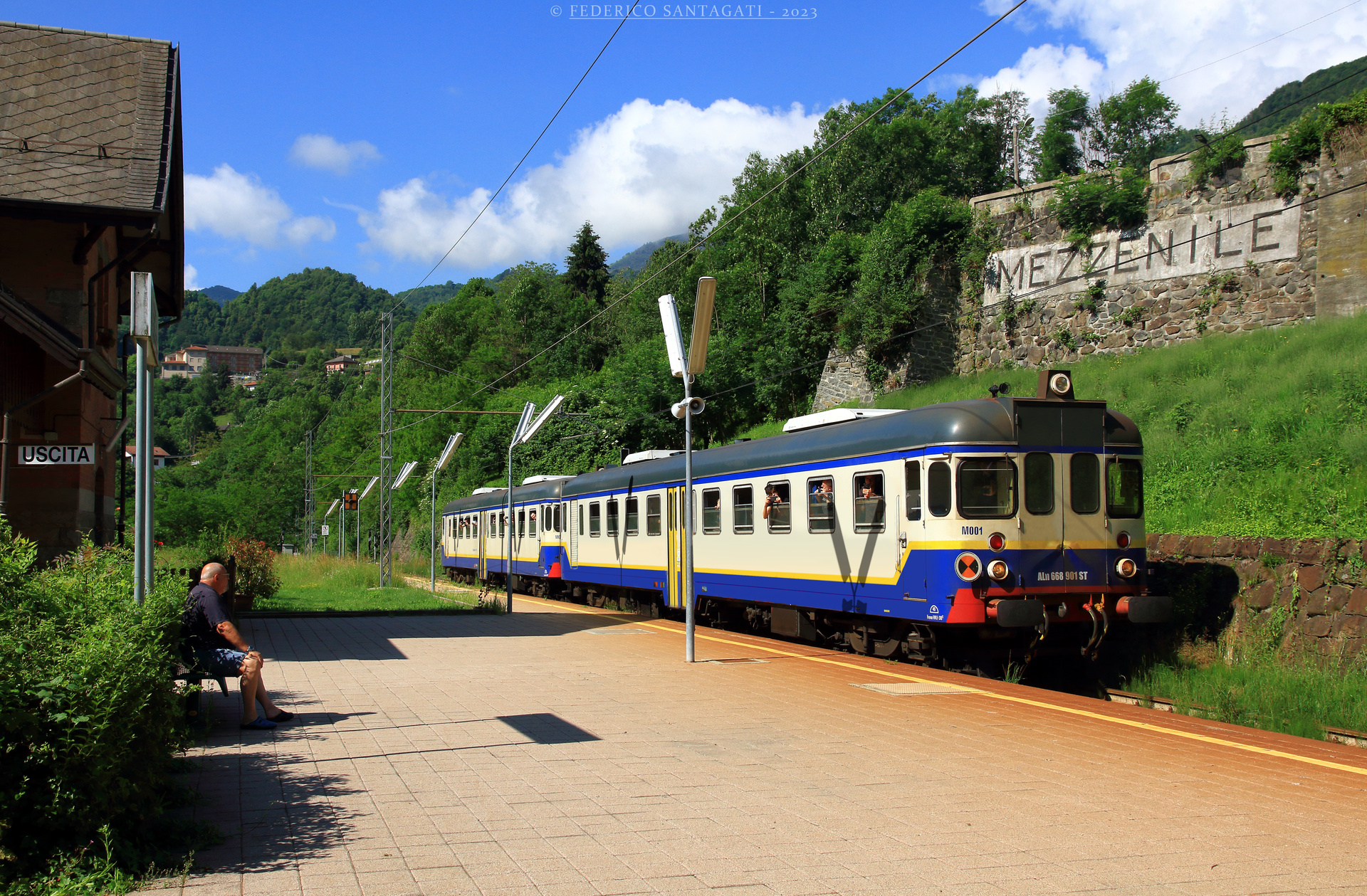

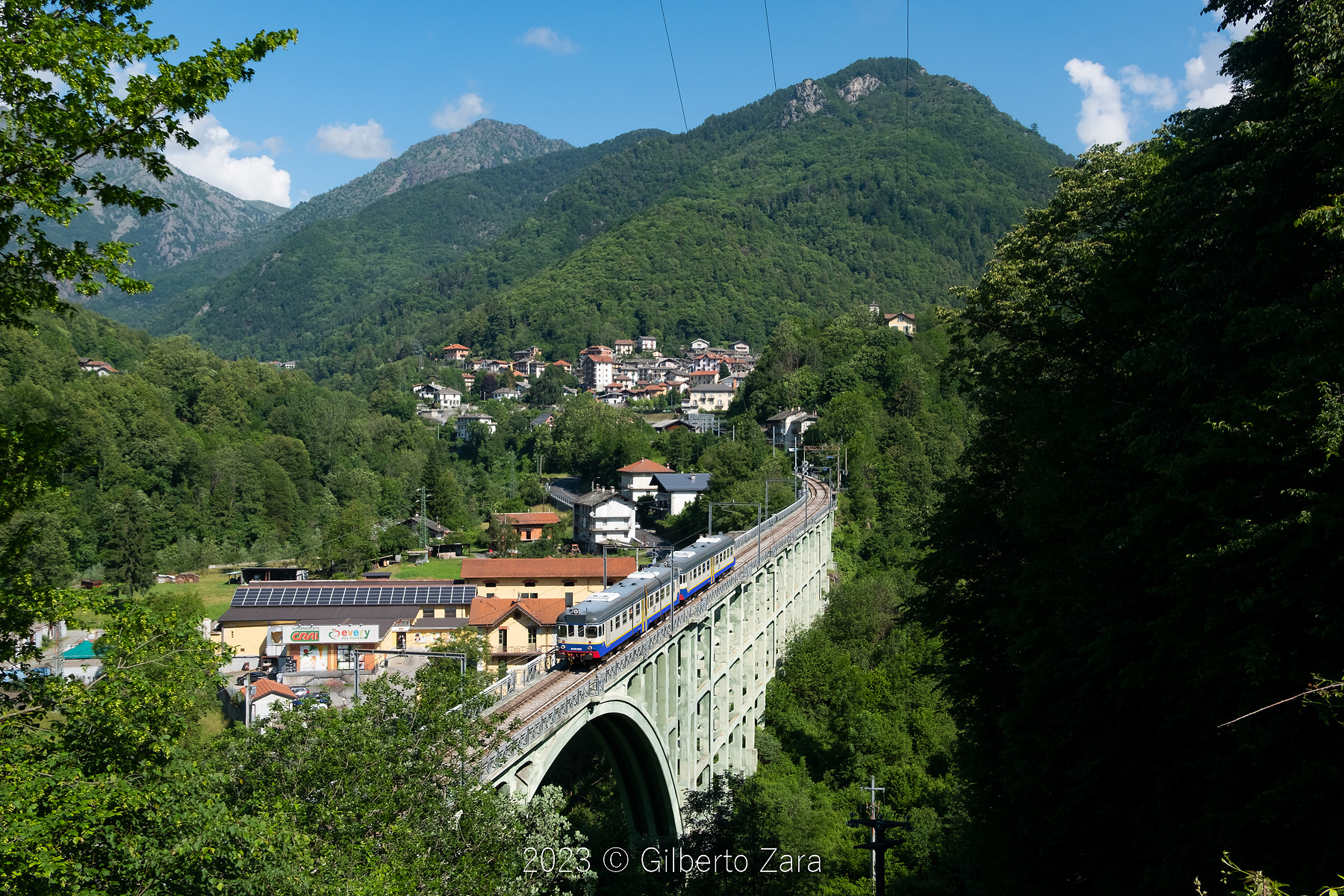

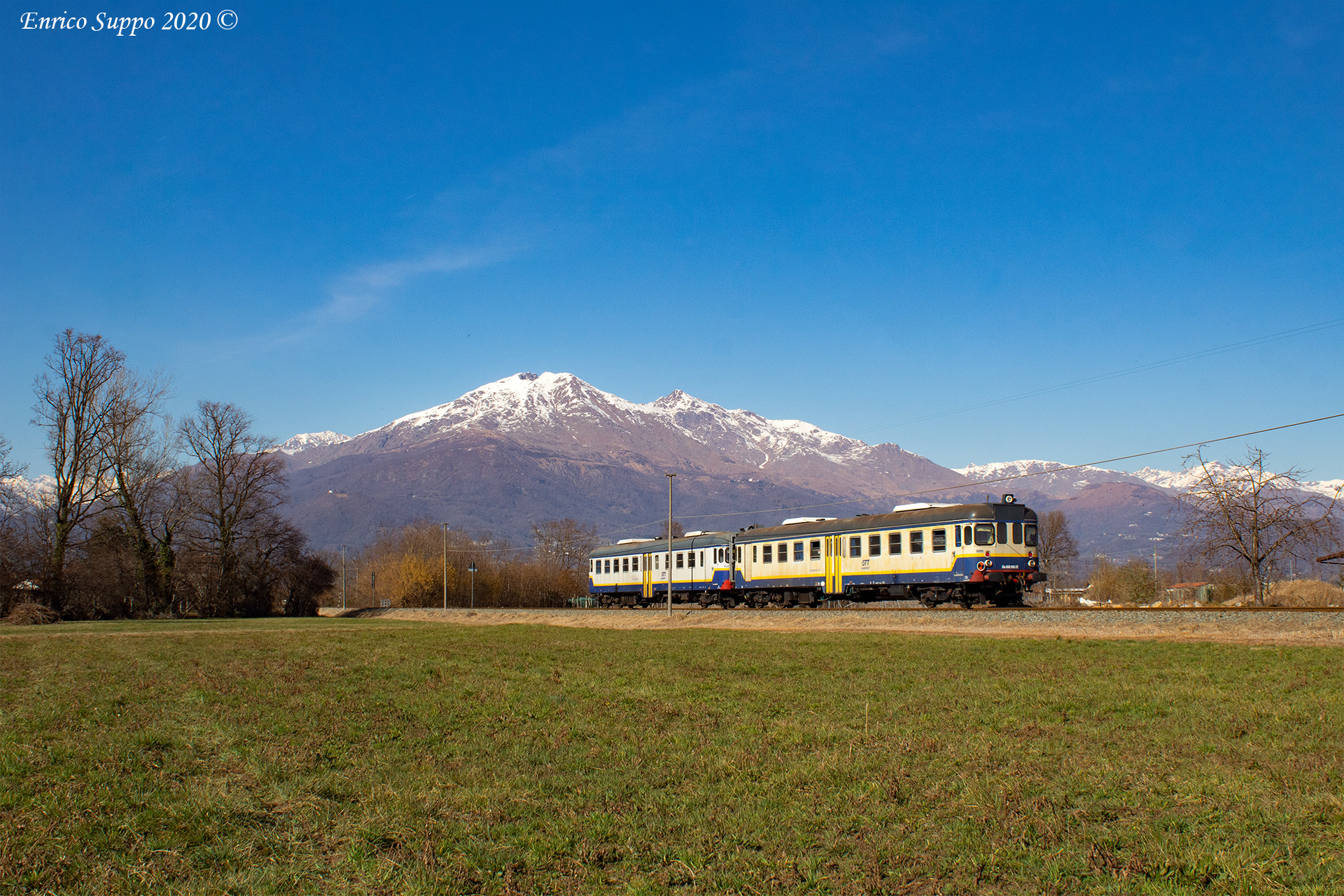

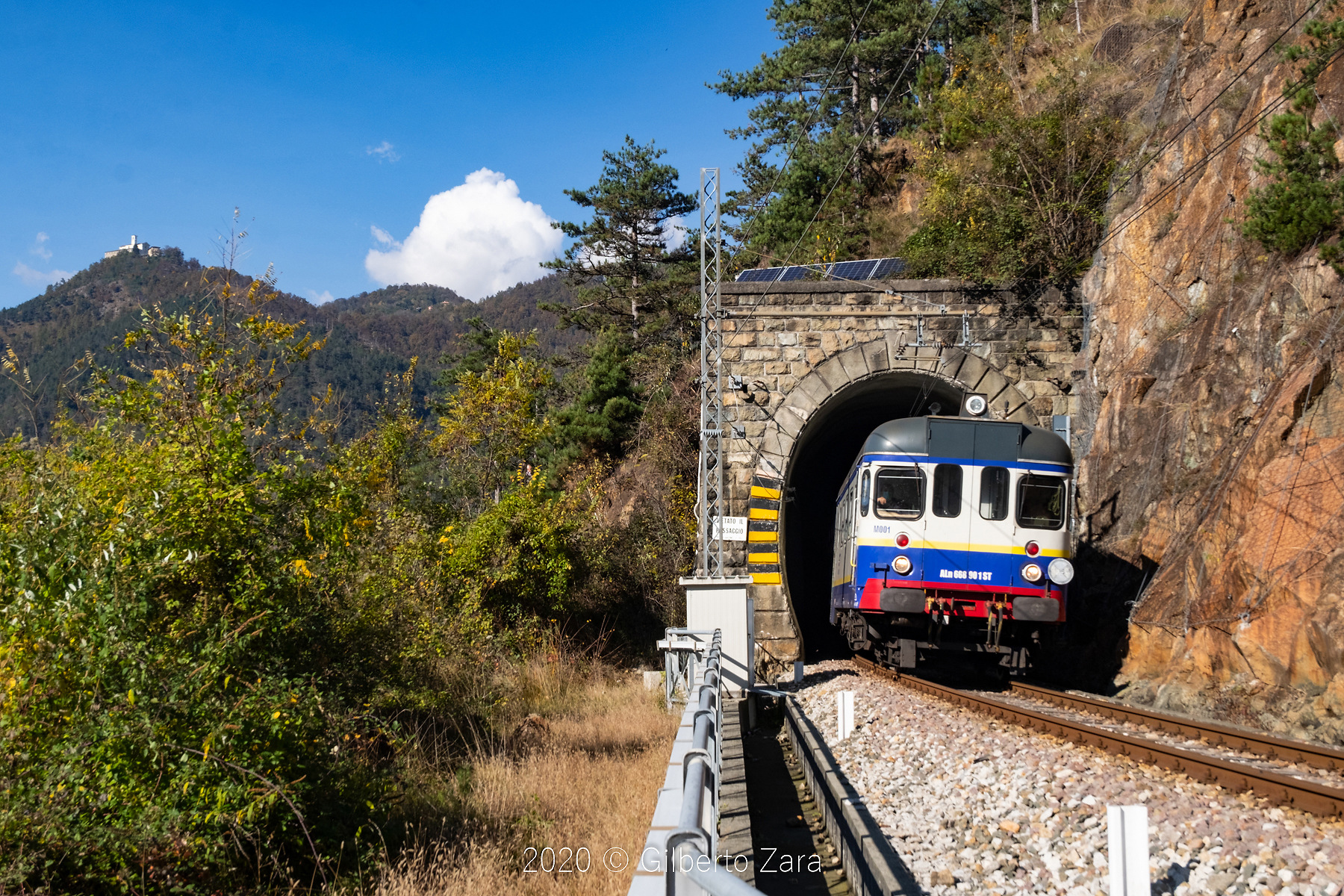

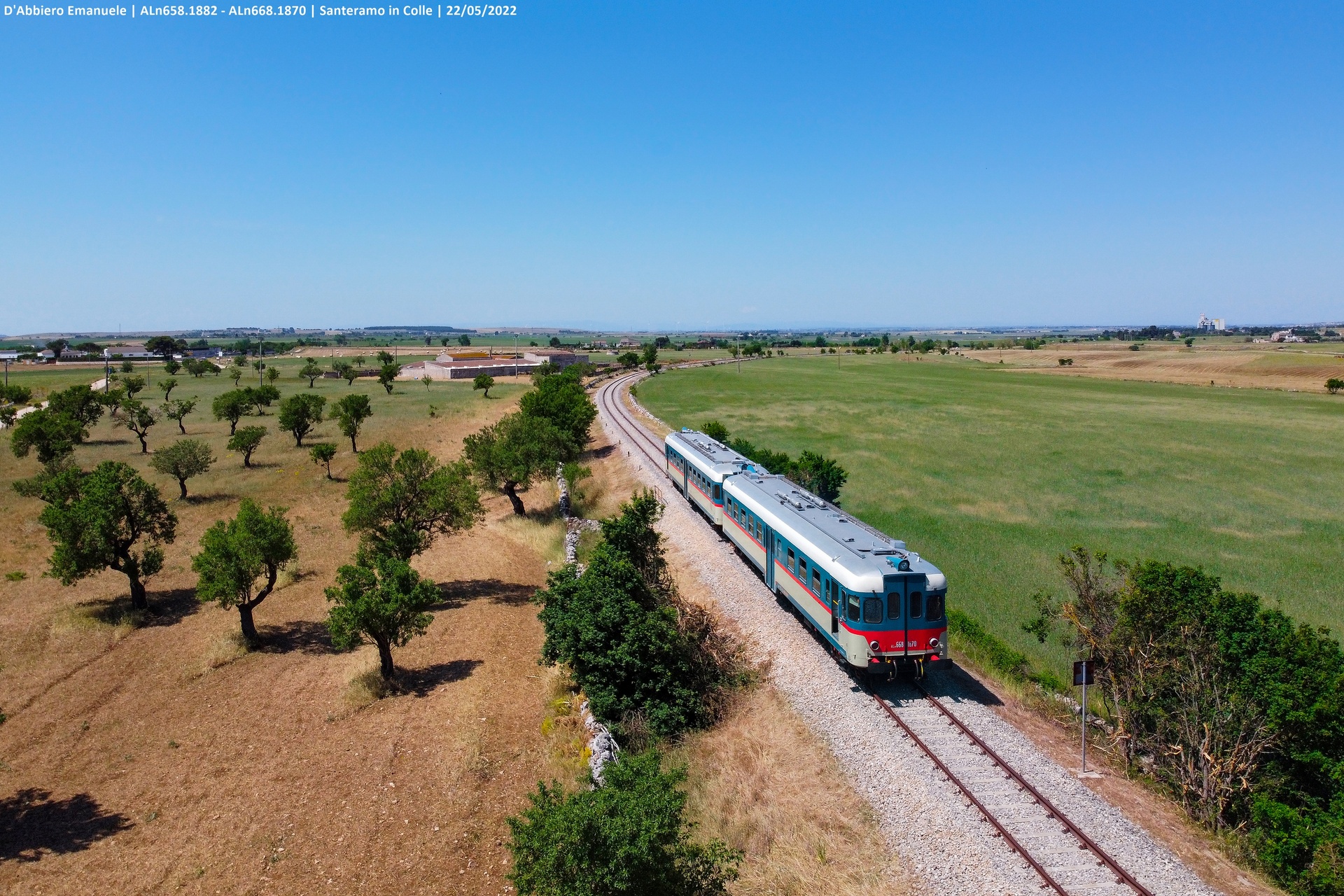

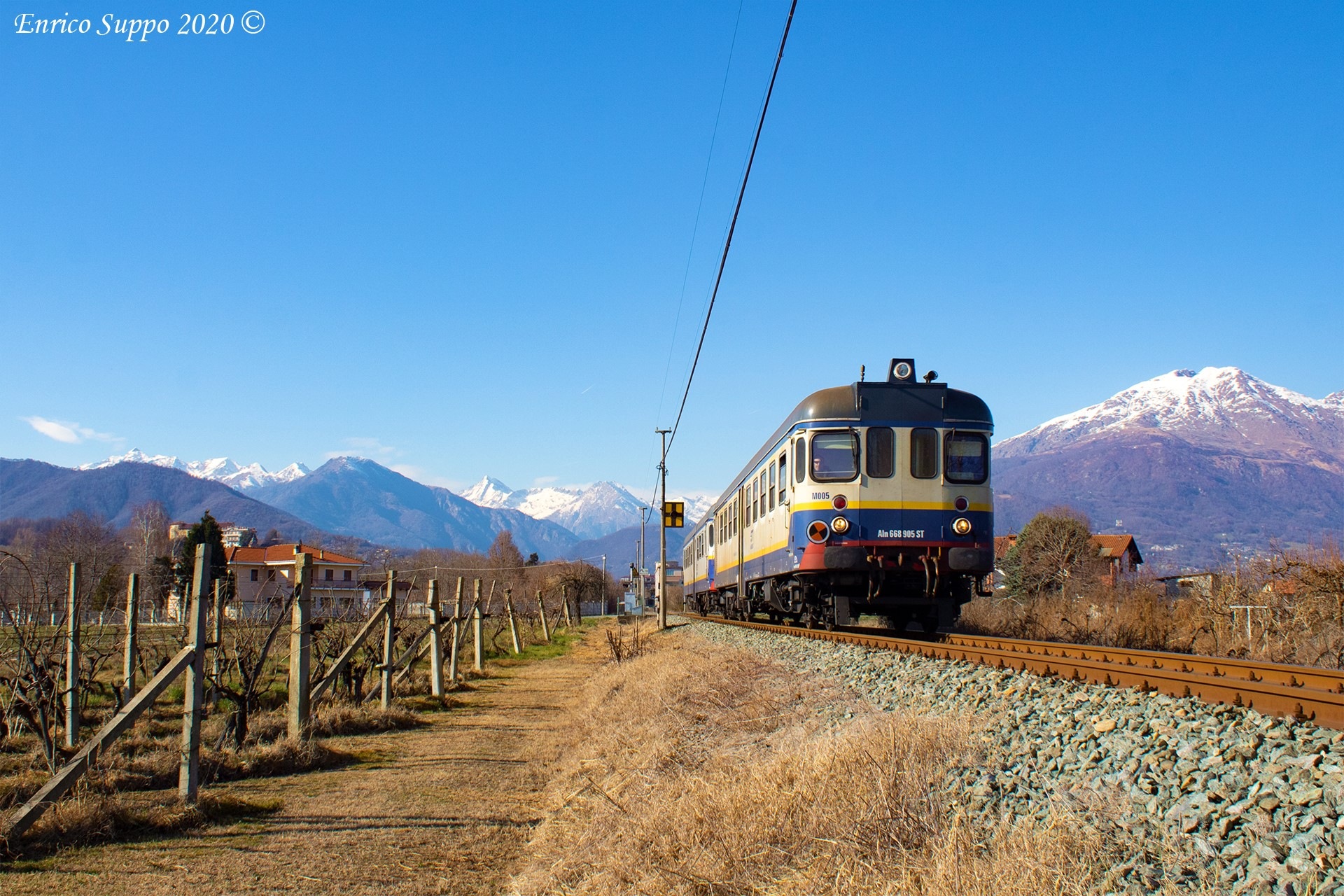

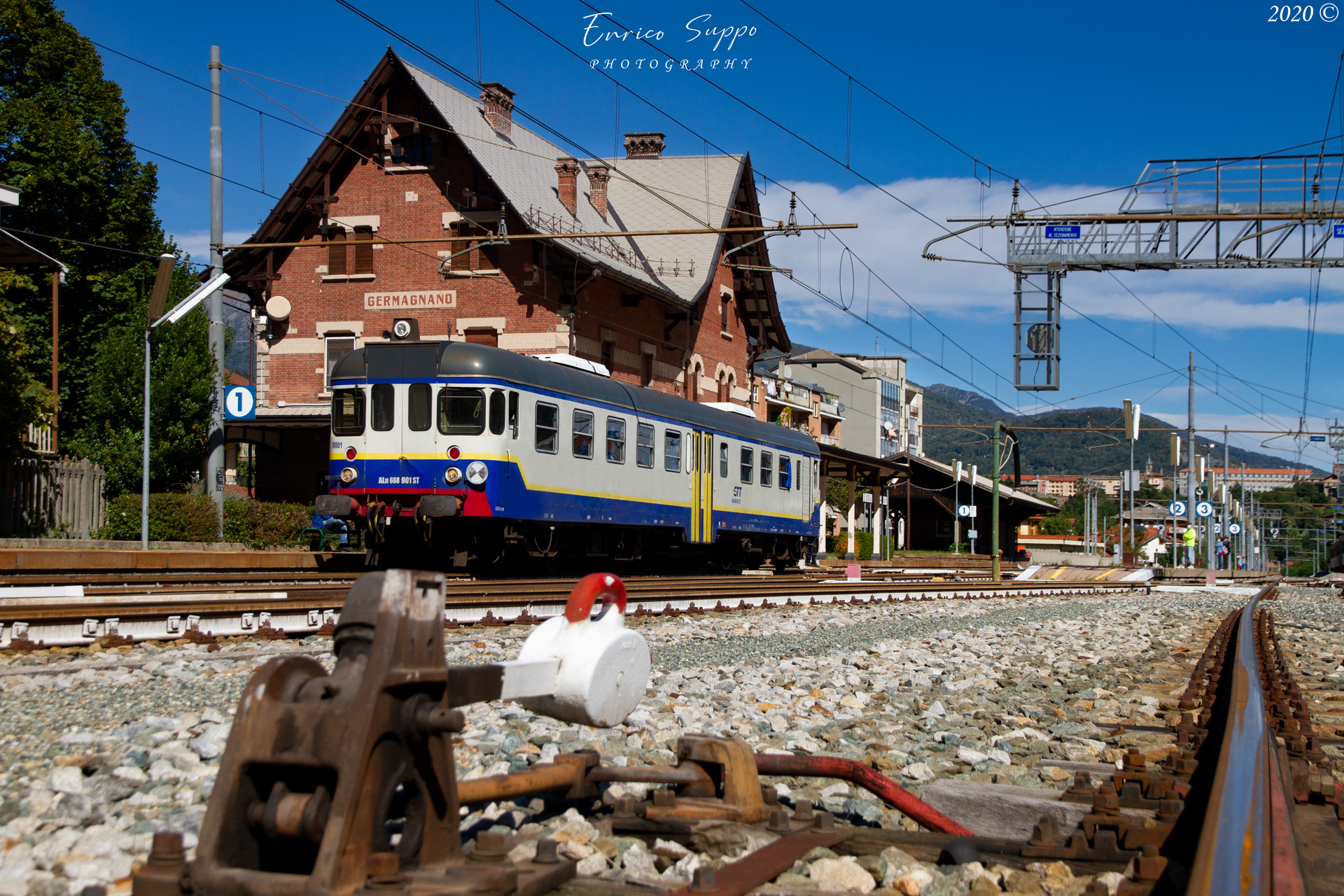

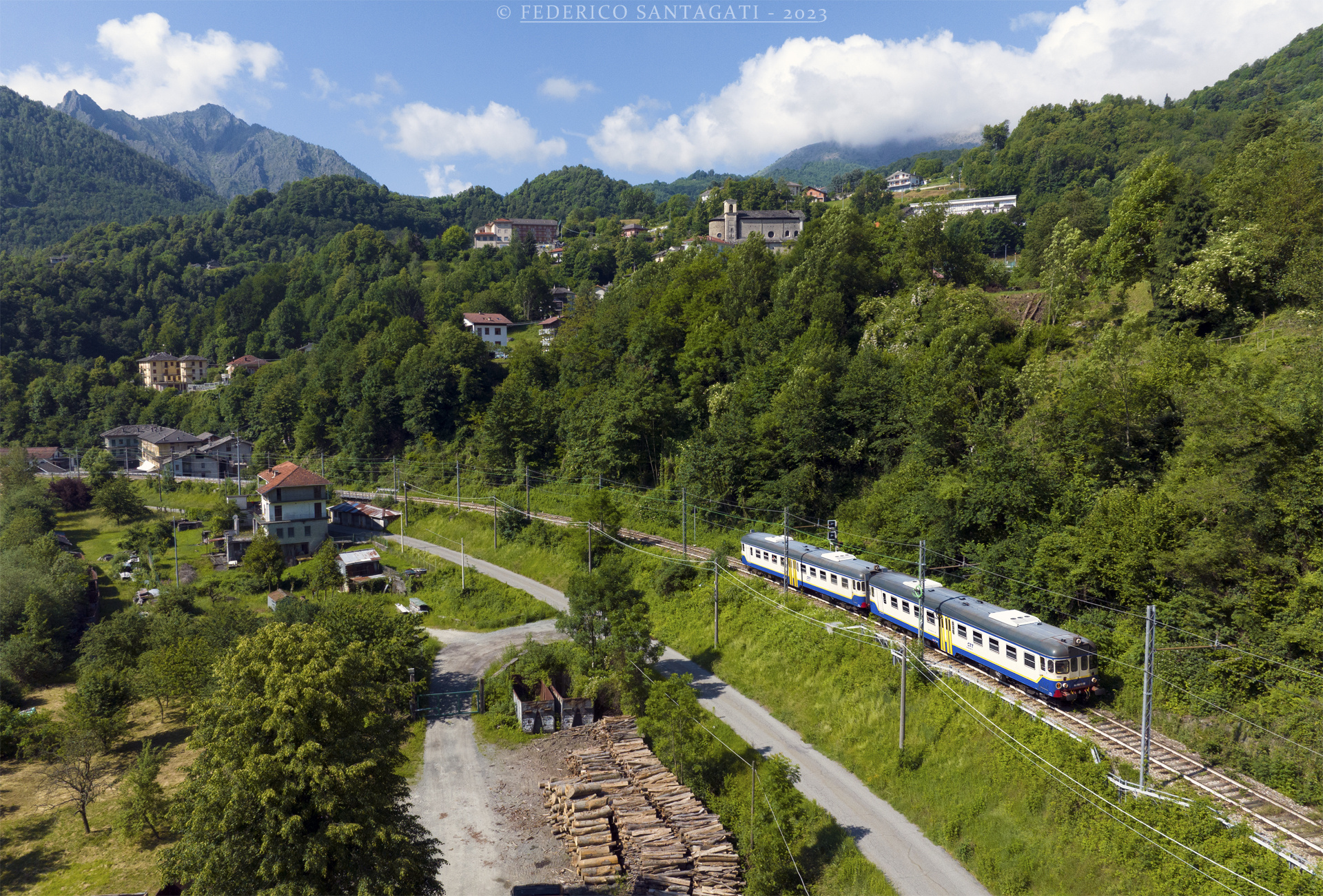

Fiat ALn 668.1800

Built by Fiat

Top speed

110 km/h

68 mph

Power output

178 kW

239 hp

Weight

35 t

77,162 lb

Length

22.11 m

72 ft 6 in

Track gauge

1,435 mm

Standard gauge

Years built

1971–1973

85 units

Overview of the Fiat ALn 668.1800

Discover the ALn 668.1800, a versatile railcar model built by Fiat between 1971 and 1973. This robust diesel railcar, known for its reliability and efficiency, is a classic example of Italian railway engineering.

With a top speed of 110 km/h, the ALn 668.1800 is designed for regional passenger transport. It features a comfortable seating capacity, offering 8 seats in first class and 60 in second class. Its standard gauge of 1435 mm allows it to operate on a wide network.

The ALn 668.1800 boasts a compact yet functional design, measuring 22.11 meters in length, 2.9 meters in width, and 3.7 meters in height. Powered by an IVECO 8217.12 prime mover producing 178 kW, this railcar has served various operators in Italy, including Ferrovie Emilia Romagna and Italian State Railways, highlighting its significant role in Italian rail history.

Fiat ALn 668.1800 technical specifications

	Value	Imperial / US
Series	ALn 668
Built by	Fiat · 1971–197385 units
Top speed	110 km/h68 mph	68 mph
Power output	178 kW239 hp	239 hp
Prime mover	IVECO 8217.12
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	(1A)'(A1)'
Capacity	1st class 8, 2nd class 60 seats
Length	22.11 m72 ft 6 in	72 ft 6 in
Width	2.9 m9 ft 6 in	9 ft 6 in
Height	3.7 m12 ft 2 in	12 ft 2 in
Weight	35 t77,162 lb	77,162 lb

Source of the data: it.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the Fiat ALn 668.1800

Railway companies that have operated the ALn 668.1800, with the class designation used by each of them.

Operator	Class	Country
Ferrovie Emilia Romagna	FER ALn 668.1009	Italy
Gruppo Torinese Trasporti	GTT ALn 668 M	Italy
Gruppo Torinese Trasporti	GTT ALn 668.900	Italy
Italian State Railways	FS ALn 668.1800	Italy
Trenitalia-LeNord	Trenord ALn 668.1800	Italy
