Fives Z 5300

Built by Carel et Fouché, MTE, Fives, Oerlikon

Top speed

120 km/h

75 mph

Power output

1,180 kW

1,582 hp

Track gauge

1,435 mm

Standard gauge

Overview of the Fives Z 5300

Discover the Z 5300, an iconic electric multiple unit (EMU) that served France with the SNCF.

This workhorse of French railways, built by esteemed manufacturers like Carel et Fouché and MTE, is known for its reliability and efficient design.

Operating at a top speed of 120 km/h, the Z 5300 features a standard gauge of 1435 mm and is powered by a robust 1.5 kV DC electric system, delivering an impressive 1180 kW of power.

Its substantial tractive effort of 147 kN allowed it to handle demanding suburban routes effectively.

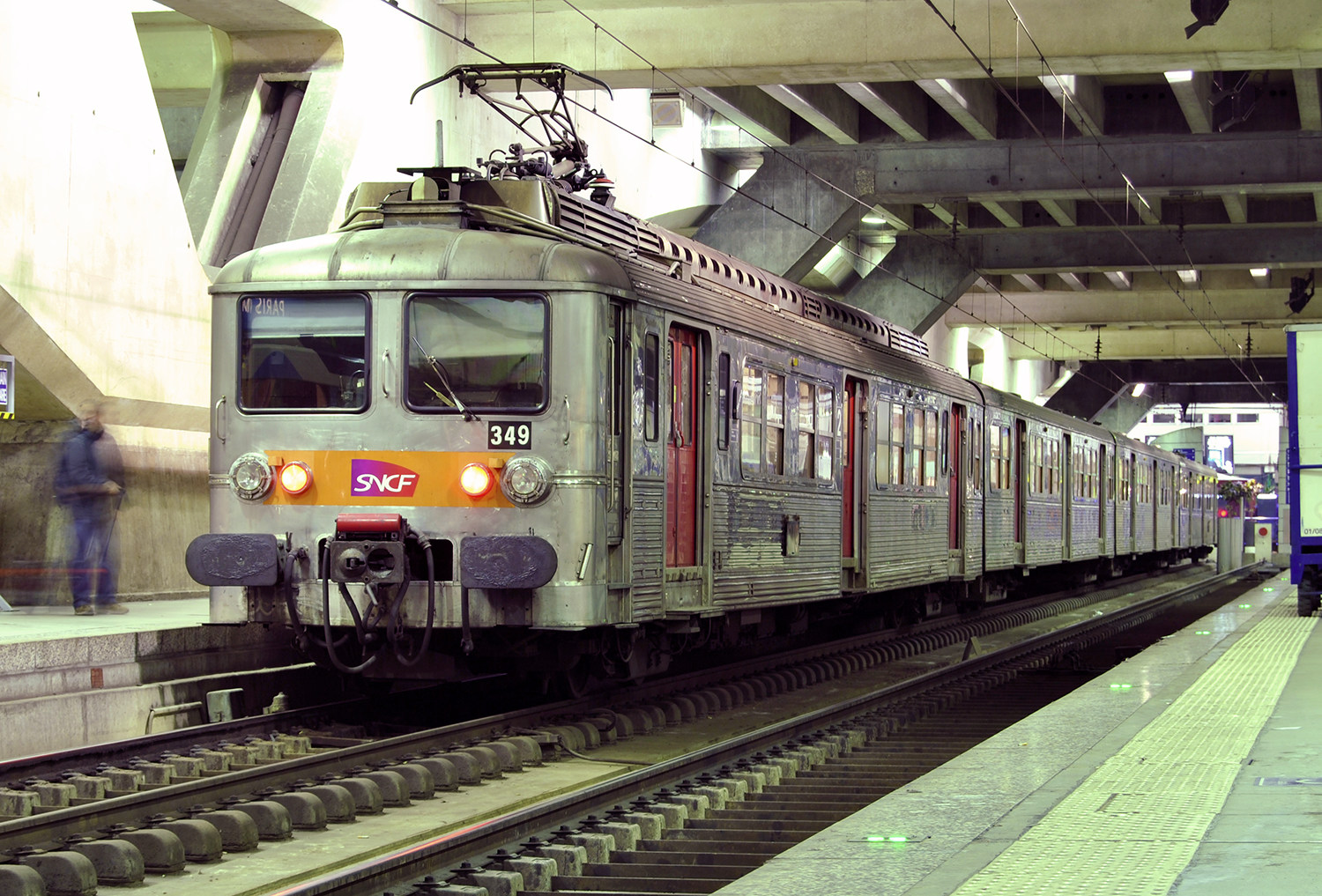

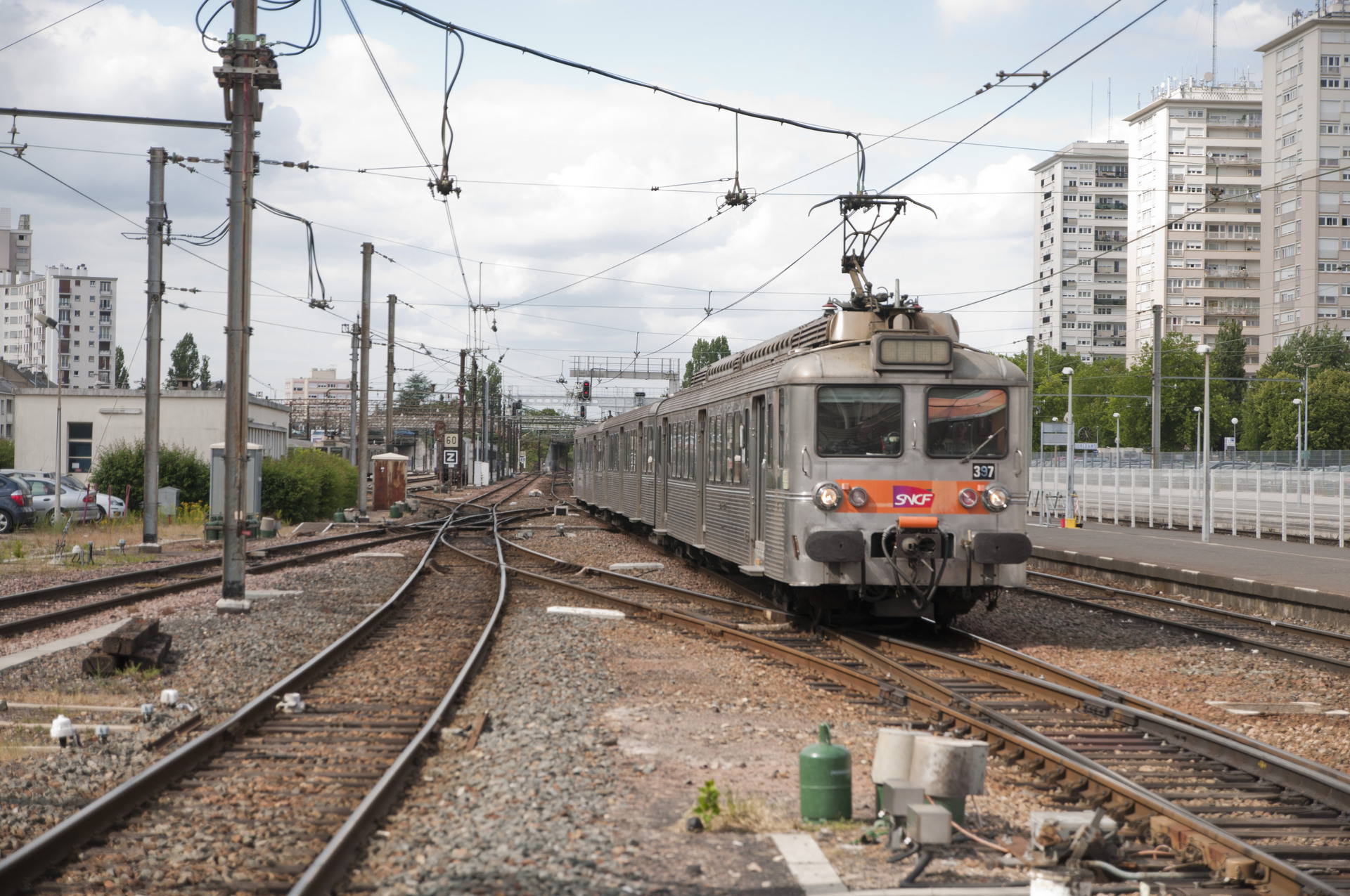

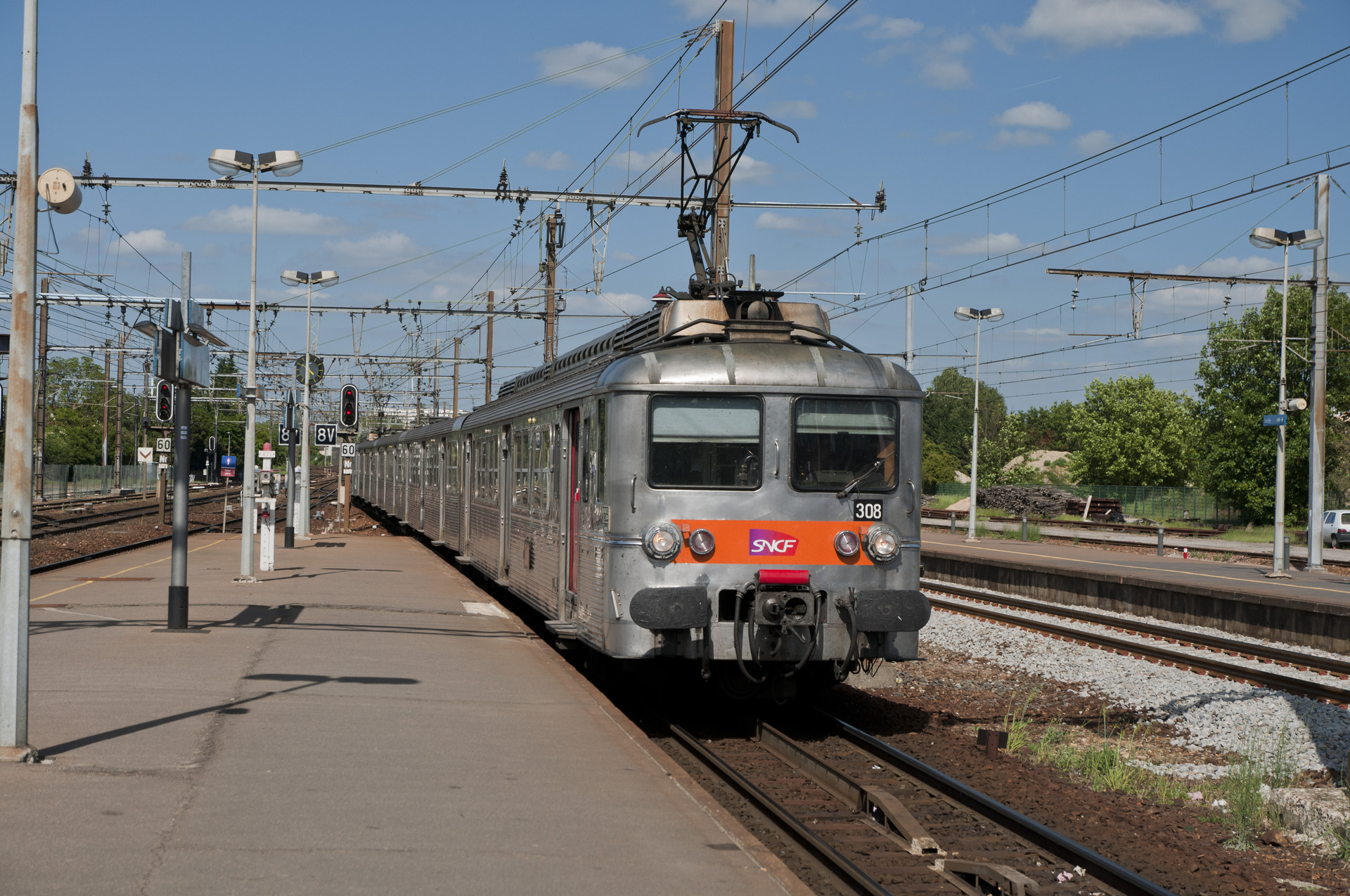

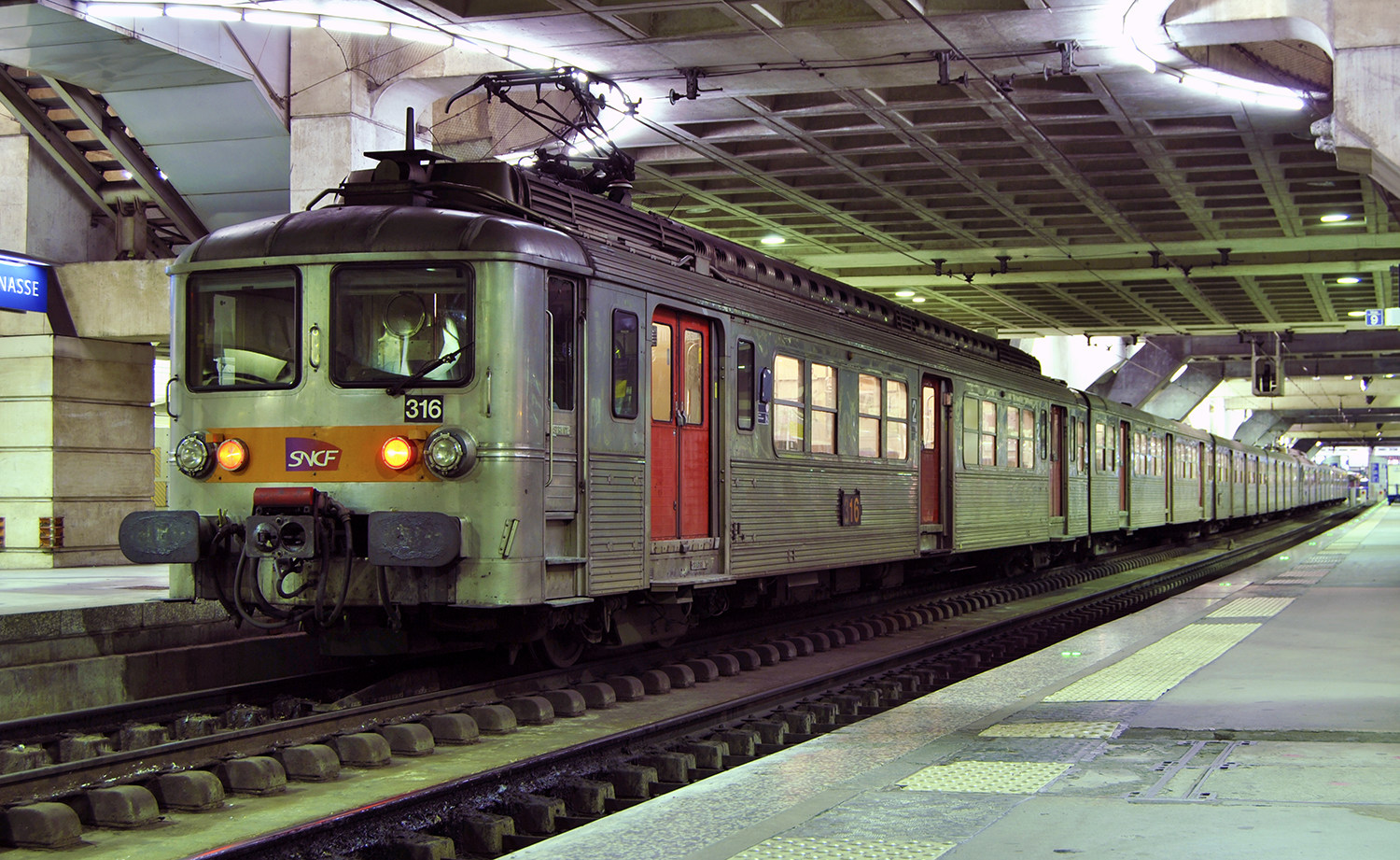

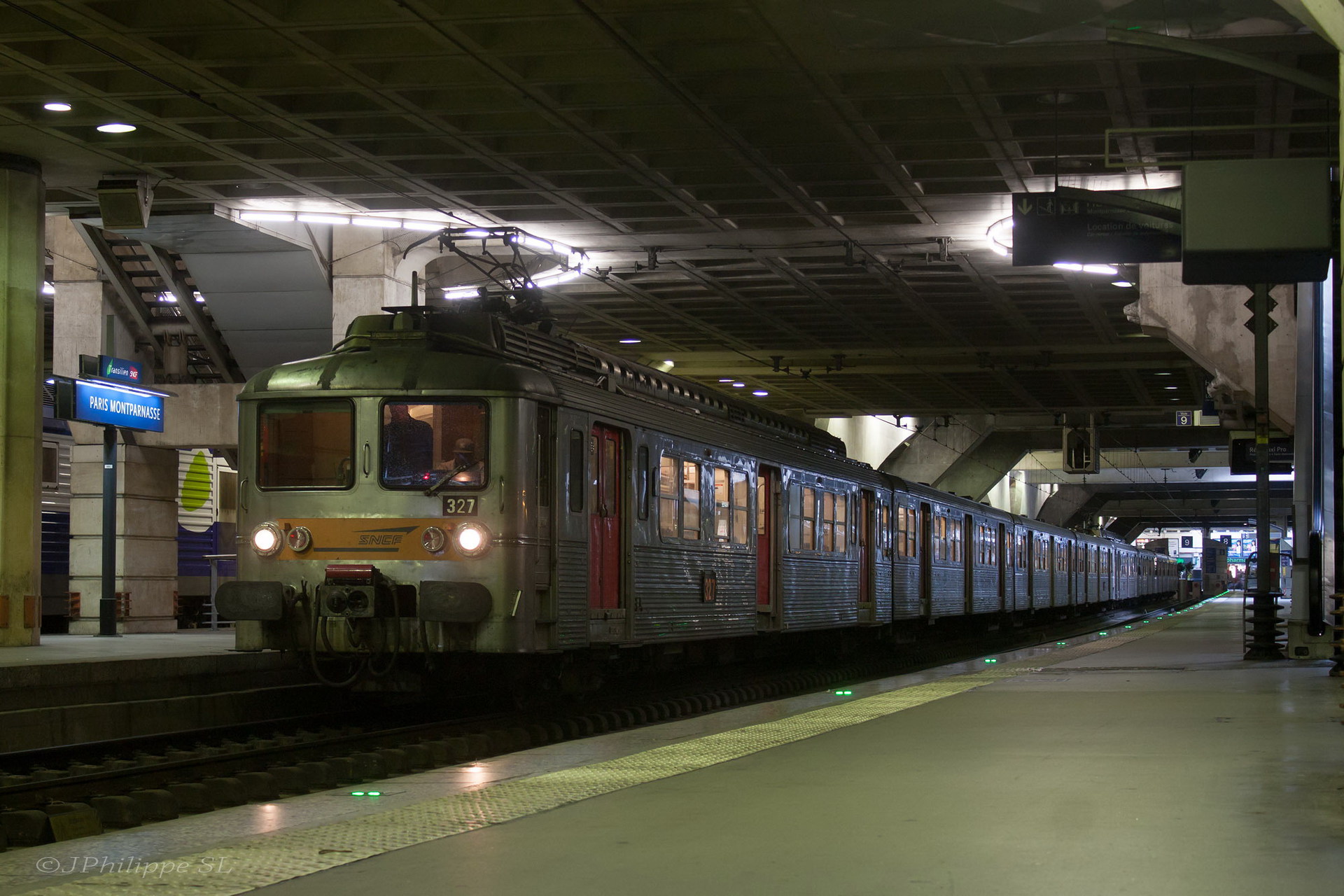

Explore the detailed specifications and see images of this significant piece of French railway engineering history.

The Z 5300 played a vital role in regional and commuter transport, showcasing advanced EMU technology of its era.

Fives Z 5300 technical specifications

	Value	Imperial / US
Built by	Carel et Fouché, MTE, Fives, Oerlikon
Top speed	120 km/h75 mph	75 mph
Power output	1,180 kW1,582 hp	1,582 hp
Tractive effort	147 kN33,047 lbf	33,047 lbf
Electric systems	1.5 kV DC
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
Width	2.87 m9 ft 5 in	9 ft 5 in
Height	4.21 m13 ft 10 in	13 ft 10 in
