GE ES59ACi

Built by CSR Qishuyan, GE

Top speed

120 km/h

75 mph

Power output

4,660 kW

6,249 hp

Weight

150 t

330,693 lb

Length

22.29 m

73 ft 2 in

Track gauge

1,435 mm

Standard gauge

Years built

2008

300 units

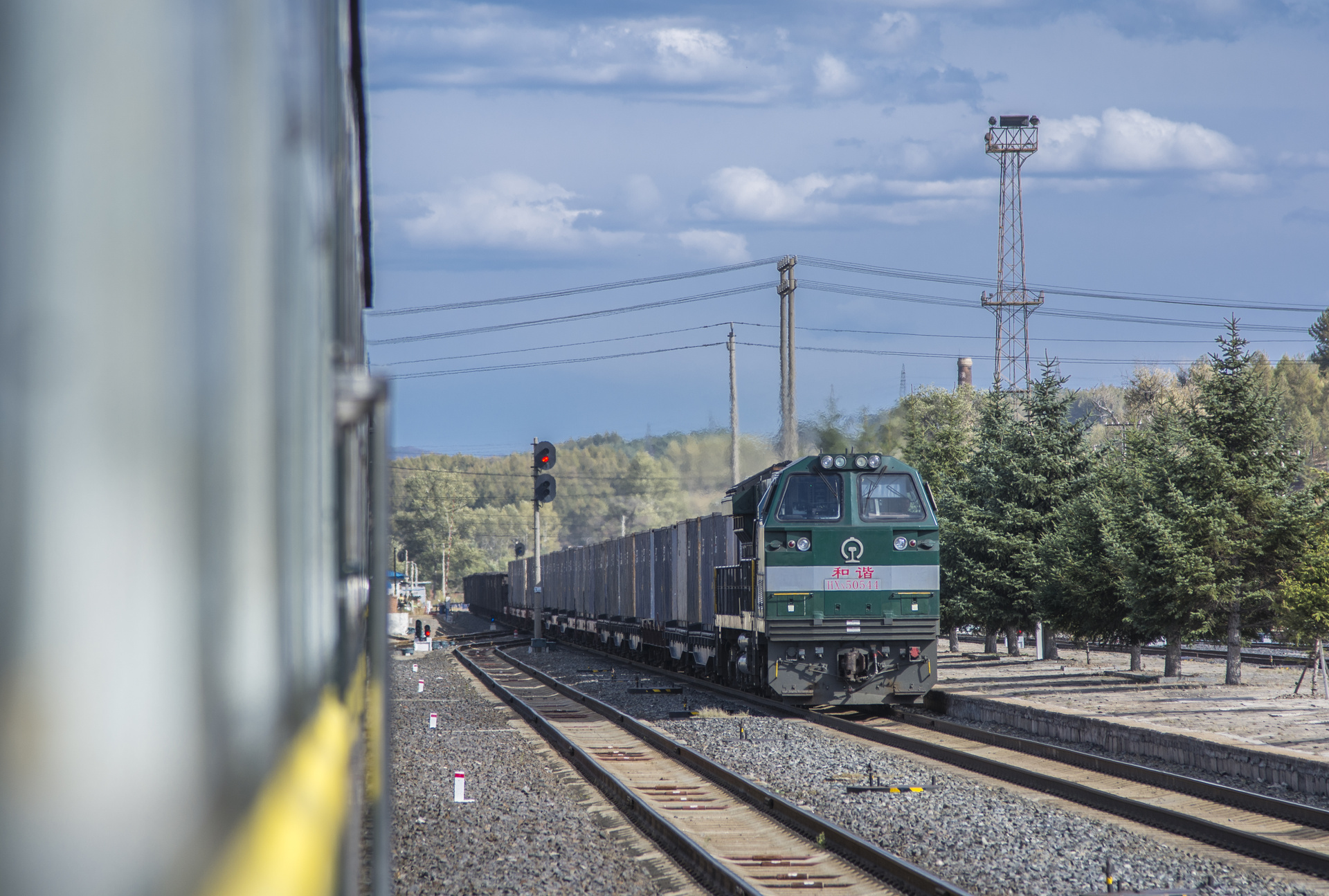

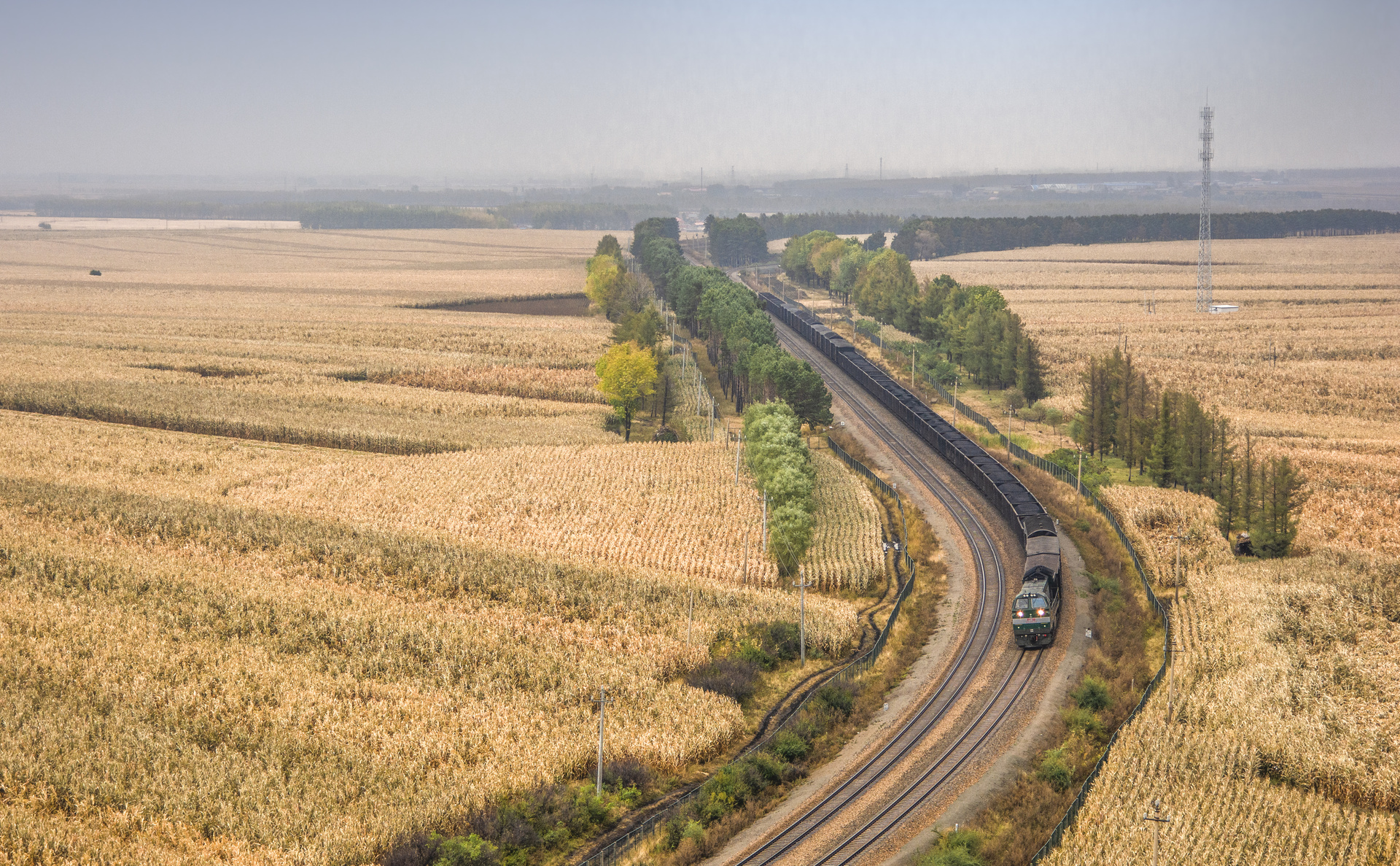

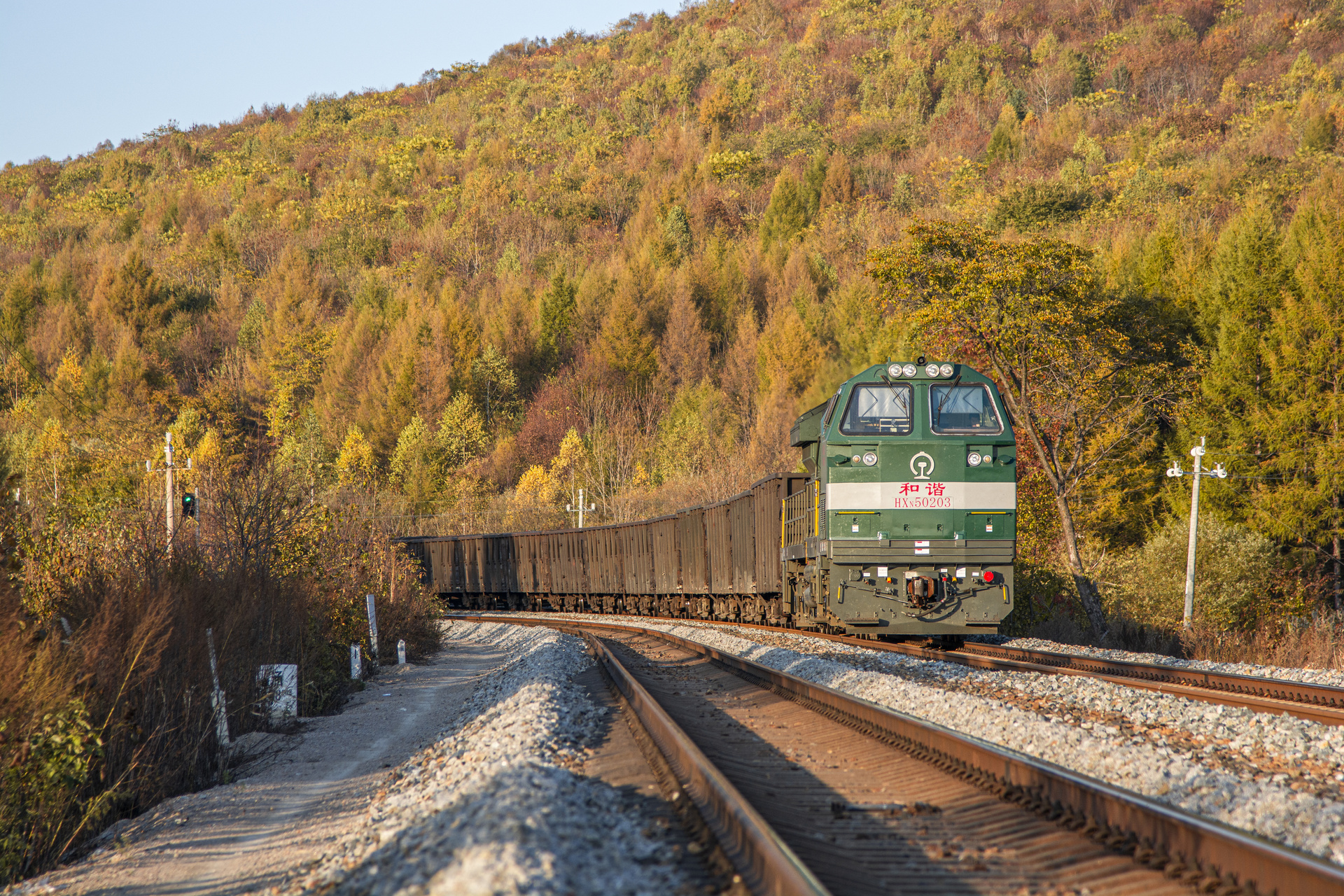

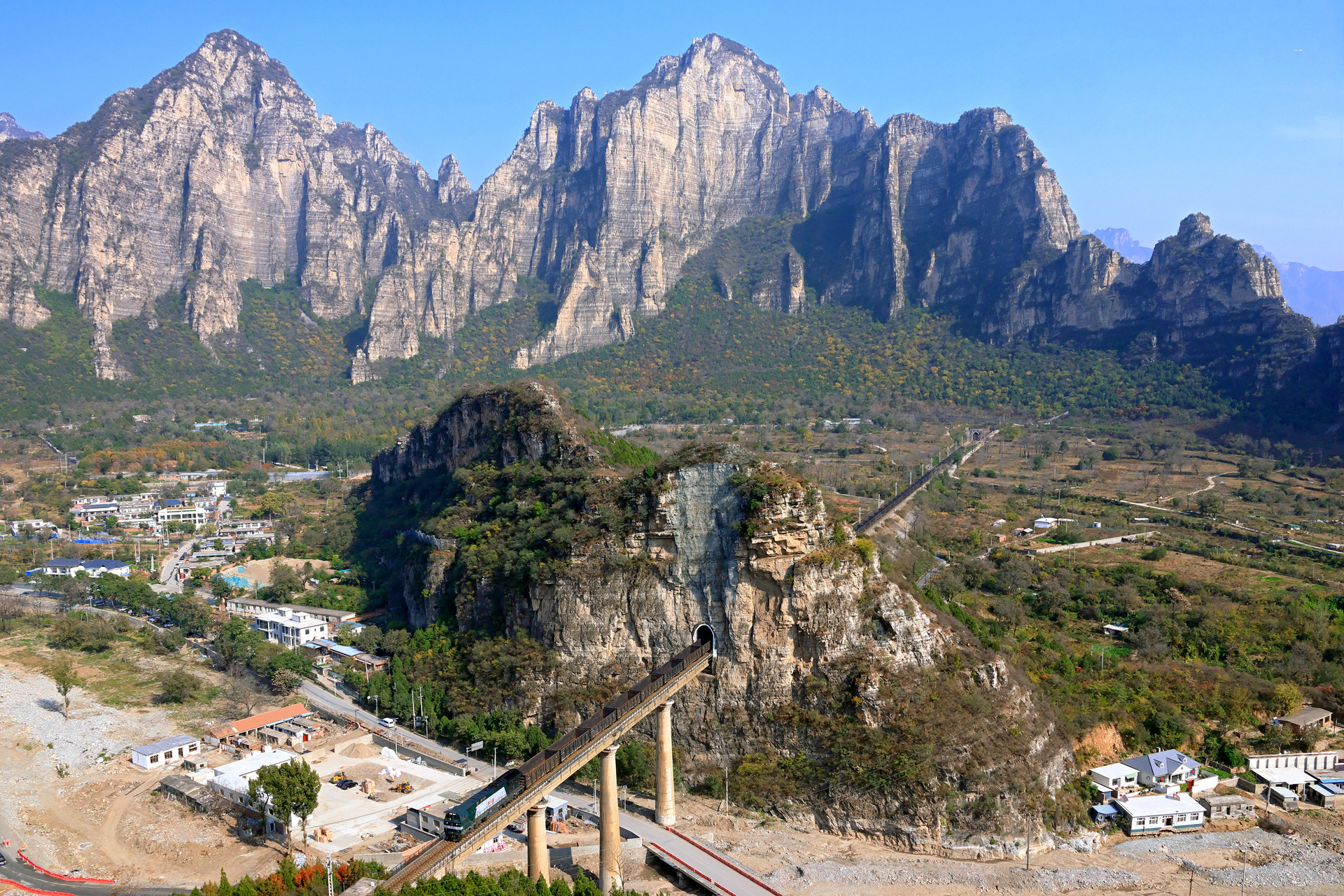

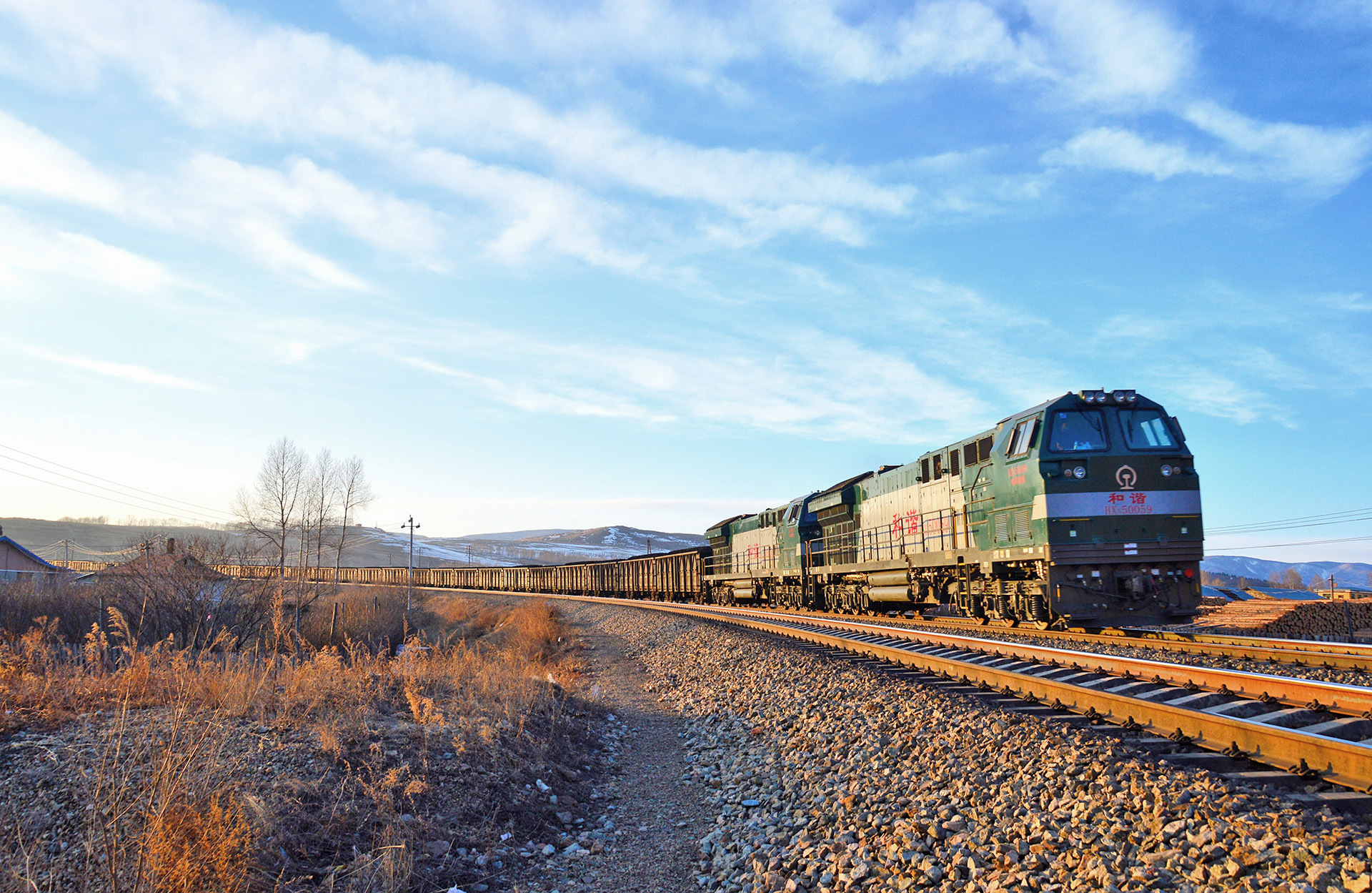

Overview of the GE ES59ACi

Discover the powerful ES59ACi diesel locomotive, a robust and efficient machine designed for demanding railway operations.

Built in 2008 by CSR Qishuyan and GE, this locomotive is part of the distinguished GE Evolution series, boasting a formidable 4660 kW power output and 620 kN tractive effort, making it ideal for heavy freight transport.

Featuring a 1435 mm gauge and a Co'Co' wheel arrangement, the ES59ACi ensures superior performance and stability on the tracks, with a top speed of 120 km/h for optimized journey times.

This impressive locomotive measures 22.29 meters in length, 3.12 meters in width, and 4.78 meters in height, with a substantial weight of 150 tons, all powered by the reliable GE GEVO-16 prime mover.

A significant asset to the China Railway Corporation, classified as CR HXN5, the ES59ACi represents a notable advancement in modern railway engineering and capability.

GE ES59ACi technical specifications

	Value	Imperial / US
Series	GE Evolution
Built by	CSR Qishuyan, GE · 2008300 units
Top speed	120 km/h75 mph	75 mph
Power output	4,660 kW6,249 hp	6,249 hp
Tractive effort	620 kN139,382 lbf	139,382 lbf
Prime mover	GE GEVO-16
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Co'Co'
Length	22.29 m73 ft 2 in	73 ft 2 in
Width	3.12 m10 ft 3 in	10 ft 3 in
Height	4.78 m15 ft 8 in	15 ft 8 in
Weight	150 t330,693 lb	330,693 lb
