Locomotive-Specs
Kawasaki EF66 – photo 1© trainspo.com
Electric locomotive

Kawasaki EF66

Built by Kawasaki

Top speed
110 km/h
68 mph
Power output
3,900 kW
5,230 hp
Weight
101 t
222,667 lb
Length
18.2 m
59 ft 9 in
Track gauge
1,067 mm
Cape gauge
Axle arrangement
Bo'Bo'Bo'

Overview of the Kawasaki EF66

Experience the impressive EF66 electric locomotive, a powerhouse designed for Japan Railways.

Known for its performance and reliability, this locomotive played a crucial role in Japan's freight transport.

With a top speed of 110 km/h and an impressive power output of 3900 kW, the EF66 masters even the most demanding routes.

Its robust construction and advanced technology make it a landmark in Japanese railway history.

Discover the technical specifications and fascinating history of this iconic locomotive.

Kawasaki EF66 technical specifications

Value
SeriesEF66
Built byKawasaki
Top speed110 km/h68 mph
Power output3,900 kW5,230 hp
Tractive effort192 kN43,163 lbf
Electric systems
  • 1.5 kV DC
Track gauge1,067 mmCape gauge3 ft 6 in
UIC axle arrangementBo'Bo'Bo'
Length18.2 m59 ft 9 in
Width2.8 m9 ft 2 in
Height4.2 m13 ft 9 in
Weight101 t222,667 lb
Source of the data: en.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the Kawasaki EF66

Railway companies that have operated the EF66, with the class designation used by each of them.

OperatorClassCountry
Japan Freight Railway CompanyJR Freight EF66Japan
Japanese National RailwaysJNR EF66Japan
West Japan Railway CompanyJR West EF66Japan

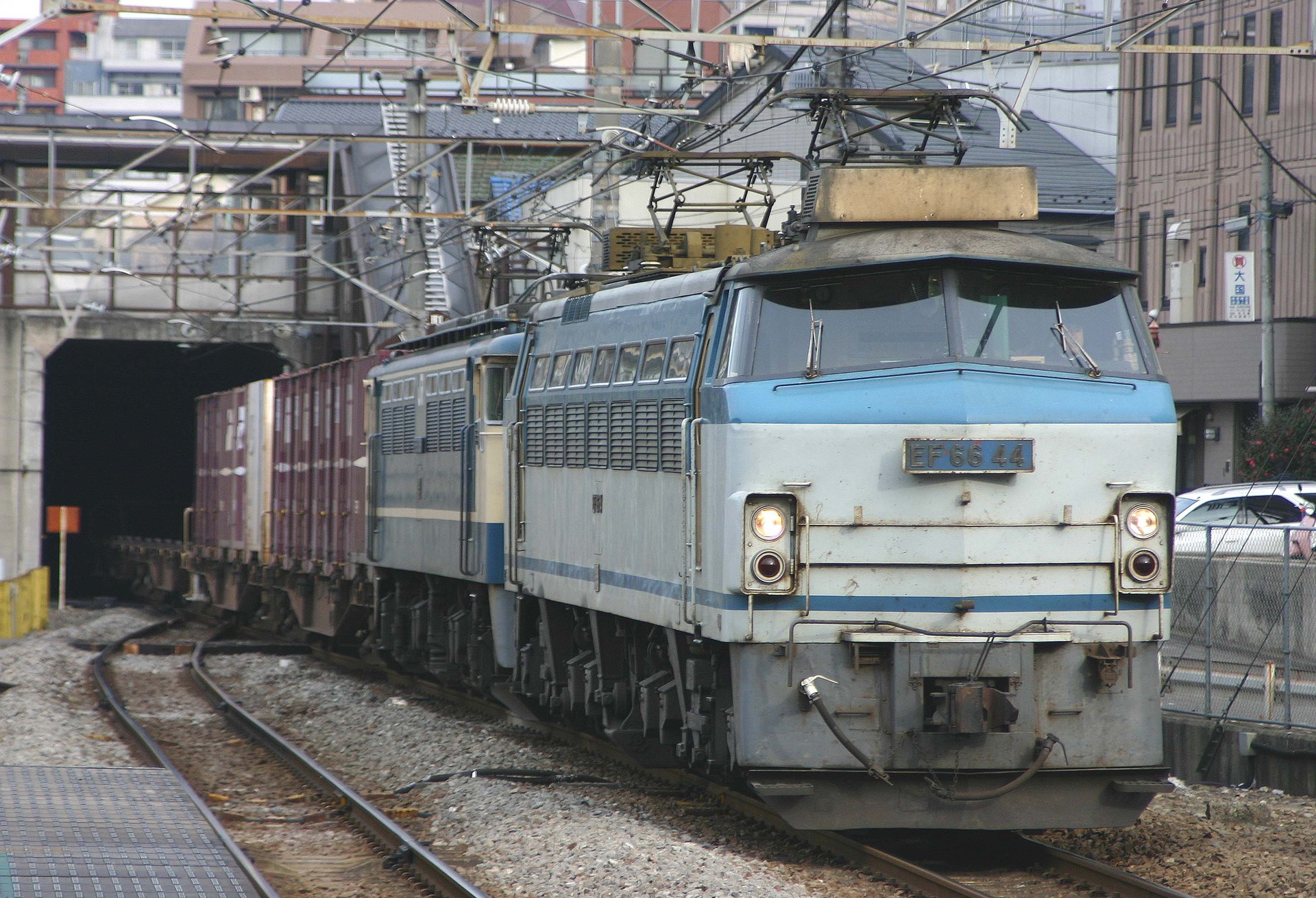

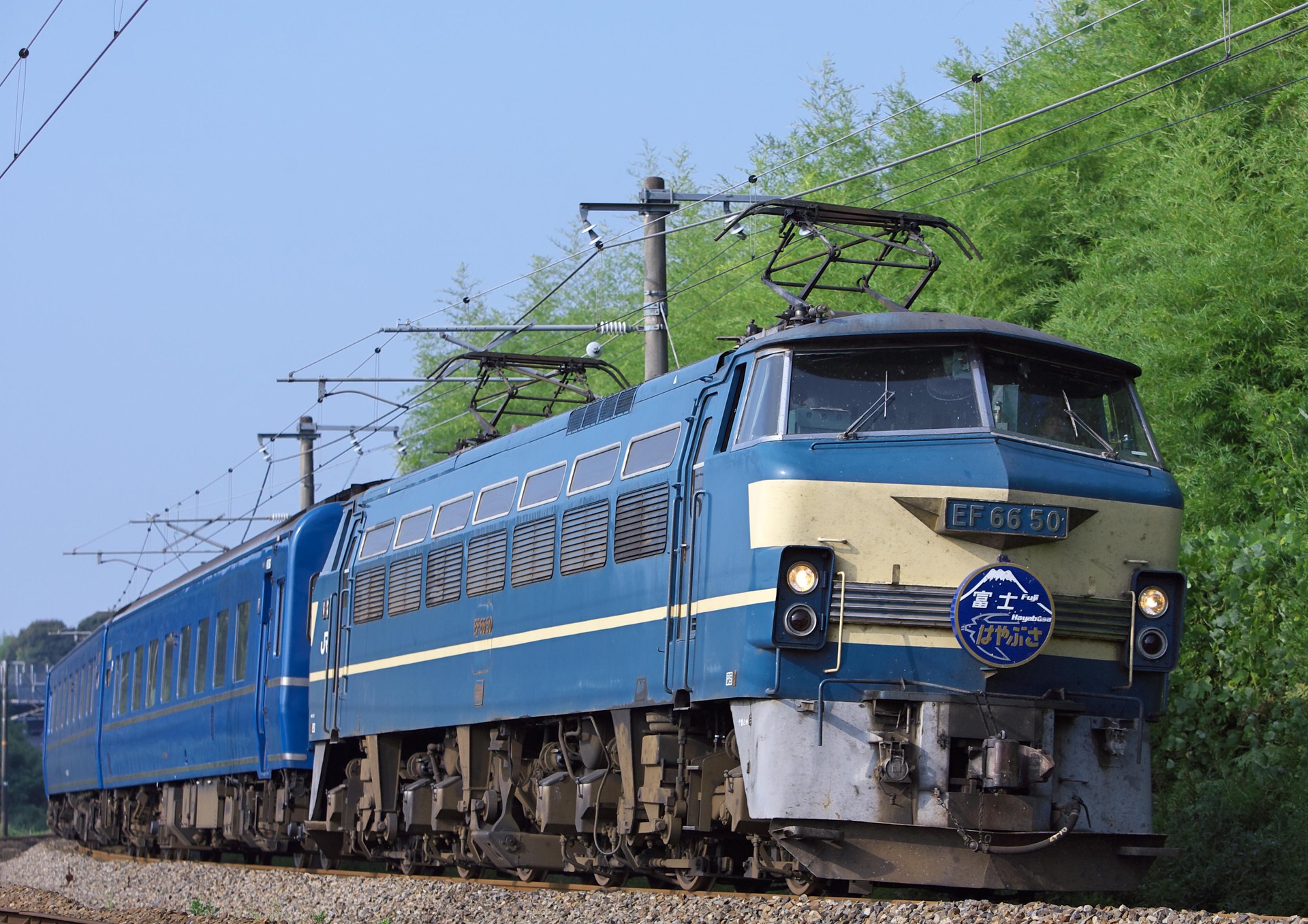

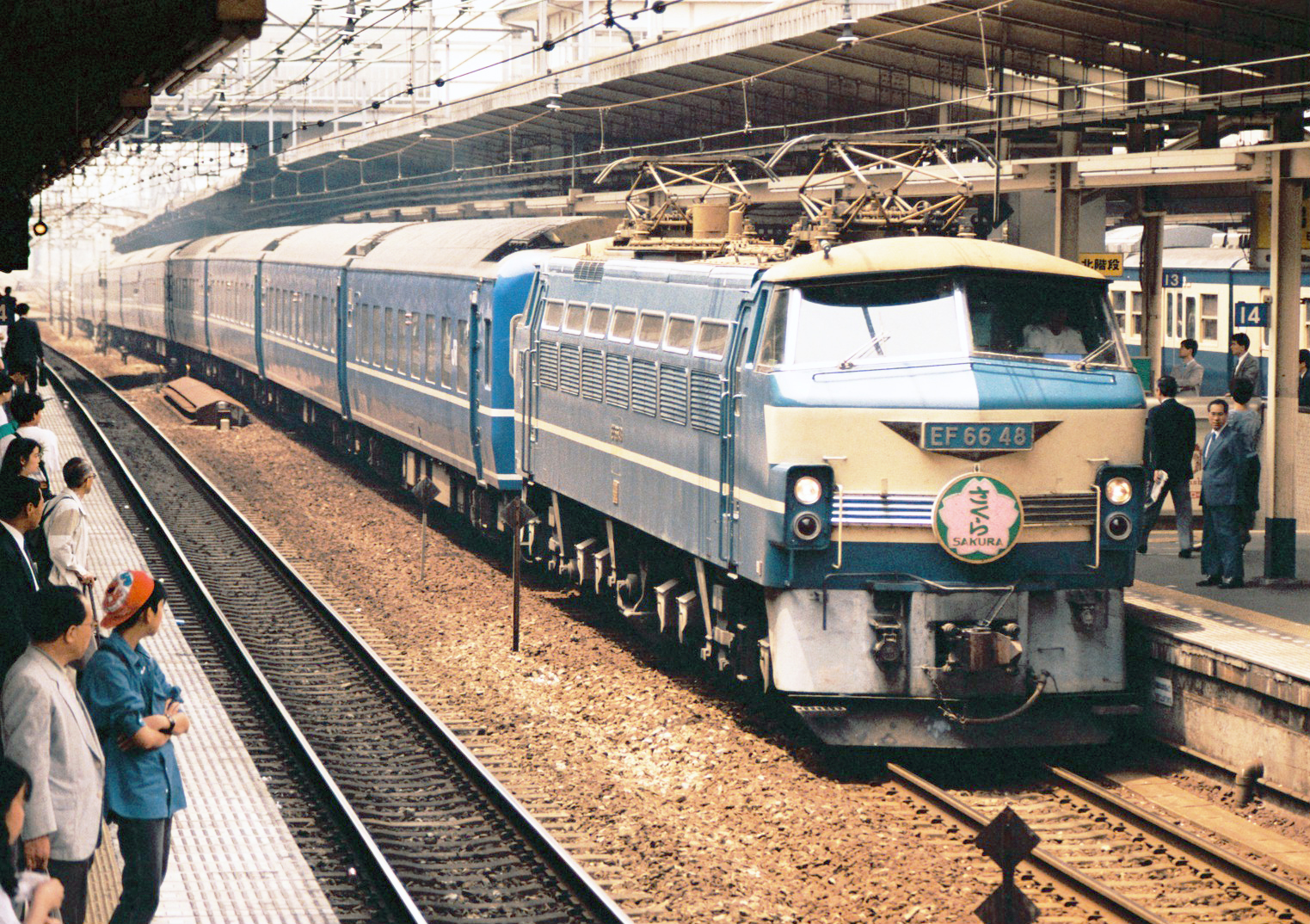

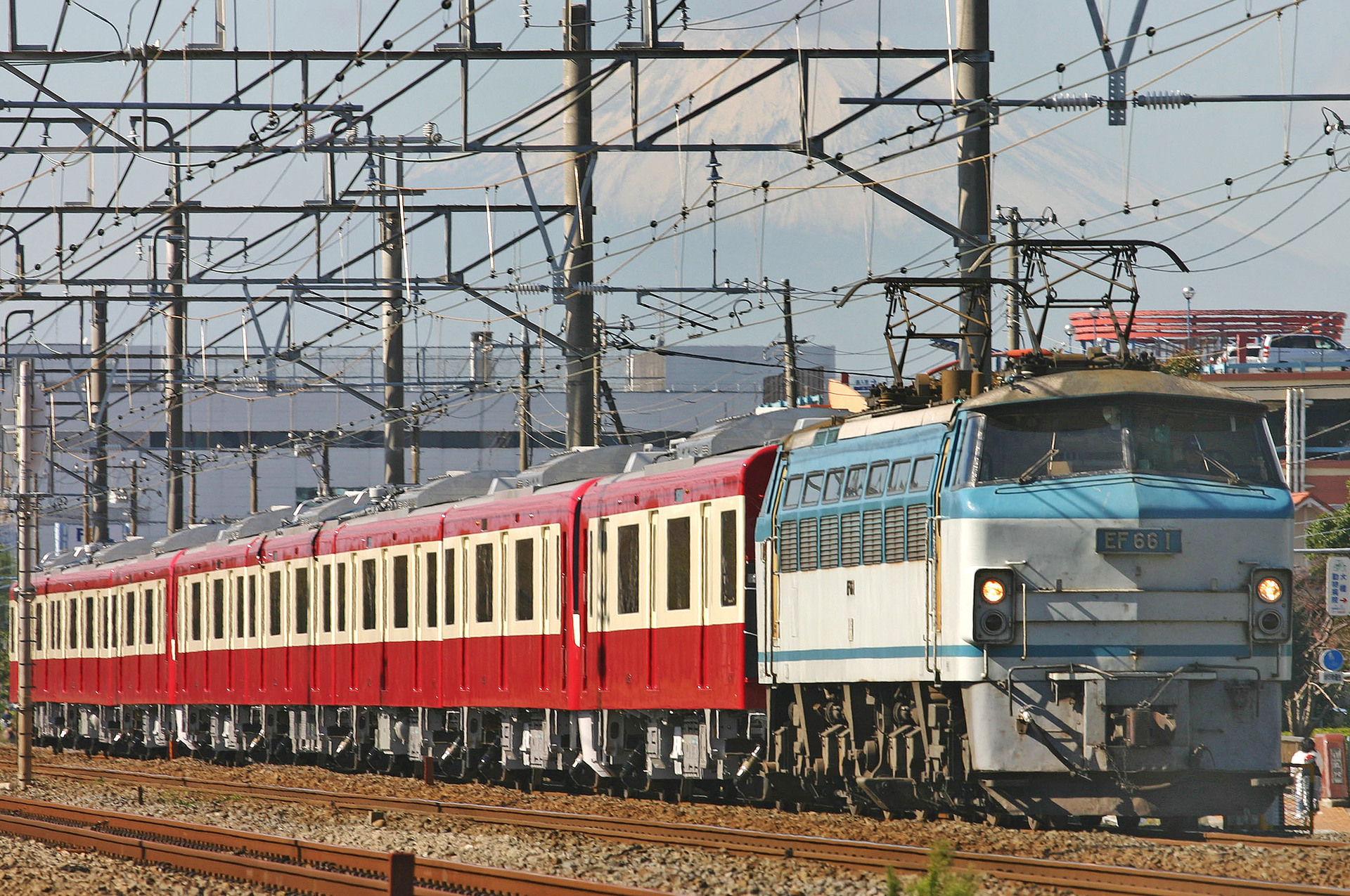

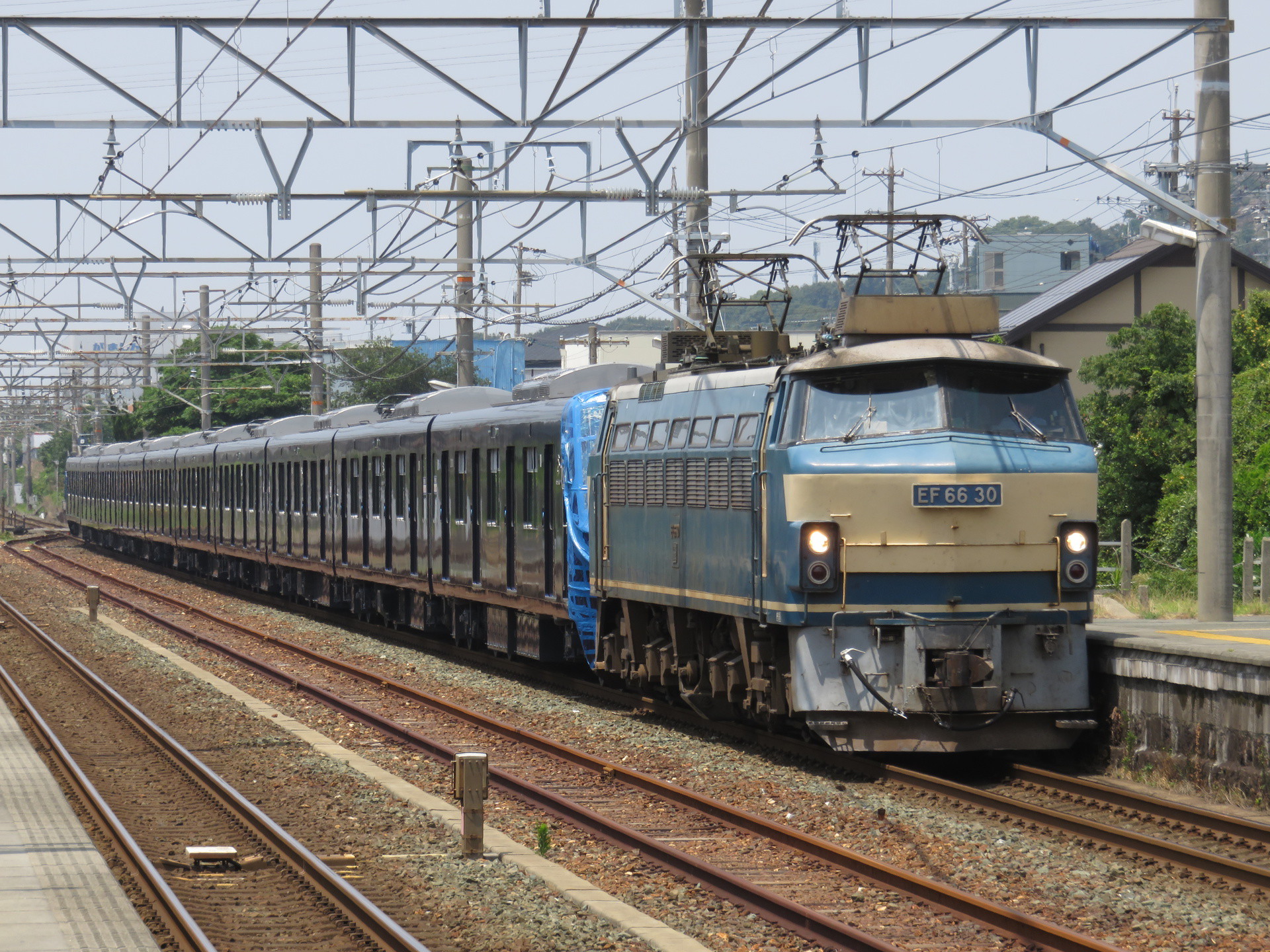

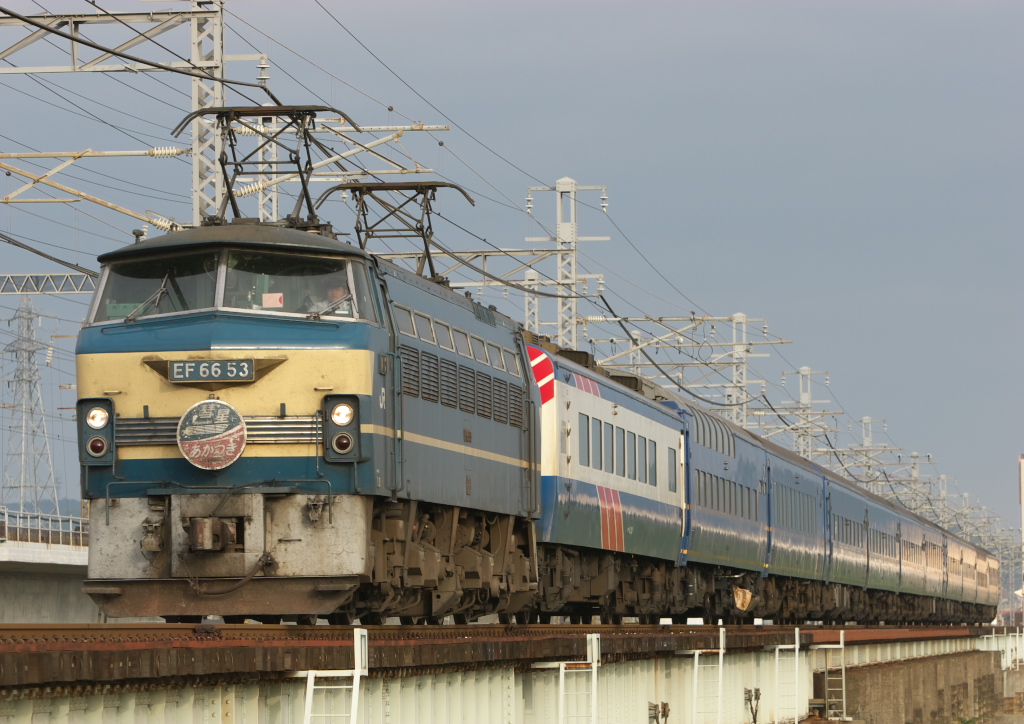

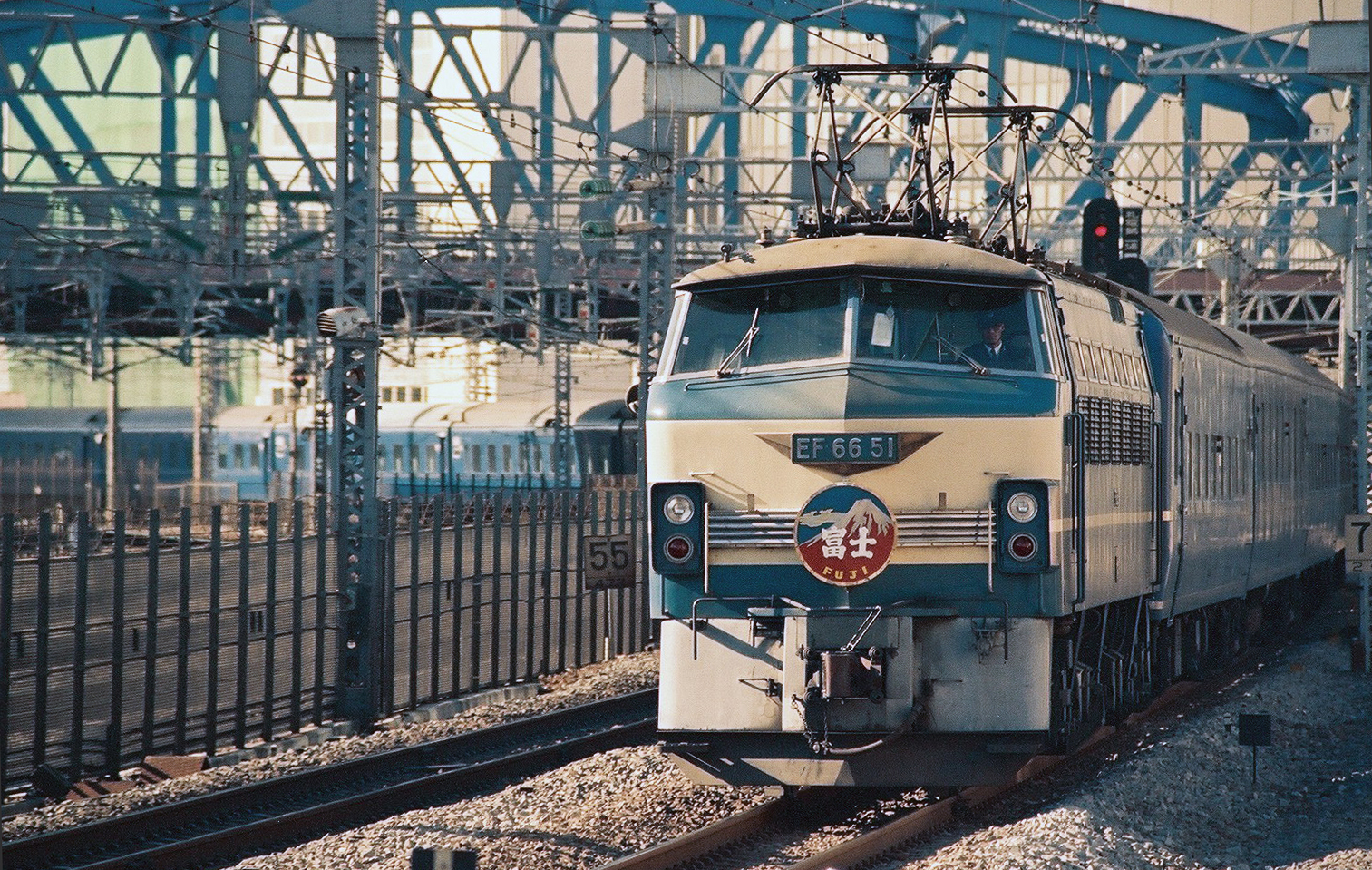

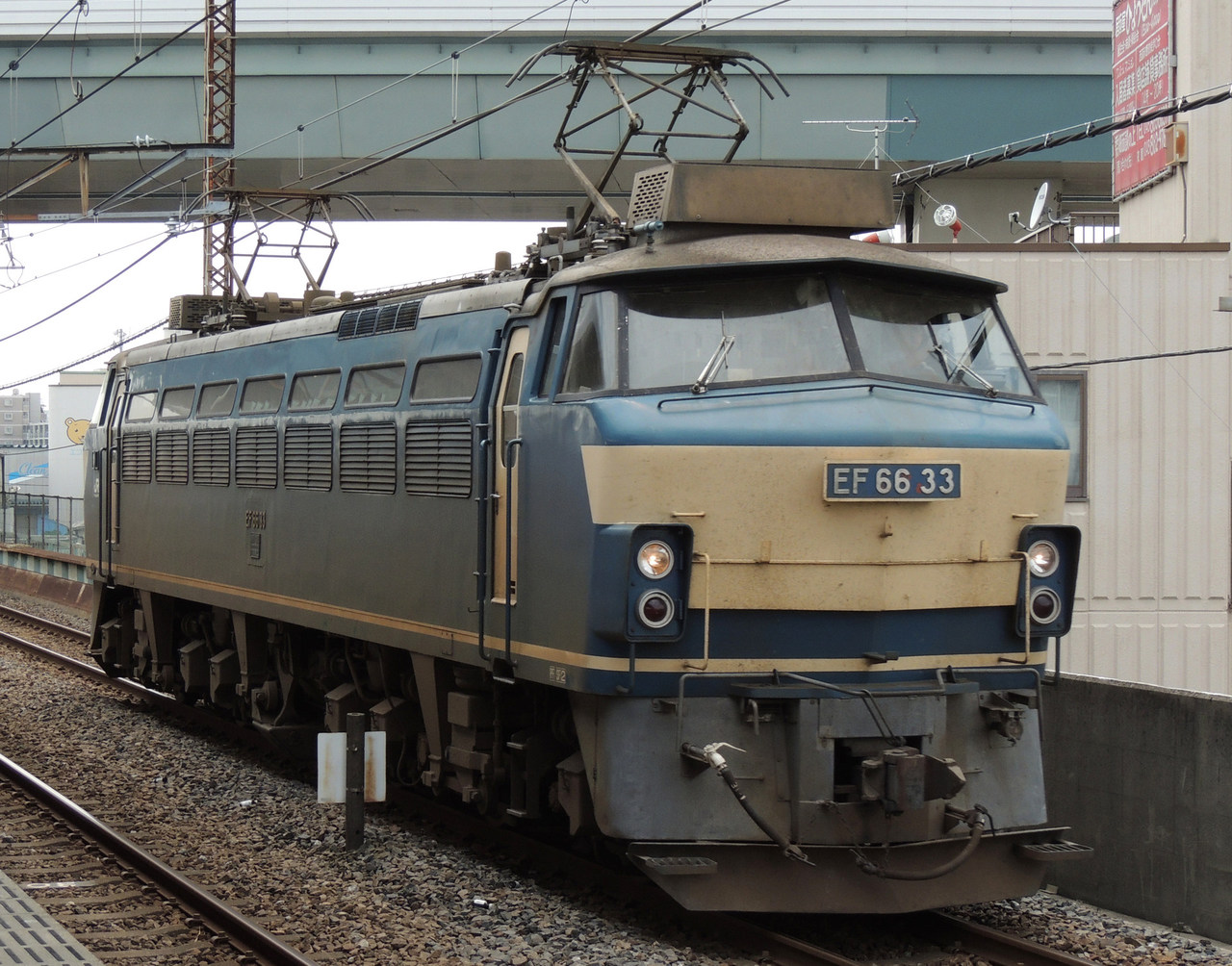

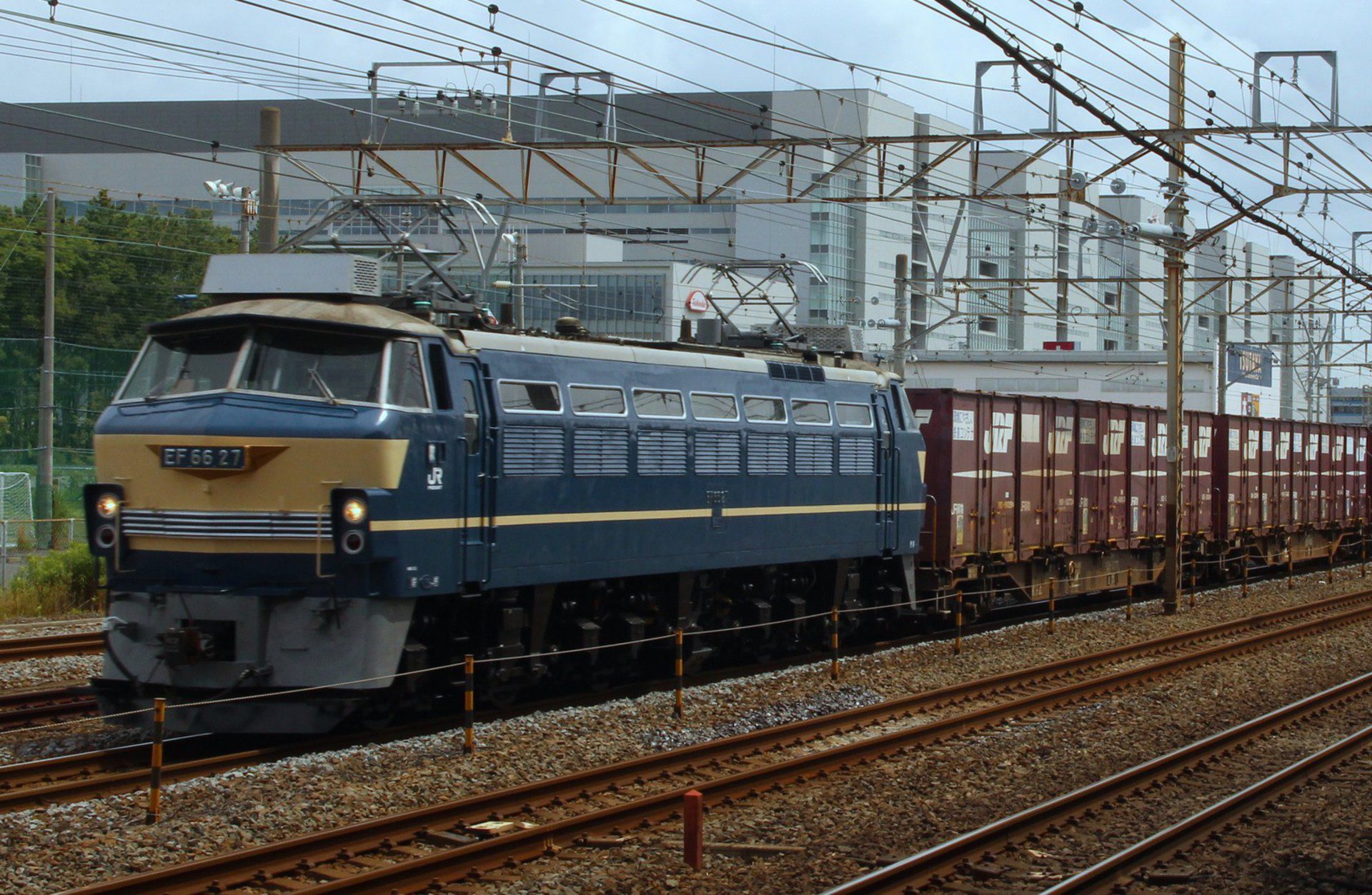

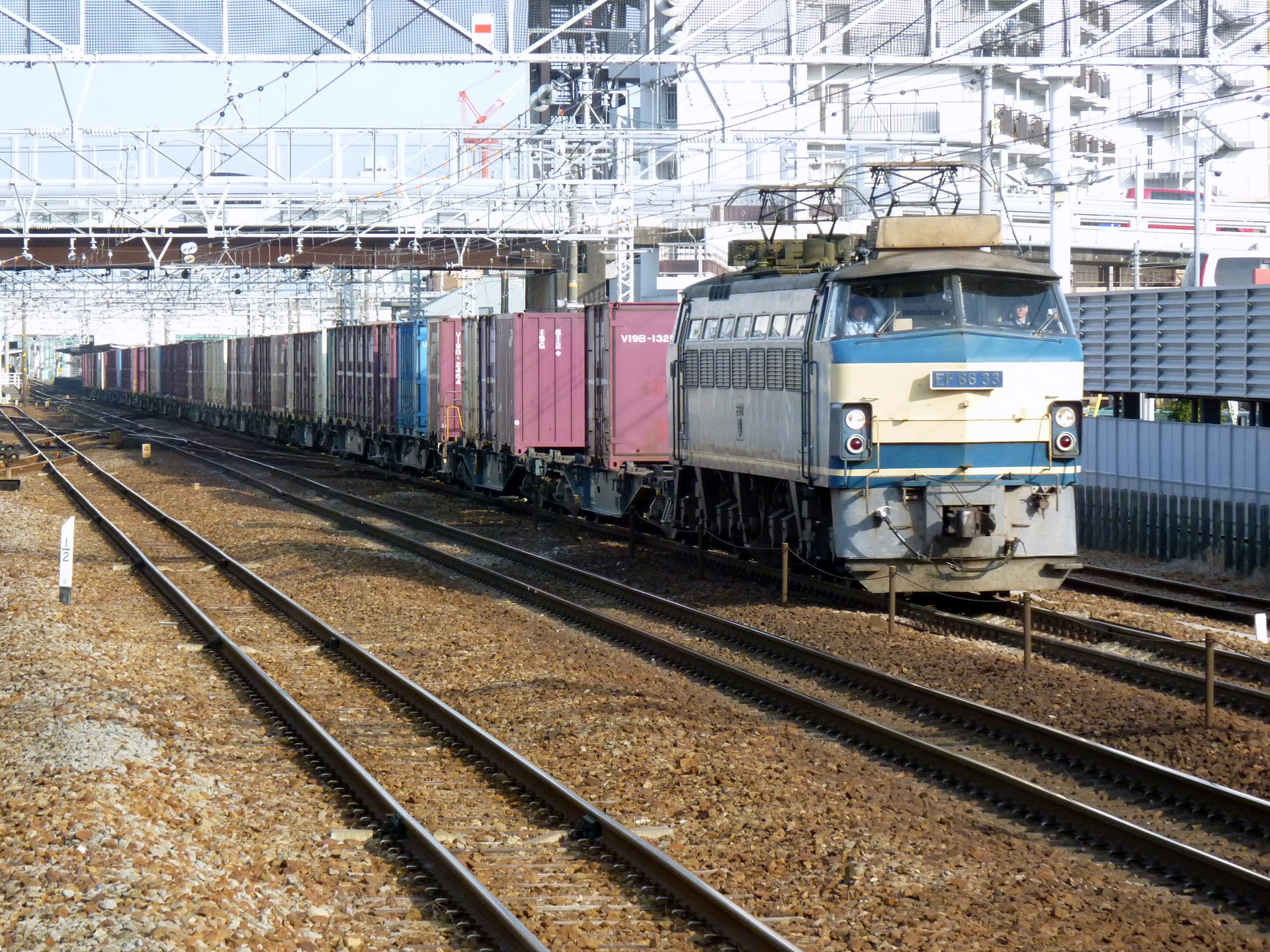

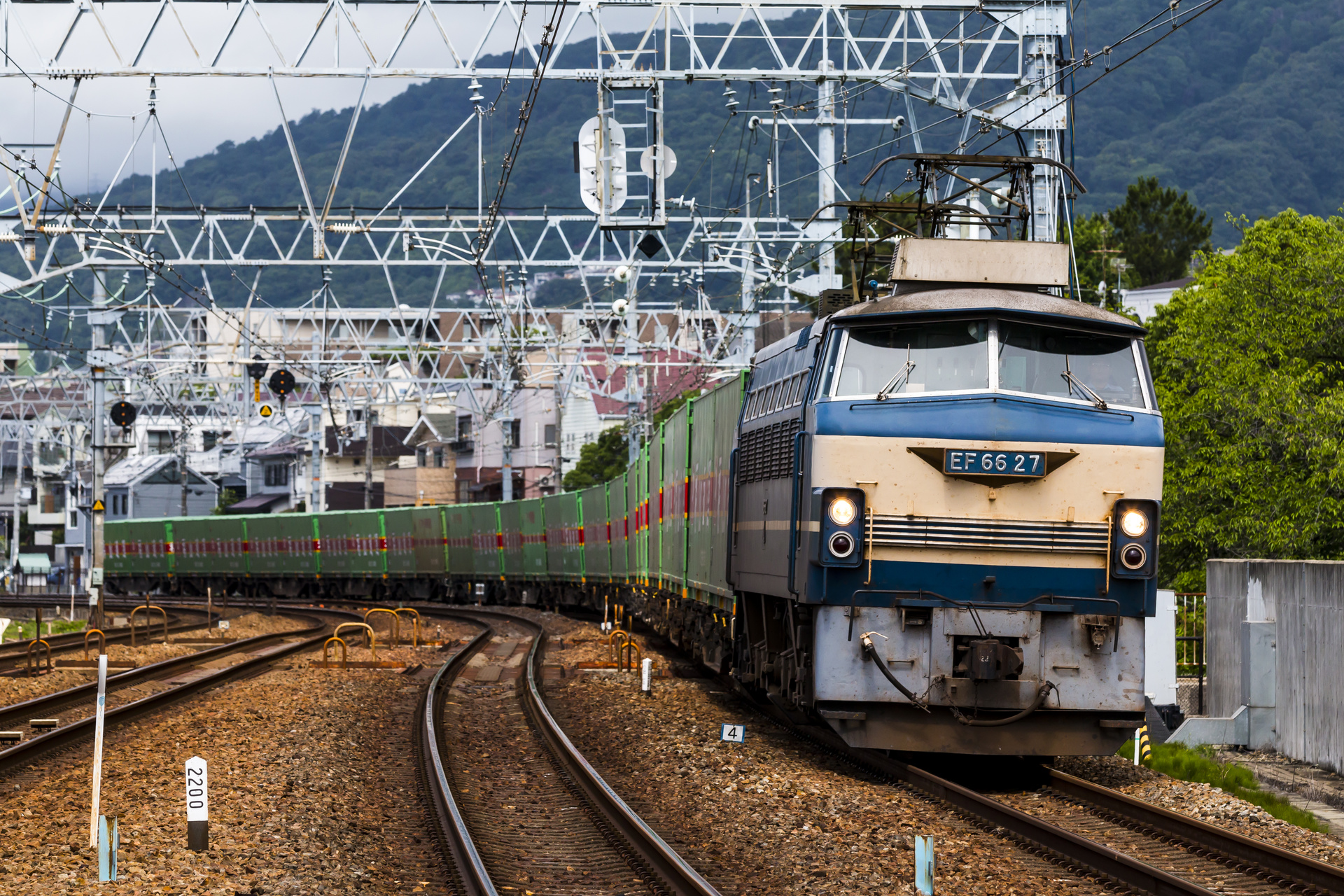

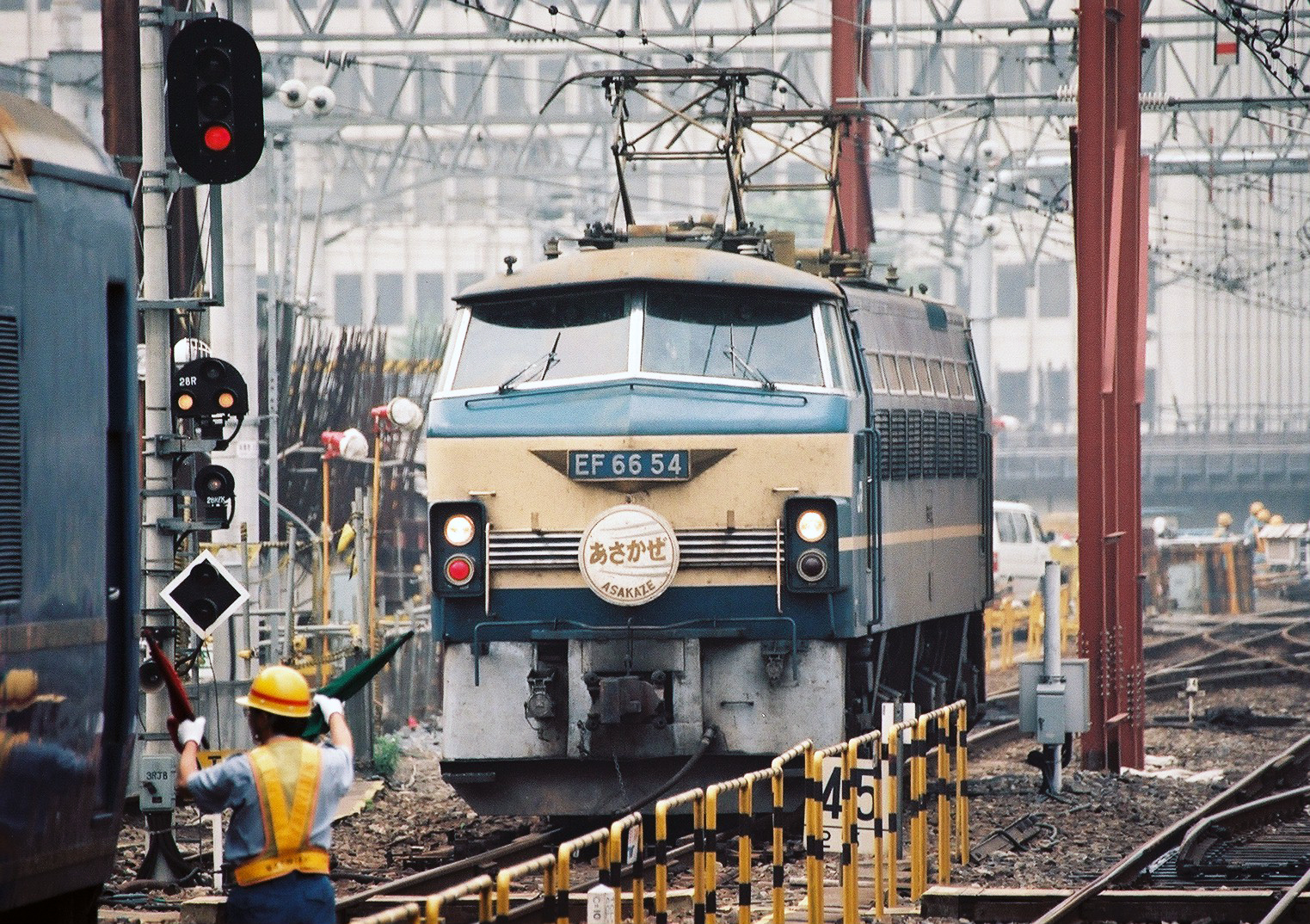

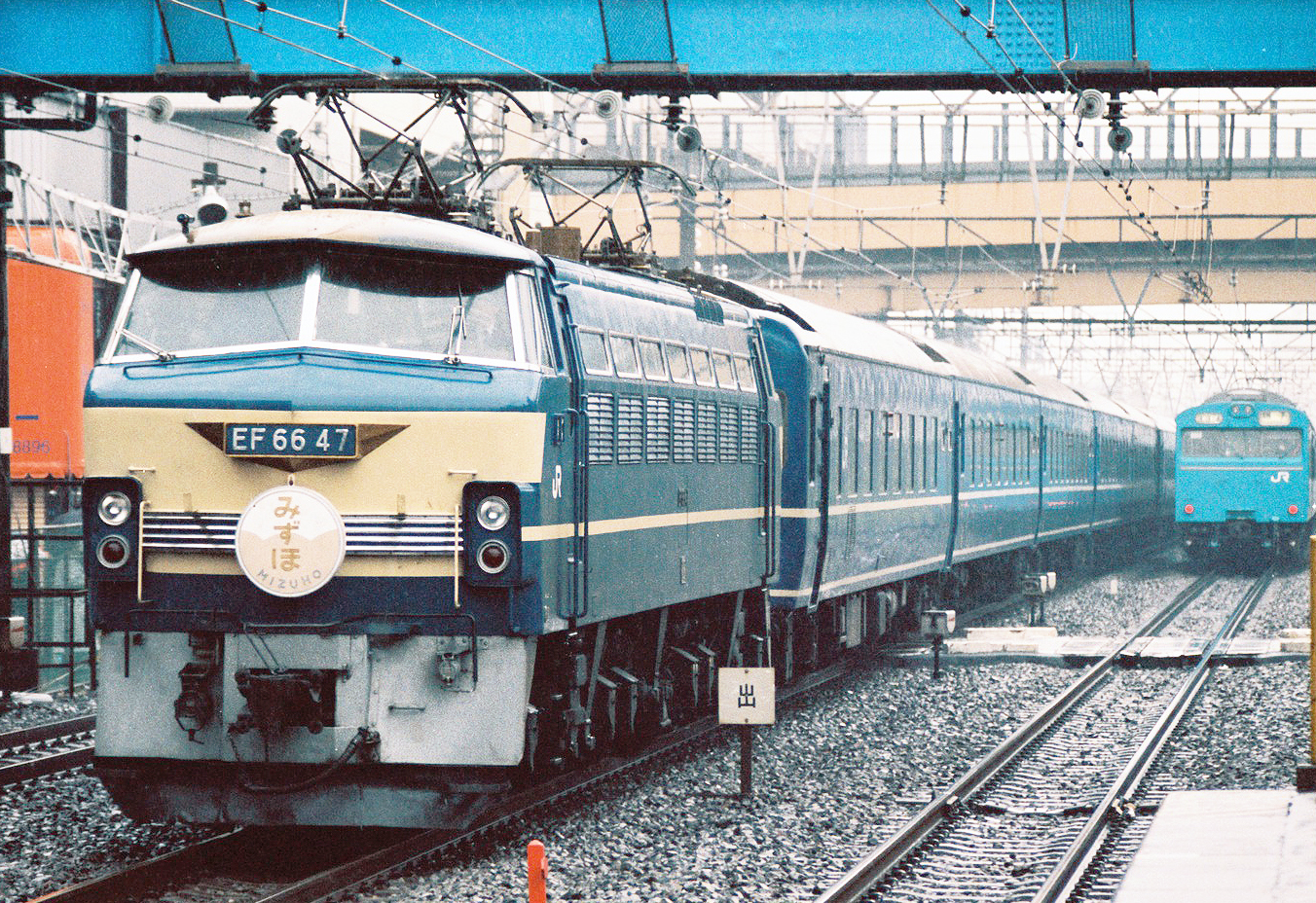

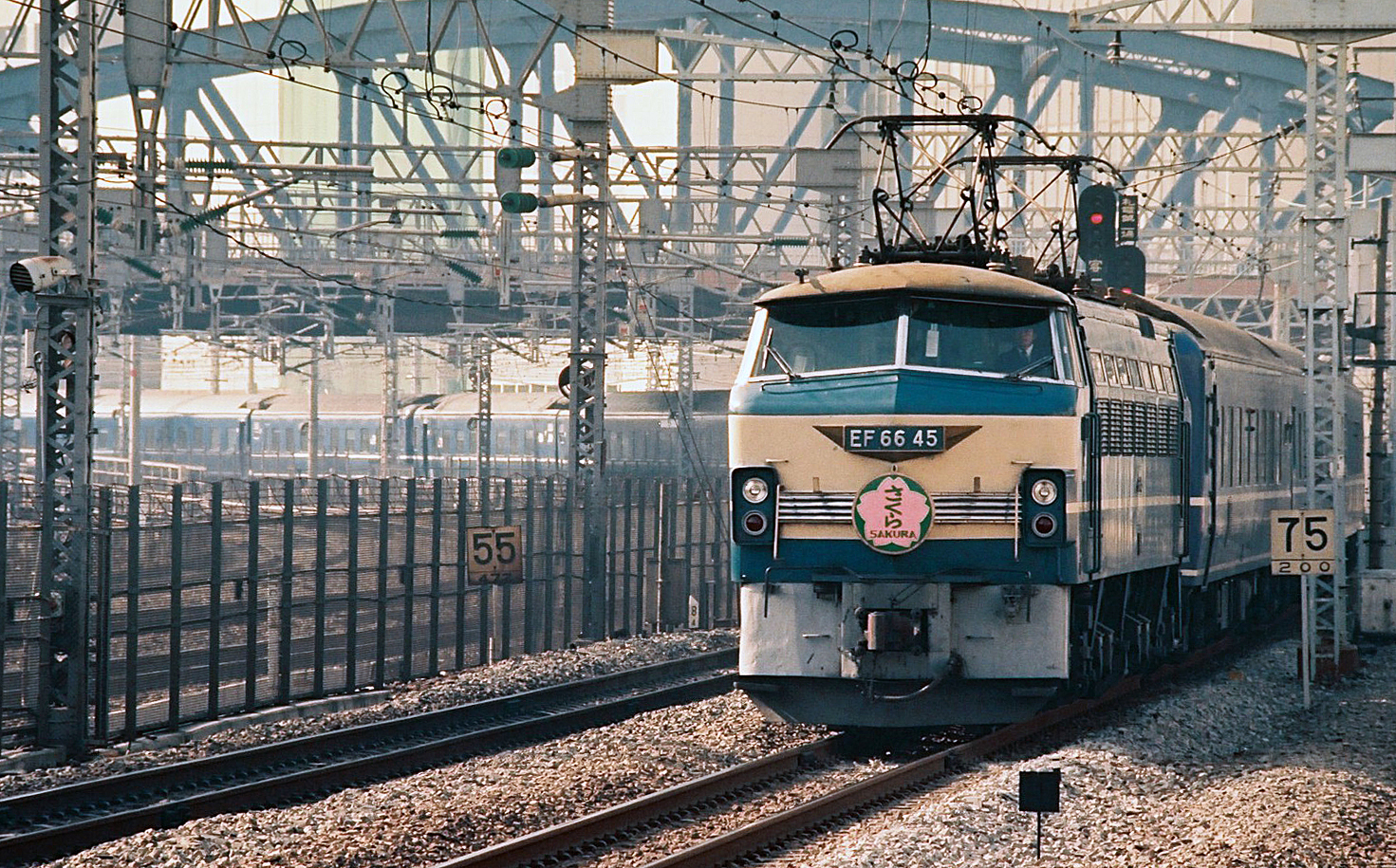

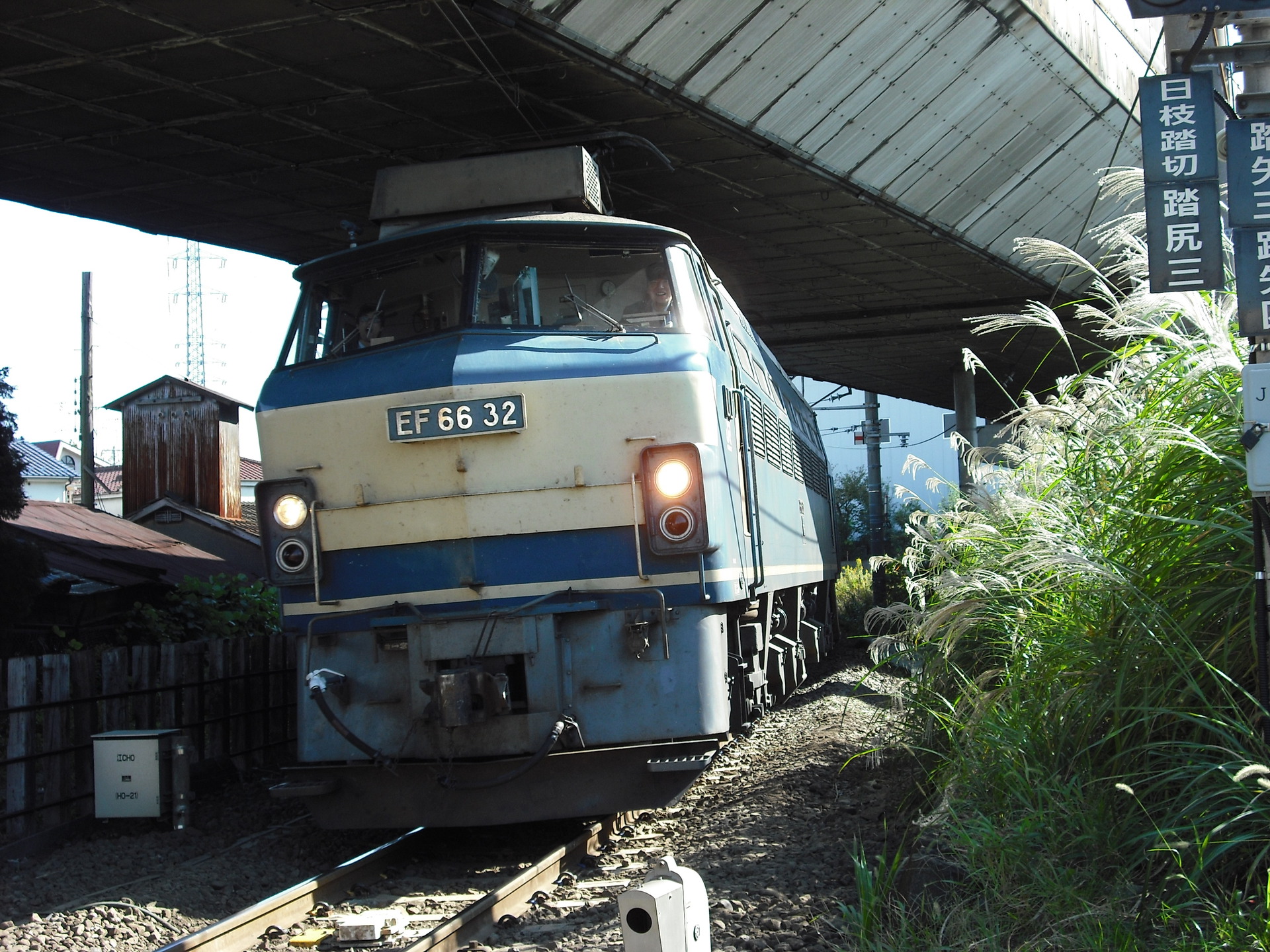

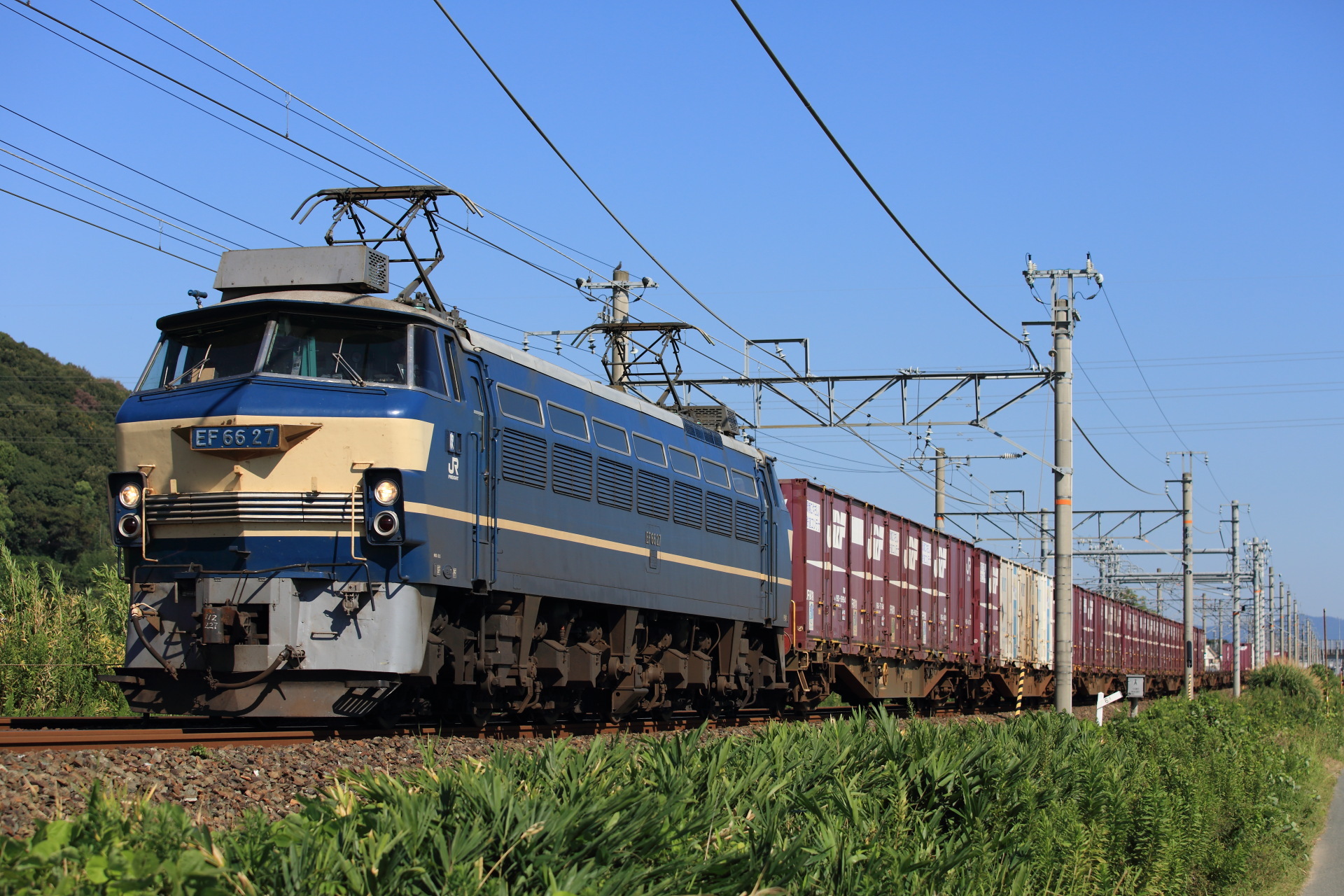

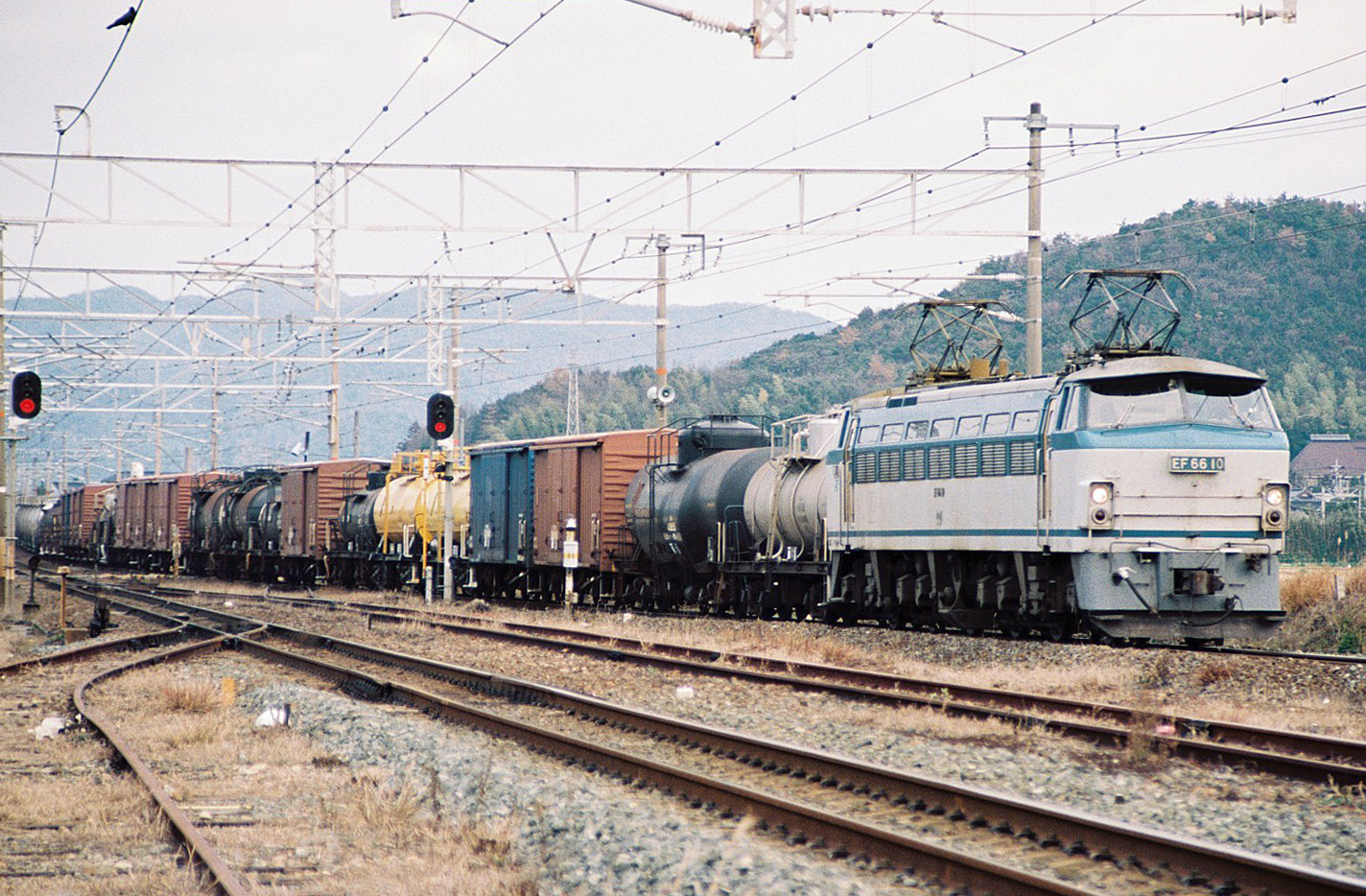

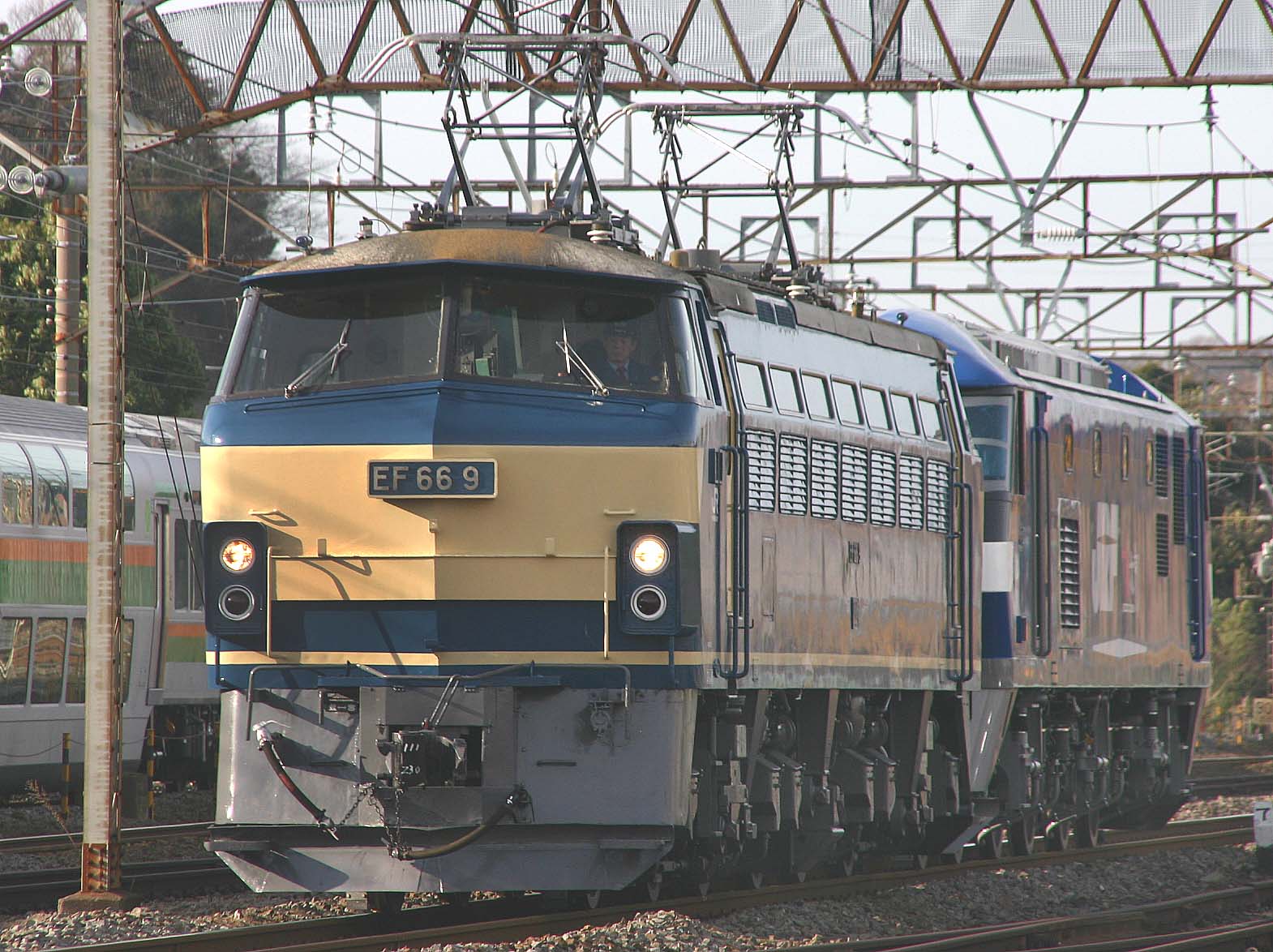

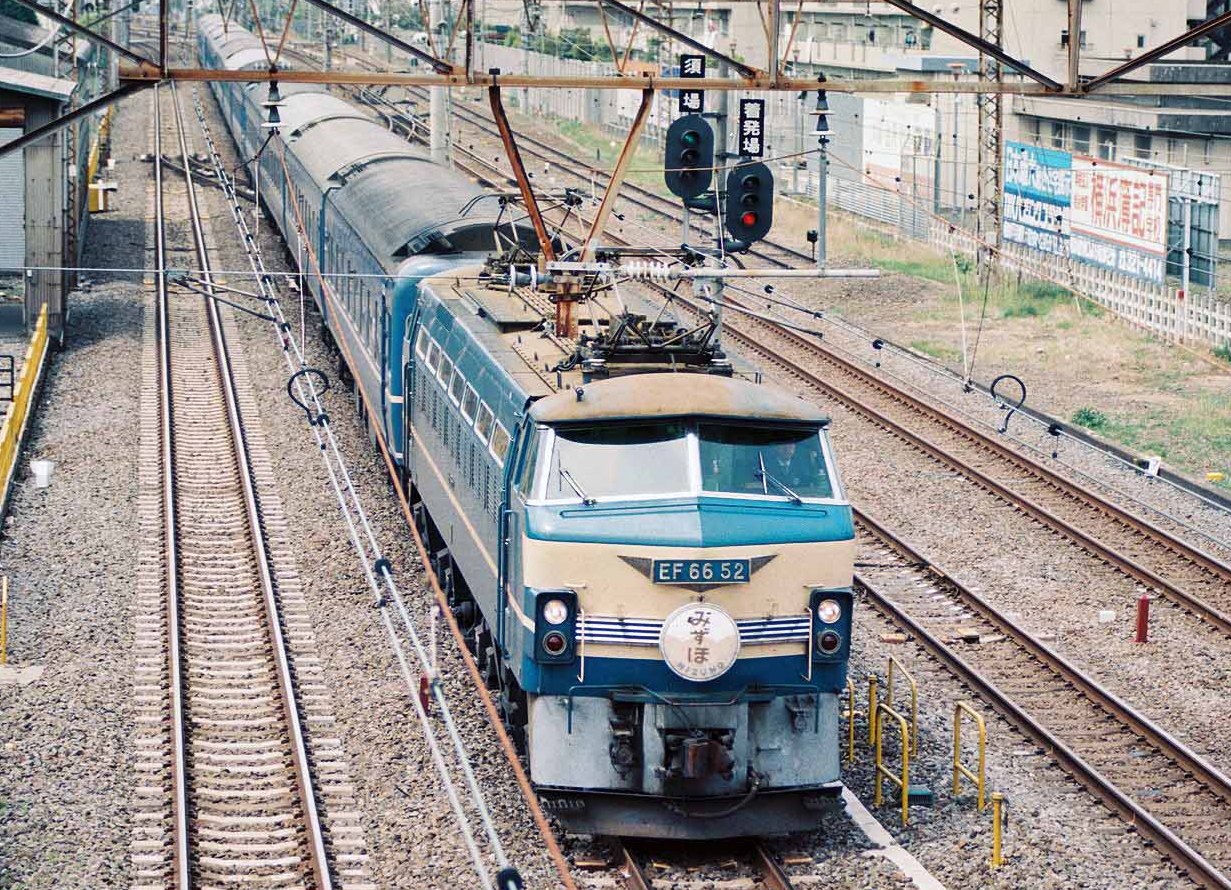

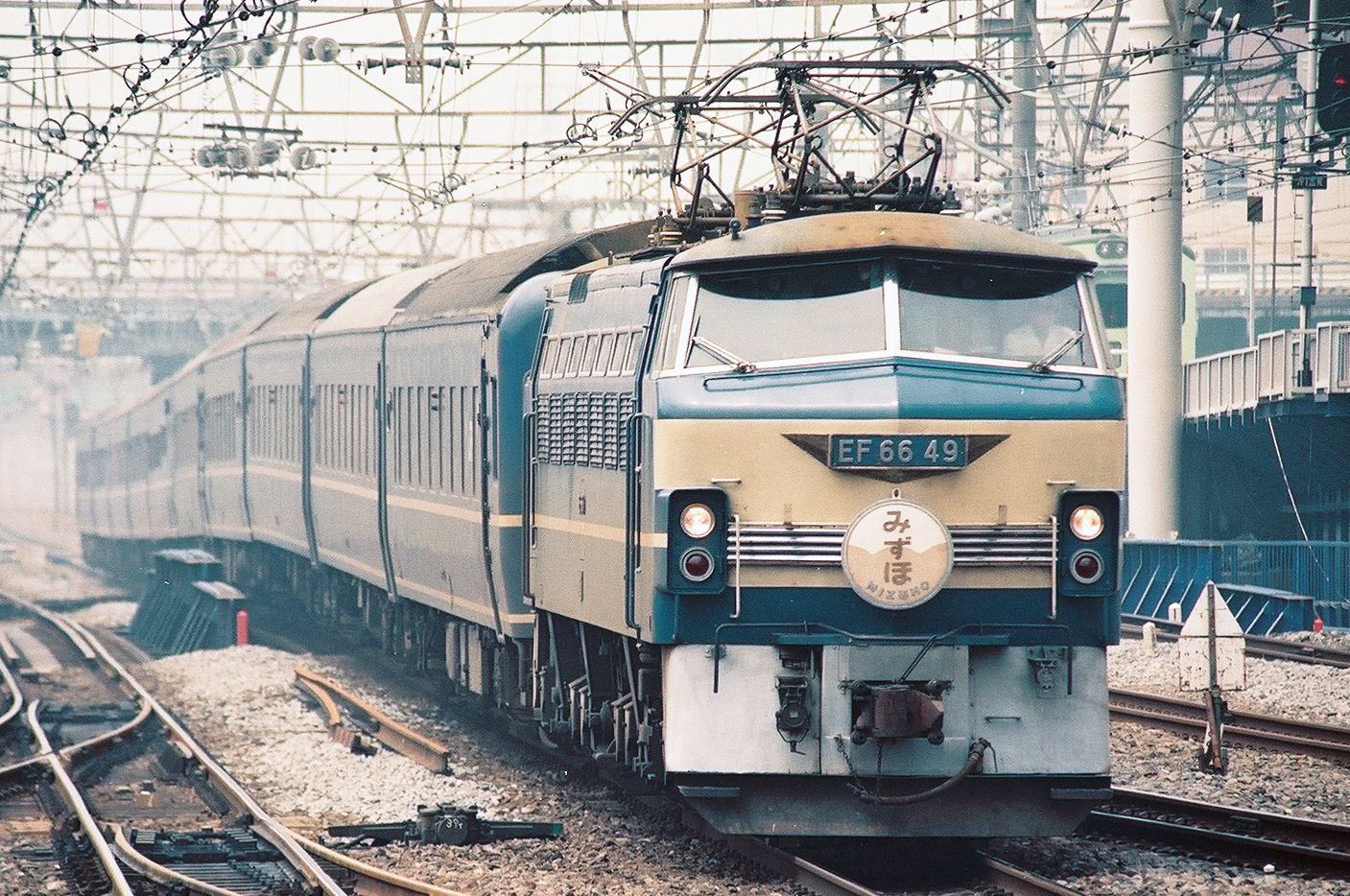

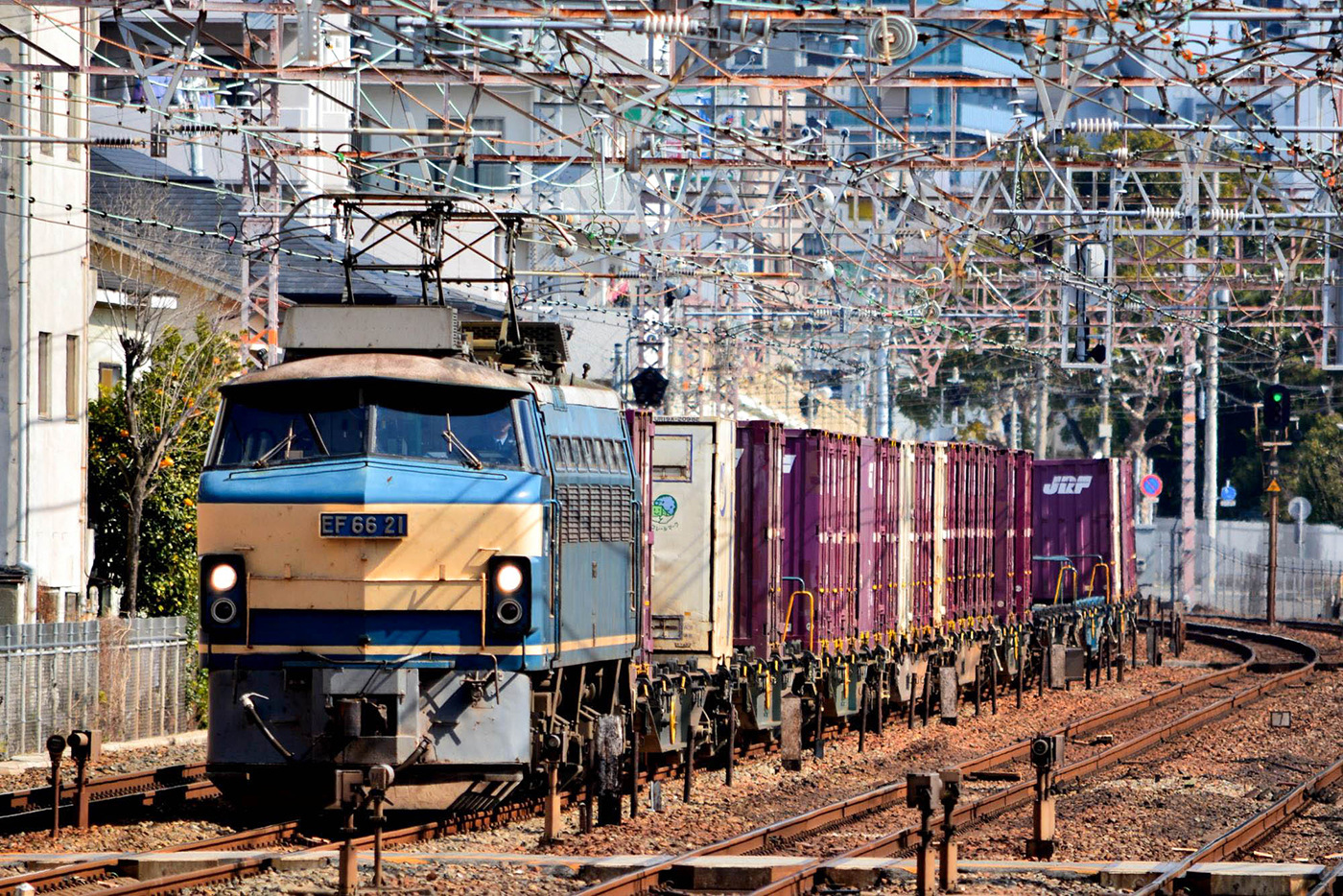

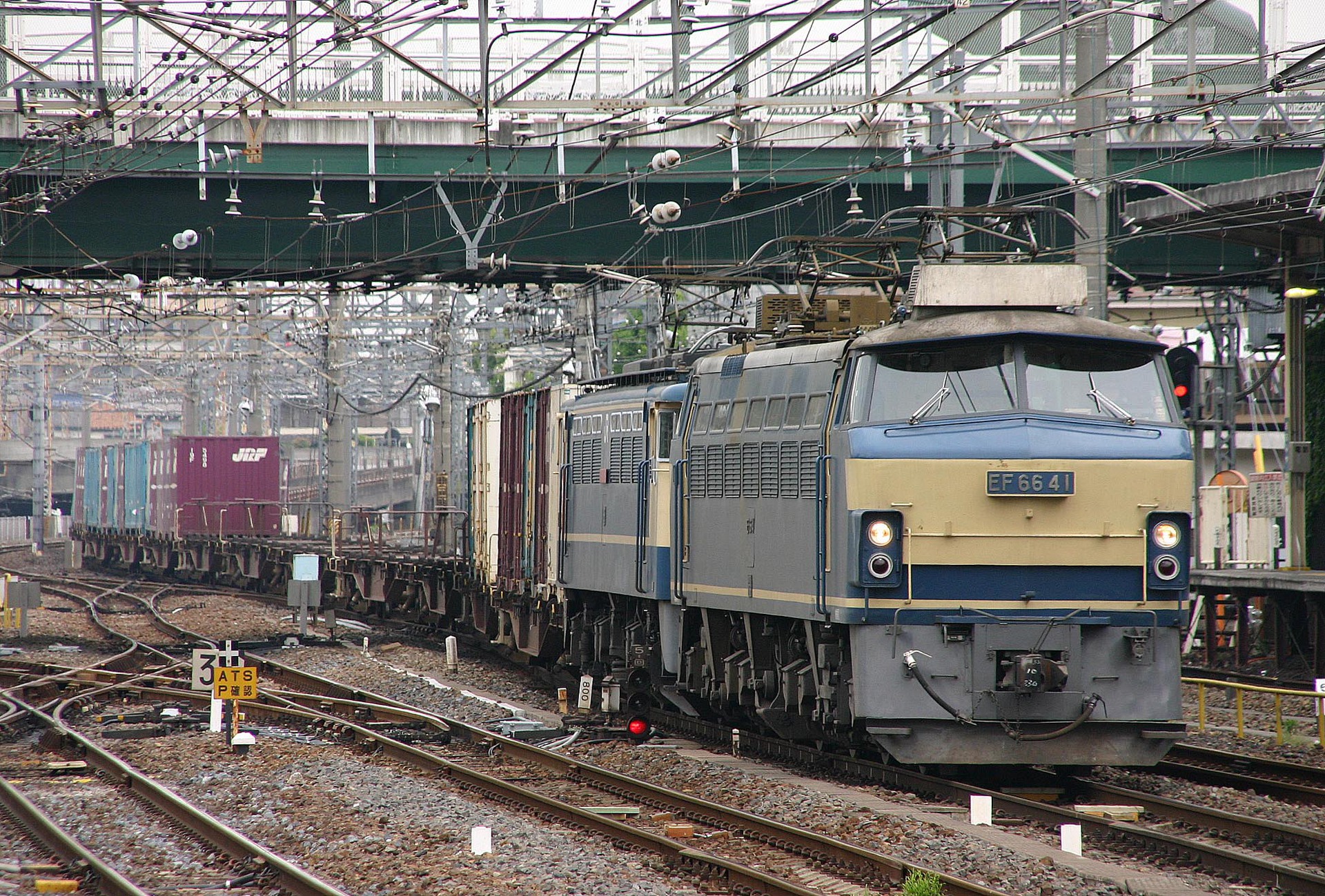

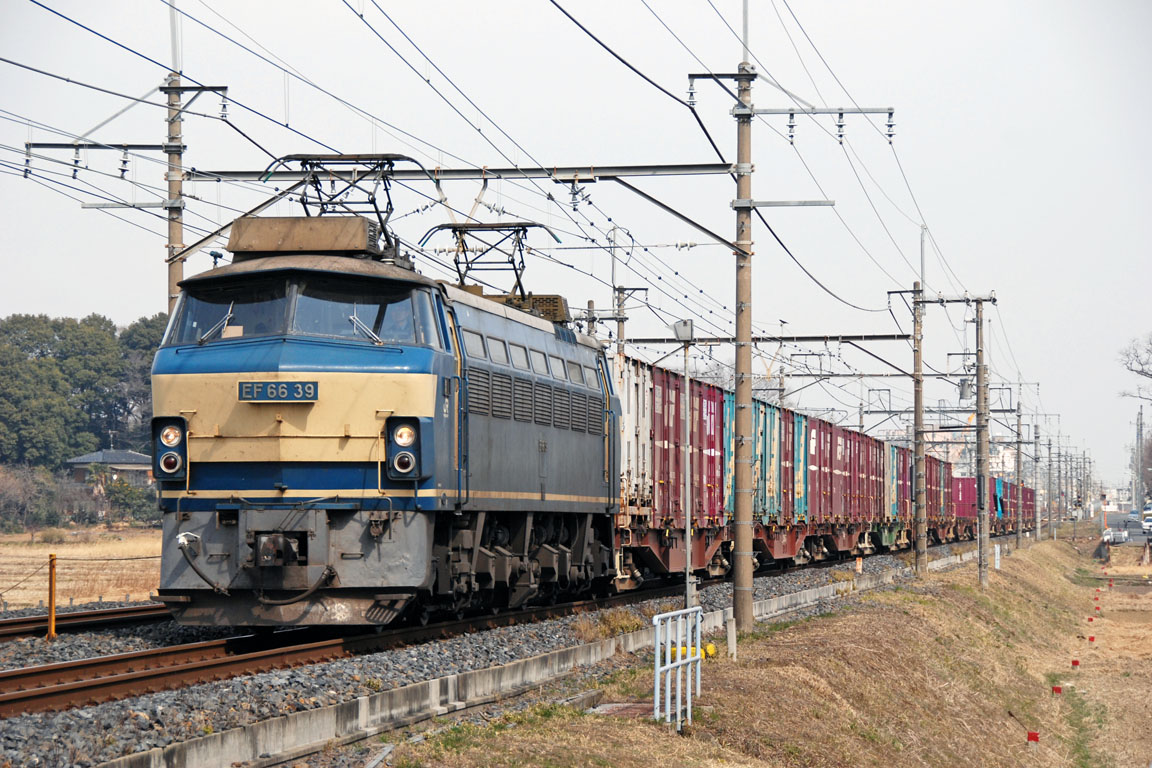

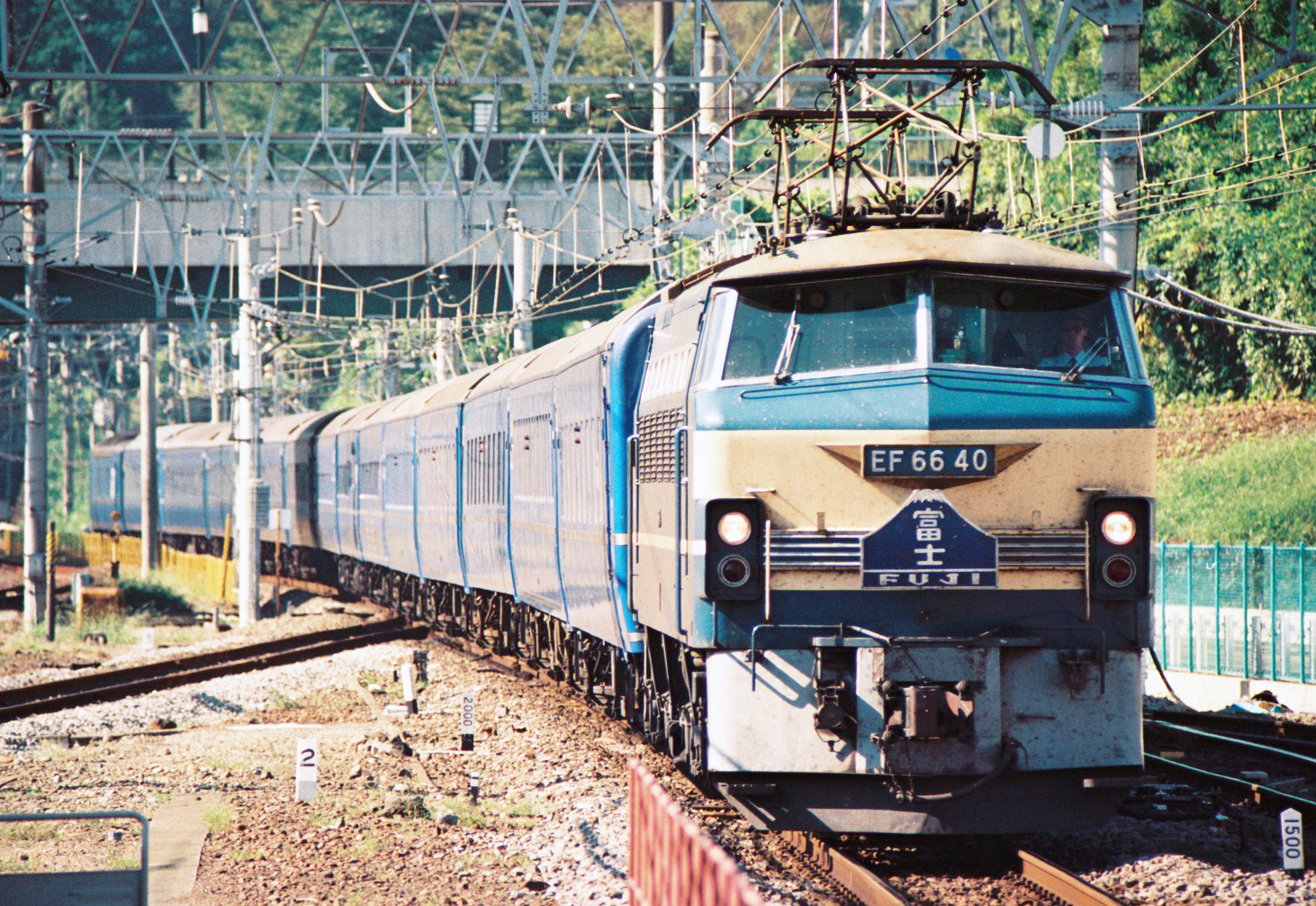

Kawasaki EF66 photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
