Meinfesa GM8B

Built by Meinfesa

Top speed

110 km/h

68 mph

Power output

598 kW

802 hp

Weight

78 t

171,960 lb

Length

12.55 m

41 ft 2 in

Track gauge

1,668 mm

Iberian gauge

Years built

1989–1991

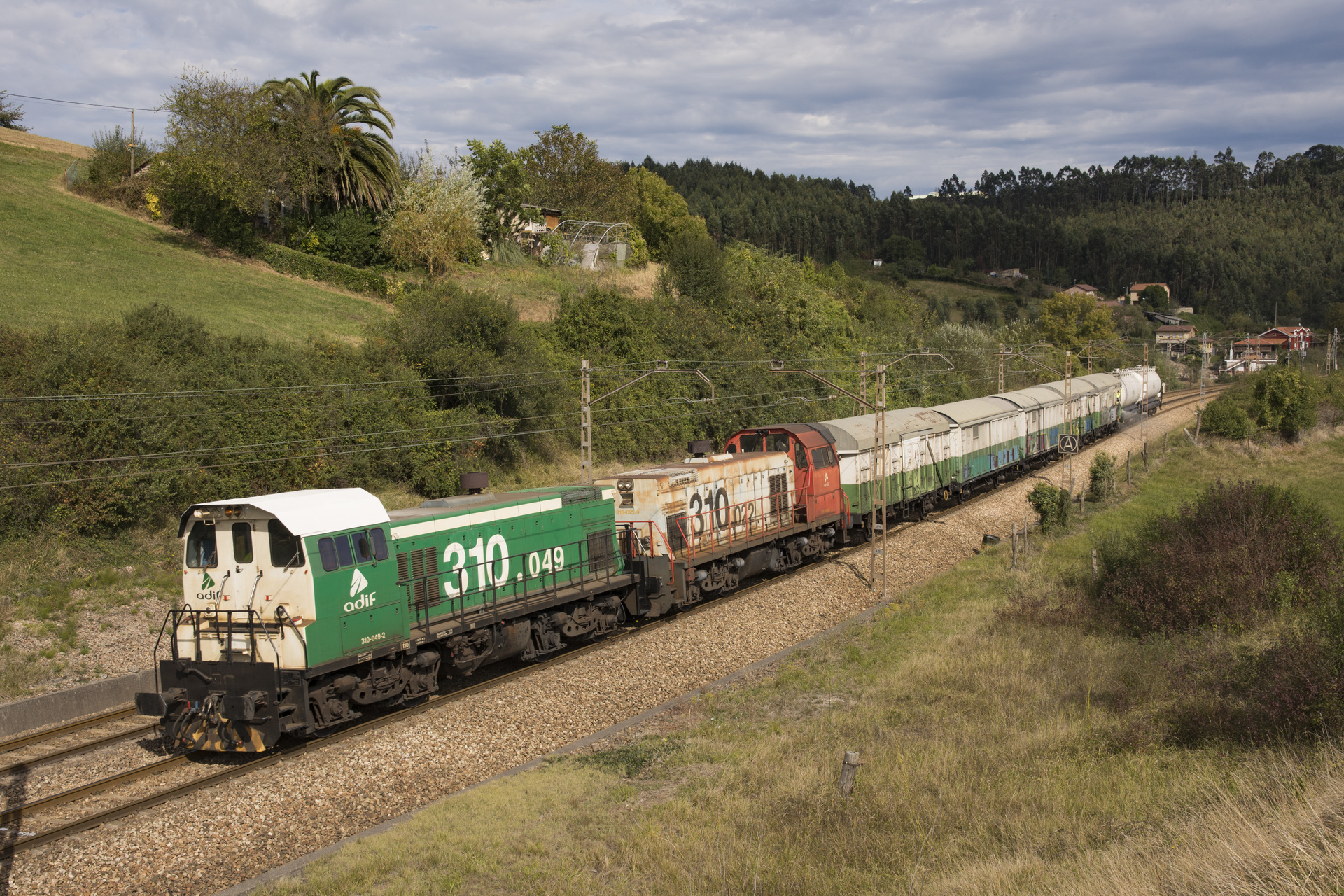

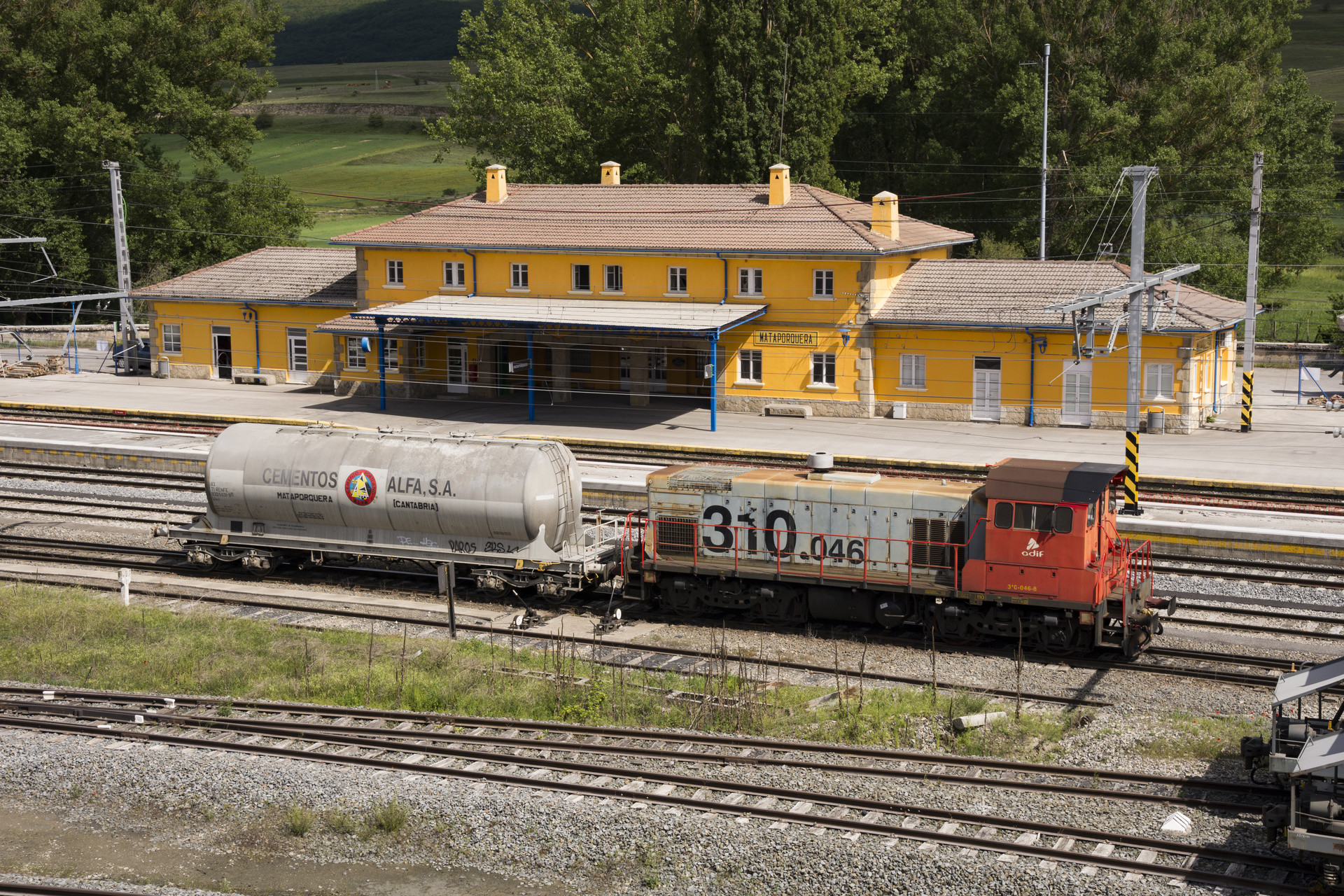

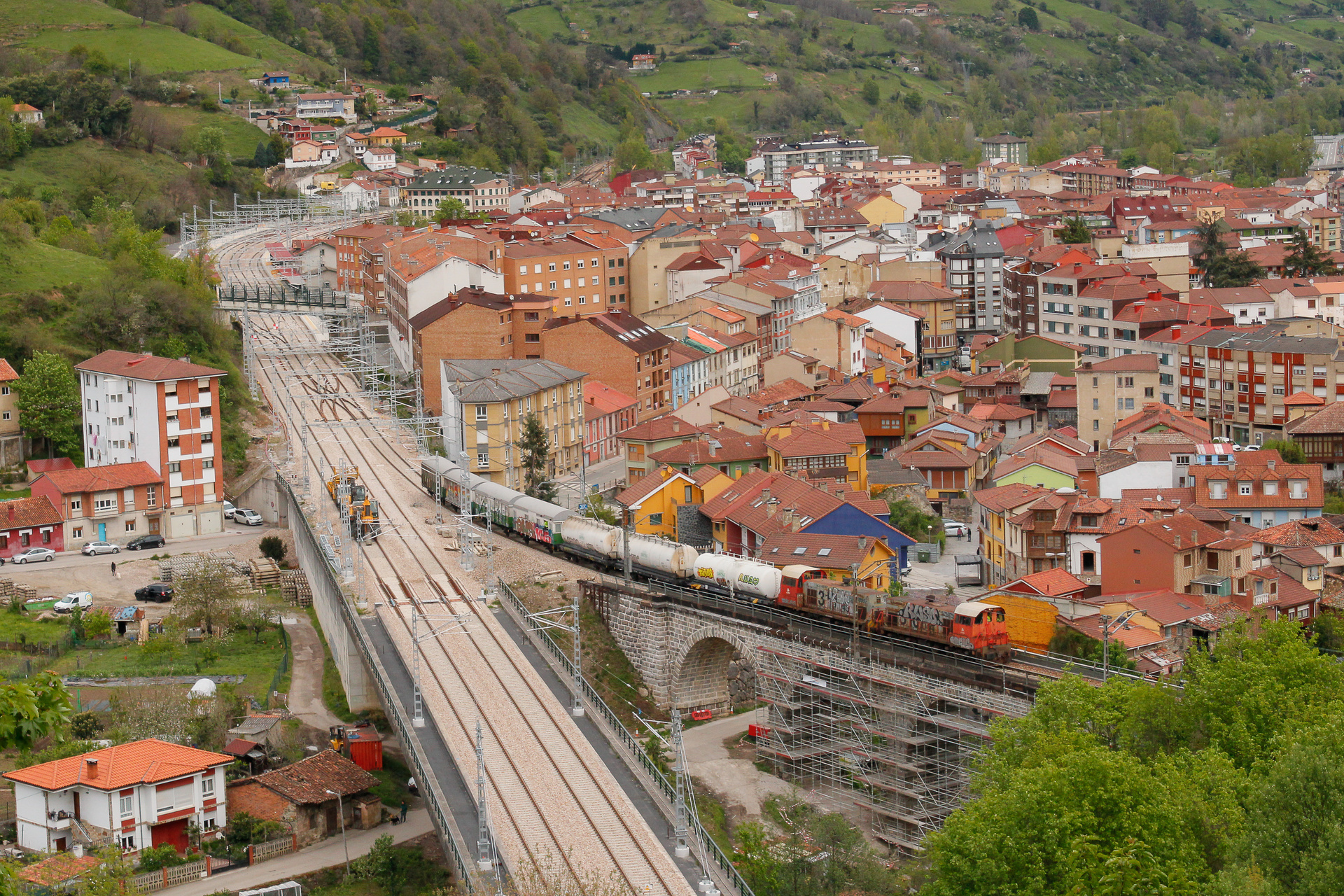

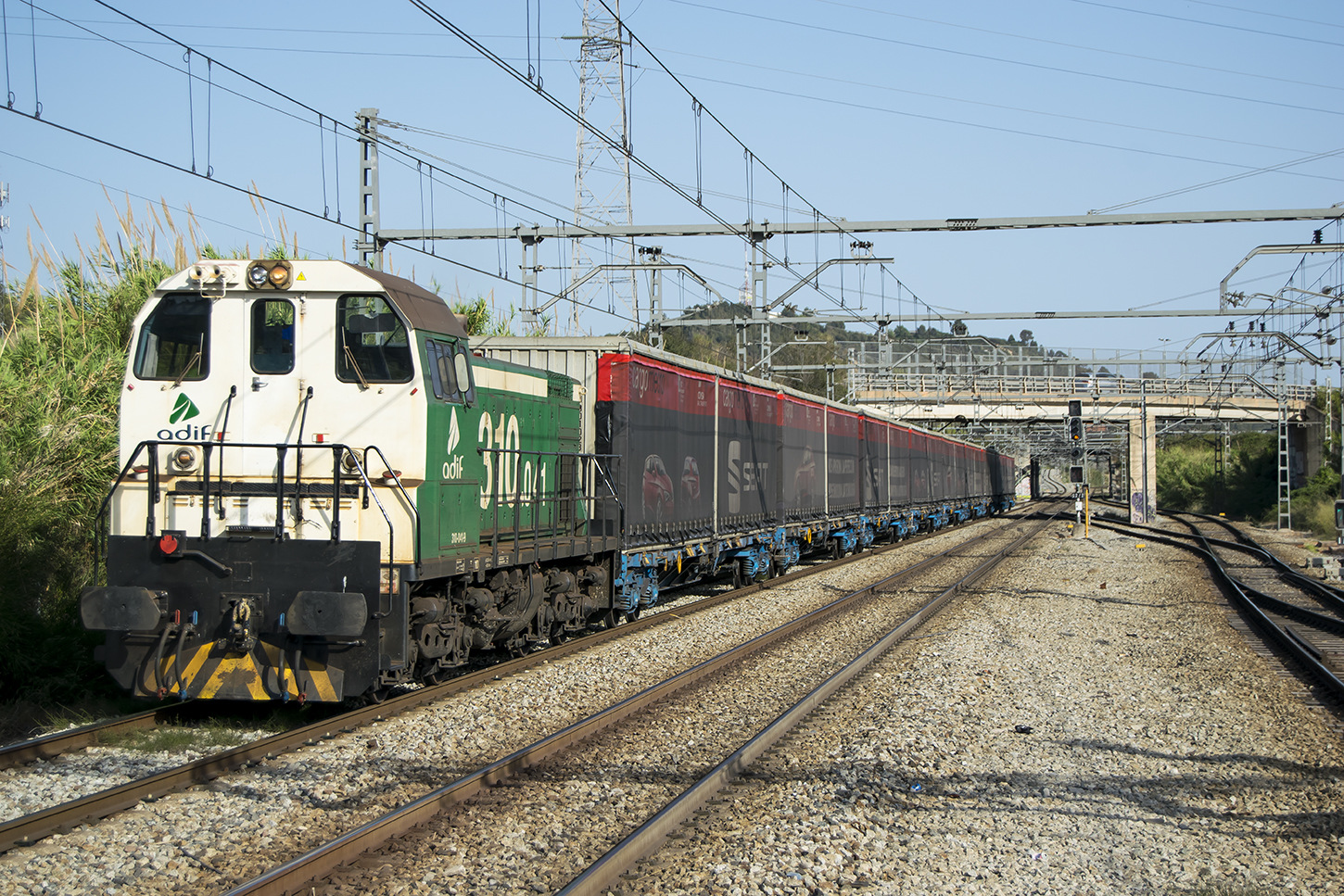

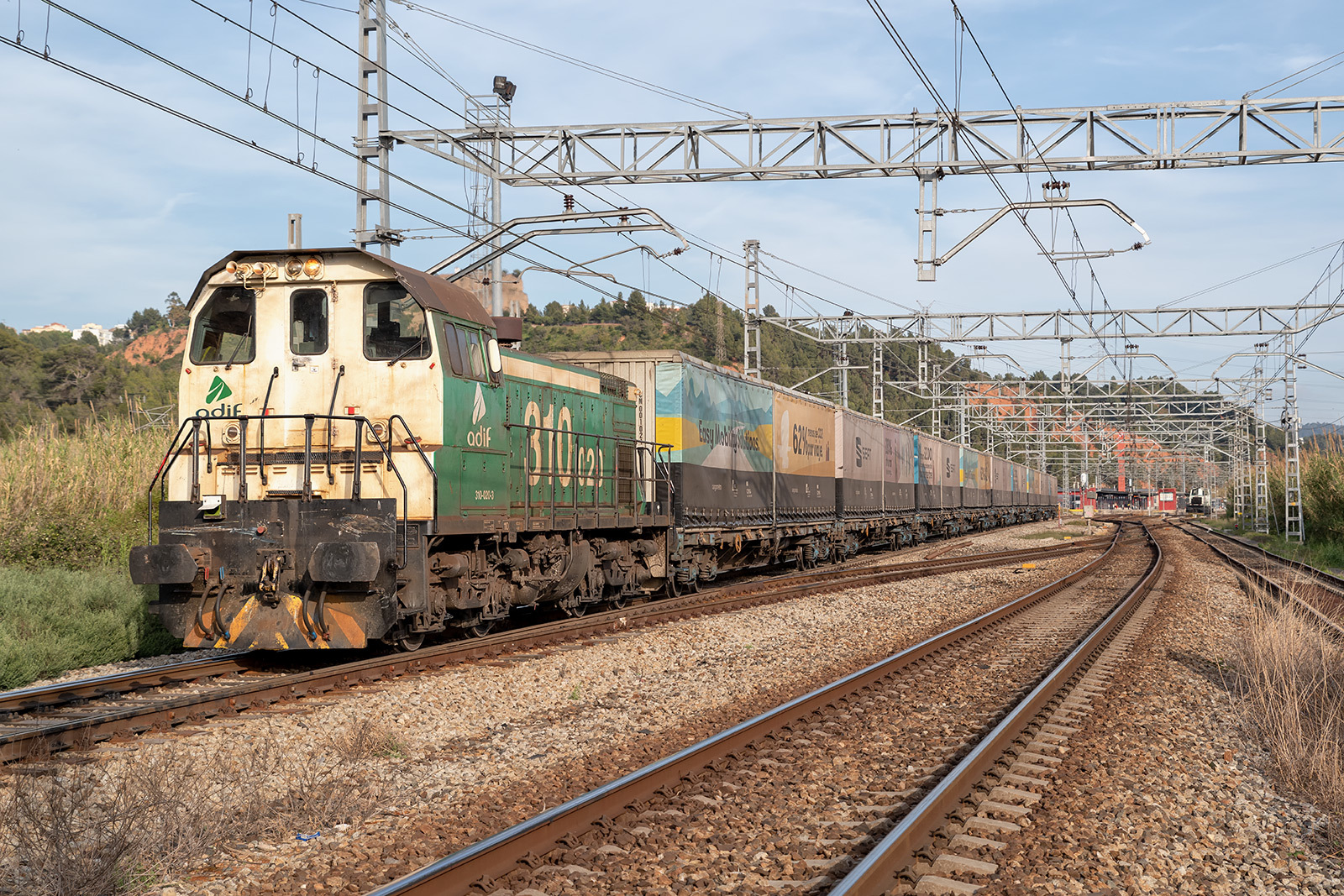

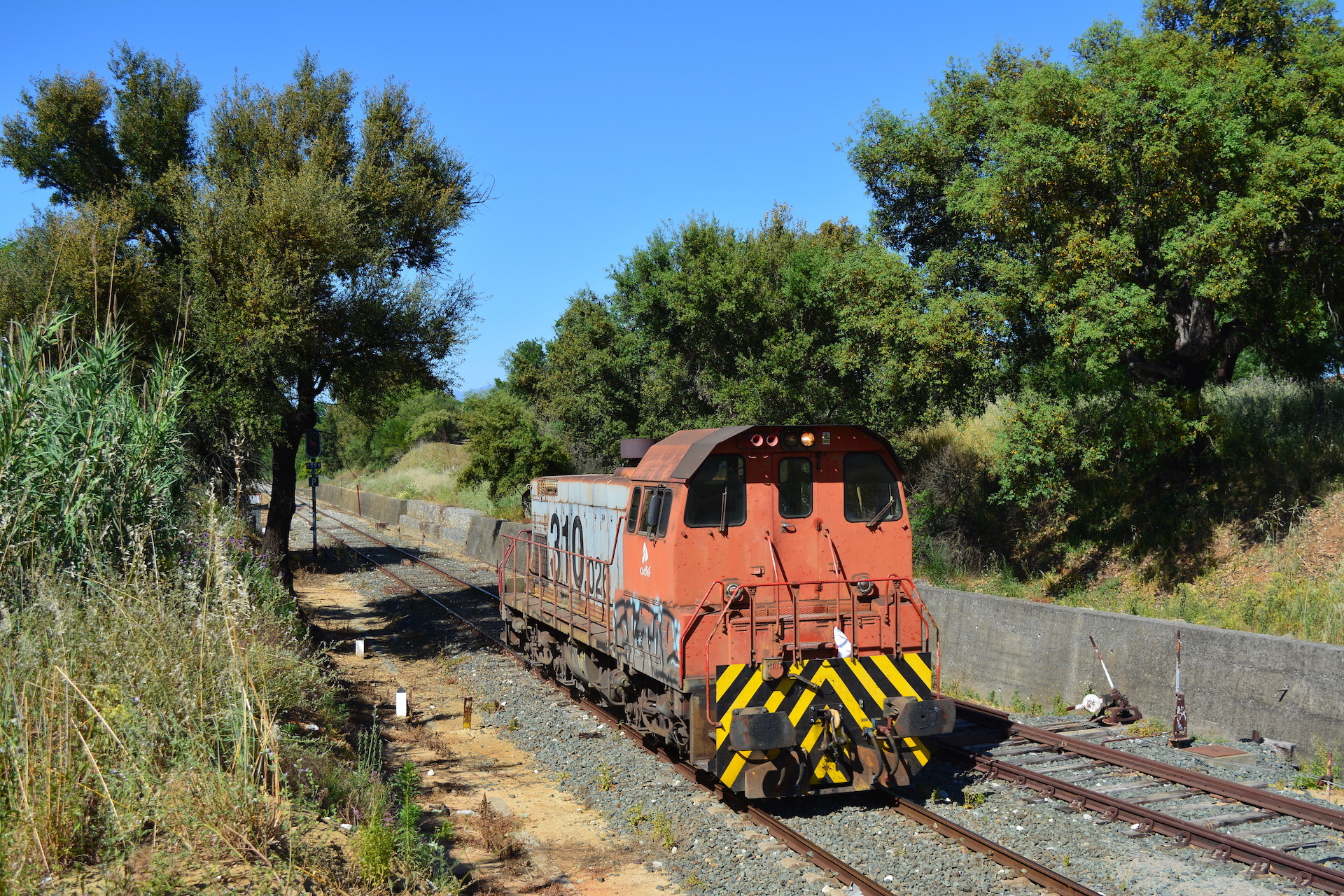

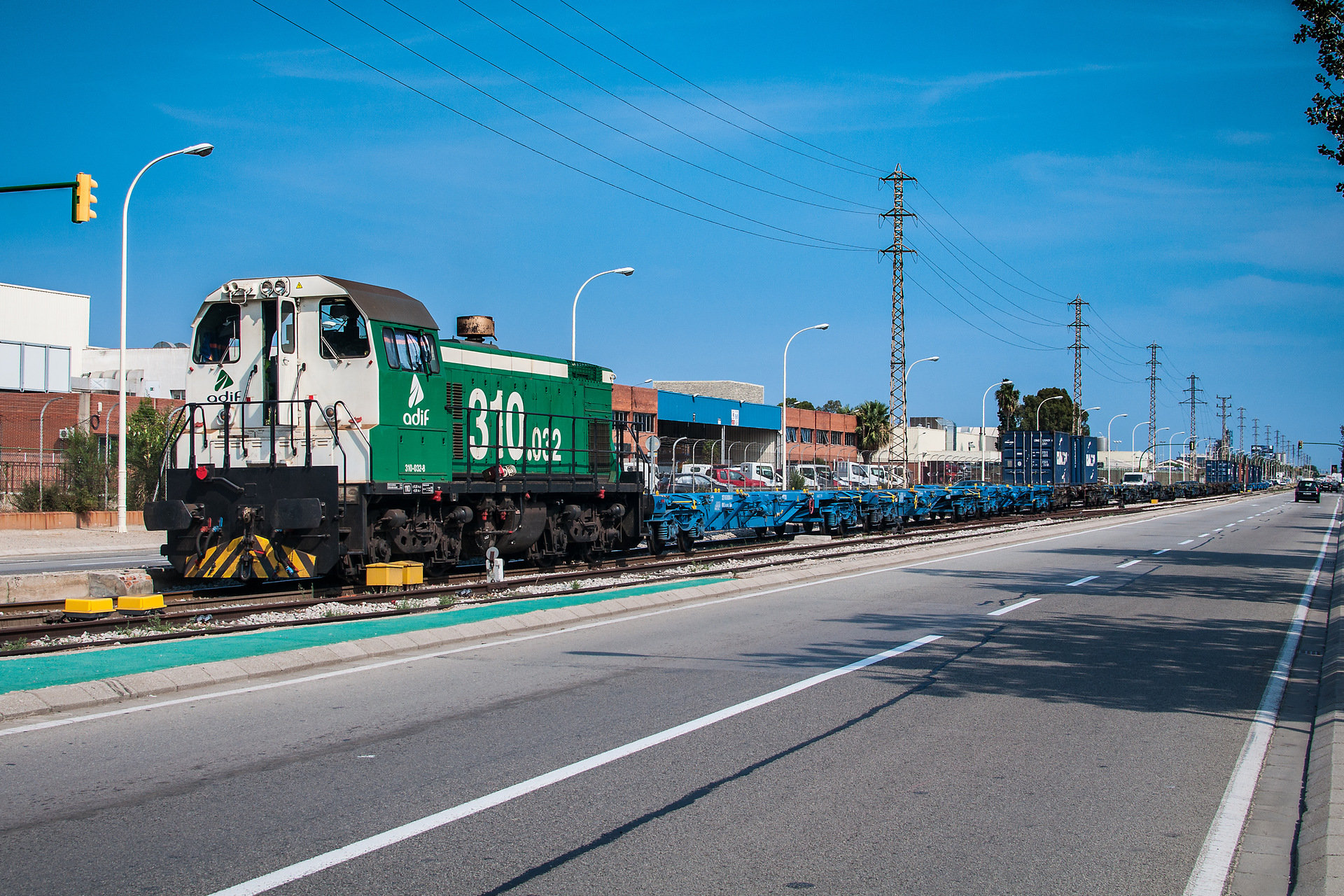

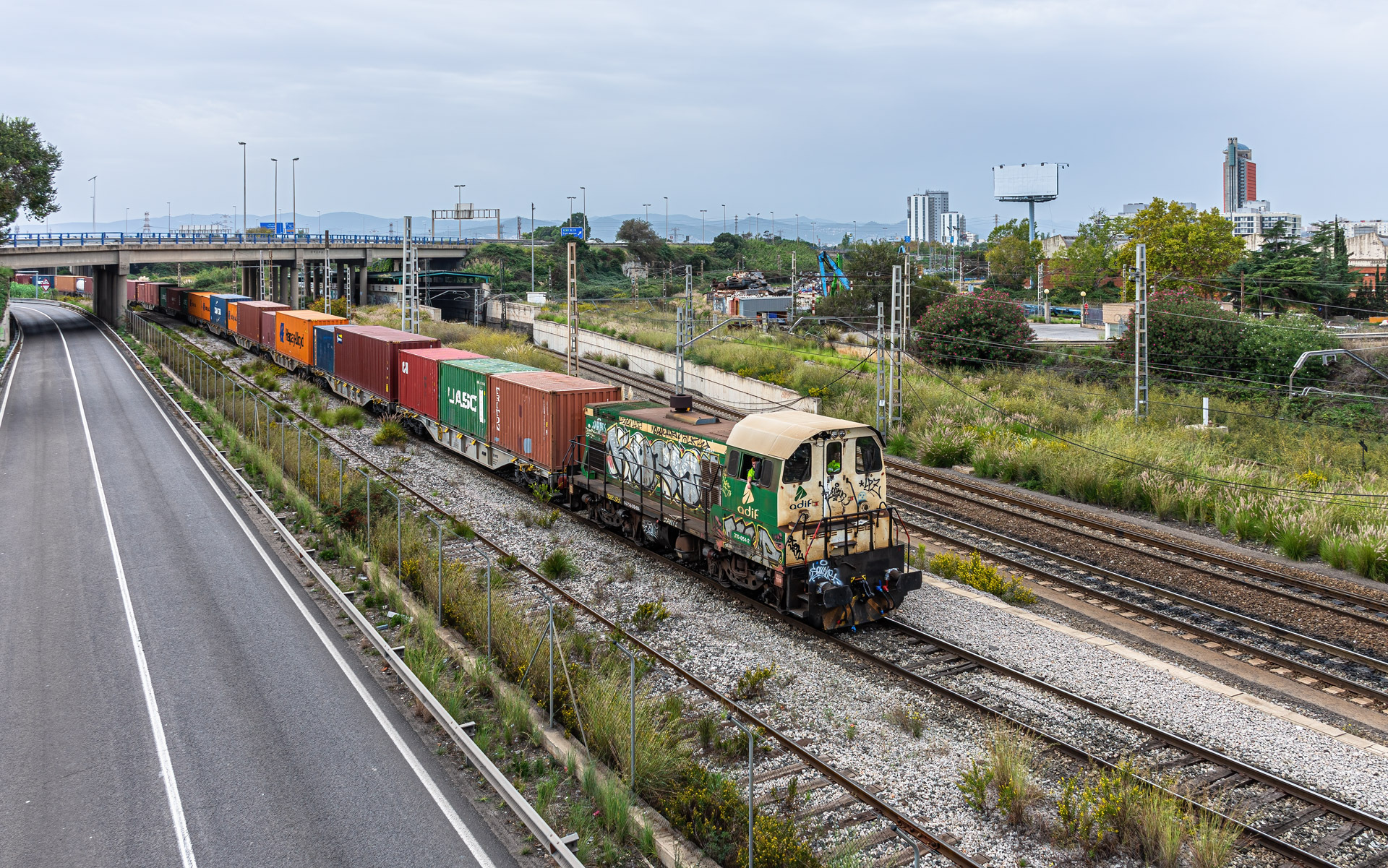

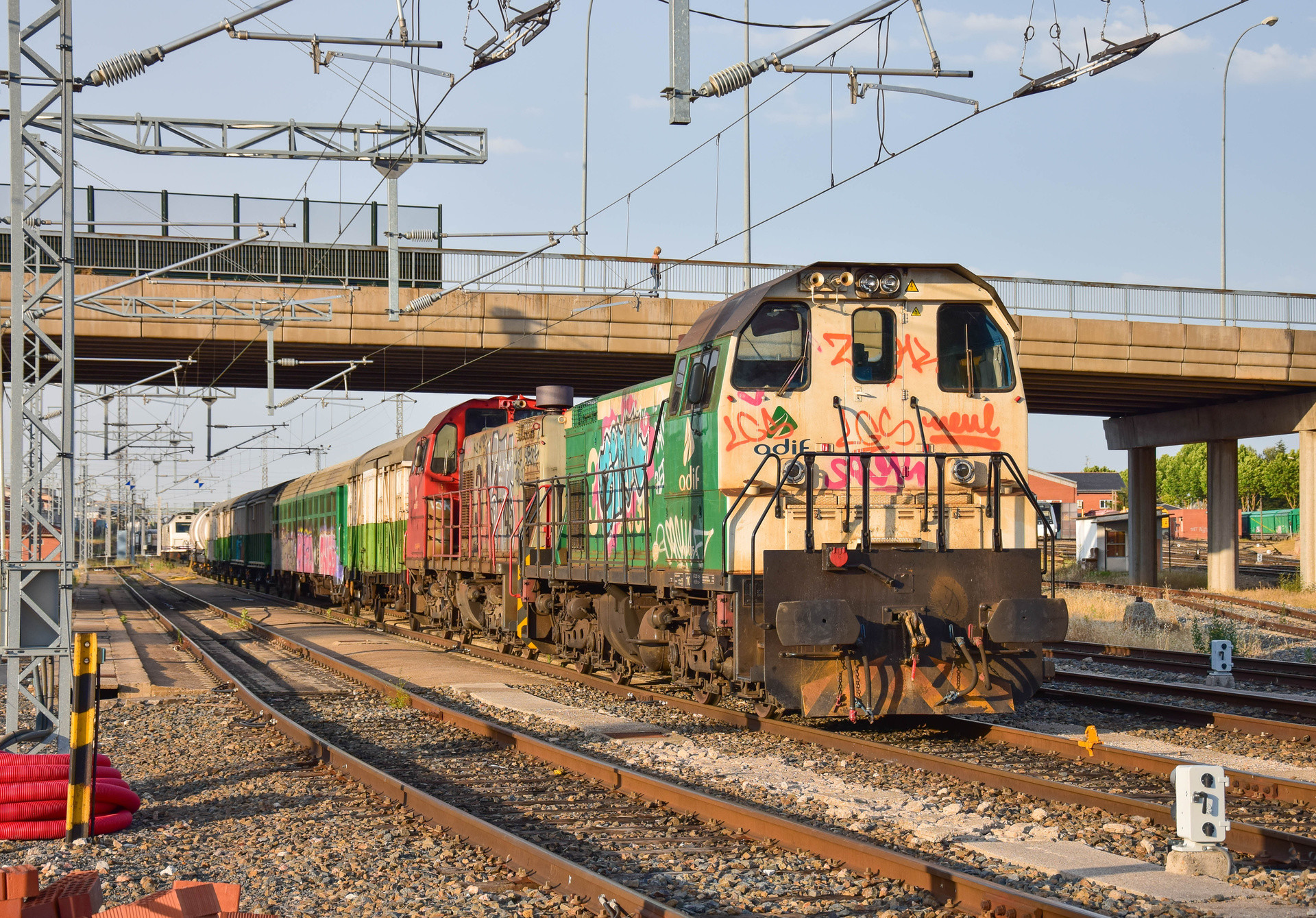

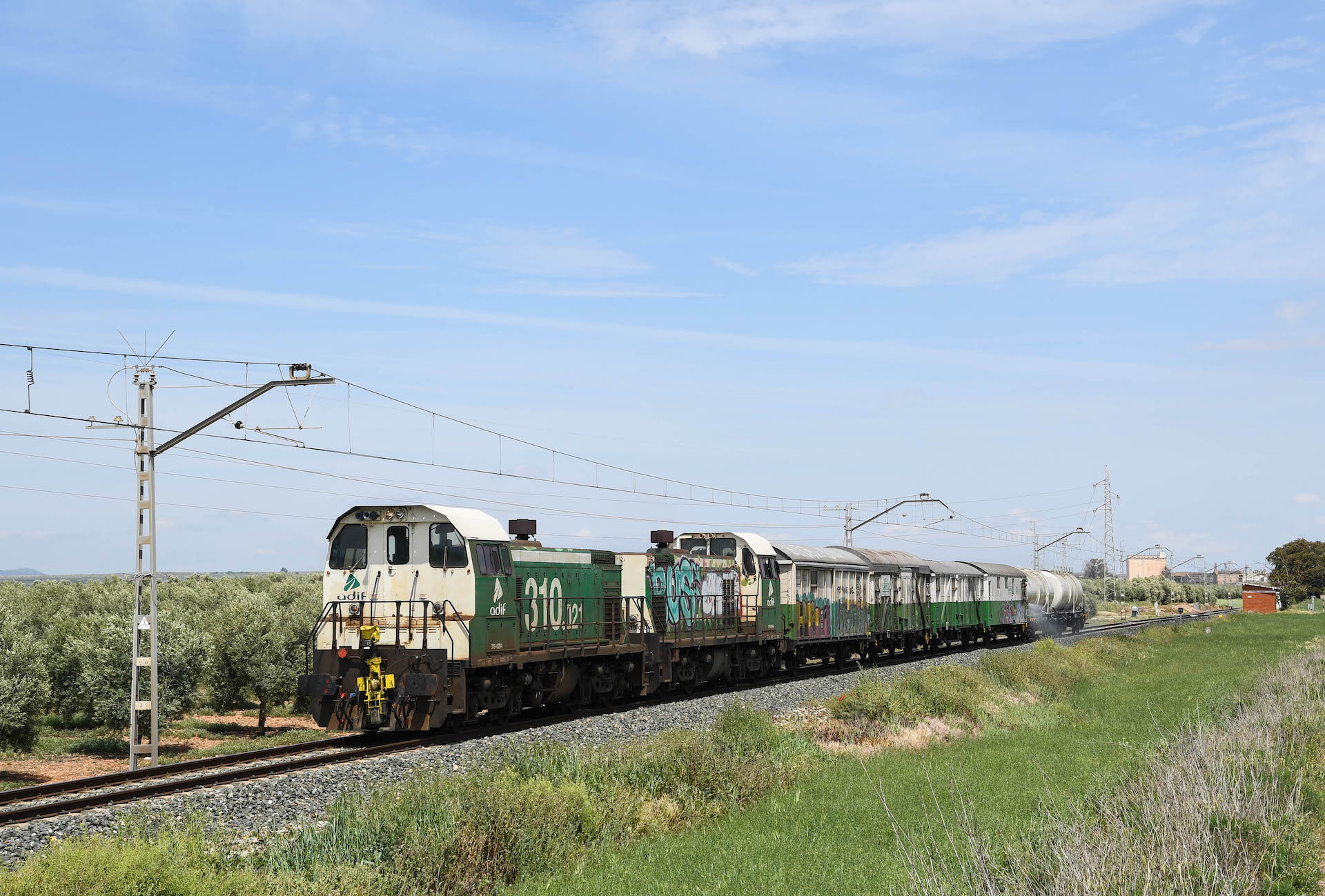

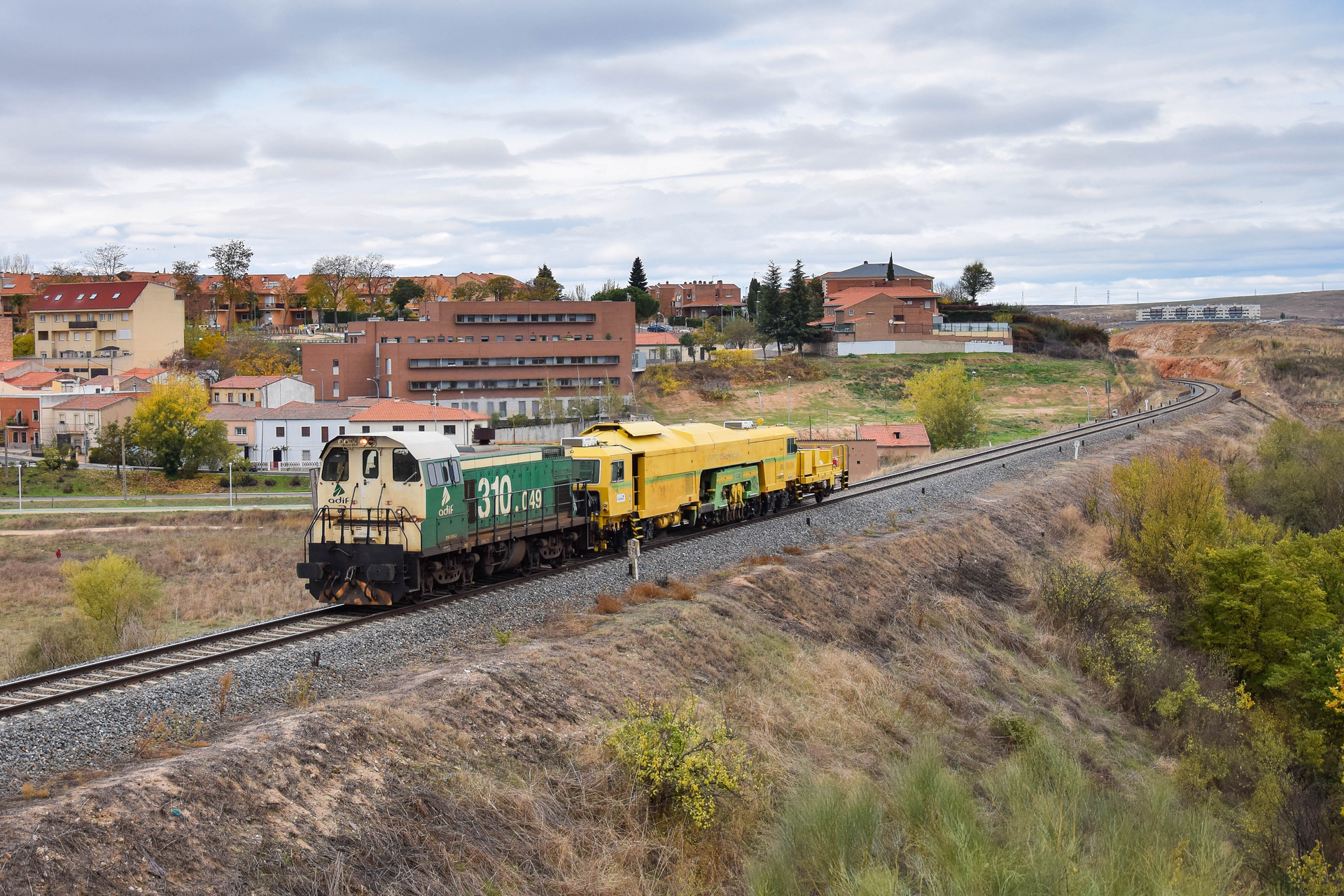

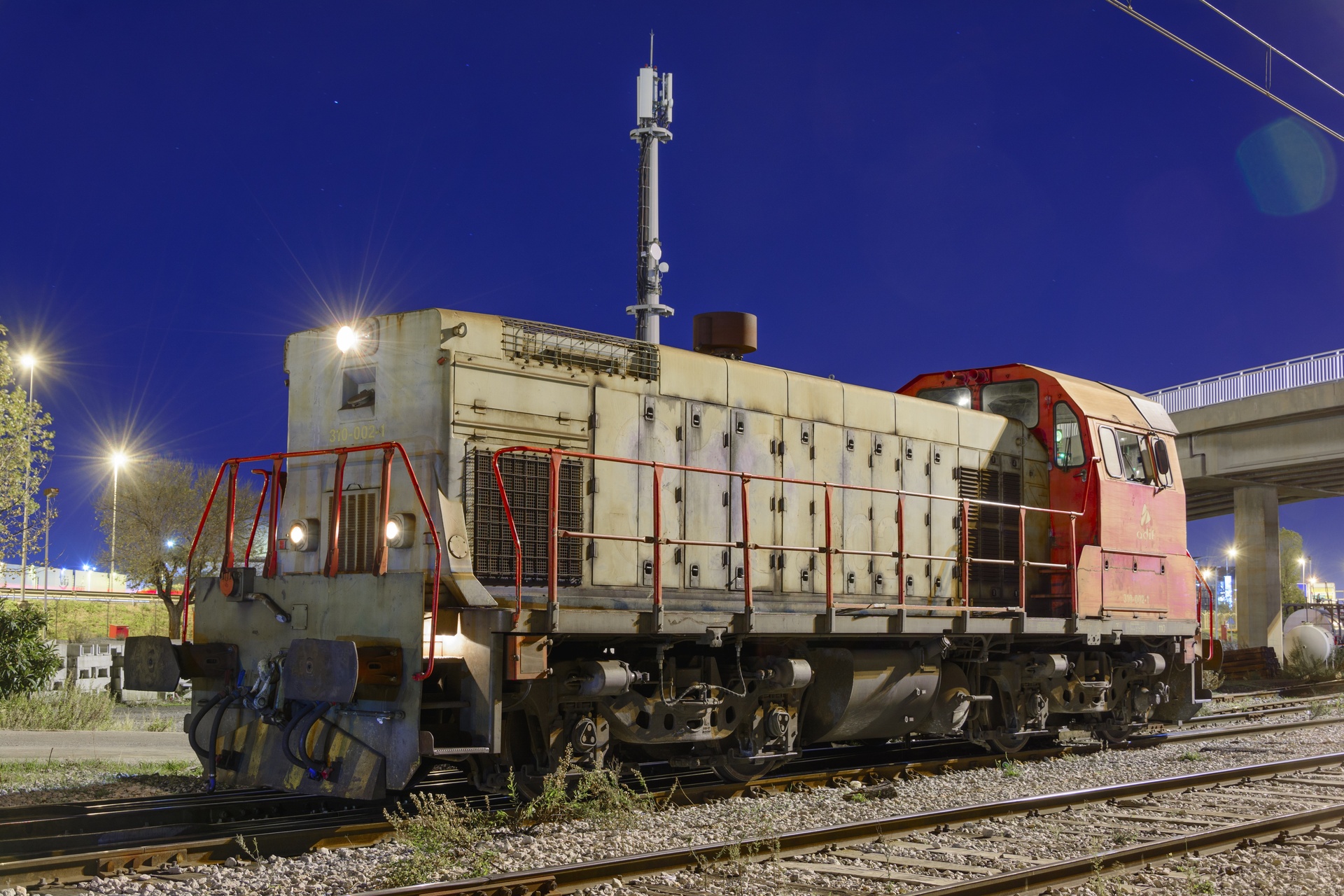

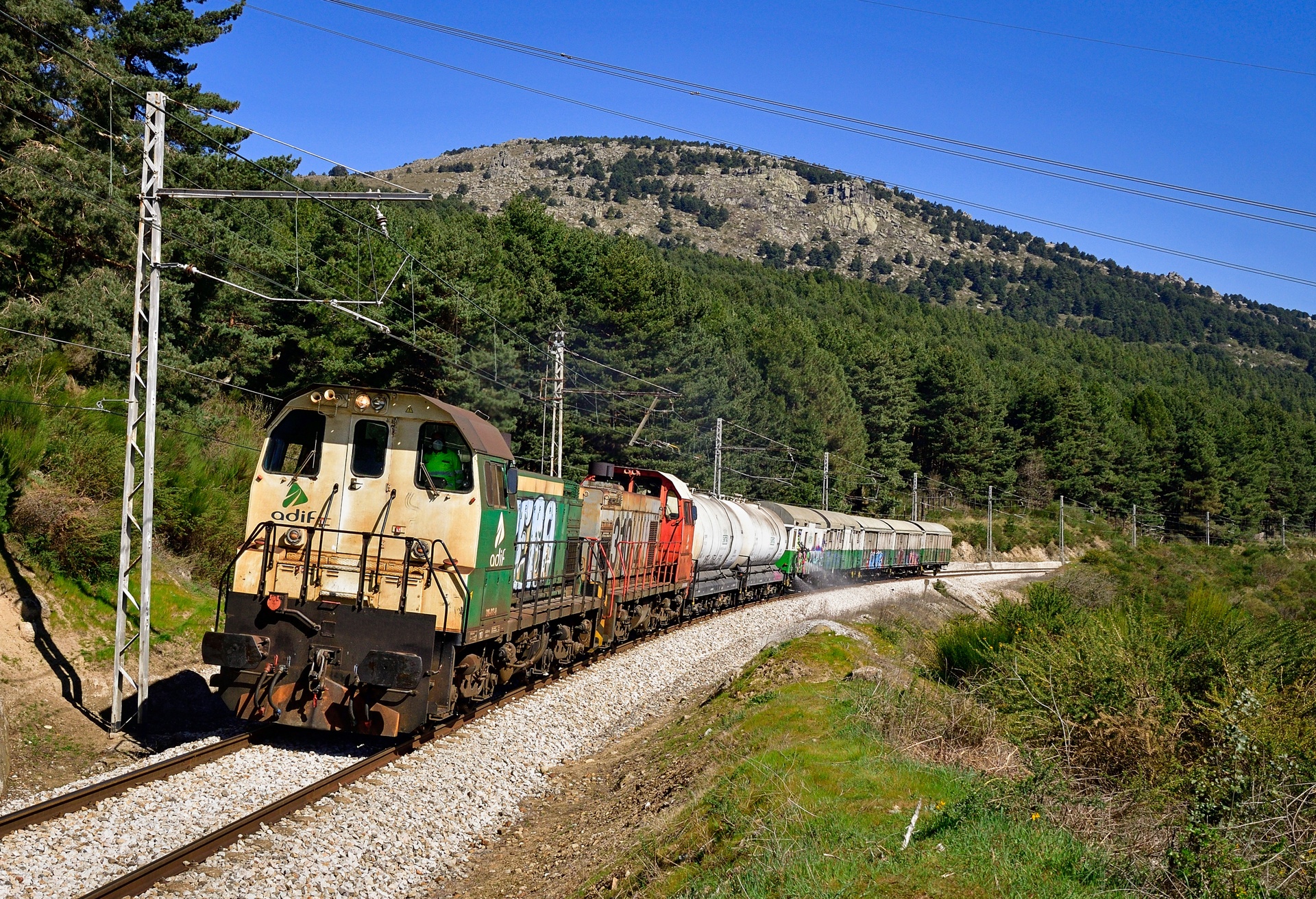

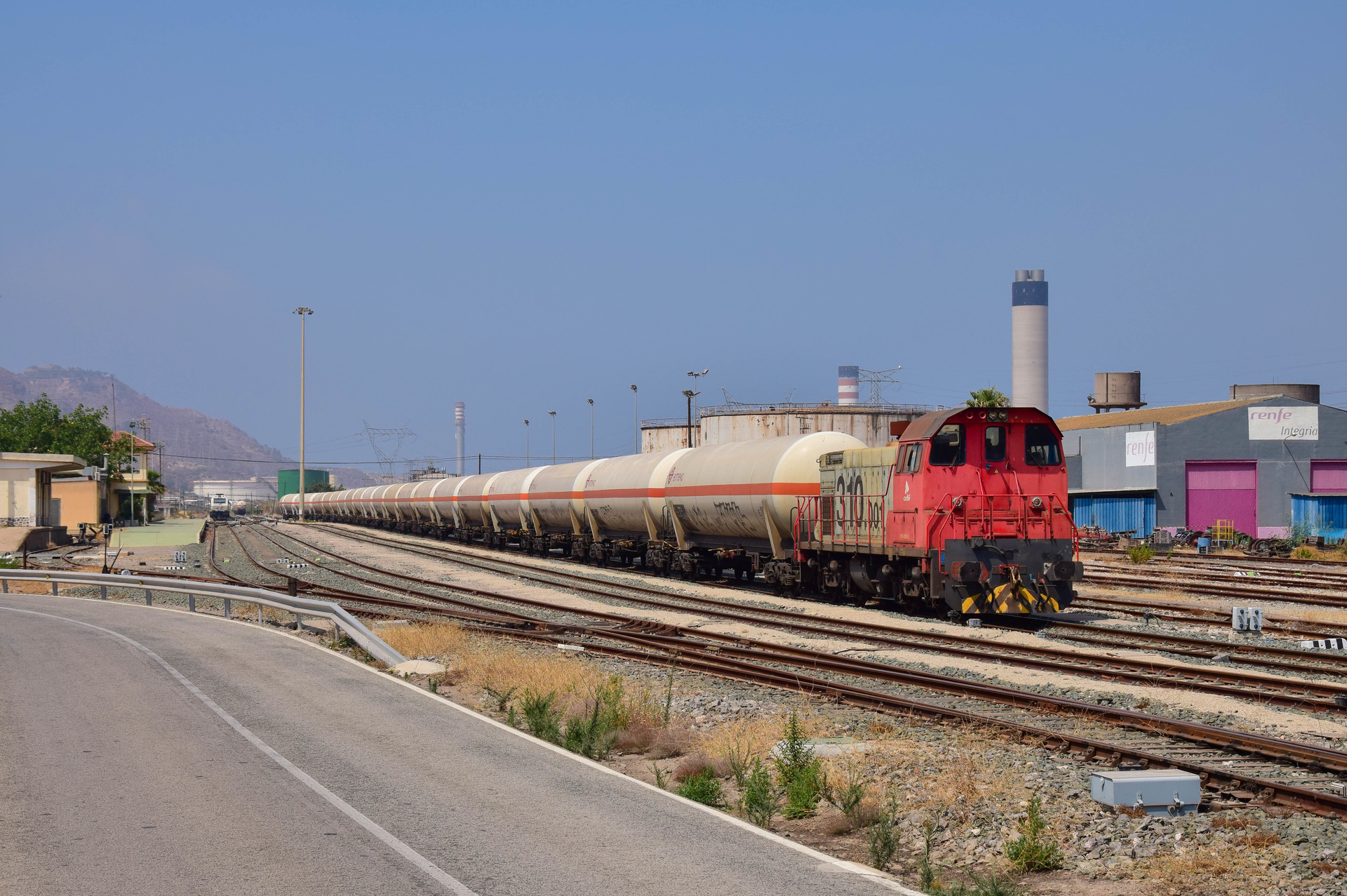

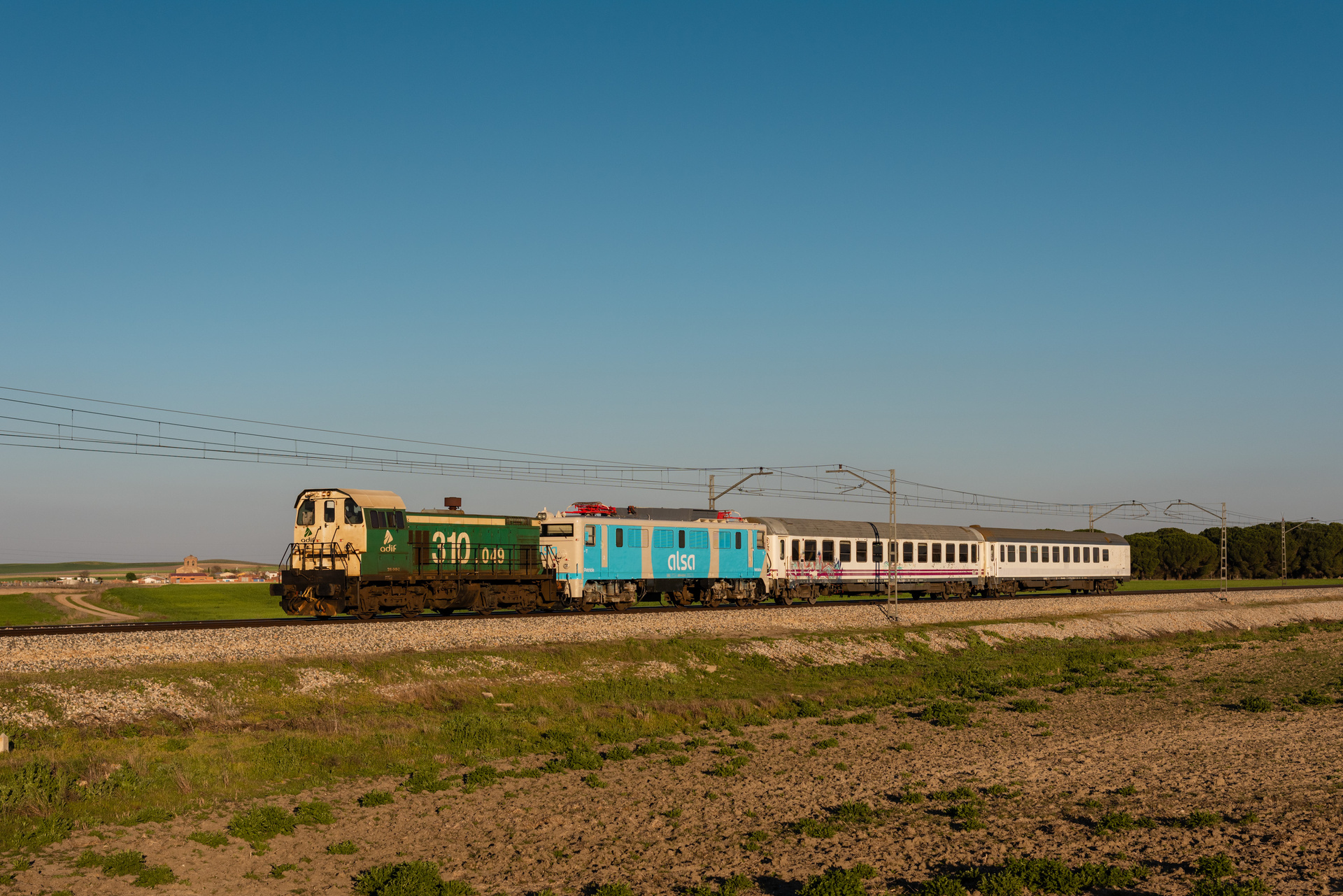

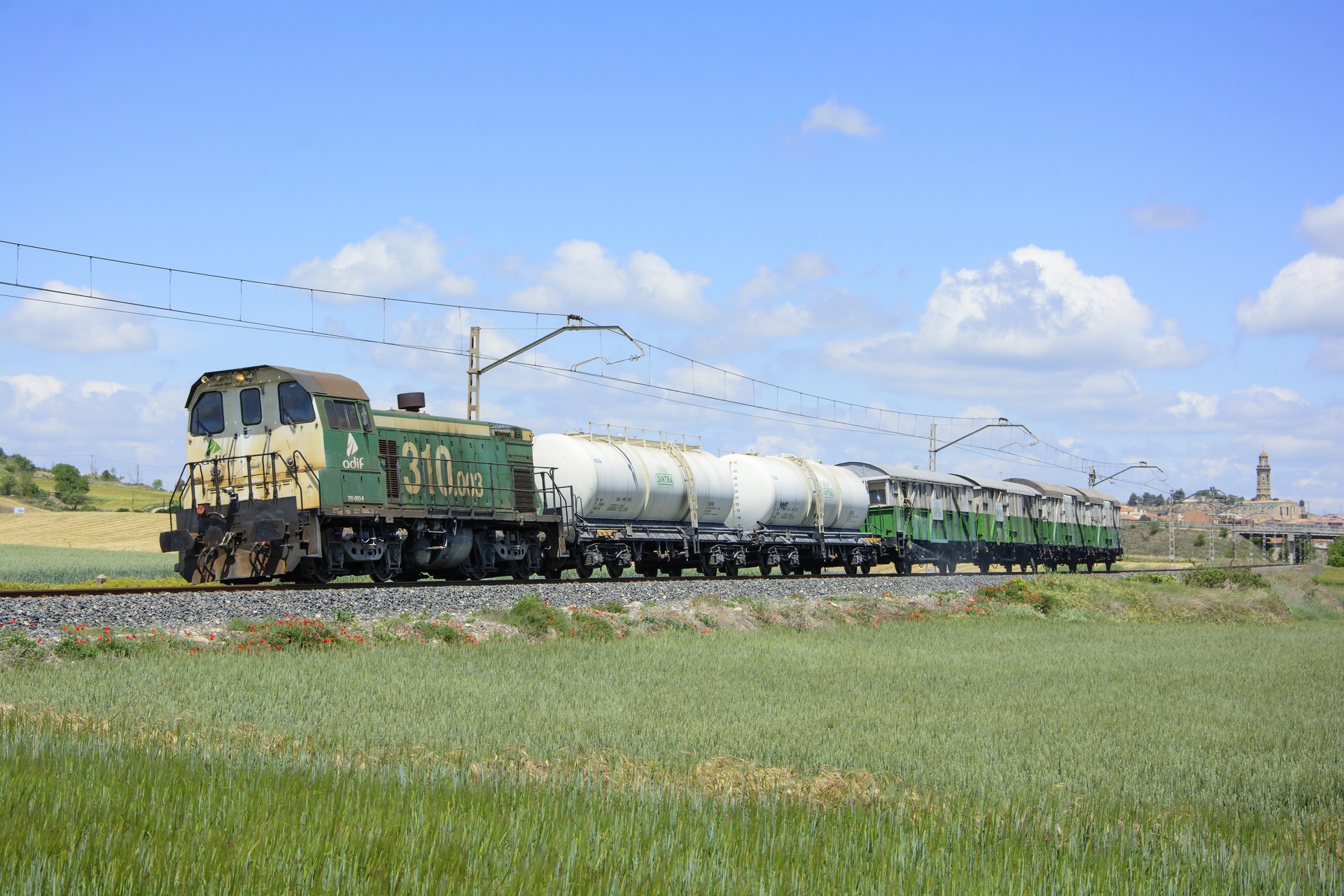

Overview of the Meinfesa GM8B

Discover the GM8B locomotive, a robust diesel model recognized for its reliability and performance.

Built by Meinfesa between 1989 and 1991, this locomotive features a broad gauge of 1668 mm, making it suitable for specific railway networks.

With a top speed of 110 km/h and a power output of 598 kW, the GM8B proves to be a versatile workhorse on the tracks.

Measuring 12.55 meters in length and weighing 78 tons, it's a substantial piece of machinery.

Its Bo'Bo' wheel arrangement ensures excellent traction, making it a preferred choice for operators such as ADIF, Alsa Rail, Renfe Operadora, and Tracción Rail in Spain.

Meinfesa GM8B technical specifications

	Value	Imperial / US
Series	SW1001
Built by	Meinfesa · 1989–1991
Top speed	110 km/h68 mph	68 mph
Power output	598 kW802 hp	802 hp
Tractive effort	132 kN29,675 lbf	29,675 lbf
Prime mover	EMD 8-645E
Track gauge	1,668 mmIberian gauge5 ft 5⅝ in	5 ft 5⅝ in
UIC axle arrangement	Bo'Bo'
Length	12.55 m41 ft 2 in	41 ft 2 in
Width	3.08 m10 ft 1 in	10 ft 1 in
Height	4.3 m14 ft 1 in	14 ft 1 in
Weight	78 t171,960 lb	171,960 lb
