MTE BB 12000

Built by MTE

Top speed

120 km/h

75 mph

Power output

2,470 kW

3,312 hp

Weight

84 t

185,188 lb

Length

15.2 m

49 ft 10 in

Track gauge

1,435 mm

Standard gauge

Years built

1954–1961

Overview of the MTE BB 12000

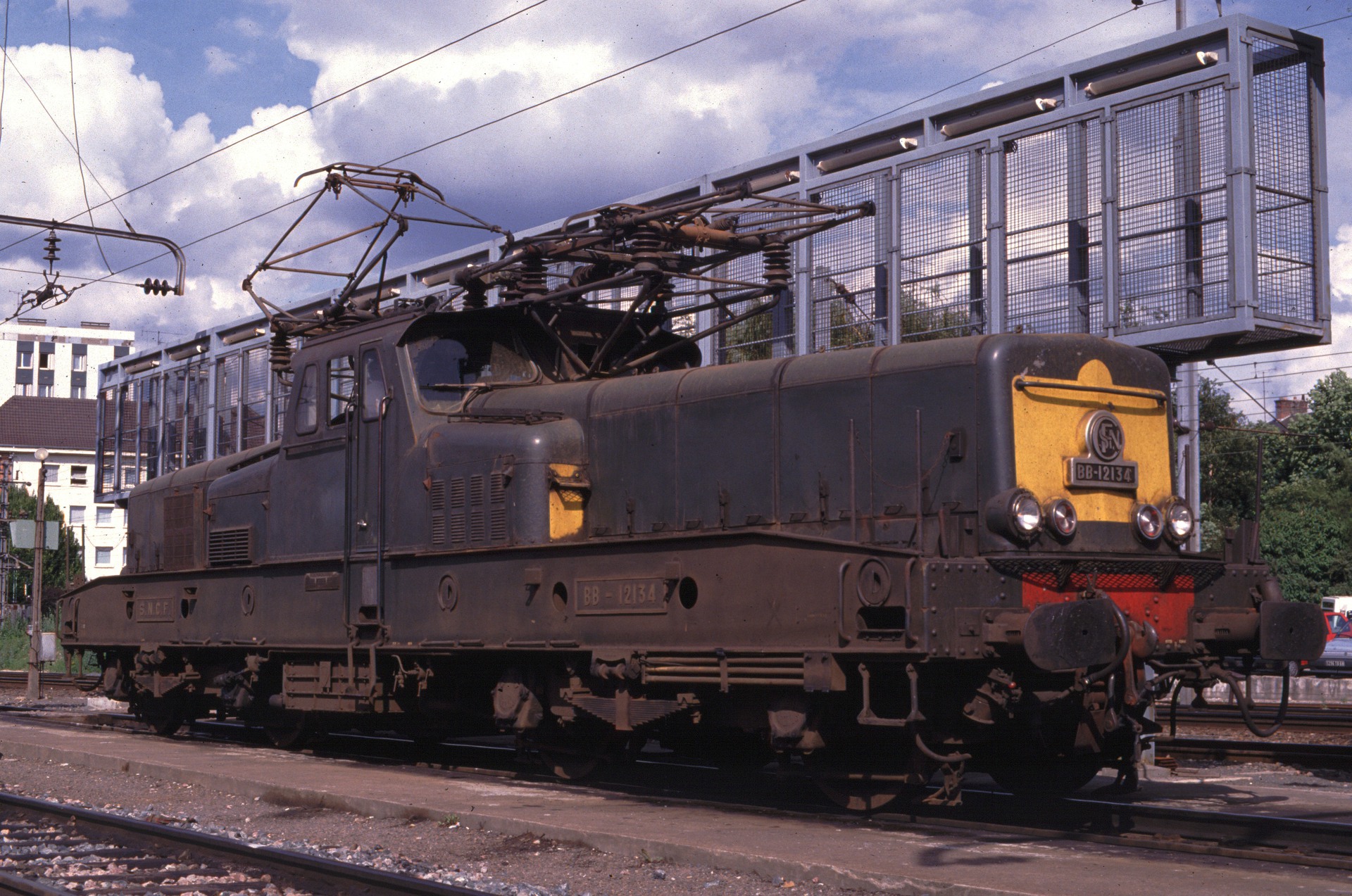

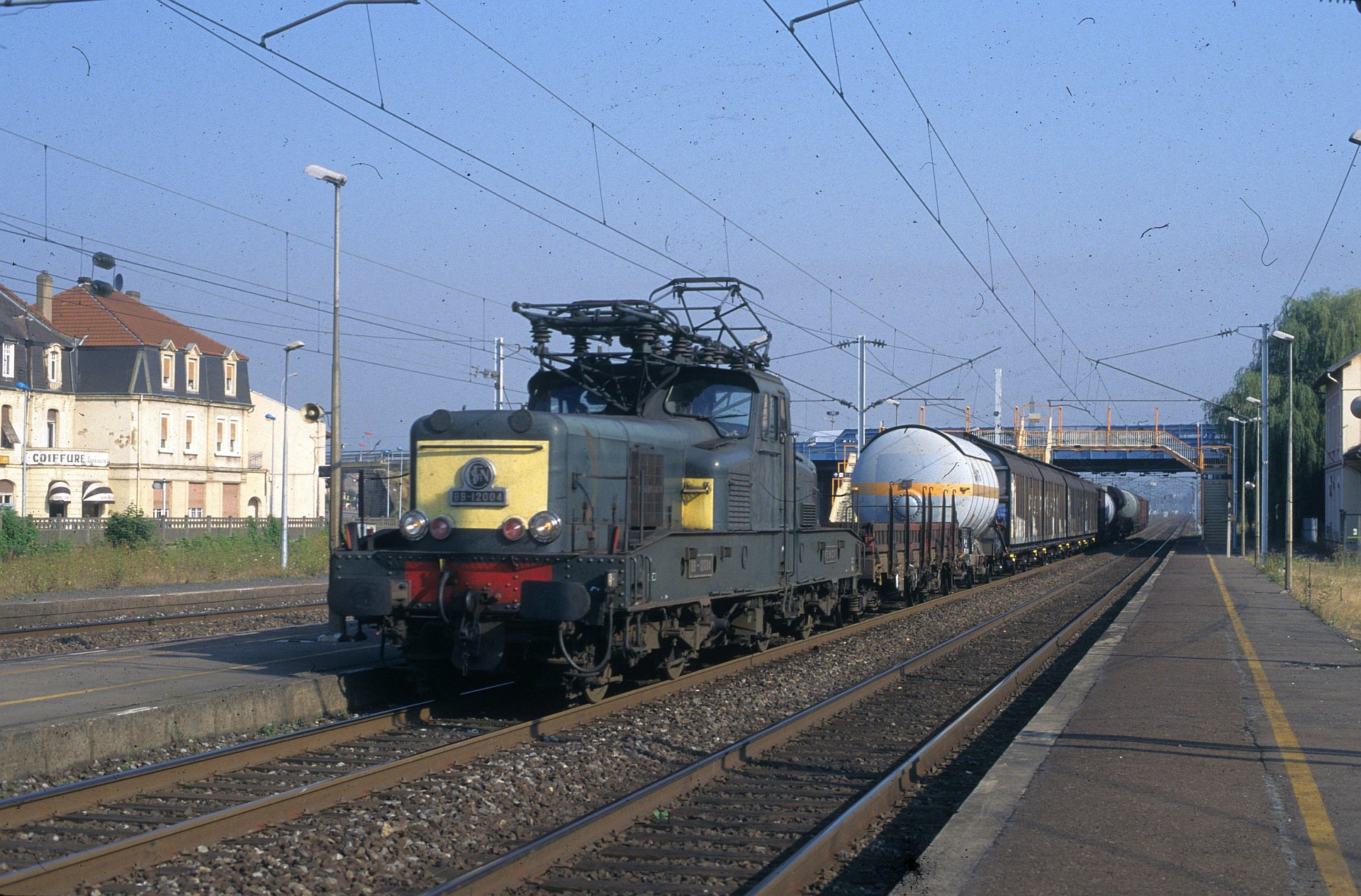

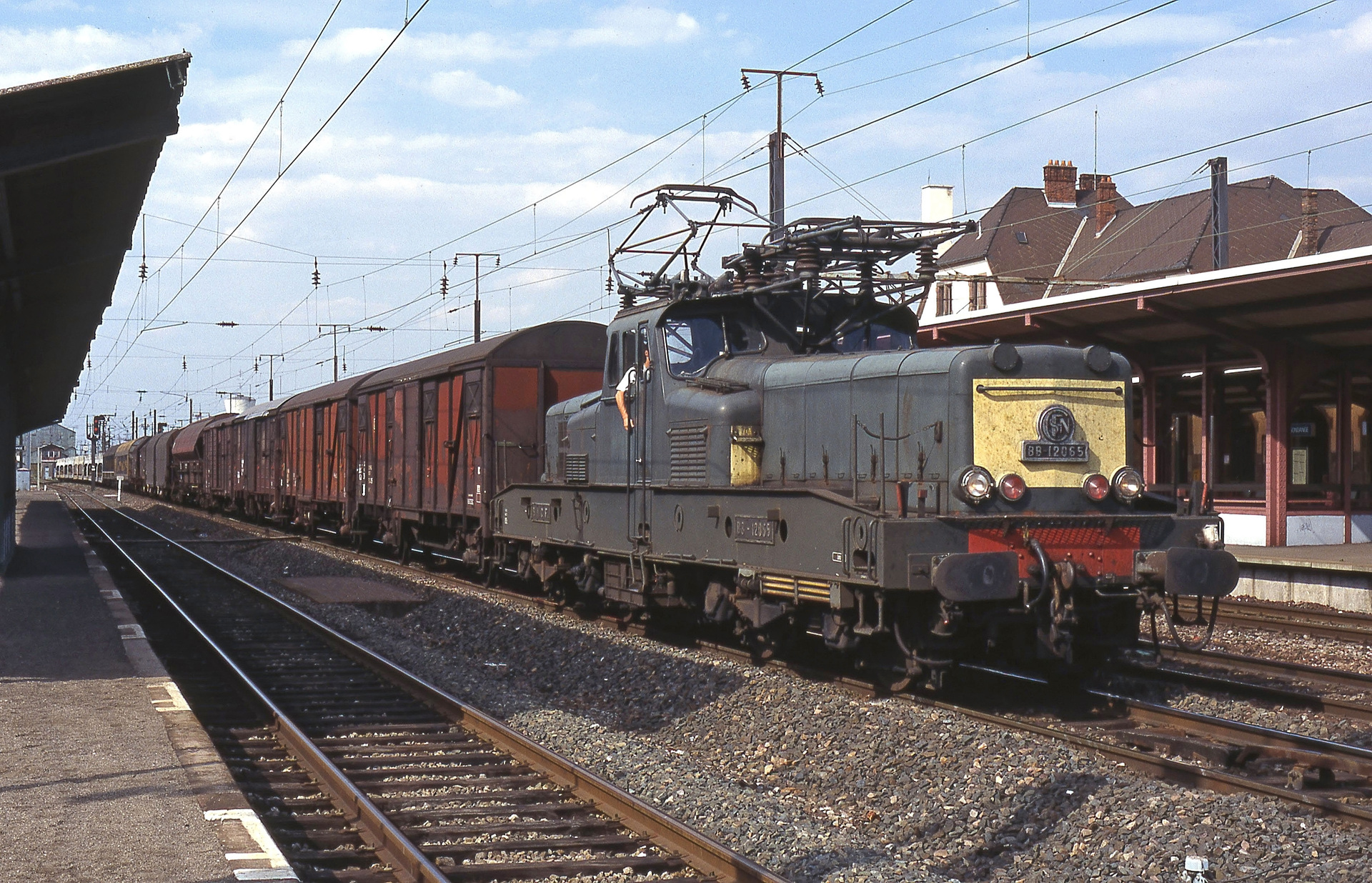

Discover the SNCF BB 12000, a powerful electric locomotive built by MTE between 1954 and 1961.

This versatile Bo'Bo' locomotive boasts a top speed of 120 km/h and a substantial power output of 2470 kW.

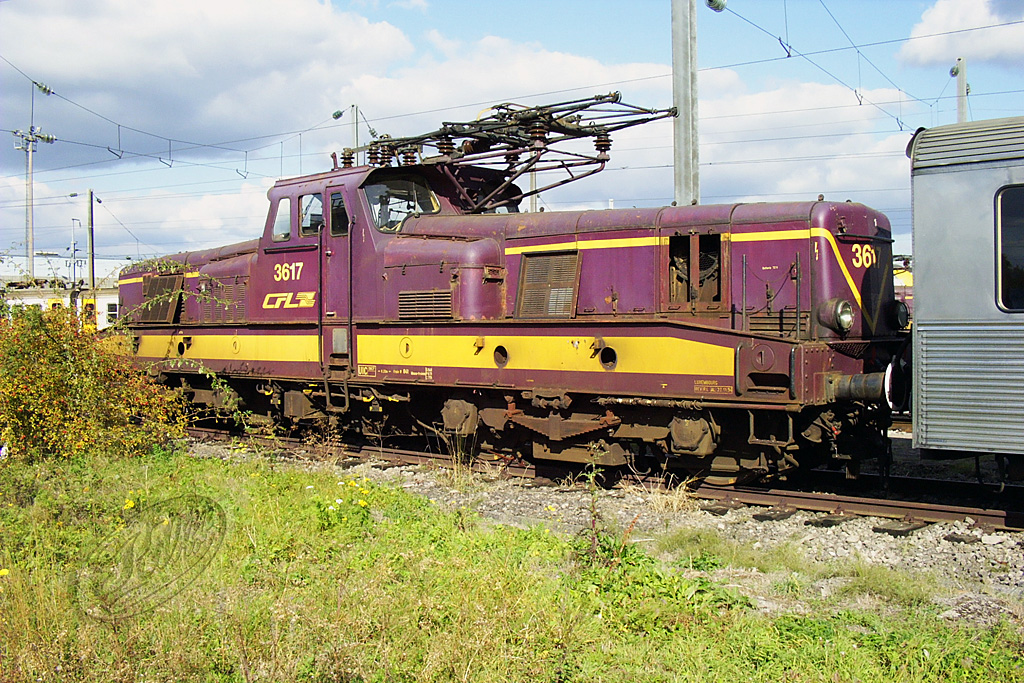

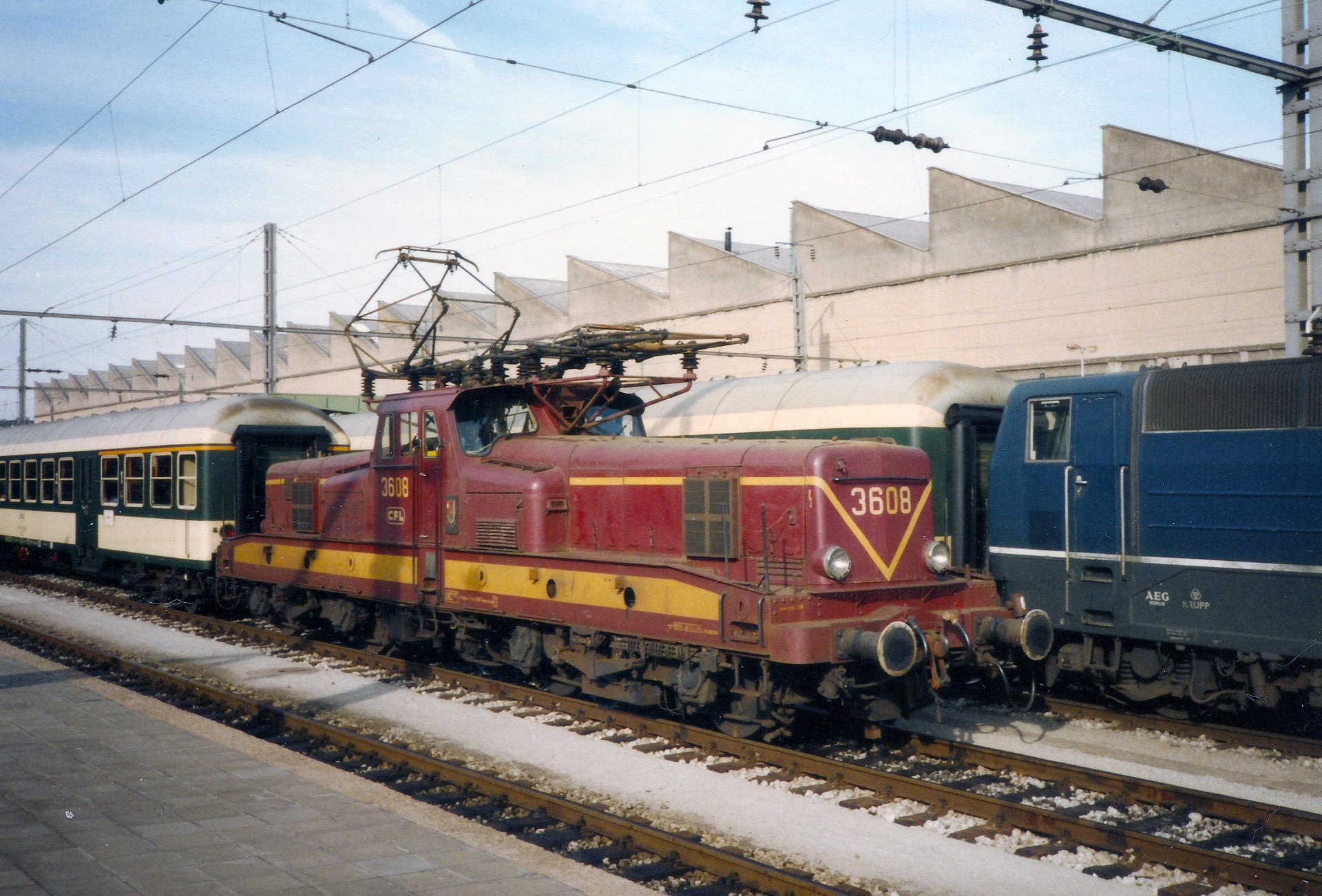

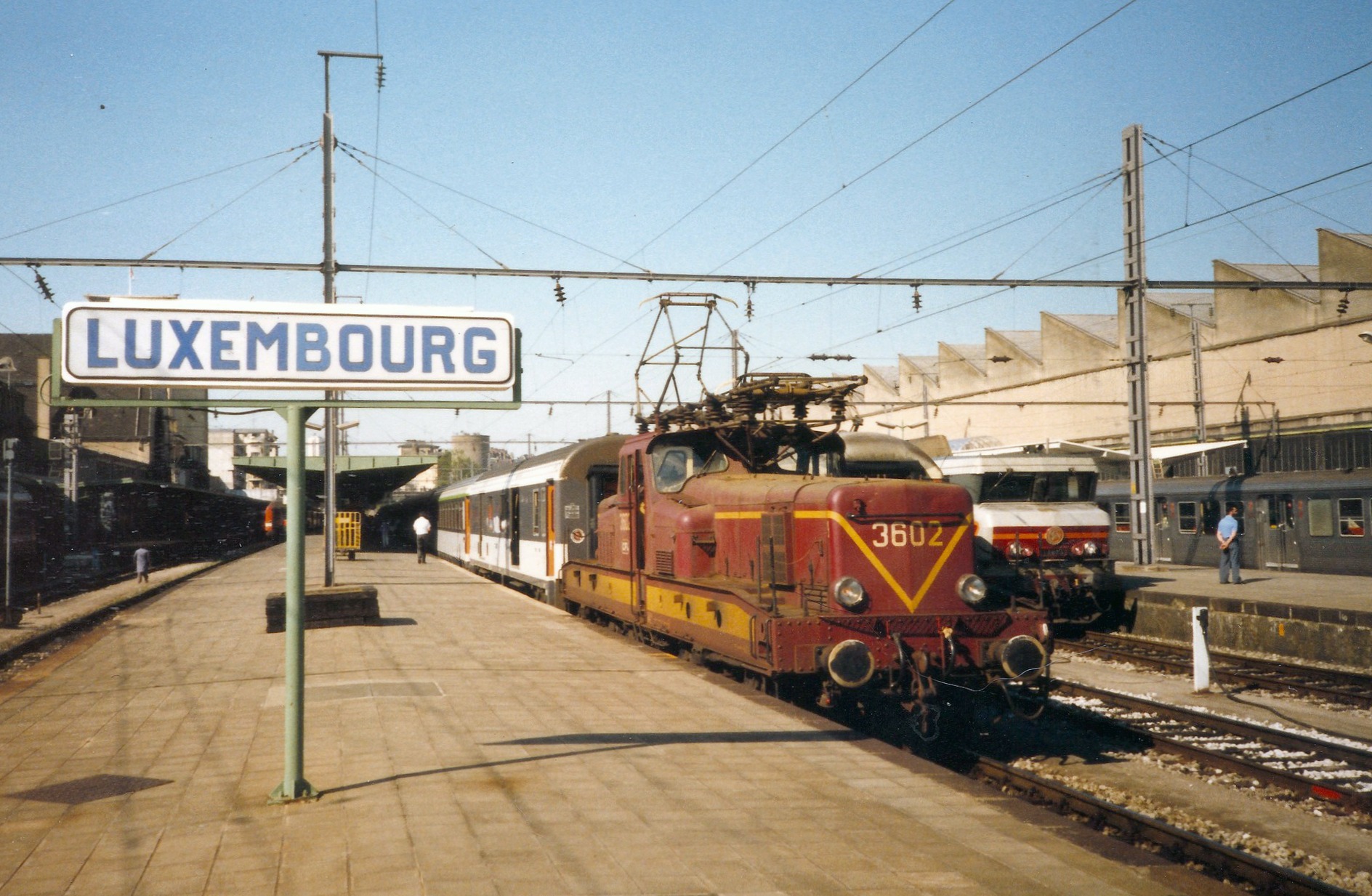

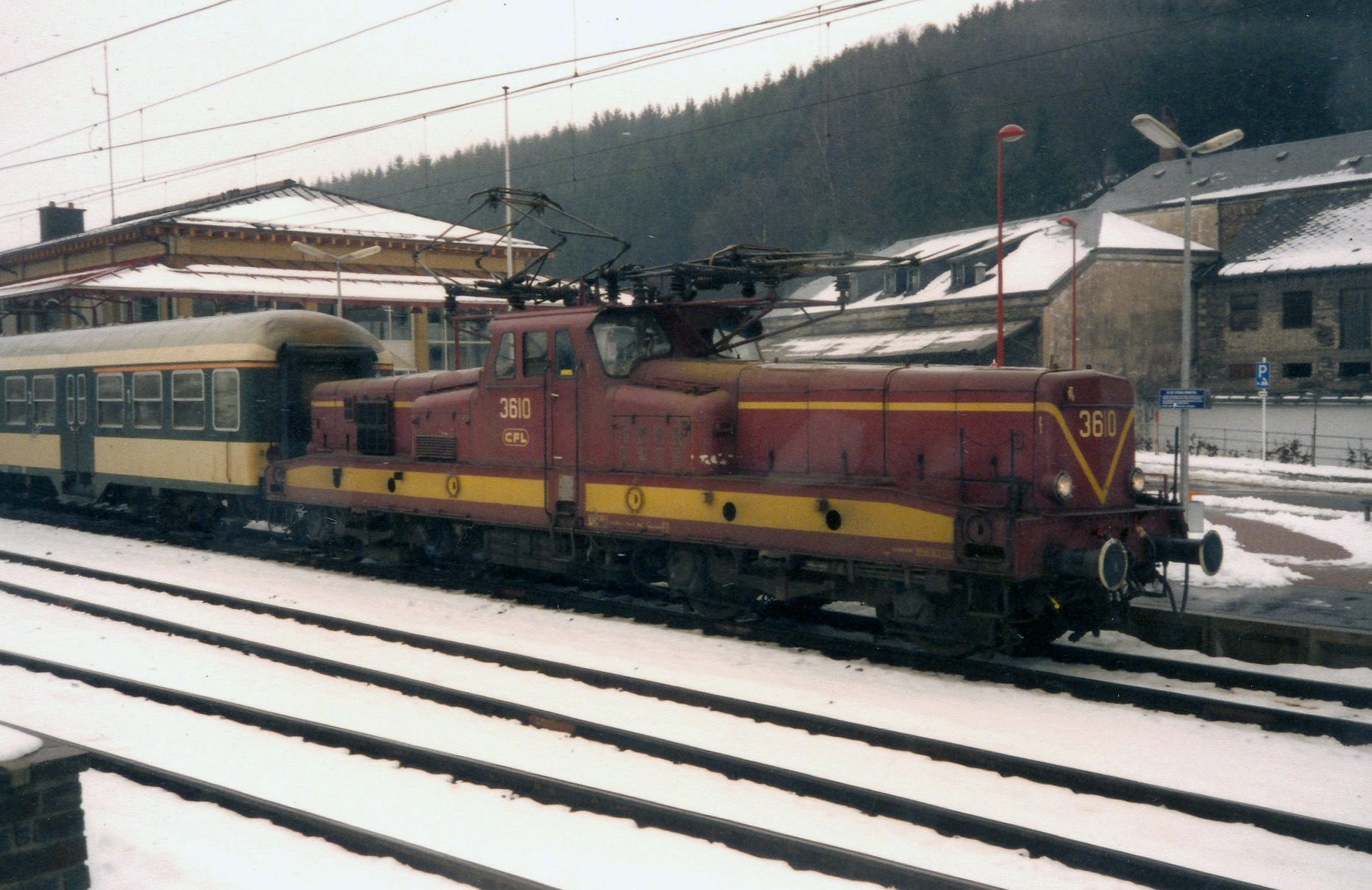

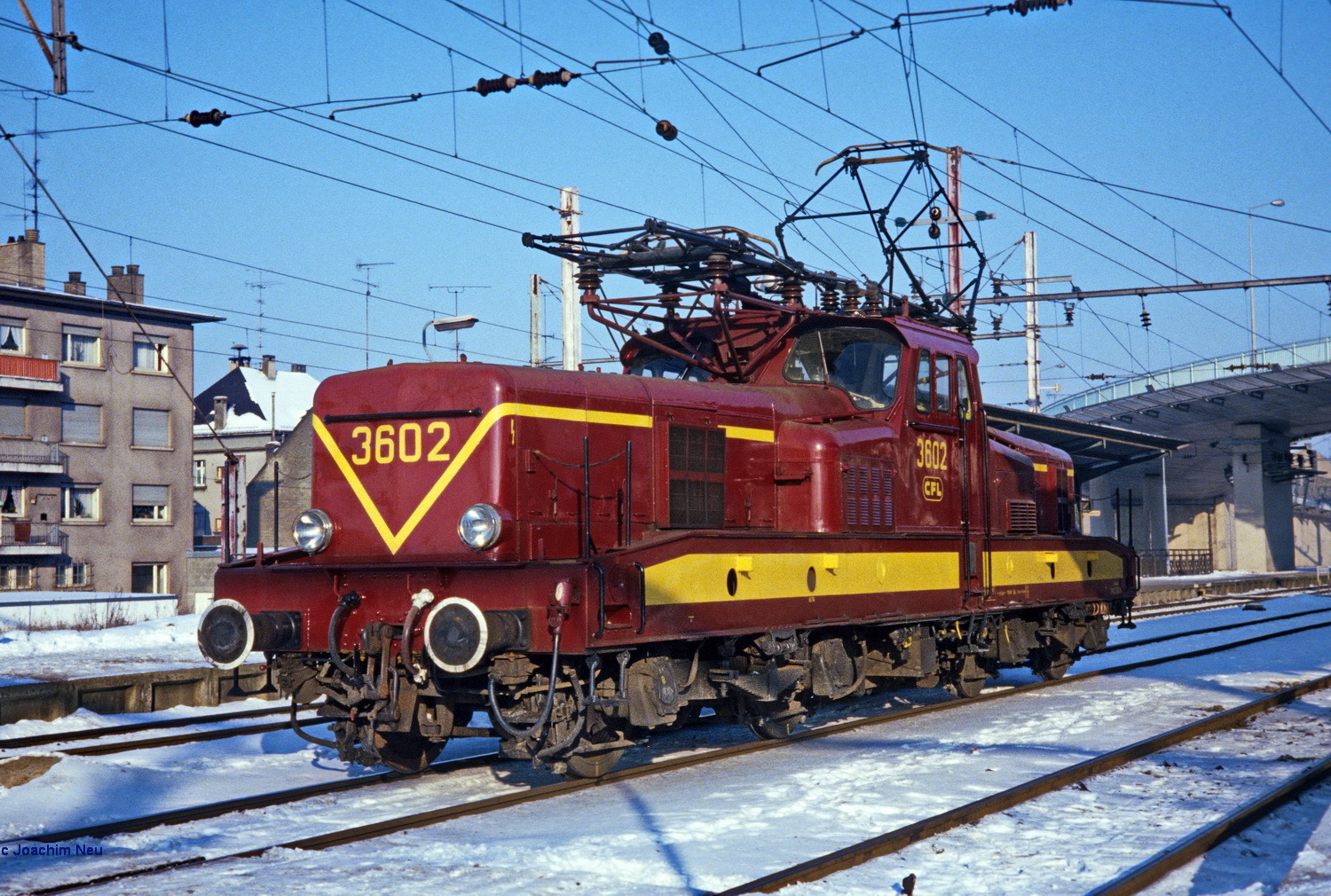

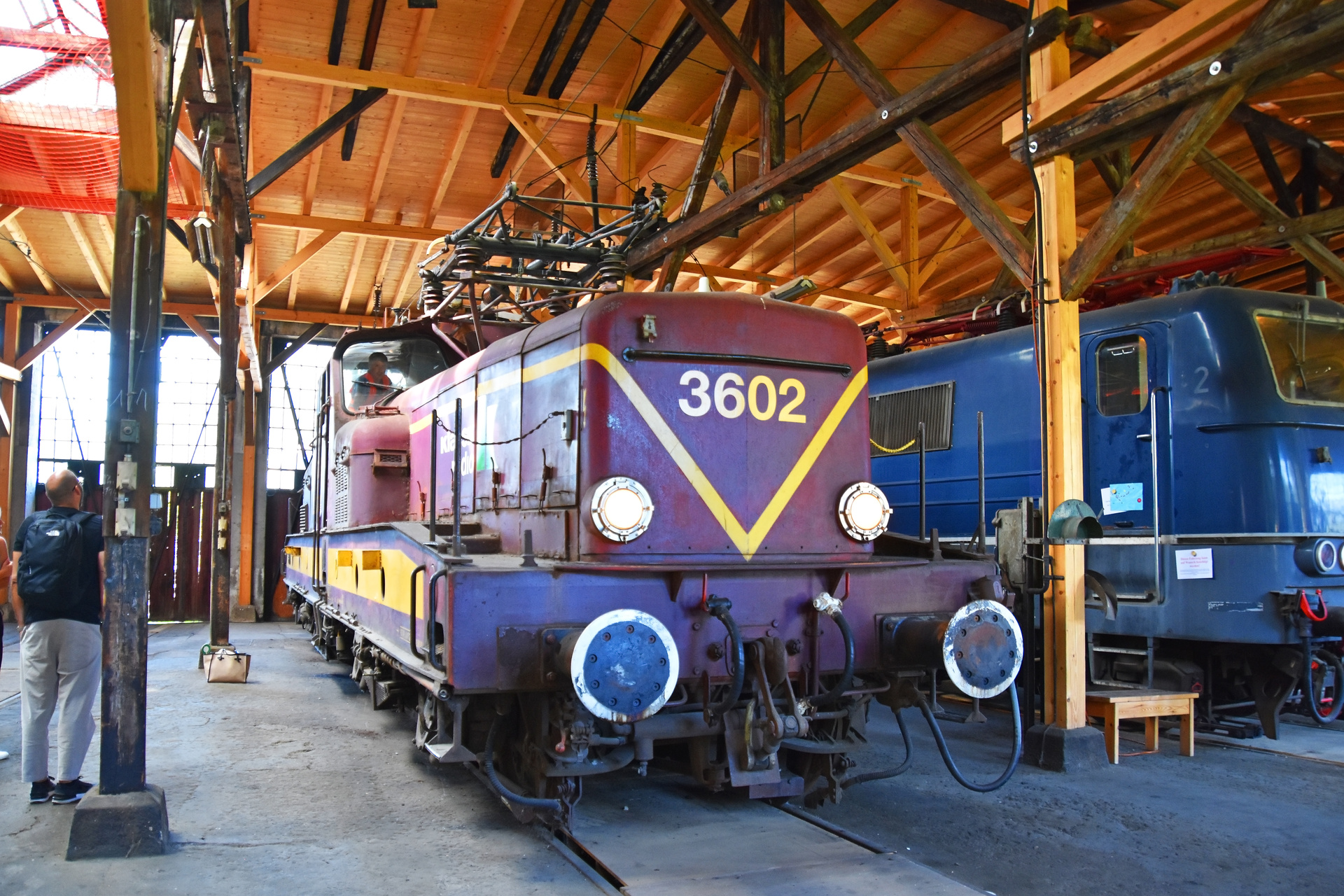

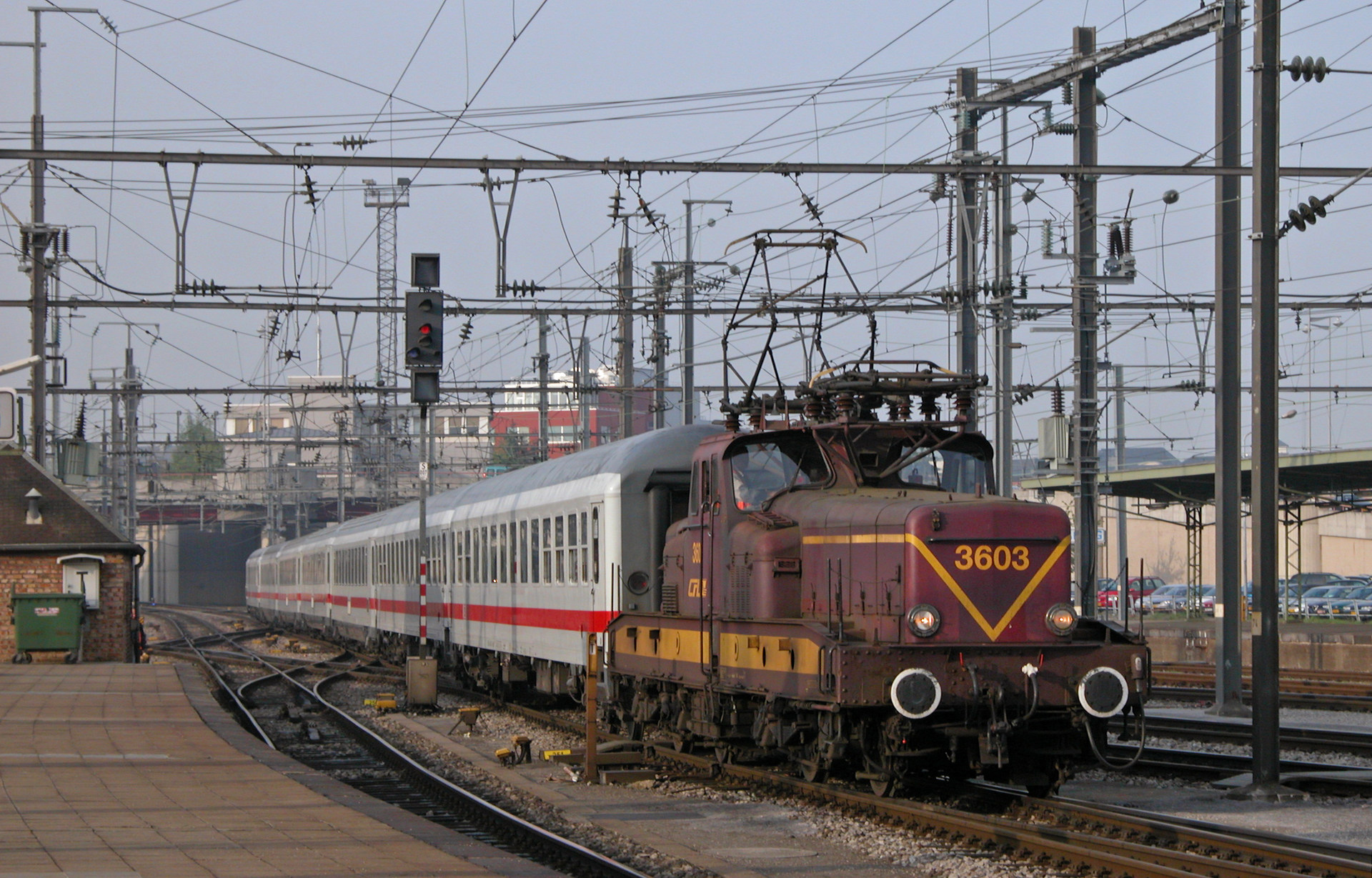

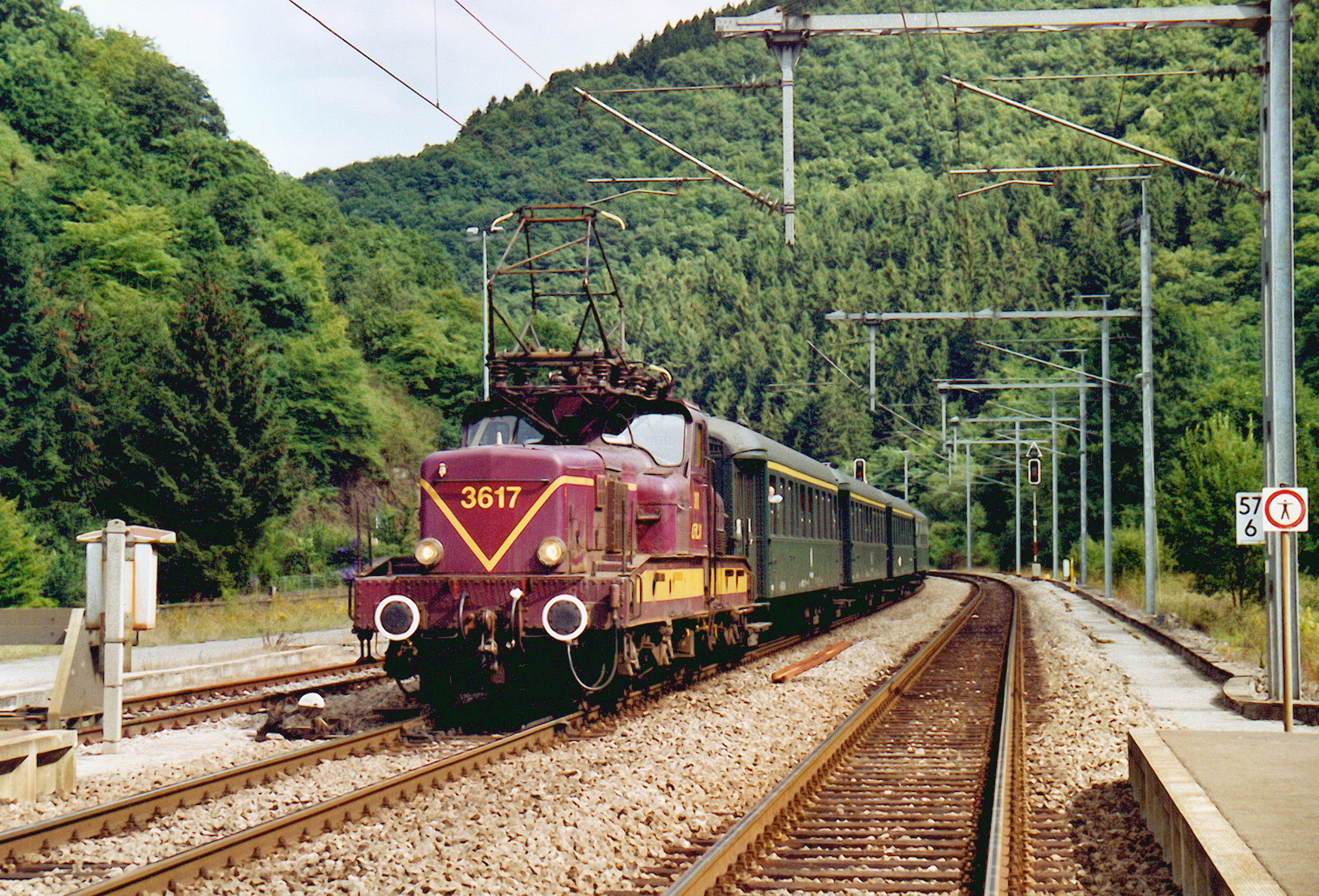

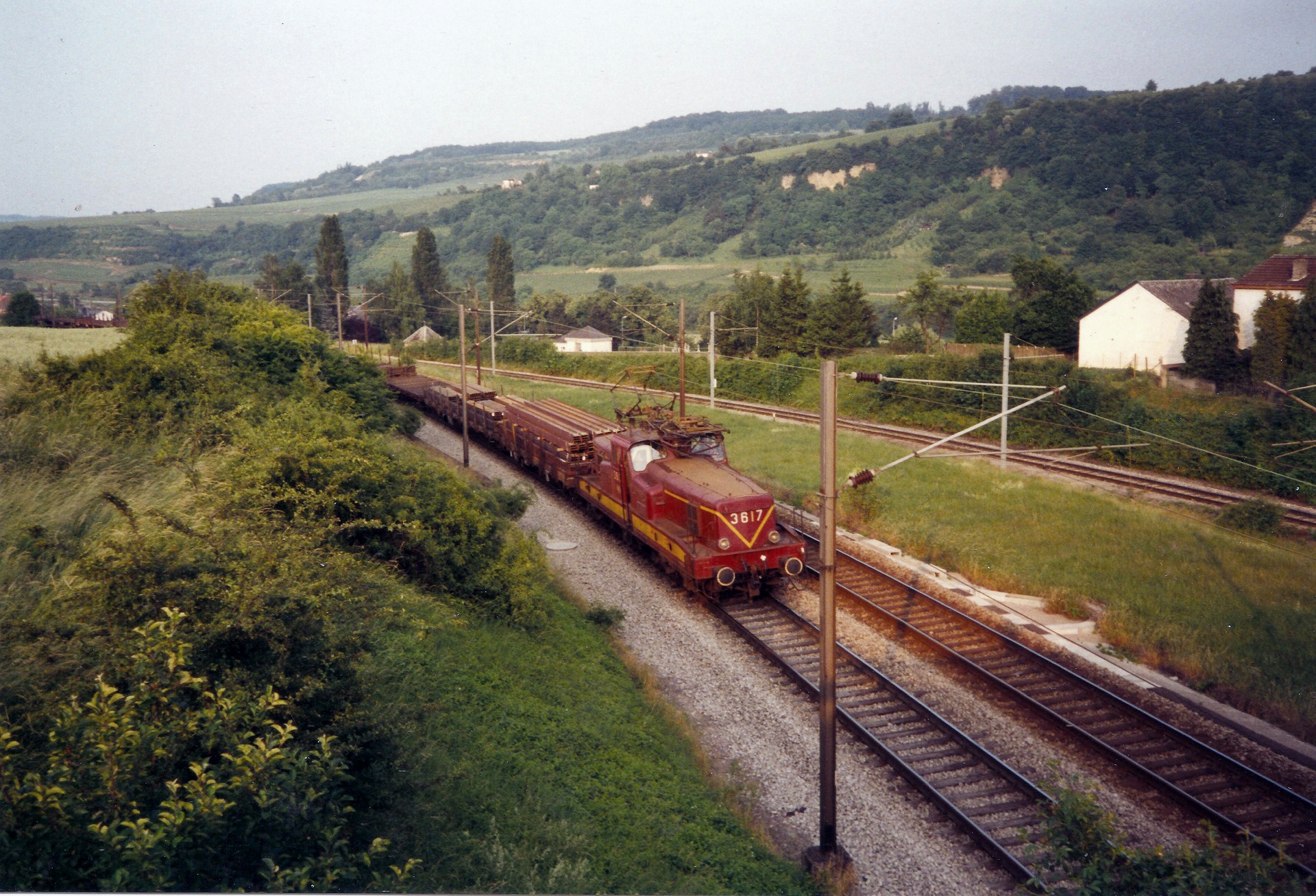

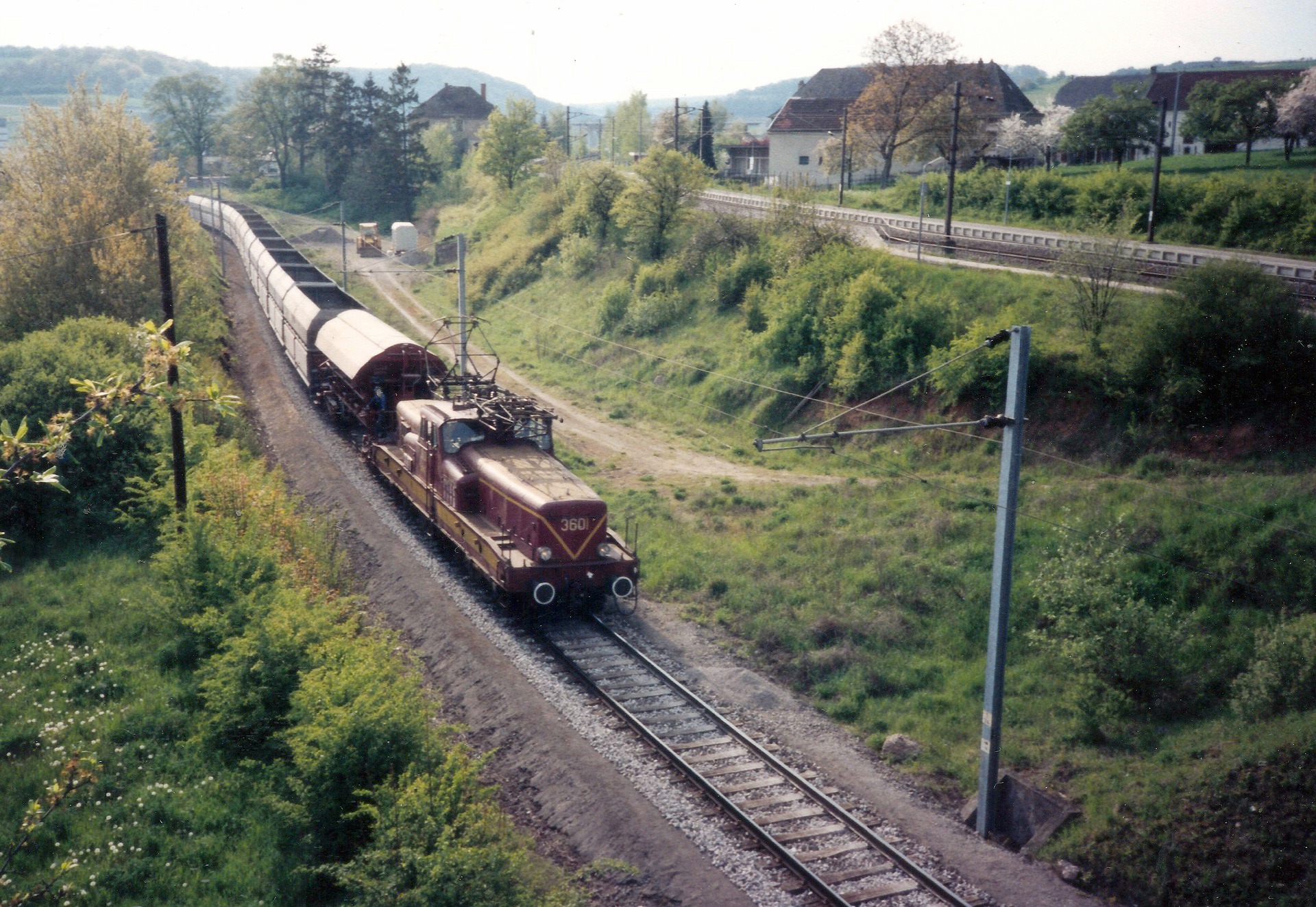

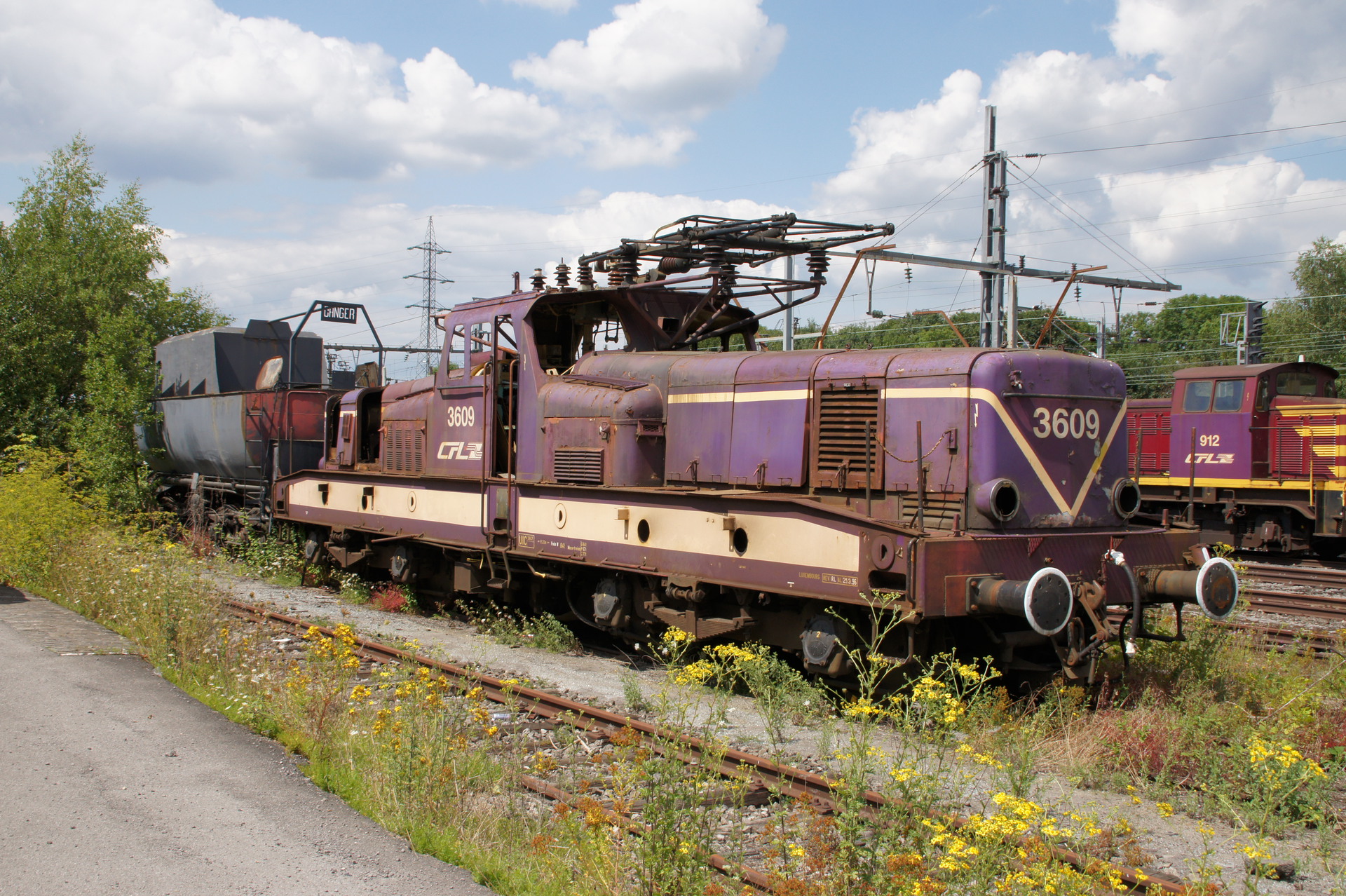

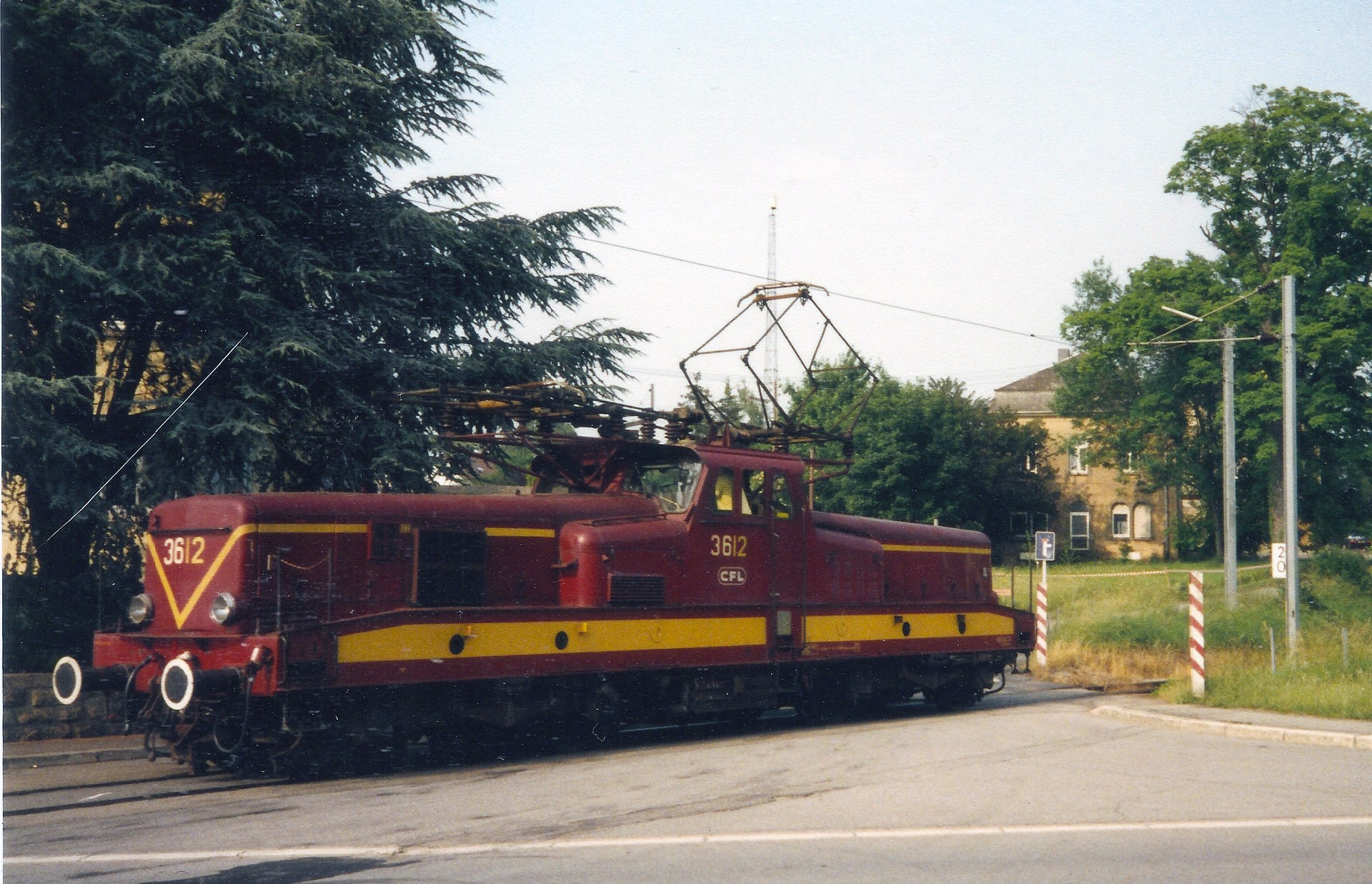

With a length of 15.2 meters and a weight of 84 tonnes, the BB 12000 is well-suited for its operational roles, including service with Luxembourg Railways as the CFL 3600.

Its robust design and 1435 mm gauge make it a reliable workhorse for heavy rail traffic.

MTE BB 12000 technical specifications

	Value	Imperial / US
Built by	MTE · 1954–1961
Top speed	120 km/h75 mph	75 mph
Power output	2,470 kW3,312 hp	3,312 hp
Tractive effort	186 kN41,814 lbf	41,814 lbf
Electric systems	25 kV AC 50 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'Bo'
Length	15.2 m49 ft 10 in	49 ft 10 in
Weight	84 t185,188 lb	185,188 lb
