SGP 4020

Built by SGP

Top speed

120 km/h

75 mph

Power output

1,200 kW

1,609 hp

Weight

127 t

279,987 lb

Track gauge

1,435 mm

Standard gauge

Years built

1978–1987

Axle arrangement

Bo'Bo'+2'2'+2'2'

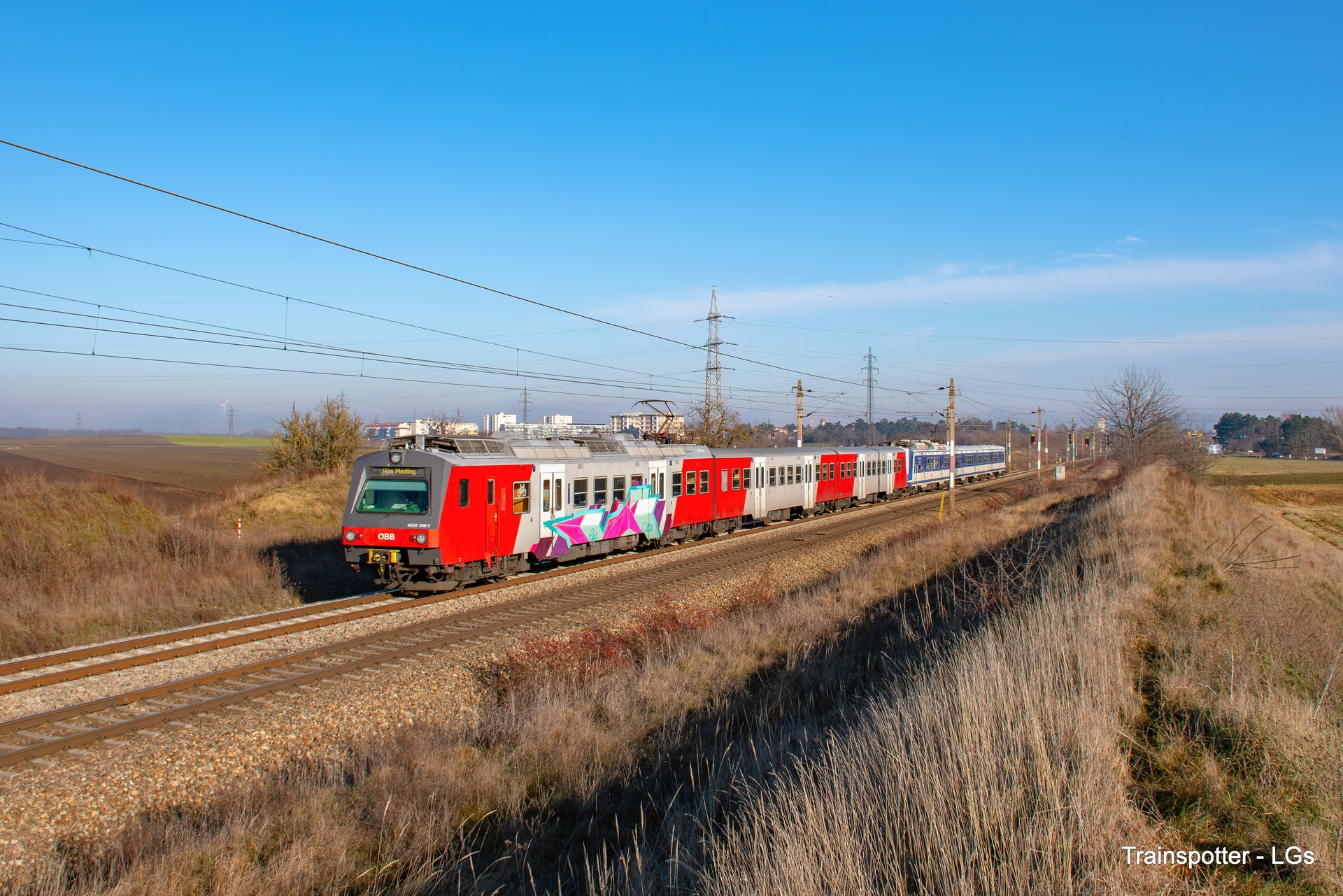

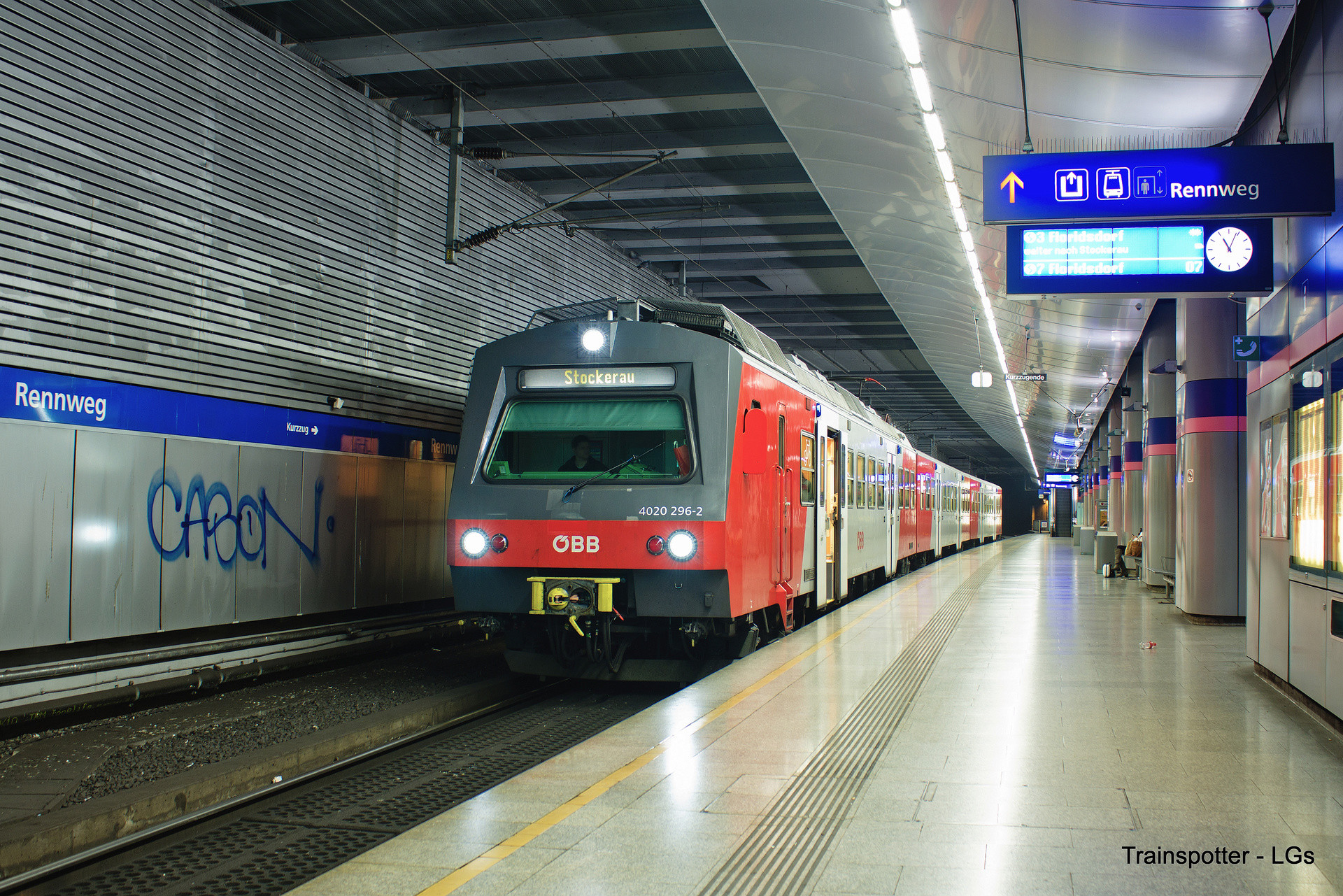

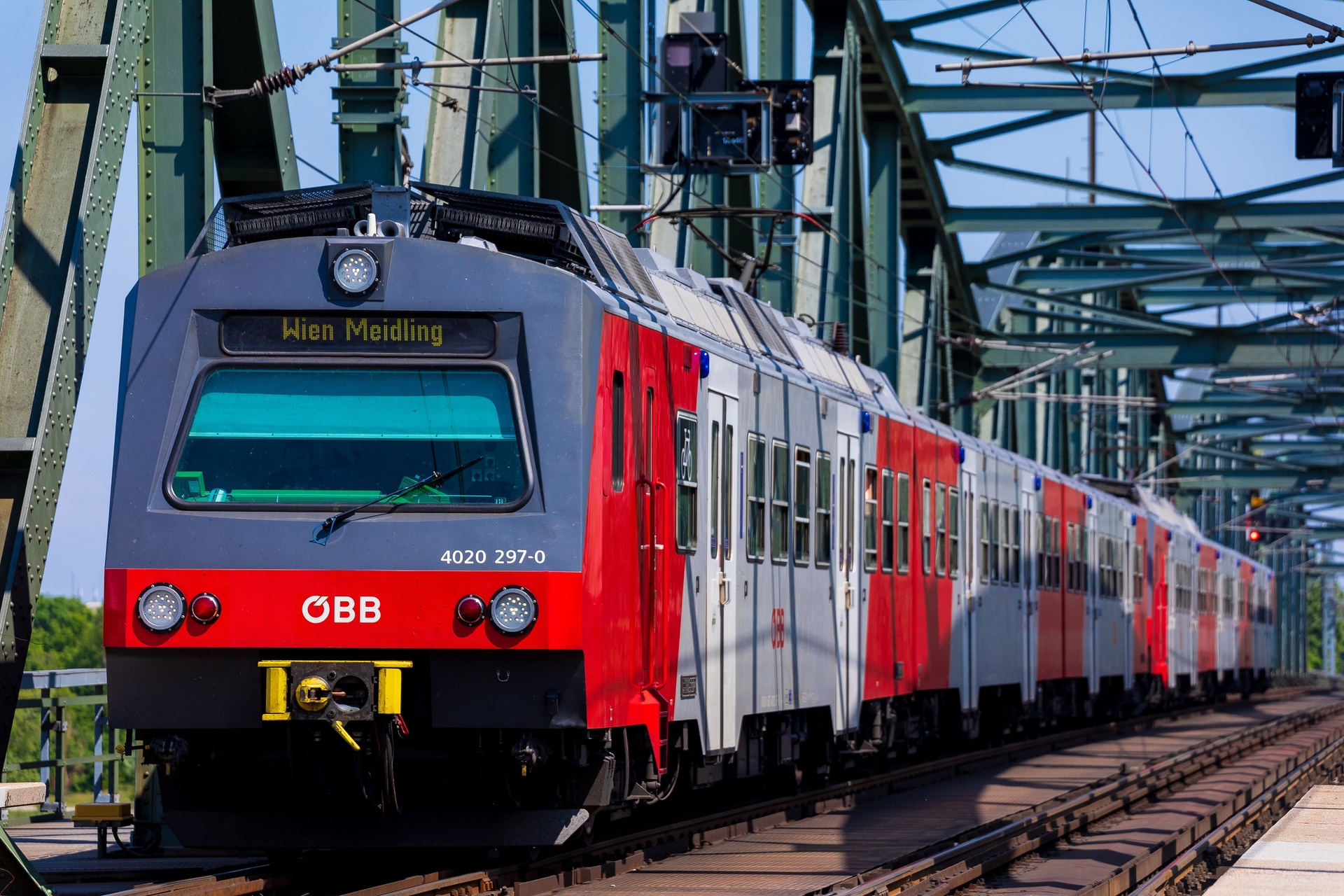

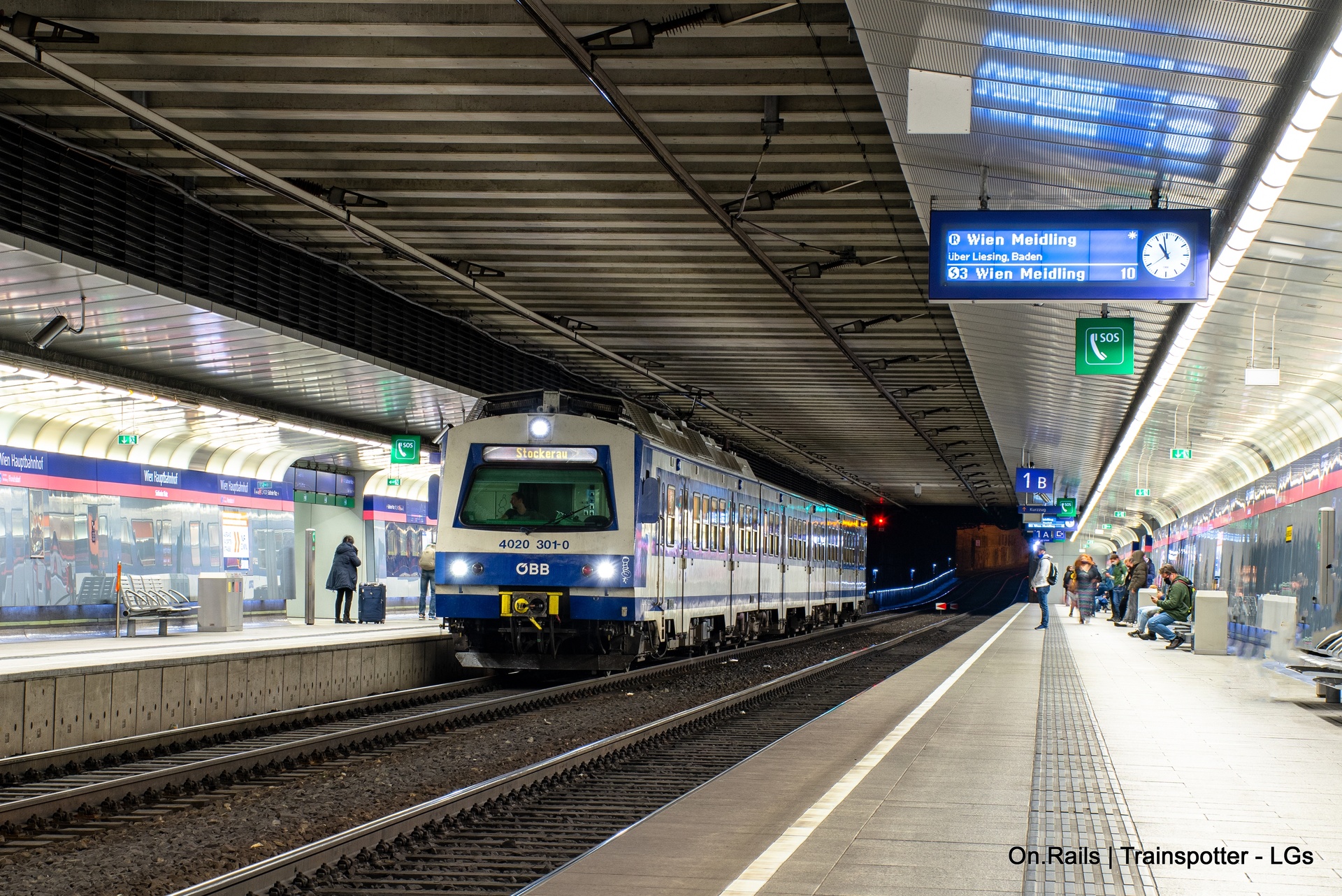

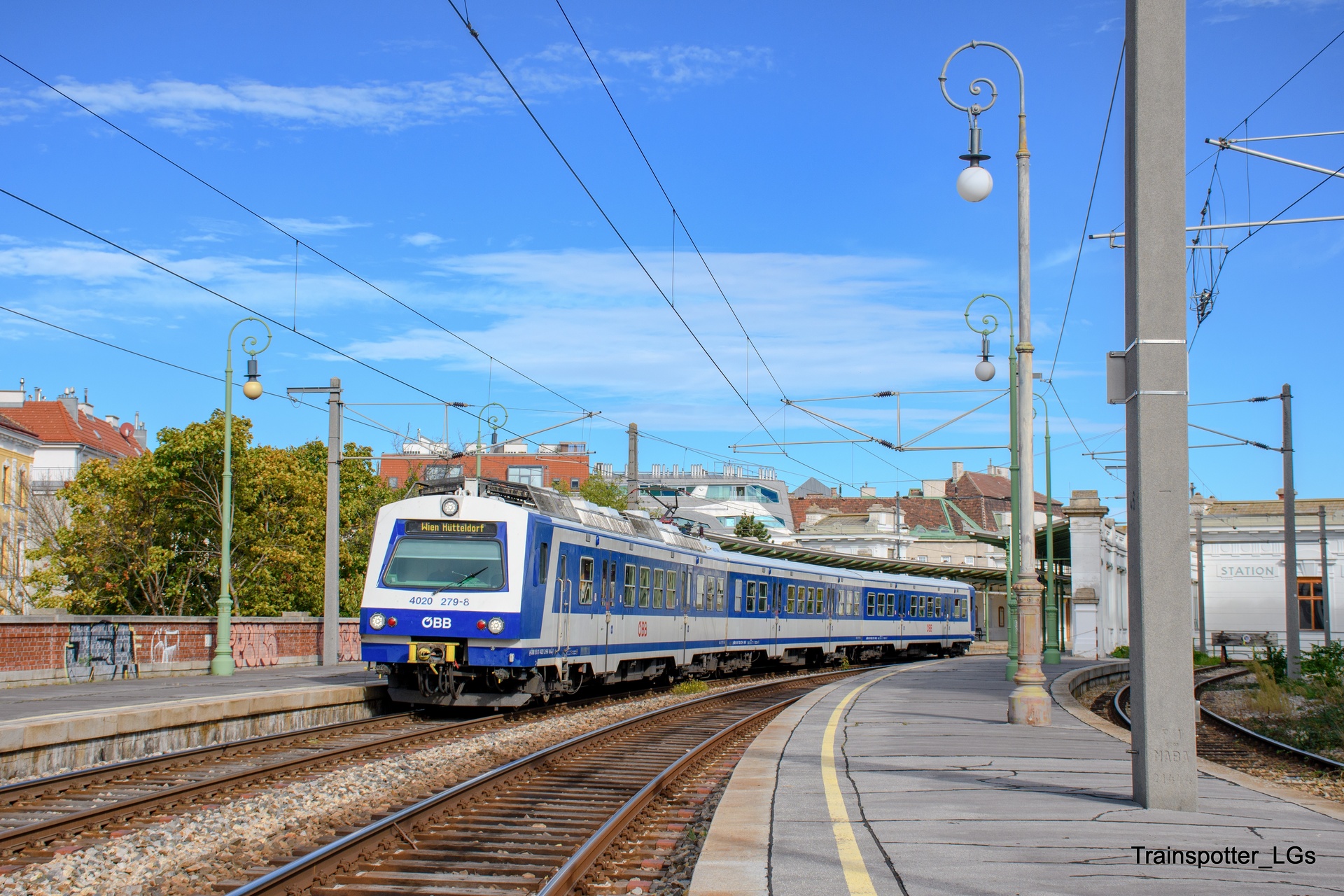

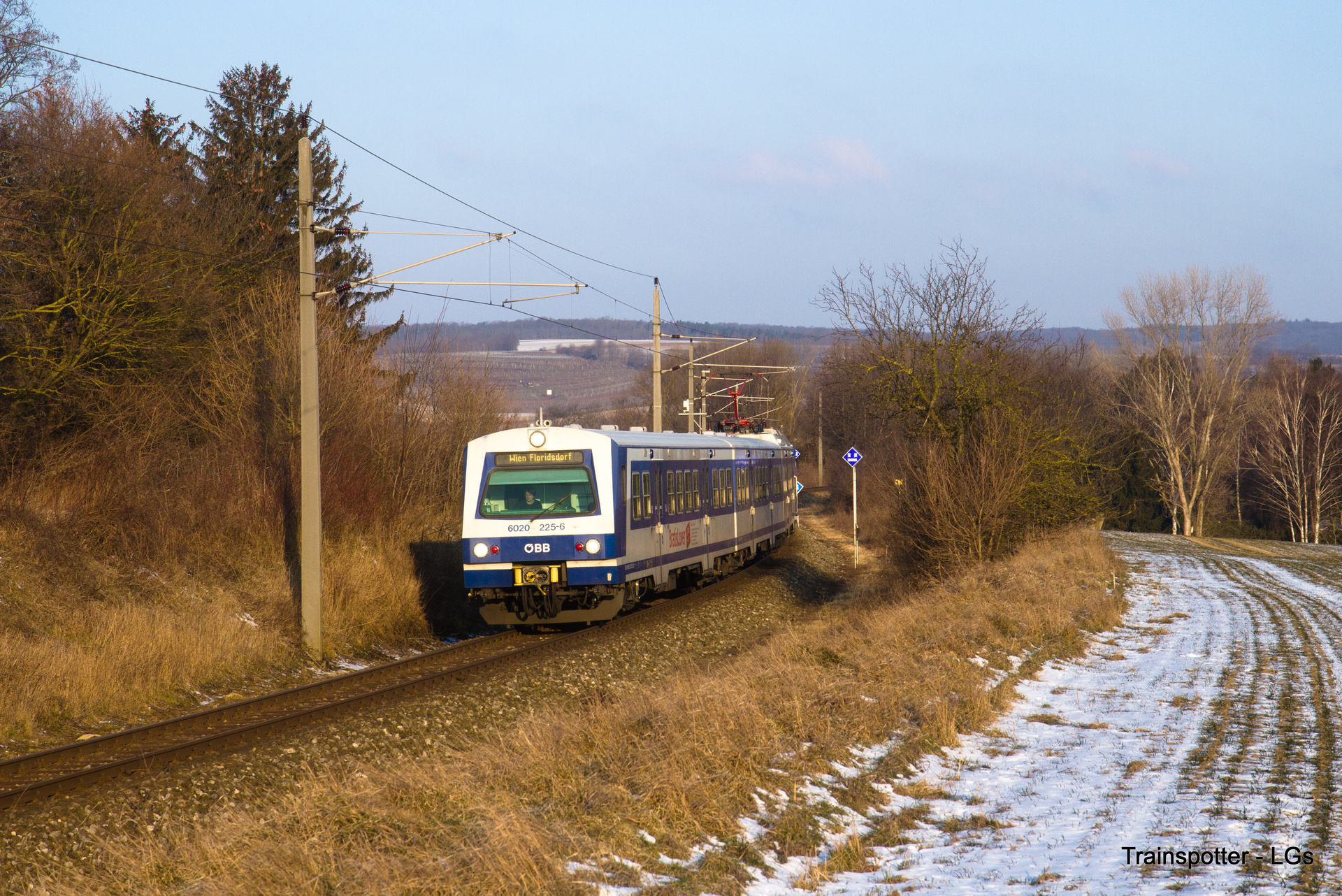

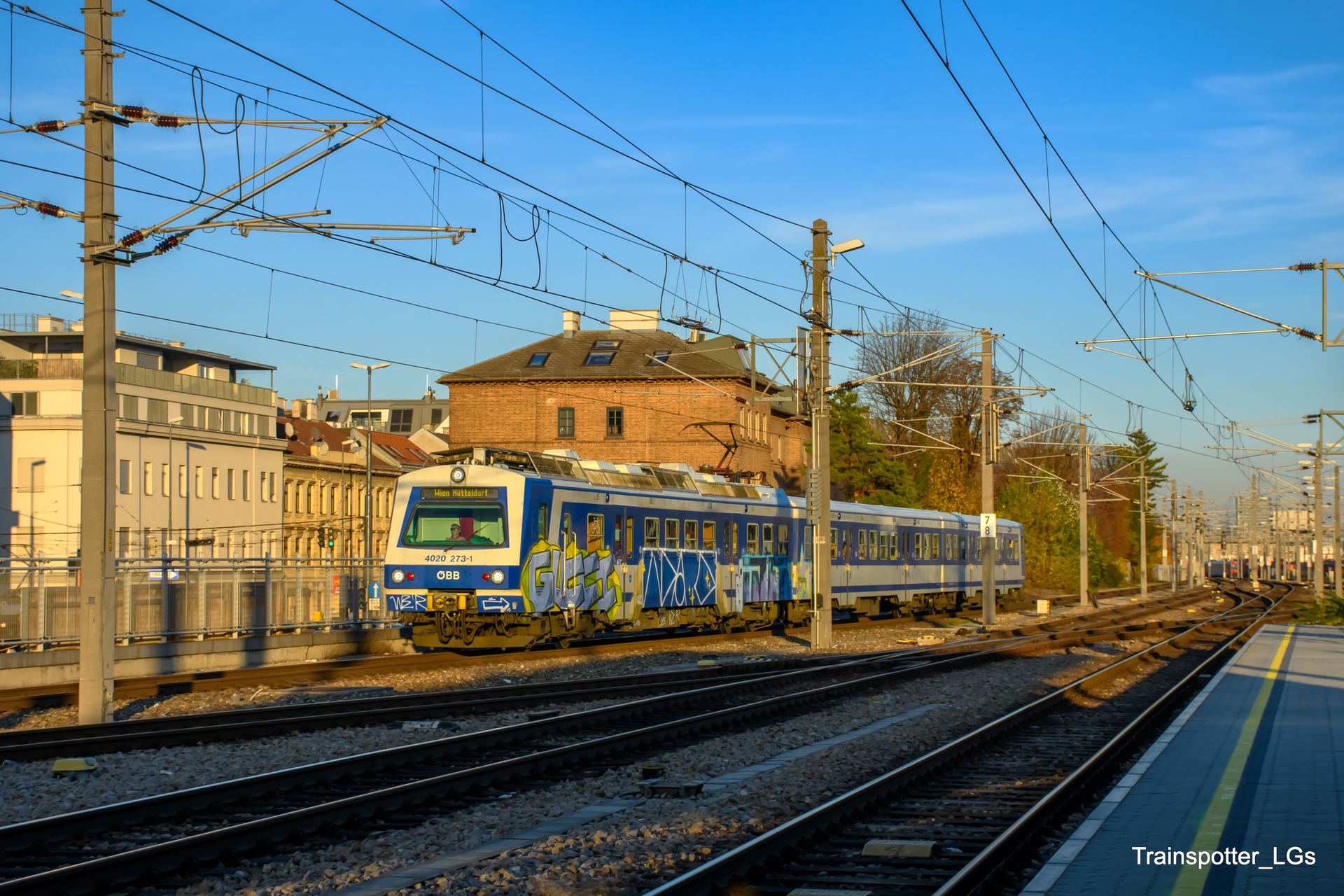

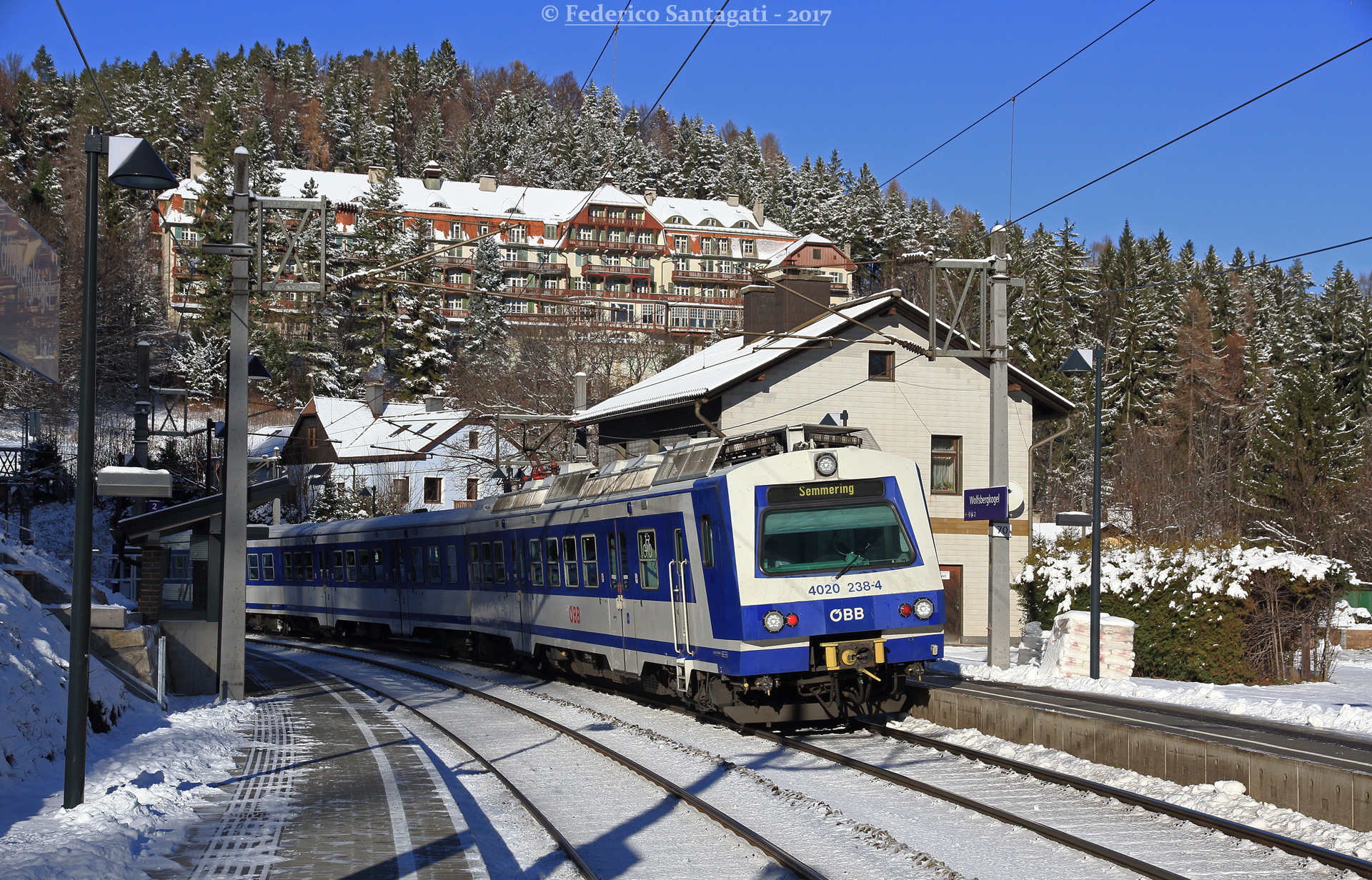

Overview of the SGP 4020

Explore the ÖBB 4020 series, an iconic Austrian electric multiple unit (EMU) that has been a staple on Austrian railways since the late 1970s. Built by SGP between 1978 and 1987, these versatile trains were designed for efficient passenger transport.

With a seating capacity of 184 passengers and a top speed of 120 km/h, the ÖBB 4020 series is powered by a robust 1200 kW electric system, operating on 15 kV AC 16.7 Hz. Their standard gauge of 1435 mm and a three-car formation (1M) make them a familiar sight across Austria.

These EMUs feature a Bo'Bo'+2'2'+2'2' axle configuration, contributing to their stable performance. The ÖBB 4020 represents a blend of reliability and functionality, continuing to serve passengers with its enduring design and technical capabilities.

SGP 4020 technical specifications

	Value	Imperial / US
Series	SGP4020
Built by	SGP · 1978–1987
Top speed	120 km/h75 mph	75 mph
Power output	1,200 kW1,609 hp	1,609 hp
Tractive effort	117 kN26,303 lbf	26,303 lbf
Electric systems	15 kV AC 16.7 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'Bo'+2'2'+2'2'
Formation	3 cars (1M)
Capacity	184 seats
Width	2.87 m9 ft 5 in	9 ft 5 in
Height	3.75 m12 ft 4 in	12 ft 4 in
Weight	127 t279,987 lb	279,987 lb
