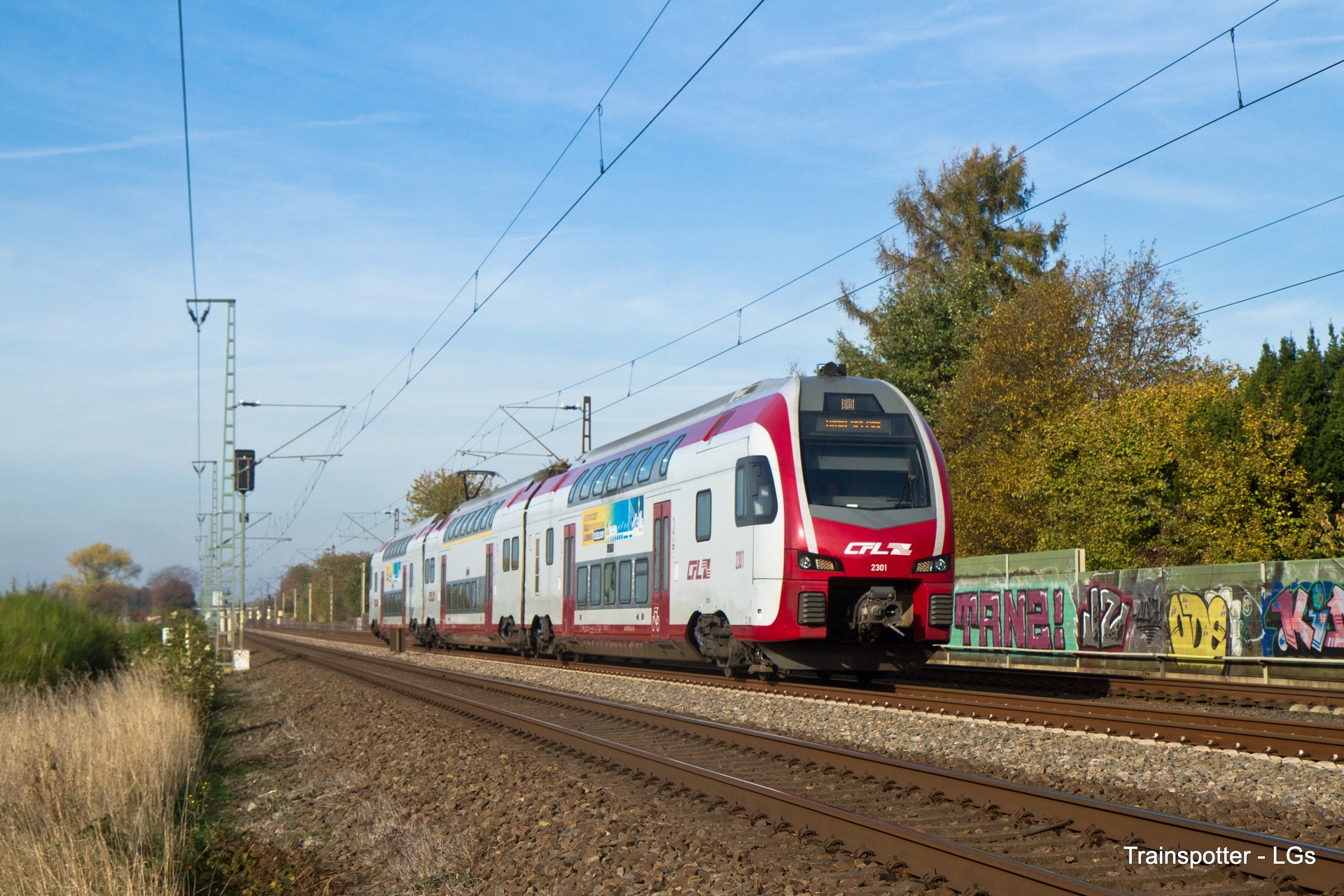

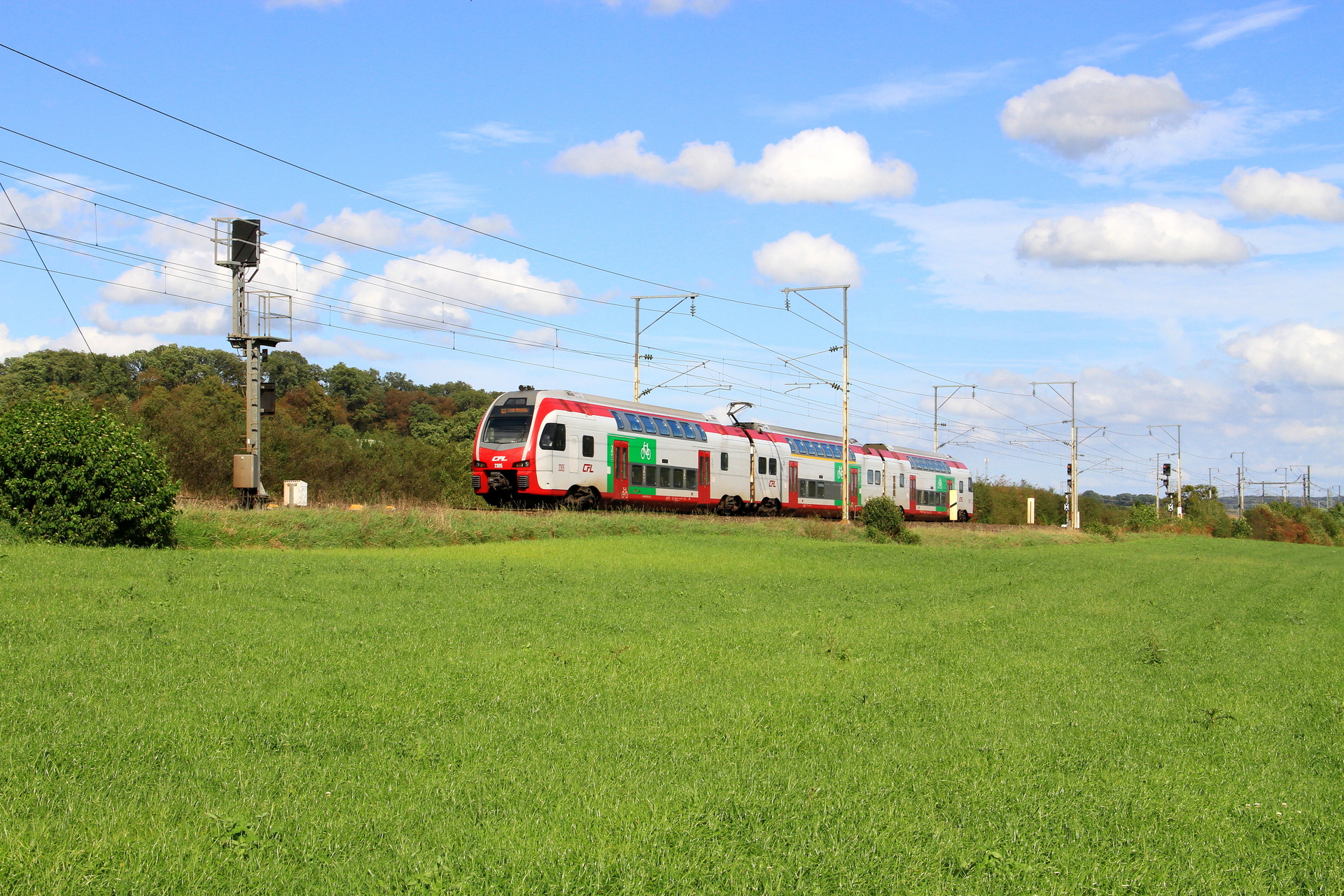

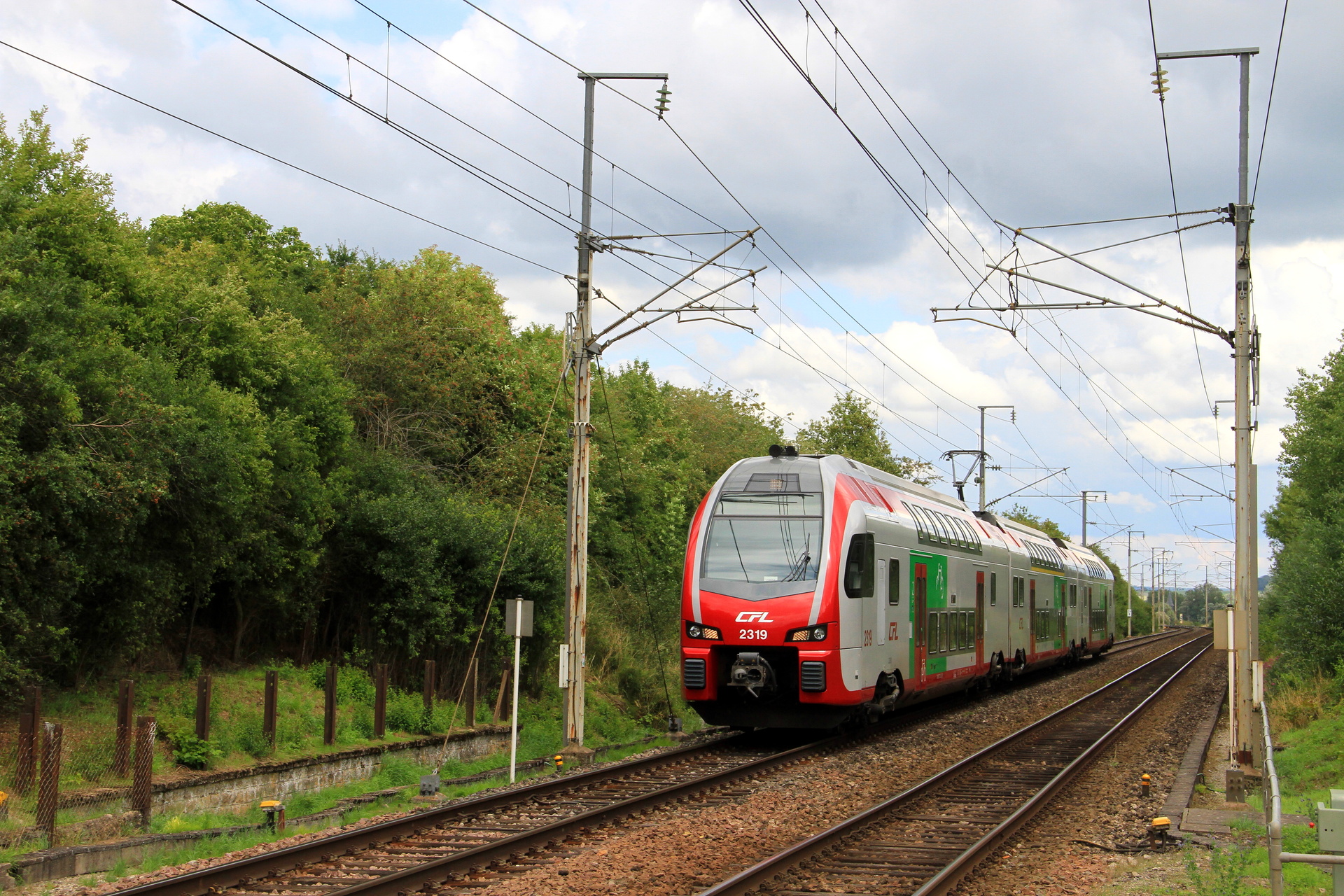

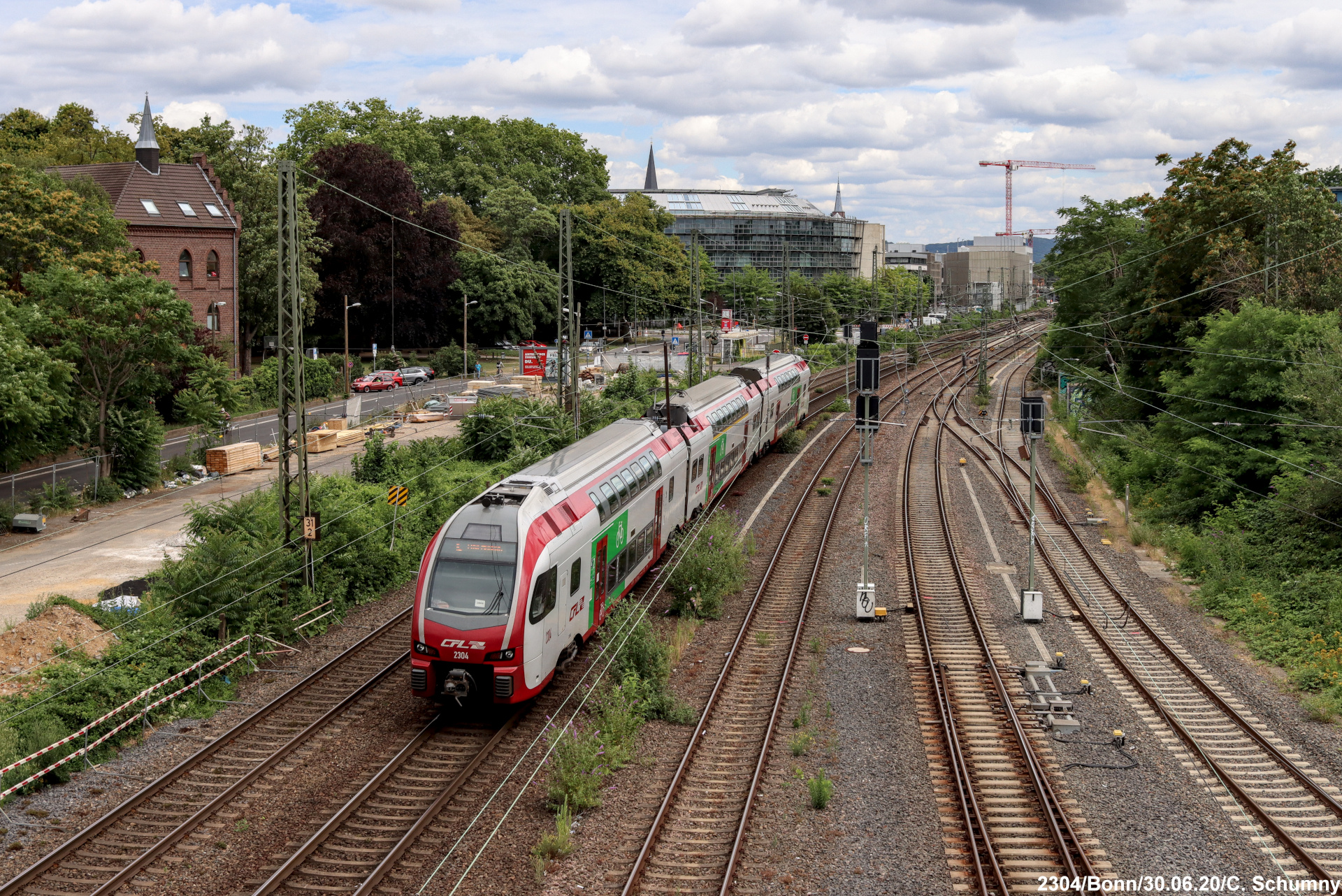

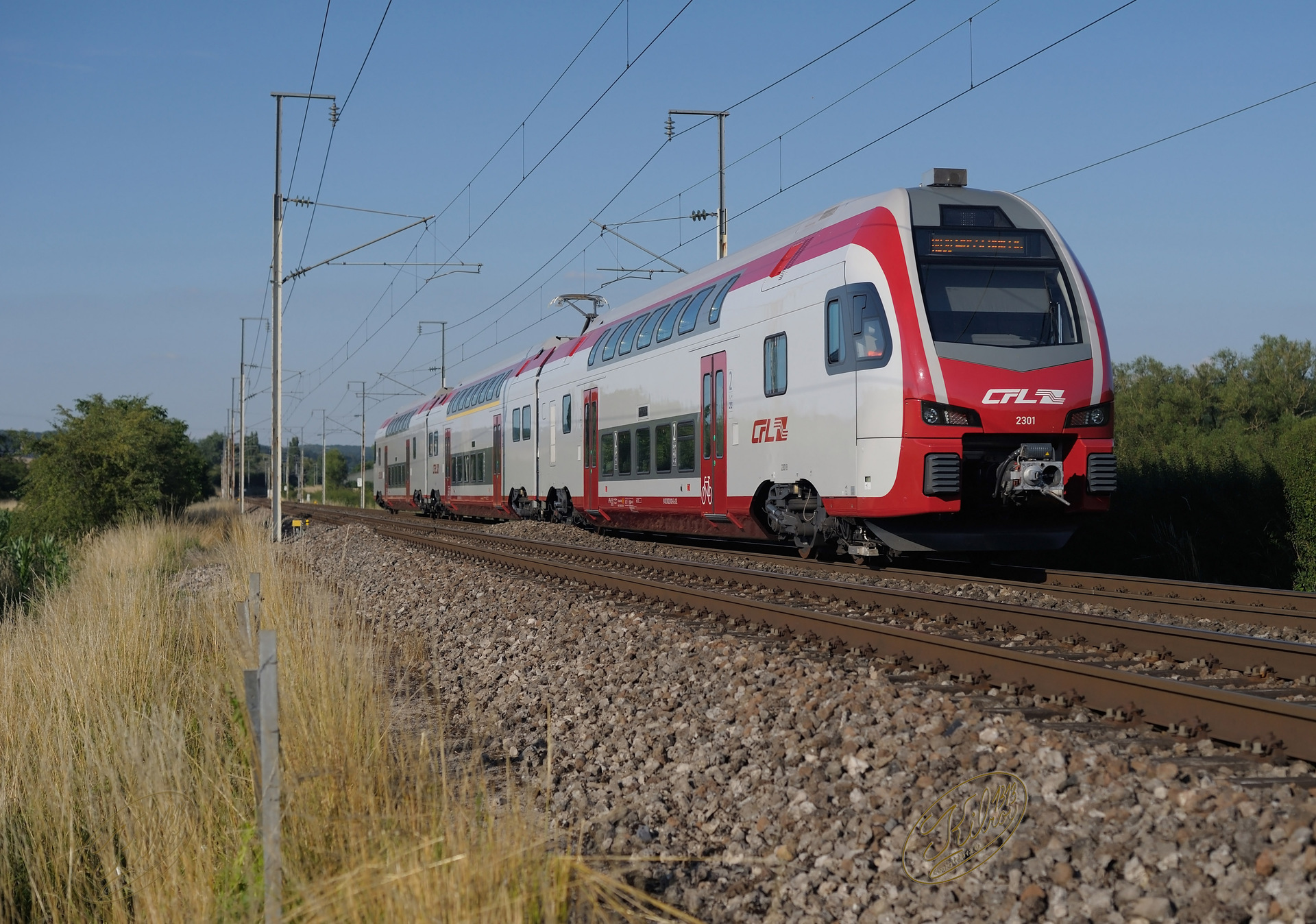

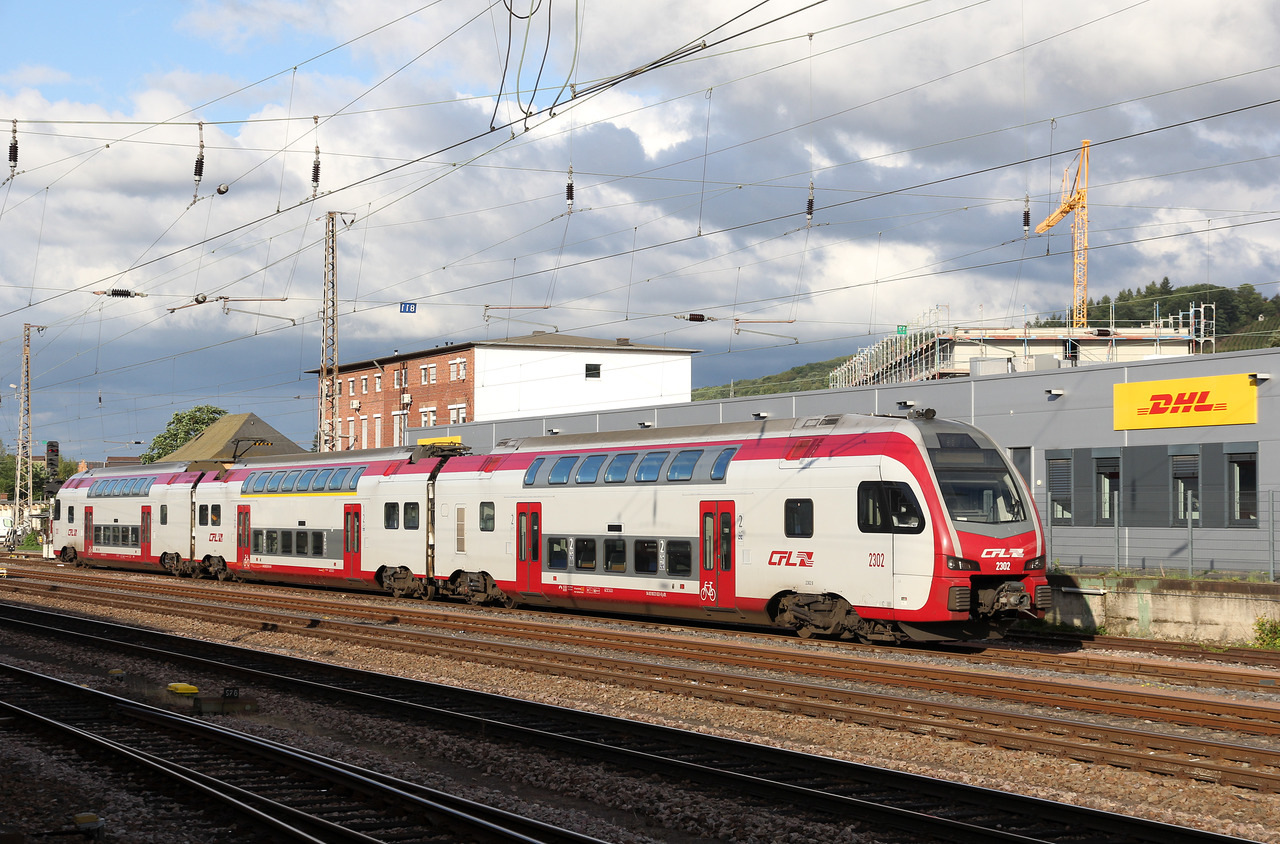

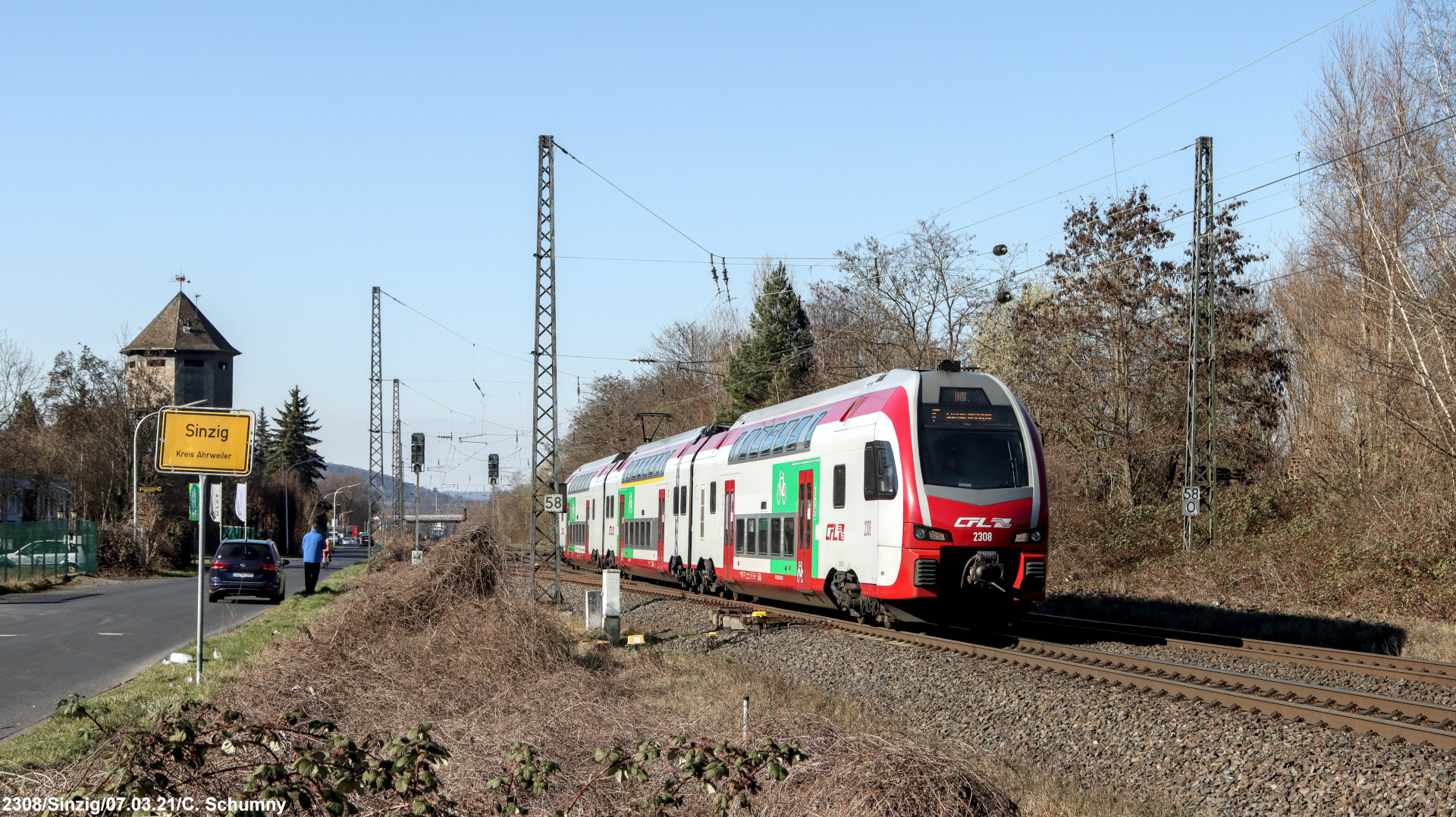

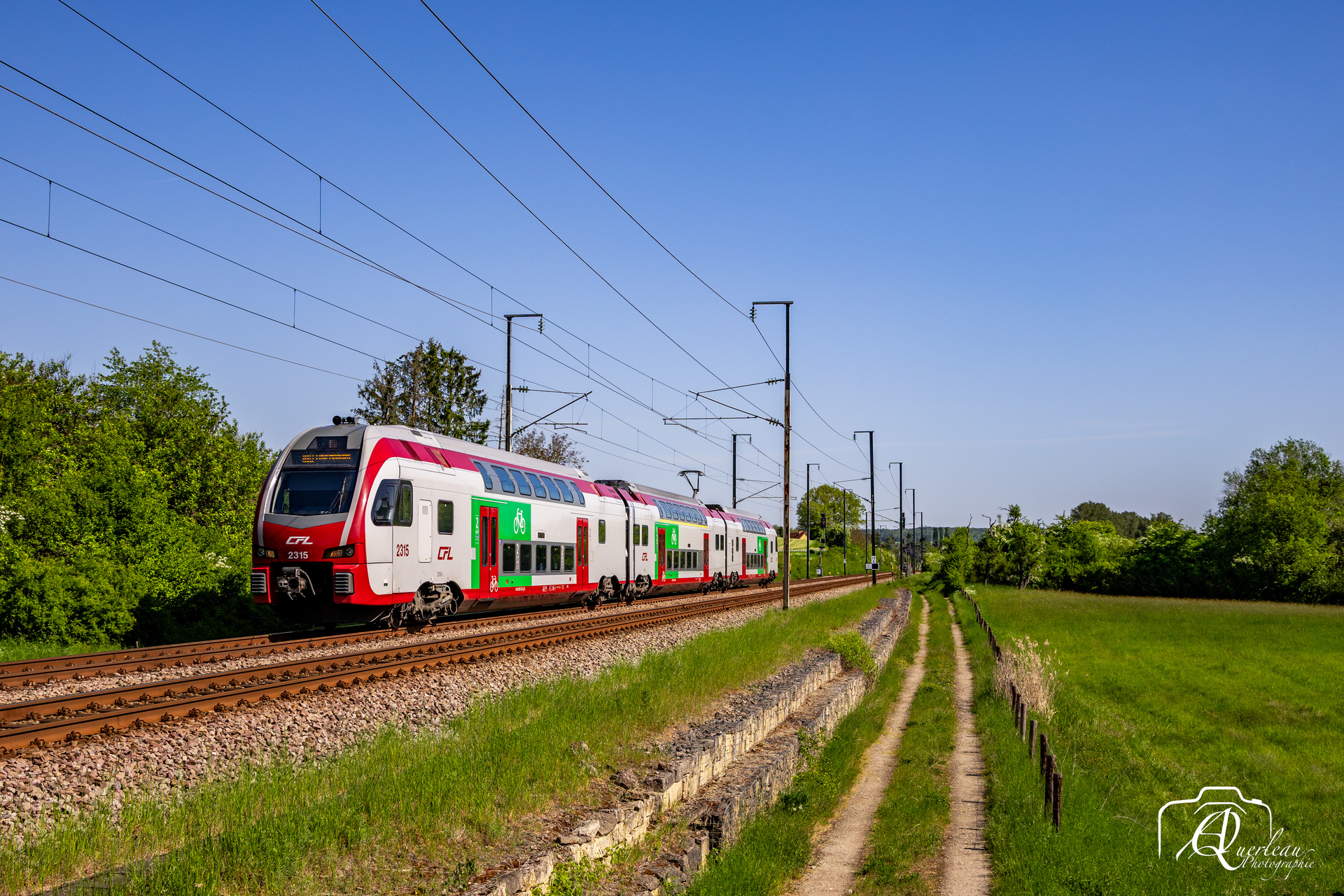

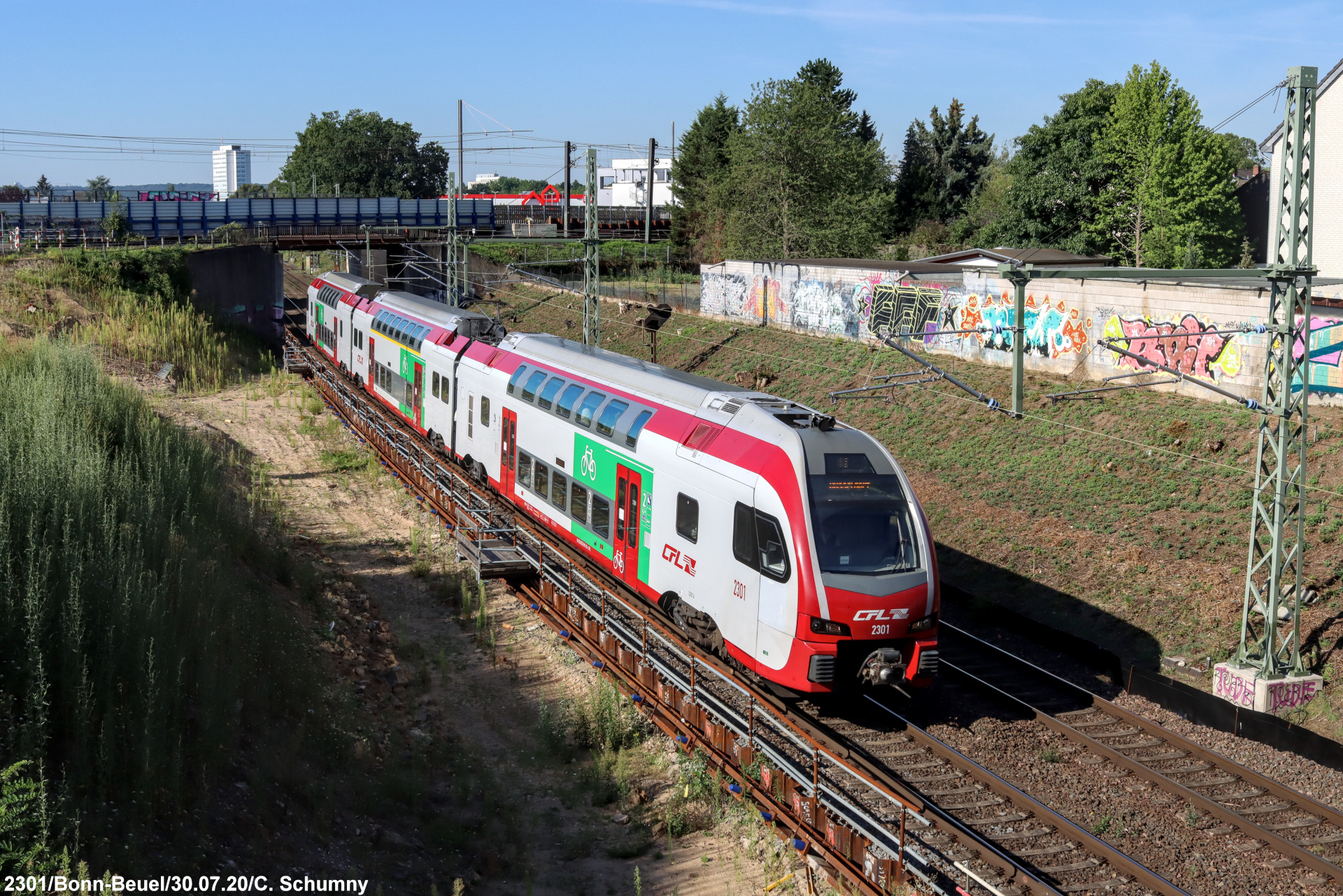

Stadler CFL 2300

Built by Stadler

Top speed

160 km/h

99 mph

Power output

3,000 kW

4,023 hp

Weight

170 t

374,785 lb

Track gauge

1,435 mm

Standard gauge

Years built

2013

8 units

Axle arrangement

2'Bo'+2'2'+Bo'2'

Overview of the Stadler CFL 2300

Discover the CFL 2300 series, a modern electric multiple unit (EMU) designed for efficient passenger transport in Luxembourg. These trains are built by Stadler, with the first units entering service in 2013.

The CFL 2300 is a 3-car formation, featuring a 2M1T (two motor cars, one trailer car) configuration. With a top speed of 160 km/h, these trains are well-equipped to handle various routes.

Key characteristics include a standard gauge of 1435 mm, a width of 2.8 meters, and a height of 4.63 meters. The total weight of each unit is 170 tons, with a powerful electric system supporting both 15 kV AC 16.7 Hz and 25 kV AC 50 Hz.

These EMUs boast a power output of 3000 kW and a tractive effort of 200 kN, ensuring reliable performance. The UIC axle arrangement is 2'Bo'+2'2'+Bo'2'.

Stadler CFL 2300 technical specifications

	Value	Imperial / US
Series	Stadler KISS
Built by	Stadler · 20138 units
Top speed	160 km/h99 mph	99 mph
Power output	3,000 kW4,023 hp	4,023 hp
Tractive effort	200 kN44,962 lbf	44,962 lbf
Electric systems	15 kV AC 16.7 Hz 25 kV AC 50 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	2'Bo'+2'2'+Bo'2'
Formation	3 cars (2M1T)
Width	2.8 m9 ft 2 in	9 ft 2 in
Height	4.63 m15 ft 2 in	15 ft 2 in
Weight	170 t374,785 lb	374,785 lb
