Stadler Flirt 4/10 15kV+25kV – photo 1© trainspo.com
Electric multiple unit

Stadler Flirt 4/10 15kV+25kV

Built by Stadler

Top speed
160 km/h
99 mph
Power output
2,000 kW
2,682 hp
Track gauge
1,435 mm
Standard gauge
Axle arrangement
Bo'2'2'2'Bo'

Overview of the Stadler Flirt 4/10 15kV+25kV

Discover the Stadler Flirt 4/10 15kV+25kV, a modern Electric Multiple Unit (EMU) designed for exceptional versatility and efficiency on rail networks.

This impressive train boasts a top speed of 160 km/h and offers a comfortable travel experience with a capacity of 219 seats in second class. Its distinguishing feature is the dual electrical system capability, supporting both 15 kV AC 16.7 Hz and 25 kV AC 50 Hz, making it perfectly suited for international routes and seamless cross-border operations.

Operated by the Swiss Federal Railways (SBB) under classes like SBB RABe 522.0 and SBB RABe 522.2, this EMU exemplifies innovation and reliability. With a generous car length of 58.3 meters and a width of 2.88 meters, it provides a spacious and pleasant journey for all passengers.

The Flirt 4/10 is a testament to advanced engineering, offering an ideal solution for both commuter and long-distance travel. Experience the comfort, efficiency, and cutting-edge technology of this high-quality EMU, a valuable asset to modern rail infrastructure.

Stadler Flirt 4/10 15kV+25kV technical specifications

Value
SeriesFlirt
FamilyFlirt
Built byStadler
Top speed160 km/h99 mph
Power output2,000 kW2,682 hp
Electric systems
  • 15 kV AC 16.7 Hz
  • 25 kV AC 50 Hz
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangementBo'2'2'2'Bo'
Capacity2nd class 219 seats
Car length58.3 m191 ft 3 in
Width2.88 m9 ft 5 in
Height4.18 m13 ft 9 in

Operators of the Stadler Flirt 4/10 15kV+25kV

Railway companies that have operated the Flirt 4/10 15kV+25kV, with the class designation used by each of them.

OperatorClassCountry
Swiss Federal RailwaysSBB RABe 522.0Switzerland
Swiss Federal RailwaysSBB RABe 522.2Switzerland

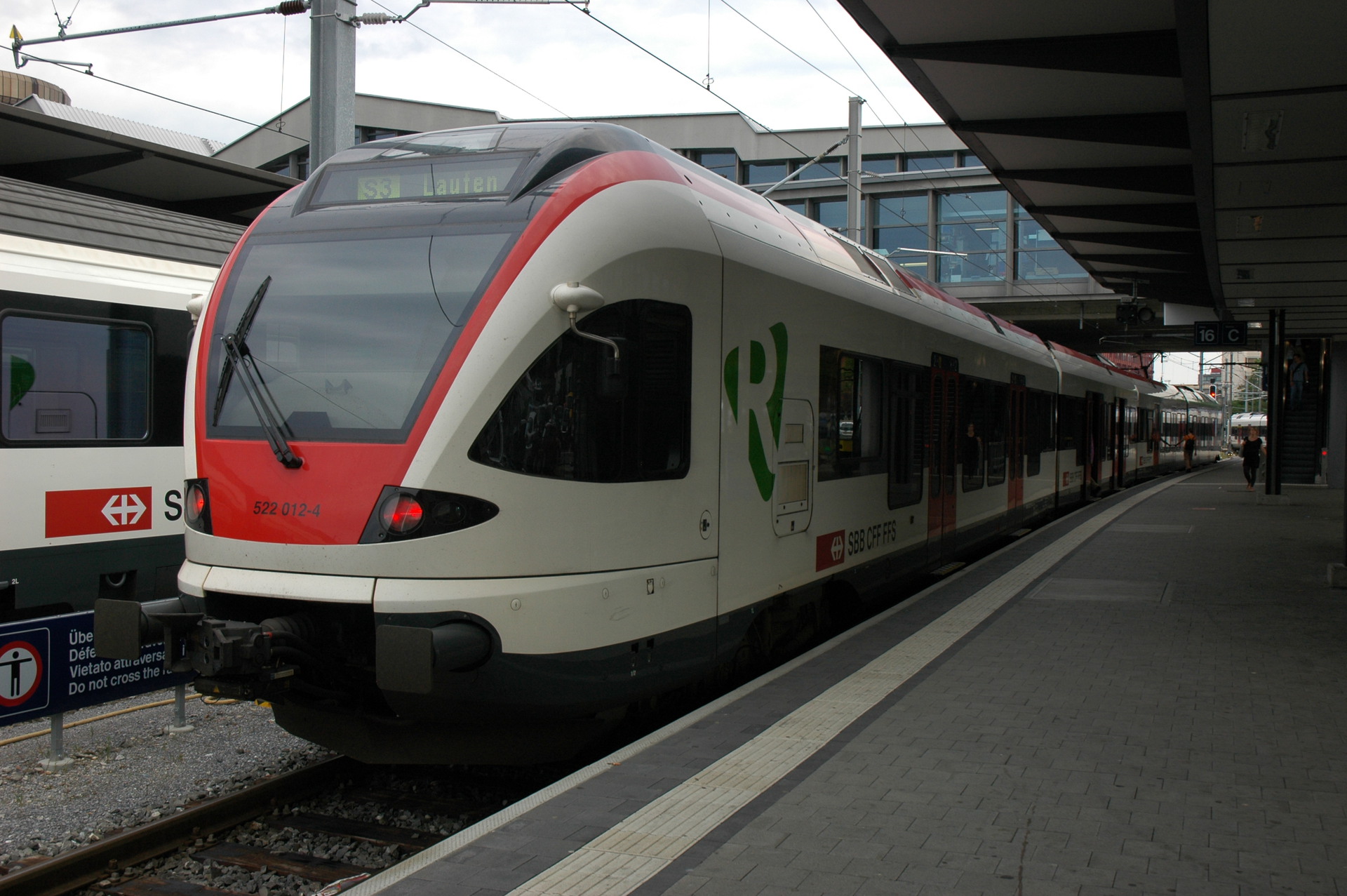

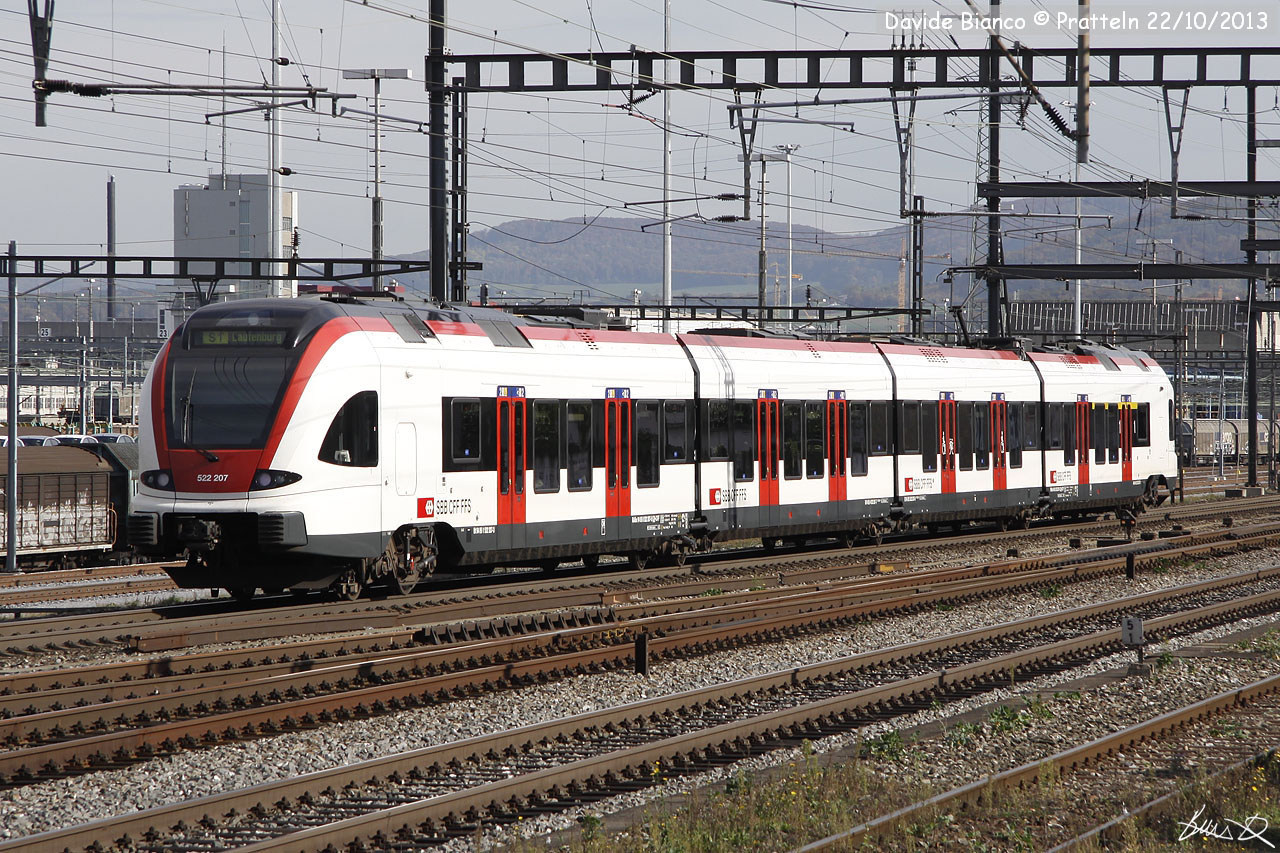

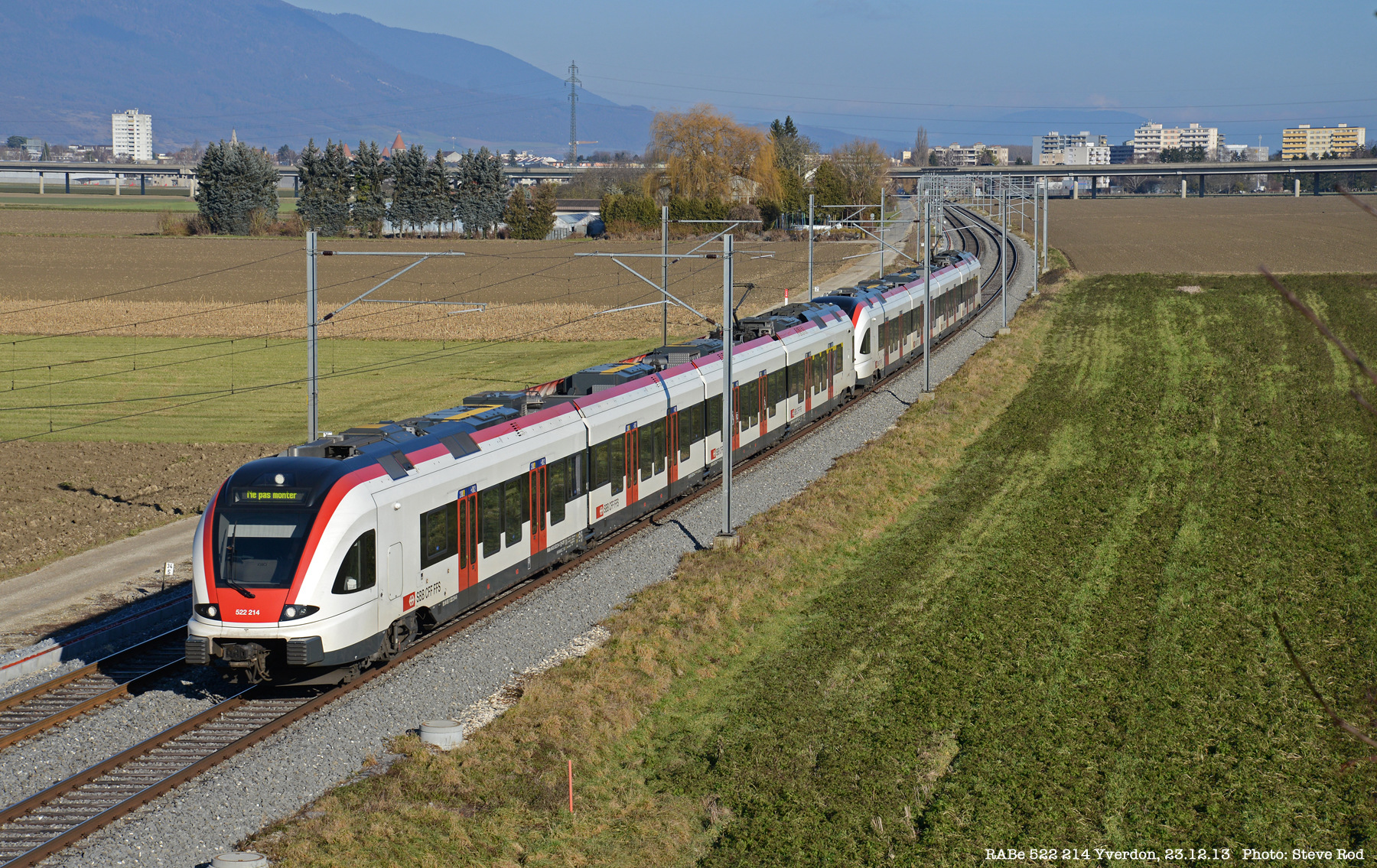

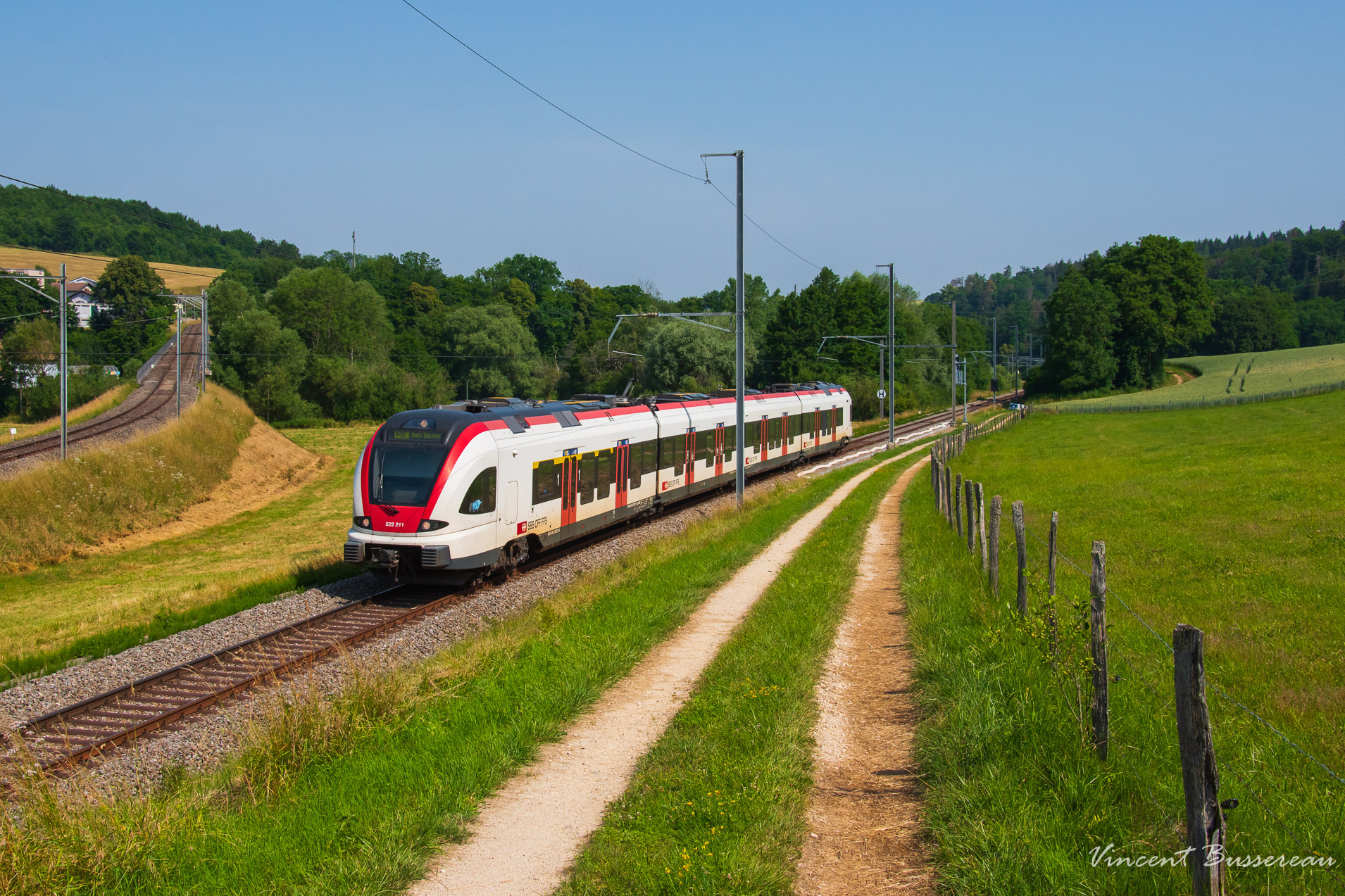

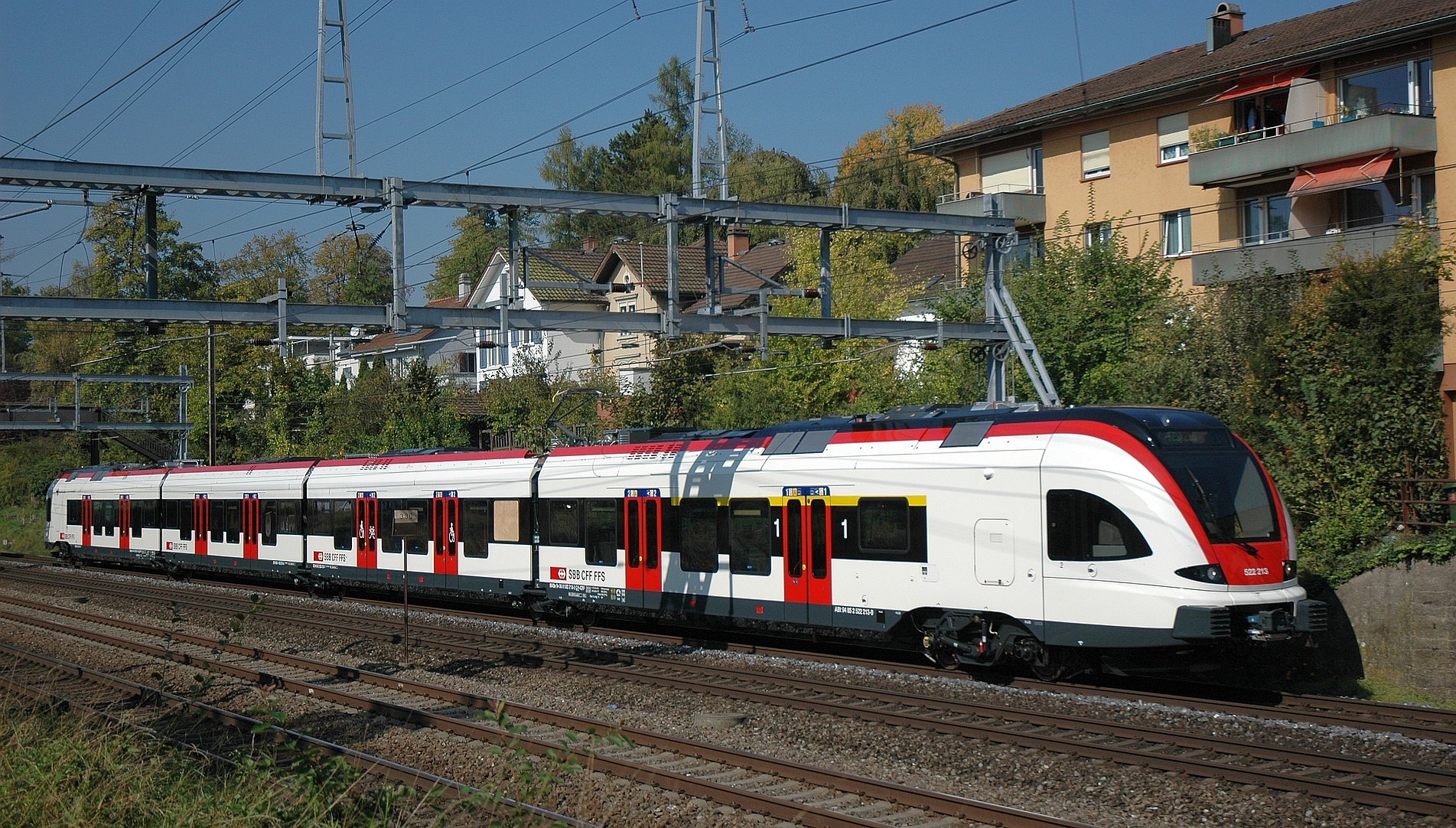

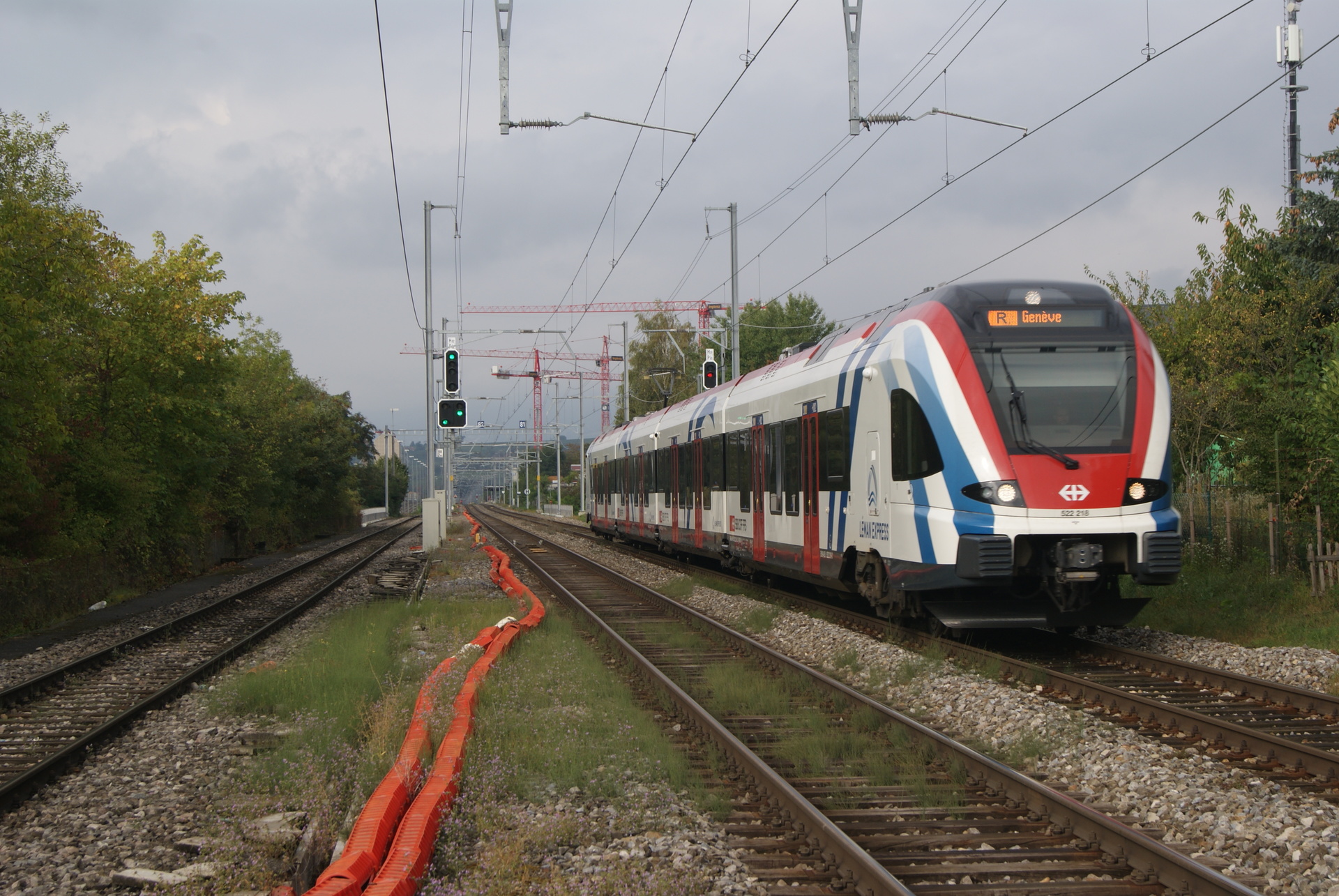

Stadler Flirt 4/10 15kV+25kV photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
