Stadler SZU Be 552 – photo 1© trainspo.com
Electric multiple unit

Stadler SZU Be 552

Built by Stadler

Top speed
120 km/h
75 mph
Power output
1,400 kW
1,877 hp
Weight
93 t
205,030 lb
Track gauge
1,435 mm
Standard gauge
Years built
2013–2022
10 units
Axle arrangement
2'Bo'+Bo'2'

Overview of the Stadler SZU Be 552

Discover the SZU Be 552, a modern electric multiple unit (EMU) operating in Switzerland for the Sihltal-Zürich-Uetliberg-Bahn.

Built by Stadler between 2013 and 2022, this GTW family unit combines power and passenger comfort.

With a length of 50 meters and a seating capacity of 123, it provides a pleasant travel experience.

The SZU Be 552 can reach a top speed of 120 km/h, ensuring efficient journeys on the network.

It is equipped to operate under two electric systems: 1.2 kV DC and 15 kV AC 16.7 Hz.

Its innovative design and performance make it a key component of the local railway network.

Stadler SZU Be 552 technical specifications

Value
FamilyGTW
Built byStadler · 2013–202210 units
Top speed120 km/h75 mph
Power output1,400 kW1,877 hp
Tractive effort160 kN35,969 lbf
Electric systems
  • 1.2 kV DC
  • 15 kV AC 16.7 Hz
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangement2'Bo'+Bo'2'
Capacity123 seats
Car length50 m164 ft 1 in
Width2,940 m9645 ft 8 in
Weight93 t205,030 lb
Datasheetszu.ch
Source of the data: de.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the Stadler SZU Be 552

Railway companies that have operated the SZU Be 552, with the class designation used by each of them.

OperatorClassCountry
Sihltal-Zürich-Uetliberg-BahnSZU Be 552Switzerland

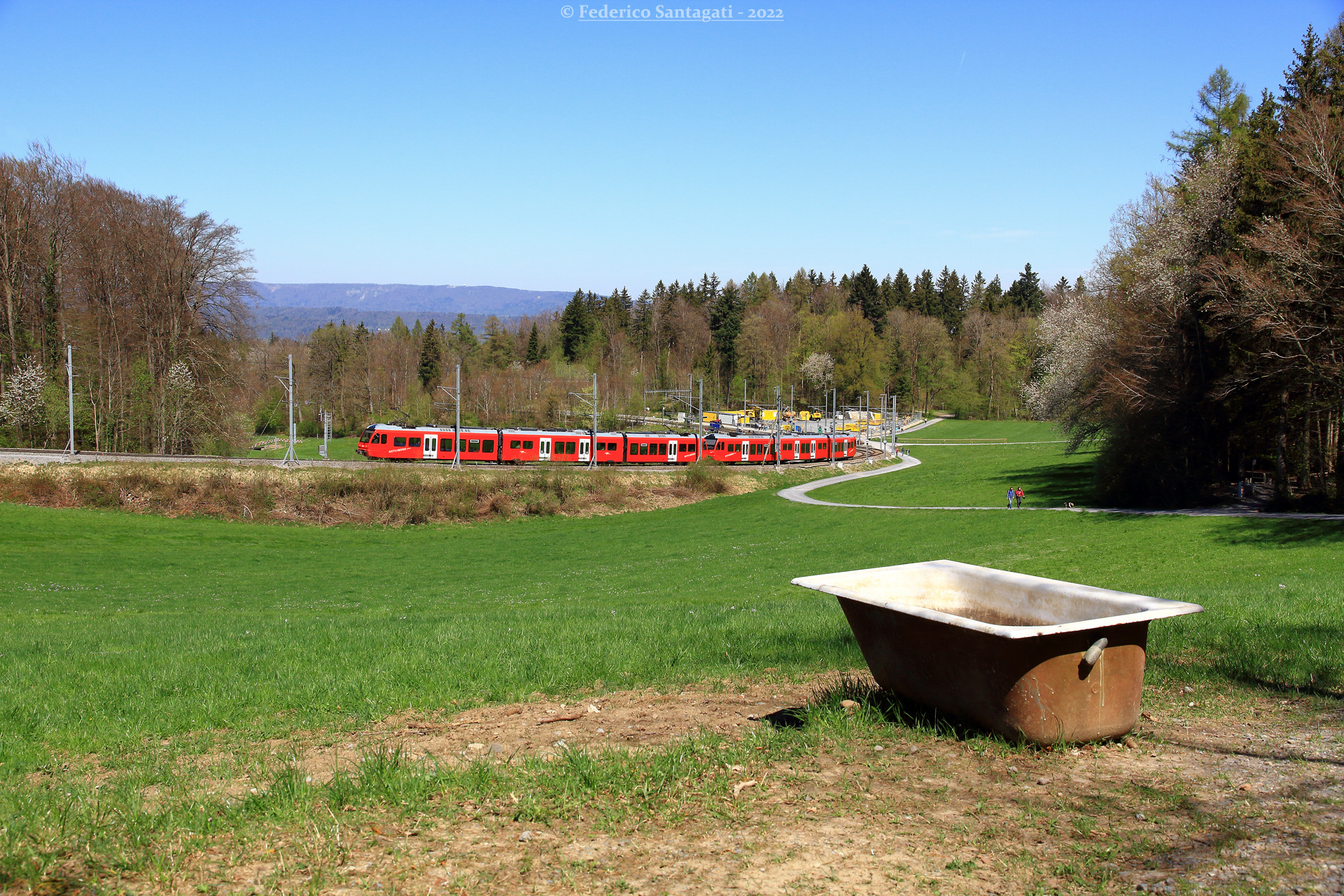

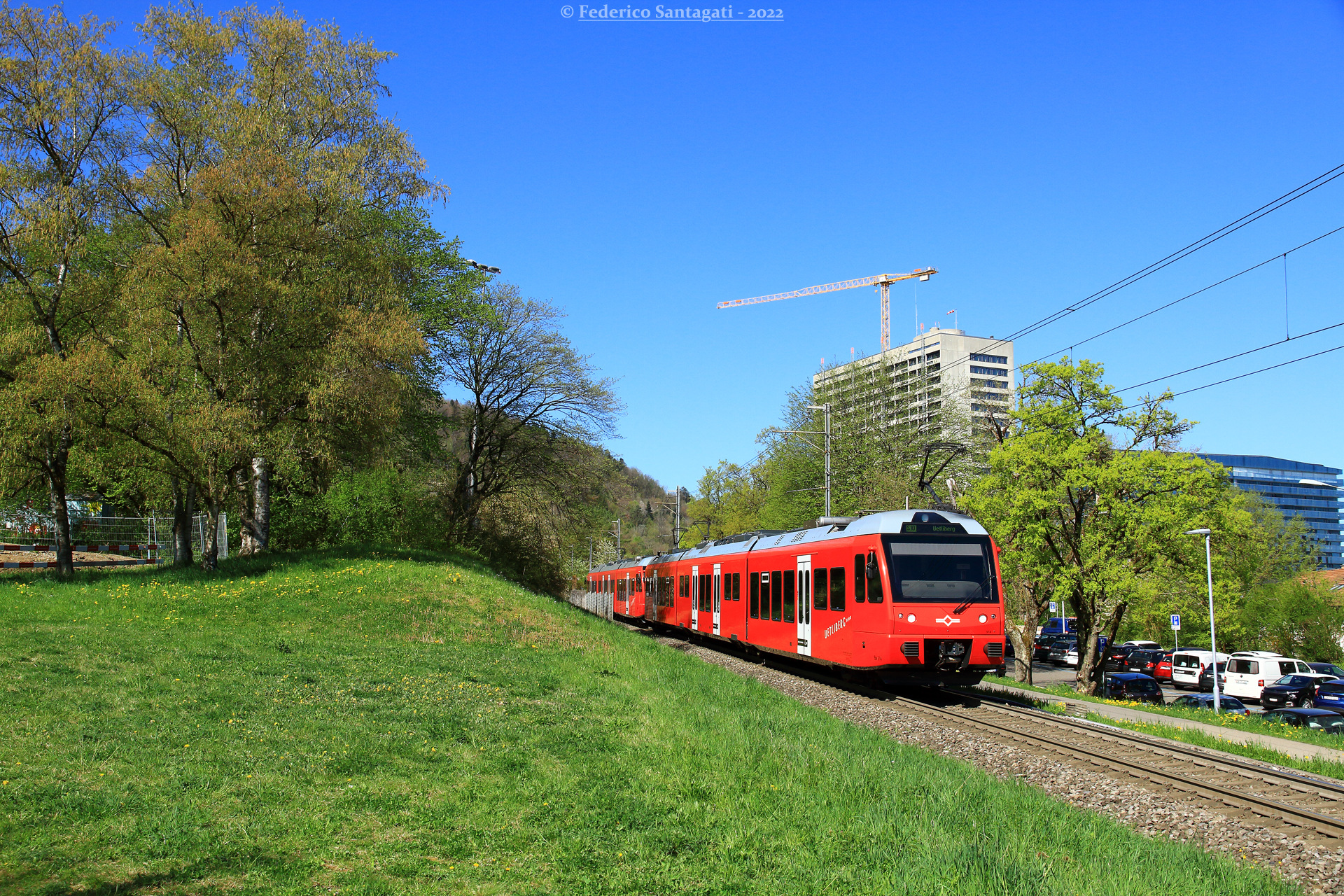

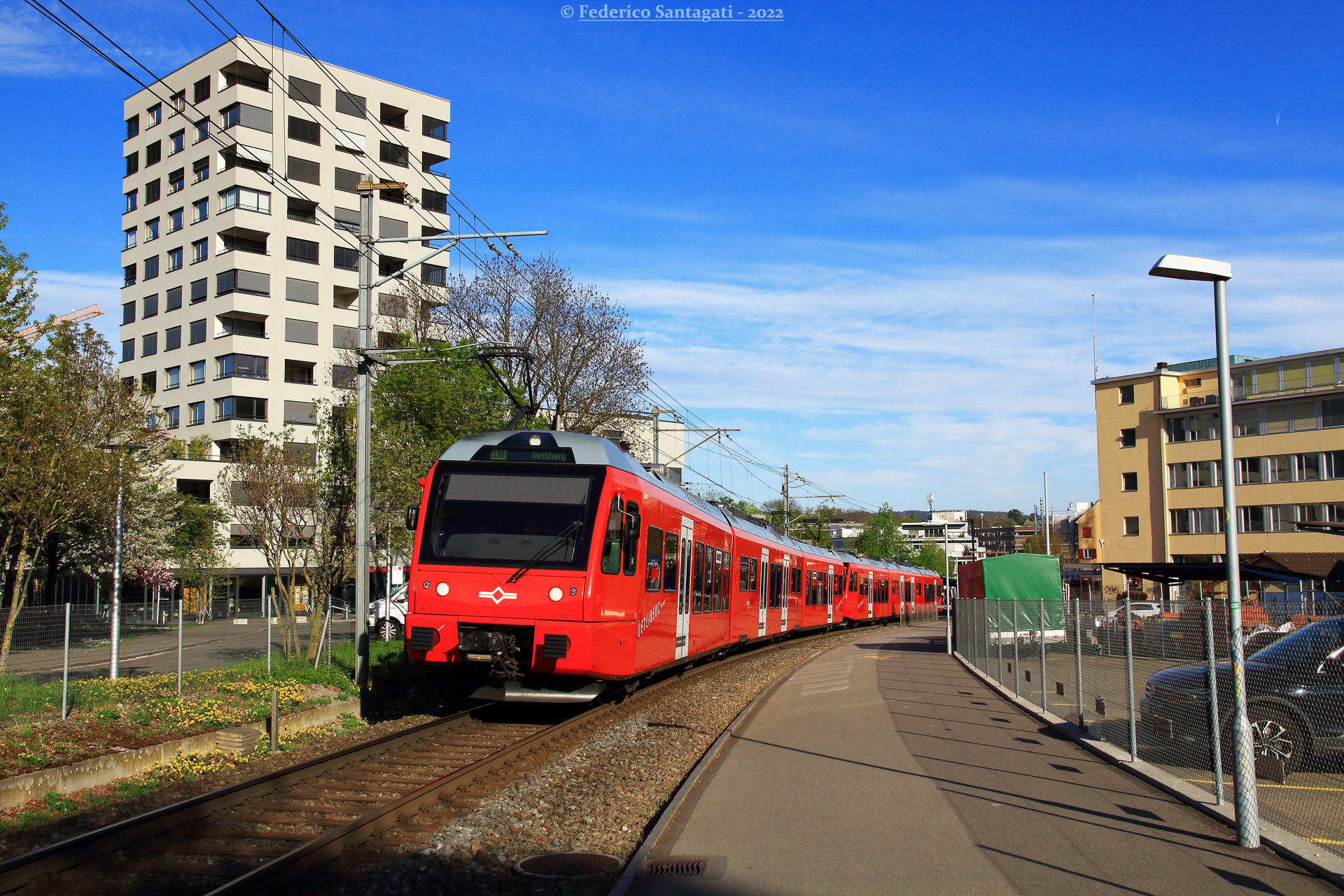

Stadler SZU Be 552 photos
