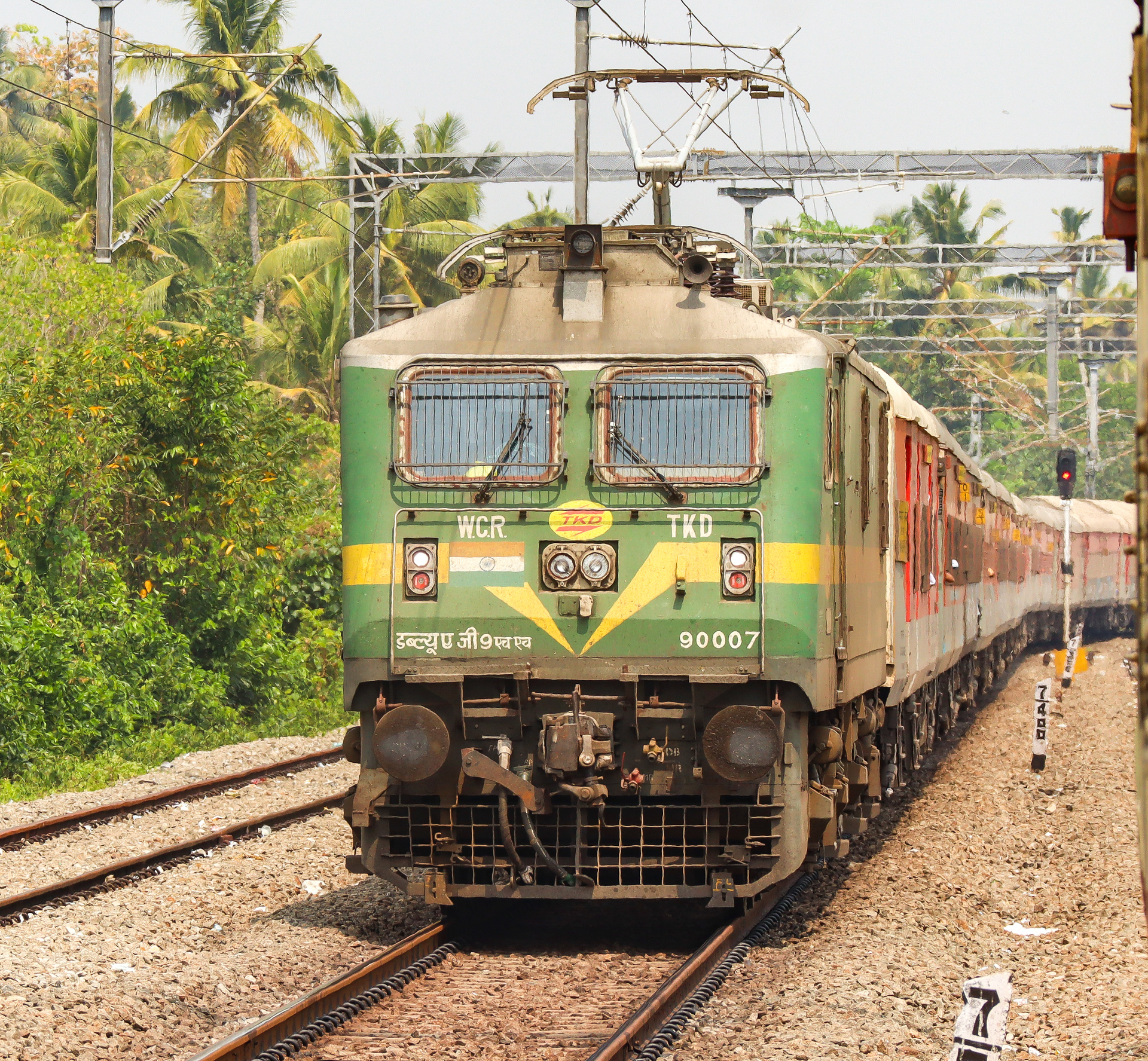

ABB WAG-9HH – photo 1

© trainspo.com

Electric locomotive

ABB WAG-9HH

Built by ABB, CLW

Top speed

100 km/h

62 mph

Power output

6,711 kW

9,000 hp

Weight

123 t

271,168 lb

Length

20.56 m

67 ft 5 in

Track gauge

1,676 mm

Indian broad gauge

Axle arrangement

Co'Co'

Overview of the ABB WAG-9HH

Discover the robust WAG-9HH, a powerful electric locomotive that is a cornerstone of Indian Railways.

Built by ABB and CLW, this high-performance machine is engineered for the broad Indian broad gauge network, featuring a 1676 mm gauge.

With an impressive power output of 6711 kW and a tractive effort of 470 kN, the WAG-9HH is expertly equipped for heavy freight operations.

Its top speed of 100 km/h, coupled with its solid construction and 123-ton weight, makes it an indispensable asset to India's railway infrastructure.

The WAG-9HH exemplifies a successful integration of modern technology and proven performance in electric traction.

ABB WAG-9HH technical specifications

	Value	Imperial / US
Series	WAG-9
Built by	ABB, CLW
Top speed	100 km/h62 mph	62 mph
Power output	6,711 kW9,000 hp	9,000 hp
Tractive effort	470 kN105,660 lbf	105,660 lbf
Electric systems	25 kV AC 50 Hz
Track gauge	1,676 mmIndian broad gauge5 ft 6 in	5 ft 6 in
UIC axle arrangement	Co'Co'
Length	20.56 m67 ft 5 in	67 ft 5 in
Weight	123 t271,168 lb	271,168 lb

Source of the data: en.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the ABB WAG-9HH

Railway companies that have operated the WAG-9HH, with the class designation used by each of them.

Operator	Class	Country
Indian Railways	IR WAG-9HH	India
