Alstom Z 6100

Built by CEM, Alsthom

Top speed

120 km/h

75 mph

Power output

615 kW

825 hp

Track gauge

1,435 mm

Standard gauge

Years built

1965–1971

Axle arrangement

B'2'

Overview of the Alstom Z 6100

Discover the Z 6100, a versatile Electric Multiple Unit (EMU) known for its service across Europe. Built between 1965 and 1971 by CEM and Alsthom,

this train boasts a top speed of 120 km/h and a capacity of 36 seats in first class and 237 in second class.

The Z 6100 operates on a standard 1435 mm gauge and features a unique B'2' UIC axle configuration. With a car length of 74.45 meters, a width of 2.85 meters, and a height of 3.3 meters, it's designed for efficient passenger transport.

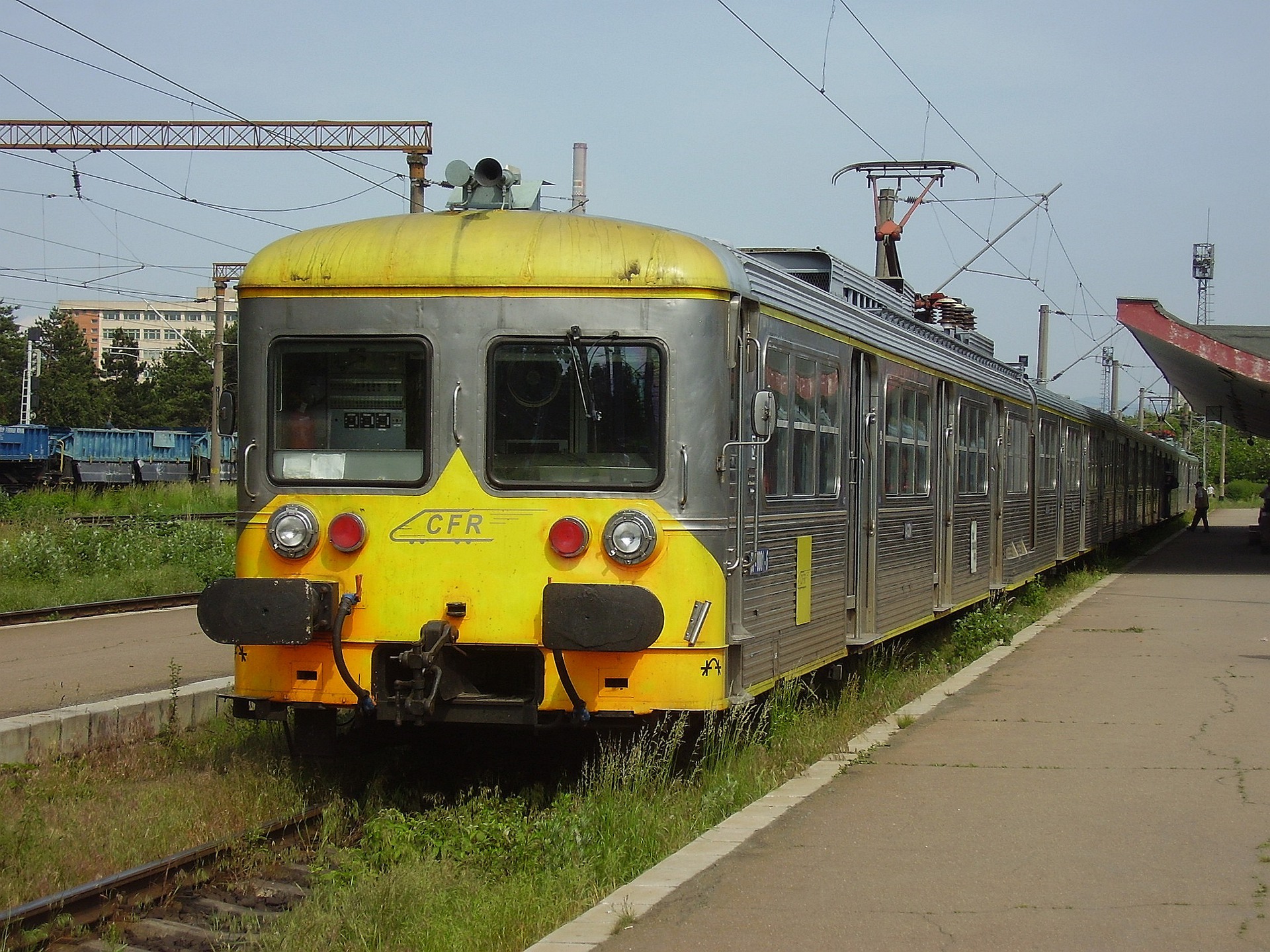

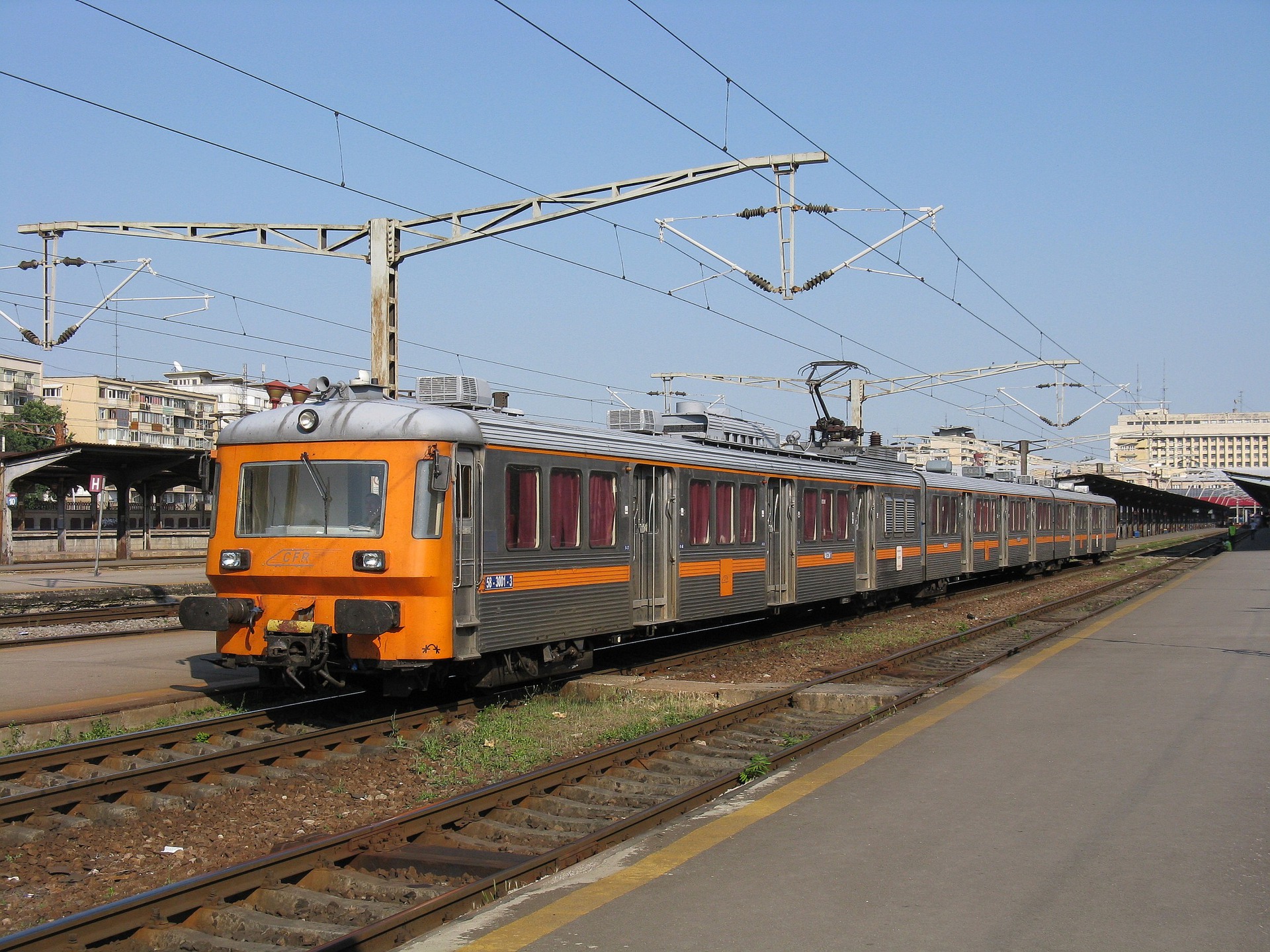

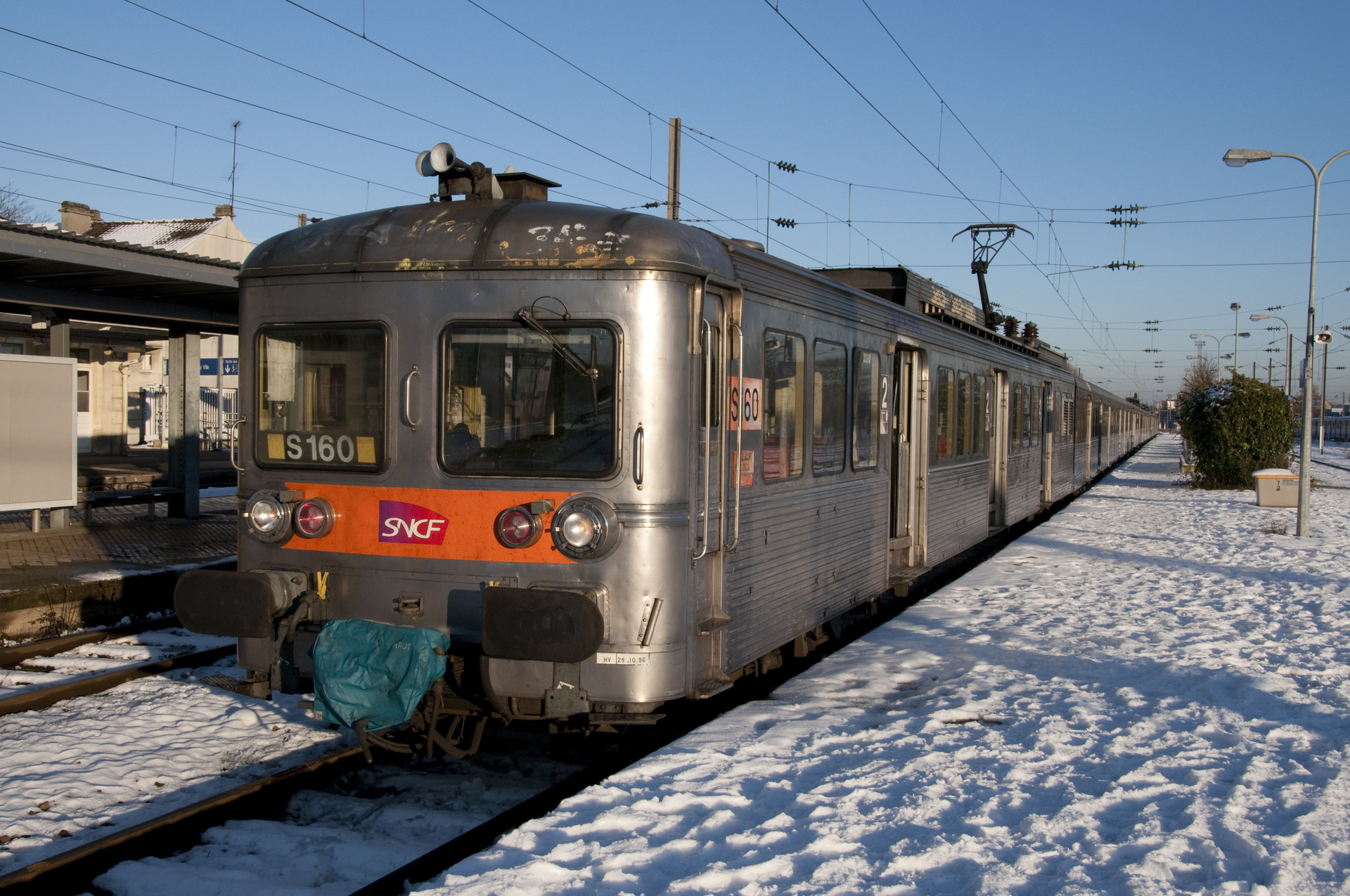

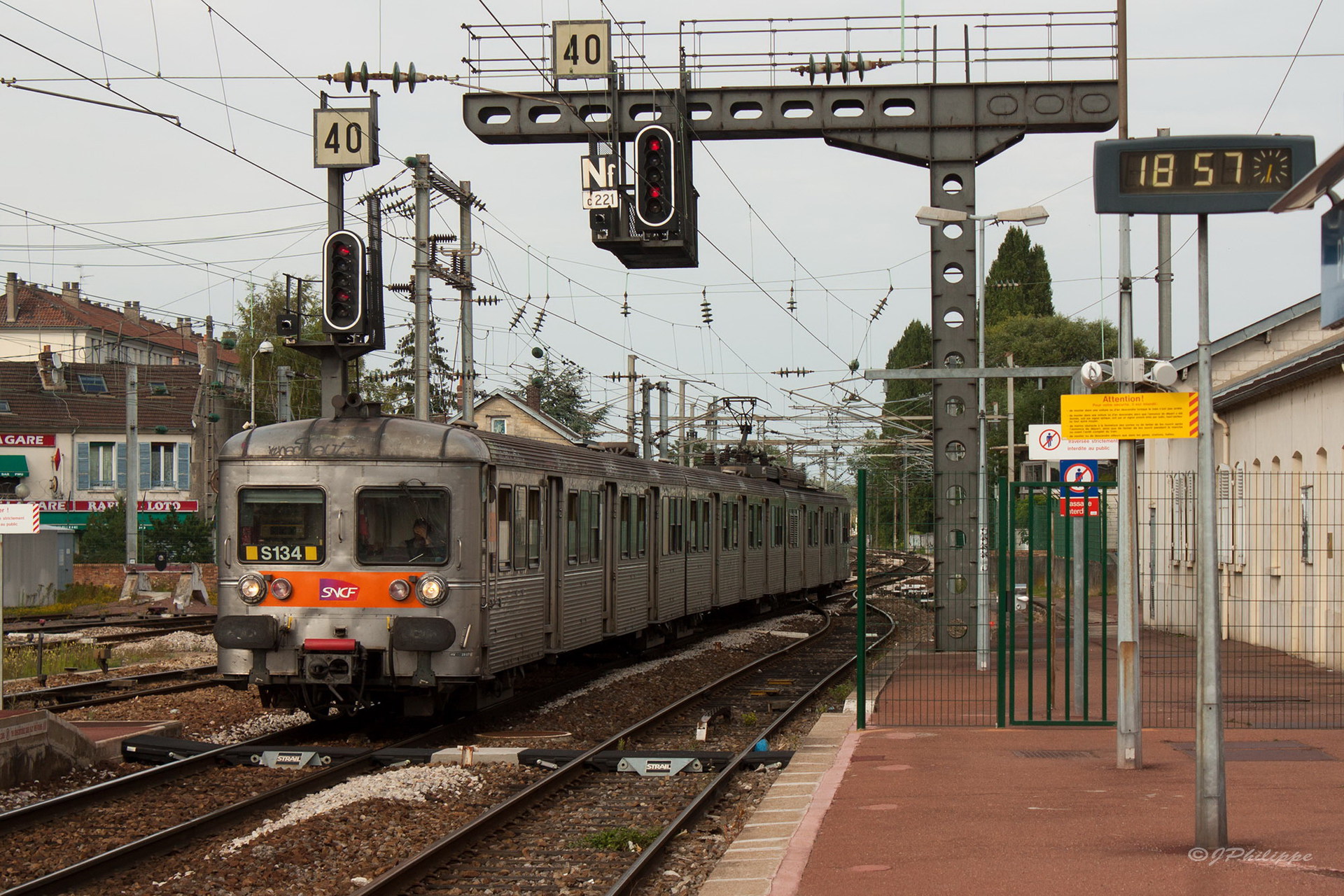

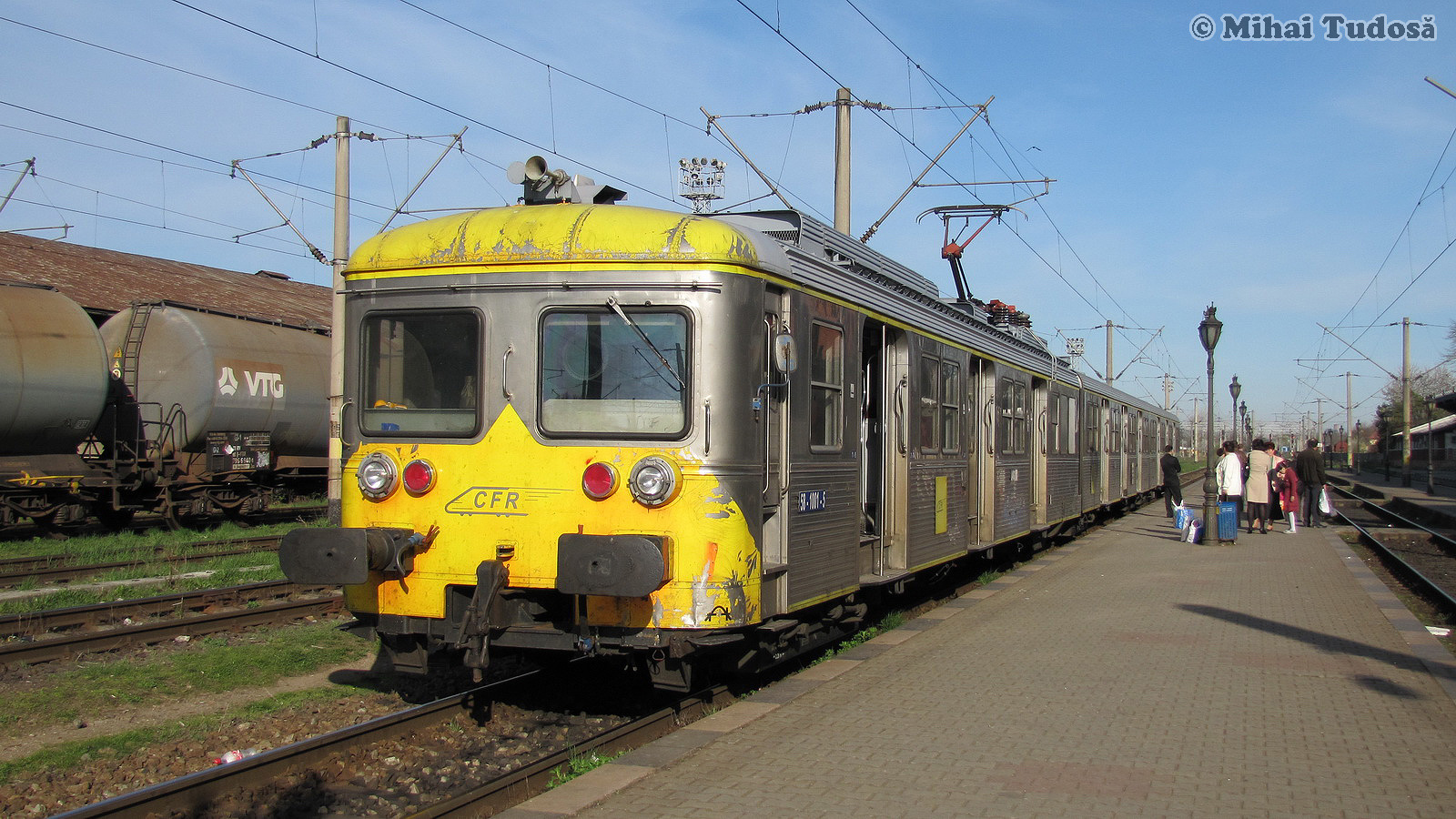

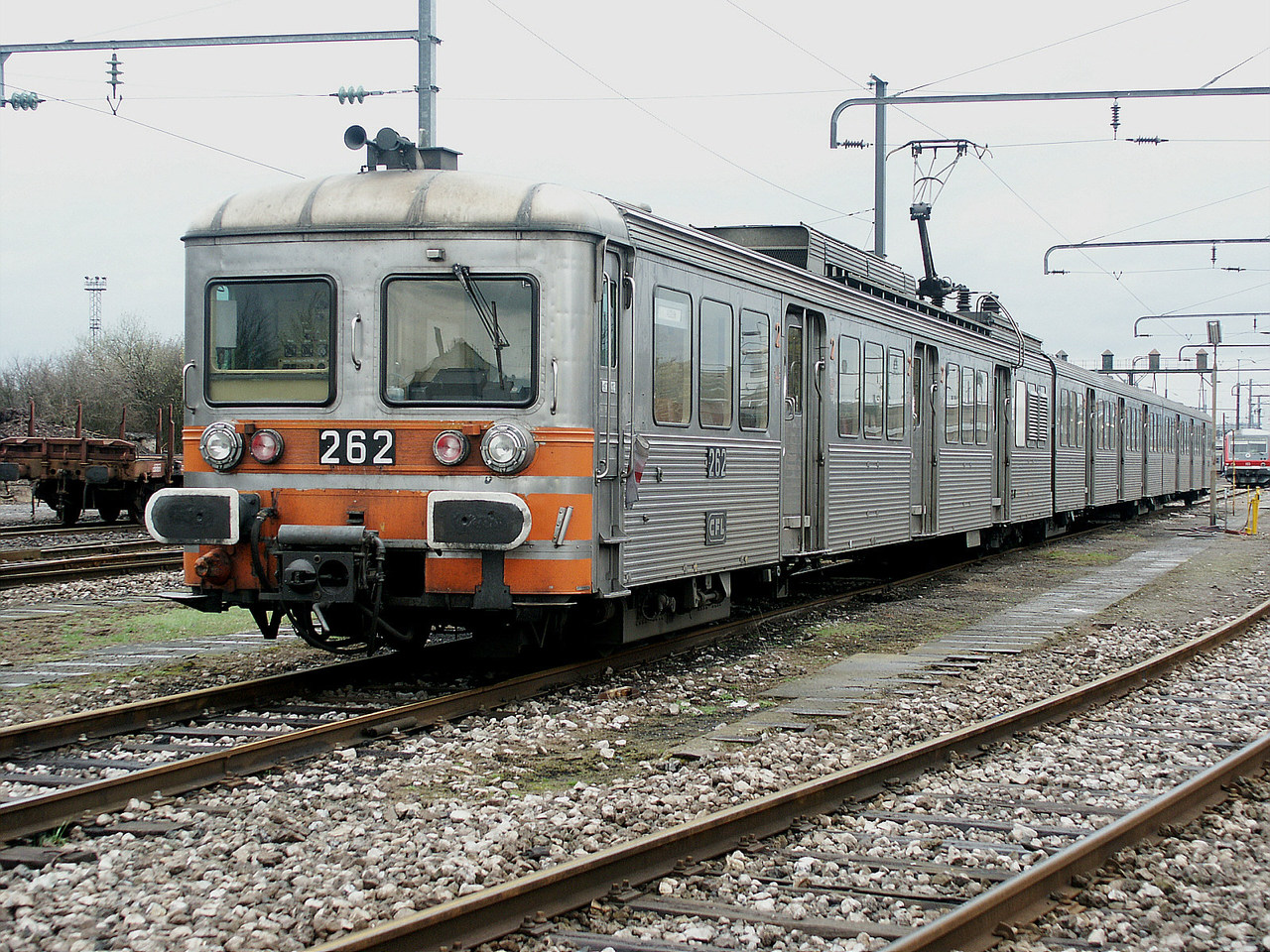

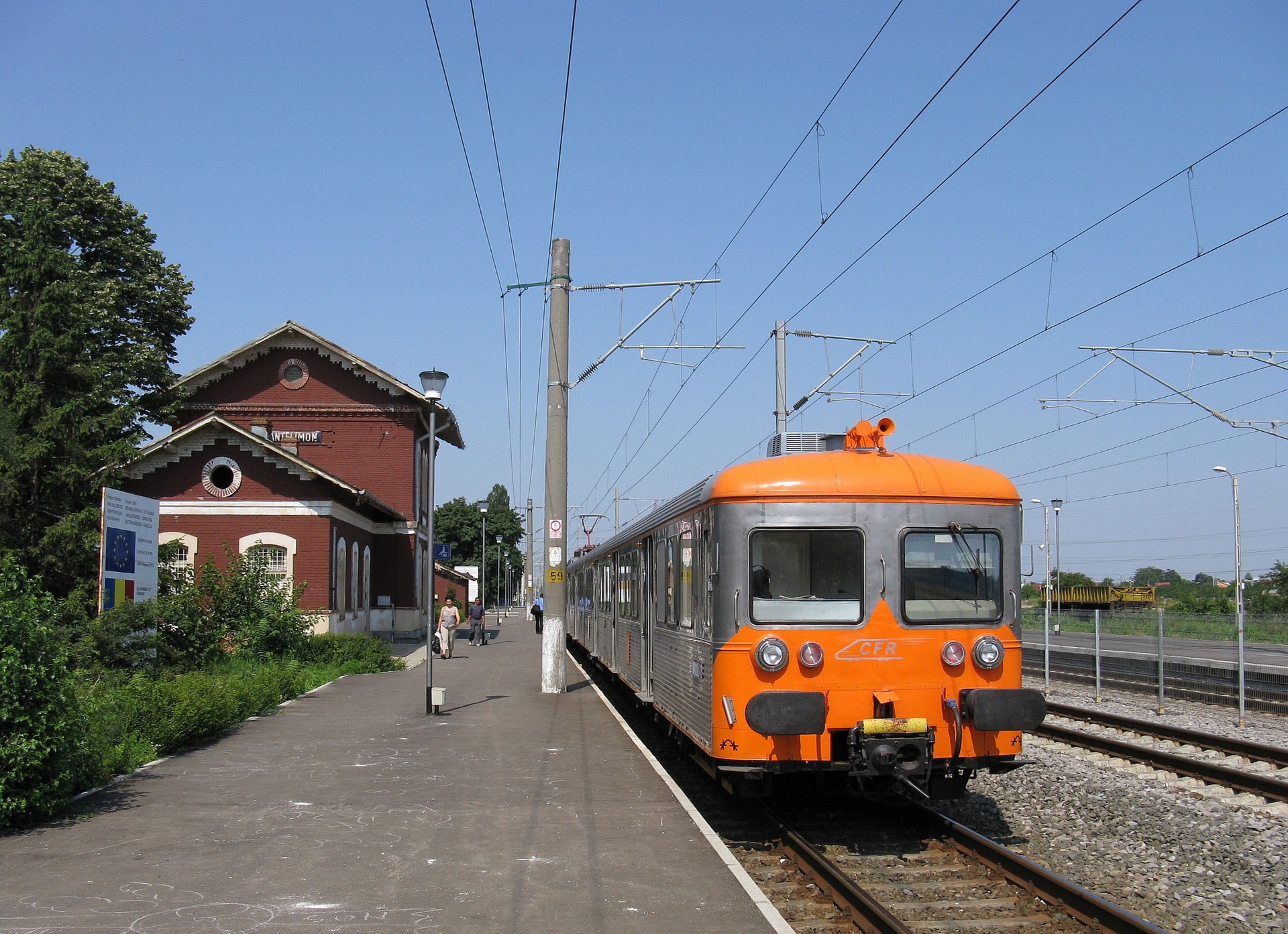

Powered by 25 kV AC 50 Hz electric systems, the Z 6100 delivers a robust 615 kW of power output and 147 kN of tractive effort. It has served with distinction for Luxembourg Railways (CFL Z 260), CFR passenger services in Romania (CFR Călători 58), and the French National Railway Corporation (SNCF Z 6100).

Explore the legacy and capabilities of the Z 6100 EMU, a reliable workhorse in the European railway landscape.

Alstom Z 6100 technical specifications

	Value	Imperial / US
Series	Z 6100
Built by	CEM, Alsthom · 1965–1971
Top speed	120 km/h75 mph	75 mph
Power output	615 kW825 hp	825 hp
Tractive effort	147 kN33,047 lbf	33,047 lbf
Electric systems	25 kV AC 50 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	B'2'
Capacity	1st class 36, 2nd class 237 seats
Car length	74.45 m244 ft 3 in	244 ft 3 in
Width	2.85 m9 ft 4 in	9 ft 4 in
Height	3.3 m10 ft 10 in	10 ft 10 in
