Bombardier Acela

Built by GEC Alsthom, Bombardier

Top speed

240 km/h

149 mph

Power output

9,200 kW

12,337 hp

Weight

566 t

1,247,815 lb

Length

203 m

666 ft 0 in

Track gauge

1,435 mm

Standard gauge

Years built

1996–2000

20 units

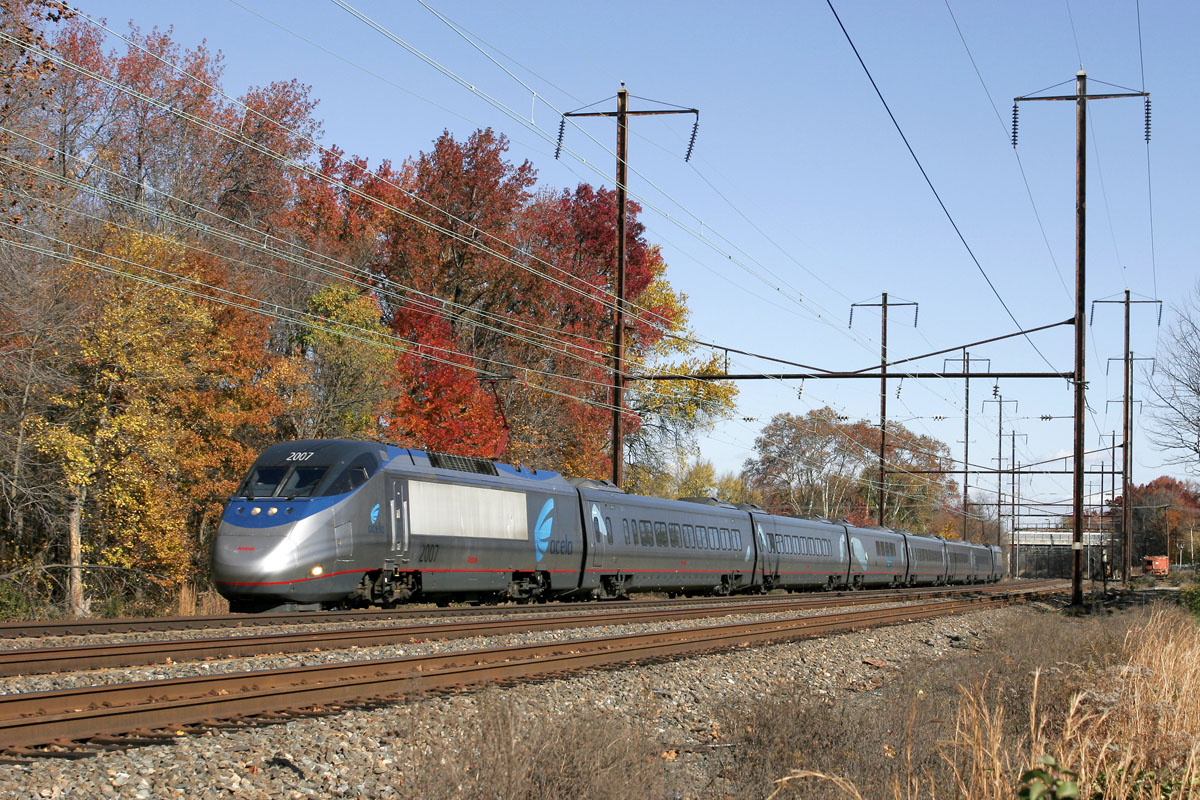

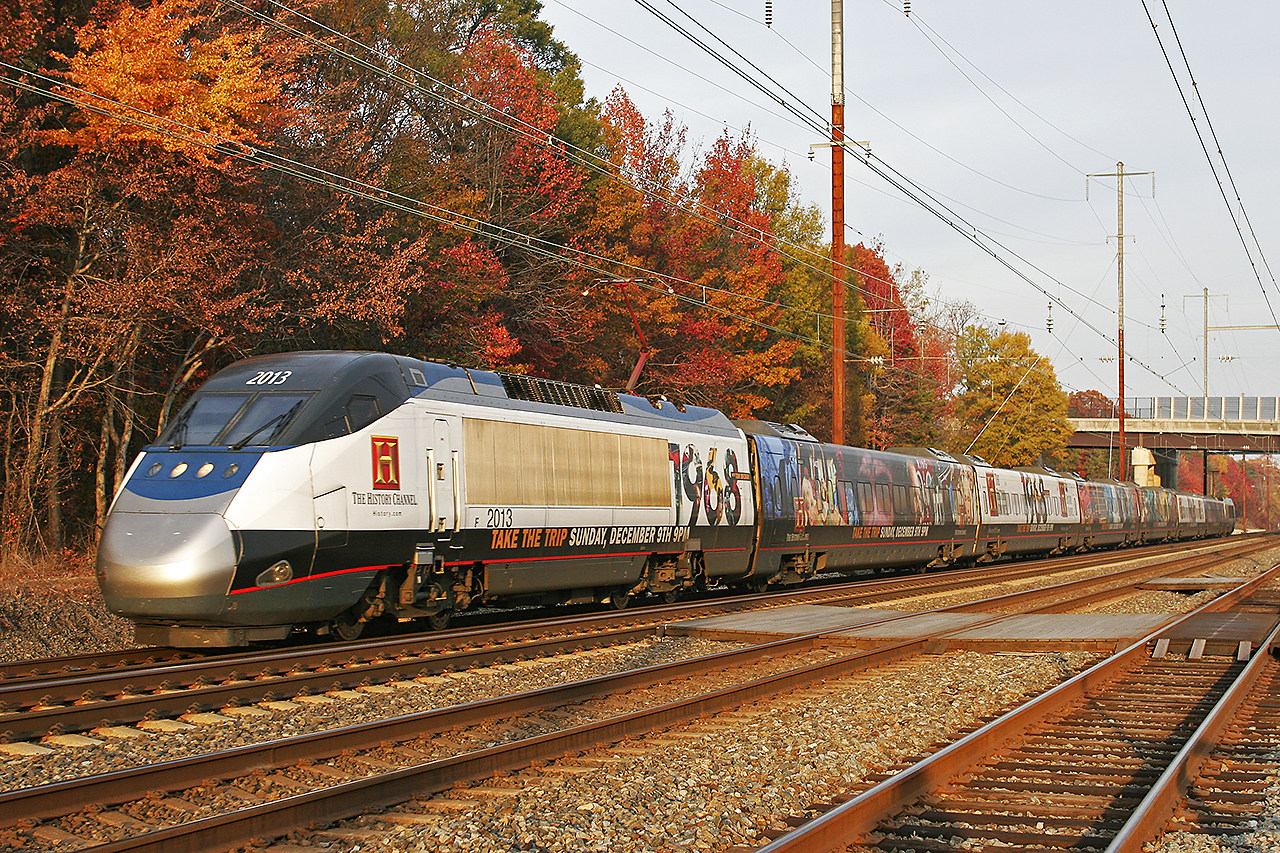

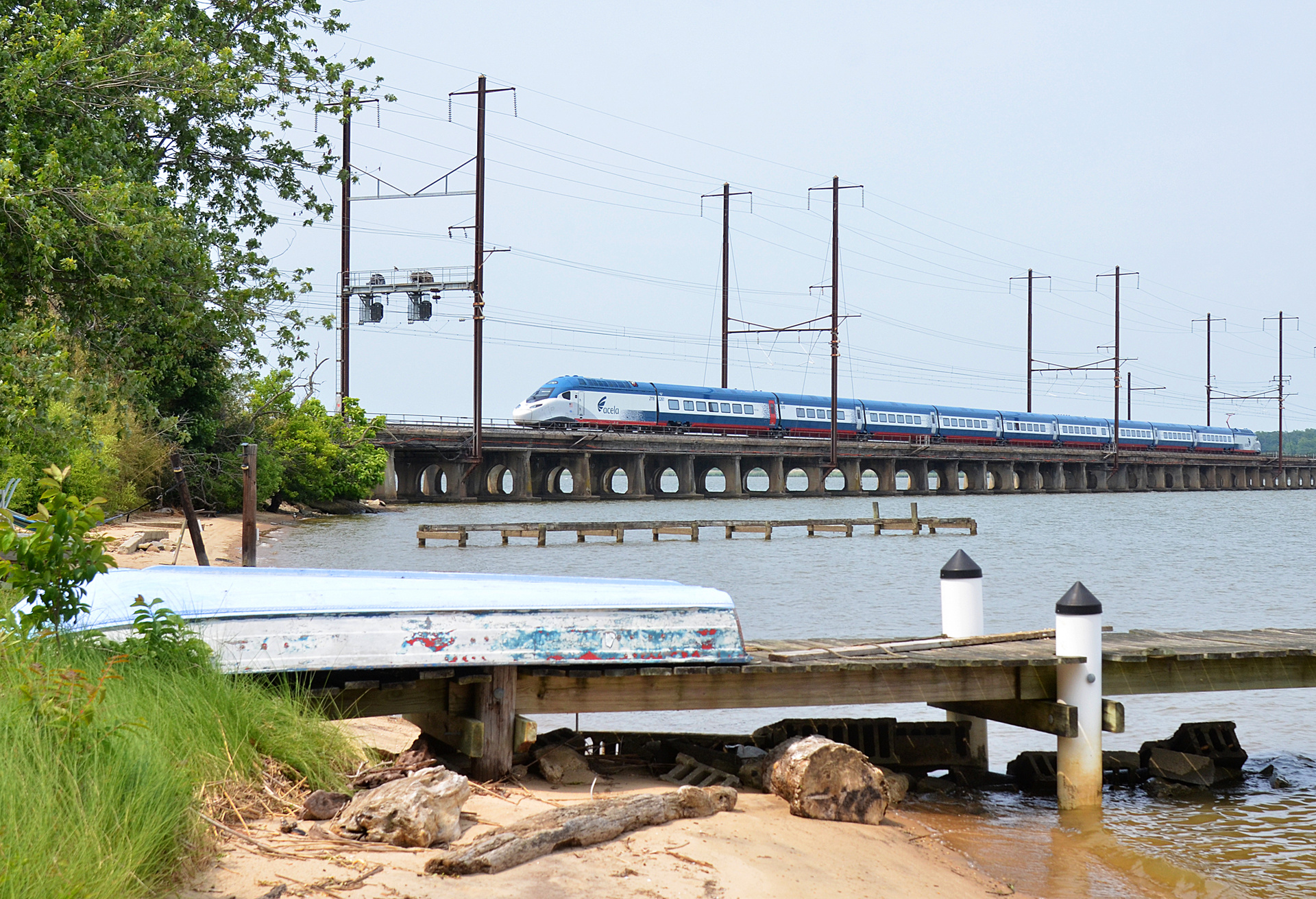

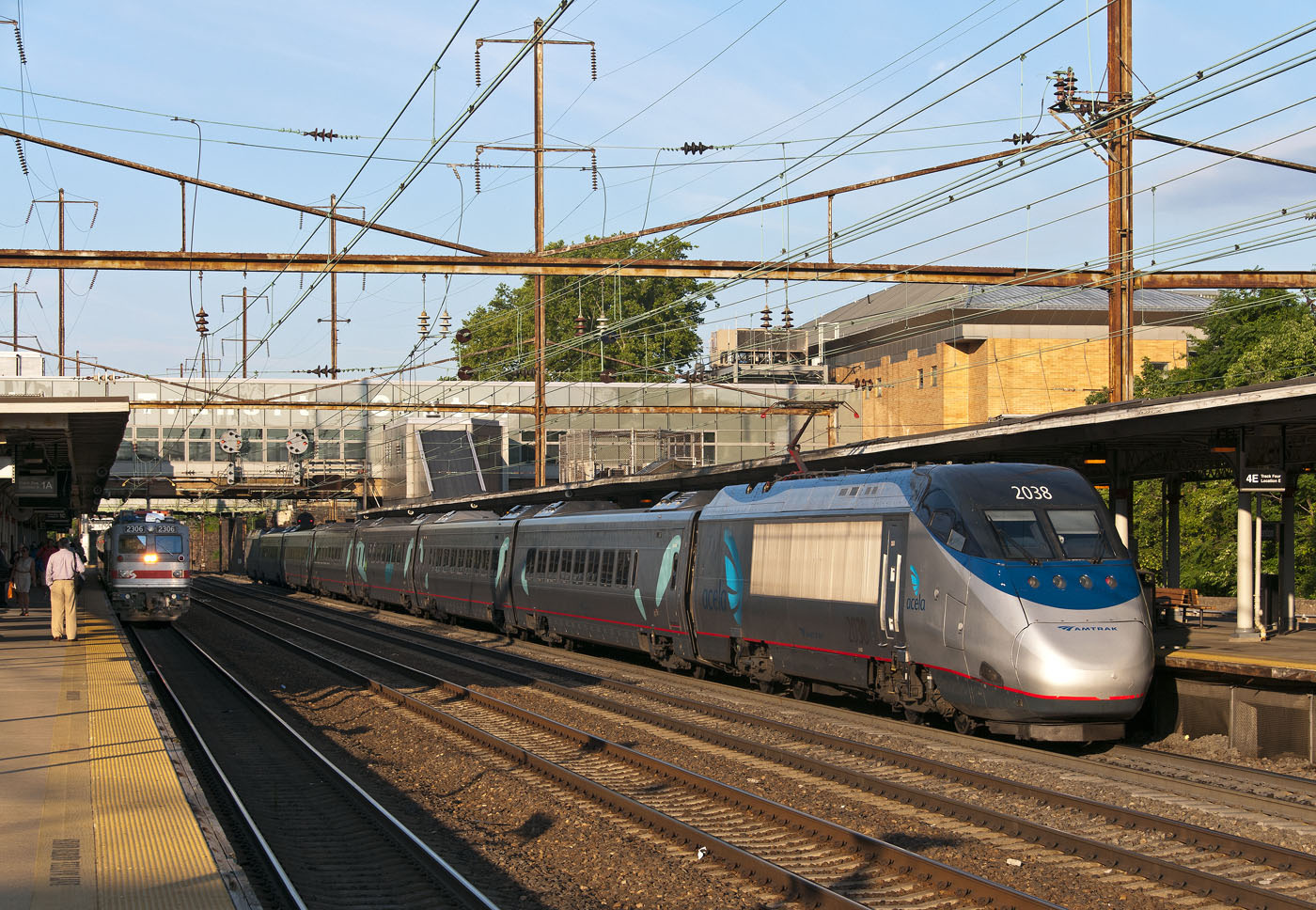

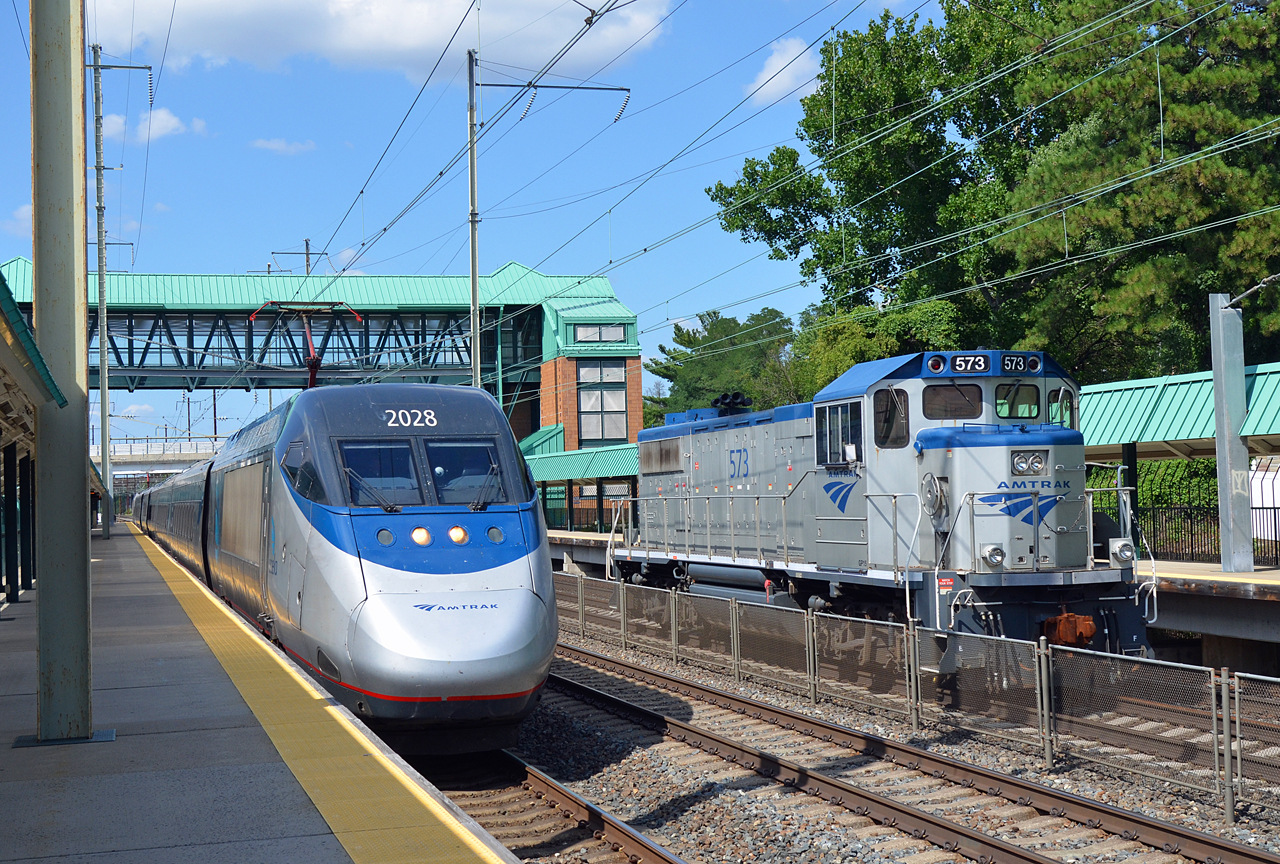

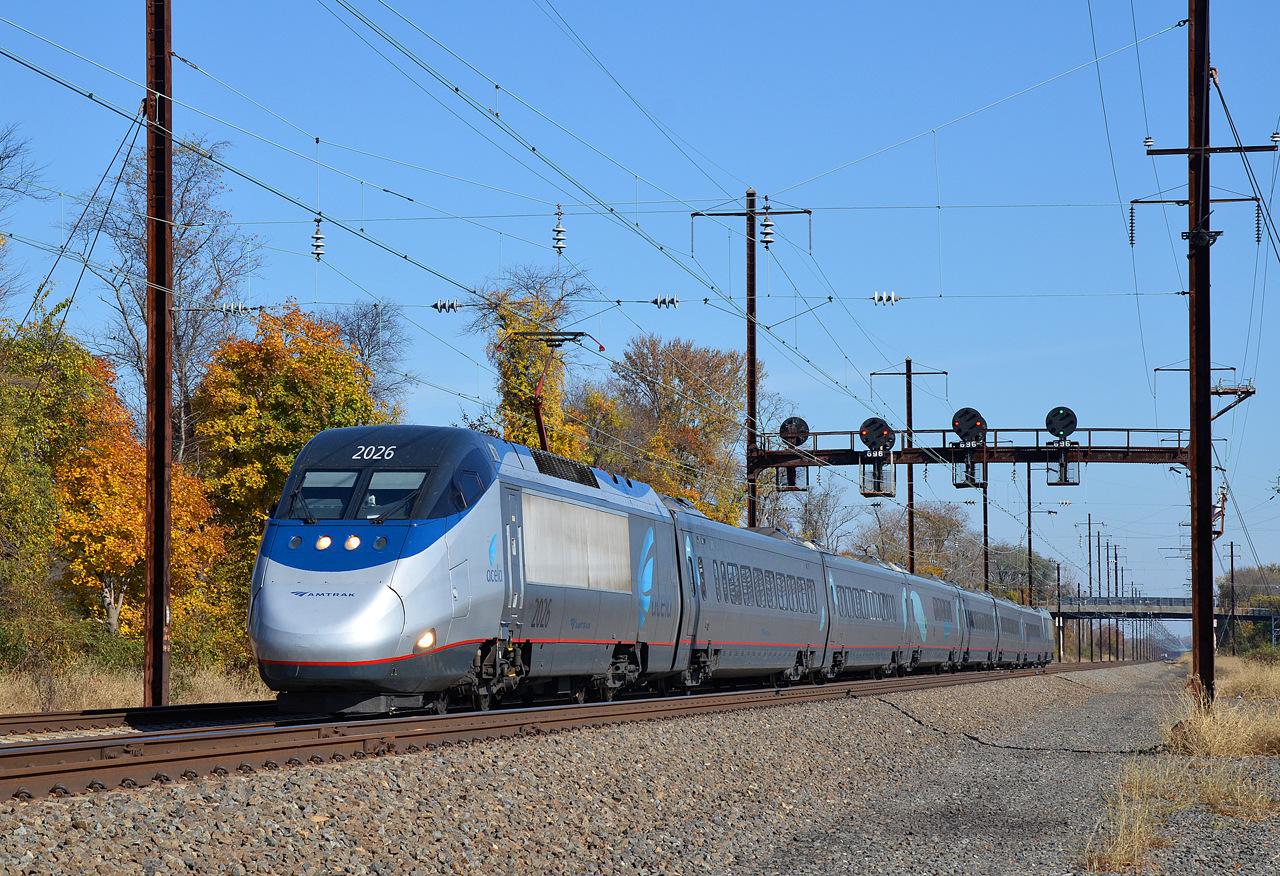

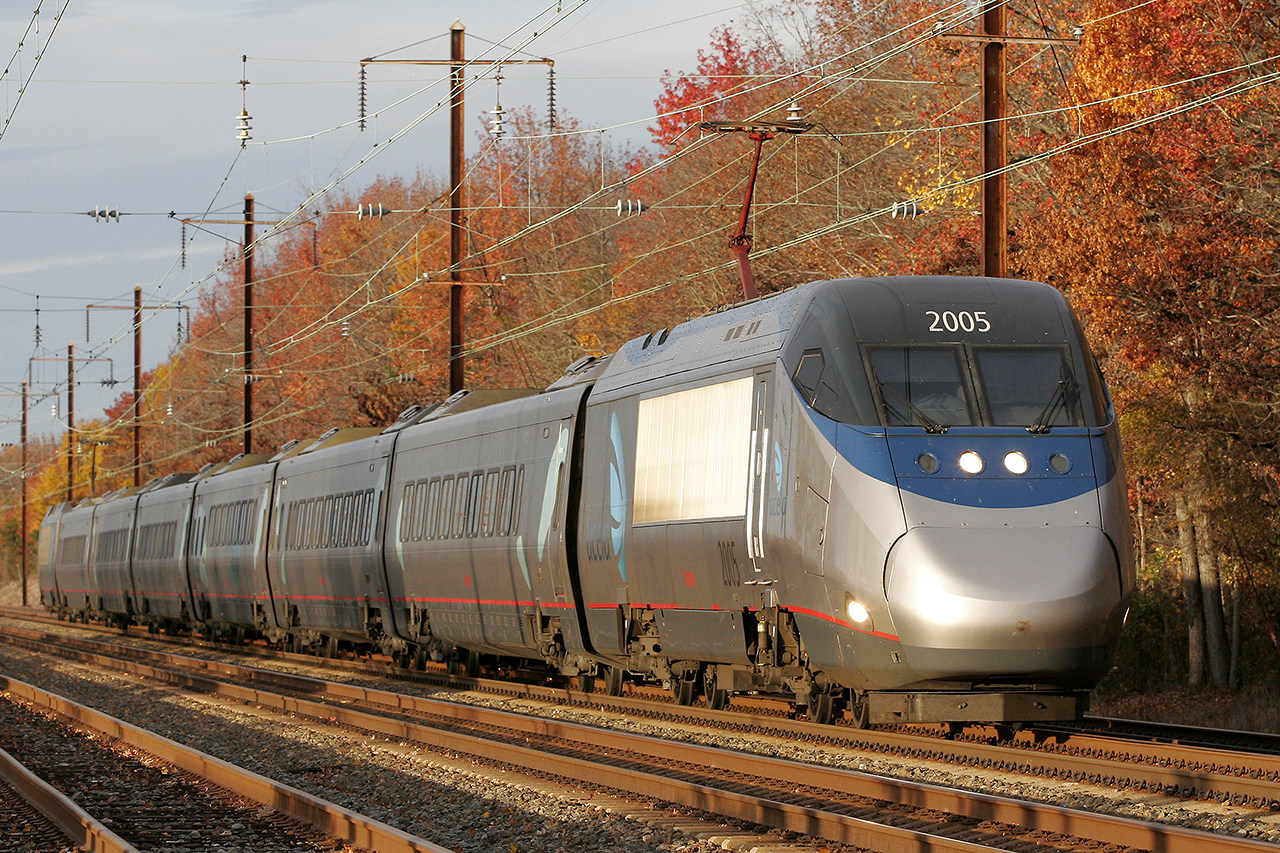

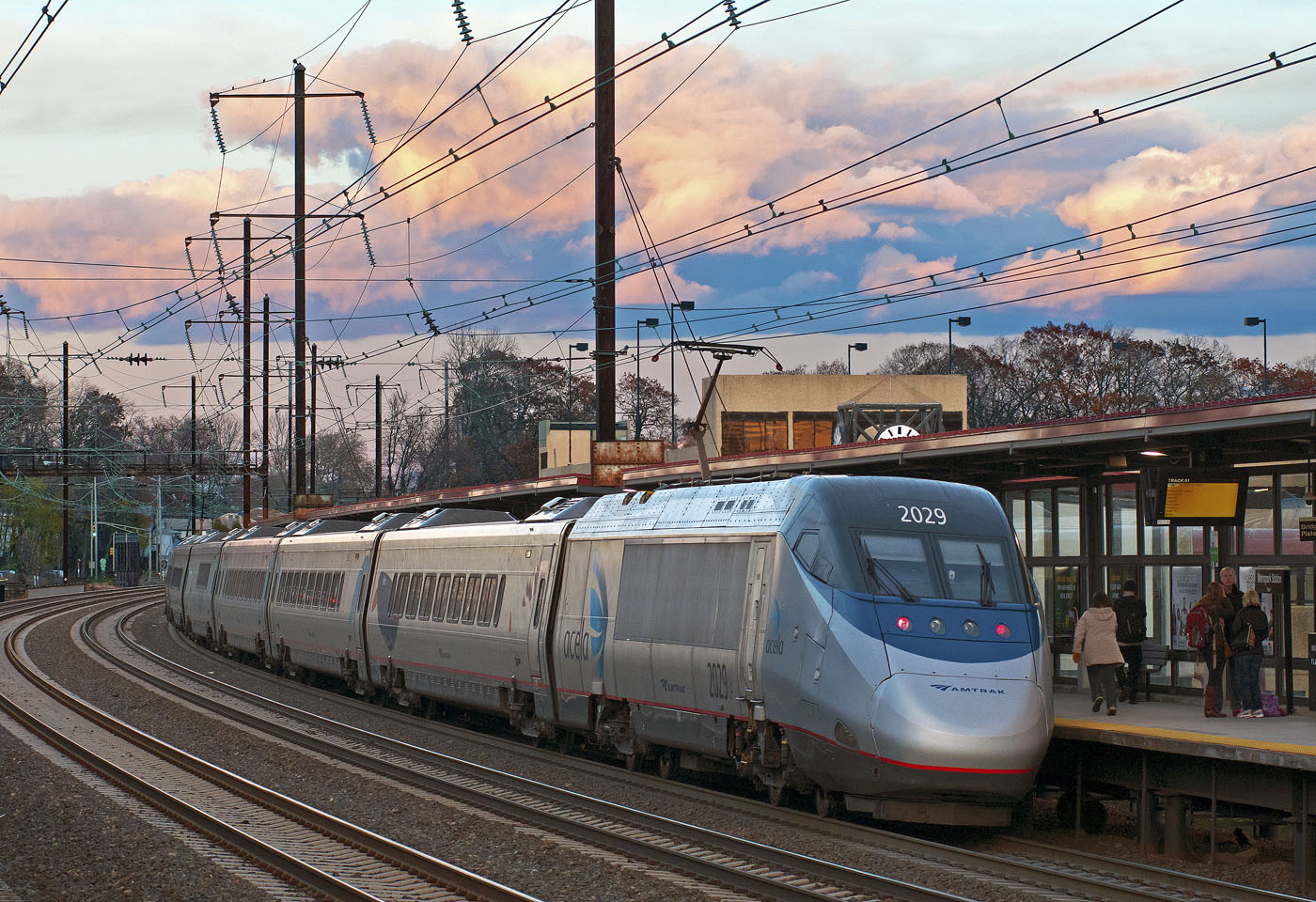

Overview of the Bombardier Acela

Experience the Acela, an impressive Electric Multiple Unit (EMU) model operated by Amtrak.

This high-speed train, constructed by GEC Alsthom and Bombardier between 1996 and 2000, boasts a remarkable top speed of 240 km/h, making it a cornerstone of American rail travel.

Measuring 203 meters in length and accommodating 304 passengers, the Acela offers a superior travel experience with a formation of 8 cars (2M6T).

Its advanced electric systems include configurations for 11.5 kV AC 25 Hz, 12.5 kV AC 60 Hz, and 25 kV AC 60 Hz, generating a powerful output of 9200 kW and a tractive effort of 225 kN.

Running on a standard gauge of 1435 mm, the Acela represents a significant achievement in modern railway engineering within the United States.

Bombardier Acela technical specifications

	Value	Imperial / US
Built by	GEC Alsthom, Bombardier · 1996–200020 units
Top speed	240 km/h149 mph	149 mph
Power output	9,200 kW12,337 hp	12,337 hp
Tractive effort	225 kN50,582 lbf	50,582 lbf
Electric systems	11,5 kV AC 25 Hz 12.5 kV AC 60 Hz 25 kV AC 60 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
Formation	8 cars (2M6T)
Capacity	1st class 44, 2nd class 260 seats
Train length	203 m666 ft 0 in	666 ft 0 in
Width	3.18 m10 ft 5 in	10 ft 5 in
Weight	566 t1,247,815 lb	1,247,815 lb
