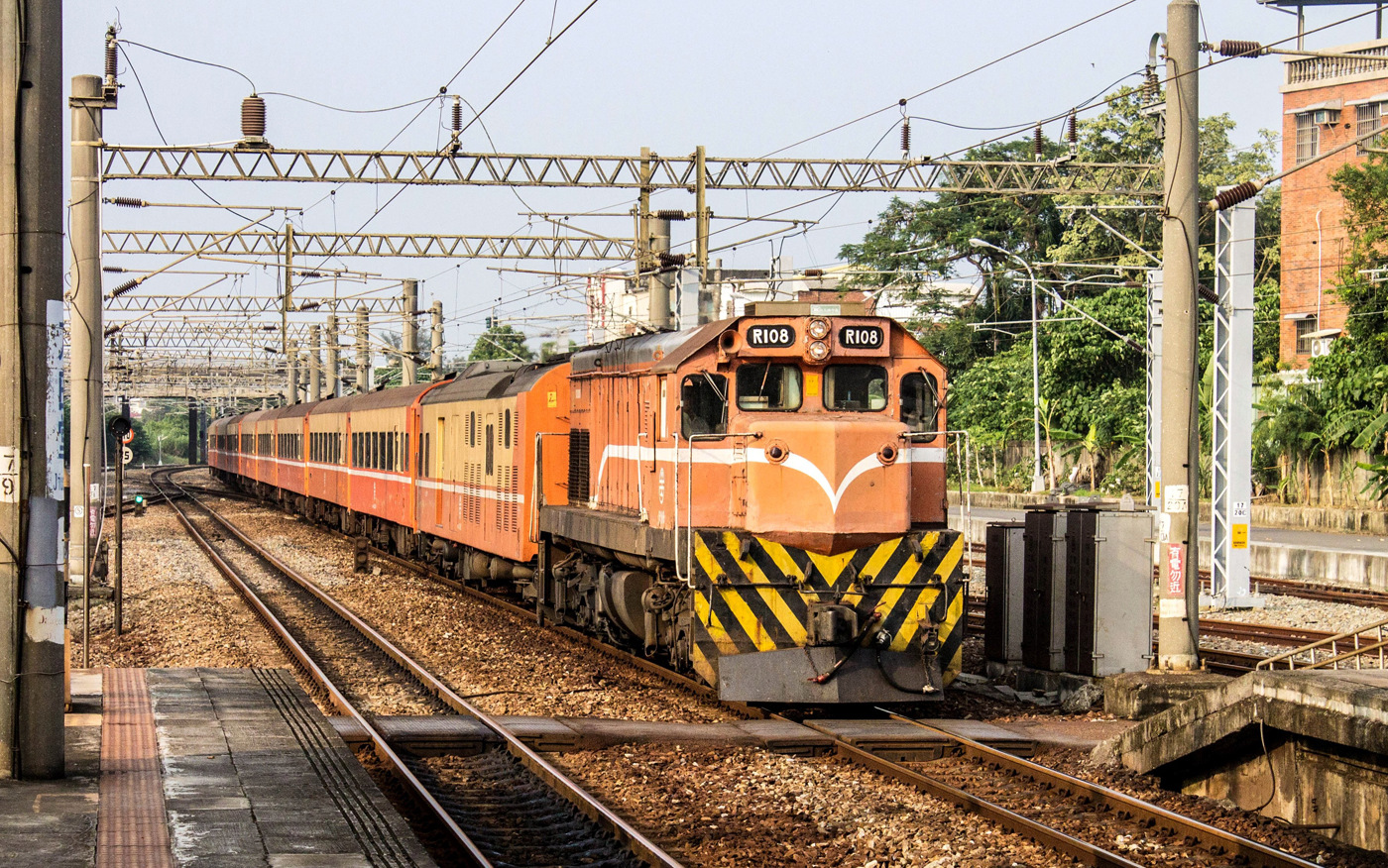

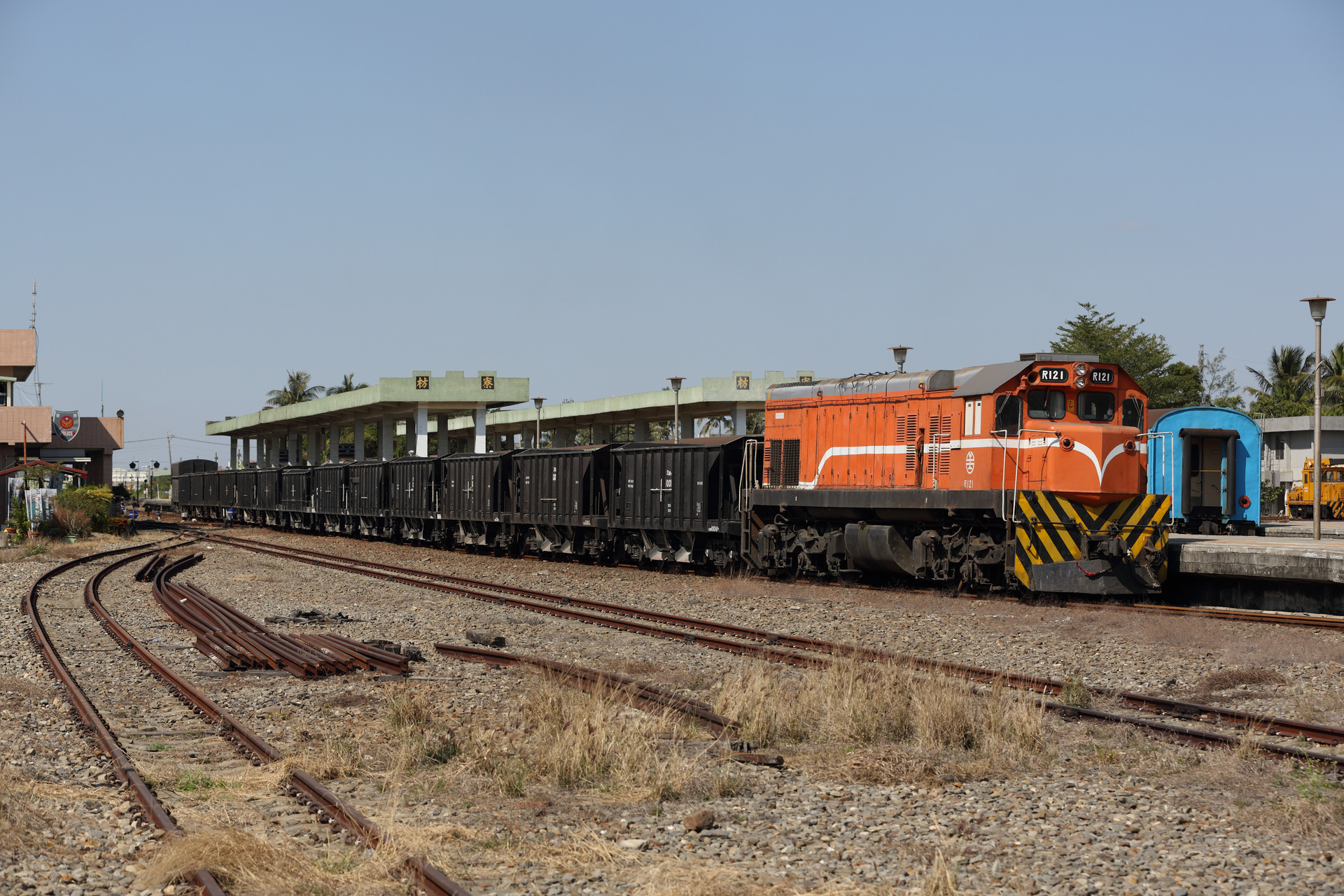

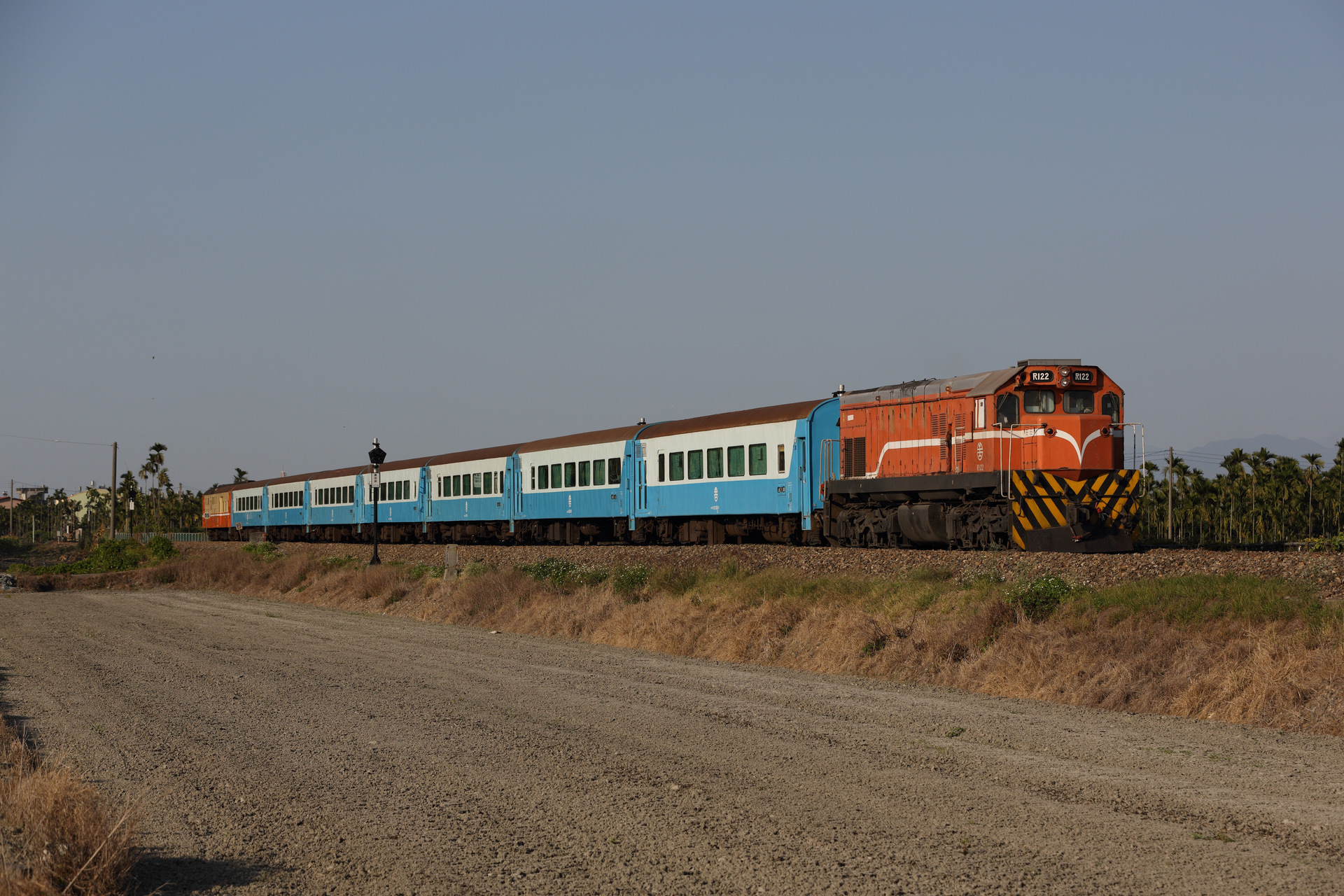

EMD G22U (TRA)

Built by EMD

Top speed

100 km/h

62 mph

Weight

78 t

171,960 lb

Length

15.8 m

51 ft 10 in

Track gauge

1,067 mm

Cape gauge

Years built

1969

39 units

Axle arrangement

(A1A)(A1A)

Overview of the EMD G22U (TRA)

Discover the G22U (TRA), a powerful diesel locomotive operated by the Taiwan Railway Administration (TRA), a key member of the TRA R100 class.

Built by EMD in 1969, this robust engine boasts a top speed of 100 km/h and a gauge of 1067 mm, making it a versatile workhorse for Taiwan's railway network.

Measuring 15.8 meters in length and weighing 78 tons, the G22U (TRA) is driven by an EMD 12-645E prime mover, delivering exceptional performance.

Featuring a distinctive (A1A)(A1A) axle configuration and an axle load of 13 tons, it is designed to tackle diverse routes with confidence.

The G22U (TRA) stands as a testament to excellent railway engineering.

EMD G22U (TRA) technical specifications

	Value	Imperial / US
Series	G22
Built by	EMD · 196939 units
Top speed	100 km/h62 mph	62 mph
Prime mover	EMD 12-645E
Track gauge	1,067 mmCape gauge3 ft 6 in	3 ft 6 in
UIC axle arrangement	(A1A)(A1A)
Length	15.8 m51 ft 10 in	51 ft 10 in
Width	2.95 m9 ft 8 in	9 ft 8 in
Height	3.92 m12 ft 10 in	12 ft 10 in
Weight	78 t171,960 lb	171,960 lb
Axle load	13 t28,660 lb	28,660 lb
