Locomotive-Specs
EMD SD38-2 – photo 1© trainspo.com
Diesel locomotive

EMD SD38-2

Built by EMD, GMD

Power output
1,500 kW
2,012 hp
Weight
166 t
365,967 lb
Length
20.98 m
68 ft 10 in
Track gauge
1,435 mm
Standard gauge
Years built
1972–1979
88 units
Axle arrangement
Co'Co'

Overview of the EMD SD38-2

Discover the EMD SD38-2, a powerful and reliable diesel locomotive renowned for its effectiveness in freight operations across North America. Its robust design and enduring performance have made it a staple for many railway companies.

Built by EMD and GMD between 1972 and 1979, the SD38-2 features an EMD 16-645E prime mover, delivering a substantial 1500 kW of power. With a length exceeding 20 meters and weighing approximately 166 tons, this locomotive is engineered for demanding traction duties.

The SD38-2 boasts a significant operational history, serving prominent railroads such as the Canadian National Railway, Burlington Northern, and Bessemer and Lake Erie Railroad. Its widespread adoption is a testament to its versatility, durability, and consistent performance on the tracks.

EMD SD38-2 technical specifications

Value
SeriesSD38
FamilyDash 2
Built byEMD, GMD · 1972–197988 units
Power output1,500 kW2,012 hp
Prime moverEMD 16-645E
Track gauge1,435 mmStandard gauge4 ft 8½ in
UIC axle arrangementCo'Co'
Length20.98 m68 ft 10 in
Width3.13 m10 ft 3 in
Height4.75 m15 ft 7 in
Weight166 t365,967 lb
Source of the data: en.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the EMD SD38-2

Railway companies that have operated the SD38-2, with the class designation used by each of them.

OperatorClassCountry
Canadian National RailwayCN SD38-2Canada
Bessemer and Lake Erie RailroadBLE SD38-2United States
Burlington NorthernBN SD38-2United States
Chicago and Illinois Midland RailwayCIM SD38-2United States
Duluth, Missabe and Iron Range RailwayDMIR SD38-2United States
Elgin, Joliet and Eastern RailwayEJE SD38-2United States
Indiana Harbor Belt RailroadIHB SD38-2United States
Iowa Interstate RailroadIAIS SD38-2United States
McCloud RailwayMCR SD38-2United States
McCloud River Railroad CompanyMCRR SD38-2United States
Private owners group@private-us SD38-2United States

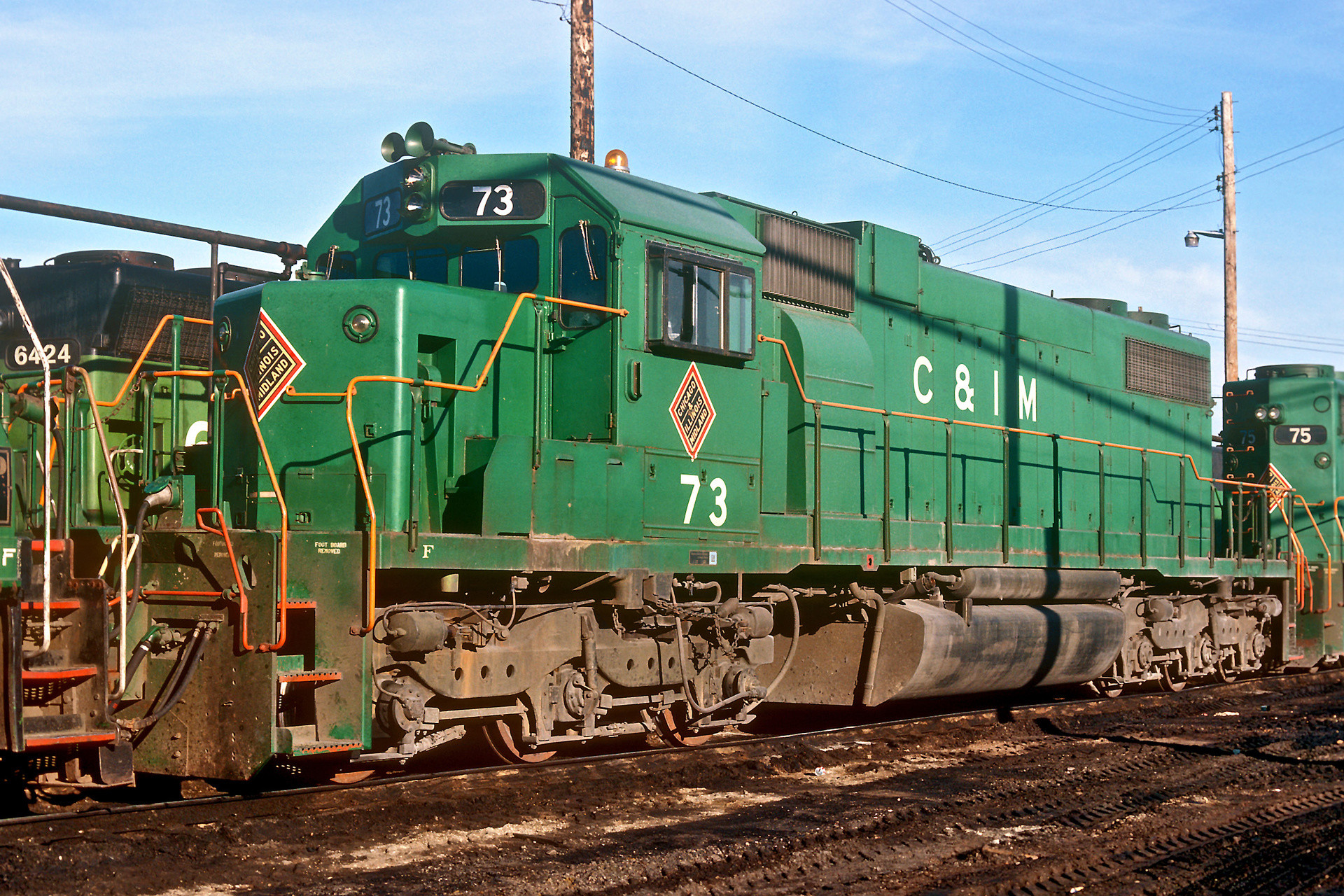

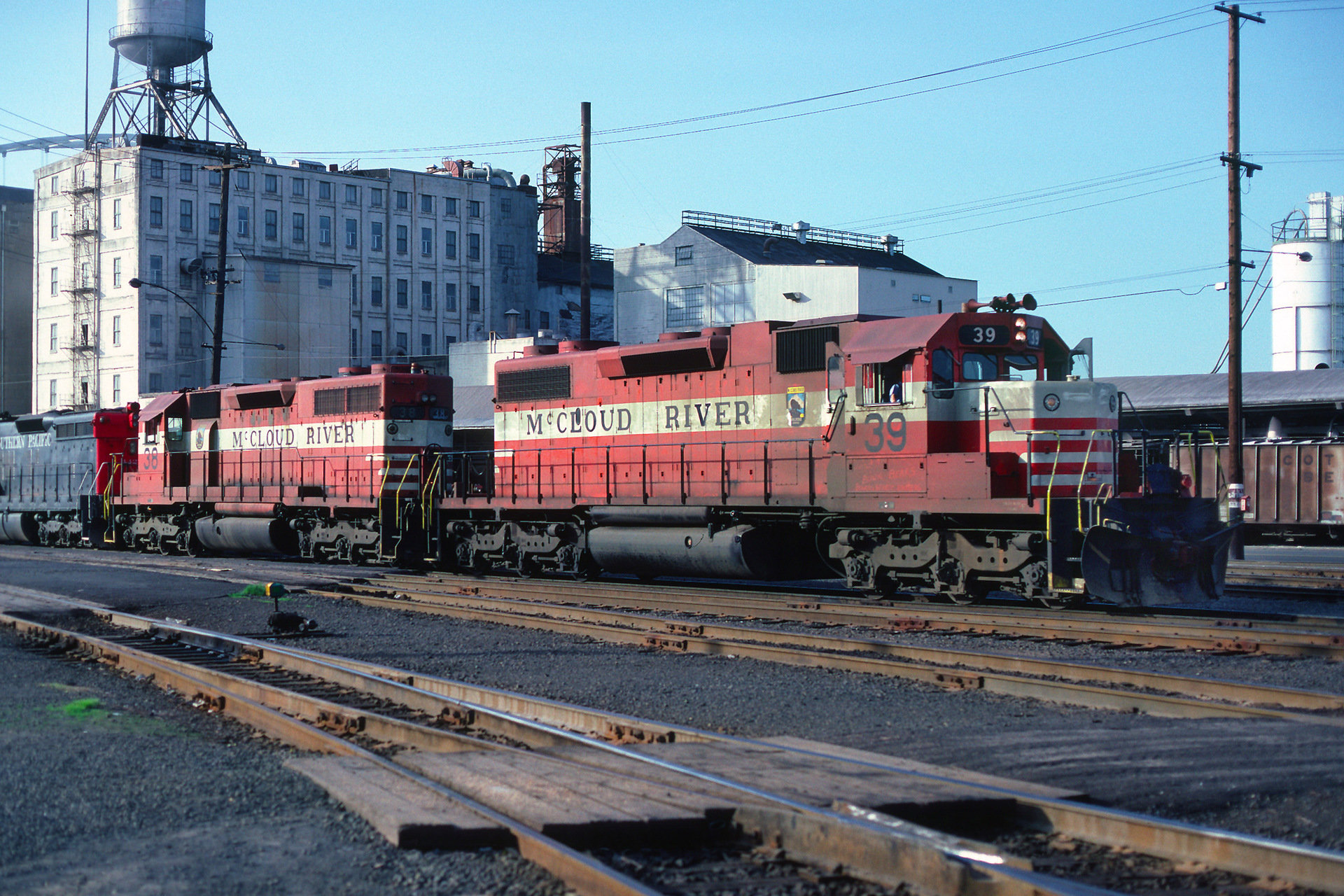

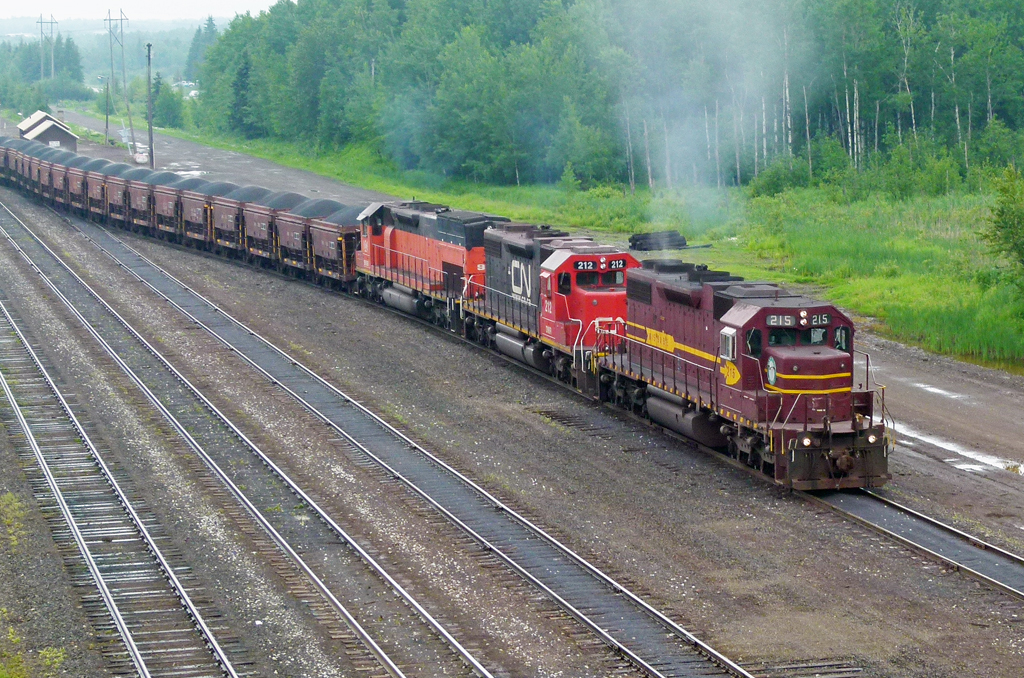

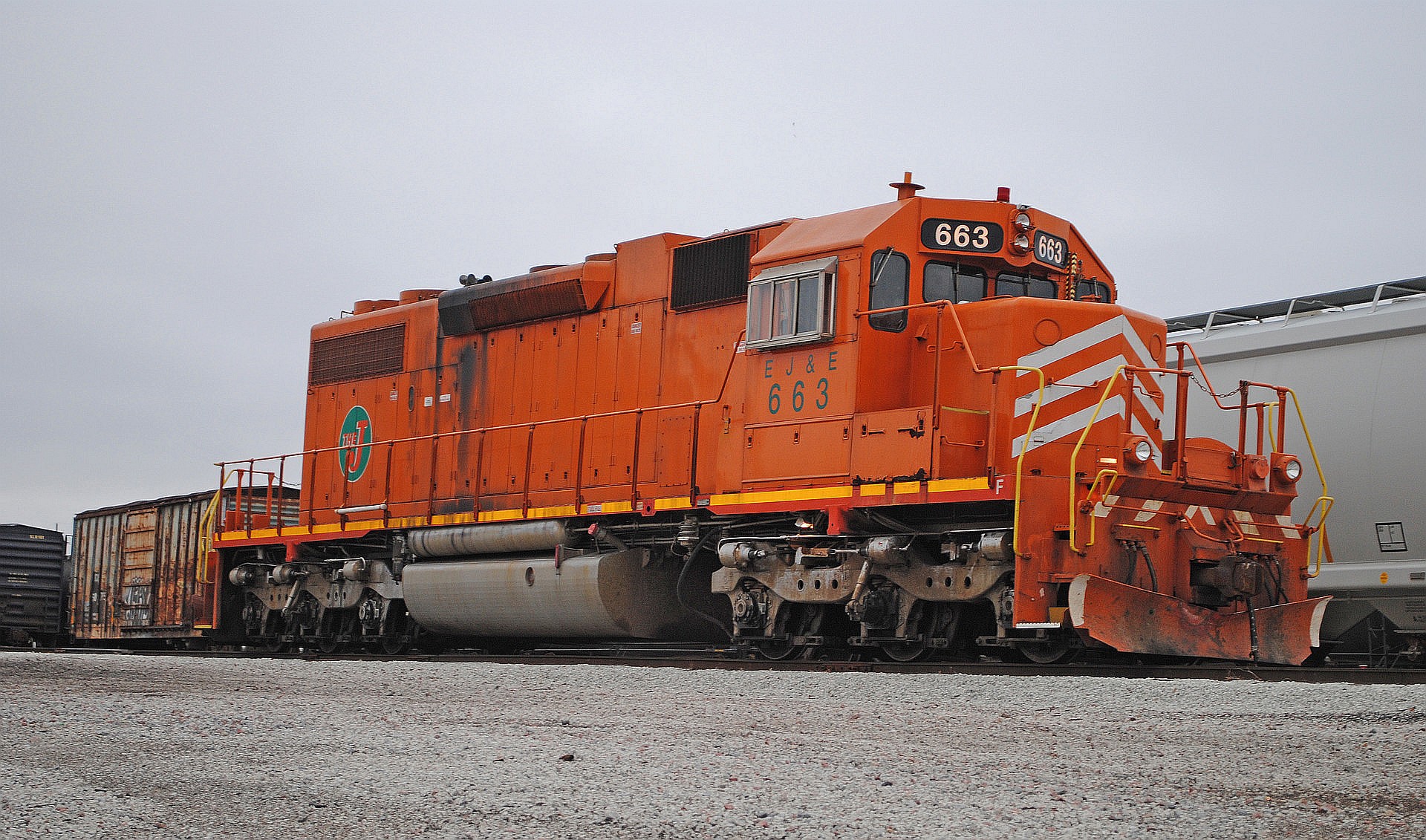

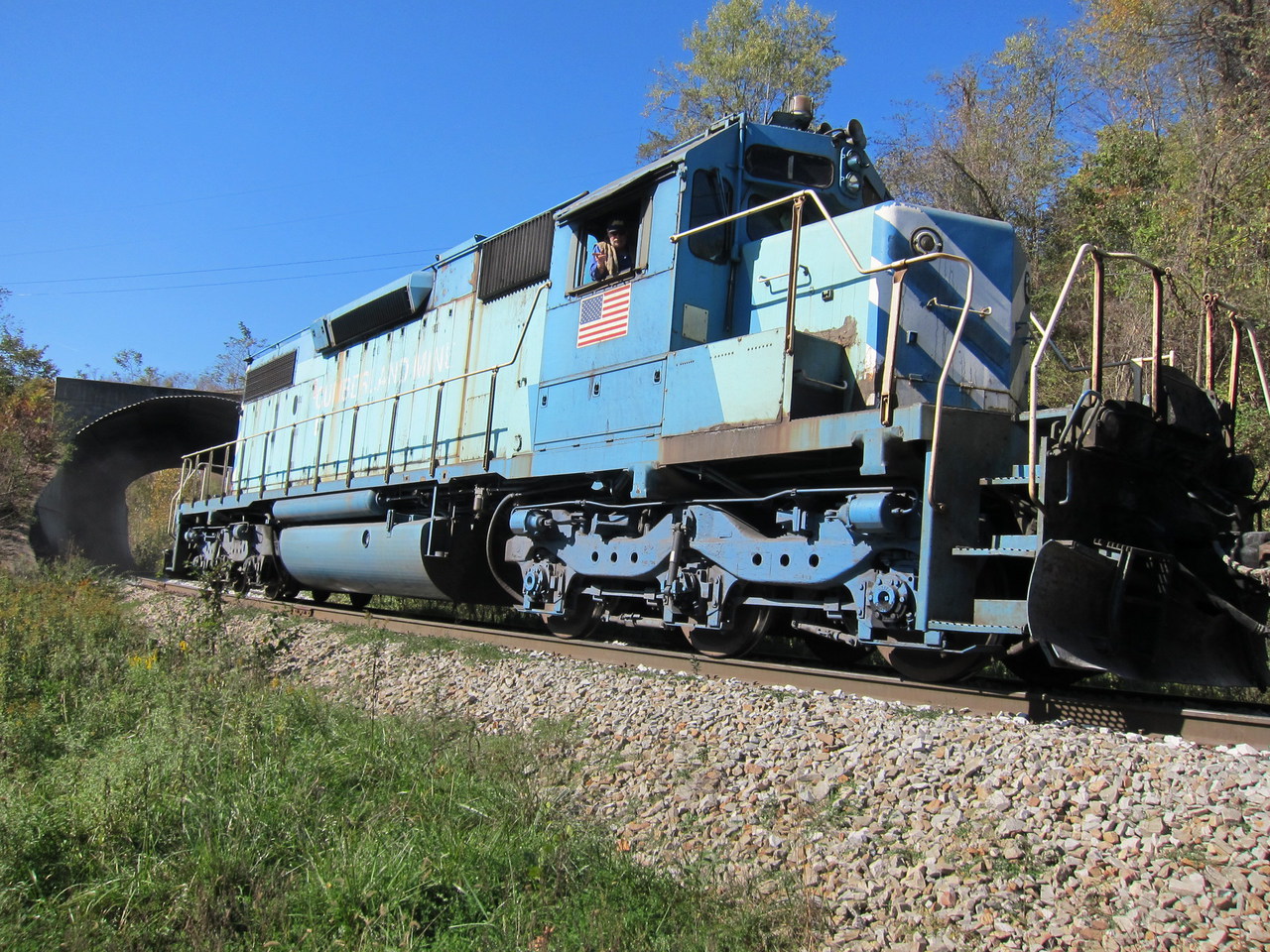

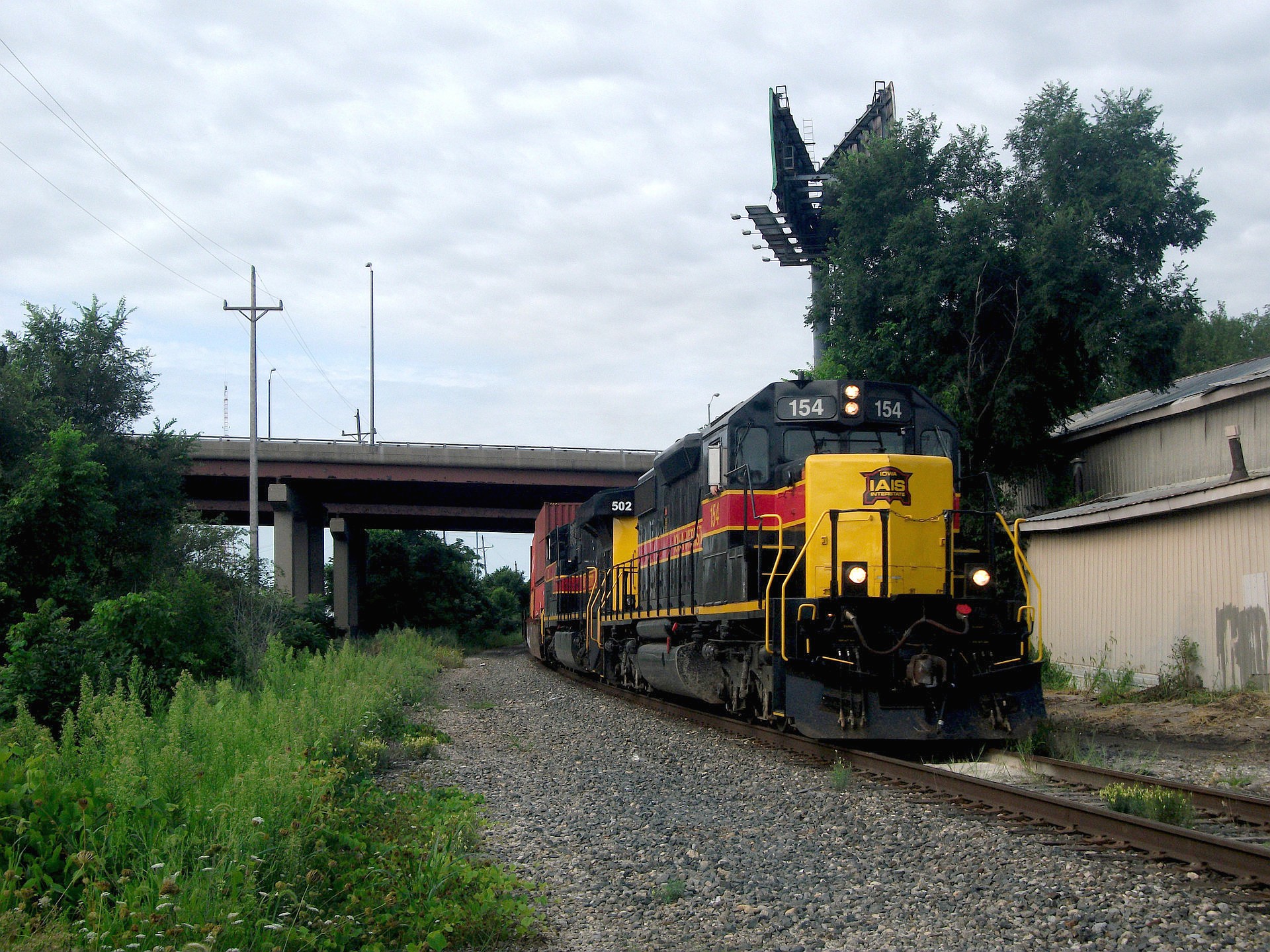

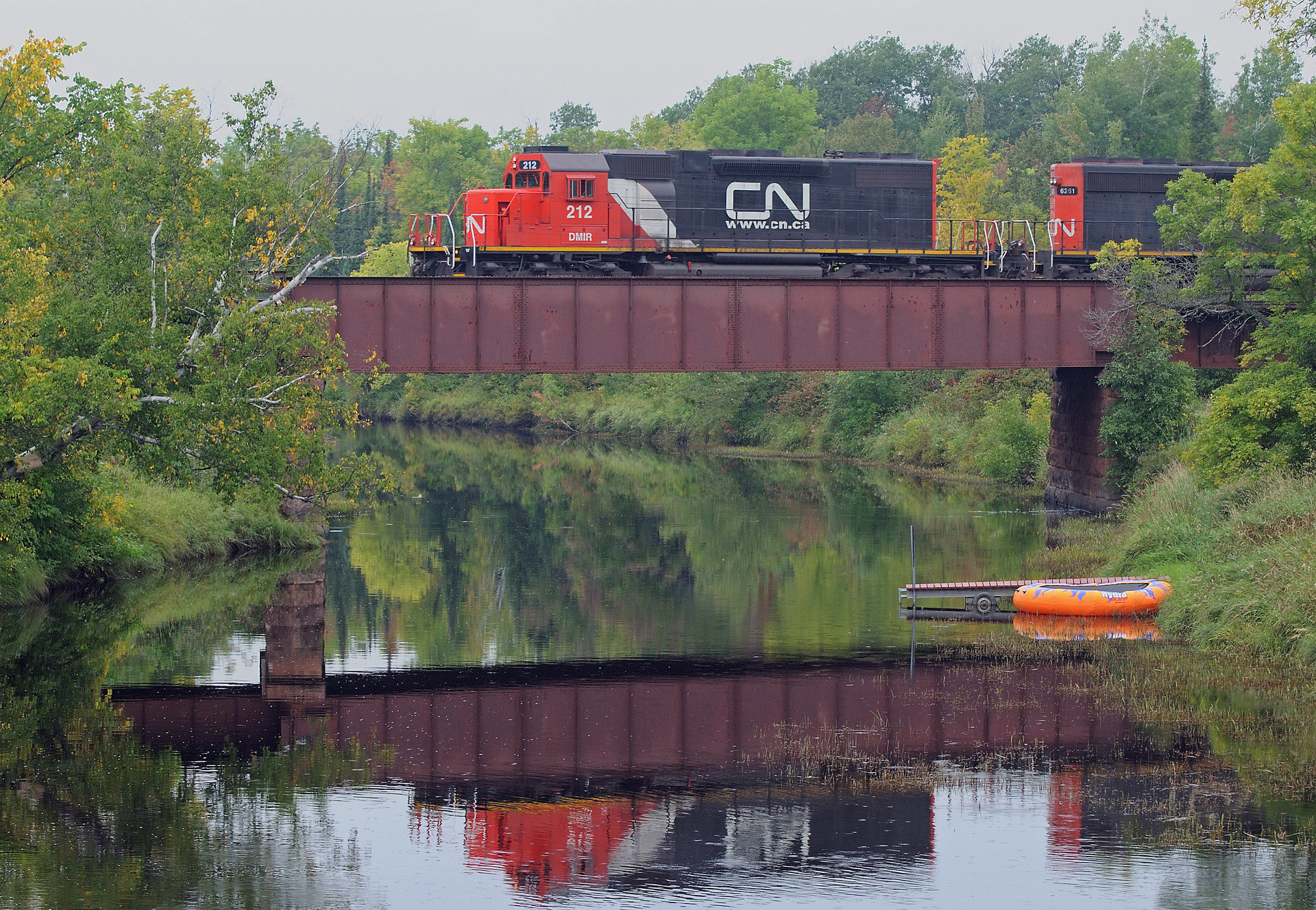

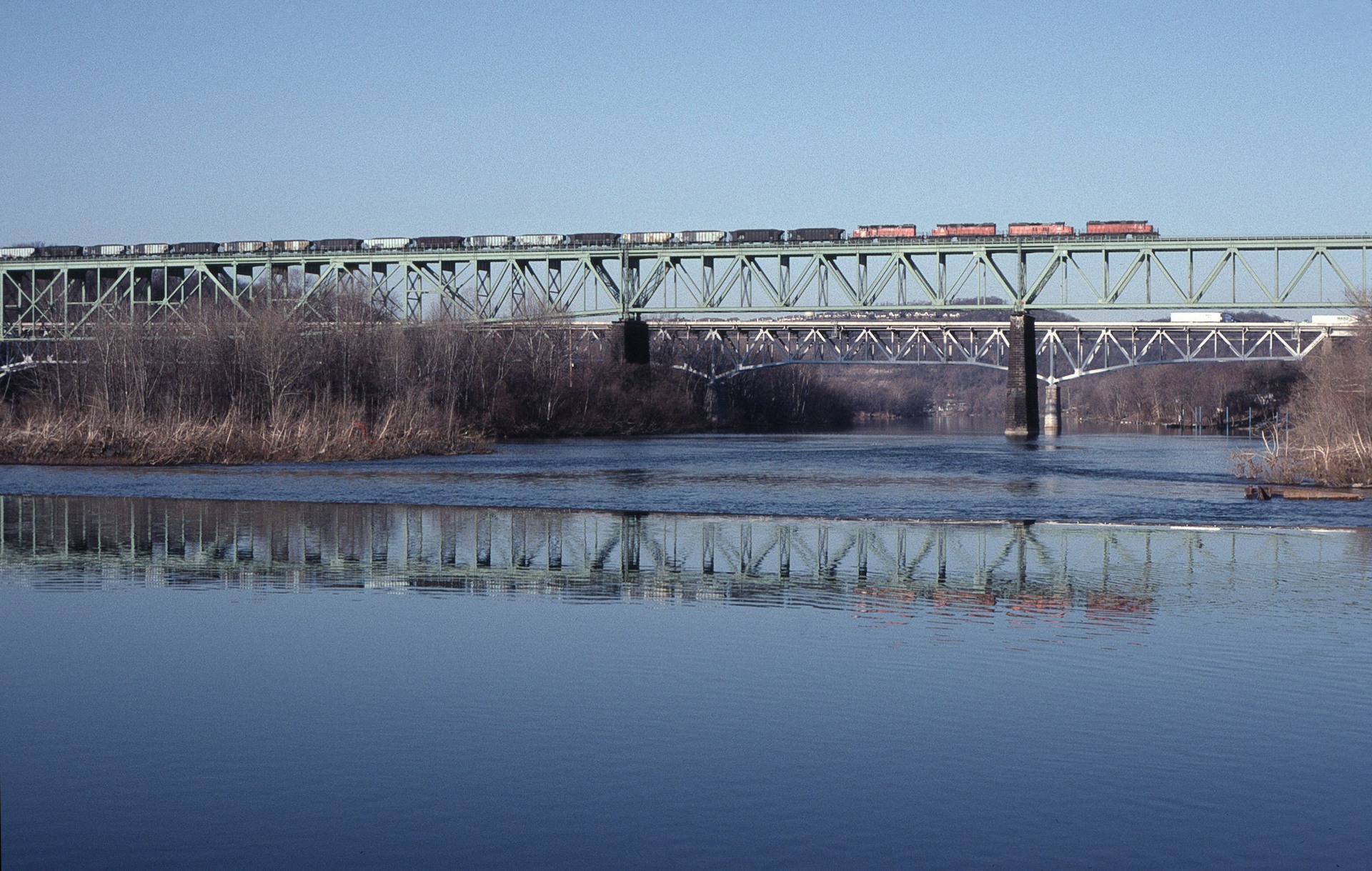

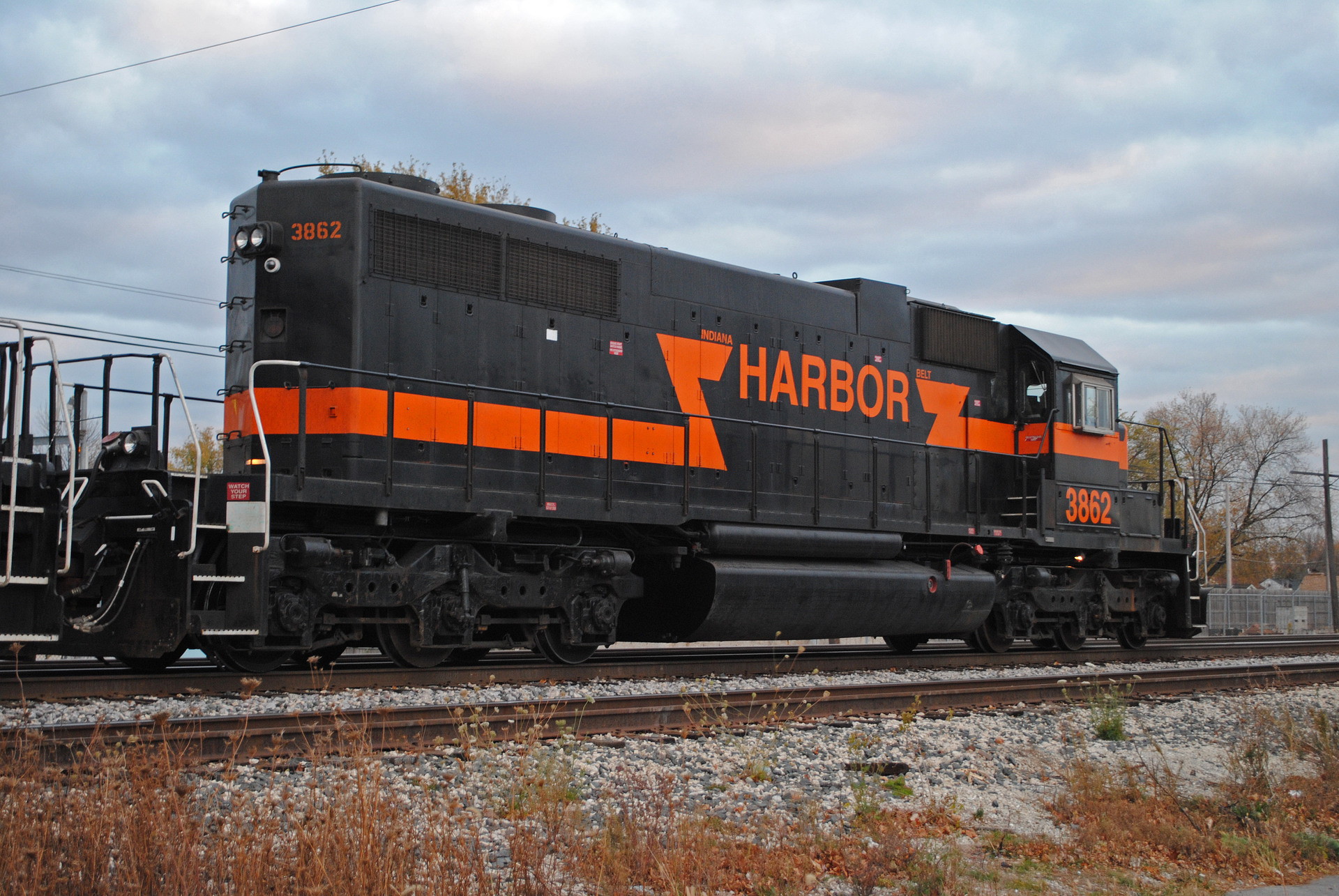

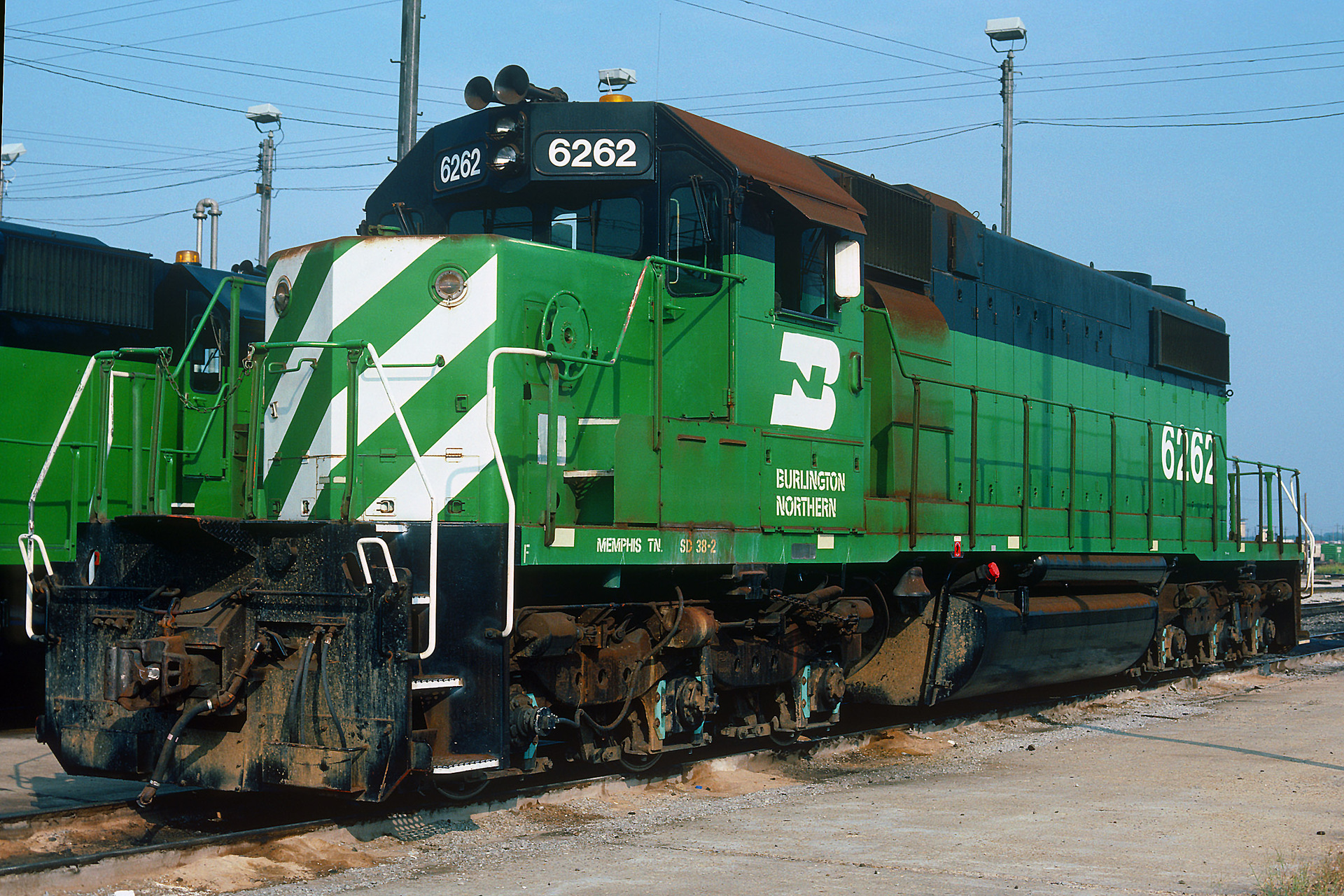

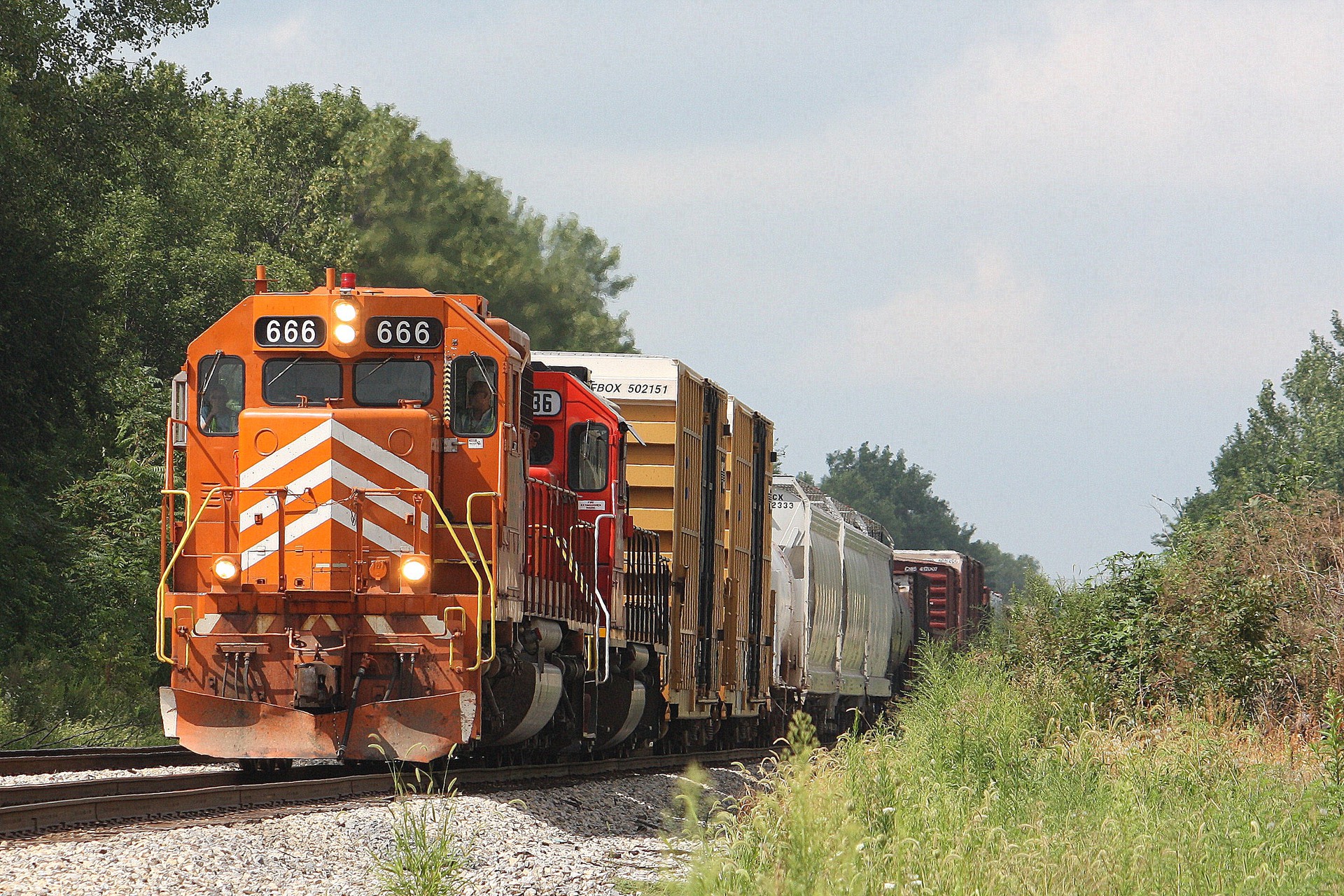

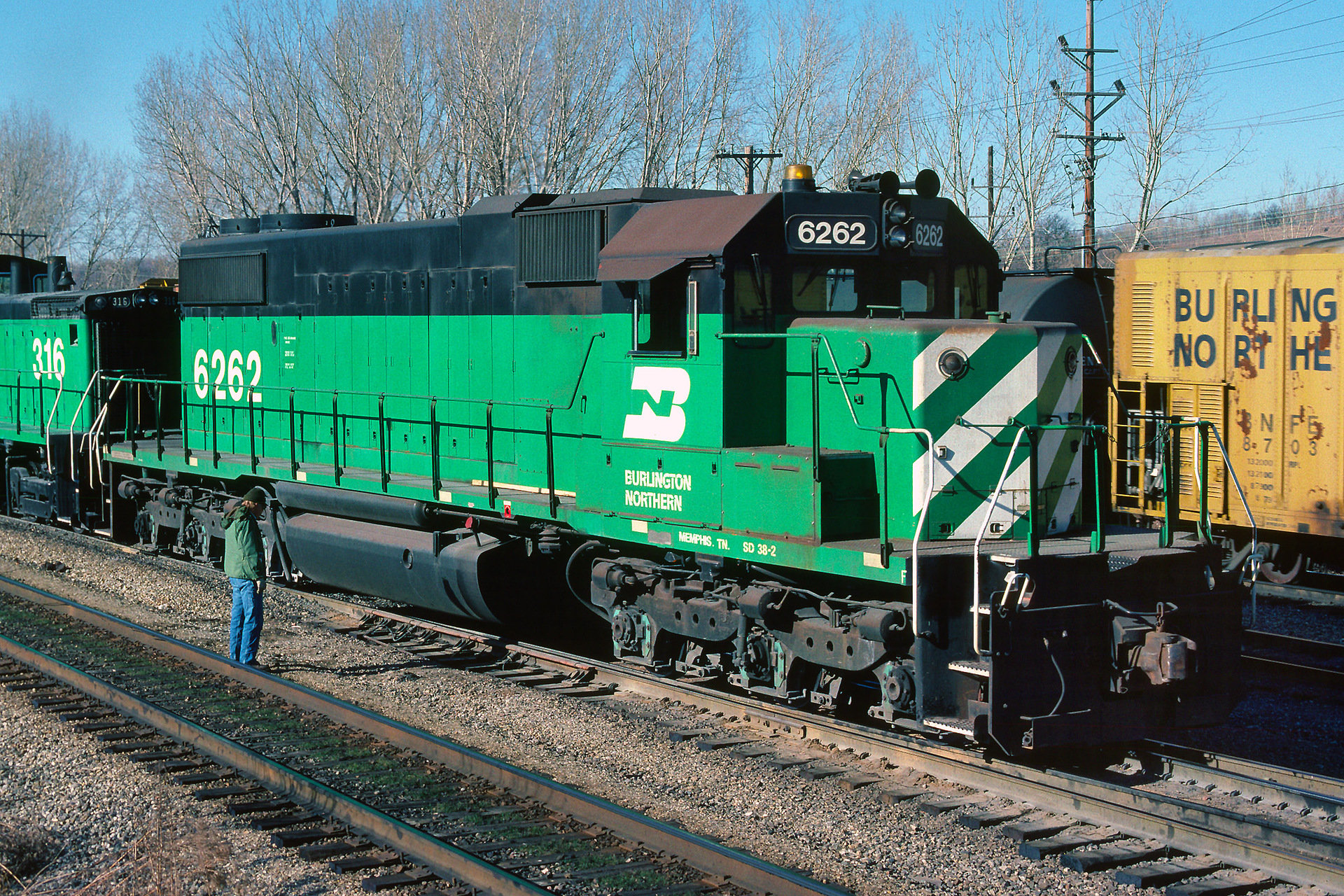

EMD SD38-2 photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
