© trainspo.comFiat ATAC 9100
Built by Fiat
Overview of the Fiat ATAC 9100
Discover the ATAC 9100, a modern and reliable tram designed for urban transport in Italy.
Built by Fiat between 1997 and 1999, this model is part of the Nuova ATAC SpA fleet and consists of 28 units.
With a capacity of 54 seats and a top speed of 70 km/h, the ATAC 9100 offers efficient and comfortable service to passengers.
Its width of 2.4 meters and a weight of 61 tons make it perfectly suited for city infrastructure.
Equipped with a 600 V DC electric system and a 1445 mm track gauge, this 31.25-meter tram is a key element for Italian urban mobility.
Fiat ATAC 9100 technical specifications
| Value | Imperial / US | |
|---|---|---|
| Built by | Fiat · 1997–199928 units | |
| Top speed | 70 km/h43 mph | |
| Electric systems |
| |
| Track gauge | 1,445 mmStandard gauge4 ft 8⅞ in | |
| UIC axle arrangement | Bo'2'2'Bo' | |
| Capacity | 54 seats | |
| Train length | 31.25 m102 ft 6 in | |
| Width | 2.4 m7 ft 10 in | |
| Height | 3.5 m11 ft 6 in | |
| Weight | 61 t134,482 lb |
Operators of the Fiat ATAC 9100
Railway companies that have operated the ATAC 9100, with the class designation used by each of them.
| Operator | Class | Country |
|---|---|---|
| Nuova ATAC SpA | ATAC 9100 | Italy |

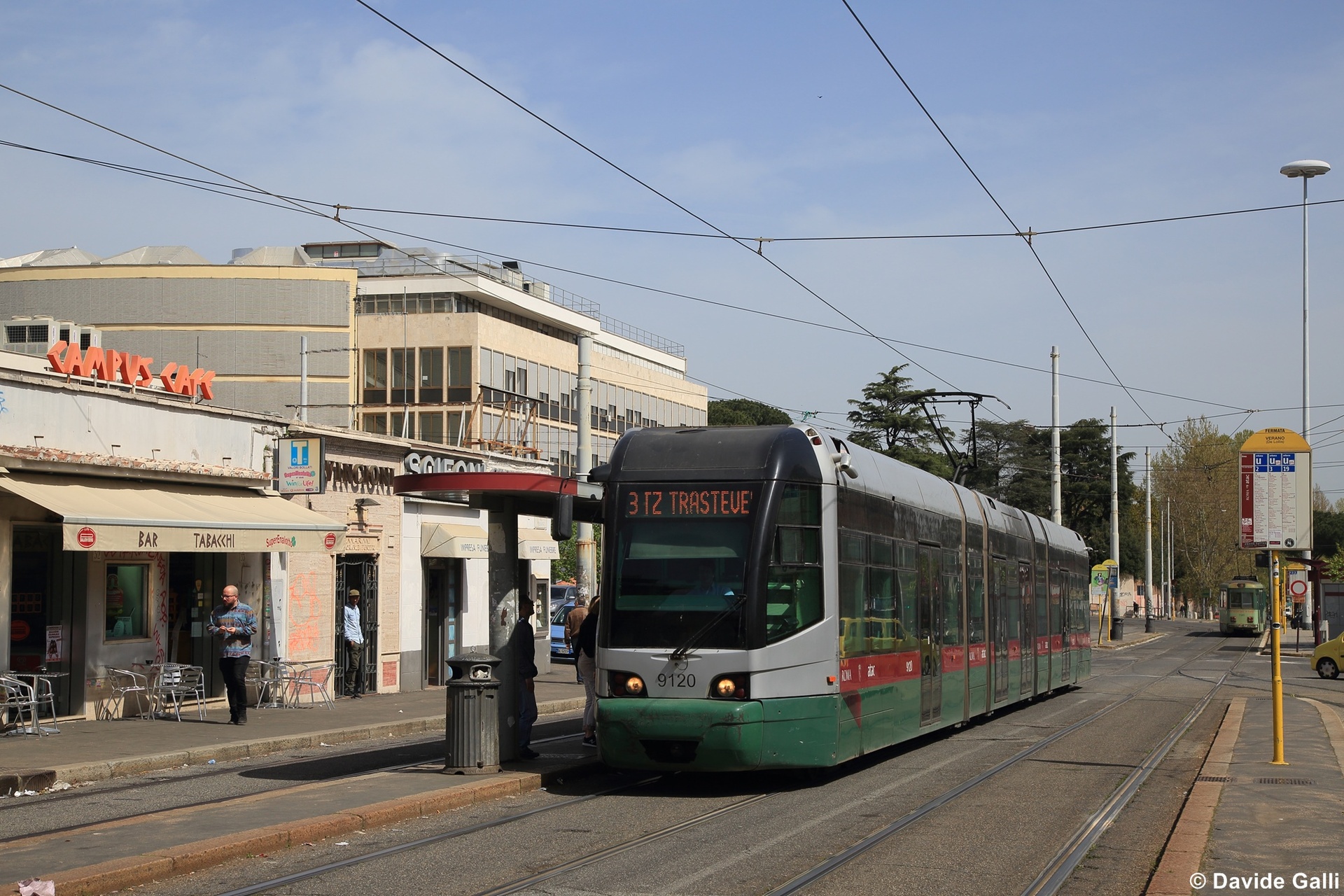

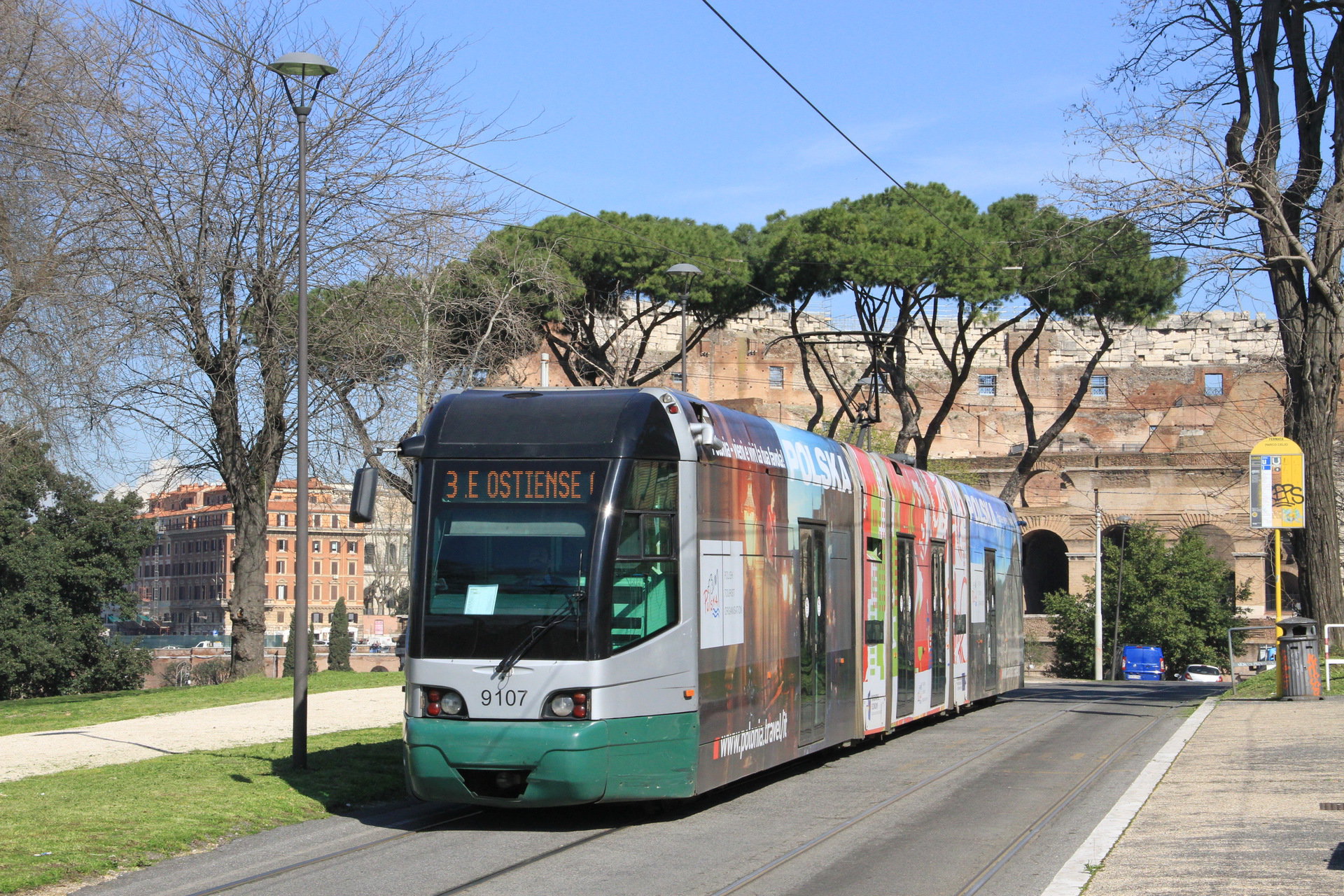

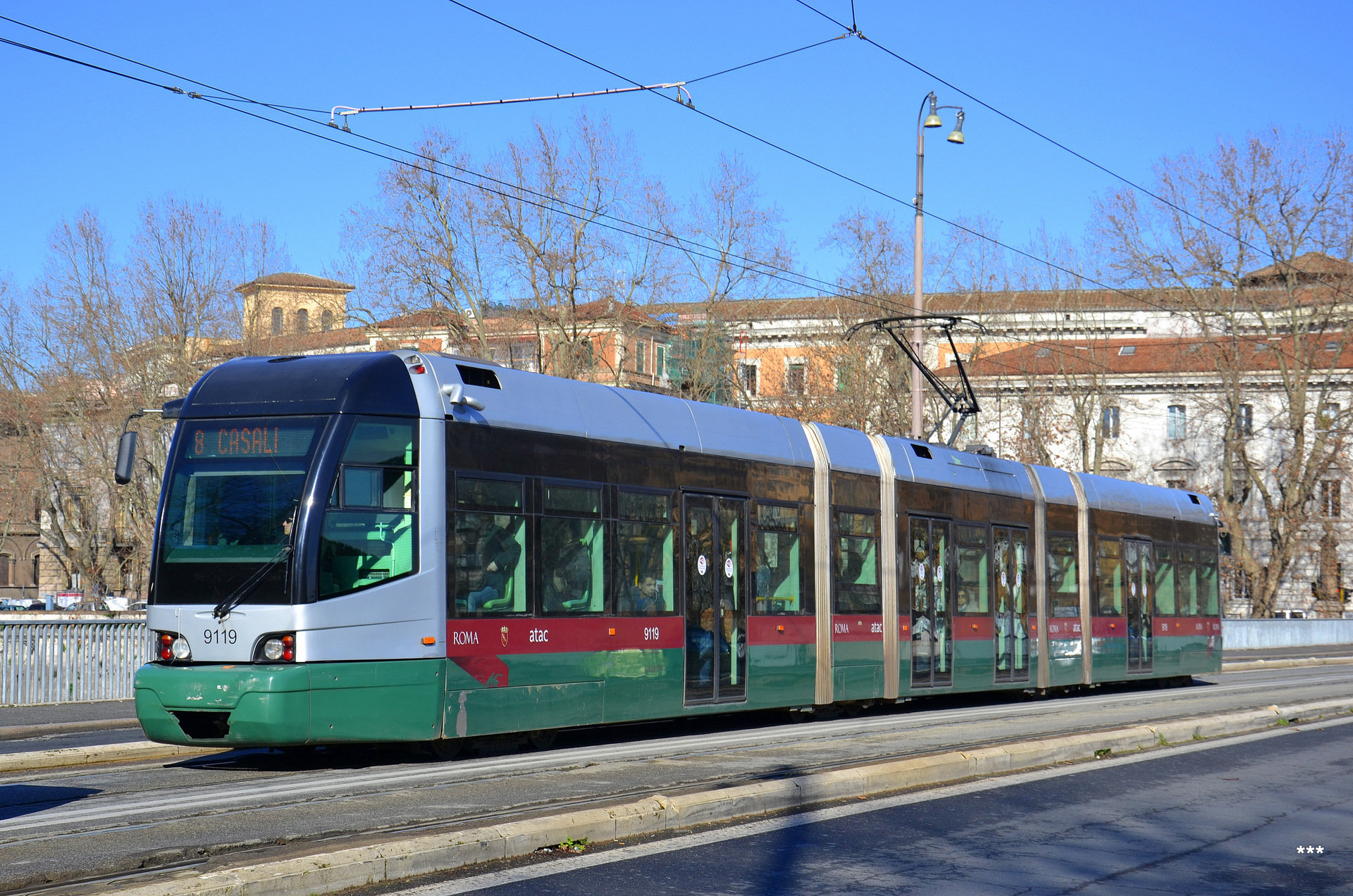

Fiat ATAC 9100 photos
Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
