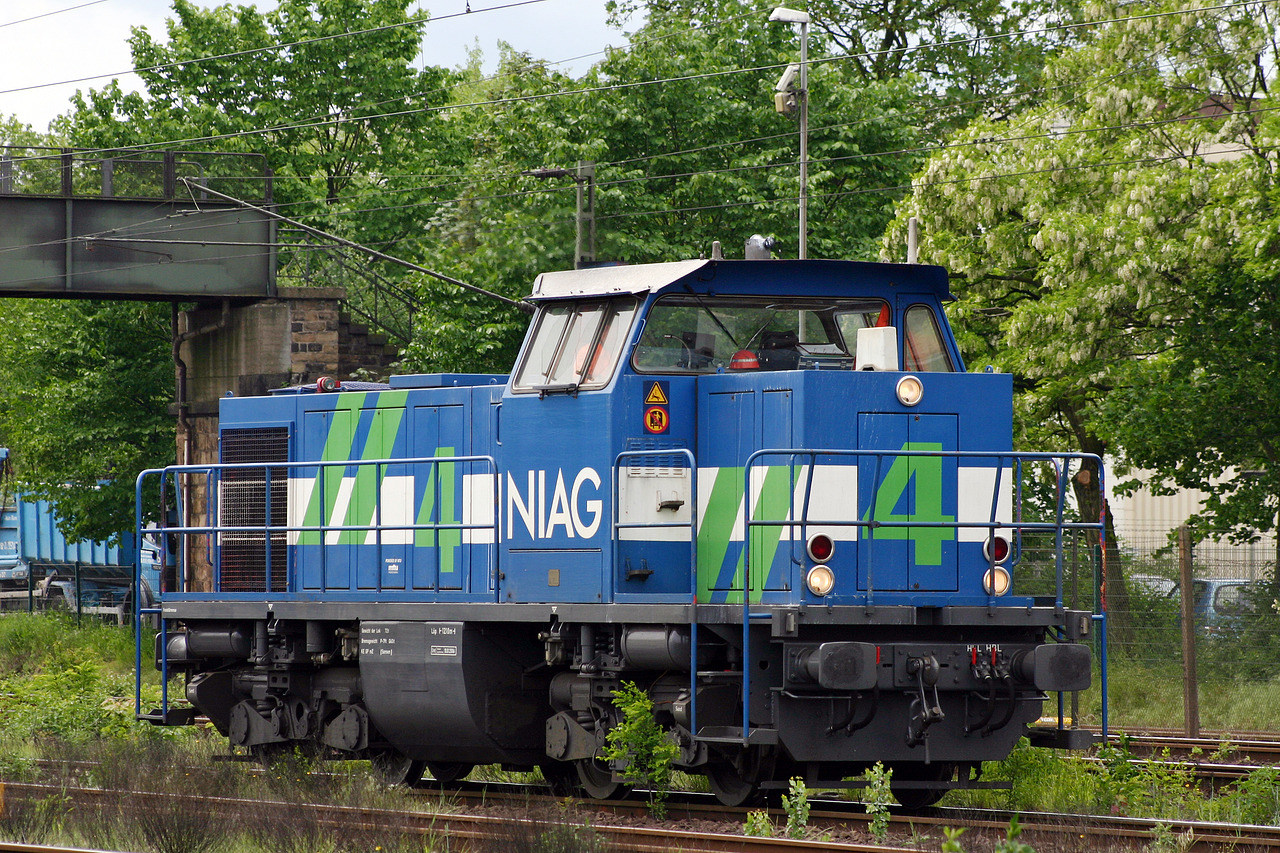

MaK DH 1004

Built by MaK

Top speed

100 km/h

62 mph

Power output

1,030 kW

1,381 hp

Weight

72 t

158,733 lb

Length

12.1 m

39 ft 8 in

Track gauge

1,435 mm

Standard gauge

Axle arrangement

B'B'

Overview of the MaK DH 1004

Discover the DH 1004, a robust diesel locomotive with a B'B' axle arrangement.

This powerful locomotive, known as the NIAG DH 1004 during its service with Niederrheinische Verkehrsbetriebe AG in Germany, boasts a top speed of 100 km/h.

With a length of 12.1 meters and a weight of 72 tons, the DH 1004 is well-suited for freight operations on standard gauge (1435 mm) tracks.

It is powered by an MTU 12V 396 TC14 engine, delivering an impressive 1030 kW of power.

Originally part of the MaK V100 series, this locomotive underwent comprehensive refurbishment by Vossloh between 1997 and 2003.

MaK DH 1004 technical specifications

	Value	Imperial / US
Series	MaK V100
Built by	MaK
Refurbished	Vossloh 1997 - 2003 (8)
Top speed	100 km/h62 mph	62 mph
Power output	1,030 kW1,381 hp	1,381 hp
Prime mover	MTU 12V 396 TC14
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	B'B'
Length	12.1 m39 ft 8 in	39 ft 8 in
Width	3.12 m10 ft 3 in	10 ft 3 in
Weight	72 t158,733 lb	158,733 lb
