MTM DH-700

Built by MTM

Top speed

50 km/h

31 mph

Power output

385 kW

516 hp

Weight

54 t

119,049 lb

Length

9.96 m

32 ft 8 in

Track gauge

1,668 mm

Iberian gauge

Years built

1986–1987

Overview of the MTM DH-700

Discover the DH-700, a robust diesel locomotive built by MTM between 1986 and 1987.

This versatile machine, classified as a C-wheel arrangement, boasts a length of 9.96 meters and a width of 3.2 meters, with a height of 4.21 meters. It operates on a broad 1668 mm gauge track.

The DH-700 is equipped with a powerful 385 kW engine, delivering an impressive tractive effort of 177 kN. Its top speed reaches 50 km/h, making it suitable for various operational needs.

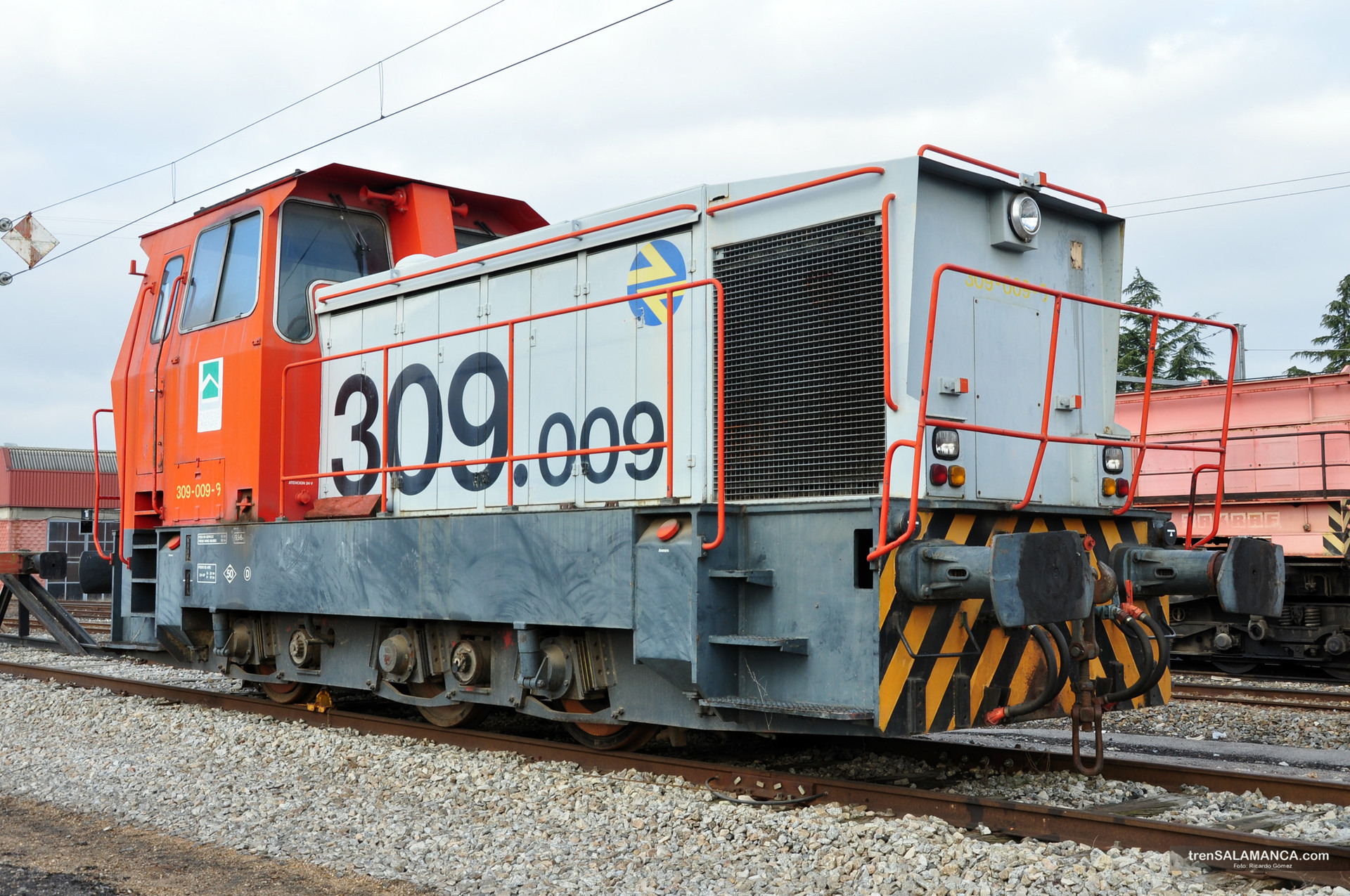

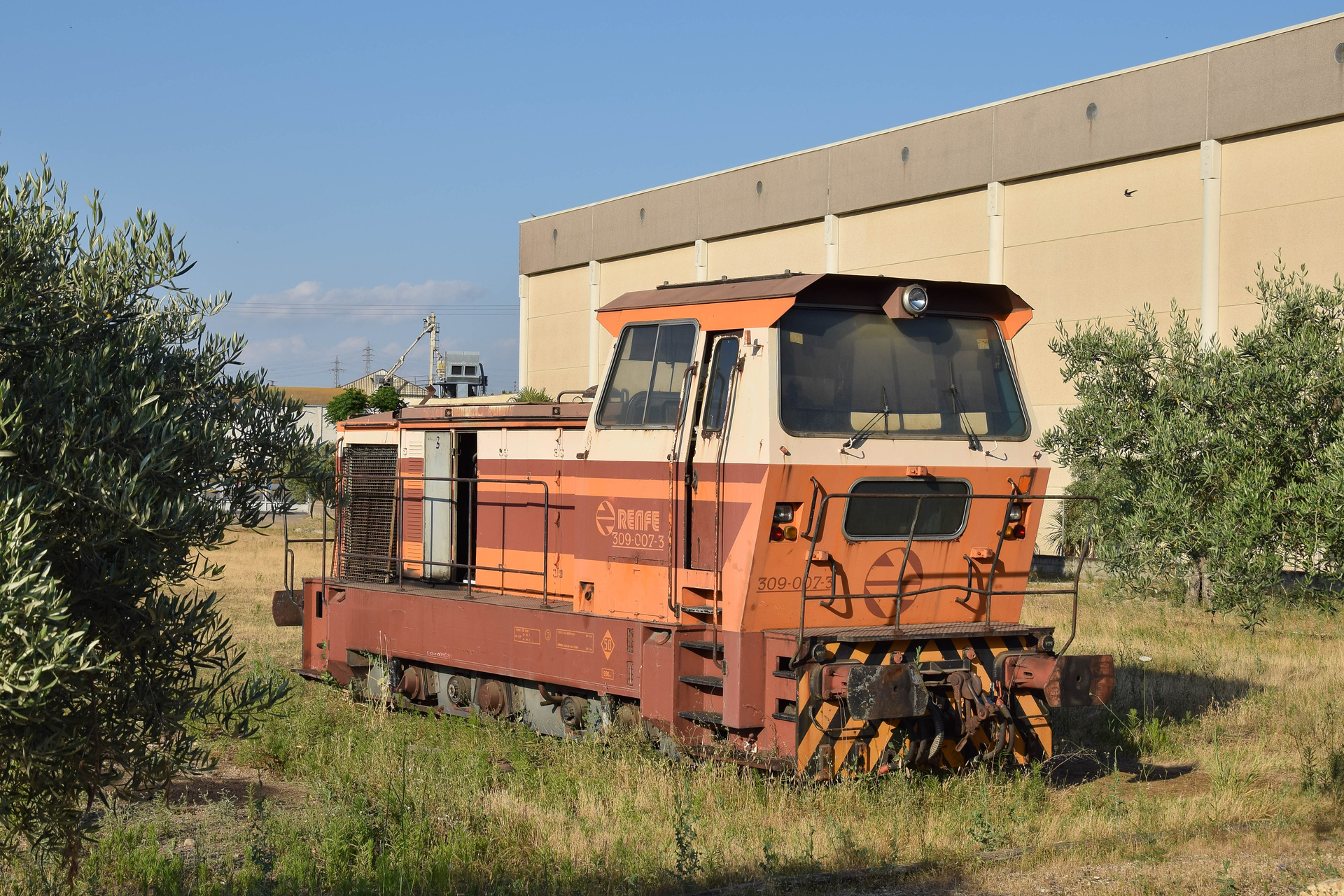

In Spain, this type of locomotive is operated by Renfe Operadora under the RENFE 309 class designation. Its substantial weight of 54 tons underscores its sturdy construction.

MTM DH-700 technical specifications

	Value	Imperial / US
Built by	MTM · 1986–1987
Top speed	50 km/h31 mph	31 mph
Power output	385 kW516 hp	516 hp
Tractive effort	177 kN39,791 lbf	39,791 lbf
Track gauge	1,668 mmIberian gauge5 ft 5⅝ in	5 ft 5⅝ in
UIC axle arrangement	C
Length	9.96 m32 ft 8 in	32 ft 8 in
Width	3.2 m10 ft 6 in	10 ft 6 in
Height	4.21 m13 ft 10 in	13 ft 10 in
Weight	54 t119,049 lb	119,049 lb
