Siemens Alfa Pendular 4000

Built by Adtranz, Fiat, Siemens

Top speed

220 km/h

137 mph

Power output

4,000 kW

5,364 hp

Weight

298 t

656,977 lb

Length

159 m

521 ft 8 in

Track gauge

1,668 mm

Iberian gauge

Years built

1999–2001

10 units

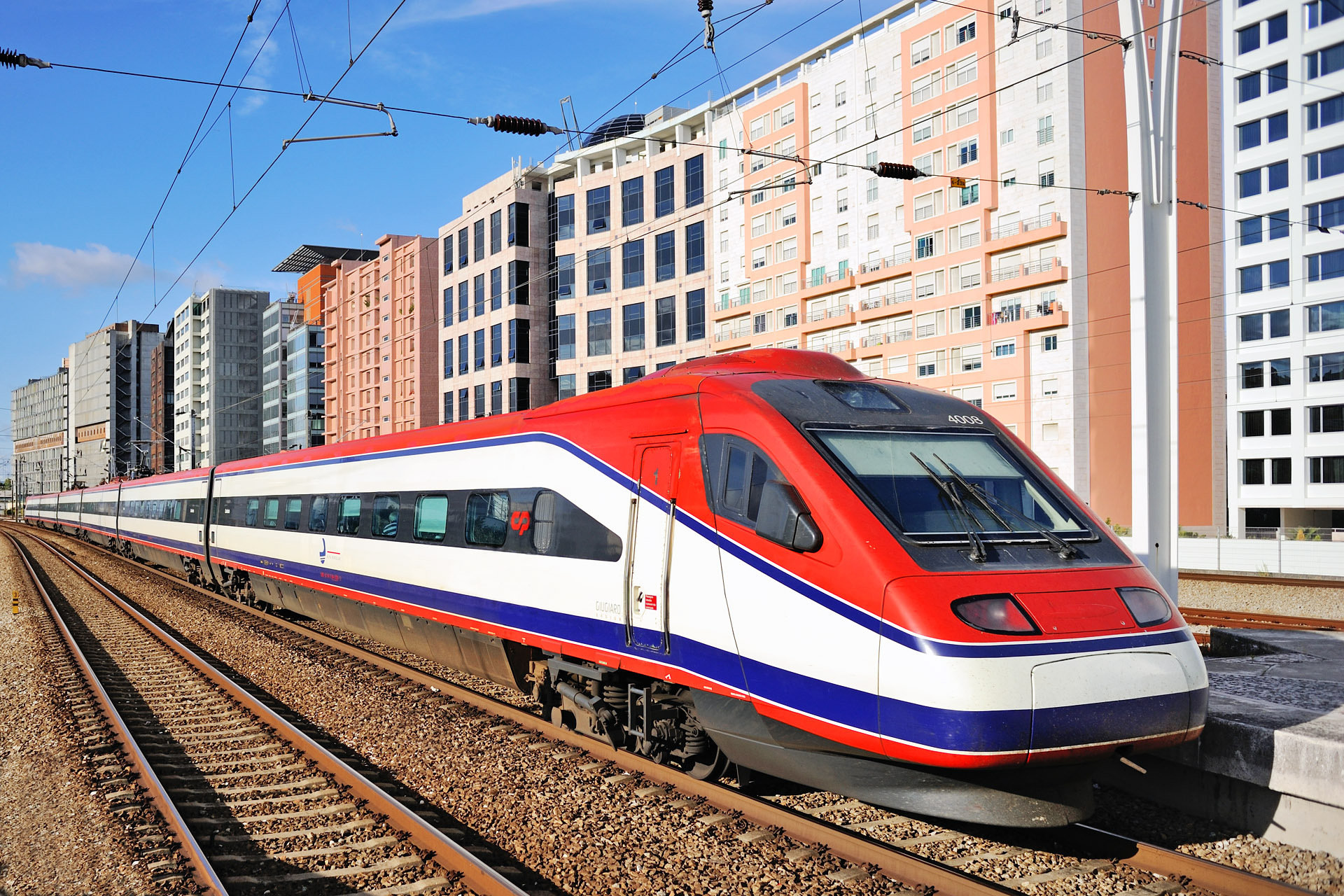

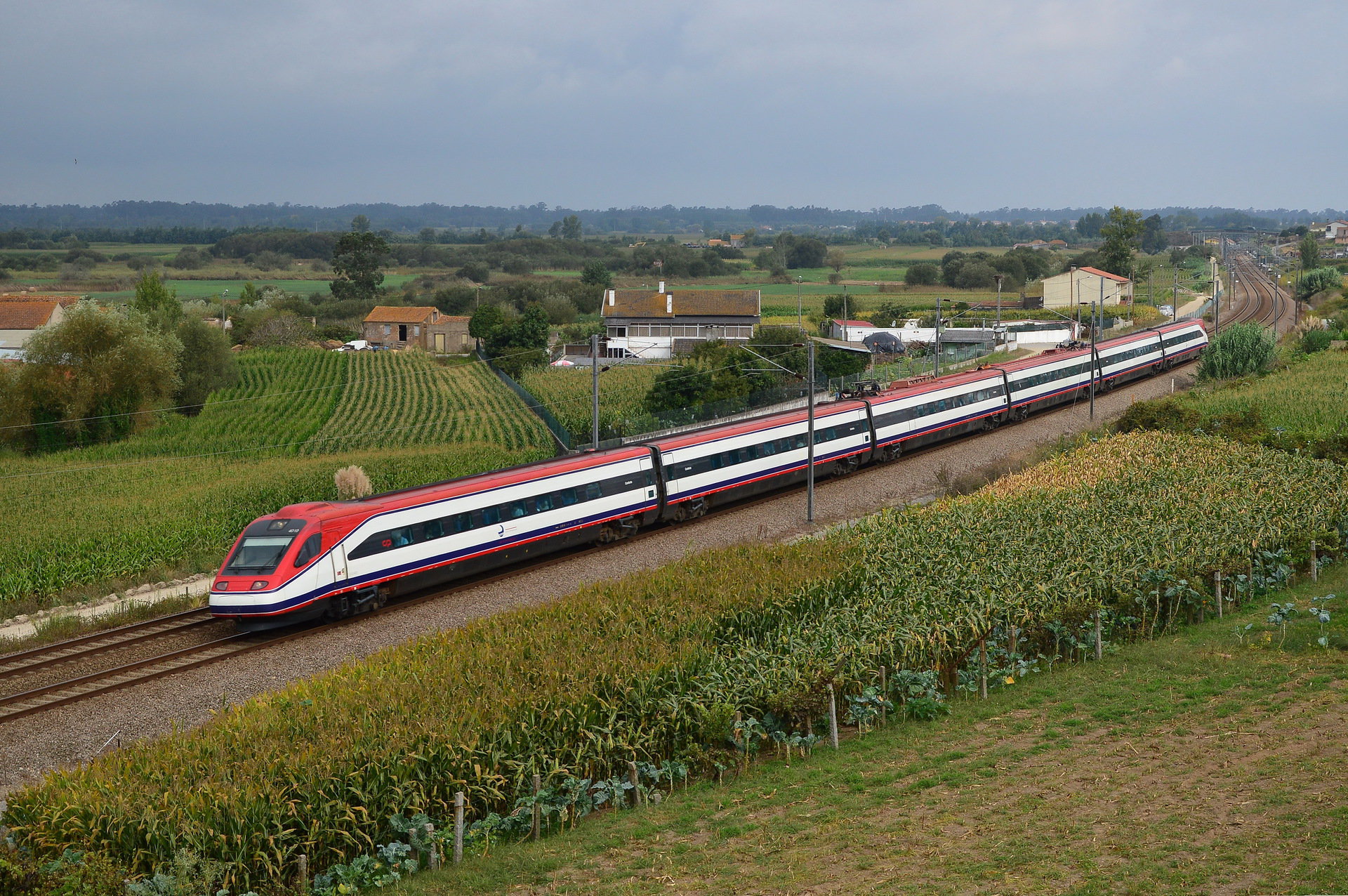

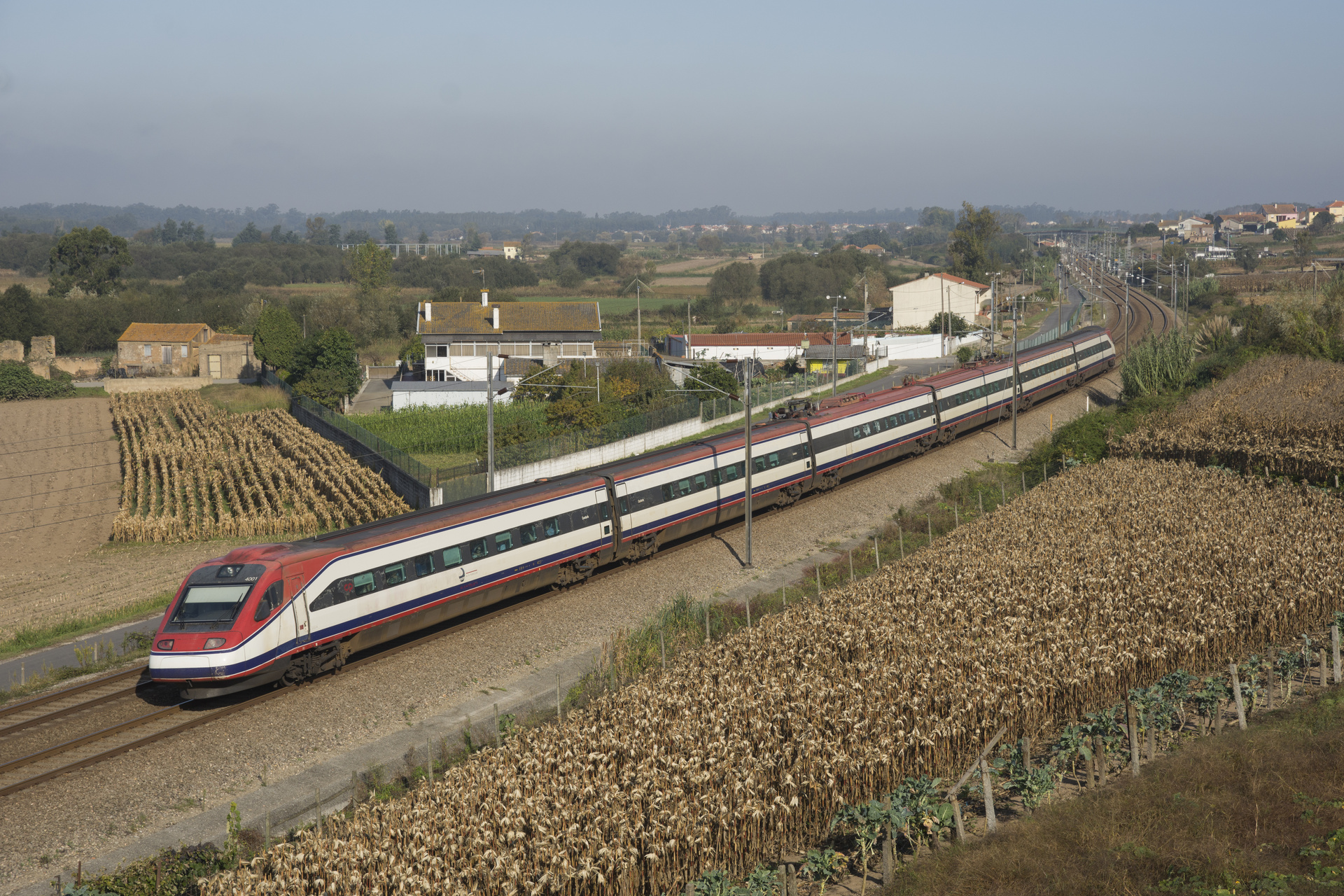

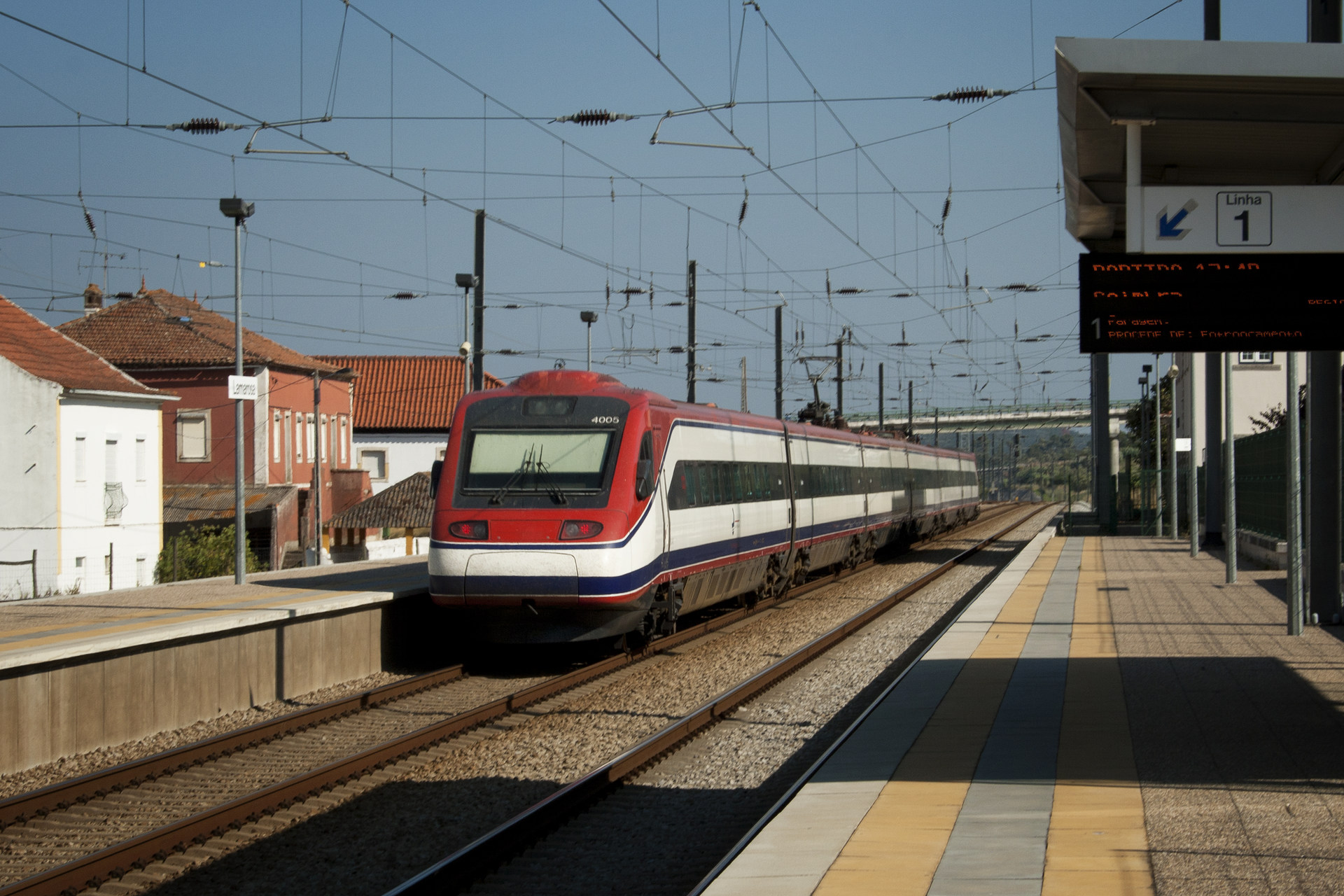

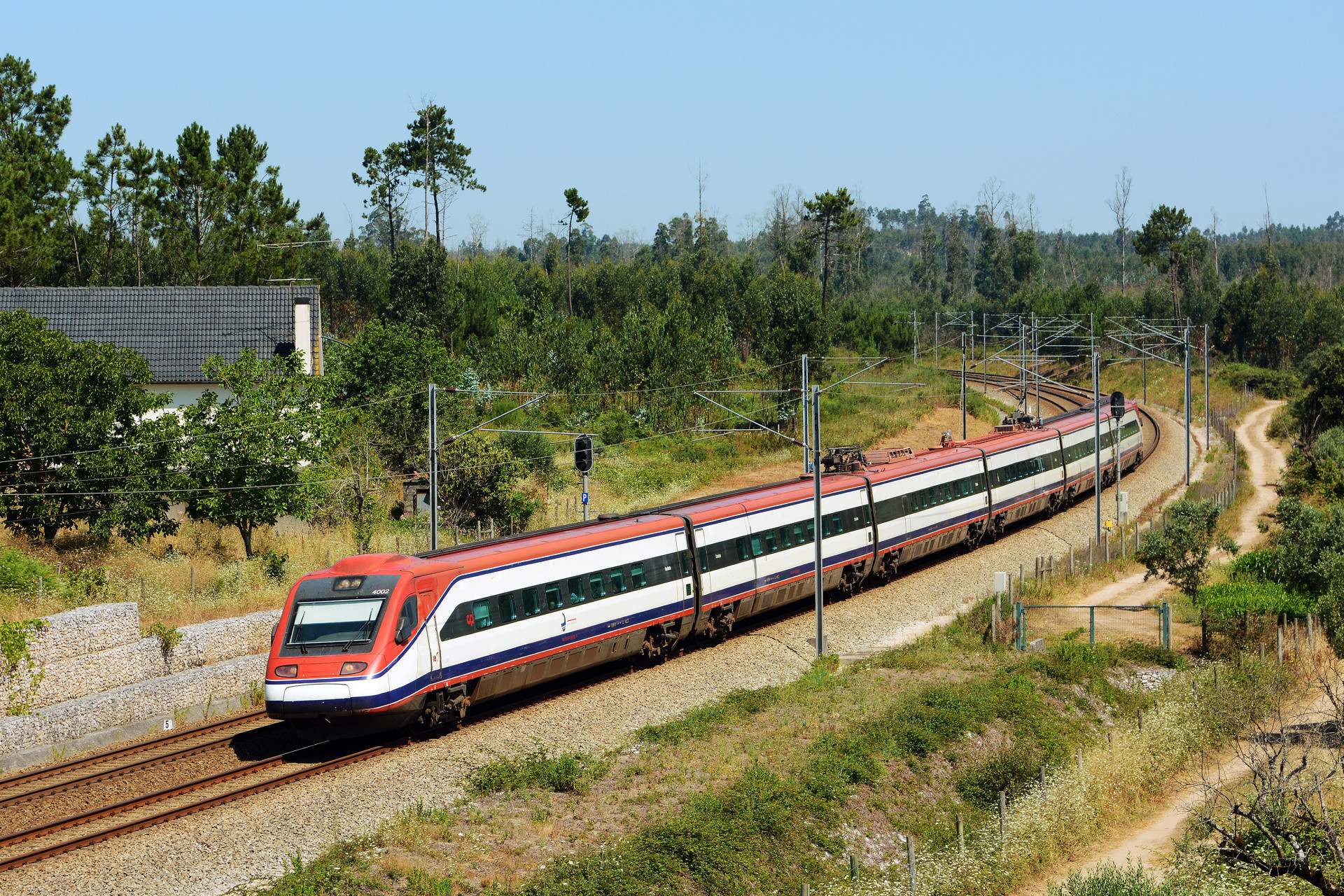

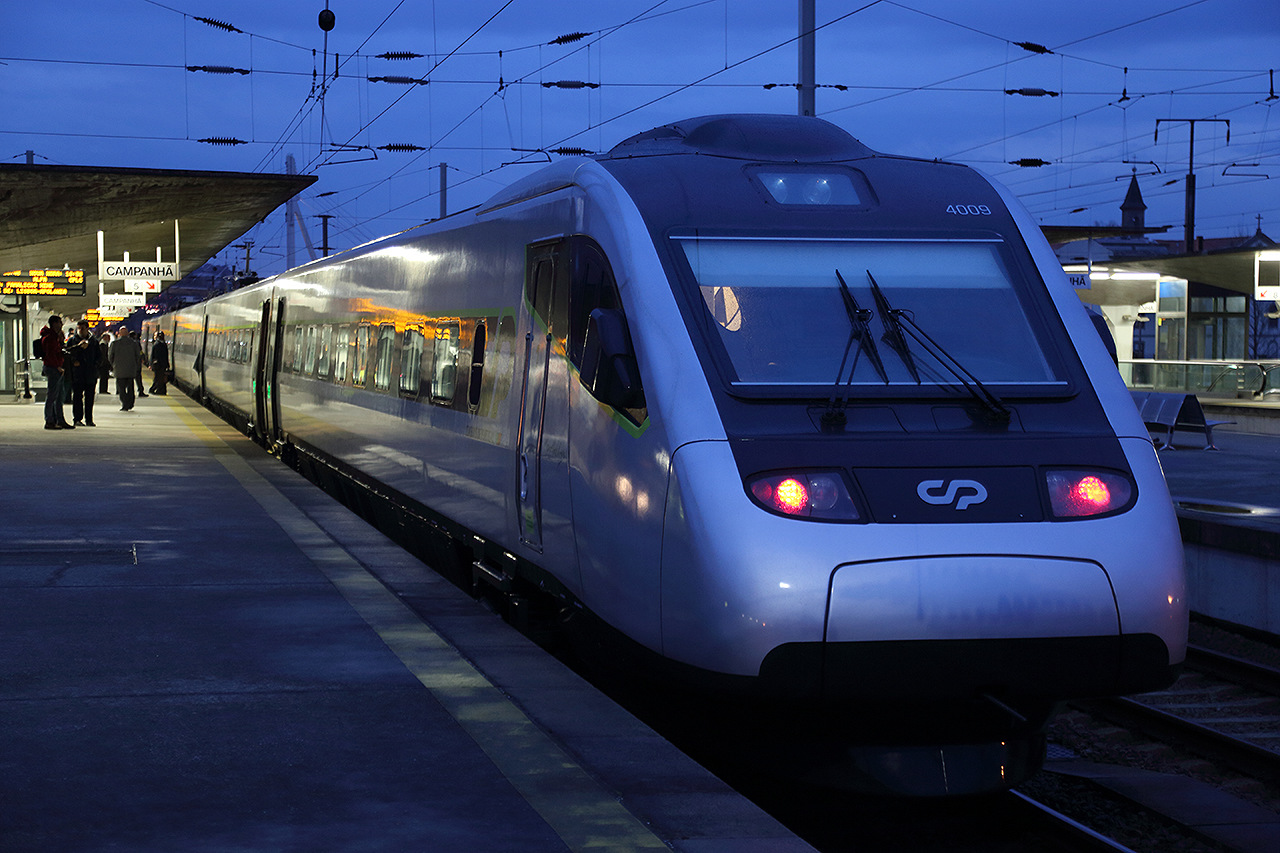

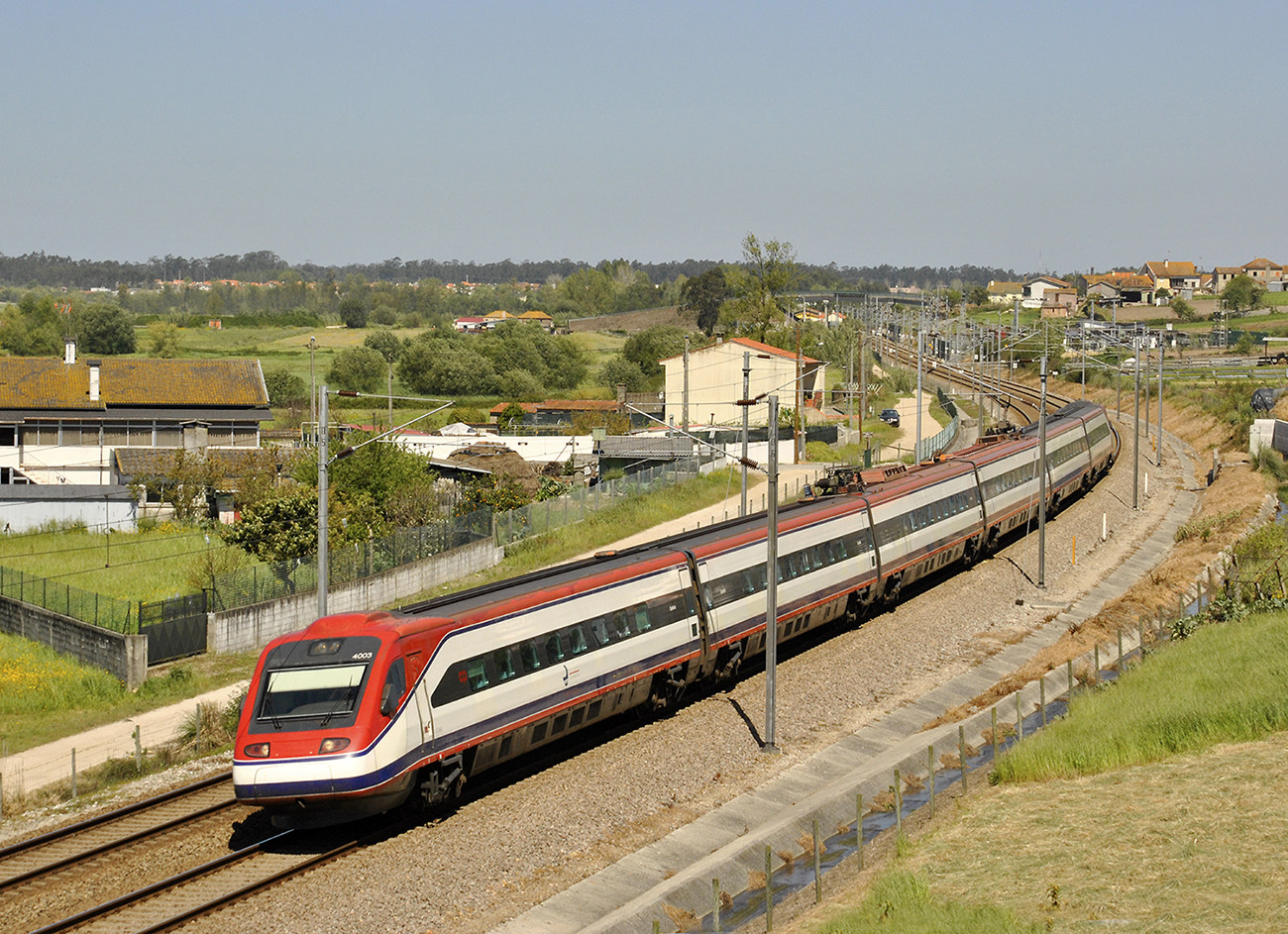

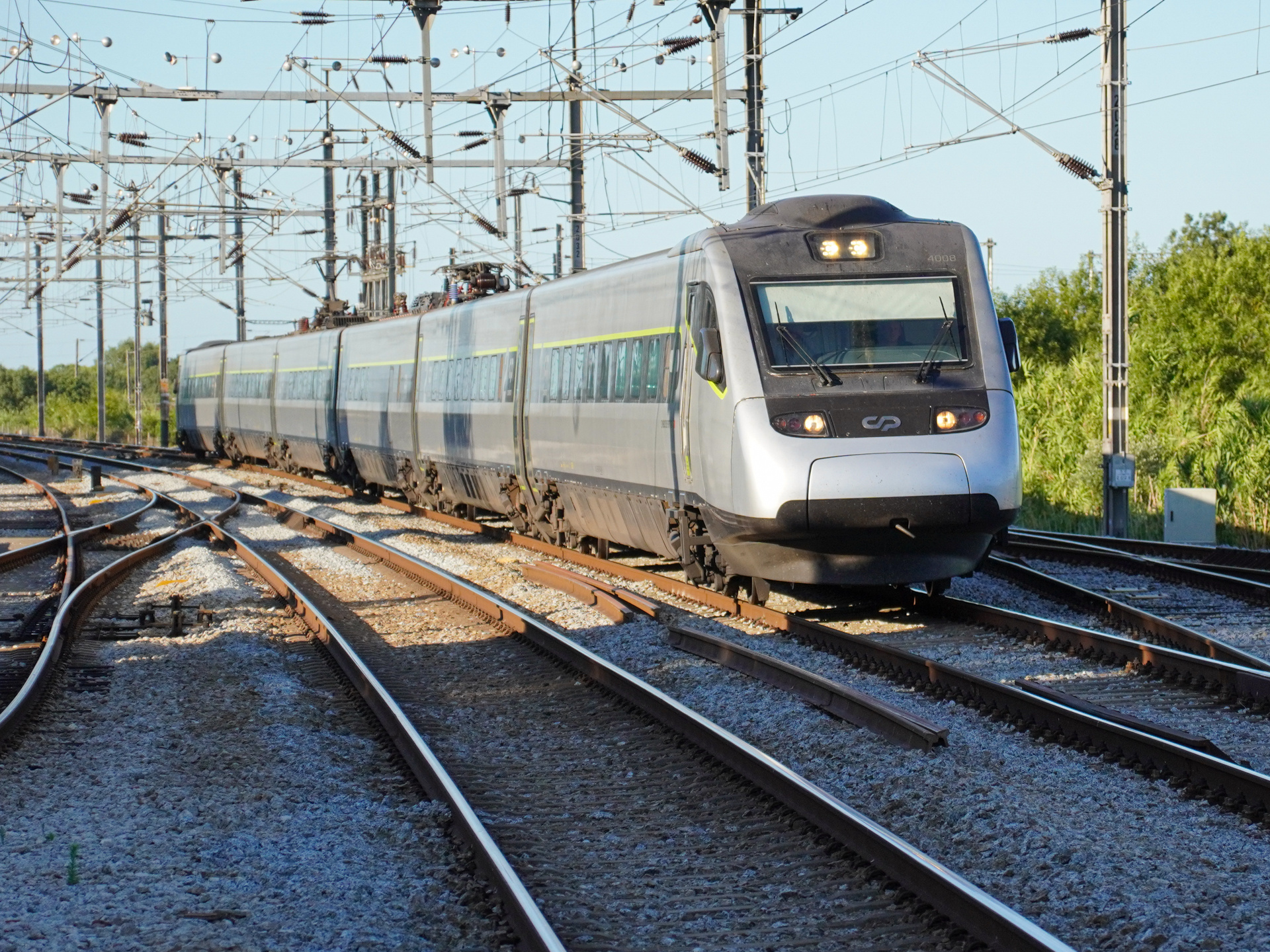

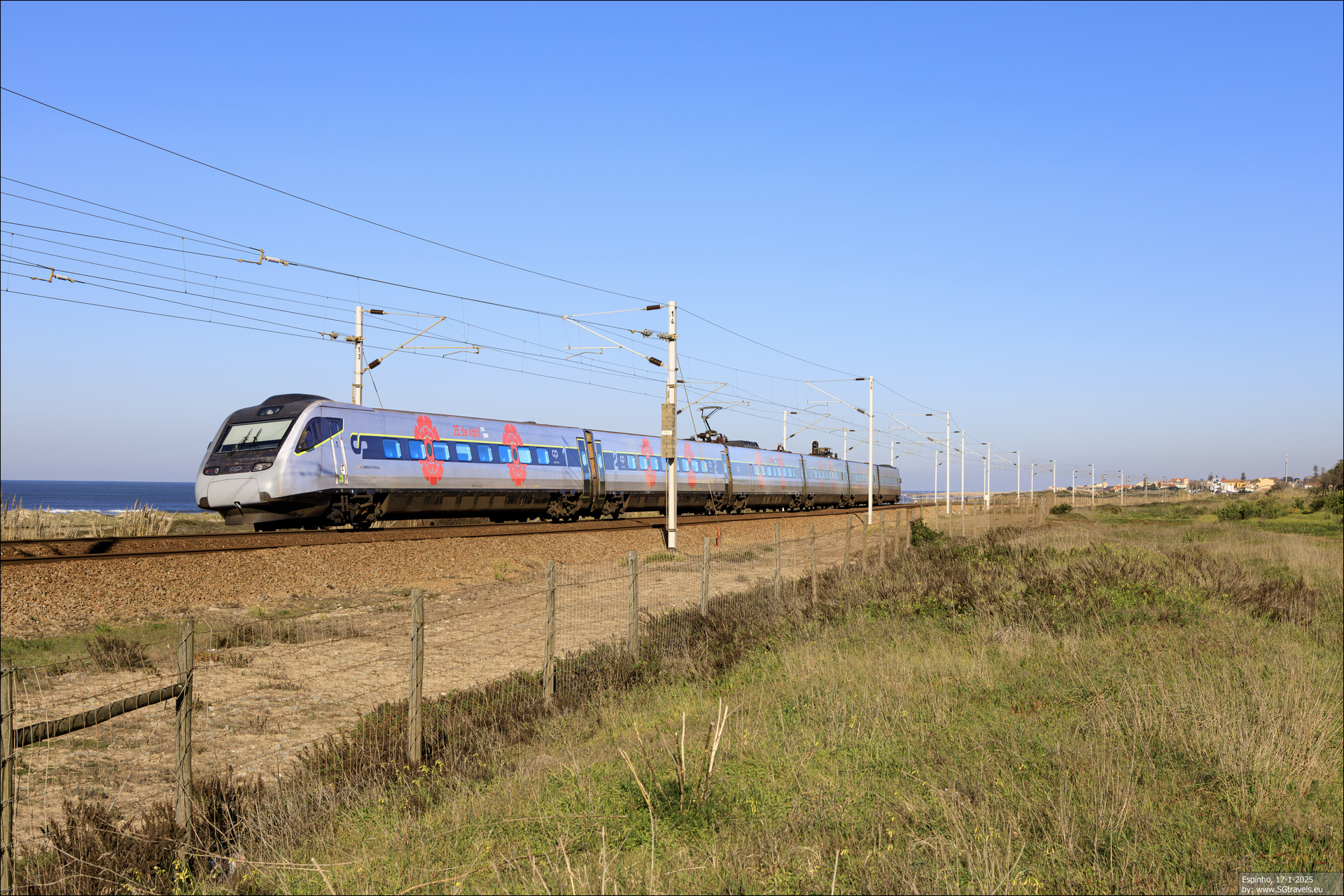

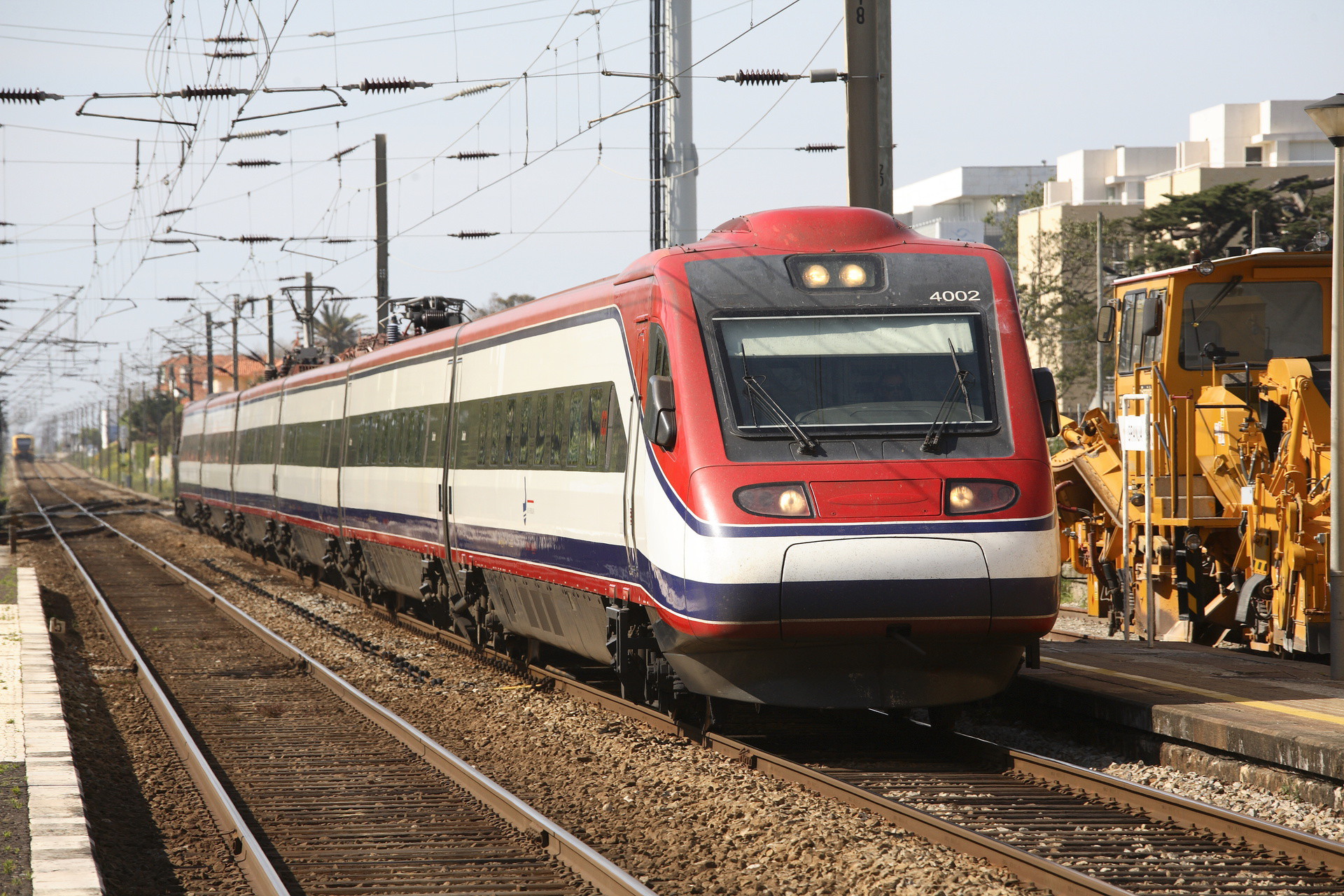

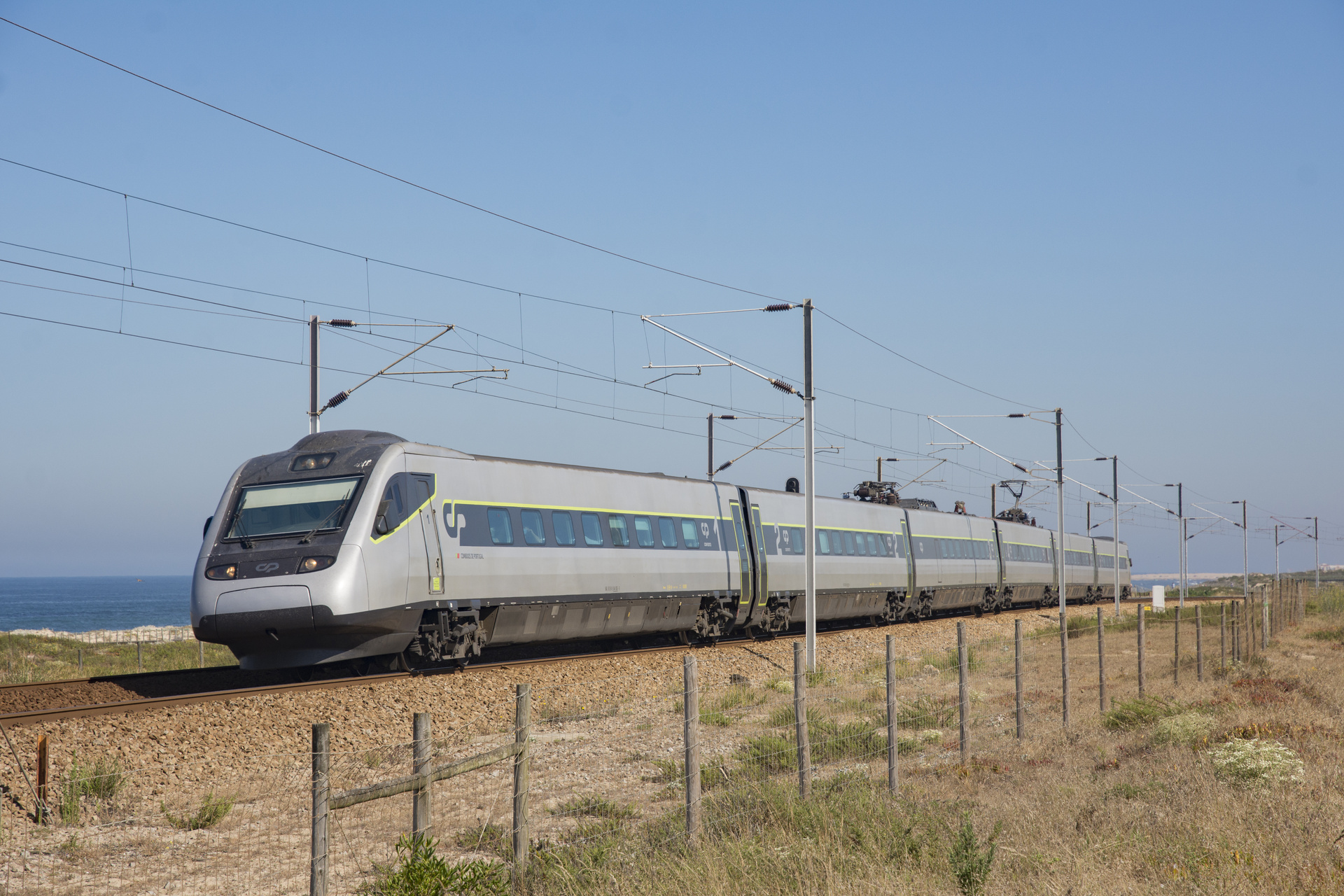

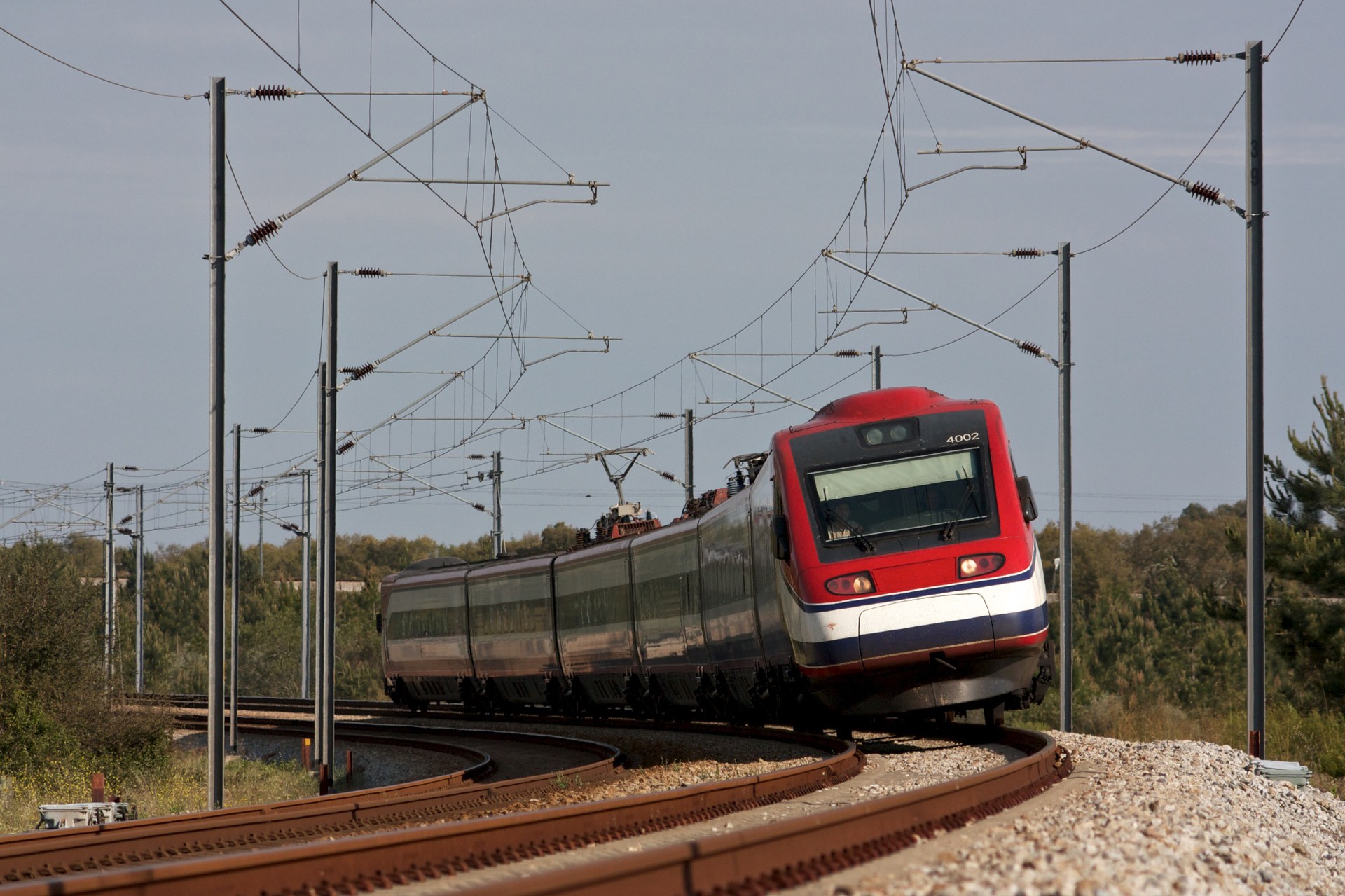

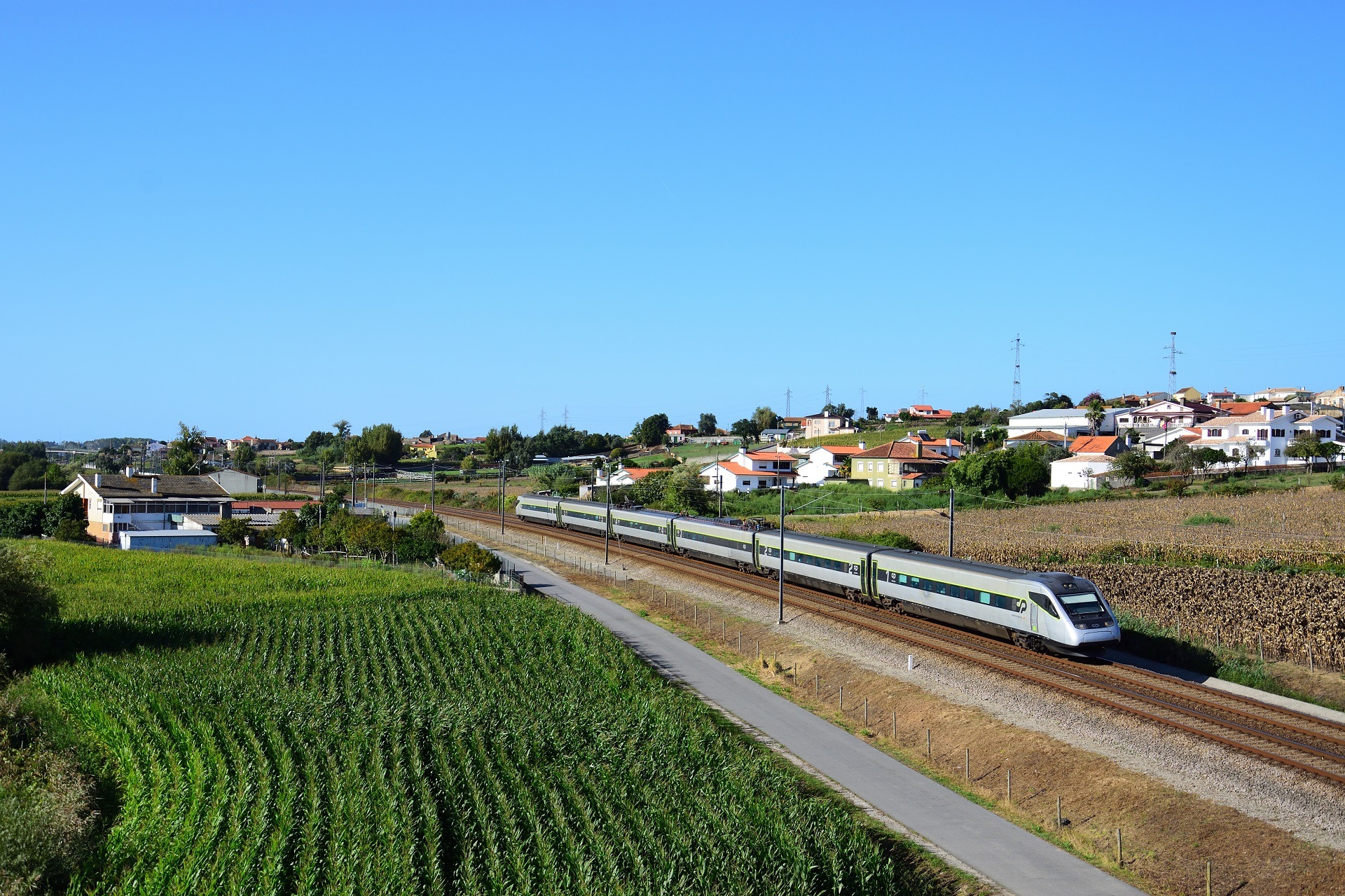

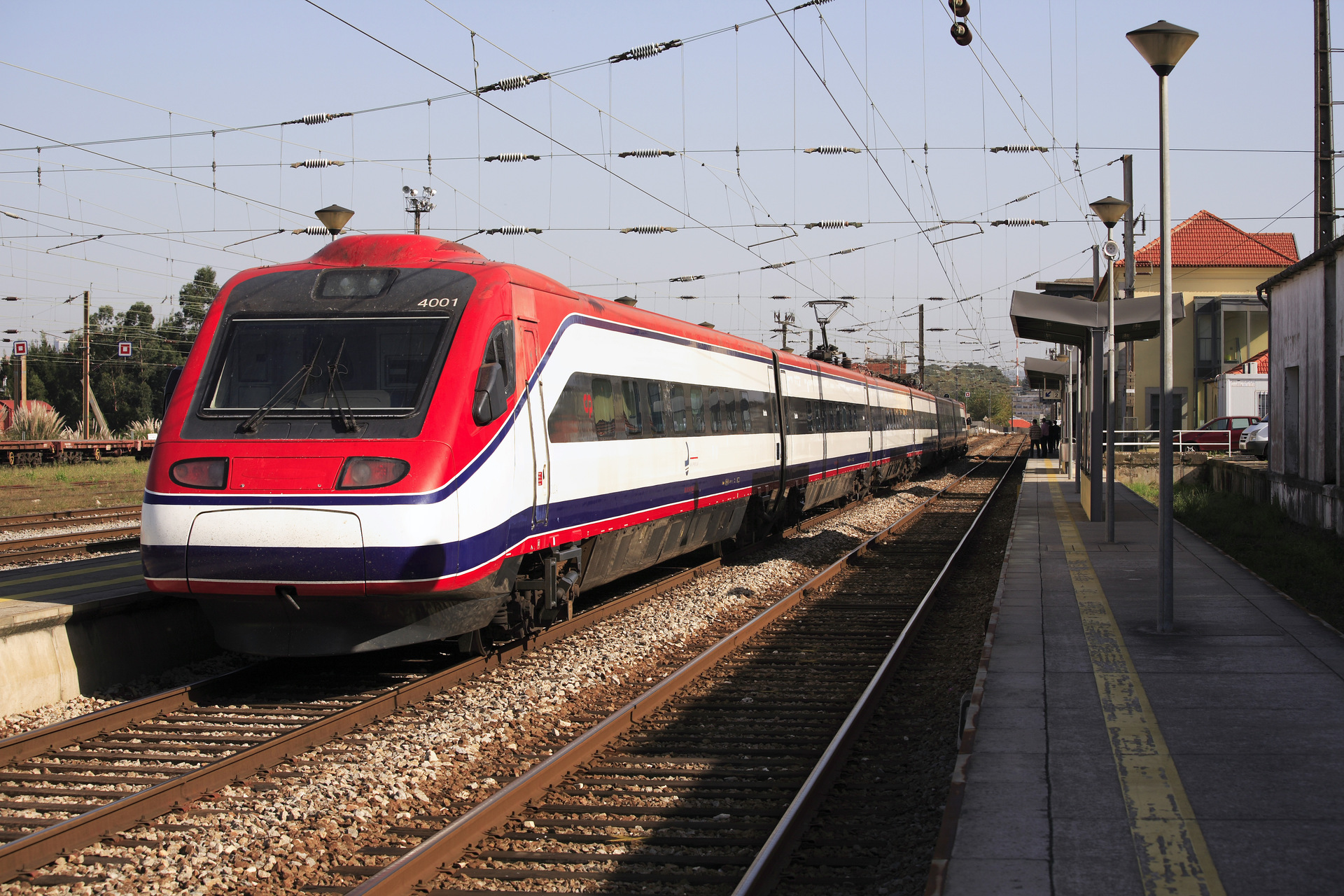

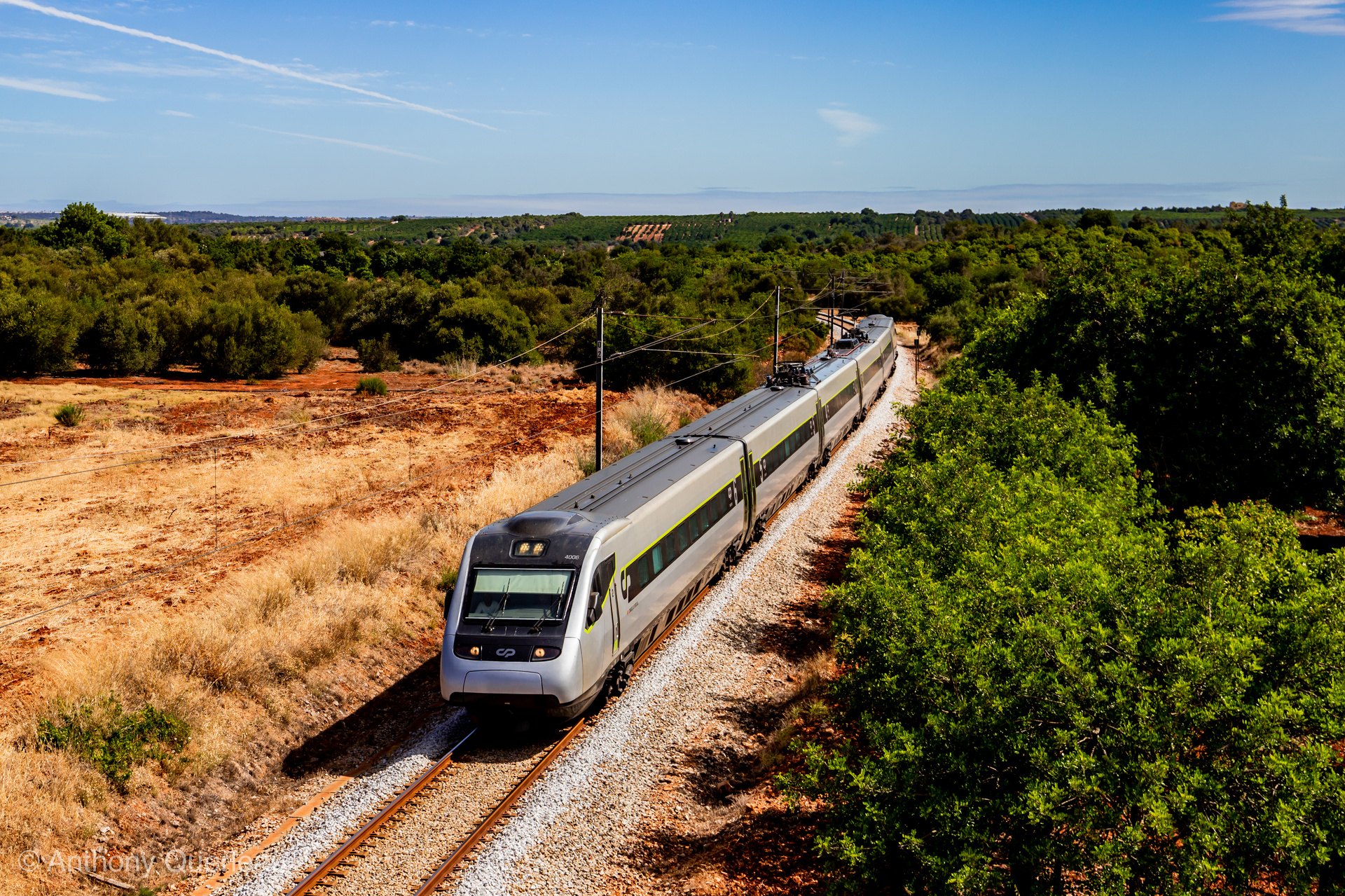

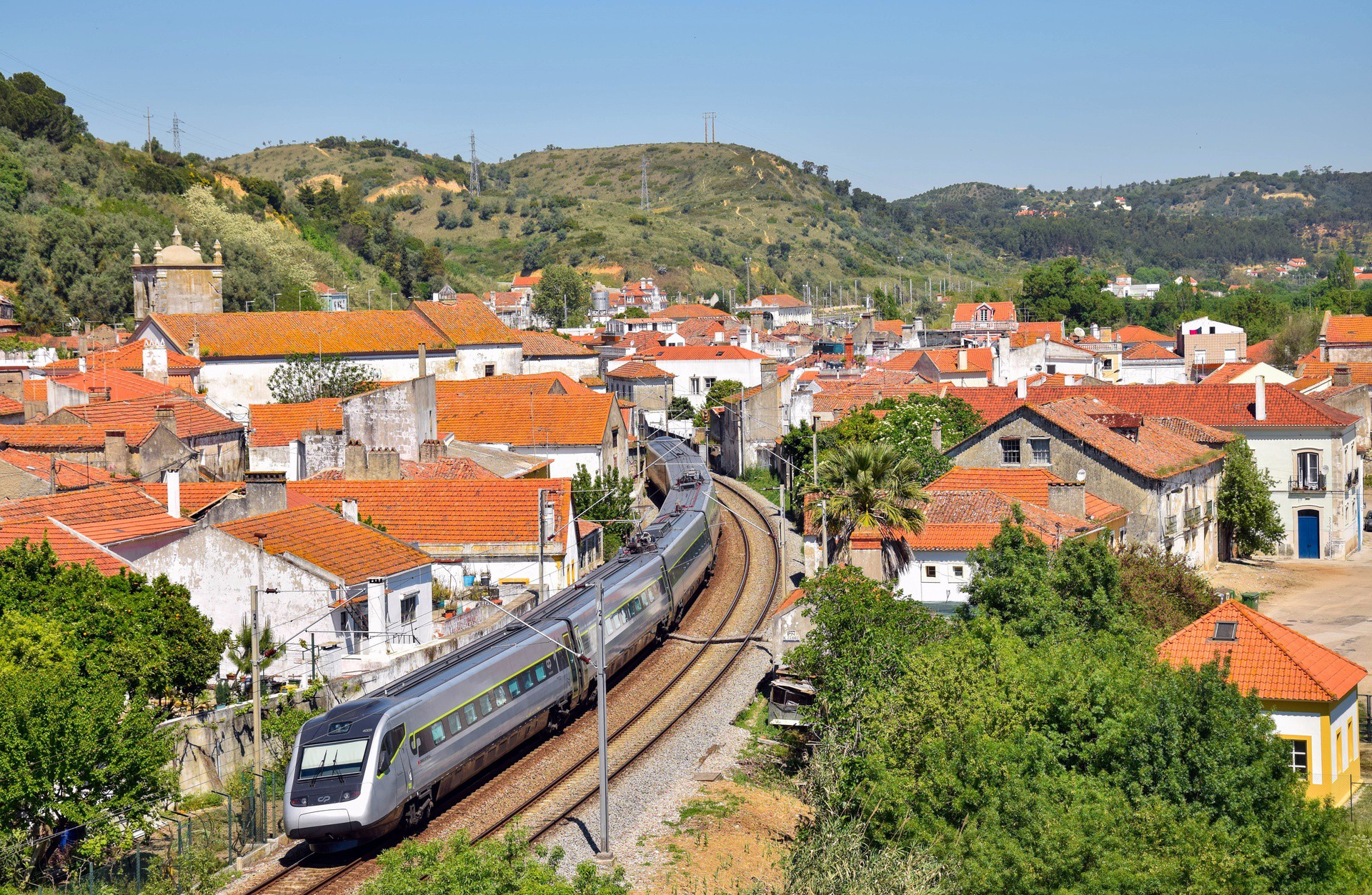

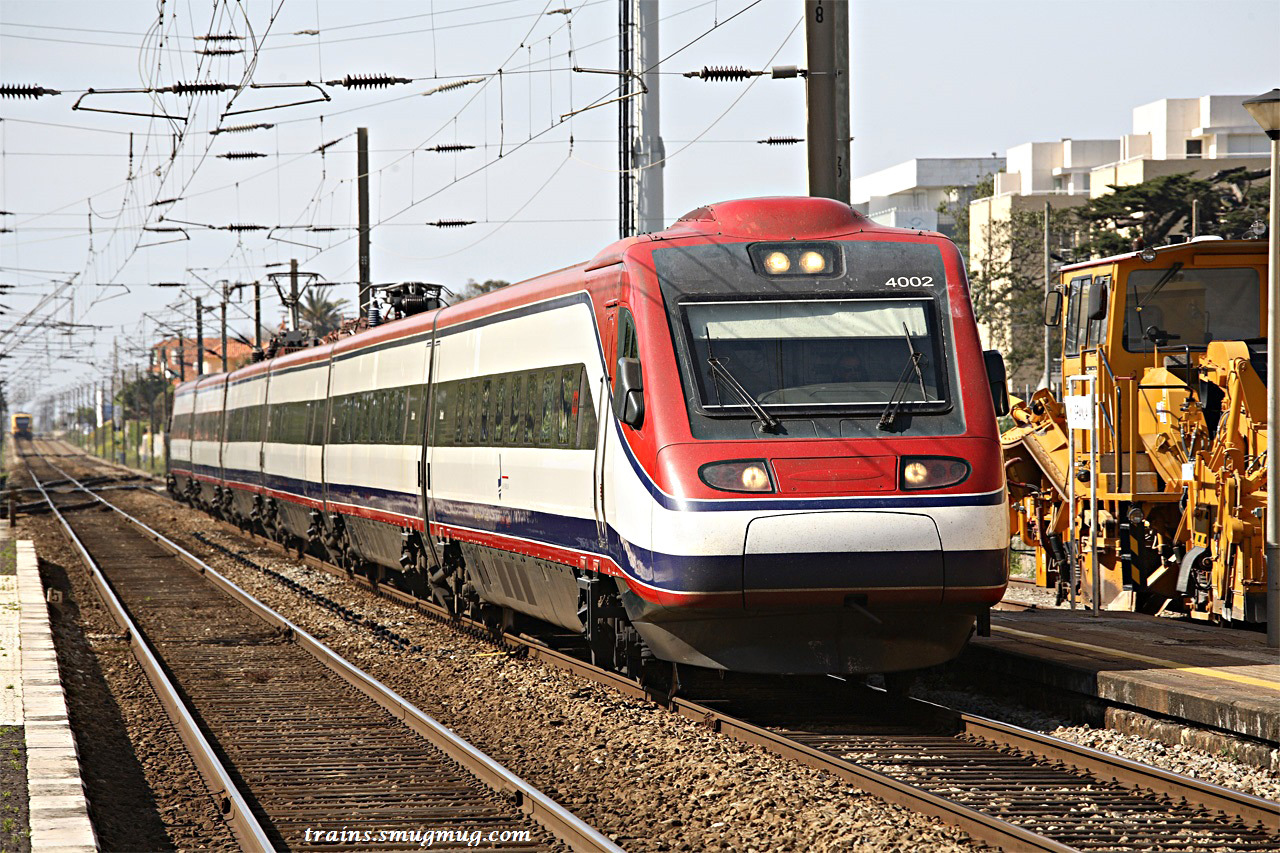

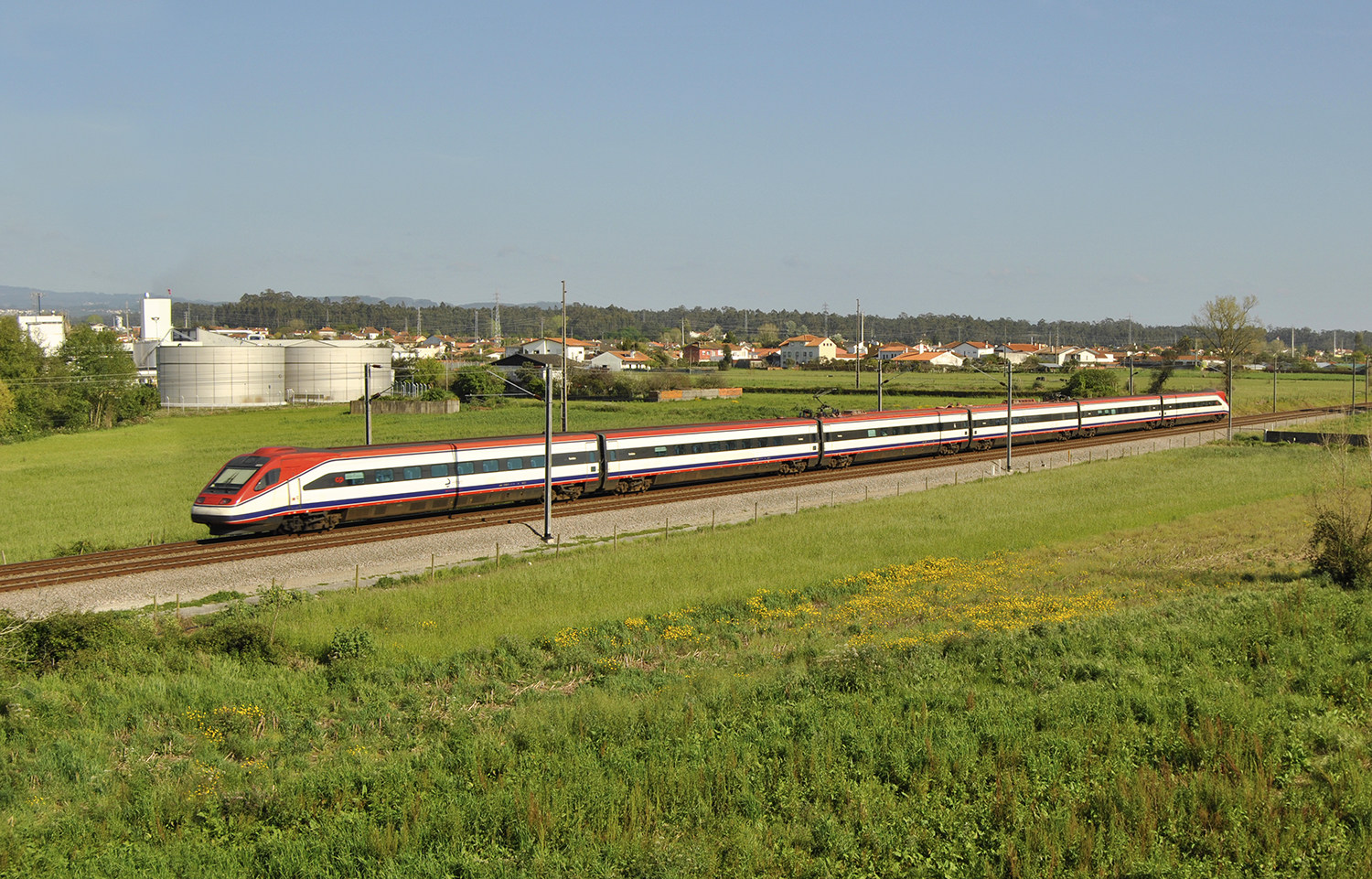

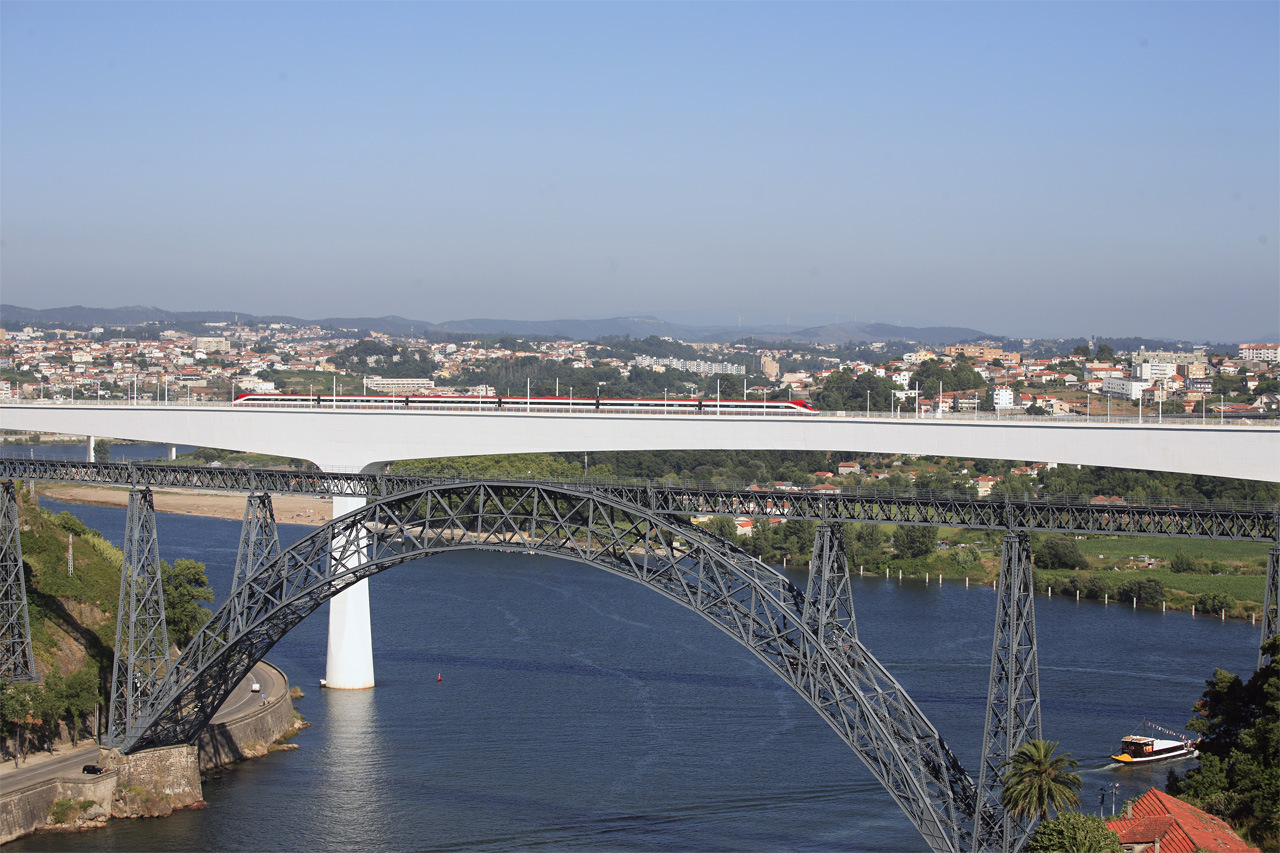

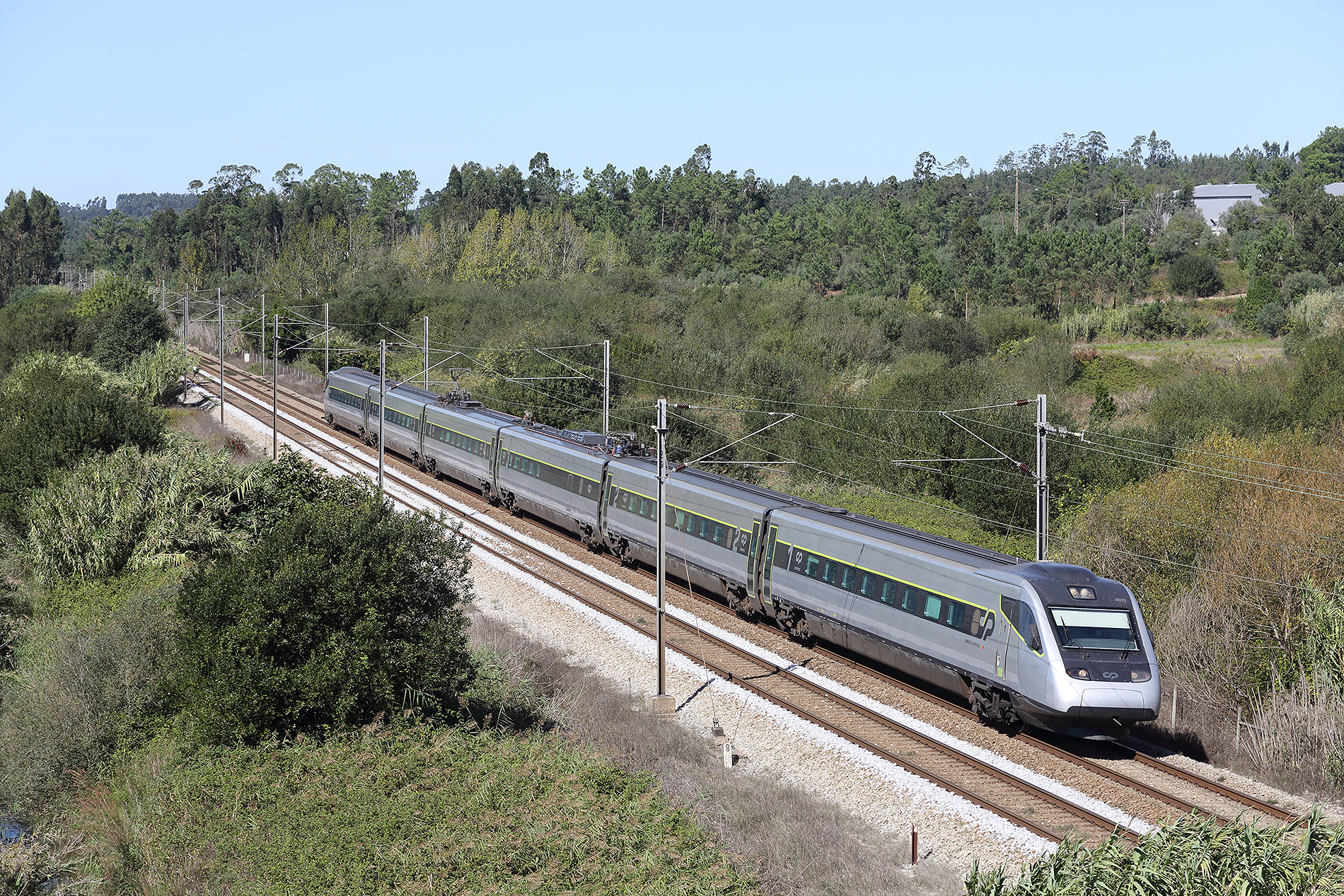

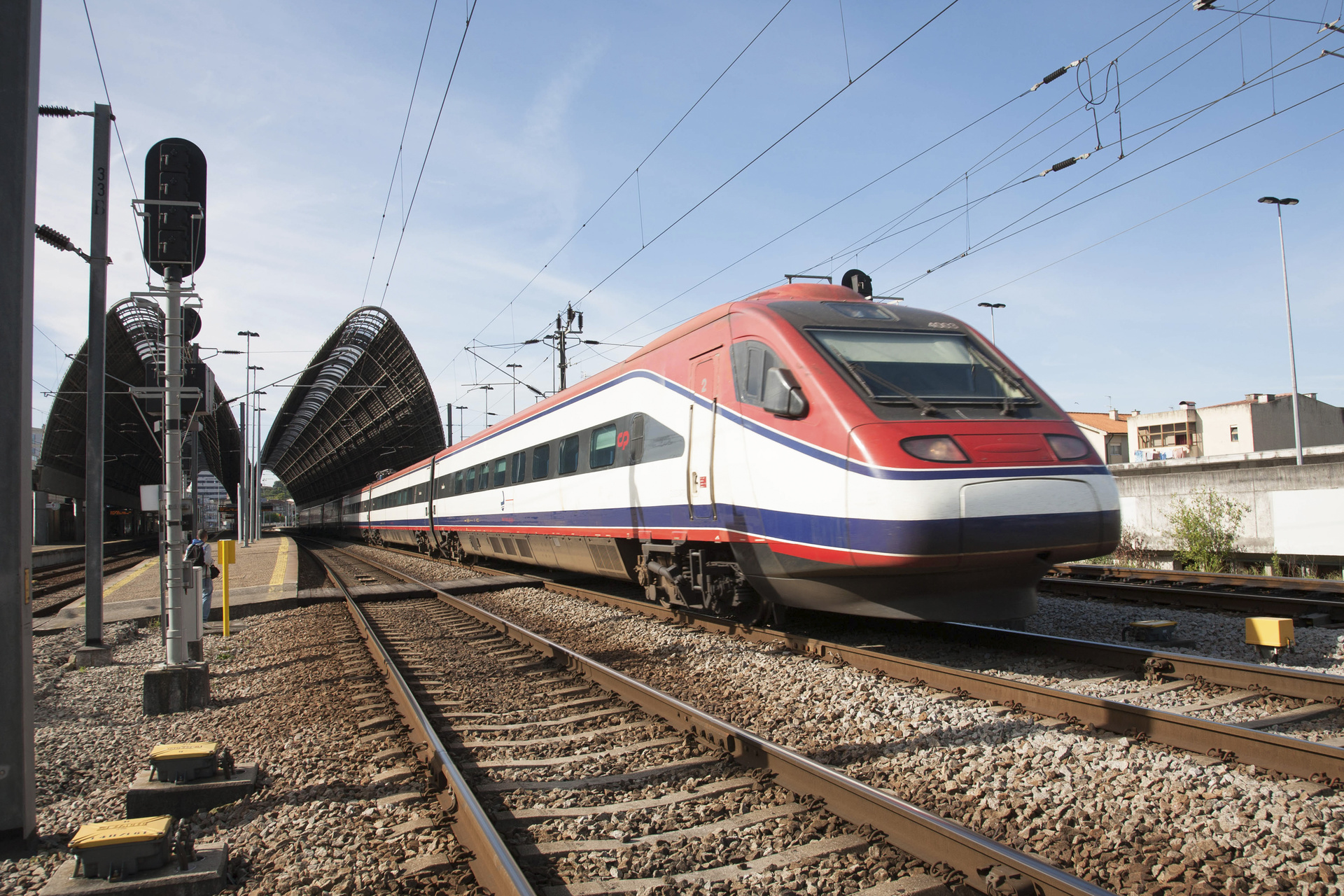

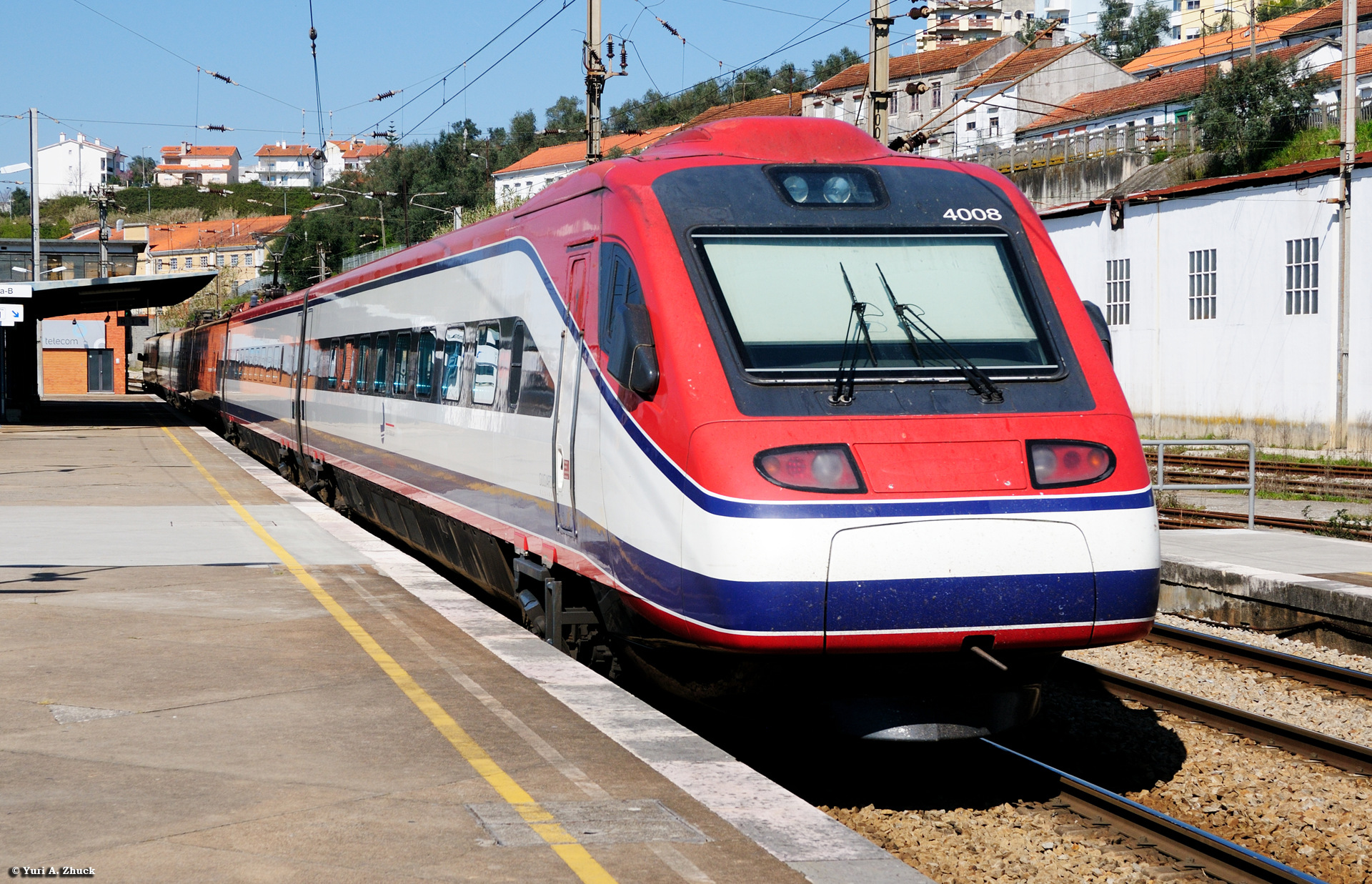

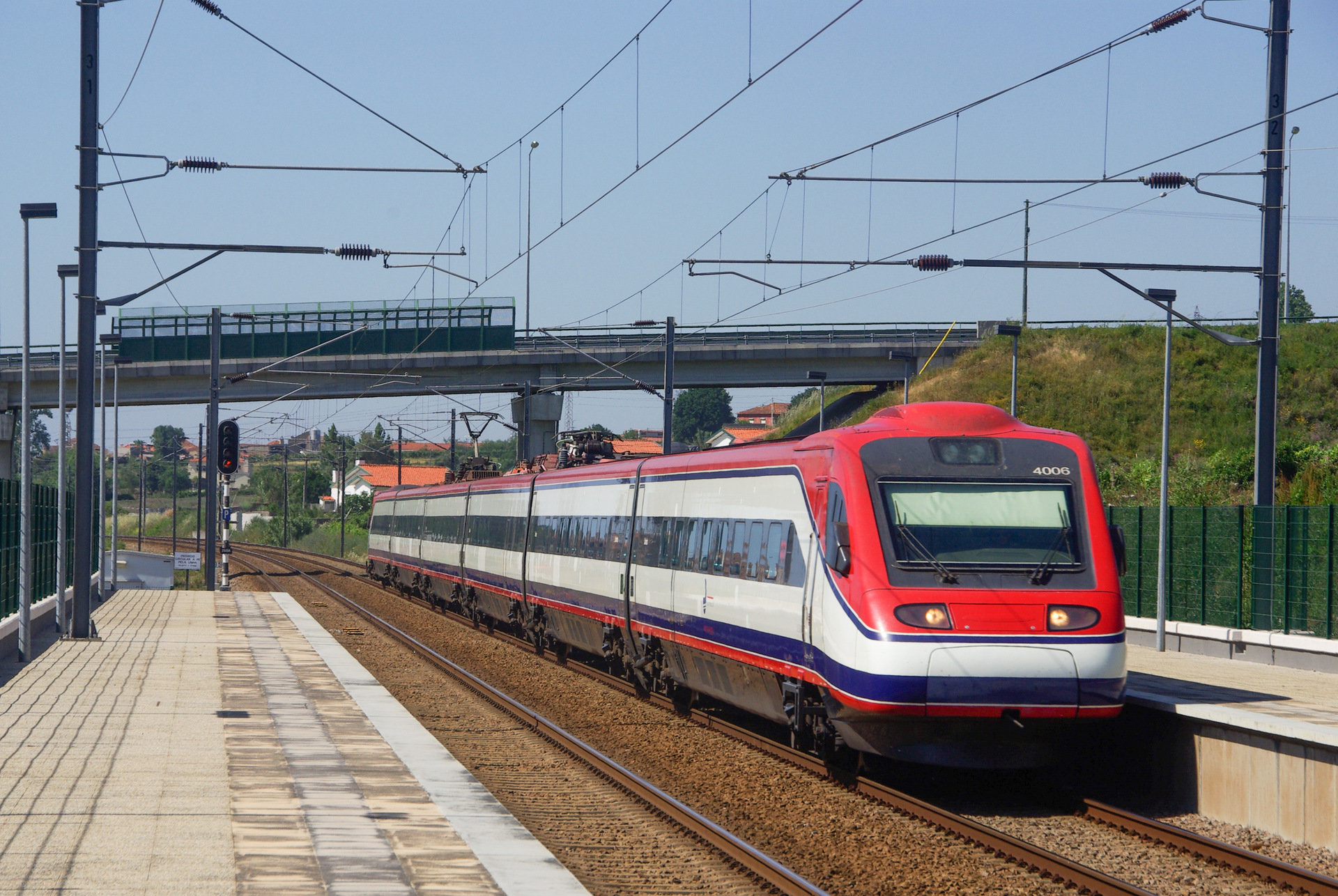

Overview of the Siemens Alfa Pendular 4000

Discover the Alfa Pendular 4000, a state-of-the-art electric multiple unit renowned for its speed and comfort.

This train, also known as the CP 4000, is a proud member of the esteemed Pendolino family, representing the second generation of this advanced tilting train technology.

Built by Adtranz, Fiat, and Siemens between 1999 and 2001, the Alfa Pendular 4000 is capable of reaching impressive speeds of up to 220 km/h.

Measuring 159 meters in length, it offers a seating capacity of 301 passengers, with 96 seats in first class and 203 in second class, ensuring ample space for travelers.

Featuring advanced 25 kV AC 50 Hz electric systems and a powerful 4000 kW output, it boasts a substantial tractive effort of 210 kN.

Operating on a 1668 mm gauge, this locomotive is a significant asset to the Trains of Portugal.

Siemens Alfa Pendular 4000 technical specifications

	Value	Imperial / US
Series	Pendolino Second Generation
Family	Pendolino
Built by	Adtranz, Fiat, Siemens · 1999–200110 units
Top speed	220 km/h137 mph	137 mph
Power output	4,000 kW5,364 hp	5,364 hp
Tractive effort	210 kN47,210 lbf	47,210 lbf
Electric systems	25 kV AC 50 Hz
Track gauge	1,668 mmIberian gauge5 ft 5⅝ in	5 ft 5⅝ in
Formation	6 cars (4M2T)
Capacity	301, 1st class 96, 2nd class 203 seats
Train length	159 m521 ft 8 in	521 ft 8 in
Width	2.92 m9 ft 7 in	9 ft 7 in
Height	4.39 m14 ft 5 in	14 ft 5 in
Weight	298 t656,977 lb	656,977 lb
