Stadler Flirt 3 5/12 15kV

Built by Stadler

Top speed

160 km/h

99 mph

Power output

2,000 kW

2,682 hp

Weight

156 t

343,921 lb

Track gauge

1,435 mm

Standard gauge

Years built

2014

28 units

Axle arrangement

Bo'2'2'2'2'Bo'

Overview of the Stadler Flirt 3 5/12 15kV

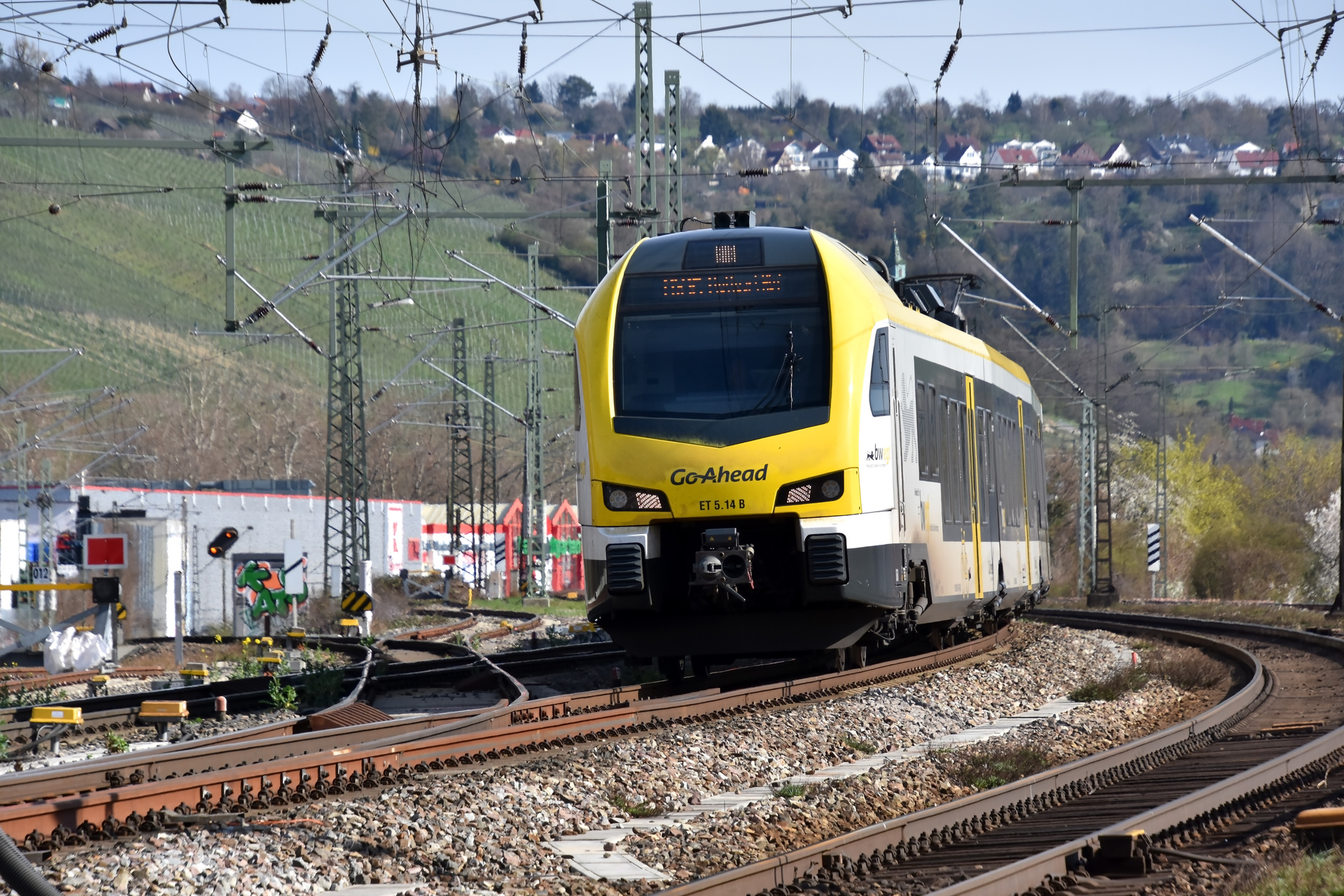

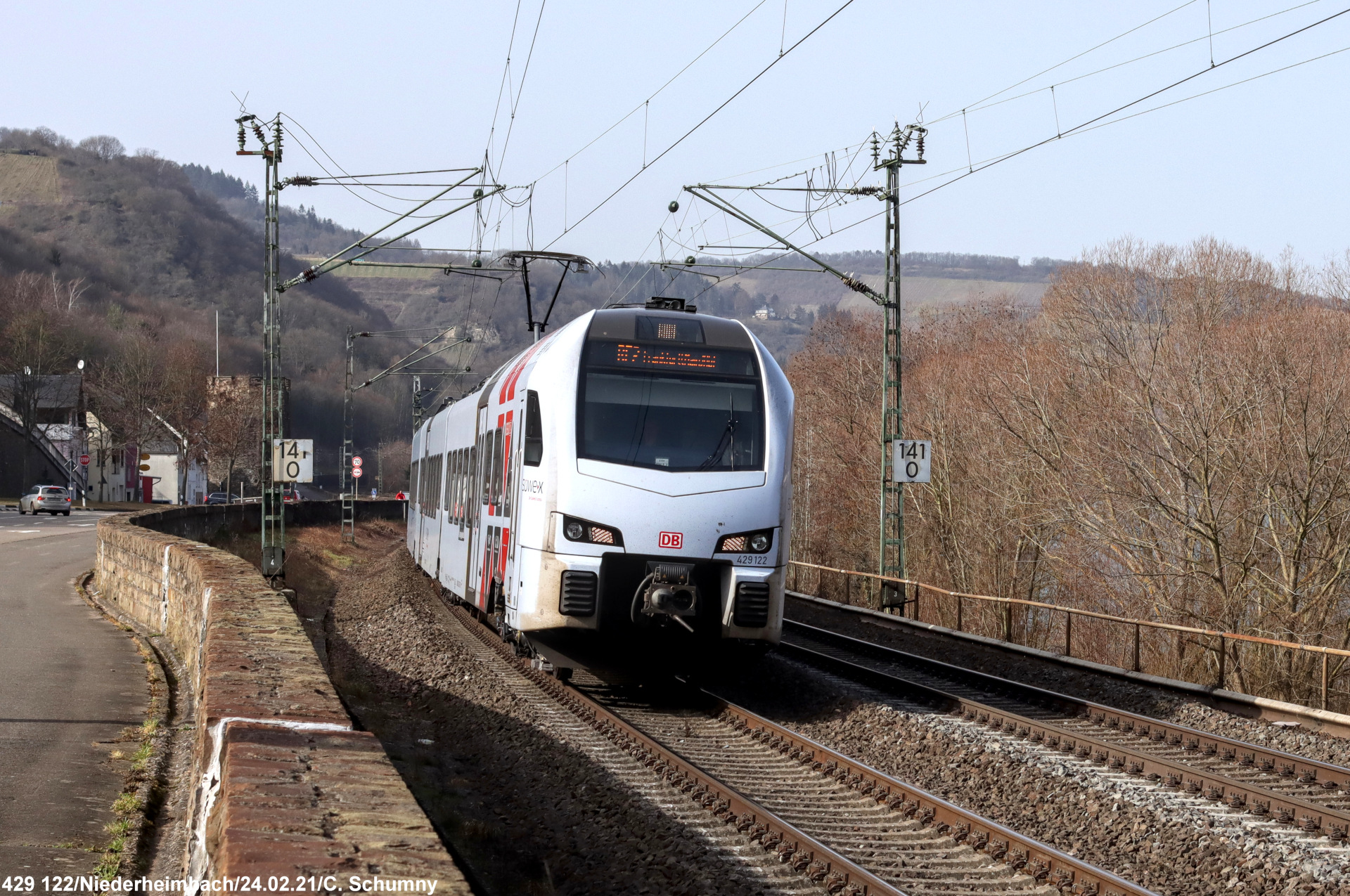

Discover the Flirt 3 5/12 15kV, a modern Stadler electric multiple unit designed for efficient regional passenger transport. This versatile train operates in Germany for prominent operators like Deutsche Bahn AG as the DB 429.1 and Go-Ahead Baden-Württemberg GmbH as the GABW ET5.

Engineered for performance, the Flirt 3 boasts a top speed of 160 km/h and a powerful 2000 kW output, ensuring a smooth and swift travel experience. First built in 2014, these trains are configured in a 5-car formation (2M3T) and offer a total seating capacity of 271 passengers, with dedicated spaces for both first and second class.

With a length of 90.8 meters and a width of 2.88 meters, the Flirt 3 prioritizes passenger comfort and accessibility. Its standard gauge of 1435 mm and UIC axle arrangement of Bo'2'2'2'2'Bo' contribute to its excellent stability and handling on the rails.

Representing cutting-edge rail technology, the Flirt 3 5/12 15kV is a testament to modern, sustainable, and reliable passenger rail travel.

Stadler Flirt 3 5/12 15kV technical specifications

	Value	Imperial / US
Series	Flirt 3
Family	Flirt
Built by	Stadler · 201428 units
Top speed	160 km/h99 mph	99 mph
Power output	2,000 kW2,682 hp	2,682 hp
Tractive effort	175 kN39,342 lbf	39,342 lbf
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'2'2'2'2'Bo'
Formation	5 cars (2M3T)
Capacity	271, 1st class 23, 2nd class 248 seats
Car length	90.8 m297 ft 11 in	297 ft 11 in
Width	2.88 m9 ft 5 in	9 ft 5 in
Height	4.12 m13 ft 6 in	13 ft 6 in
Weight	156 t343,921 lb	343,921 lb
