© trainspo.comAllan CP 0300
Built by Allan
Overview of the Allan CP 0300
Discover the CP 0300, an iconic railcar that played a significant role in the Portuguese railway network.
Built by Allan between 1954 and 1955, this distinctive unit offered a capacity of 24 first-class and 50 second-class seats.
With a top speed of 100 km/h and a power output of 252 kW, the CP 0300 was a reliable and efficient choice for passenger transport in Portugal, serving both Combios de Portugal and Rede Ferroviária Nacional. This railcar, featuring a 1668 mm gauge and a length of 23.63 meters, represents a piece of railway heritage.
Allan CP 0300 technical specifications
| Value | Imperial / US | |
|---|---|---|
| Series | 0300 | |
| Built by | Allan · 1954–195525 units | |
| Top speed | 100 km/h62 mph | |
| Power output | 252 kW338 hp | |
| Track gauge | 1,668 mmIberian gauge5 ft 5⅝ in | |
| UIC axle arrangement | Bo'Bo' | |
| Capacity | 1st class 24, 2nd class 50 seats | |
| Length | 23.63 m77 ft 6 in |
Operators of the Allan CP 0300
Railway companies that have operated the CP 0300, with the class designation used by each of them.
| Operator | Class | Country |
|---|---|---|
| Rede Ferroviária Nacional, EPE | REFER 0300 | Portugal |
| Trains of Portugal | CP 0300 | Portugal |

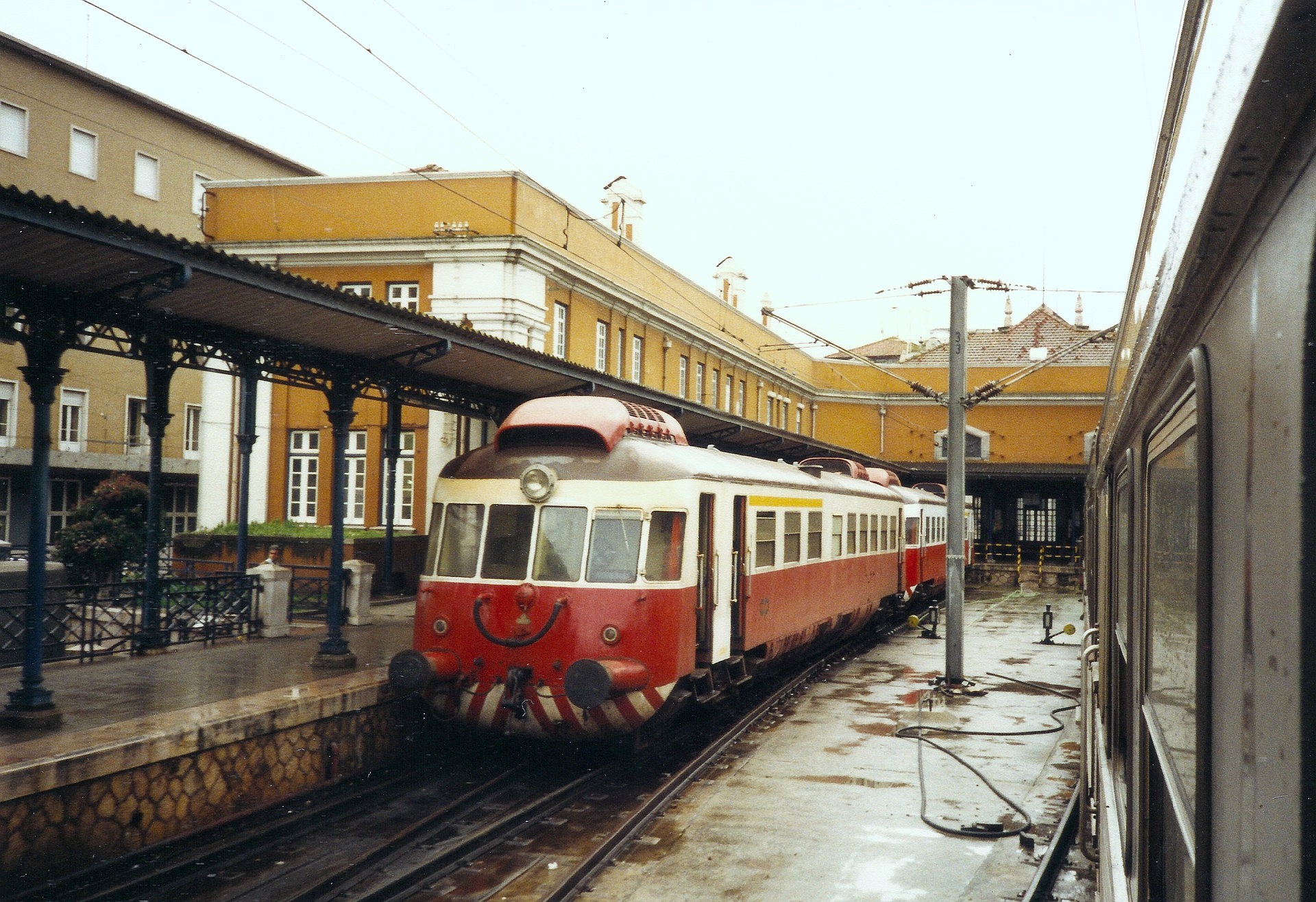

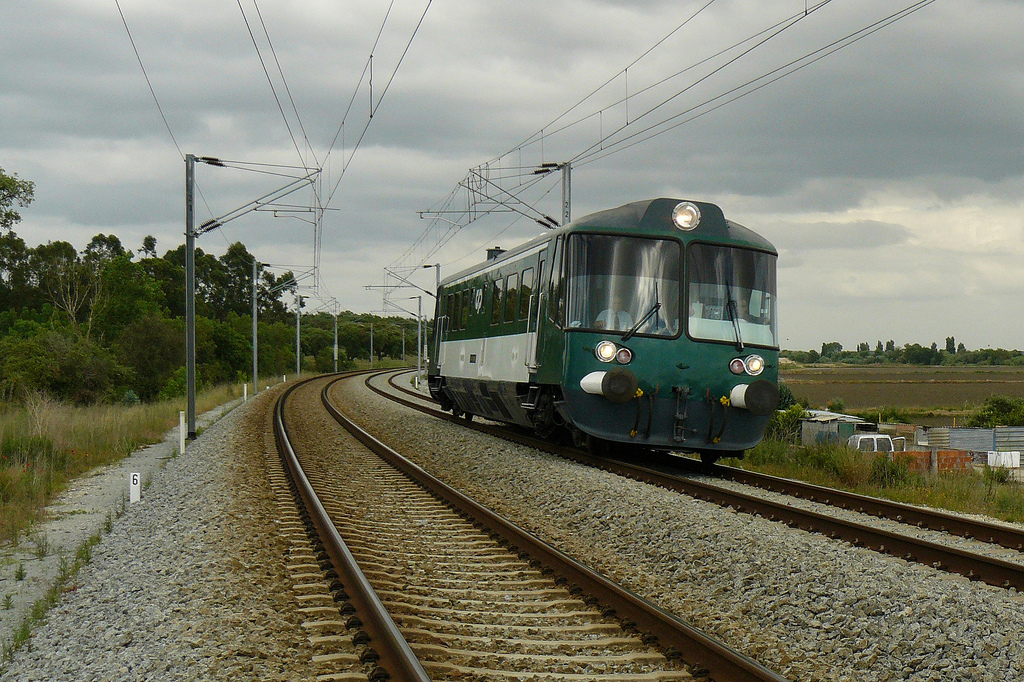

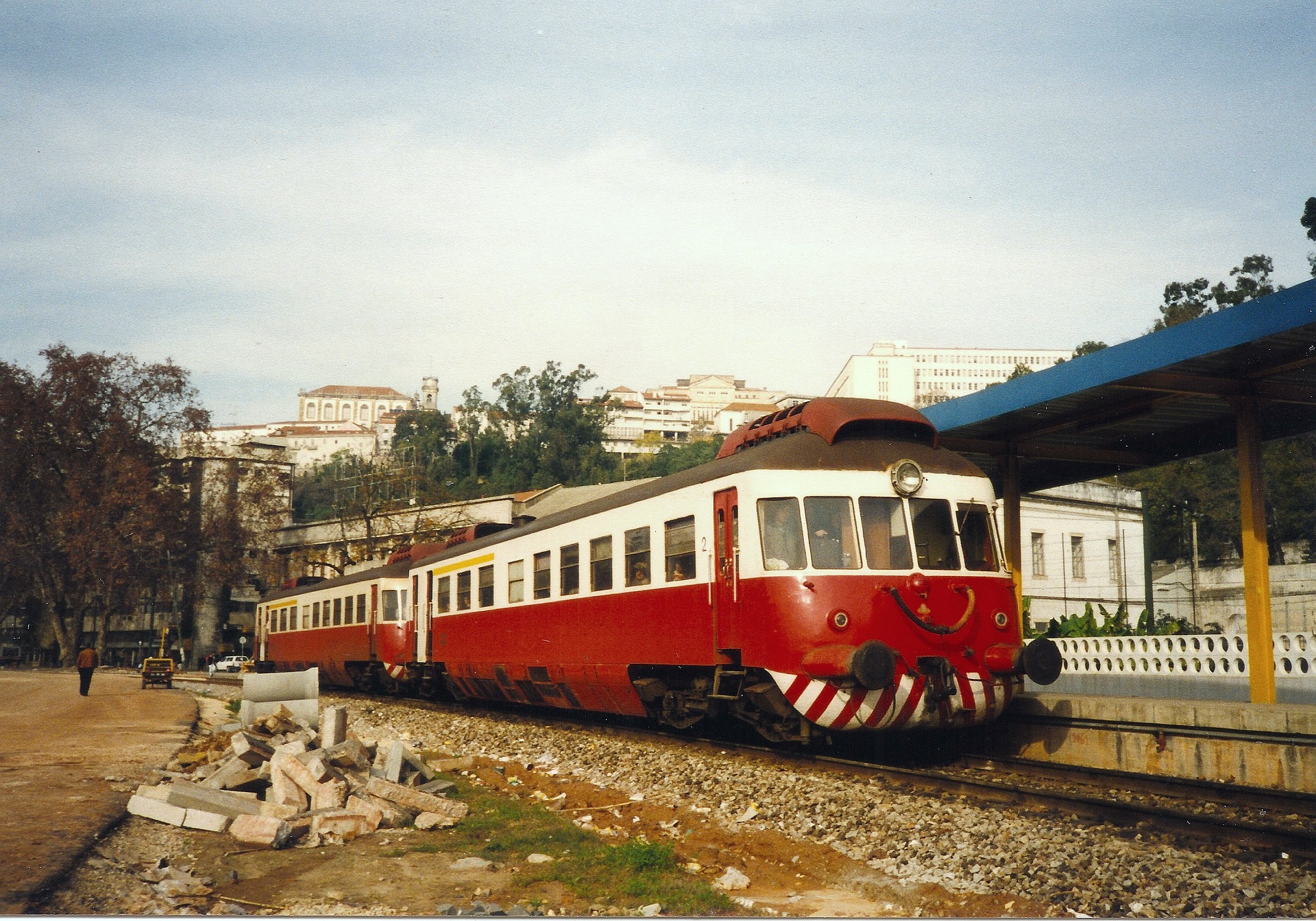

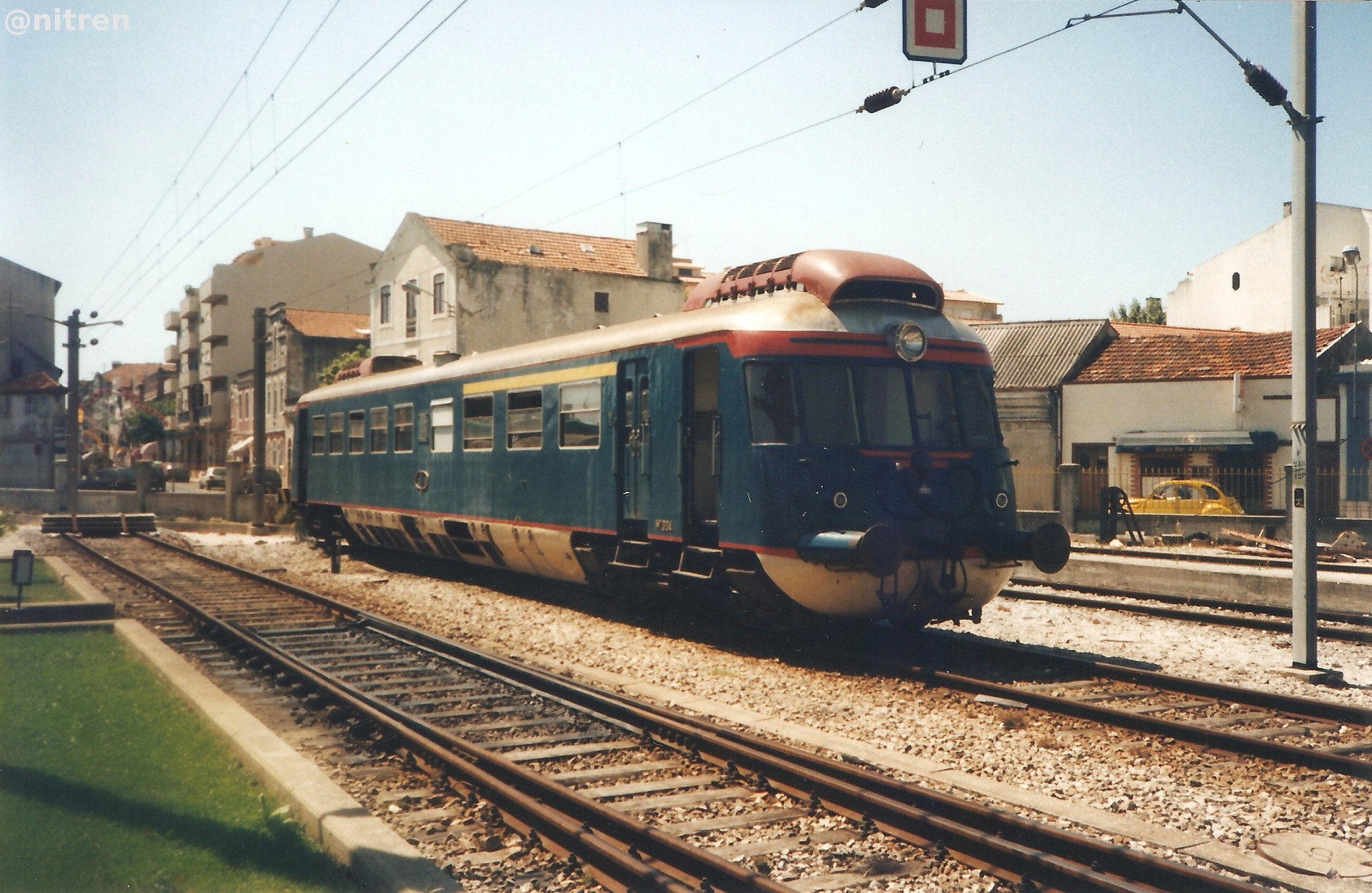

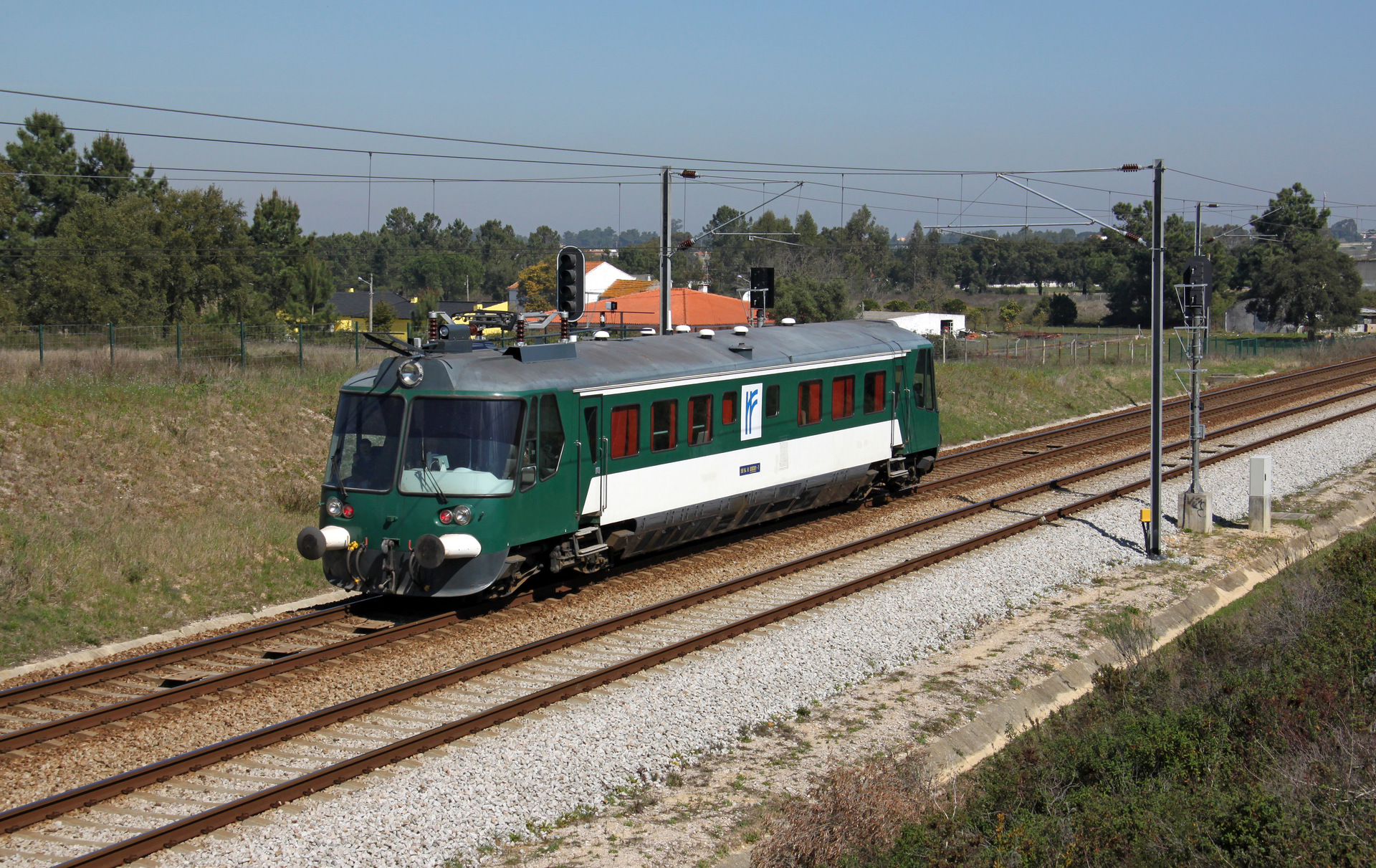

Allan CP 0300 photos
Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
