AnsaldoBreda V250

Built by AnsaldoBreda

Top speed

250 km/h

155 mph

Power output

5,500 kW

7,376 hp

Weight

423 t

932,554 lb

Length

201 m

659 ft 5 in

Track gauge

1,435 mm

Standard gauge

Years built

2008

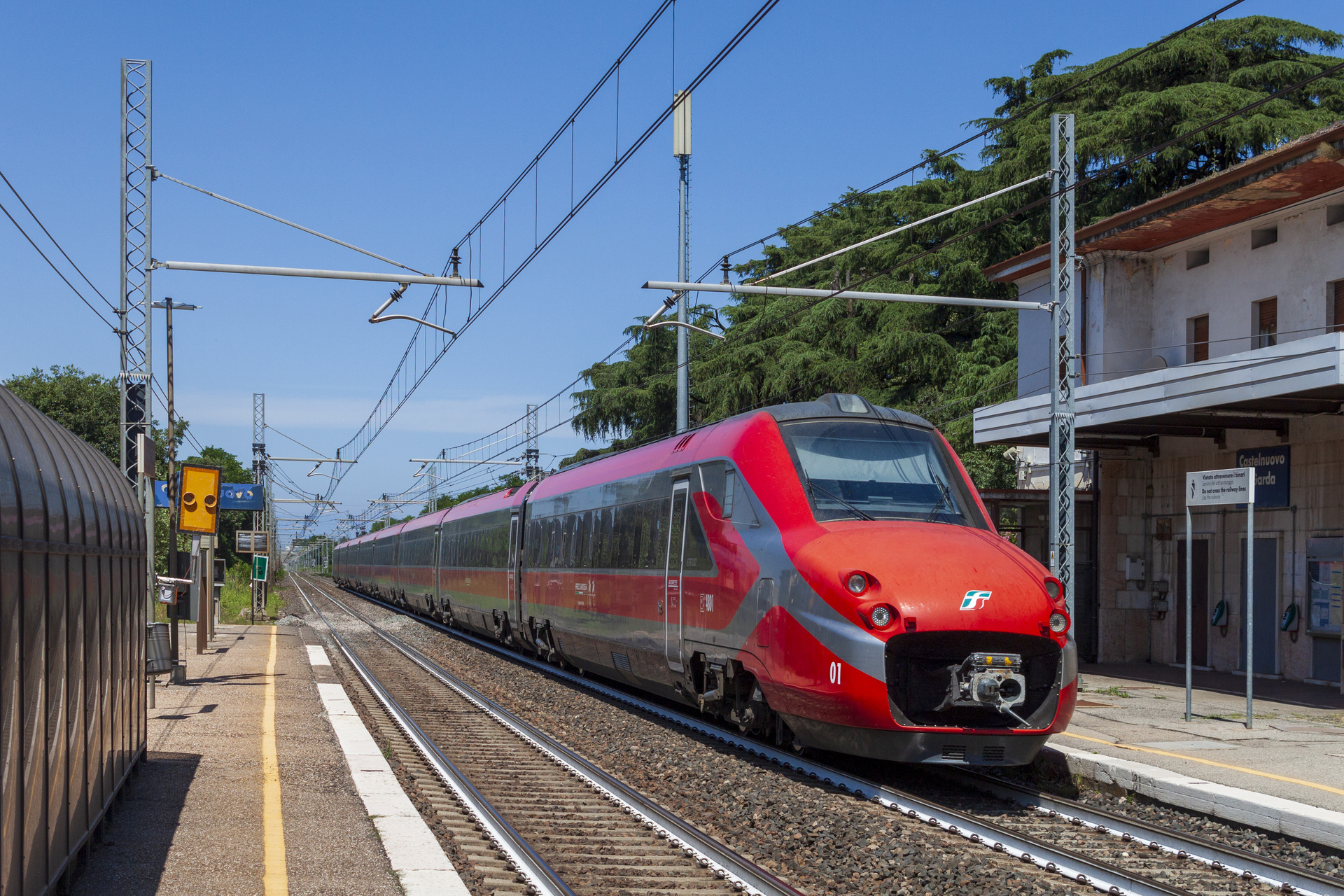

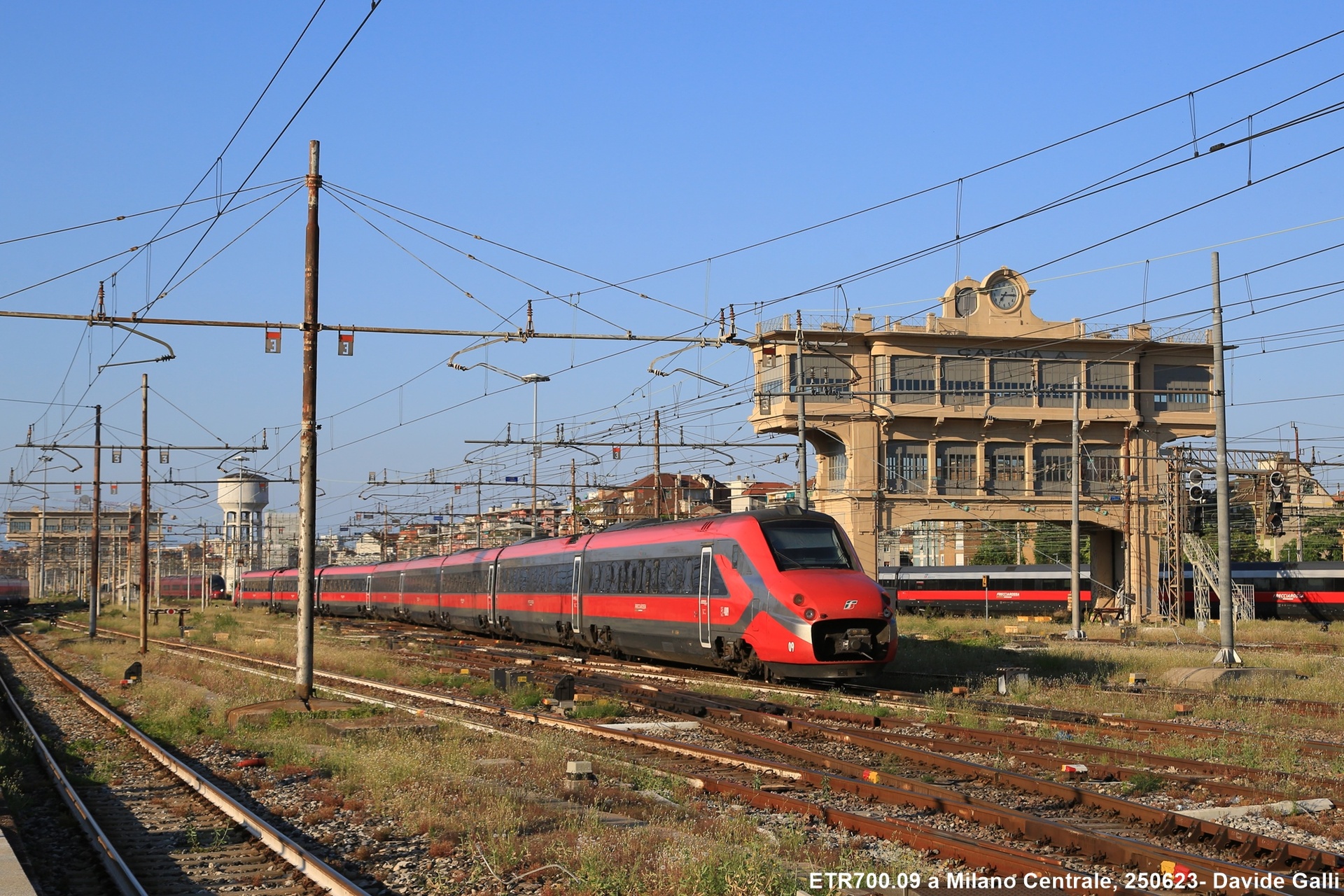

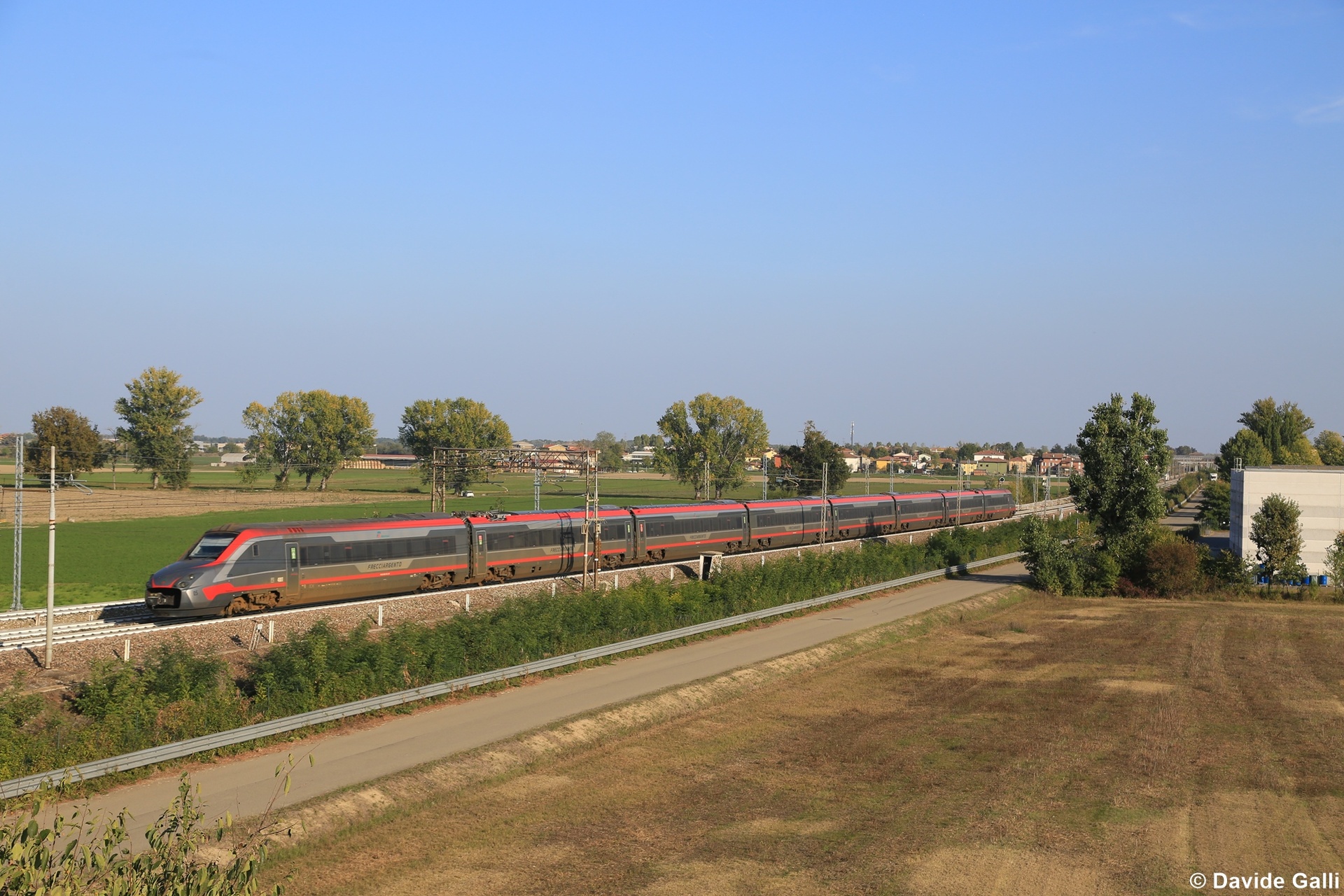

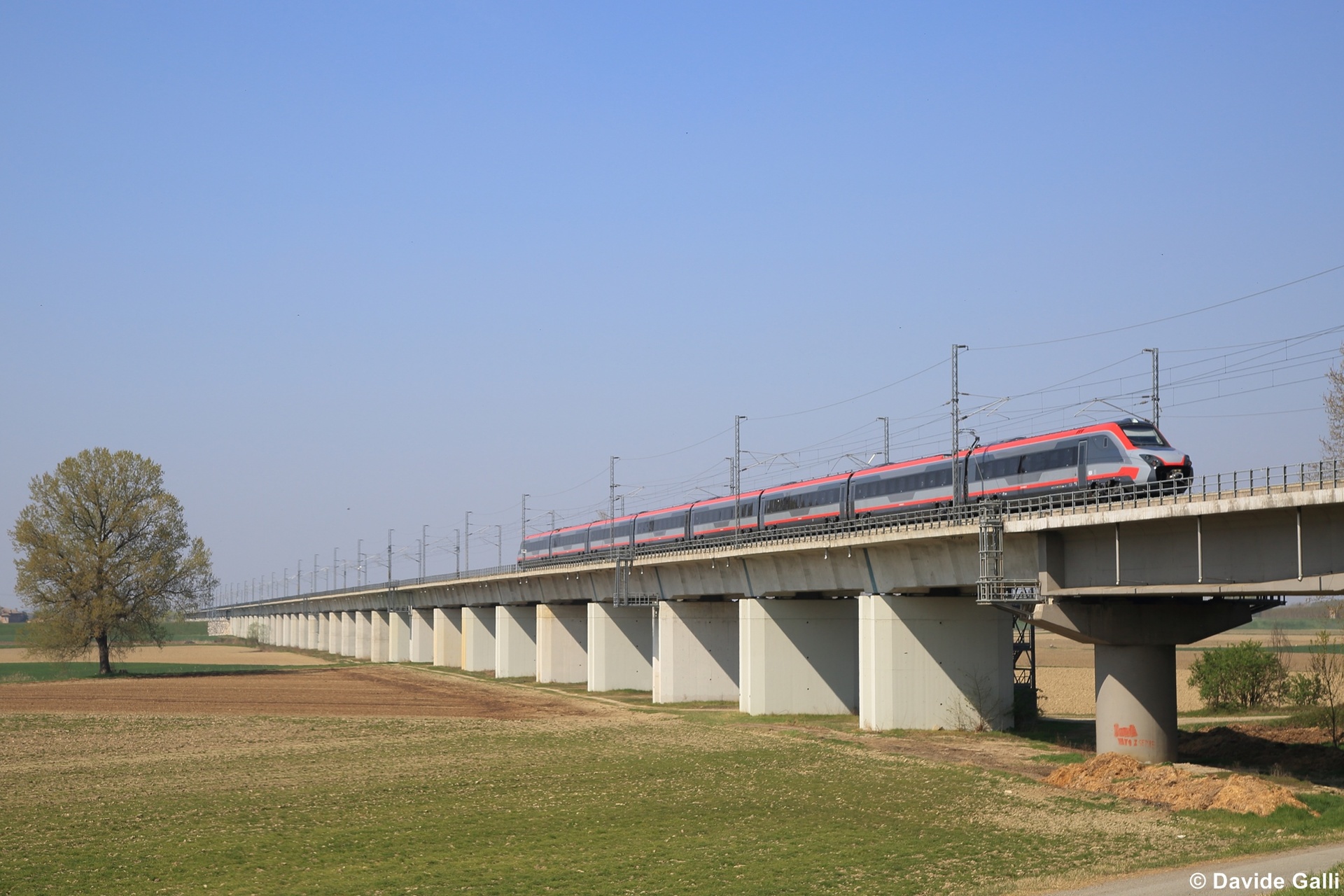

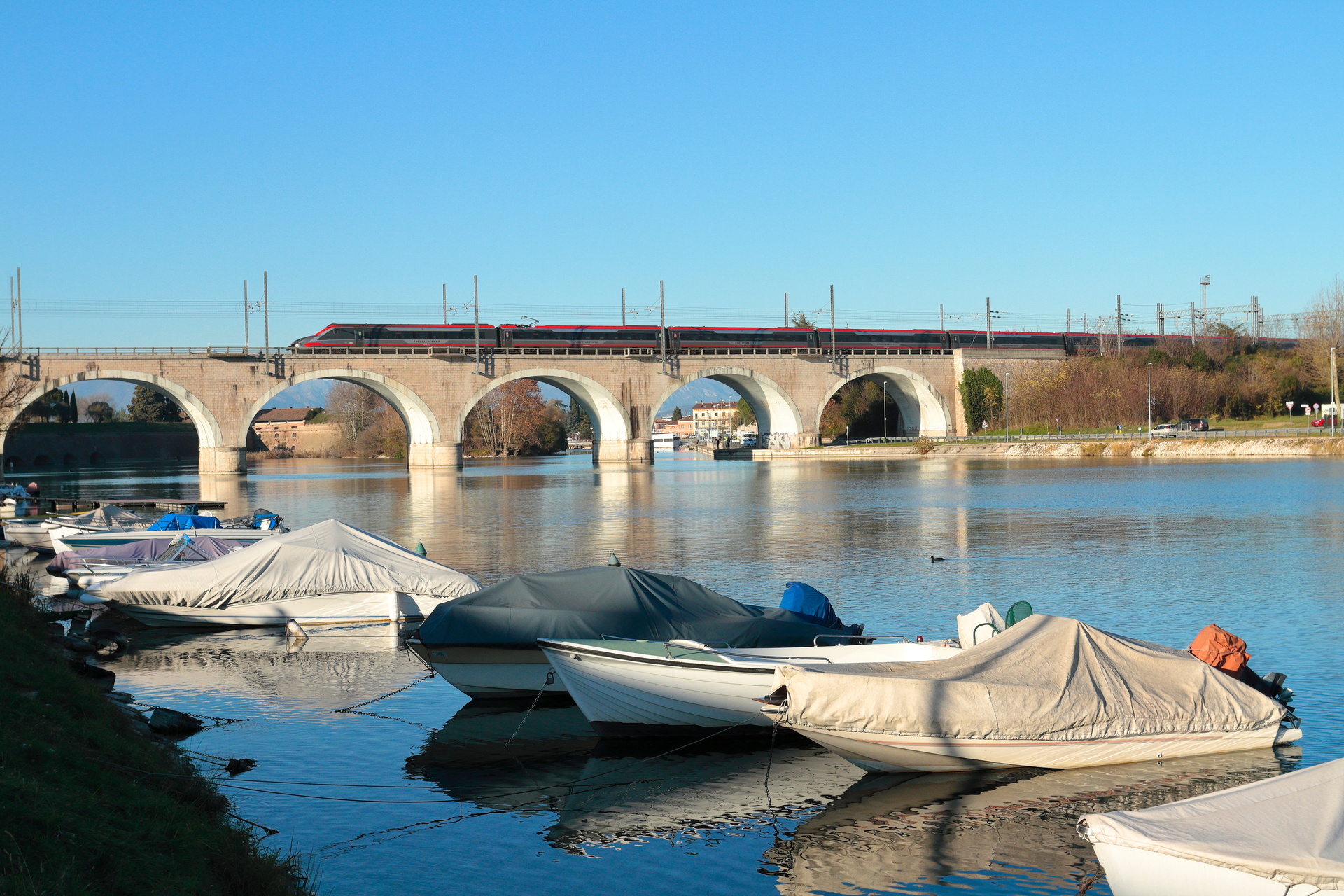

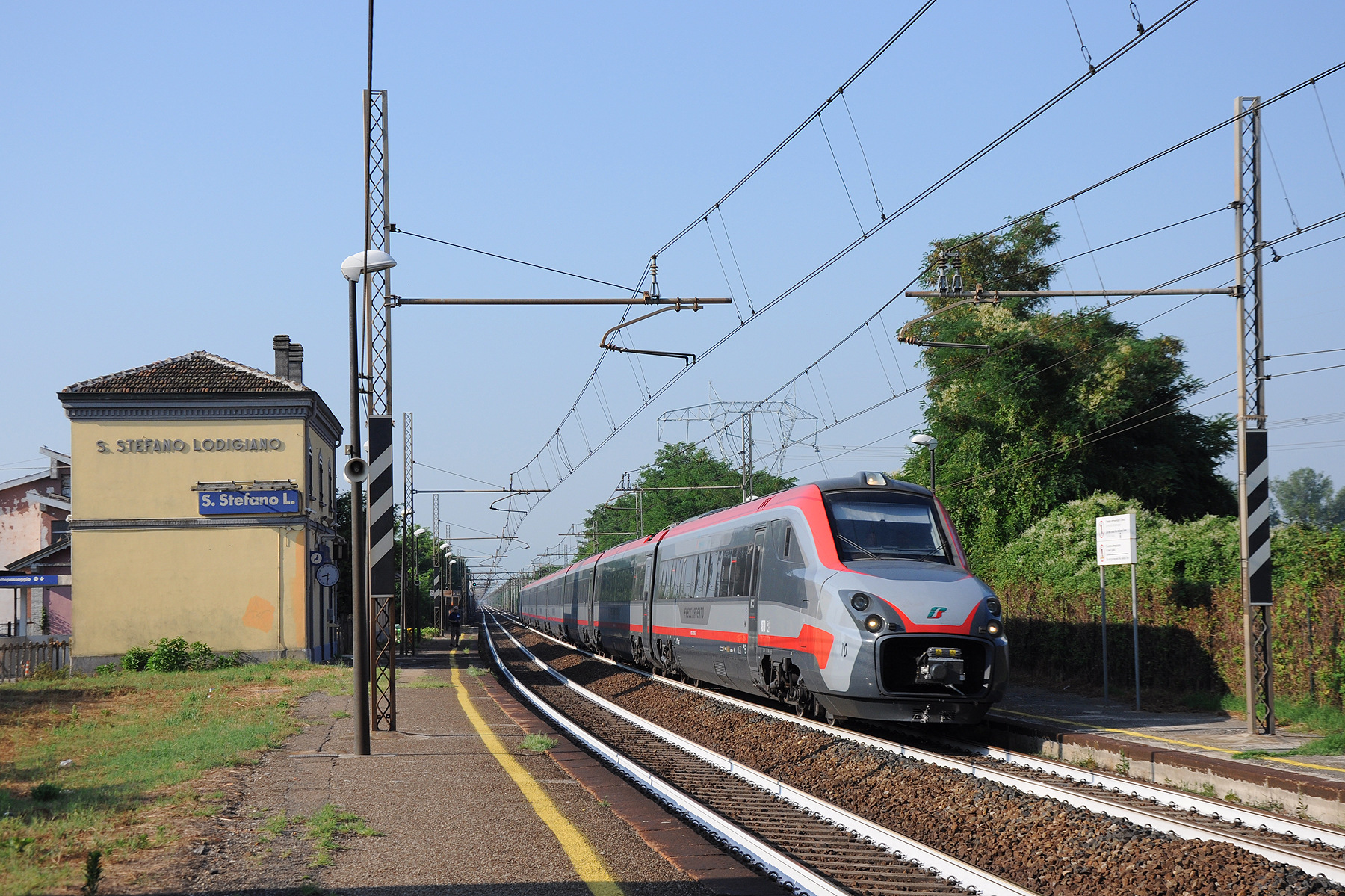

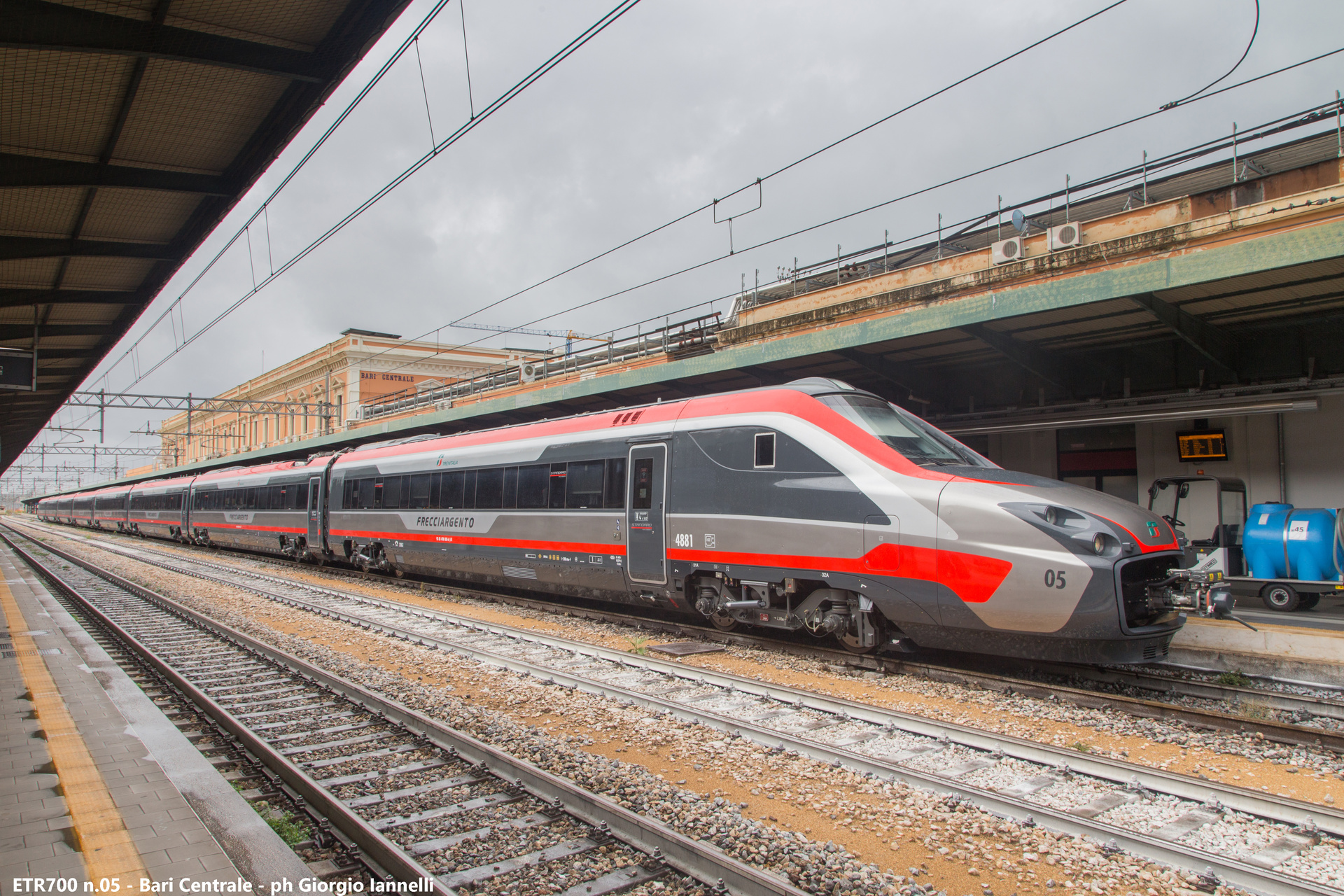

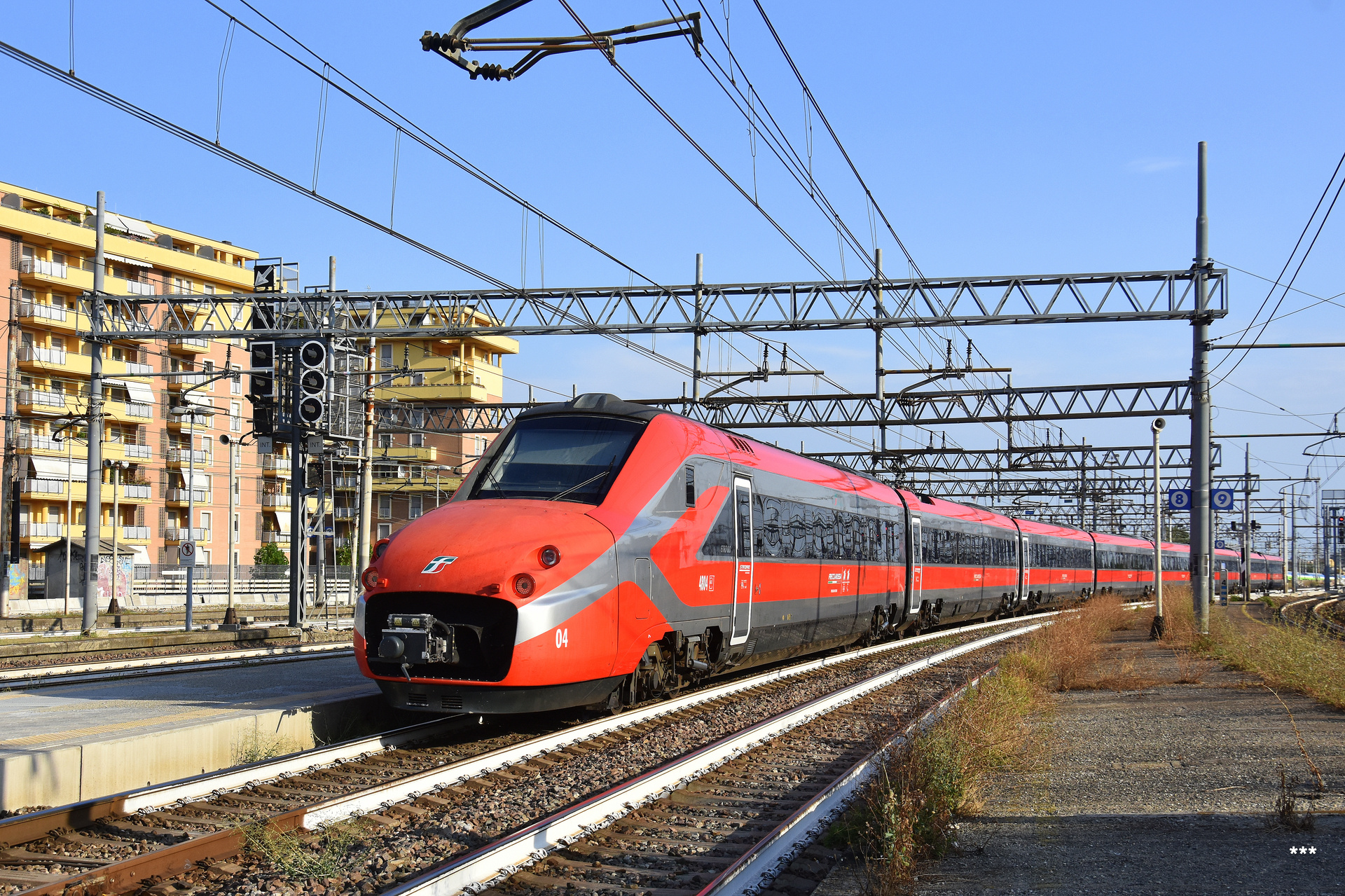

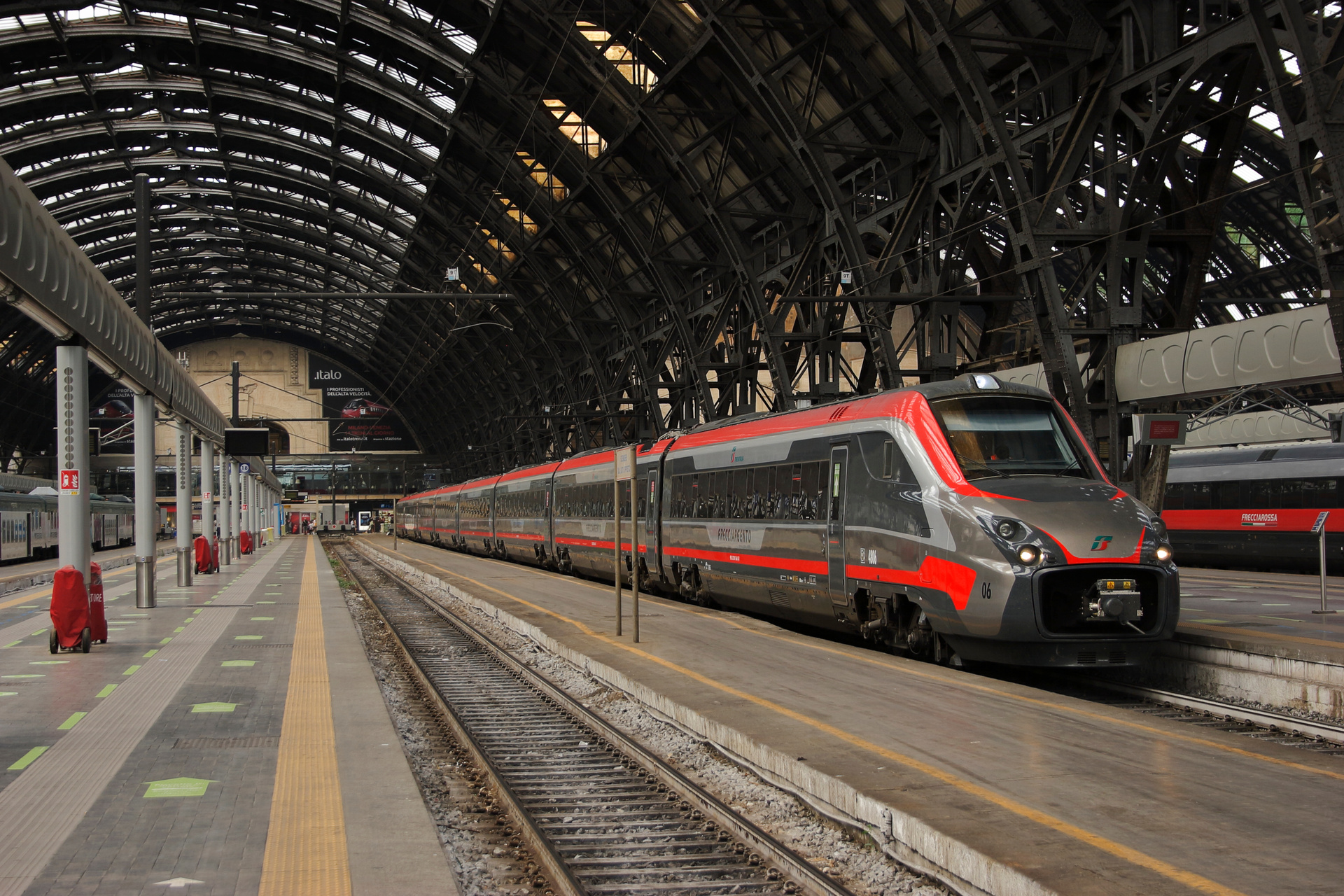

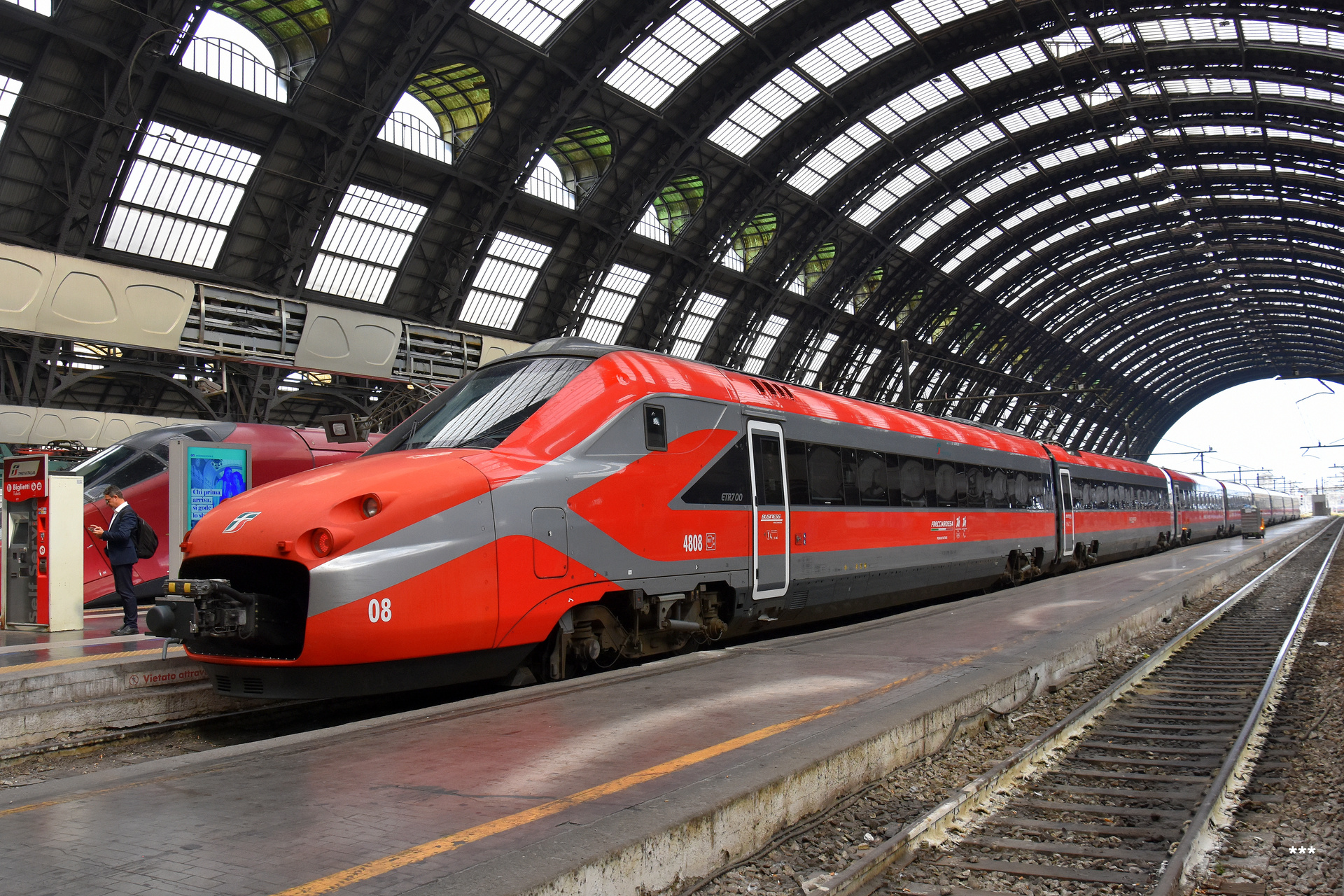

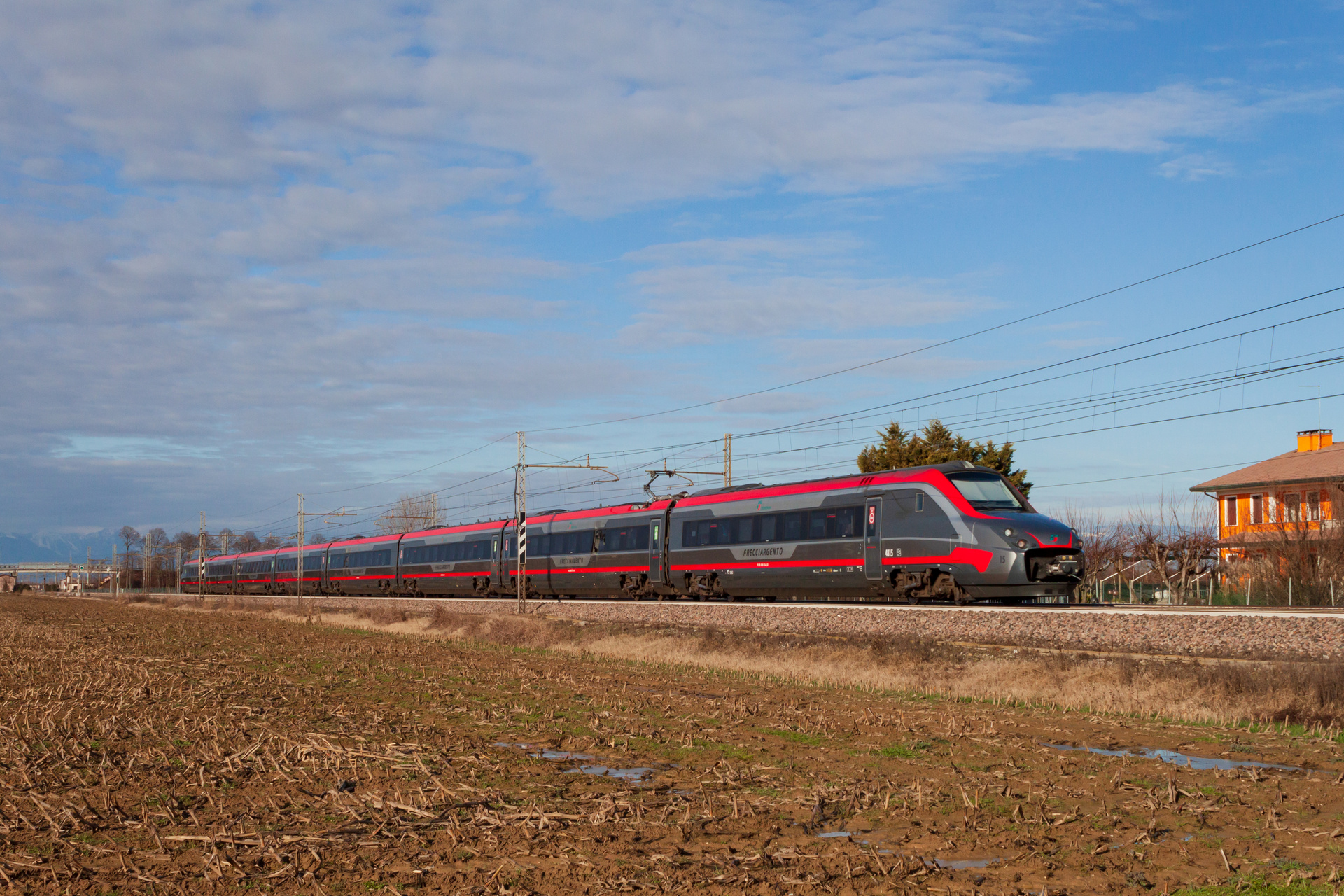

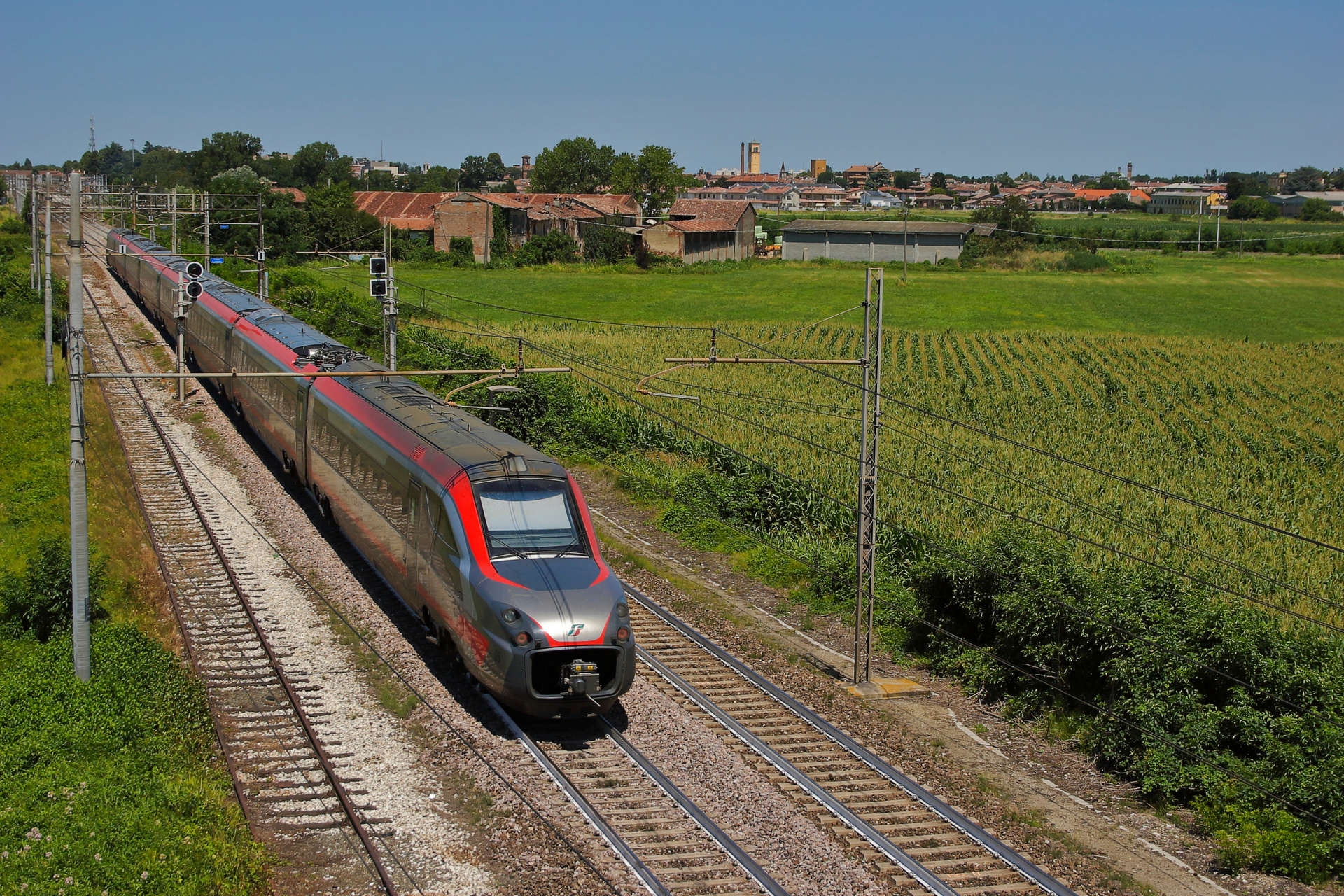

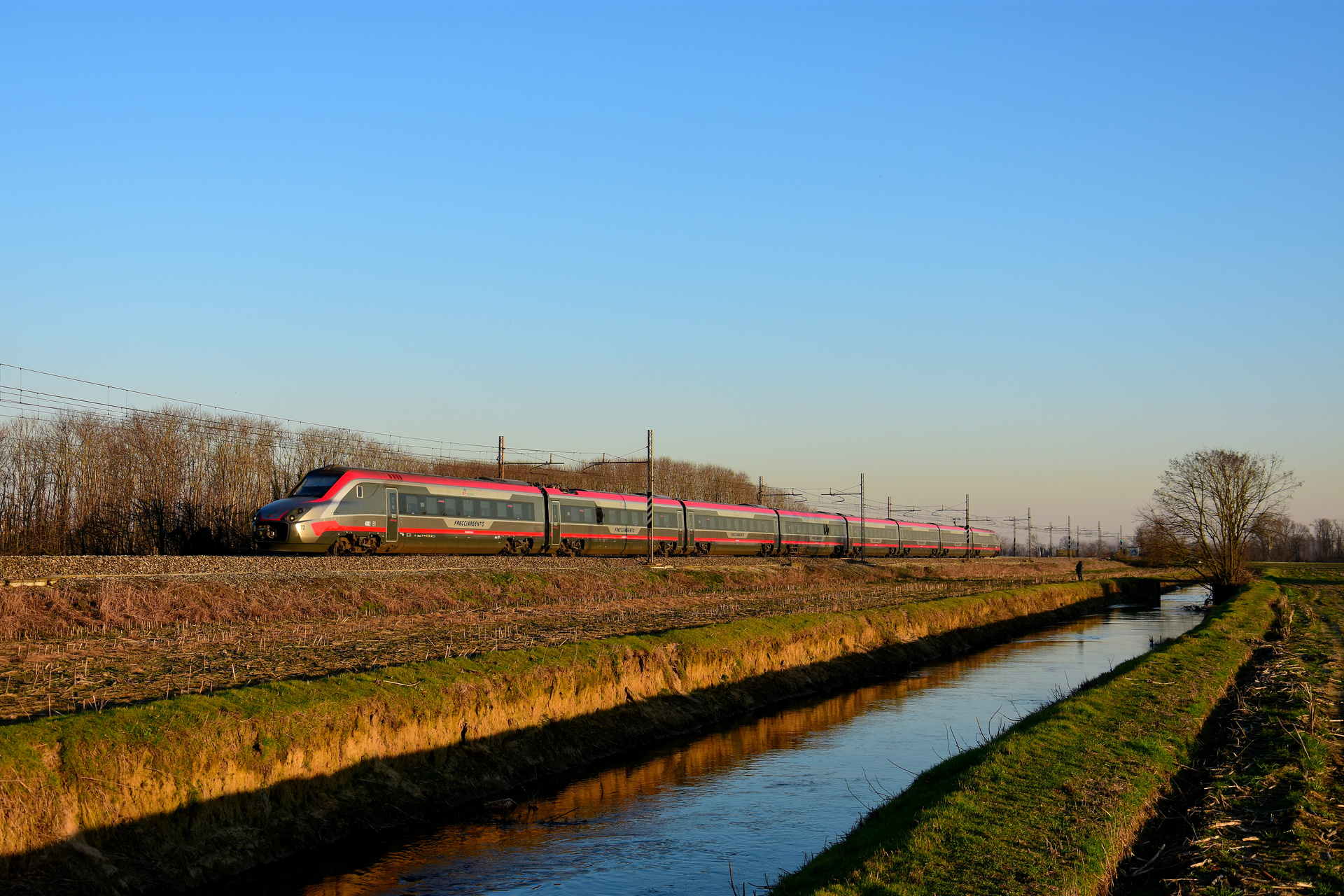

Overview of the AnsaldoBreda V250

Explore the V250, an impressive Electric Multiple Unit (EMU) built by AnsaldoBreda and introduced in 2008.

This modern train boasts a top speed of 250 km/h and a substantial seating capacity of 546 passengers, with 127 in first class and 419 in second class. Its 8-car formation (4M4T) and a length of 201 meters make it a significant presence on the tracks.

Operating on a 1435 mm gauge, the V250 measures 2.87 meters wide and 4.08 meters high. It's equipped to handle various electric systems, including 25 kV AC 50 Hz, 1.5 kV DC, and 3 kV DC, delivering a powerful 5500 kW output and 300 kN of tractive effort.

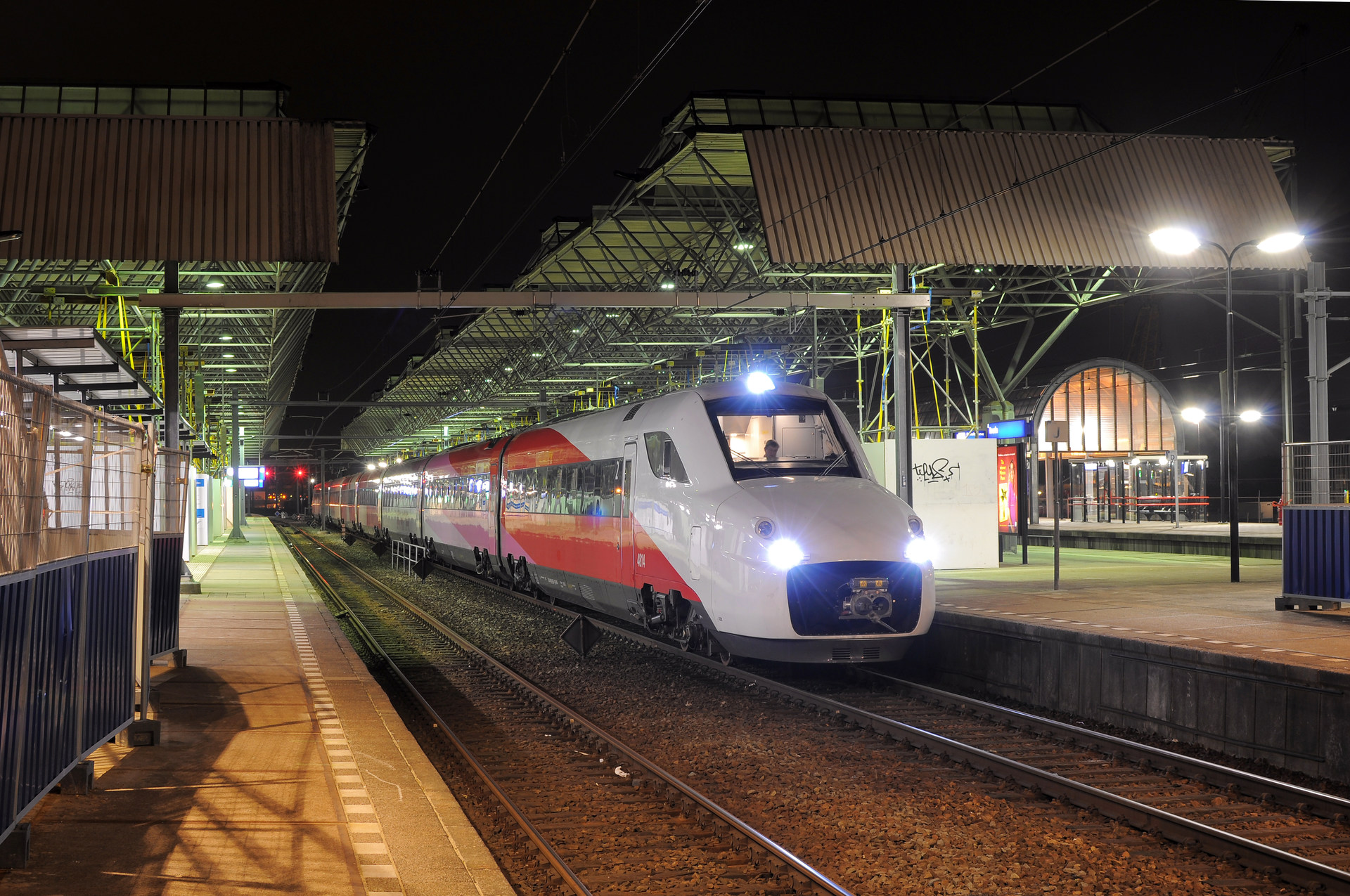

This versatile locomotive serves both Italian State Railways (FS ETR 700) and NS International (NSI V250) in the Netherlands, highlighting its crucial role in European rail transport.

AnsaldoBreda V250 technical specifications

	Value	Imperial / US
Built by	AnsaldoBreda · 2008
Top speed	250 km/h155 mph	155 mph
Power output	5,500 kW7,376 hp	7,376 hp
Tractive effort	300 kN67,443 lbf	67,443 lbf
Electric systems	25 kV AC 50 Hz 1.5 kV DC 3 kV DC
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
Formation	8 cars (4M4T)
Capacity	546, 1st class 127, 2nd class 419 seats
Train length	201 m659 ft 5 in	659 ft 5 in
Width	2.87 m9 ft 5 in	9 ft 5 in
Height	4.08 m13 ft 5 in	13 ft 5 in
Weight	423 t932,554 lb	932,554 lb
