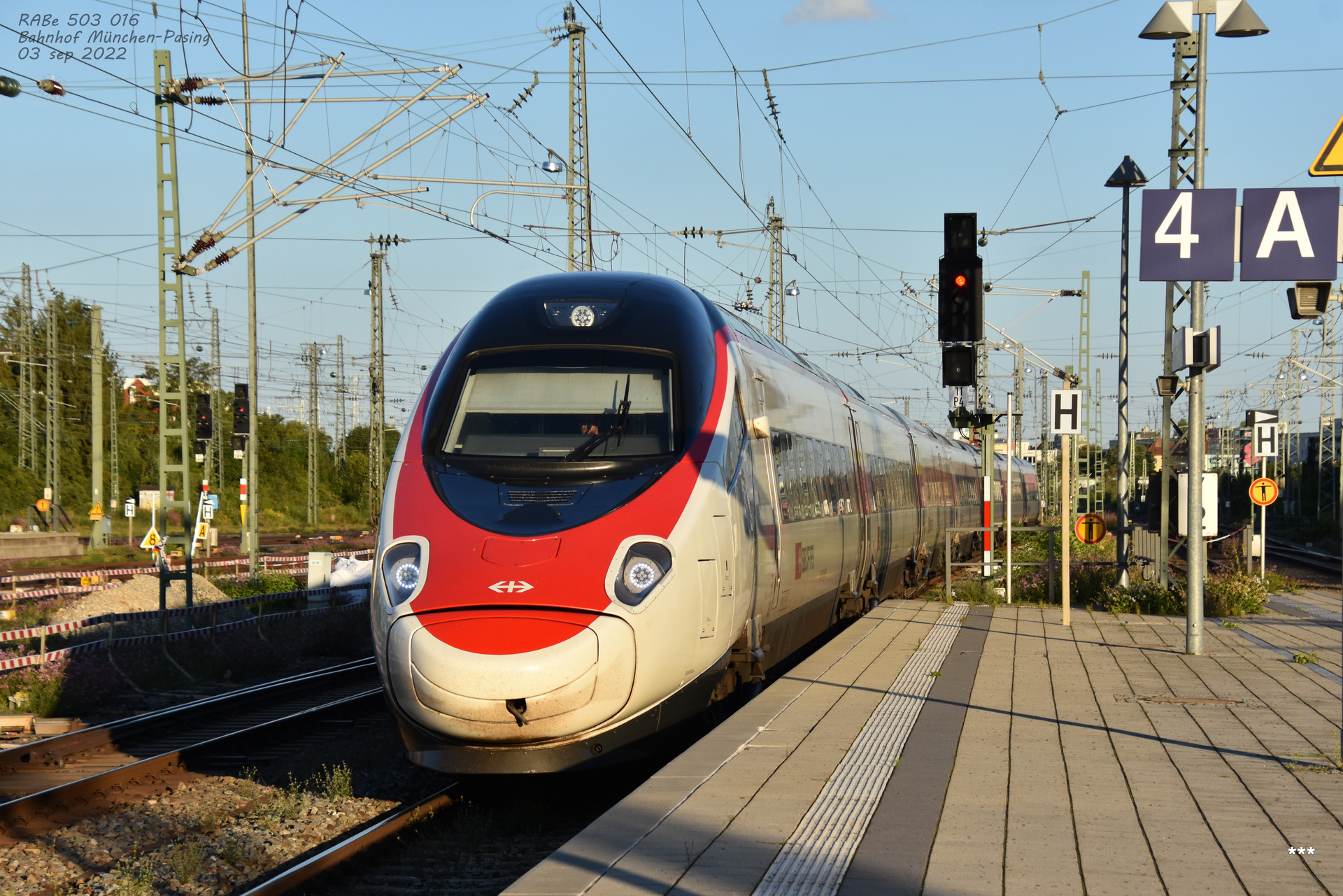

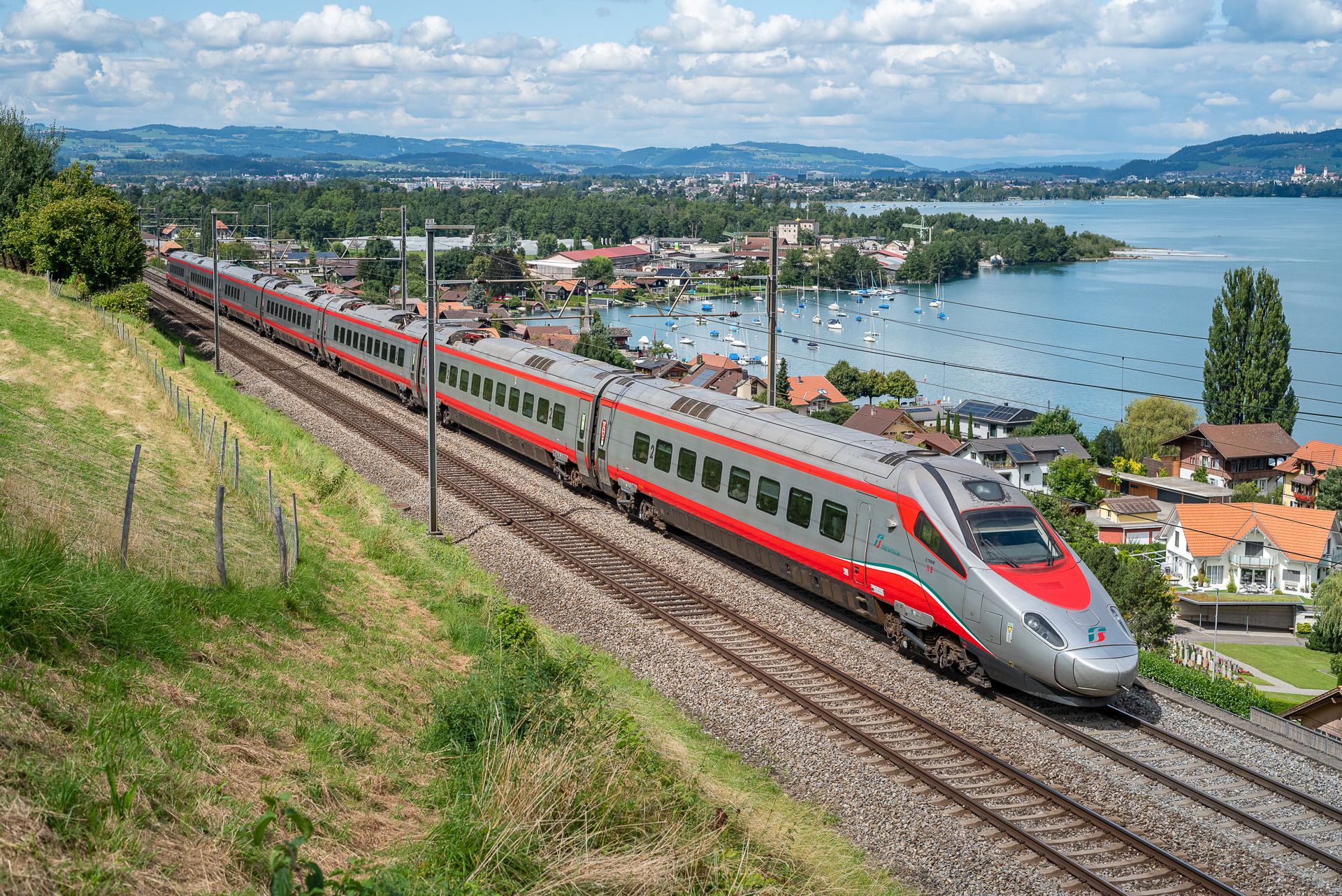

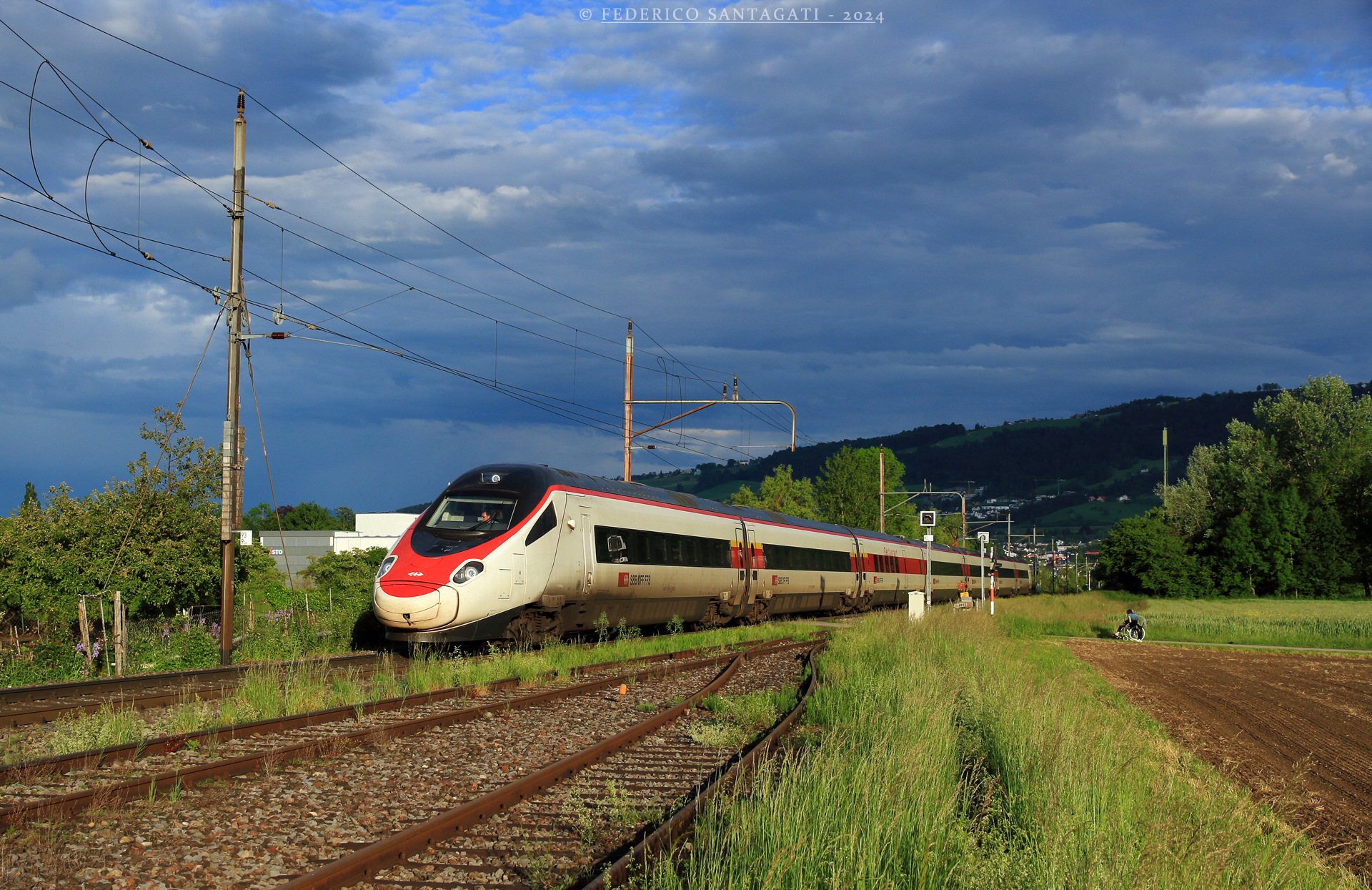

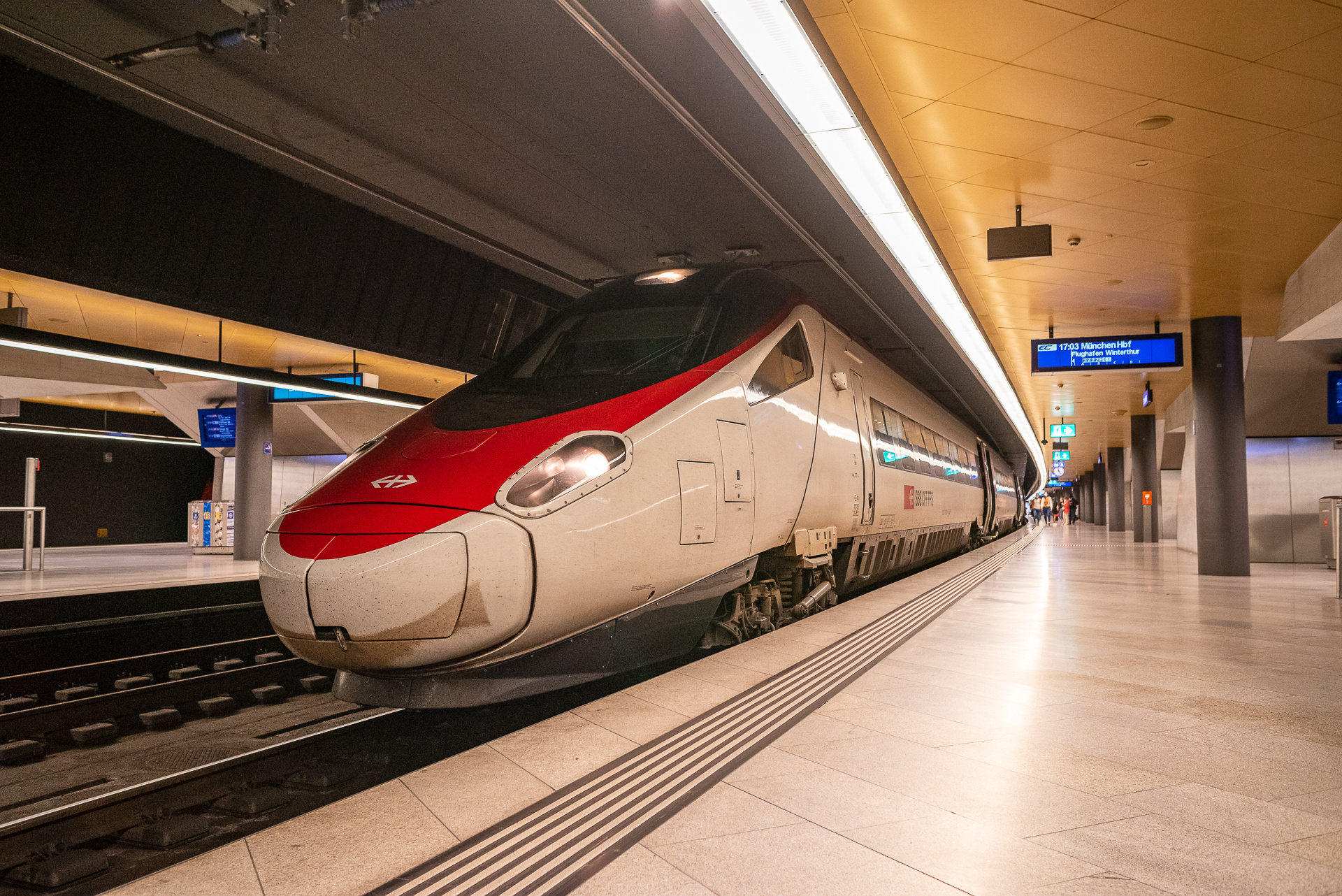

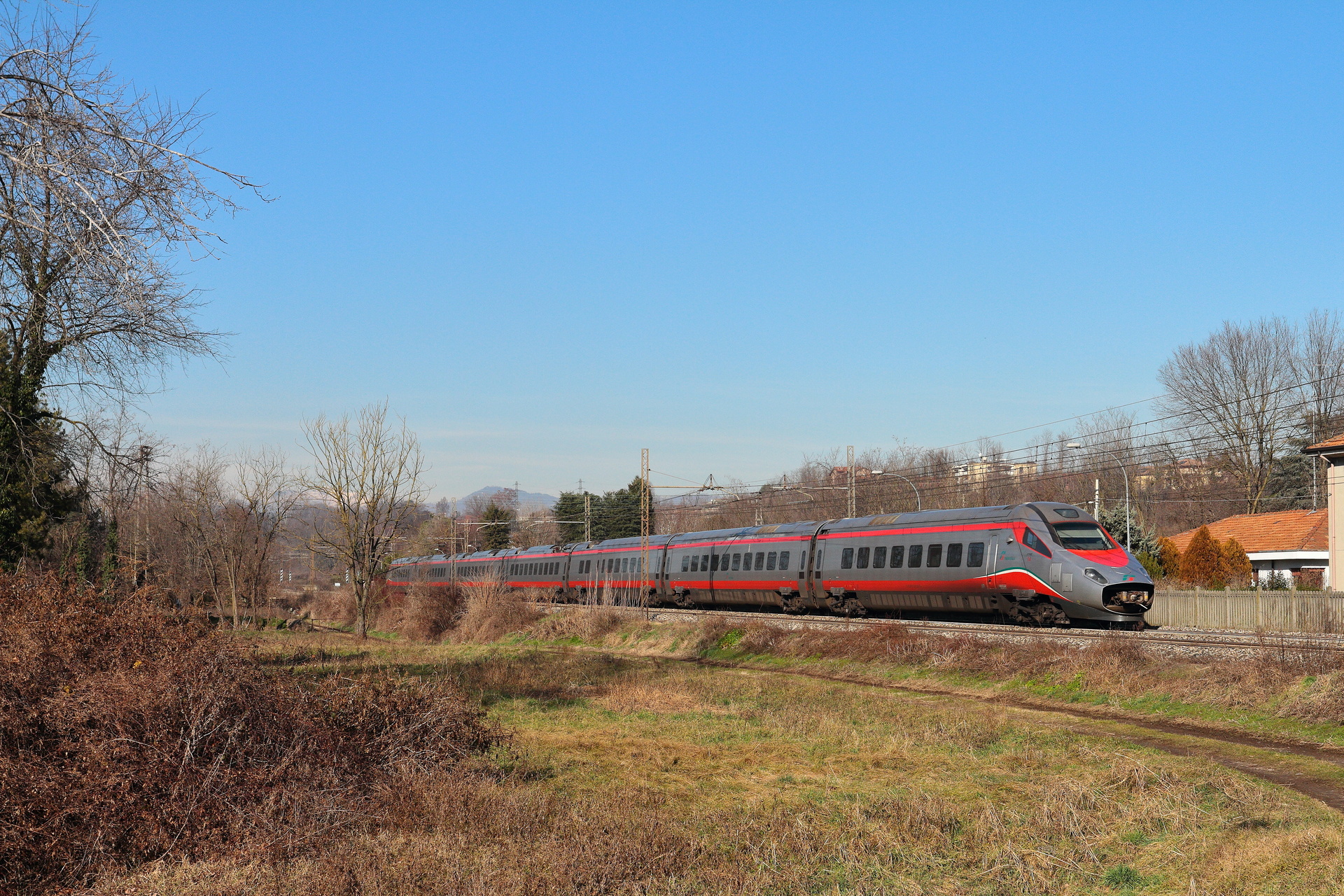

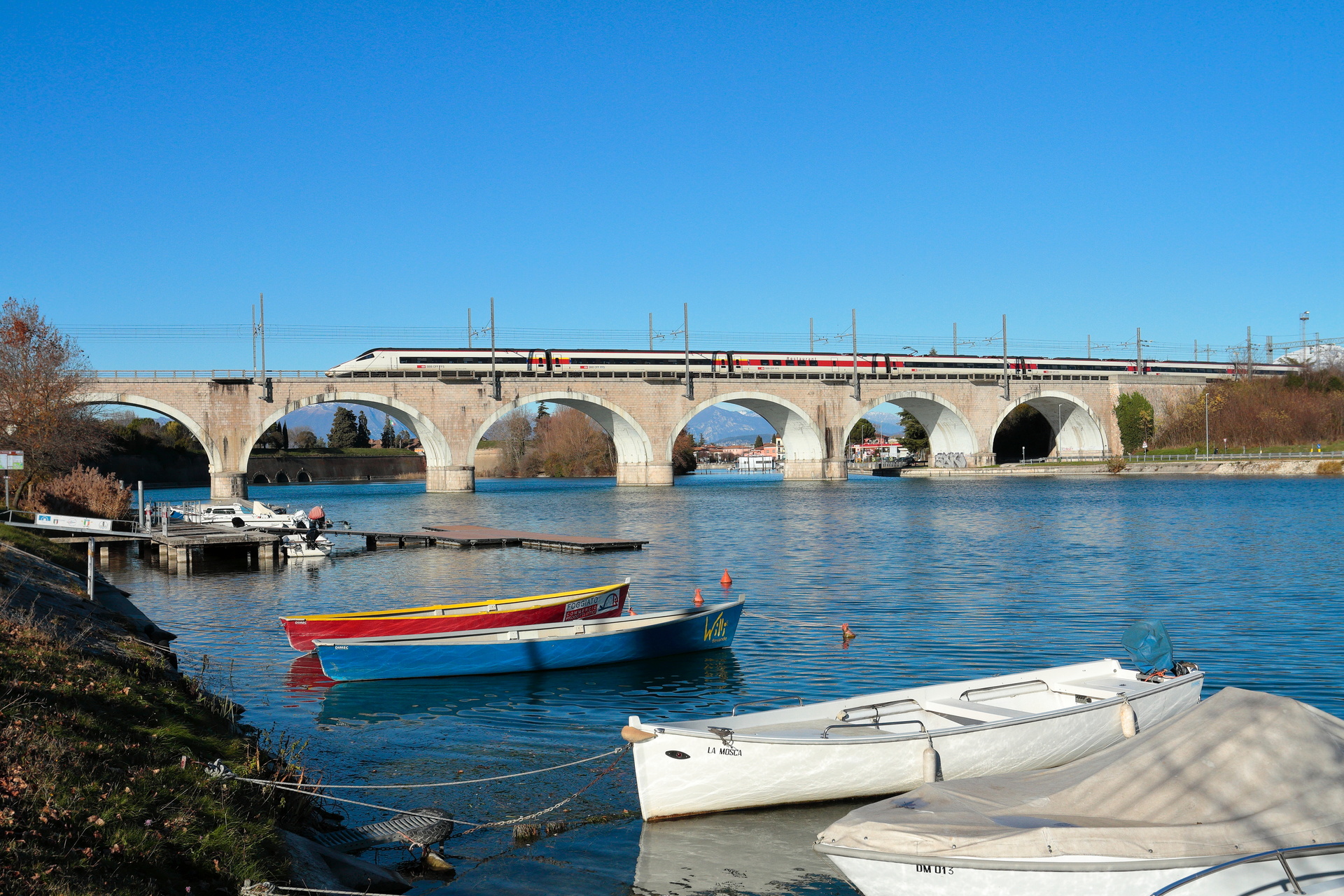

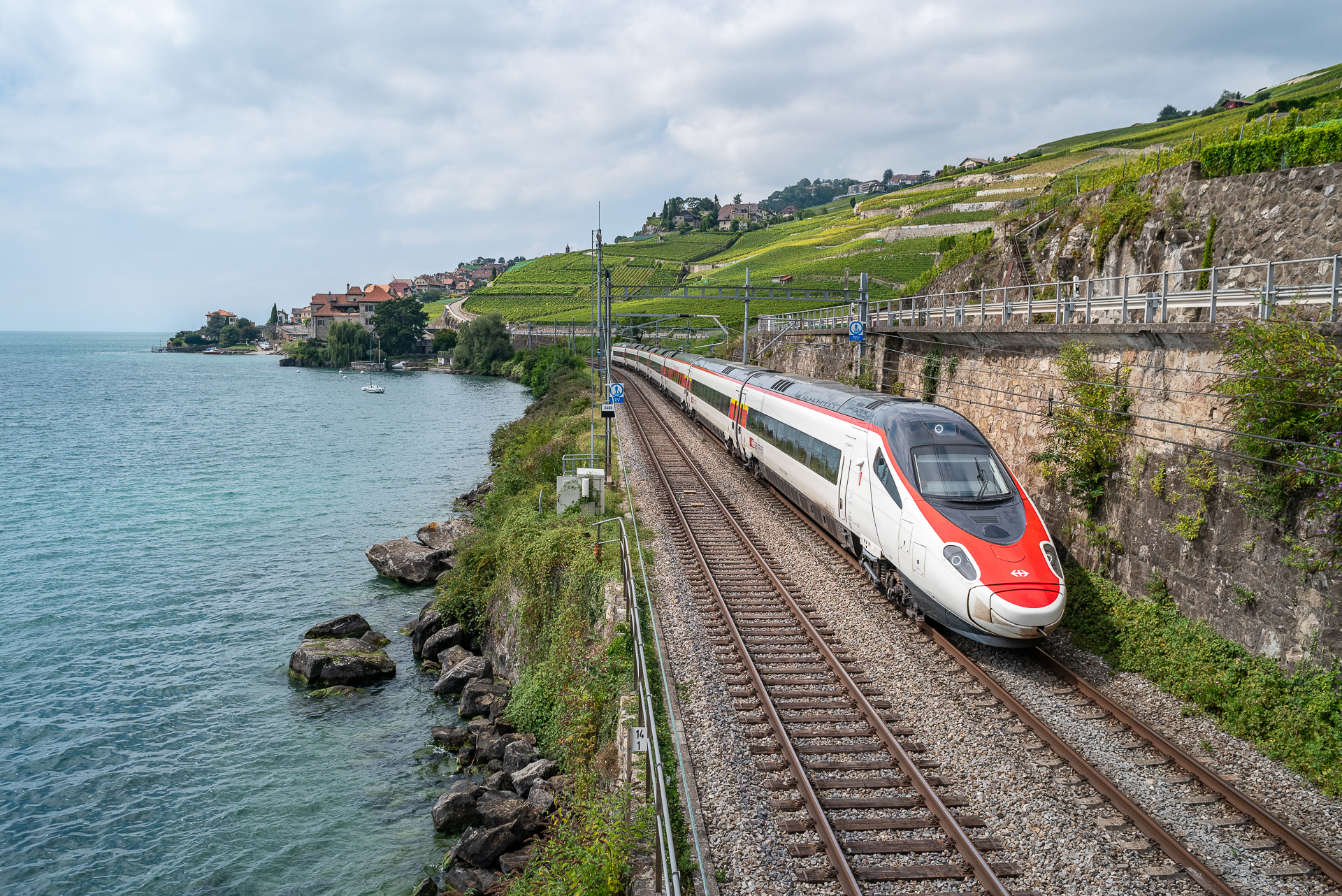

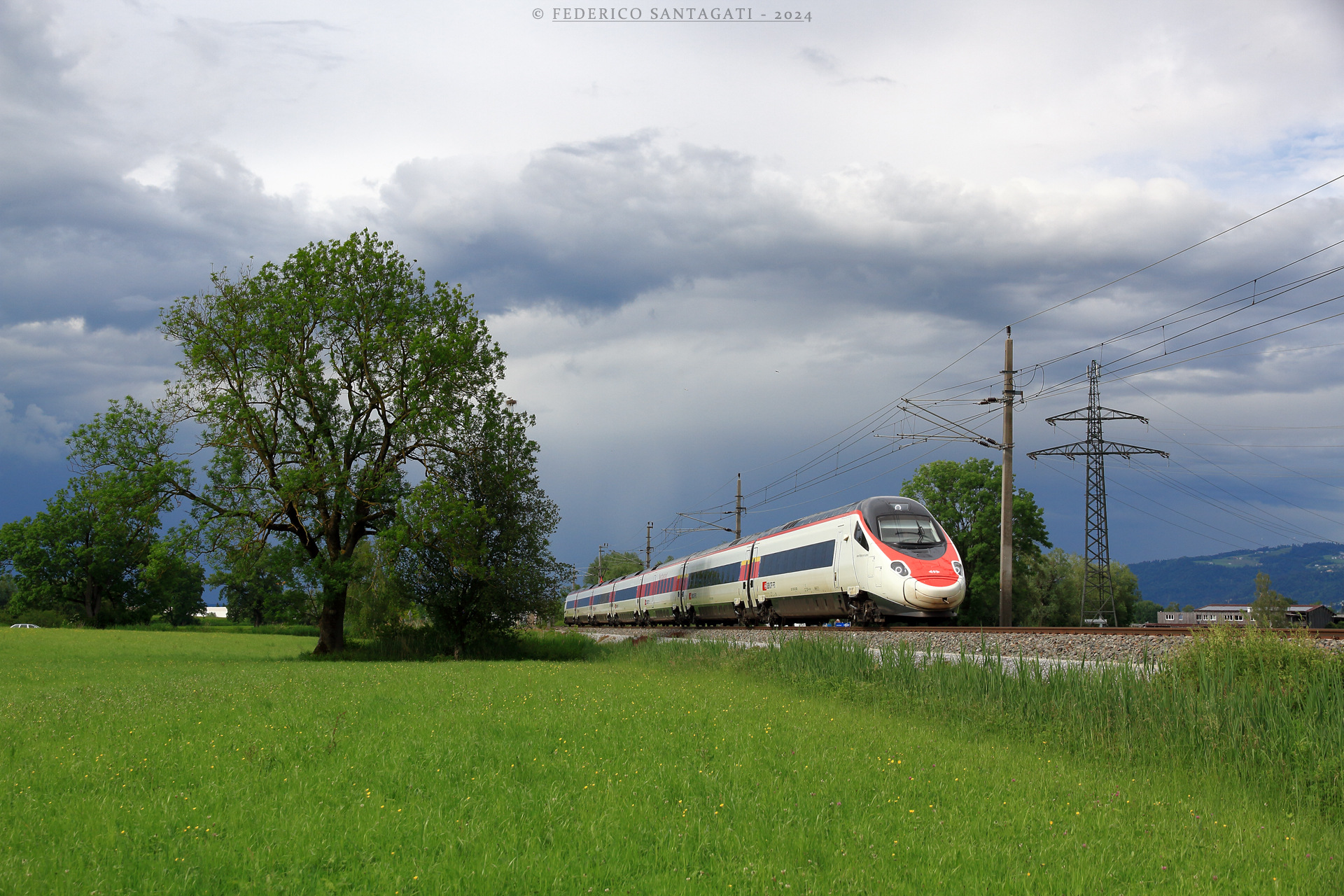

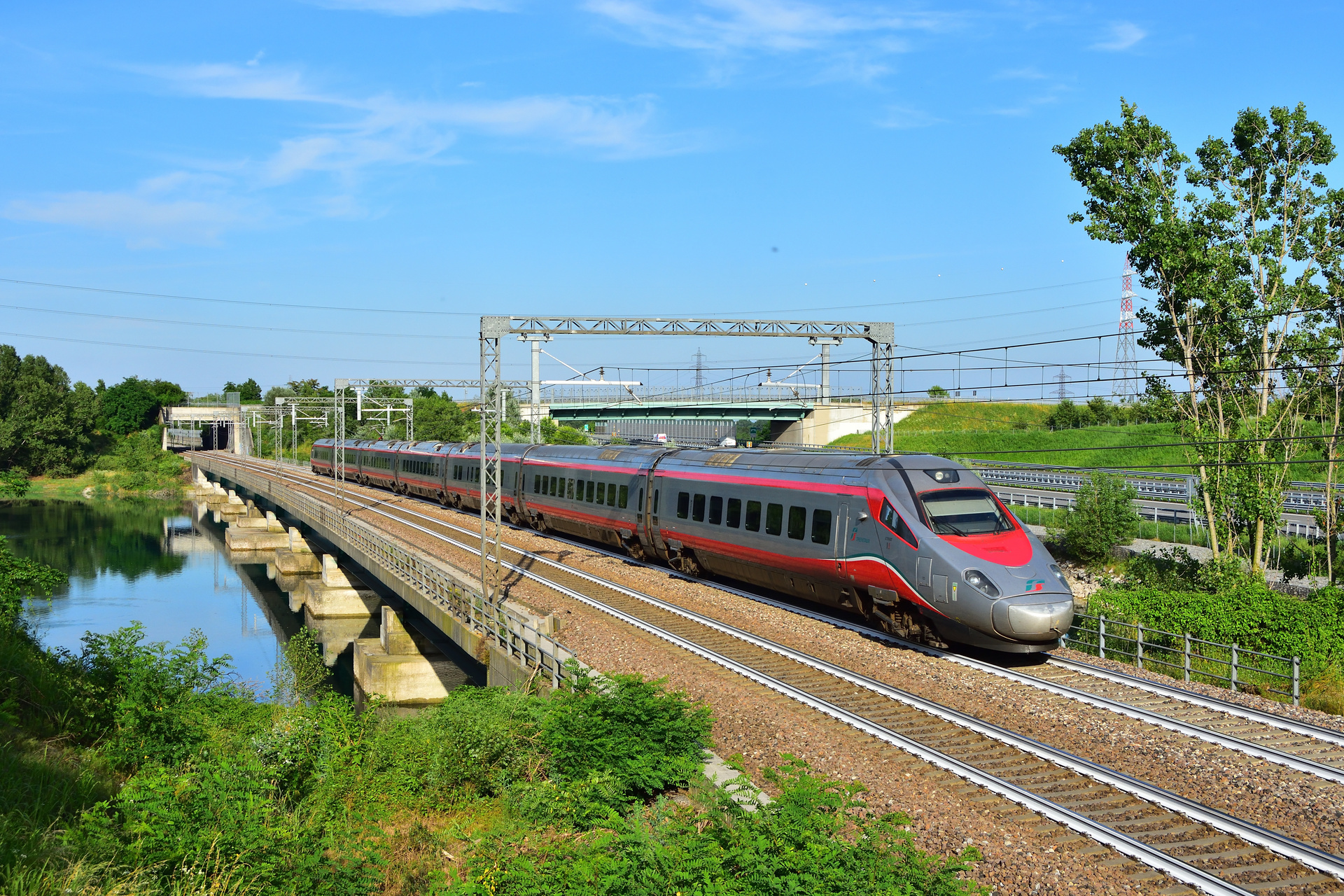

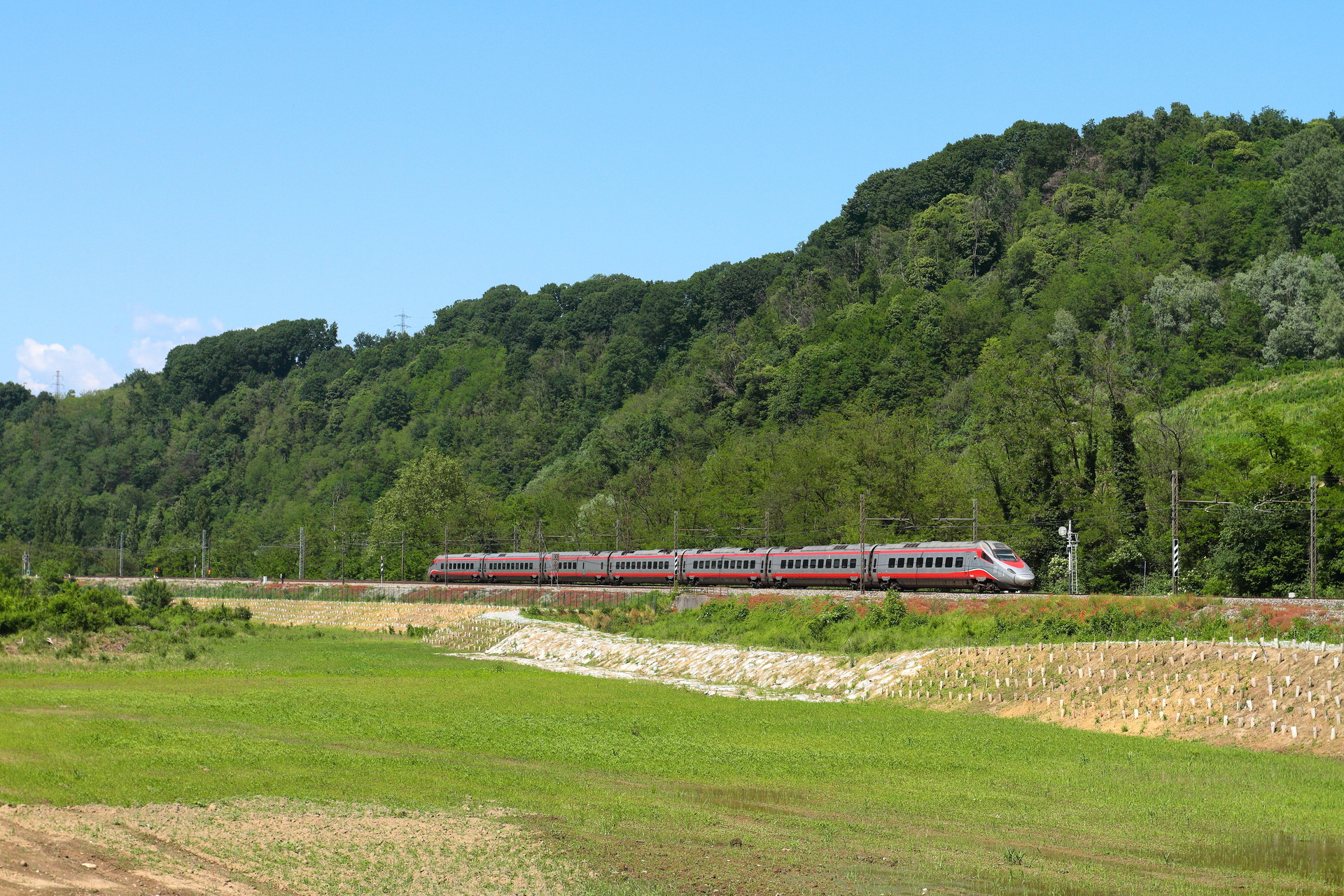

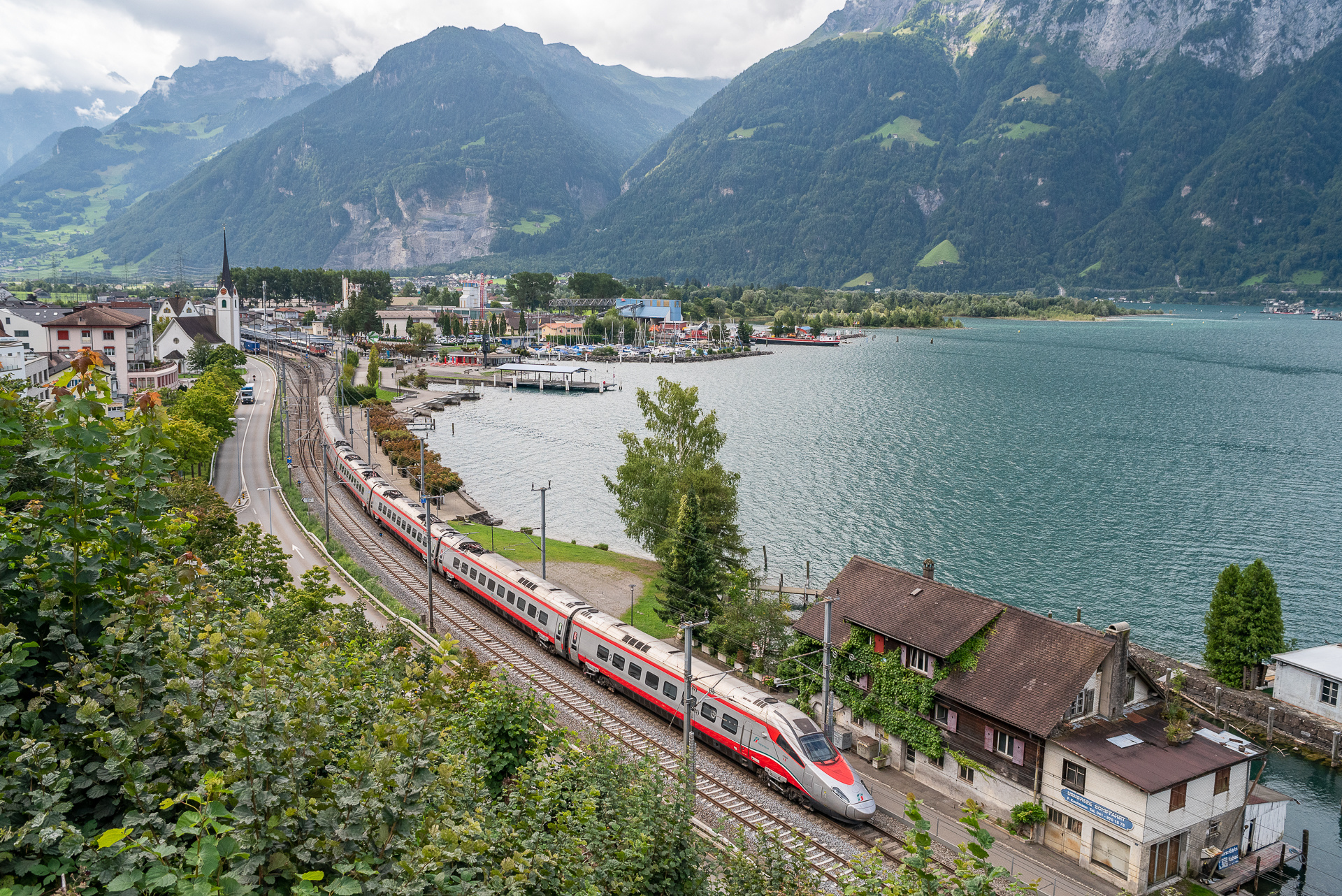

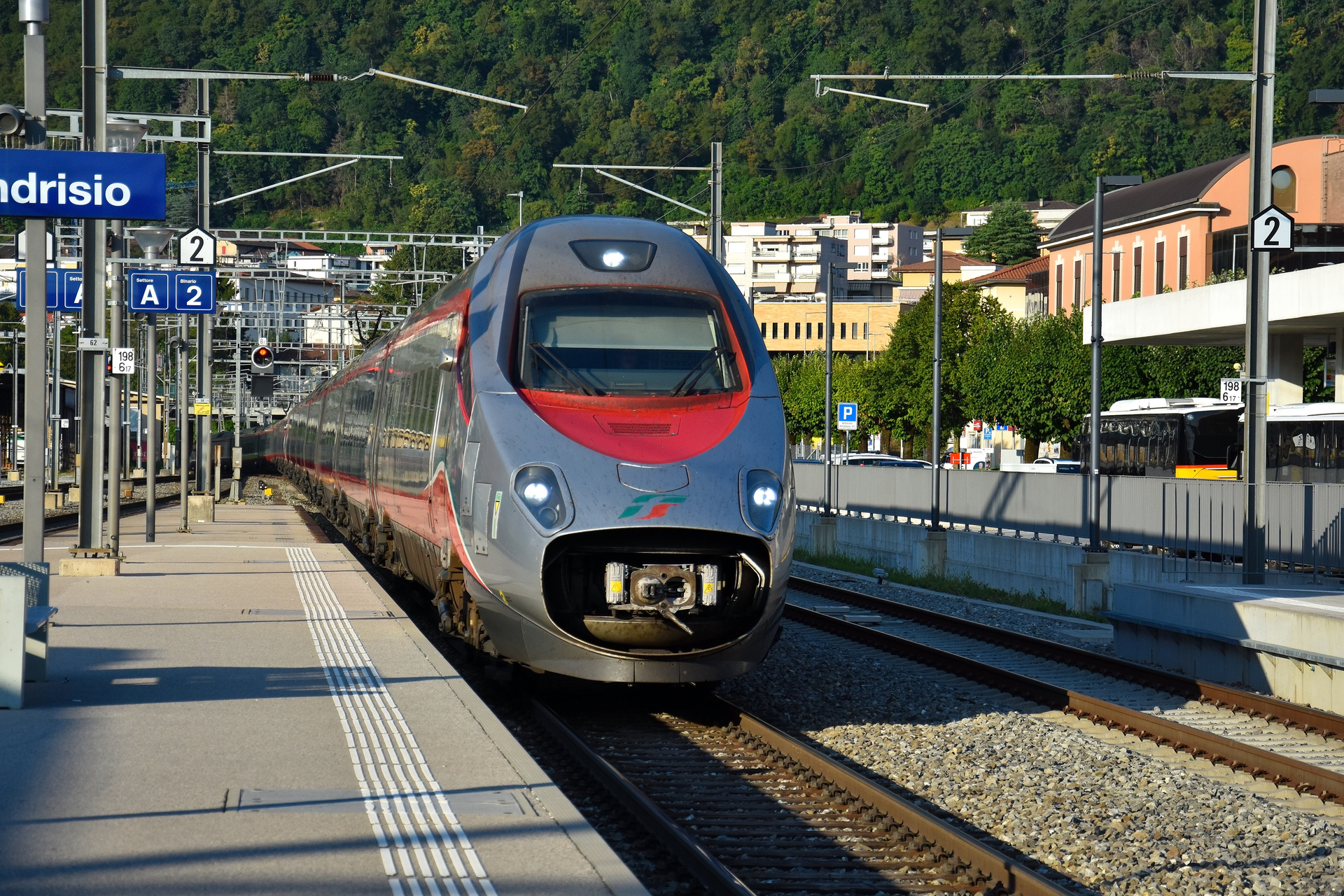

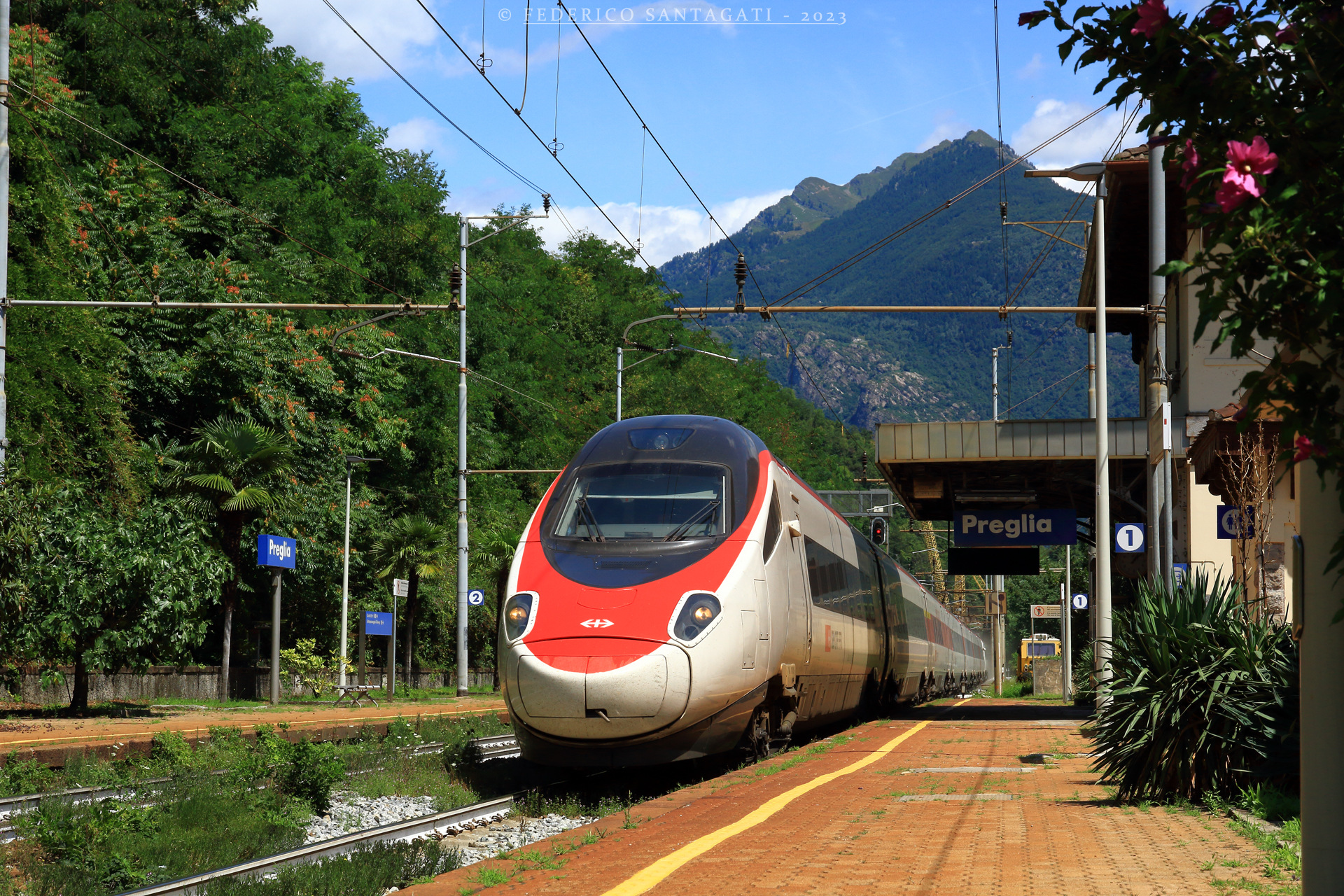

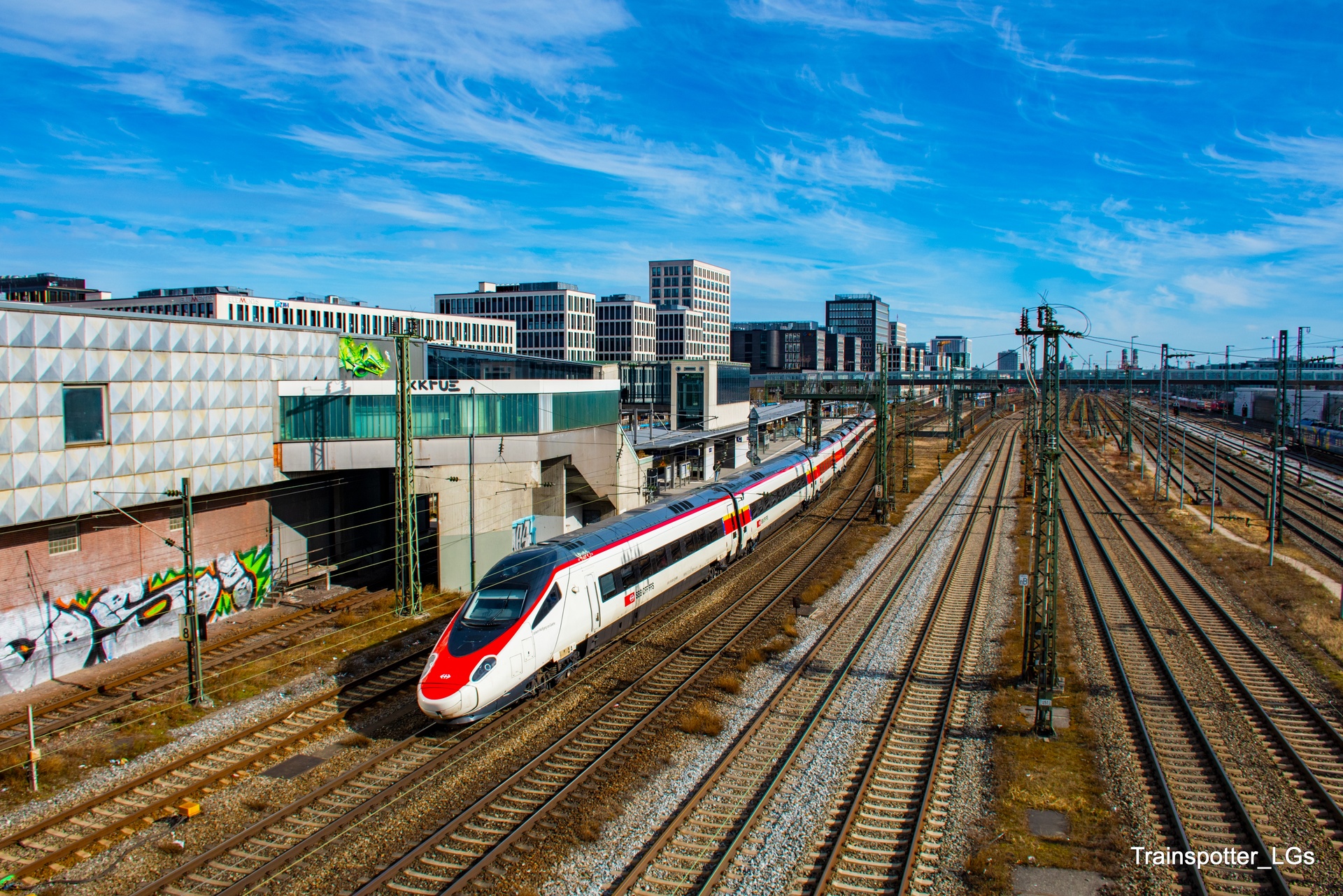

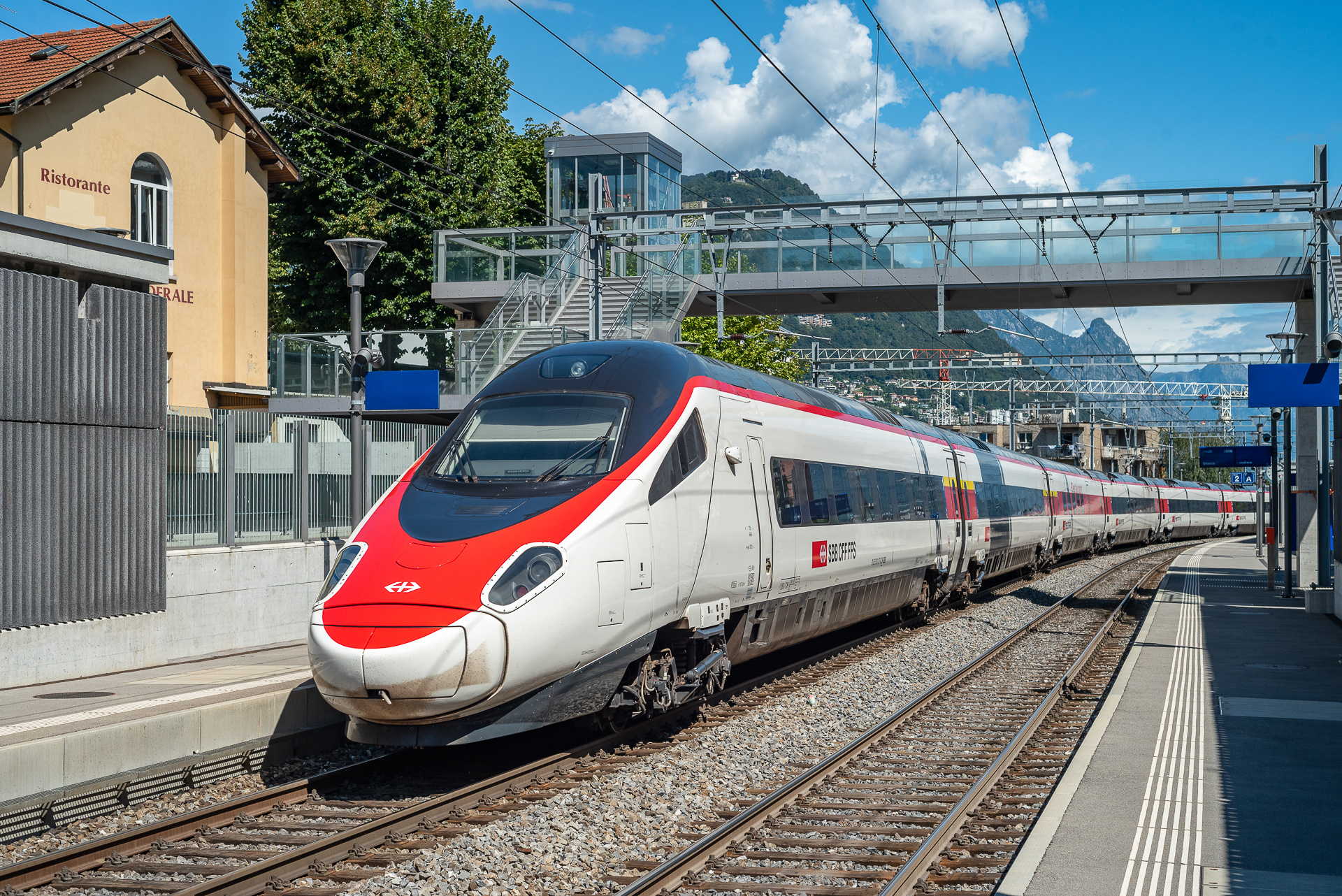

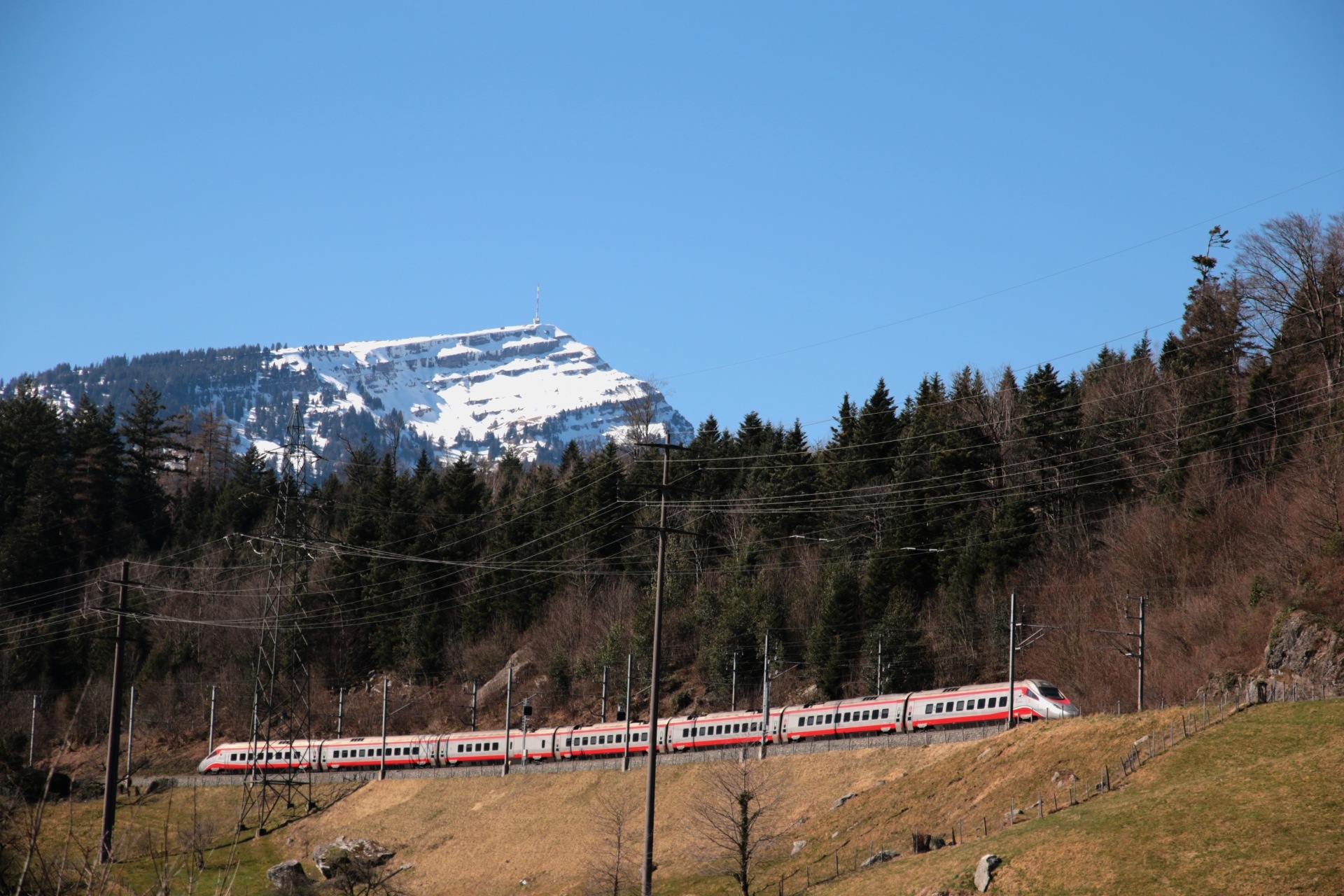

Alstom ETR 610

Built by Alstom

Top speed

250 km/h

155 mph

Power output

5,520 kW

7,402 hp

Weight

387 t

853,188 lb

Length

187.4 m

614 ft 10 in

Track gauge

1,435 mm

Standard gauge

Years built

2006–2010

14 units

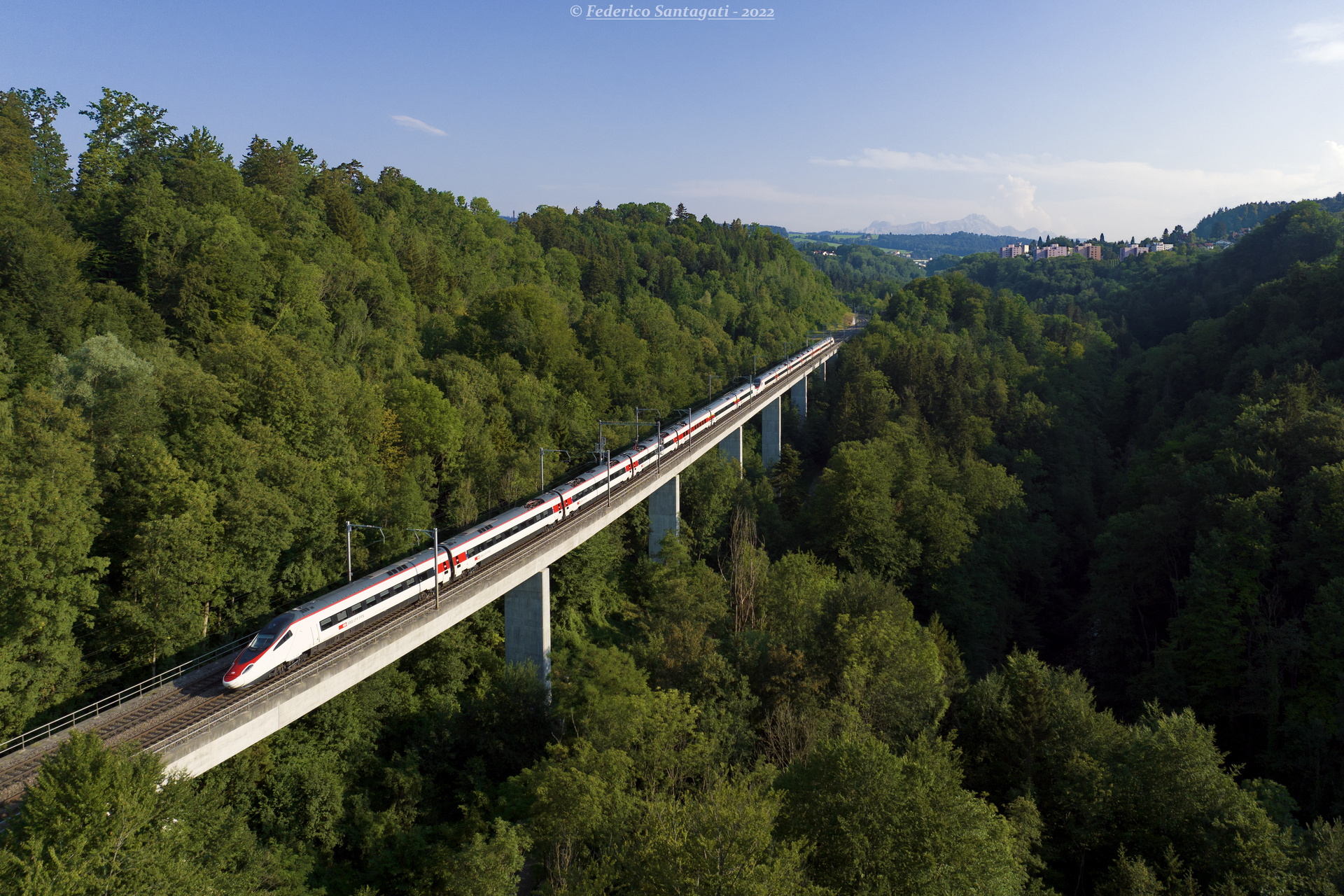

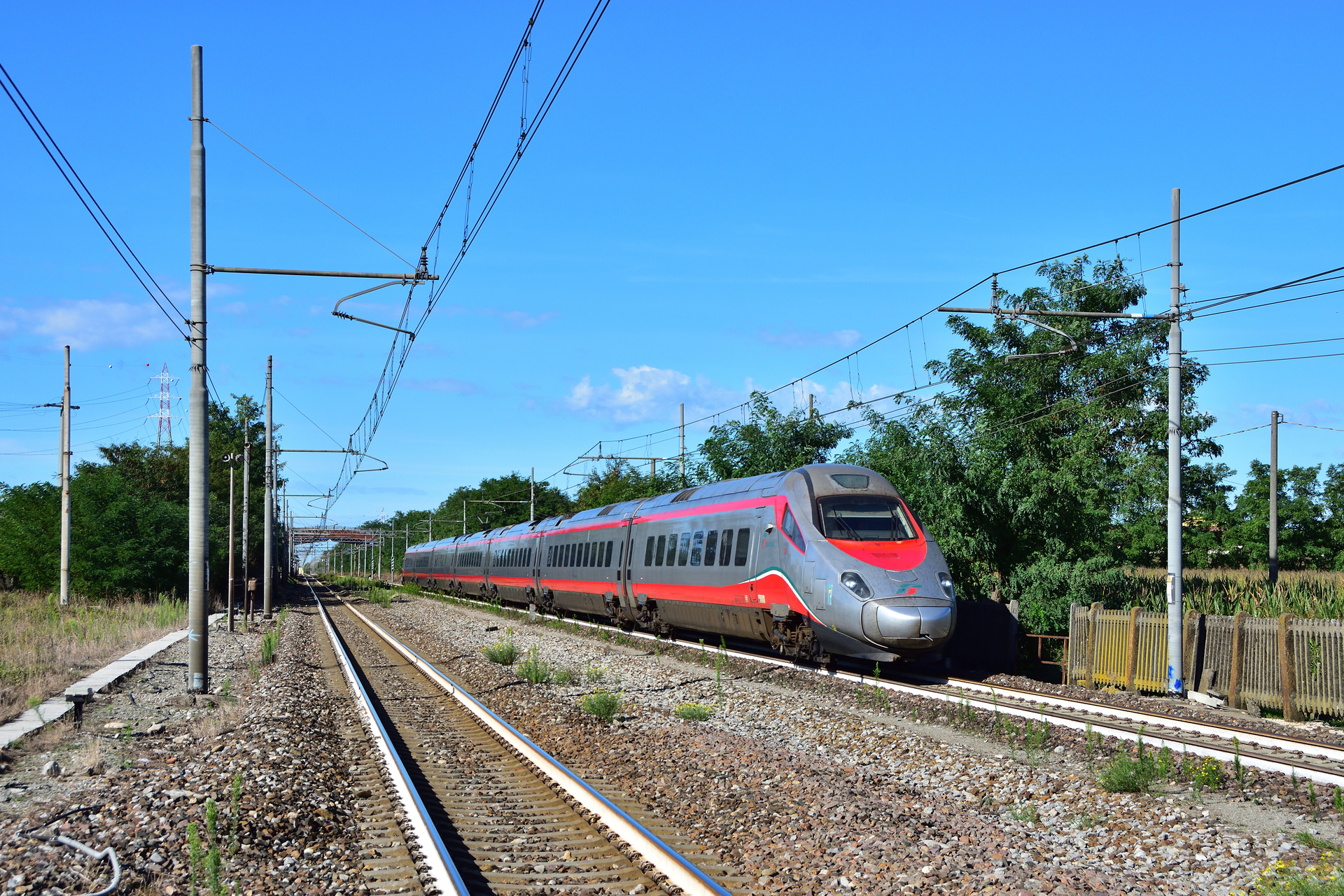

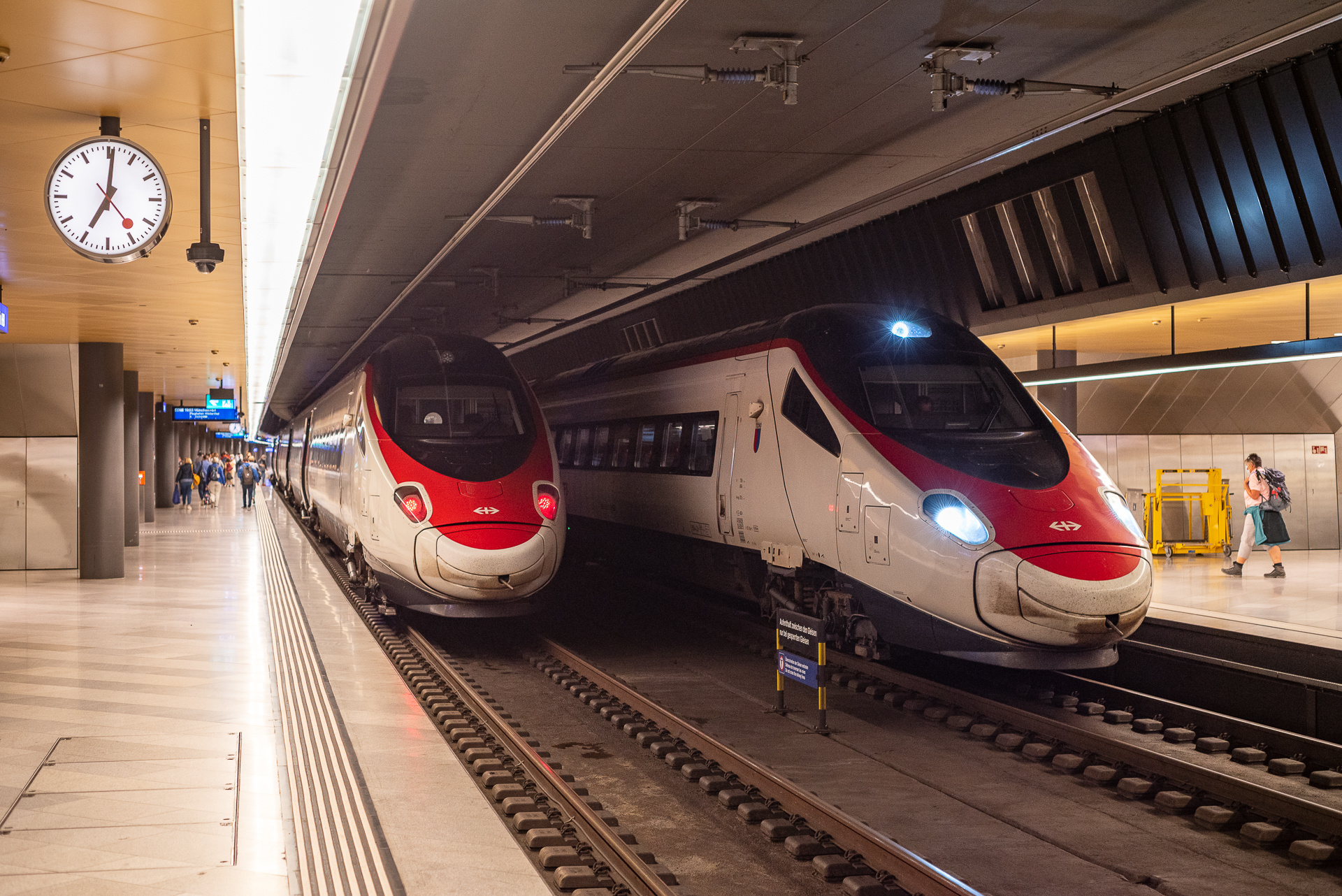

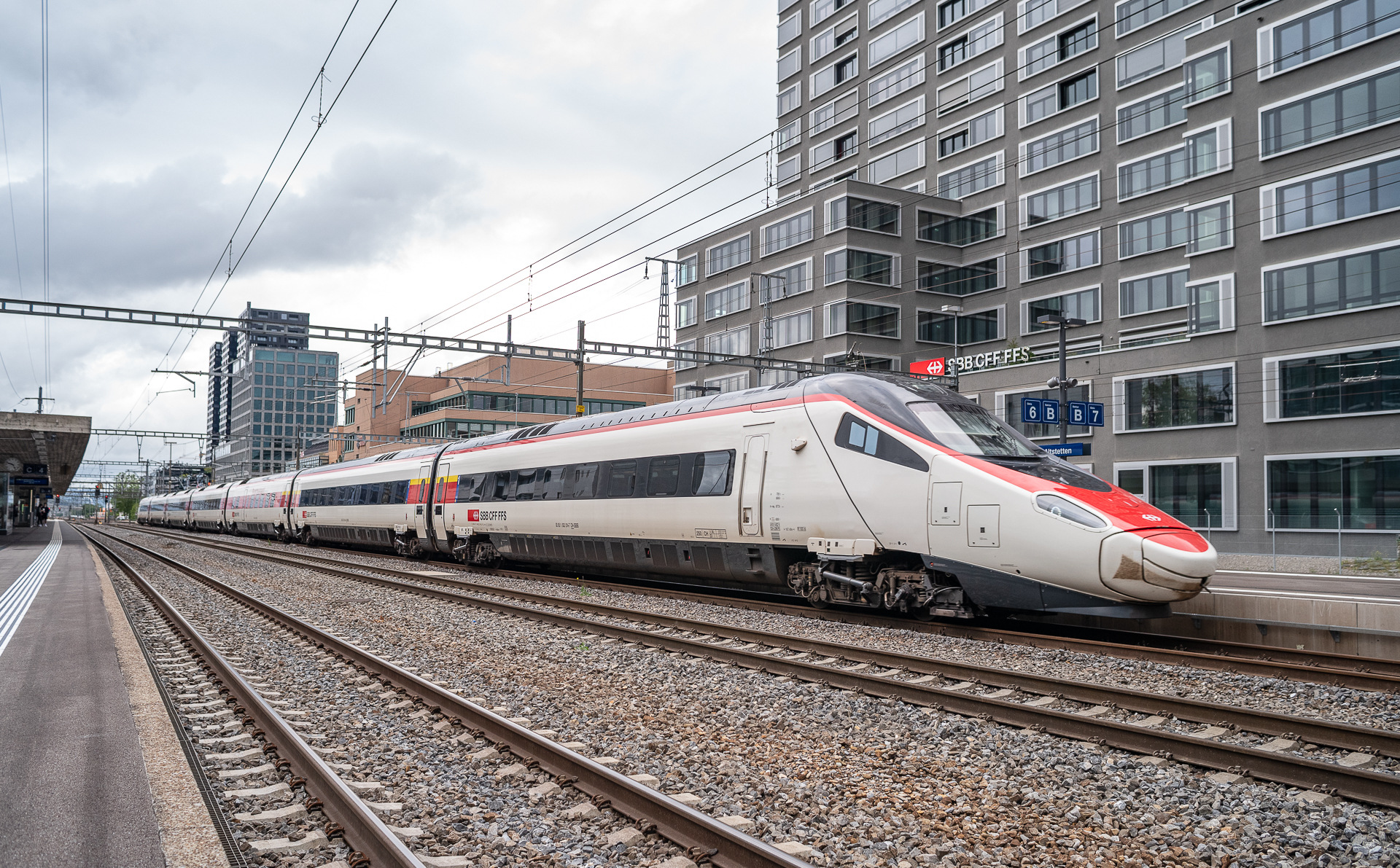

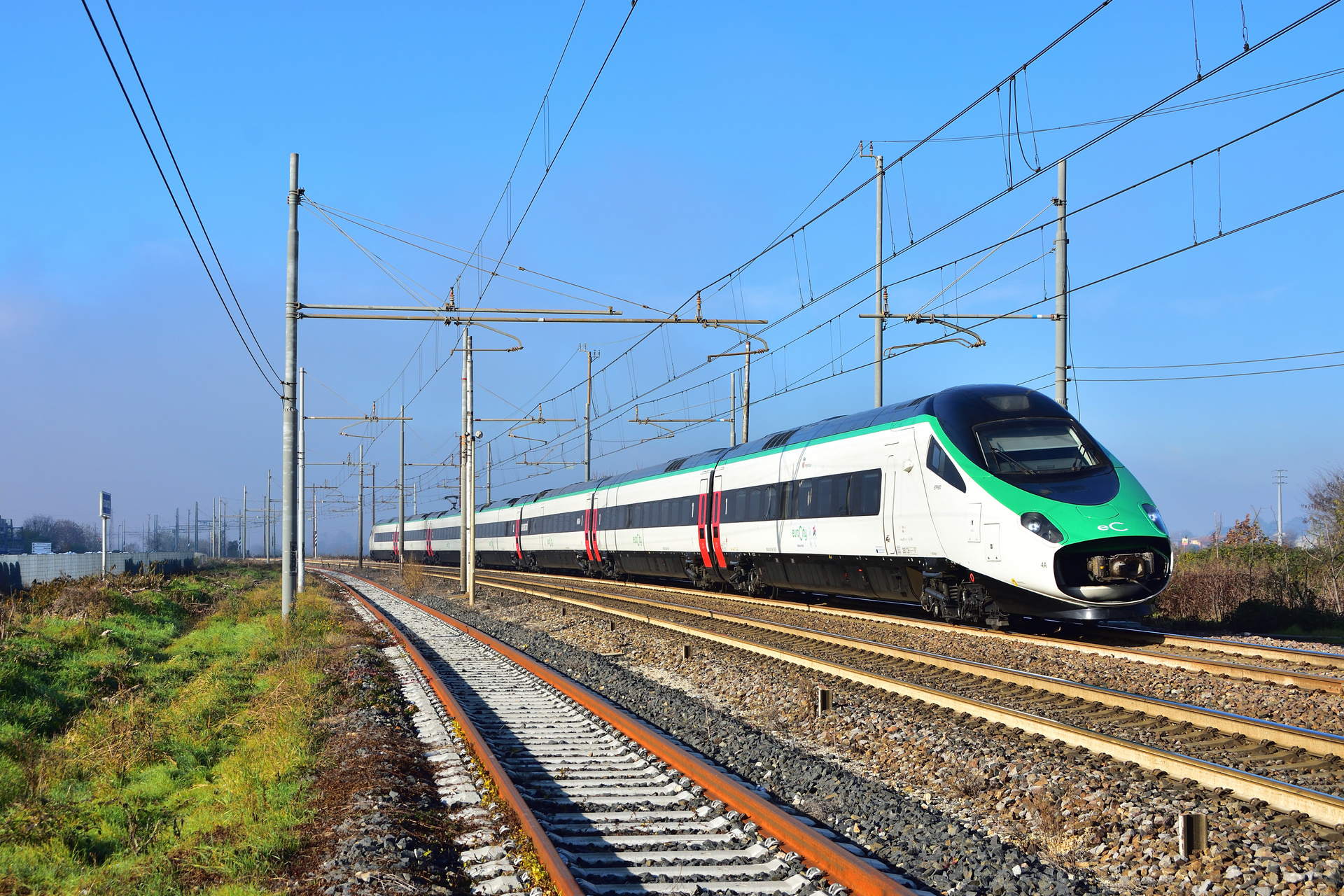

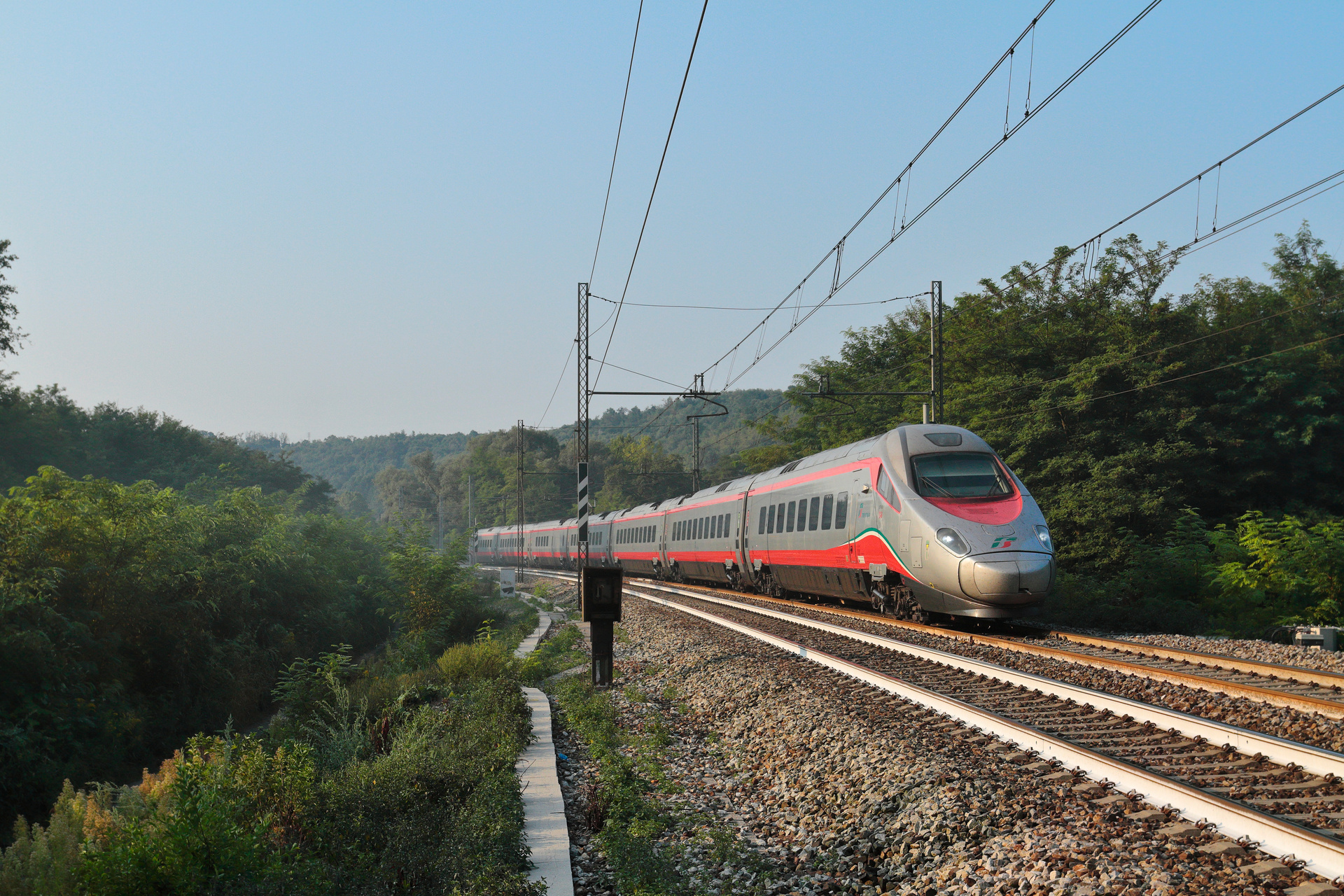

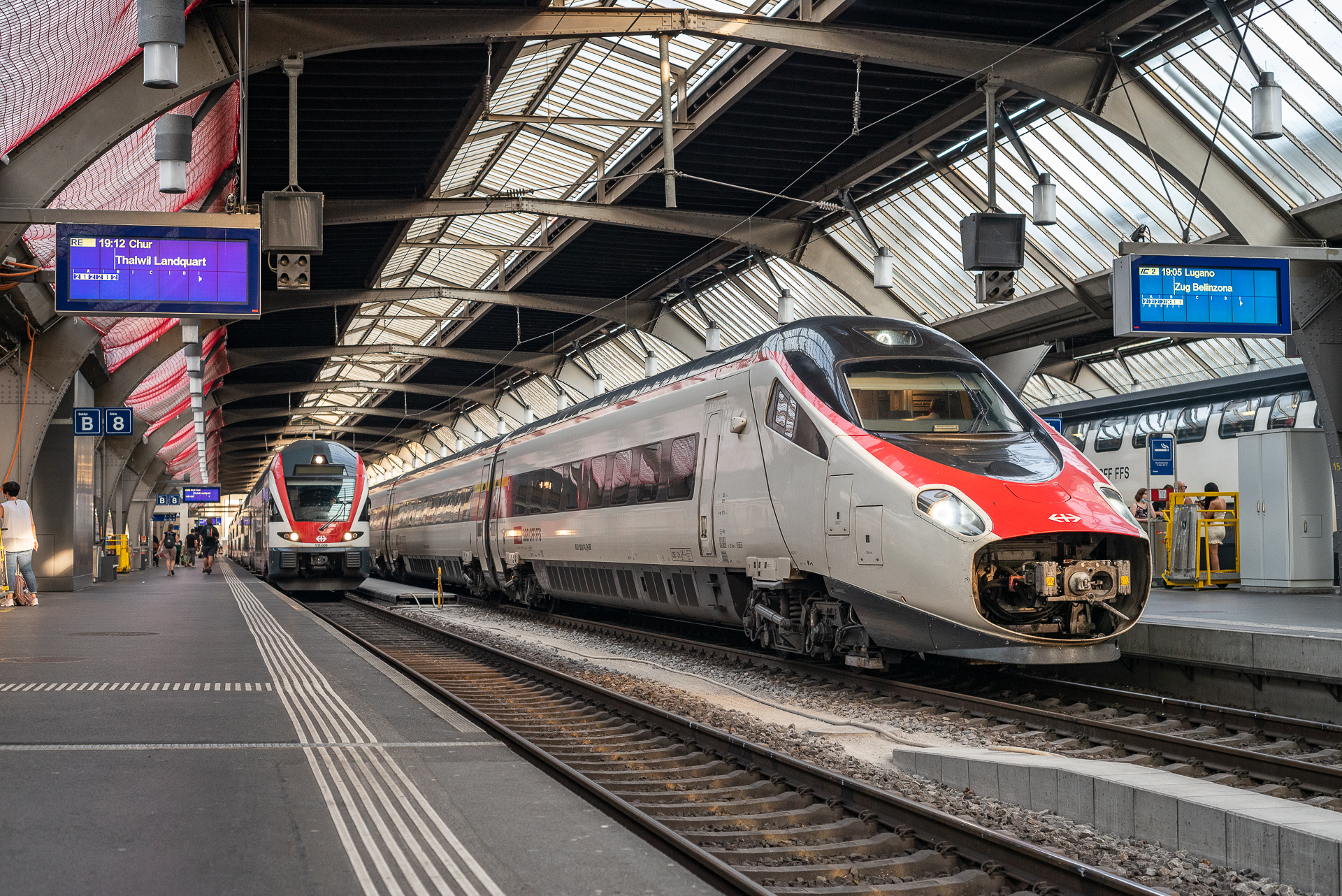

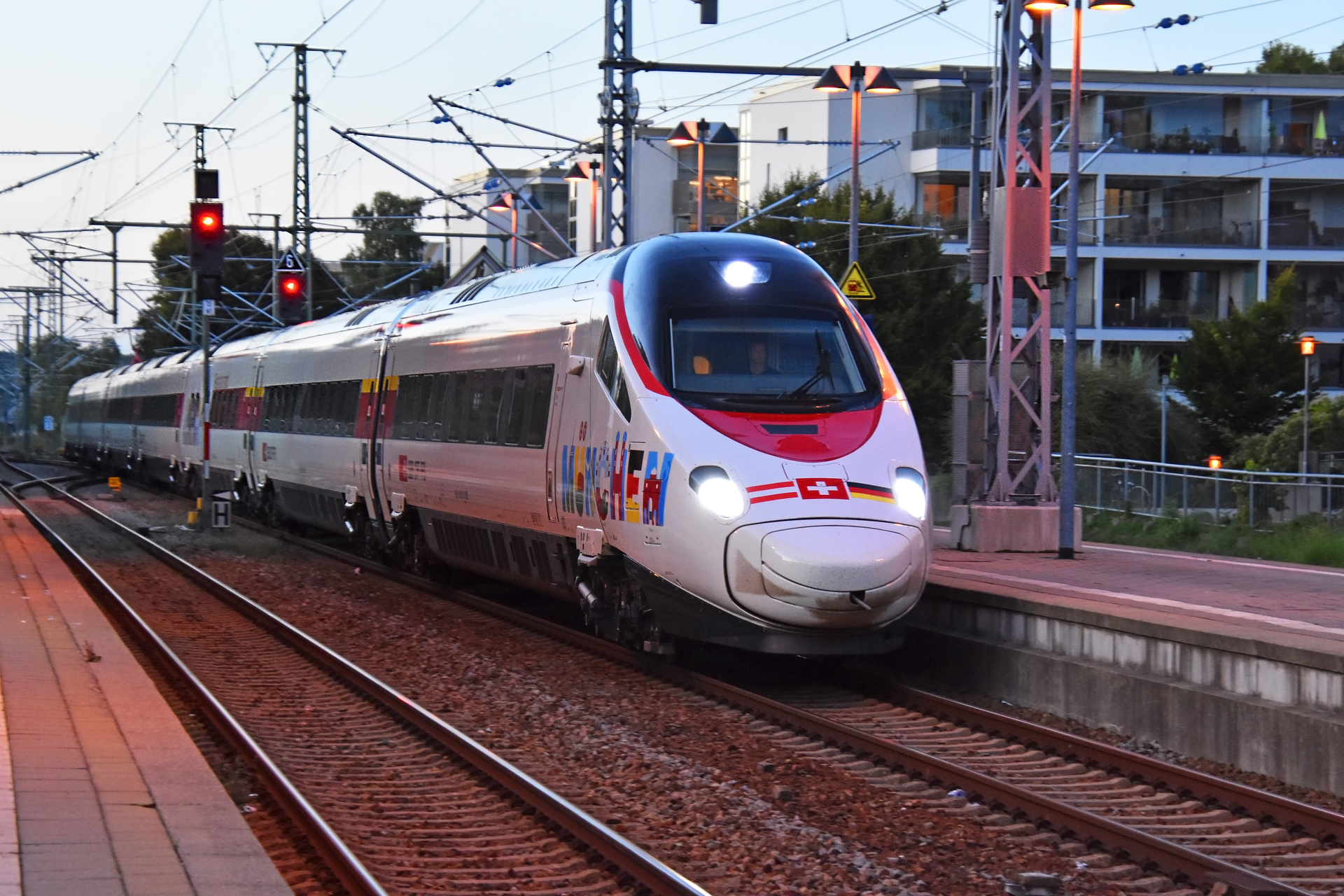

Overview of the Alstom ETR 610

Discover the ETR 610, a high-speed train also known as the "New Pendolino".

This modern EMU, built by Alstom between 2006 and 2010, boasts an impressive top speed of 250 km/h.

The ETR 610 offers a generous capacity for 431 passengers, with 109 seats in first class and 304 in second class, ensuring comfort on every journey.

Its formation of 7 cars, comprising 4 powered and 3 trailer units, allows for excellent operational flexibility and efficiency.

Operating under various operators, including Cisalpino AG and Italian State Railways (FS), it is also recognized as the SBB RABe 503.

Equipped with a versatile electric system capable of running on 15 kV AC, 25 kV AC, and 3 kV DC, and delivering 5520 kW of power, the ETR 610 represents the pinnacle of modern rail technology and performance.

Alstom ETR 610 technical specifications

	Value	Imperial / US
Series	New Pendolino
Built by	Alstom · 2006–201014 units
Top speed	250 km/h155 mph	155 mph
Power output	5,520 kW7,402 hp	7,402 hp
Electric systems	15 kV AC 16.7 Hz 25 kV AC 50 Hz 3 kV DC
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
Formation	7 cars (4M3T)
Capacity	431, 1st class 109, 2nd class 304 seats
Car length	26.2 m85 ft 11 in	85 ft 11 in
Train length	187.4 m614 ft 10 in	614 ft 10 in
Width	2.83 m9 ft 3 in	9 ft 3 in
Height	4.1 m13 ft 5 in	13 ft 5 in
Weight	387 t853,188 lb	853,188 lb

Source of the data: de.wikipedia.orgView this model on trainspo.com Spotted an error? Let us know

Operators of the Alstom ETR 610

Railway companies that have operated the ETR 610, with the class designation used by each of them.

Operator	Class	Country
Italian State Railways	FS ETR 610	Italy
Cisalpino AG	Cisalpino ETR 610	Switzerland
Swiss Federal Railways	SBB ETR 610	Switzerland
Swiss Federal Railways	SBB RABe 503	Switzerland
