Bombardier DB 146.0

Built by Adtranz, Bombardier

Top speed

160 km/h

99 mph

Power output

4,200 kW

5,632 hp

Weight

82 t

180,779 lb

Length

18.9 m

62 ft 0 in

Track gauge

1,435 mm

Standard gauge

Years built

2001–2002

31 units

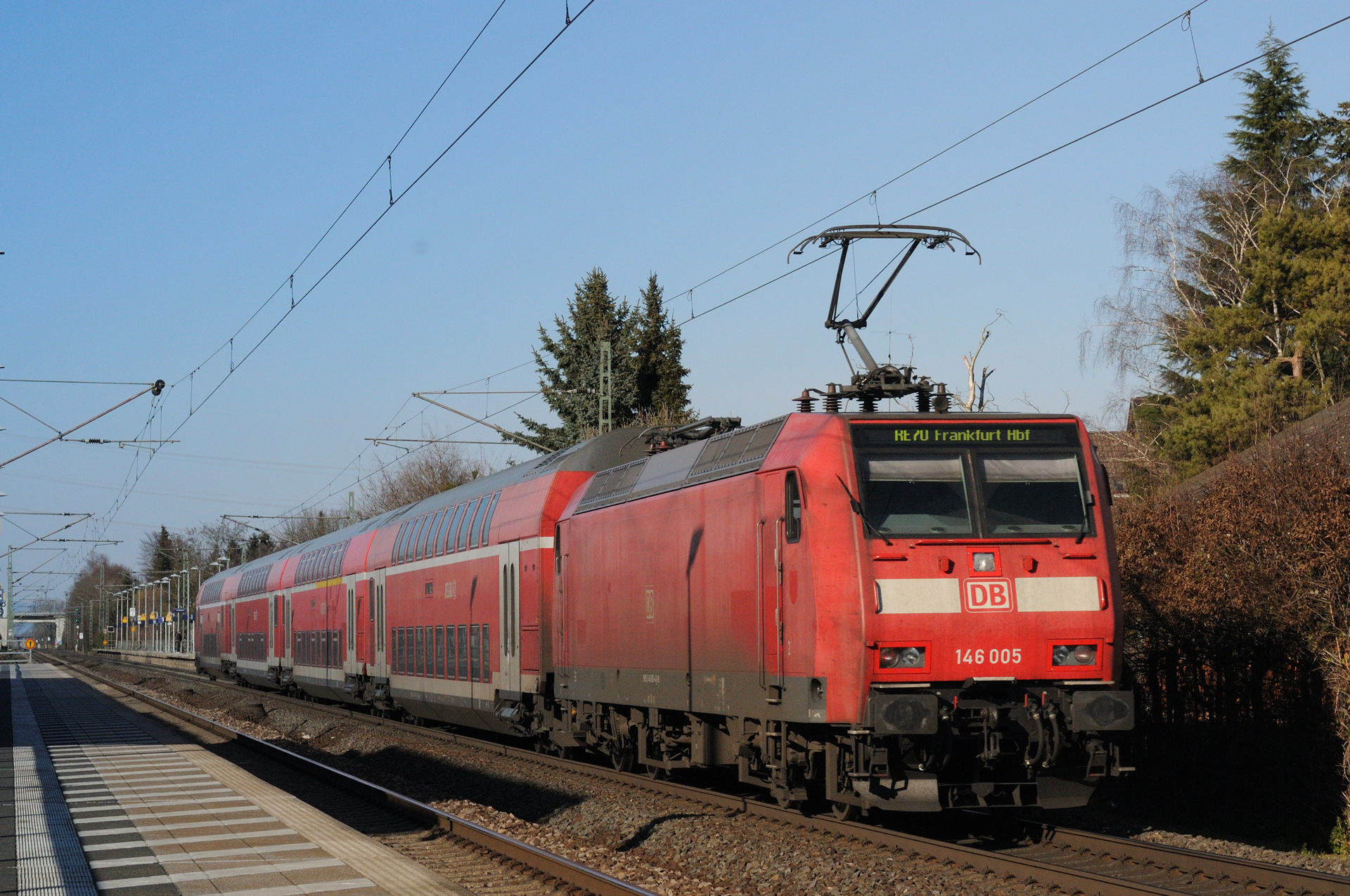

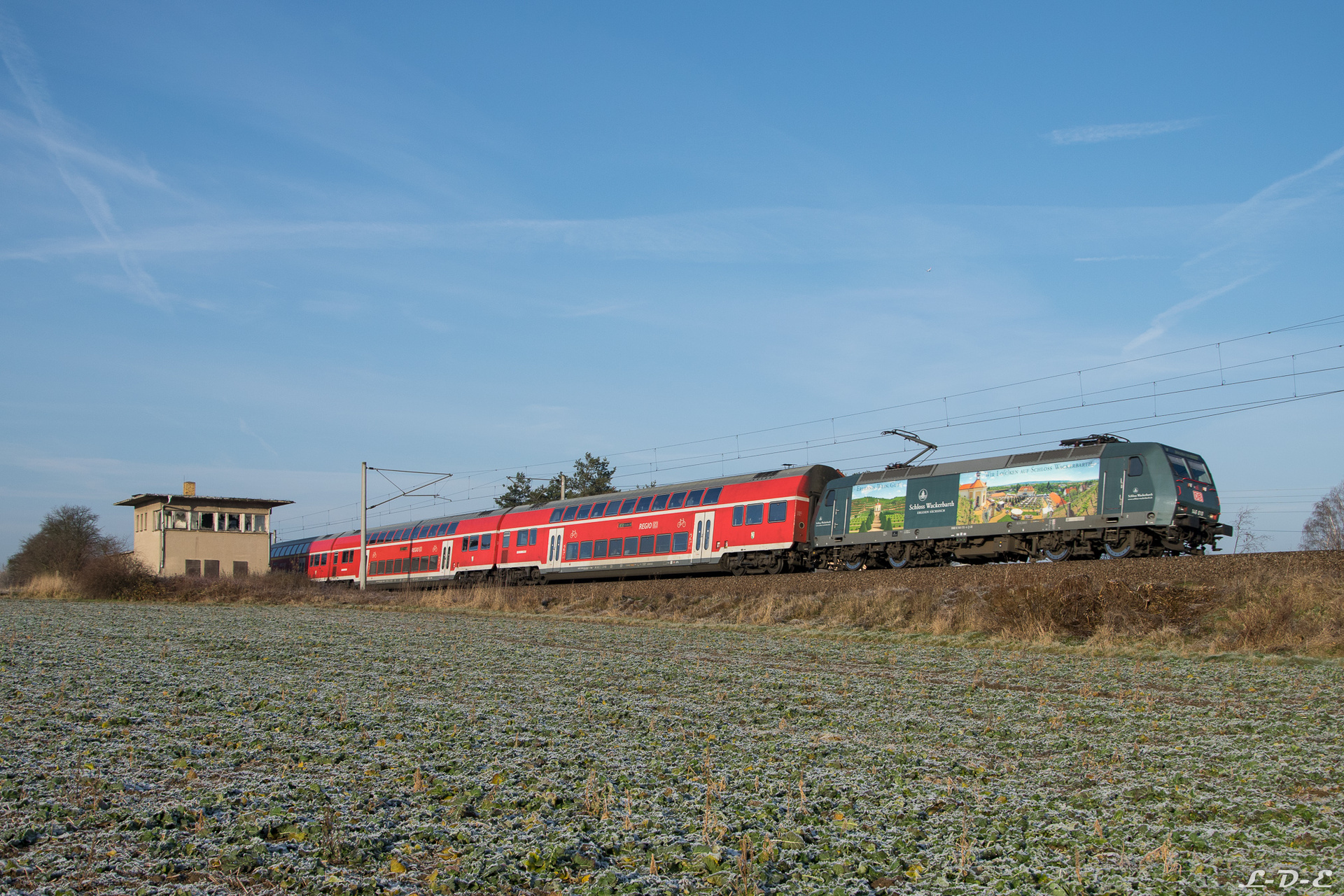

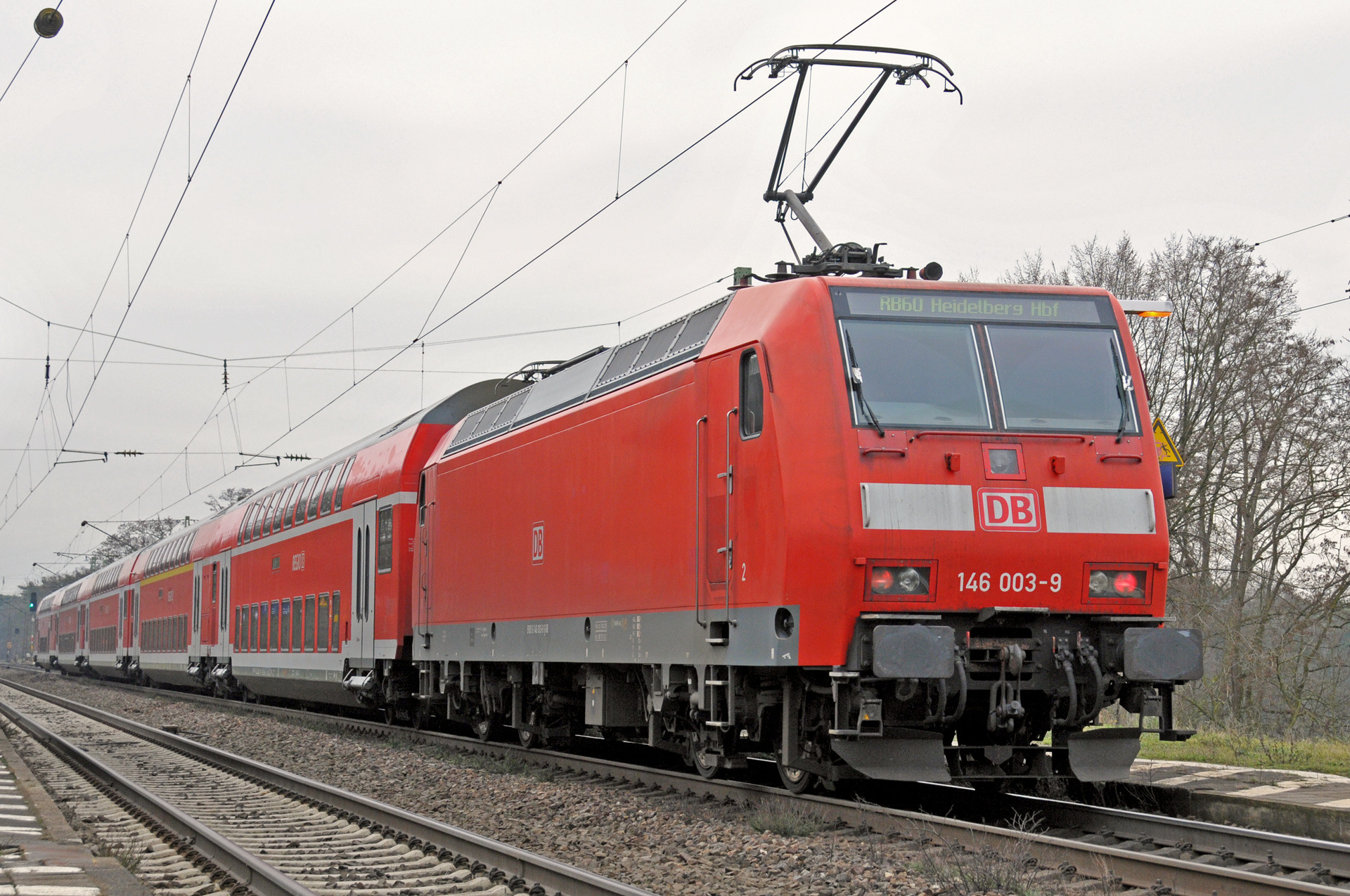

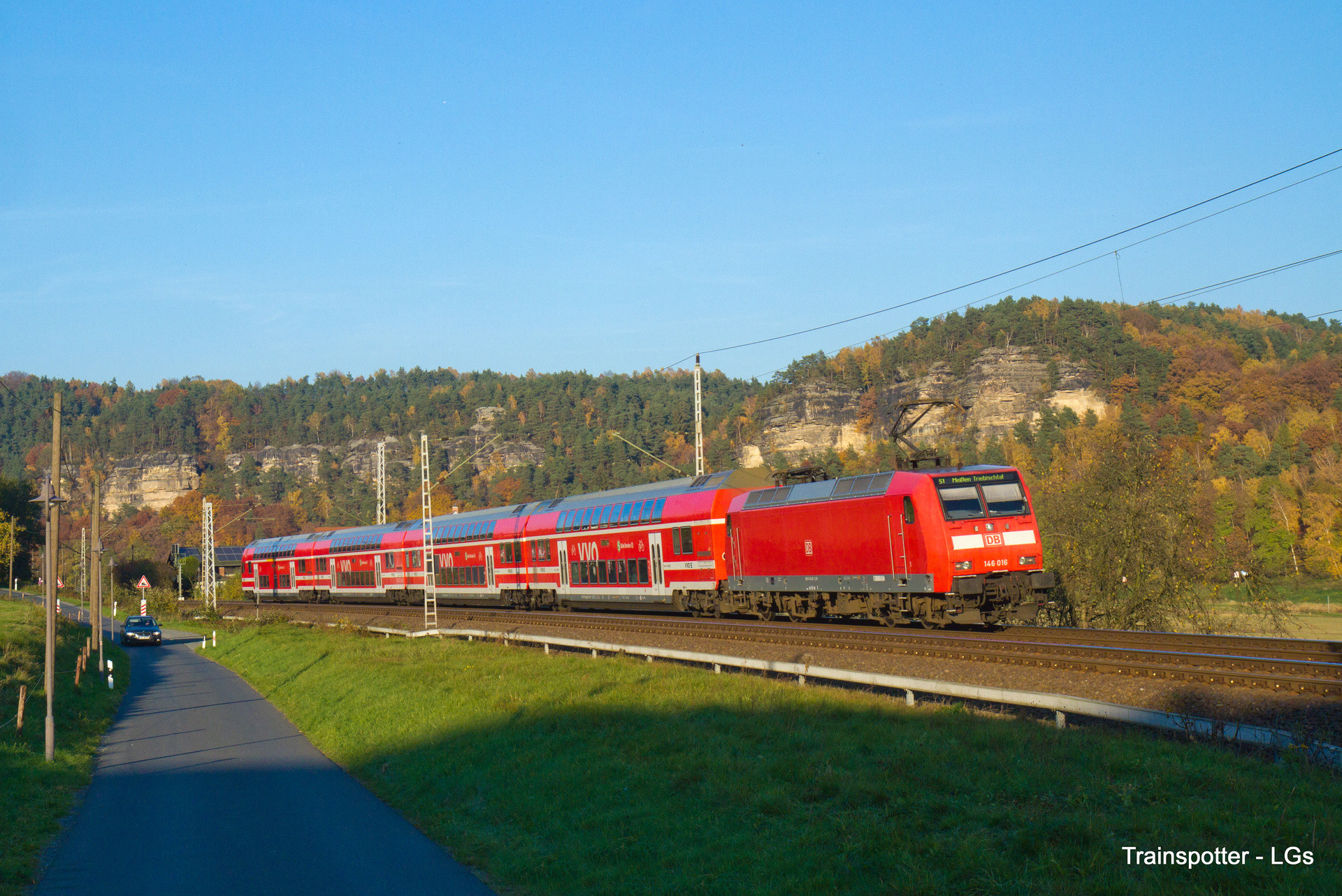

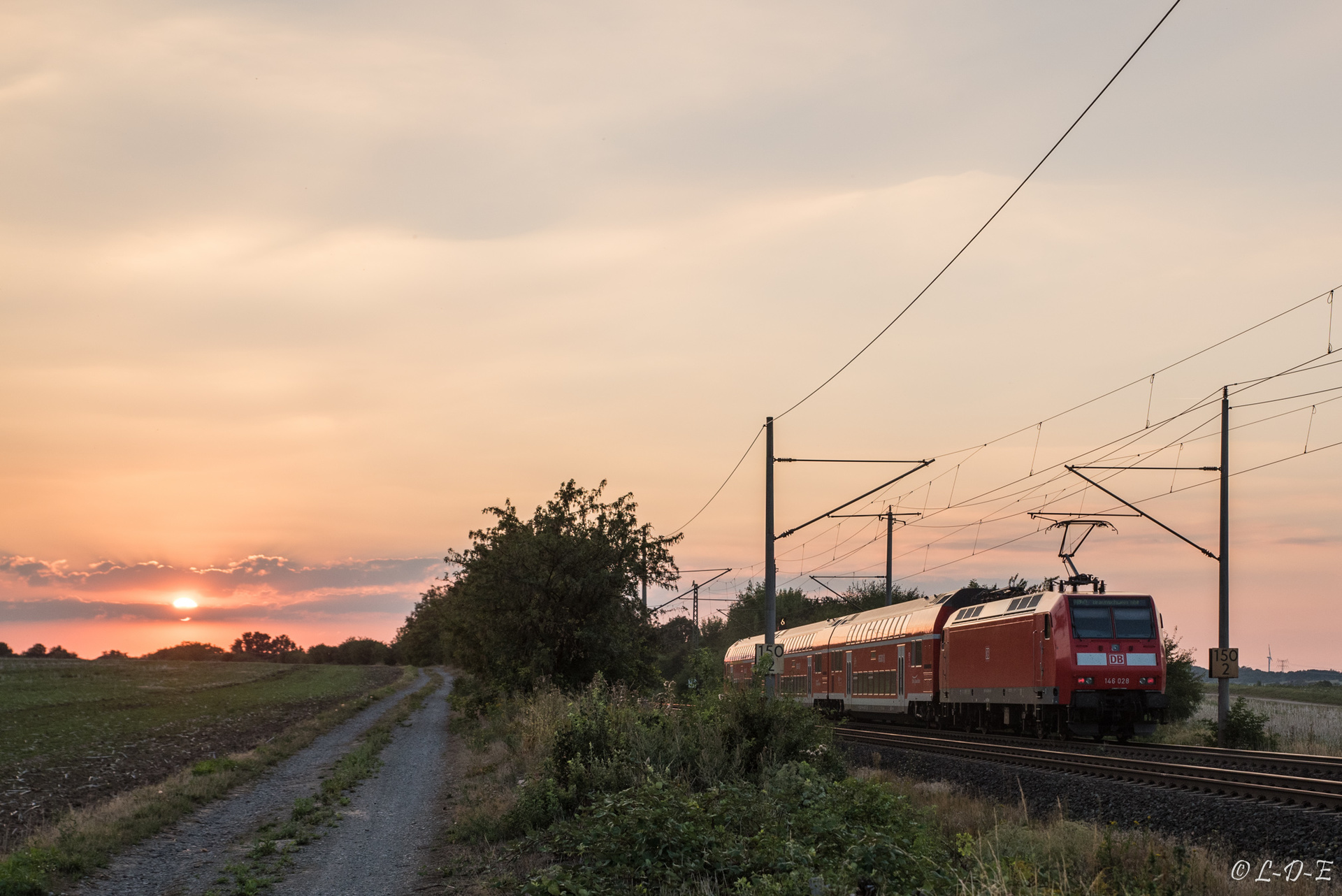

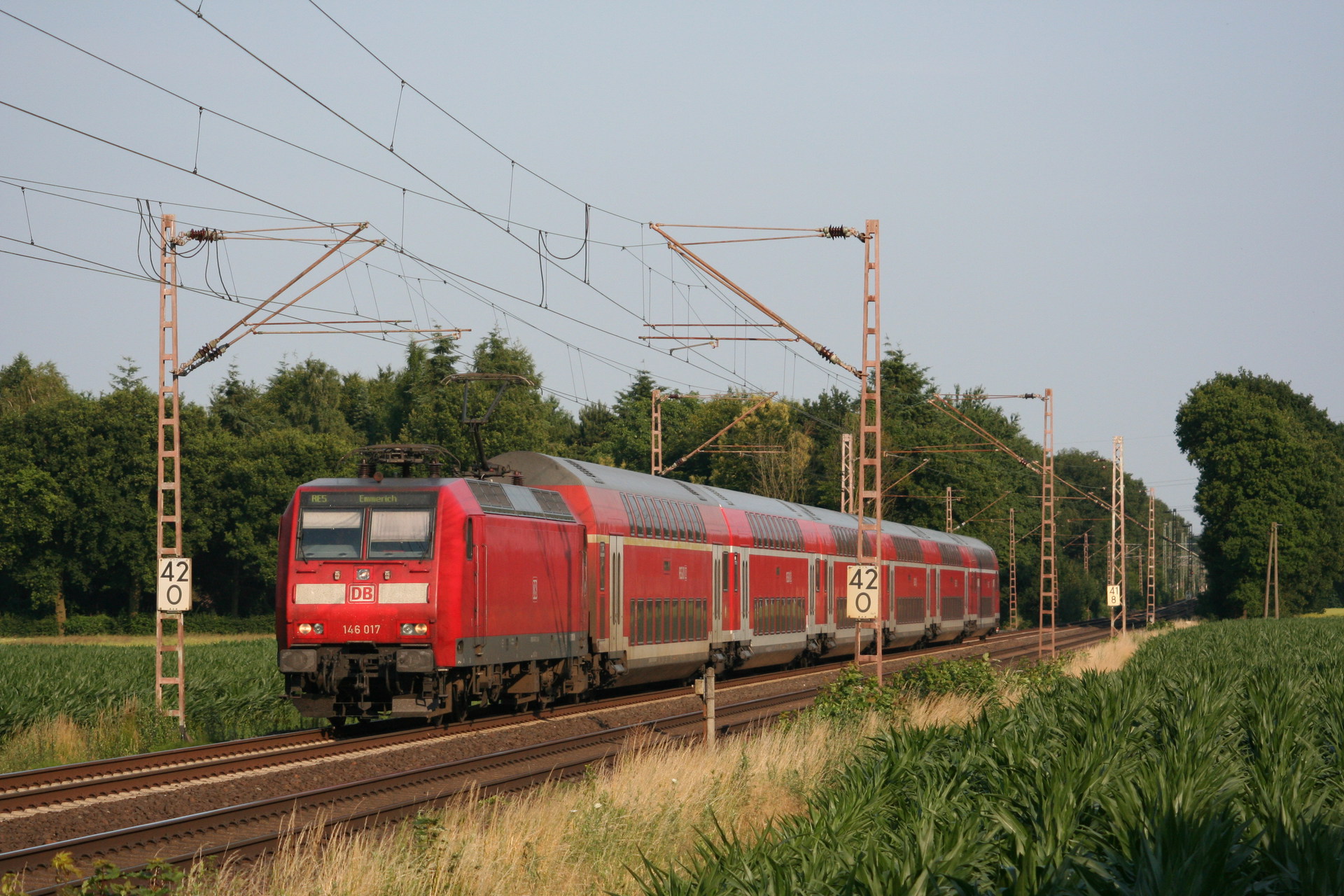

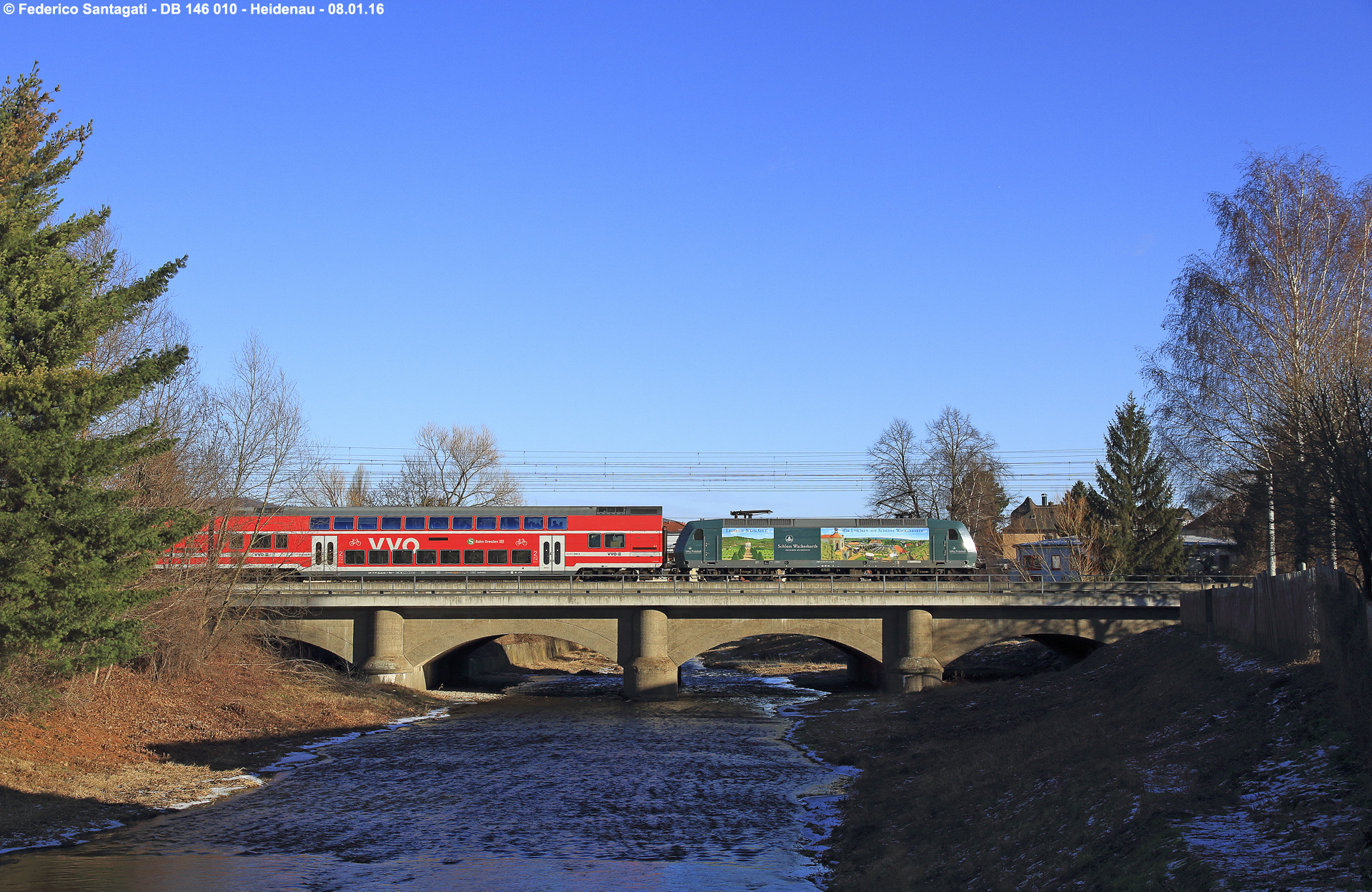

Overview of the Bombardier DB 146.0

Discover the DB 146.0, a powerful electric locomotive operated by Deutsche Bahn AG. This versatile engine is a reliable workhorse for both passenger and freight services across Germany.

Part of the well-regarded TRAXX locomotive family, the DB 146.0 was built by Adtranz and Bombardier between 2001 and 2002. It boasts a top speed of 160 km/h and a substantial power output of 4200 kW, making it suitable for a wide range of demanding railway operations.

Featuring a Bo'Bo' wheel arrangement and a standard gauge of 1435 mm, this locomotive is designed for efficient rail transport. Its dimensions, including a length of 18.9 meters and a width of 2.98 meters, are optimized for standard railway infrastructure. Explore the engineering and operational capabilities of this significant German electric locomotive.

Bombardier DB 146.0 technical specifications

	Value	Imperial / US
Series	DBAG 145-146
Family	TRAXX
Built by	Adtranz, Bombardier · 2001–200231 units
Top speed	160 km/h99 mph	99 mph
Power output	4,200 kW5,632 hp	5,632 hp
Tractive effort	300 kN67,443 lbf	67,443 lbf
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'Bo'
Length	18.9 m62 ft 0 in	62 ft 0 in
Width	2.98 m9 ft 9 in	9 ft 9 in
Height	4.38 m14 ft 4 in	14 ft 4 in
Weight	82 t180,779 lb	180,779 lb
Axle load	20.5 t45,195 lb	45,195 lb
