Fiat E492

Built by Fiat, Ansaldo

Top speed

160 km/h

99 mph

Power output

3,400 kW

4,559 hp

Weight

86 t

189,597 lb

Length

17 m

55 ft 9 in

Track gauge

1,435 mm

Standard gauge

Years built

1987–1990

6 units

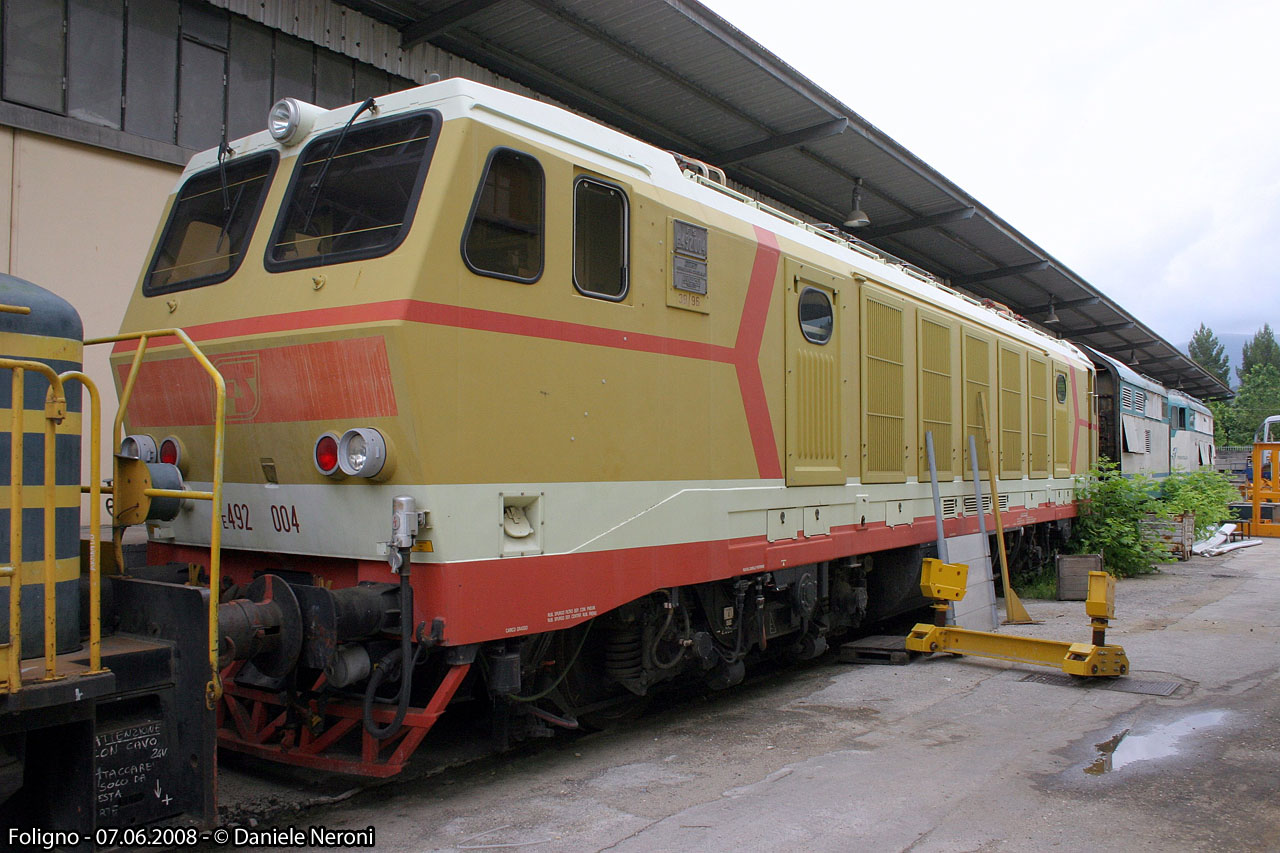

Overview of the Fiat E492

Discover the powerful FS E492 electric locomotive, a cornerstone of Italian State Railways.

Built by Fiat and Ansaldo between 1987 and 1990, this impressive machine boasts a top speed of 160 km/h and a formidable 3400 kW power output, ensuring exceptional performance.

Weighing 86 tons and measuring 17 meters in length, the E492 exemplifies robust engineering.

Operating on a 1435 mm gauge and utilizing 25 kV AC 50 Hz electric systems, it stands as a reliable and efficient workhorse for rail transport.

Fiat E492 technical specifications

	Value	Imperial / US
Series	E491
Built by	Fiat, Ansaldo · 1987–19906 units
Top speed	160 km/h99 mph	99 mph
Power output	3,400 kW4,559 hp	4,559 hp
Electric systems	25 kV AC 50 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'Bo'
Length	17 m55 ft 9 in	55 ft 9 in
Width	3 m9 ft 10 in	9 ft 10 in
Height	4.31 m14 ft 2 in	14 ft 2 in
Weight	86 t189,597 lb	189,597 lb
