Electric locomotive

Fiat E632

Built by Fiat, TIBB

Top speed

160 km/h

99 mph

Power output

4,200 kW

5,632 hp

Weight

103 t

227,076 lb

Length

17.8 m

58 ft 5 in

Track gauge

1,435 mm

Standard gauge

Years built

1982–1987

65 units

Overview of the Fiat E632

Discover the powerful E632 electric locomotive, also known as the "Tigre."

Built by Fiat and TIBB between 1982 and 1987 for the Italian State Railways (FS), this impressive machine boasts a top speed of 160 km/h.

With a formidable power output of 4200 kW and a robust Bo'Bo'Bo' wheel arrangement, the E632 is a true workhorse on the rails.

Its substantial weight of 103 tons and a length of 17.8 meters underscore its capability for heavy hauling.

Featuring 3 kV DC electric systems and a standard gauge of 1435 mm, the E632 represents a significant piece of Italian railway engineering history.

Fiat E632 technical specifications

	Value	Imperial / US
Series	Tigre
Built by	Fiat, TIBB · 1982–198765 units
Top speed	160 km/h99 mph	99 mph
Power output	4,200 kW5,632 hp	5,632 hp
Electric systems	3 kV DC
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'Bo'Bo'
Length	17.8 m58 ft 5 in	58 ft 5 in
Width	3 m9 ft 10 in	9 ft 10 in
Height	4.31 m14 ft 2 in	14 ft 2 in
Weight	103 t227,076 lb	227,076 lb

View this model on trainspo.com Spotted an error? Let us know

Operators of the Fiat E632

Railway companies that have operated the E632, with the class designation used by each of them.

Operator	Class	Country
Italian State Railways	FS E632	Italy

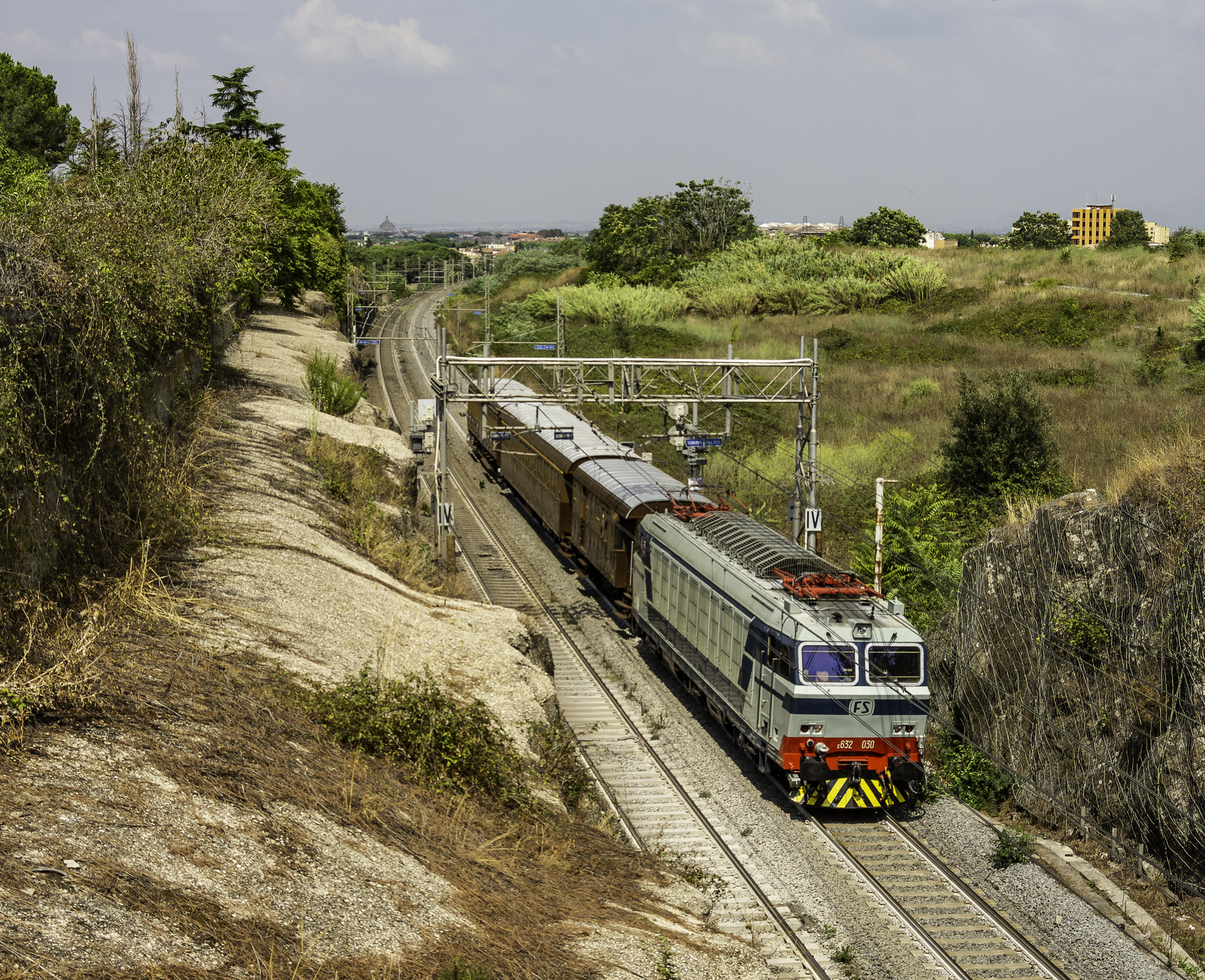

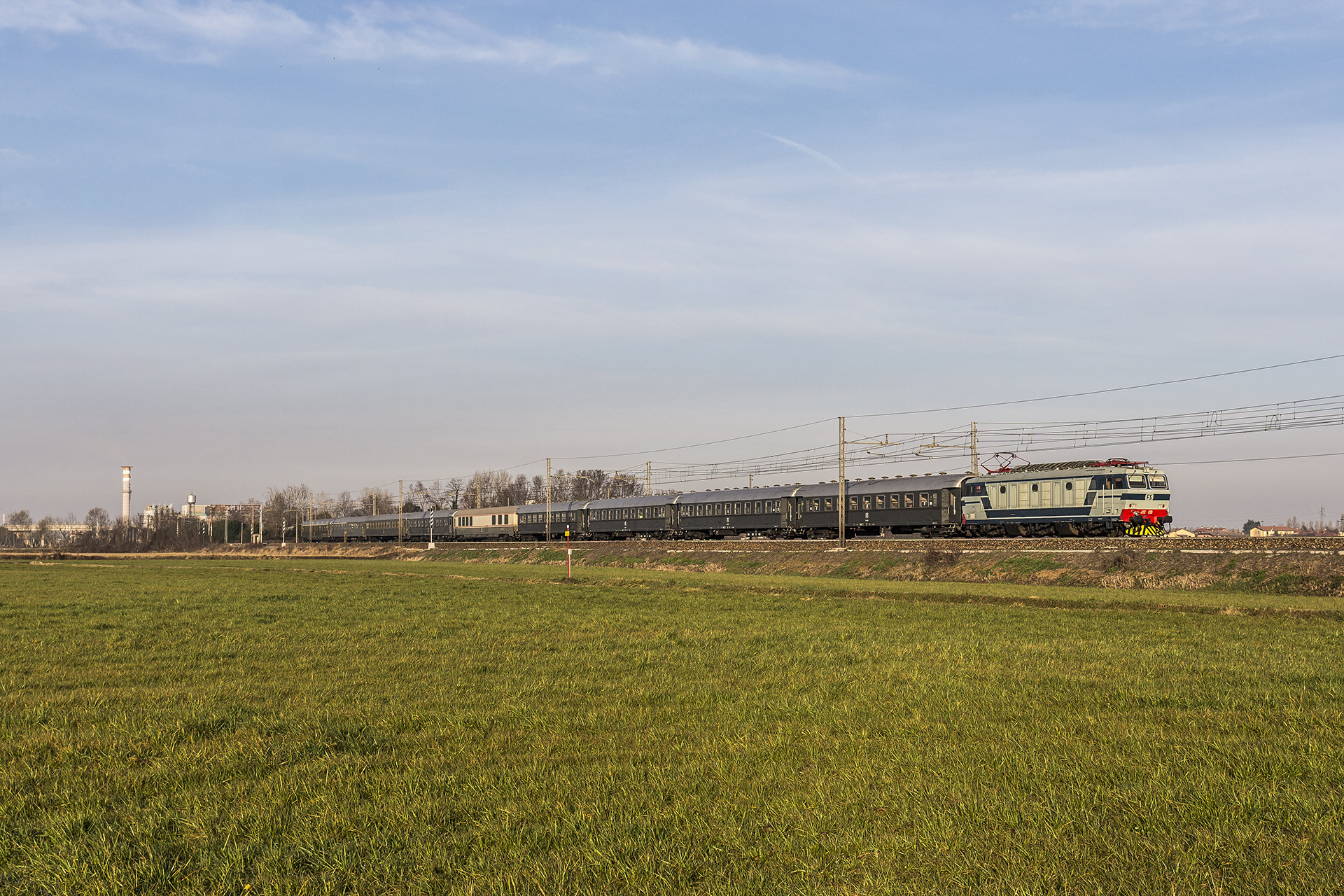

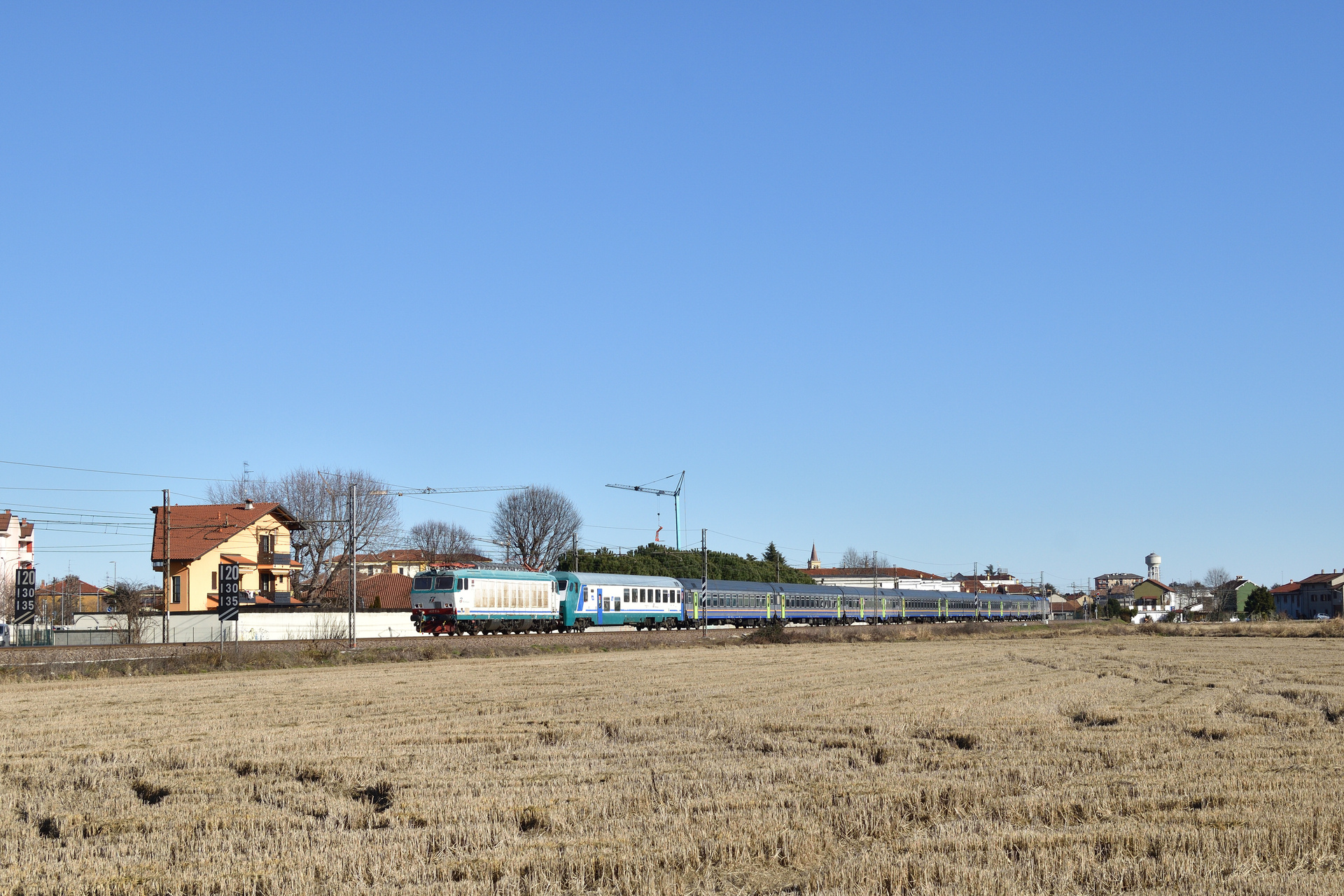

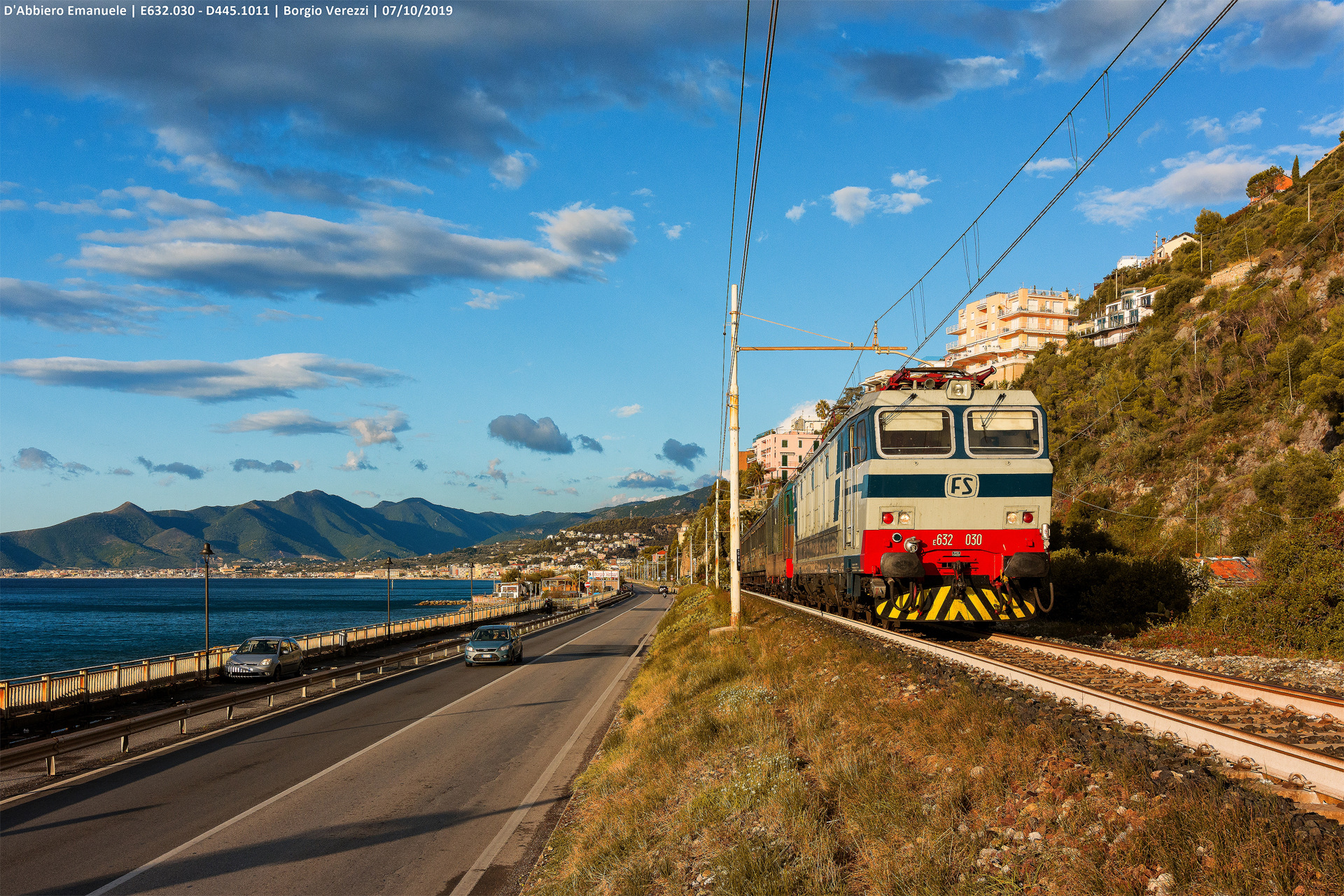

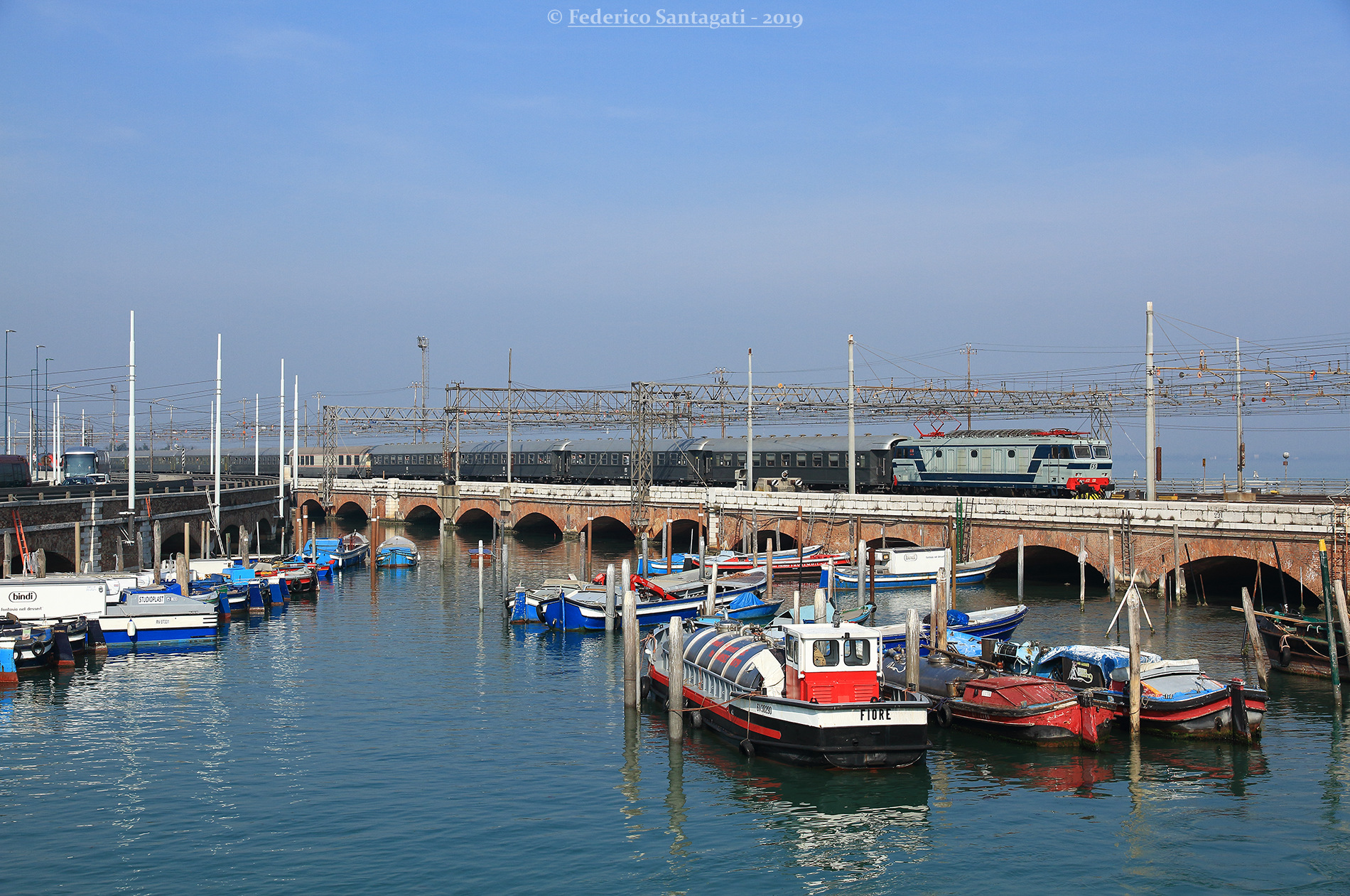

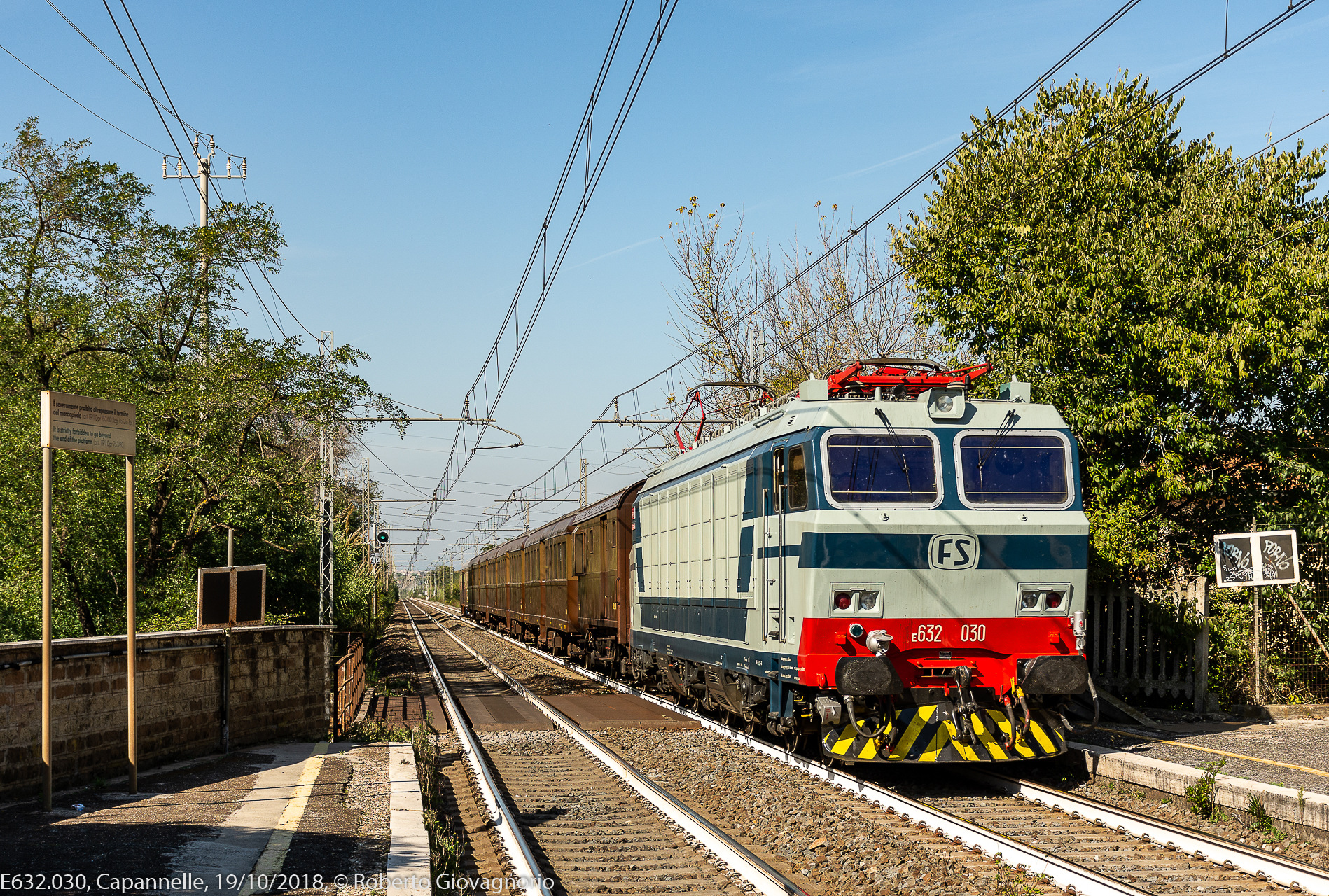

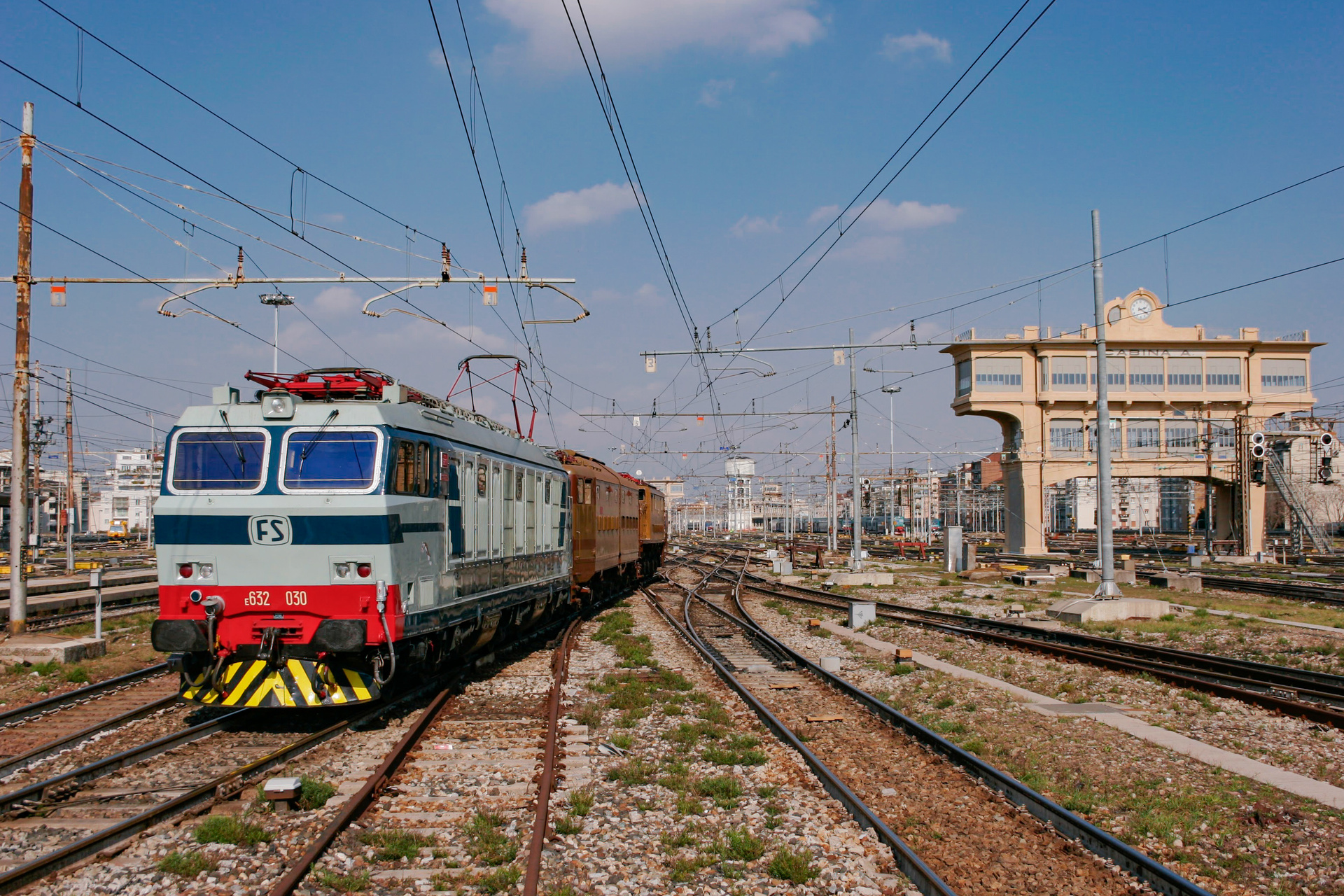

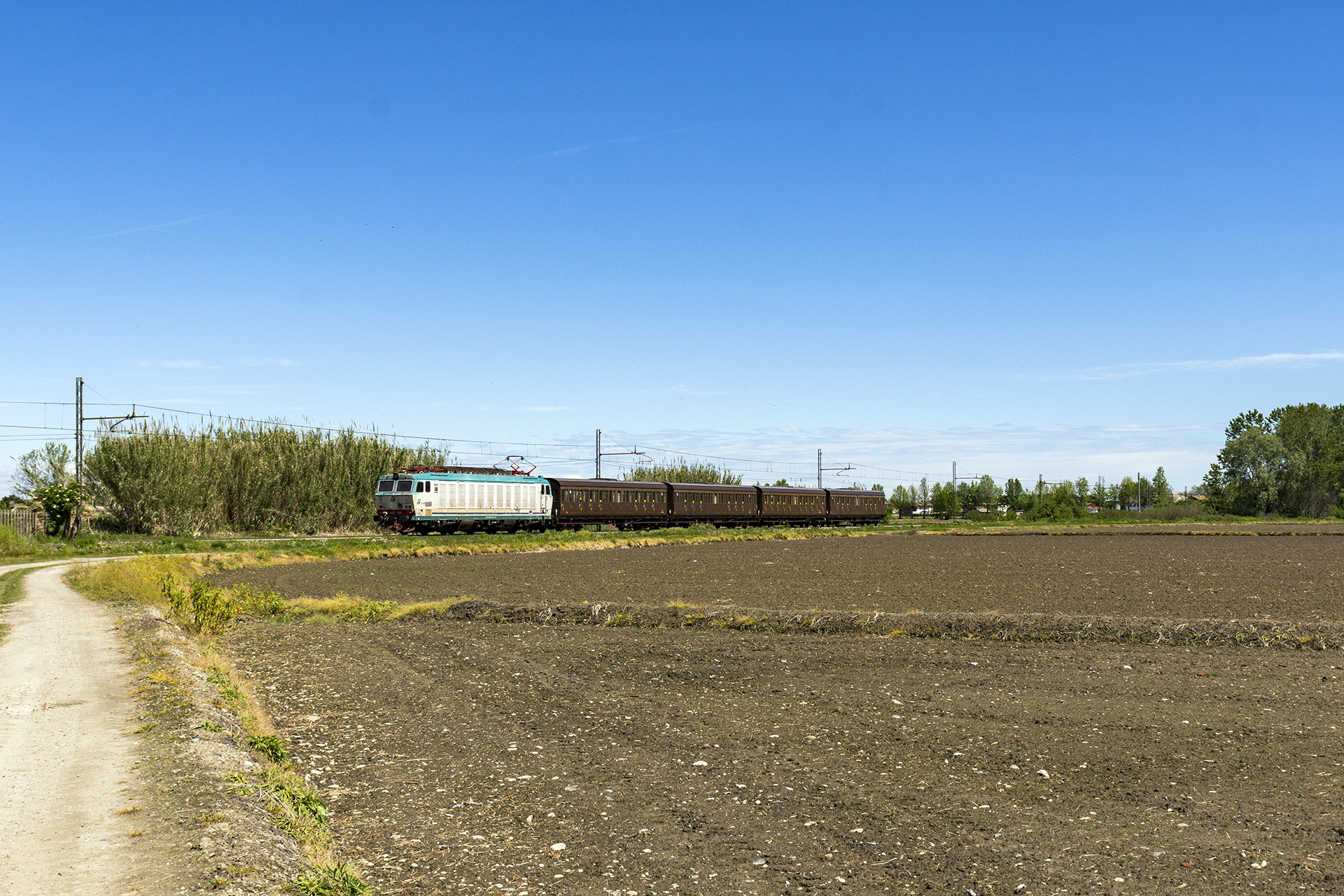

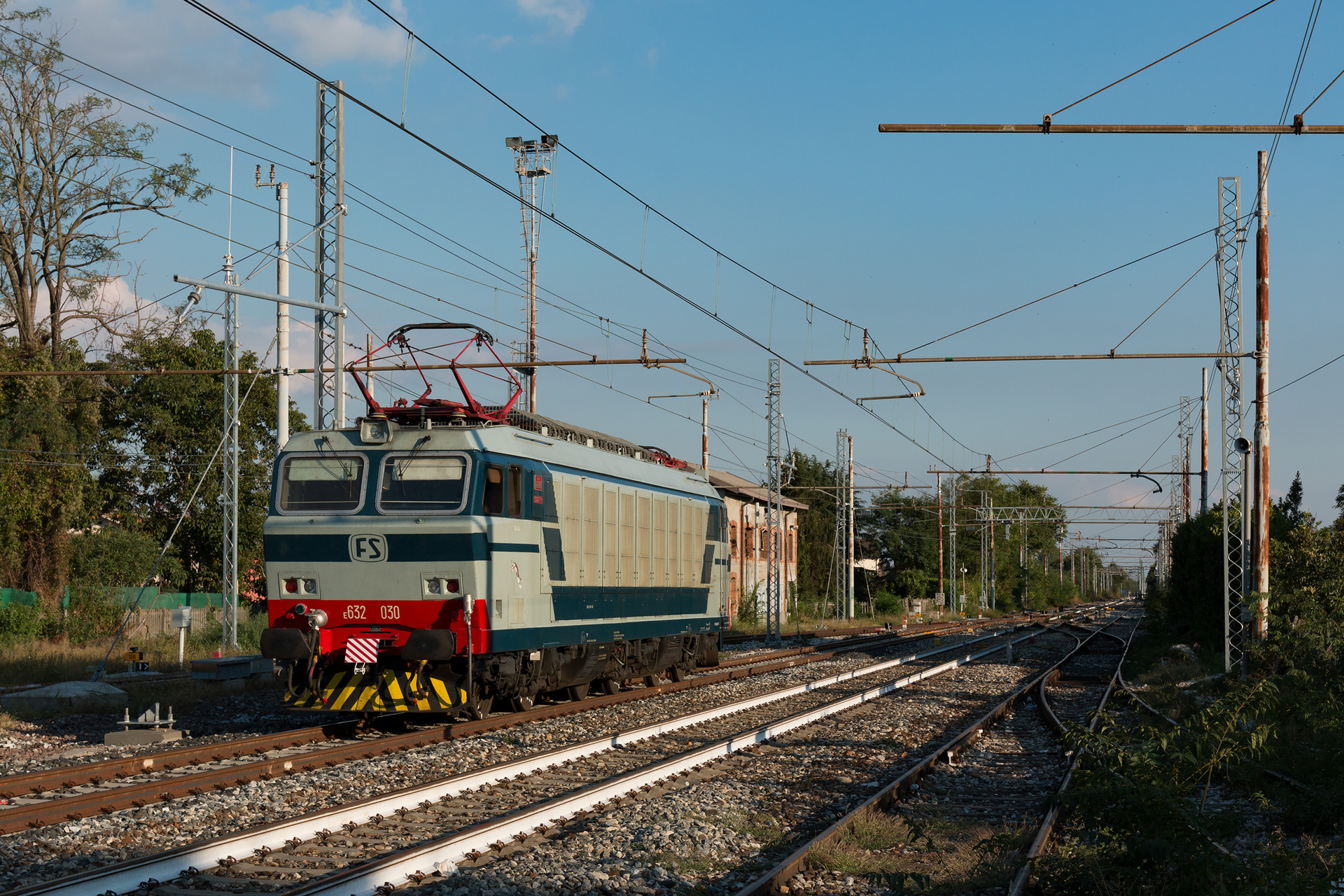

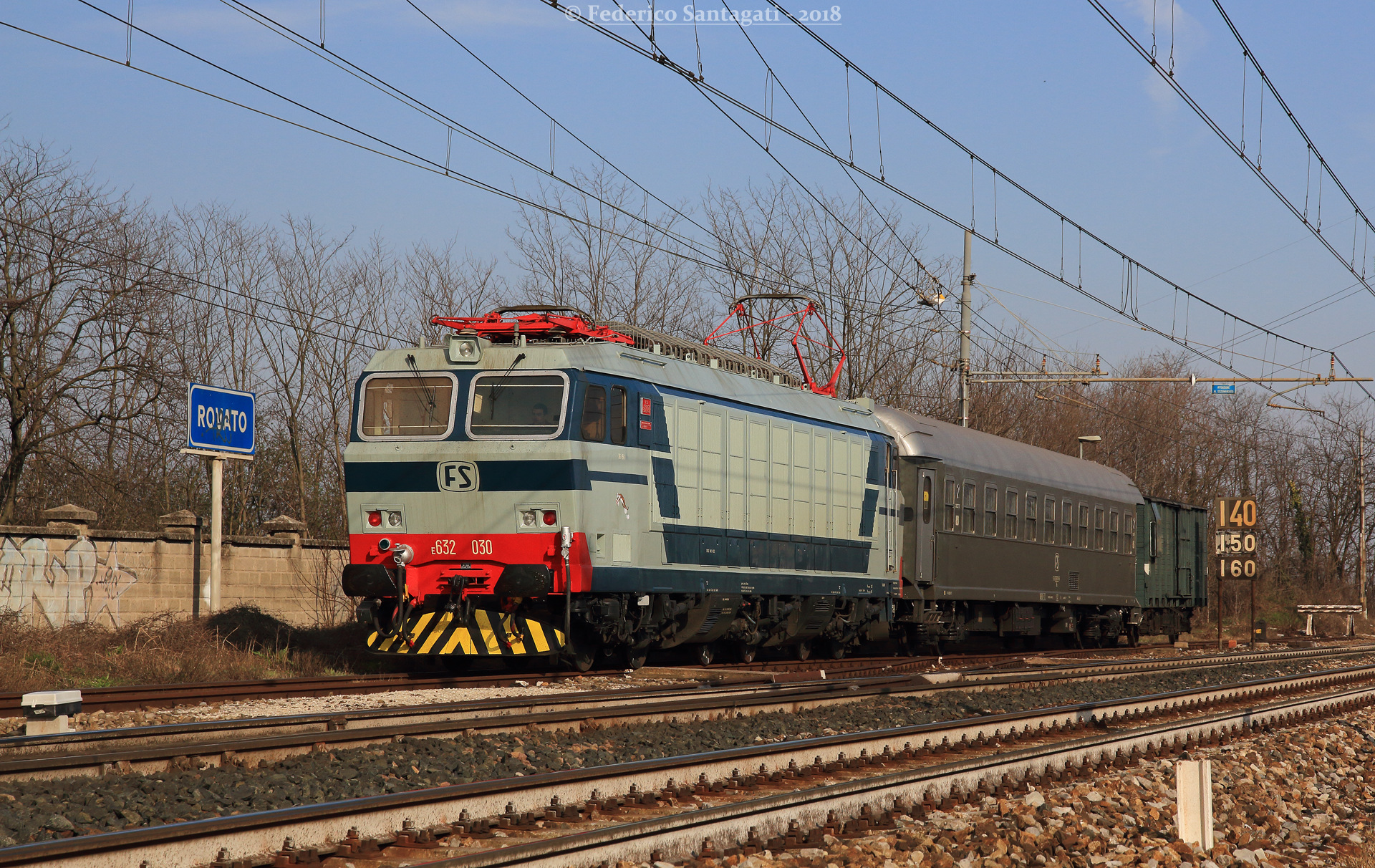

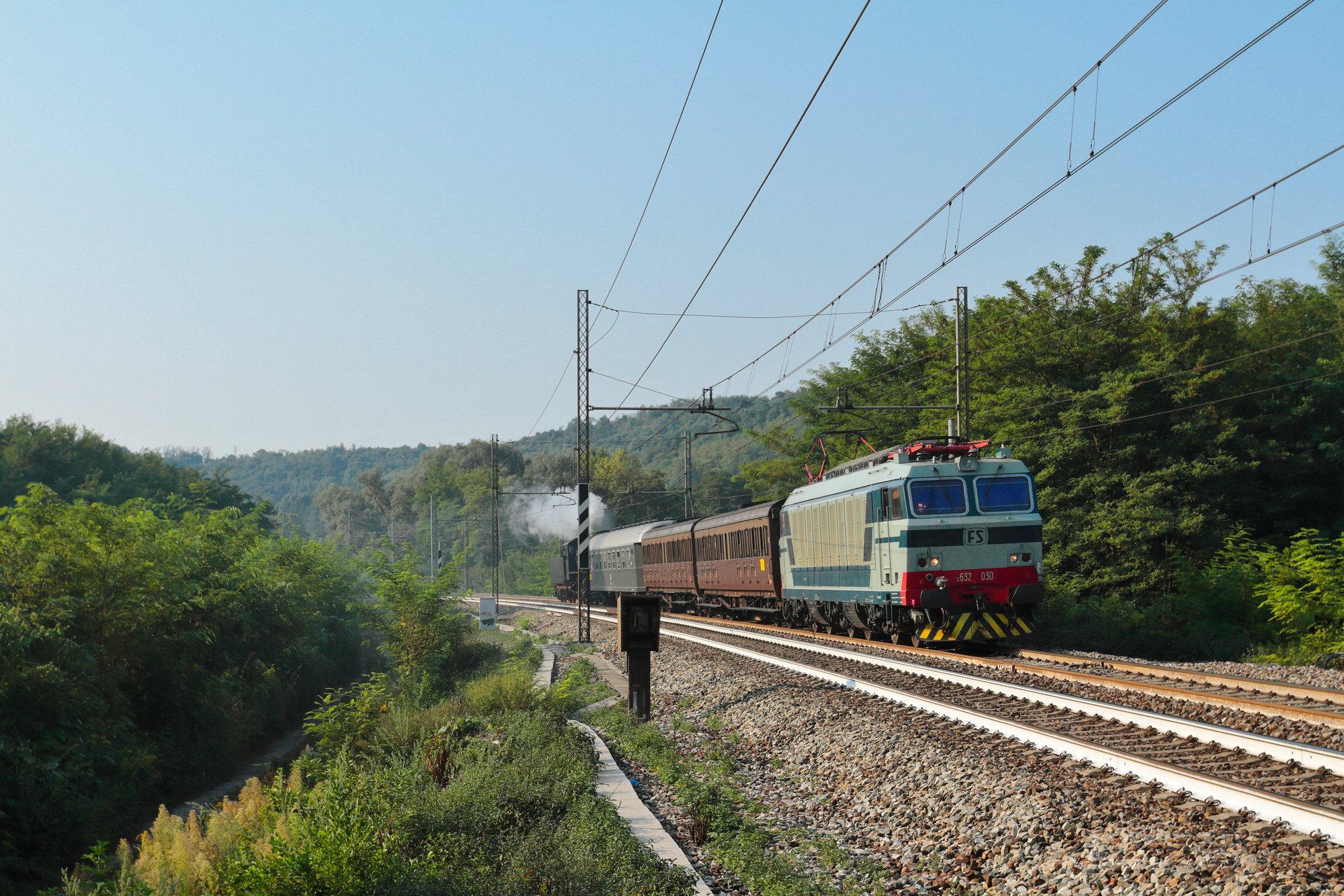

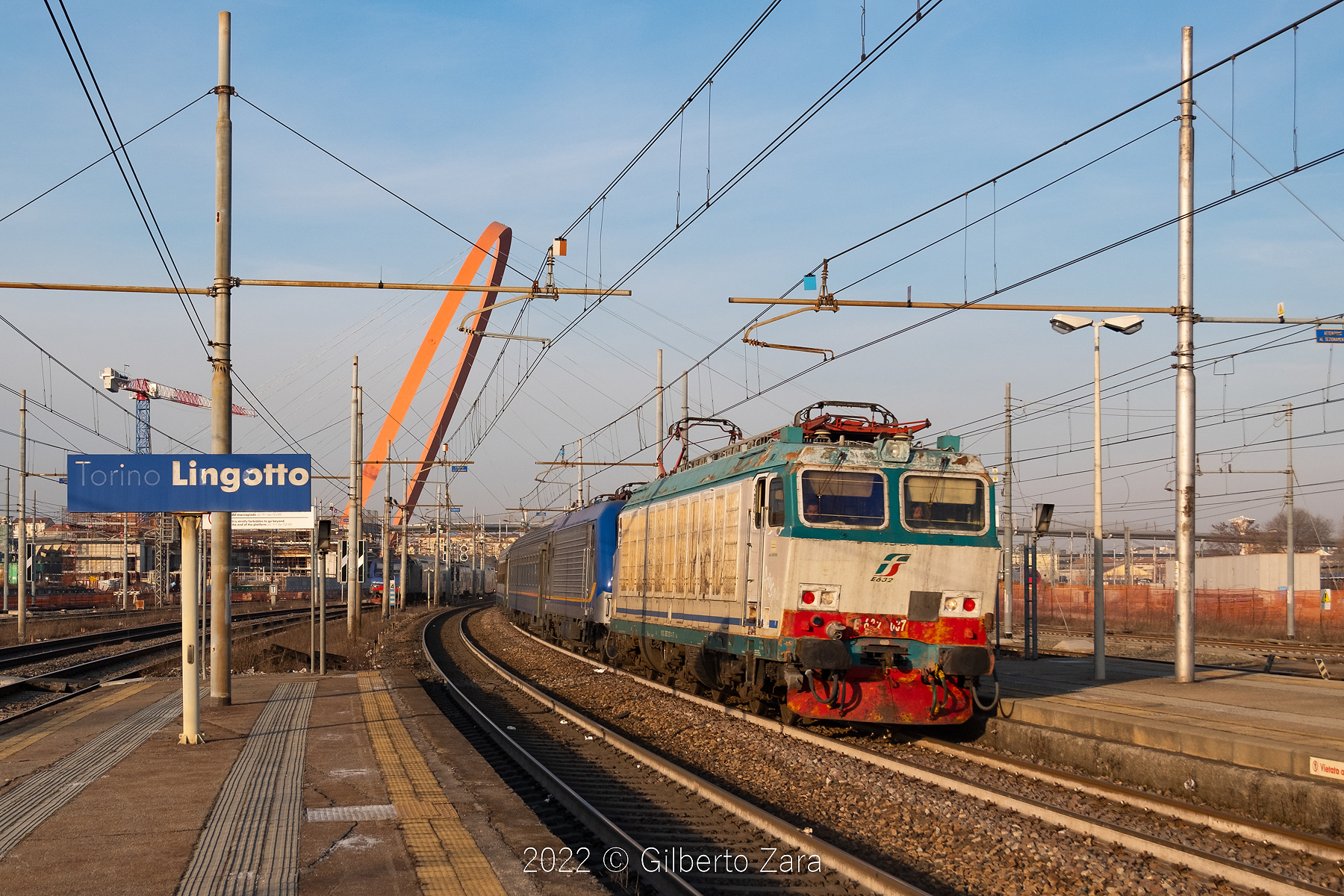

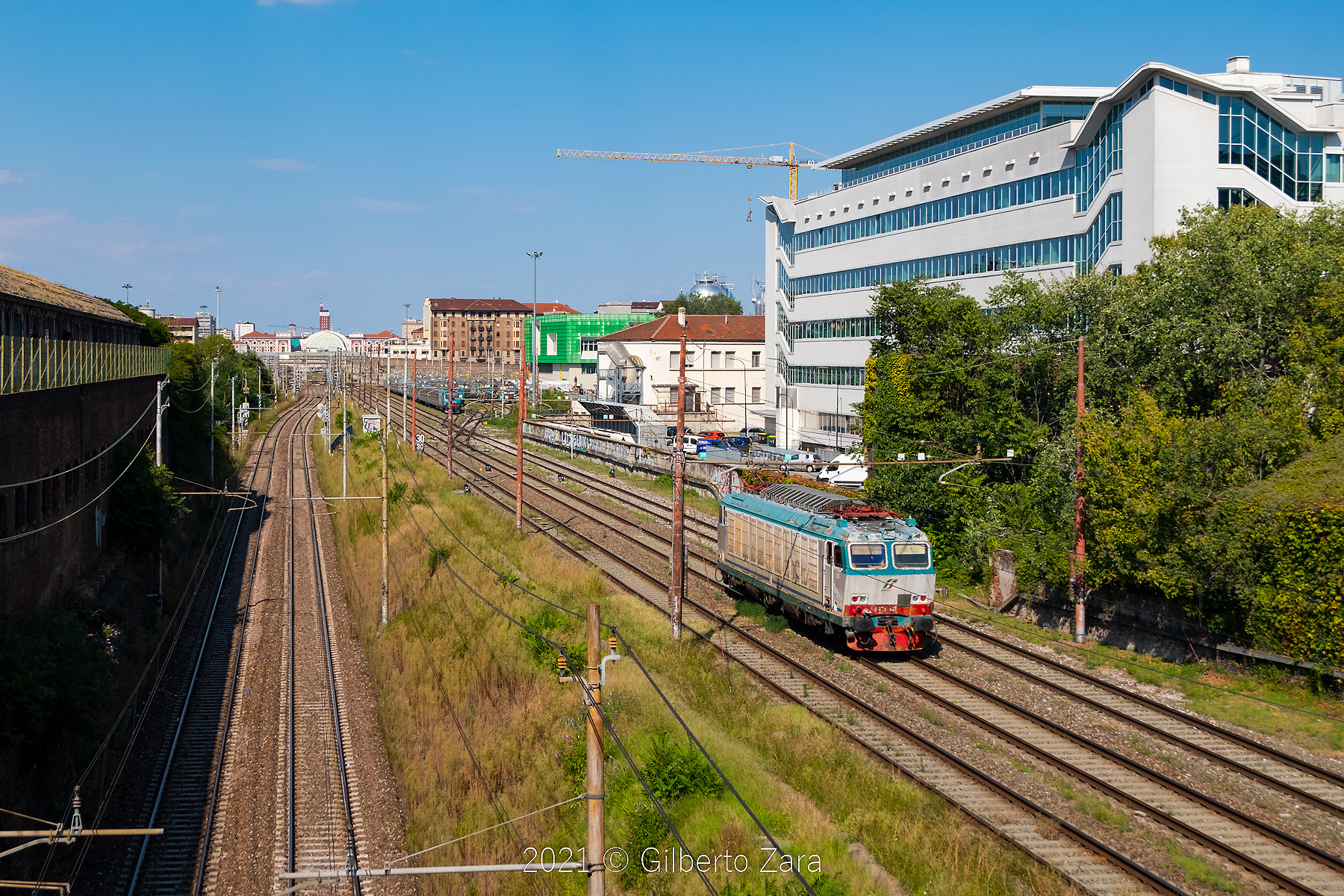

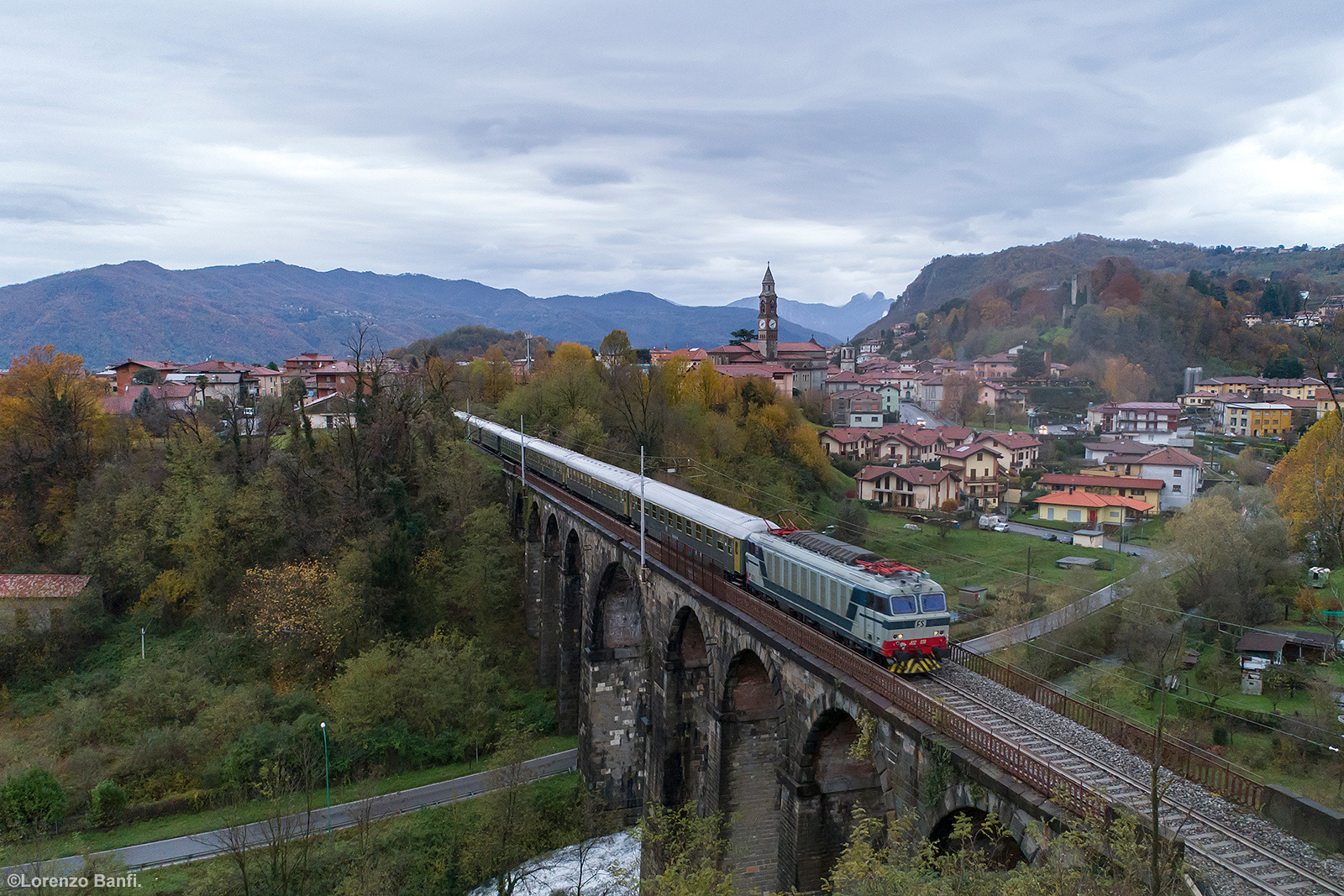

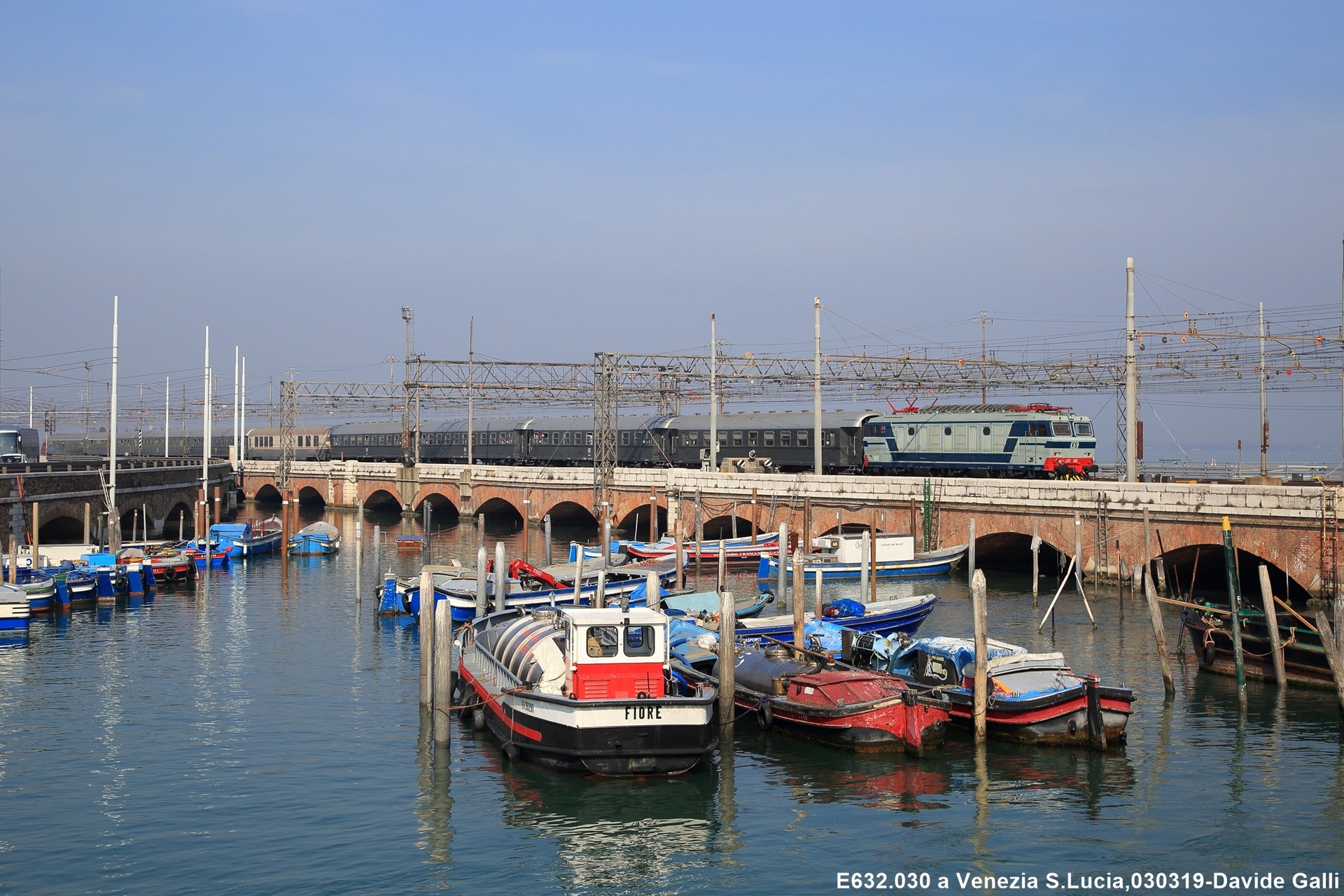

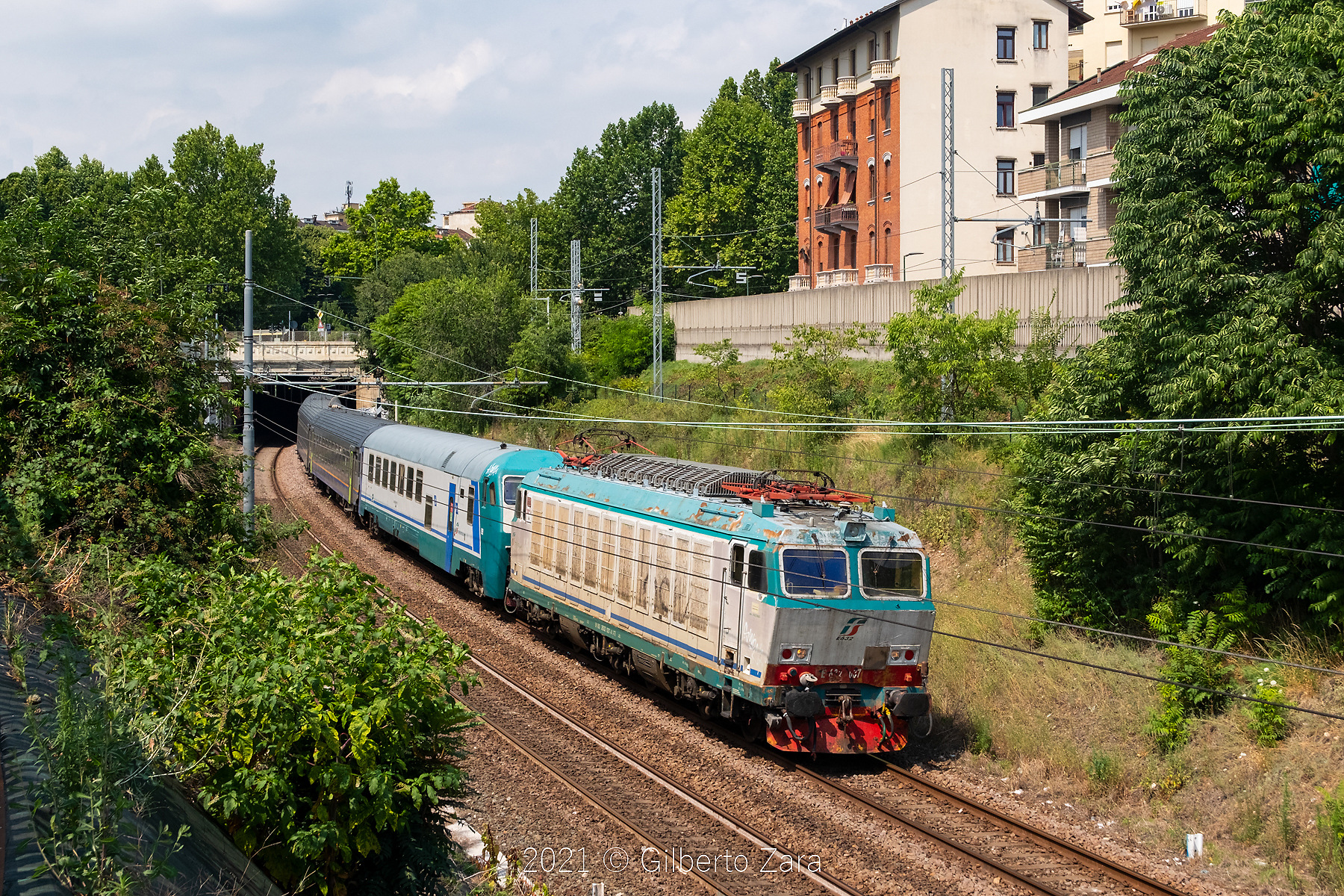

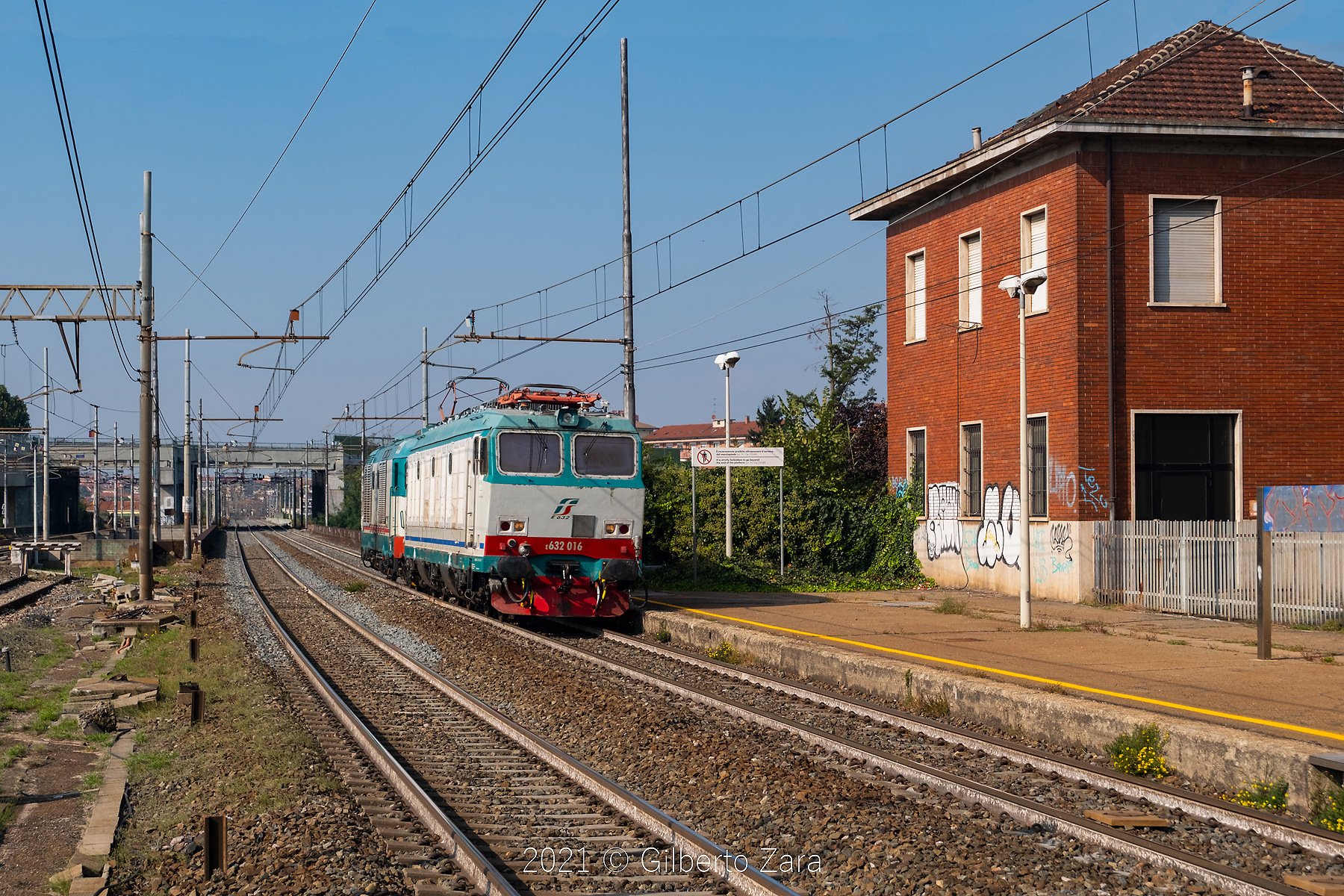

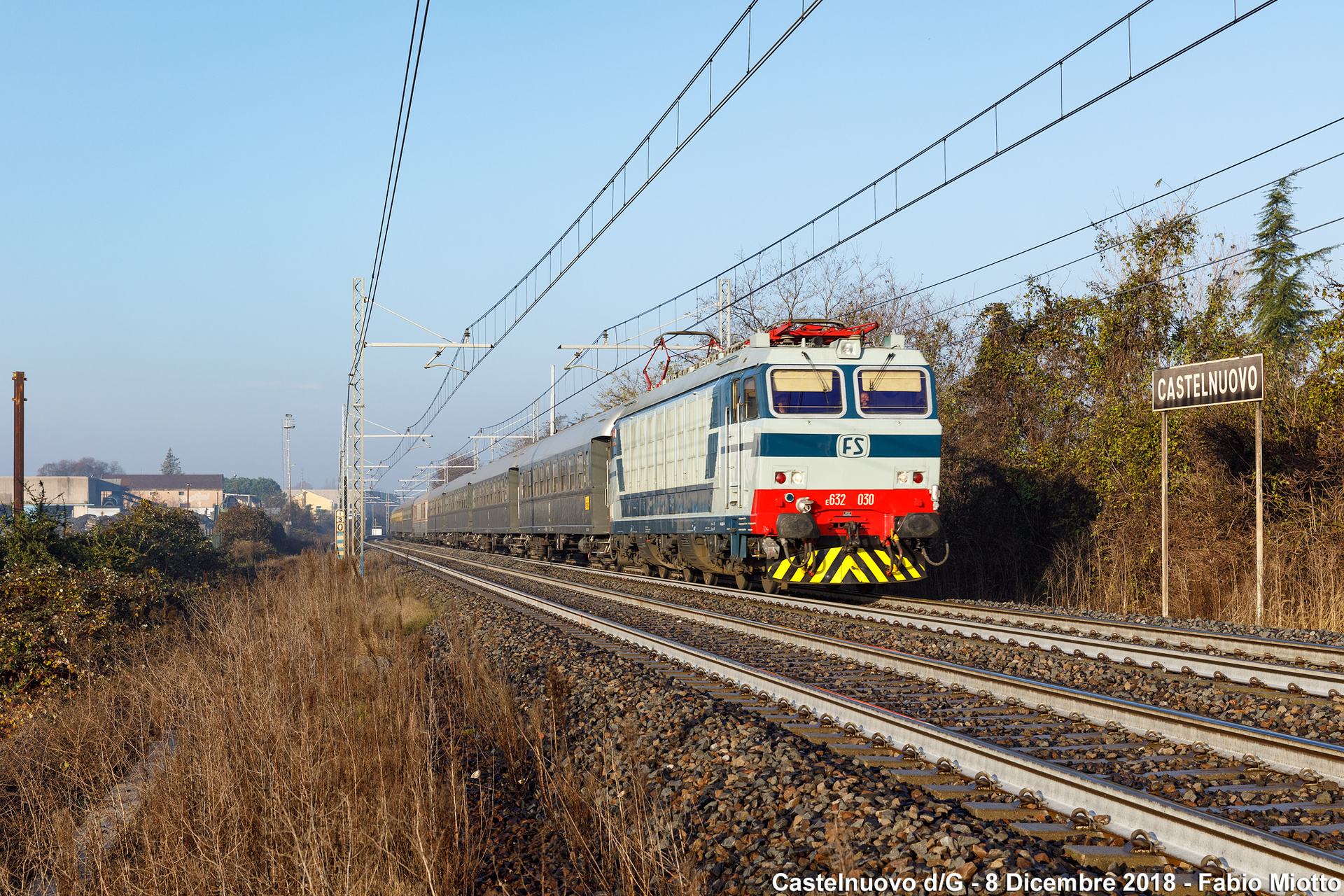

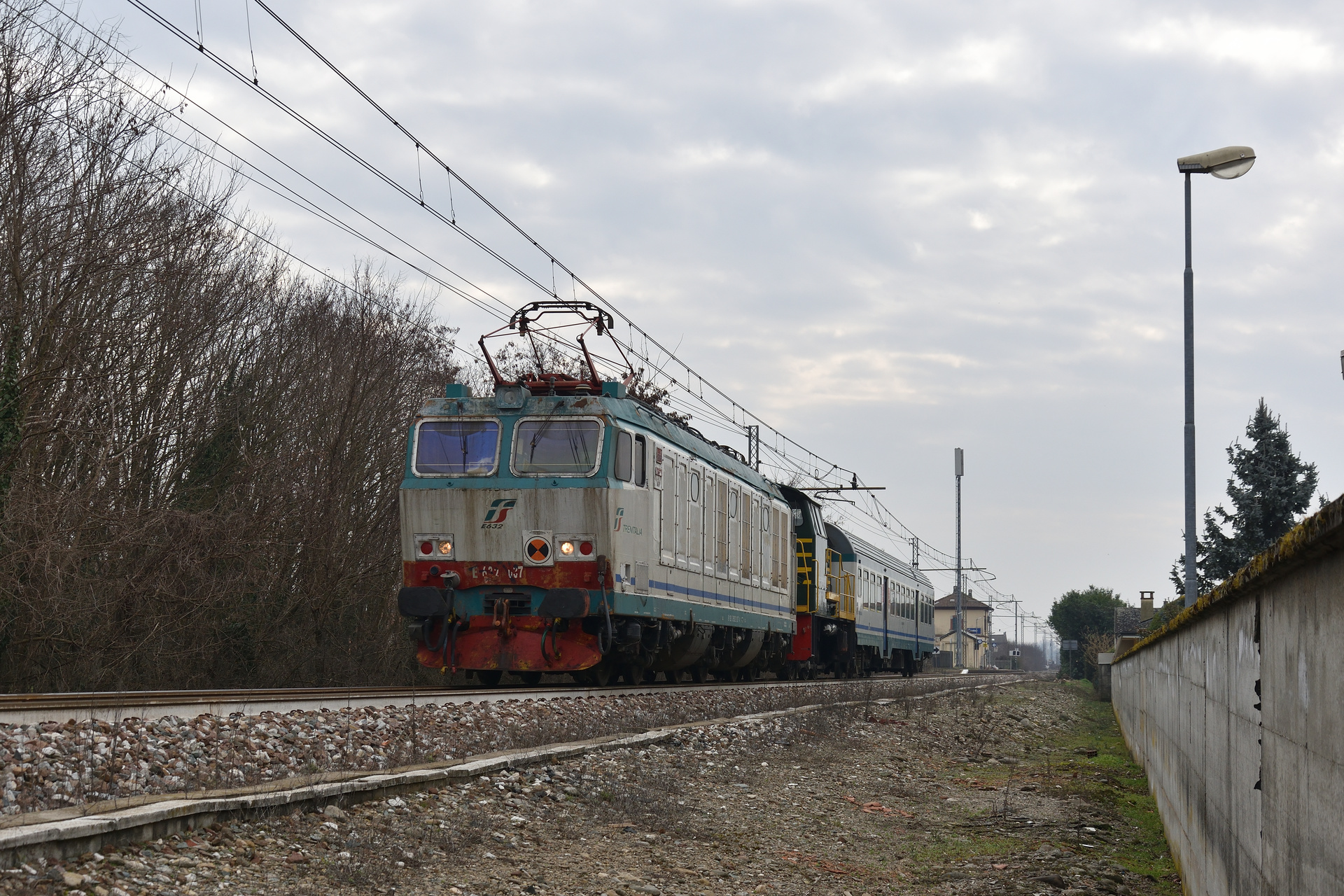

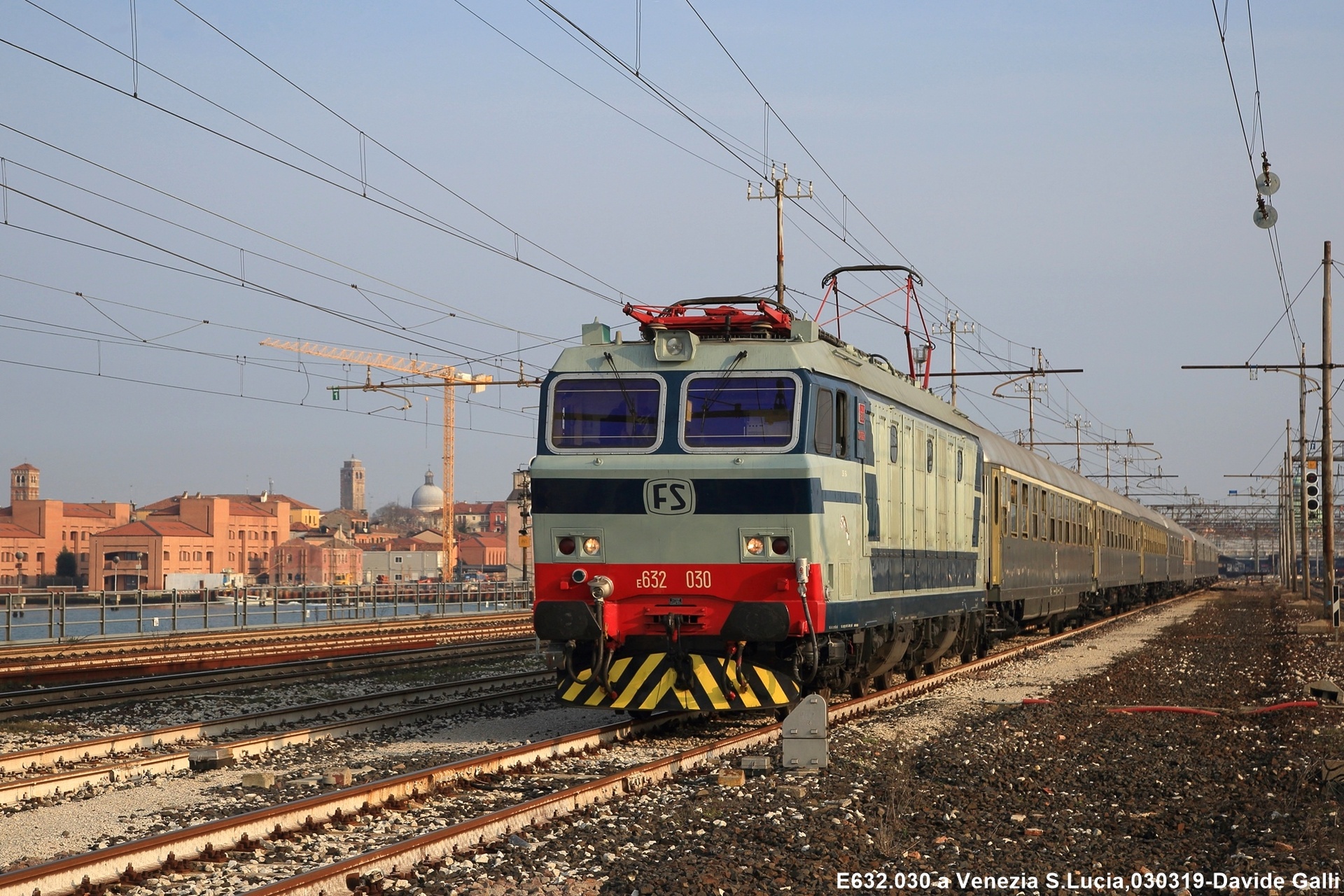

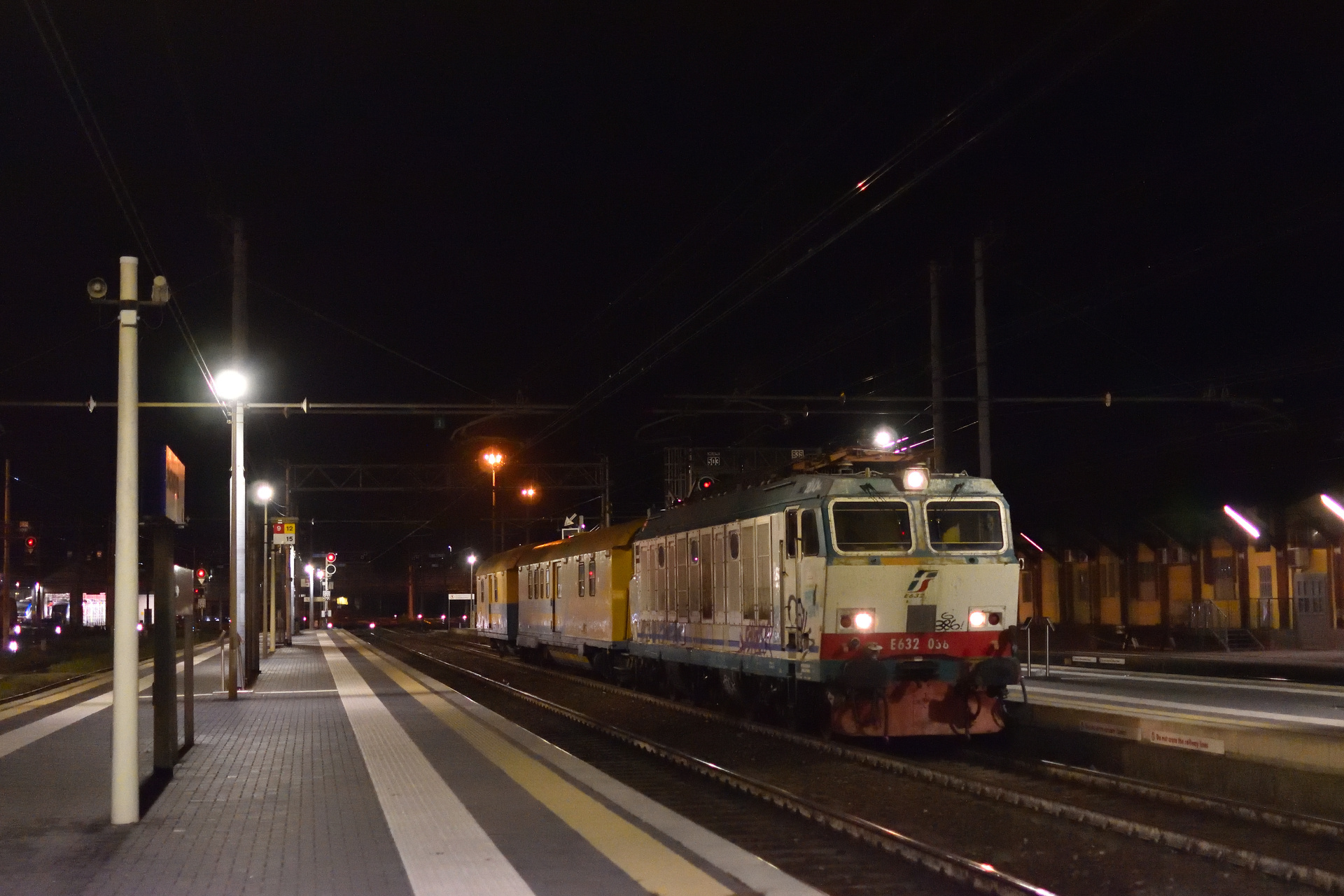

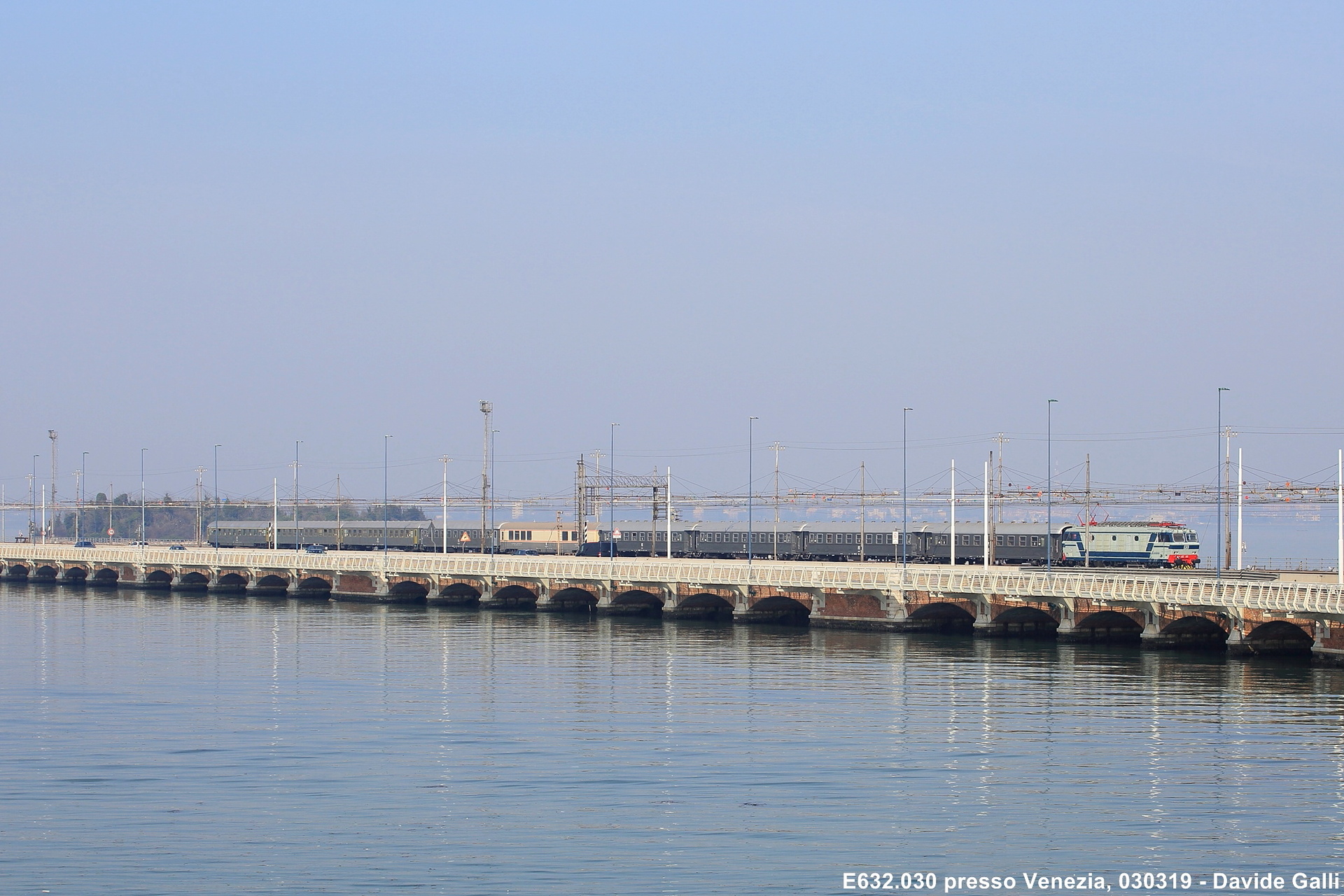

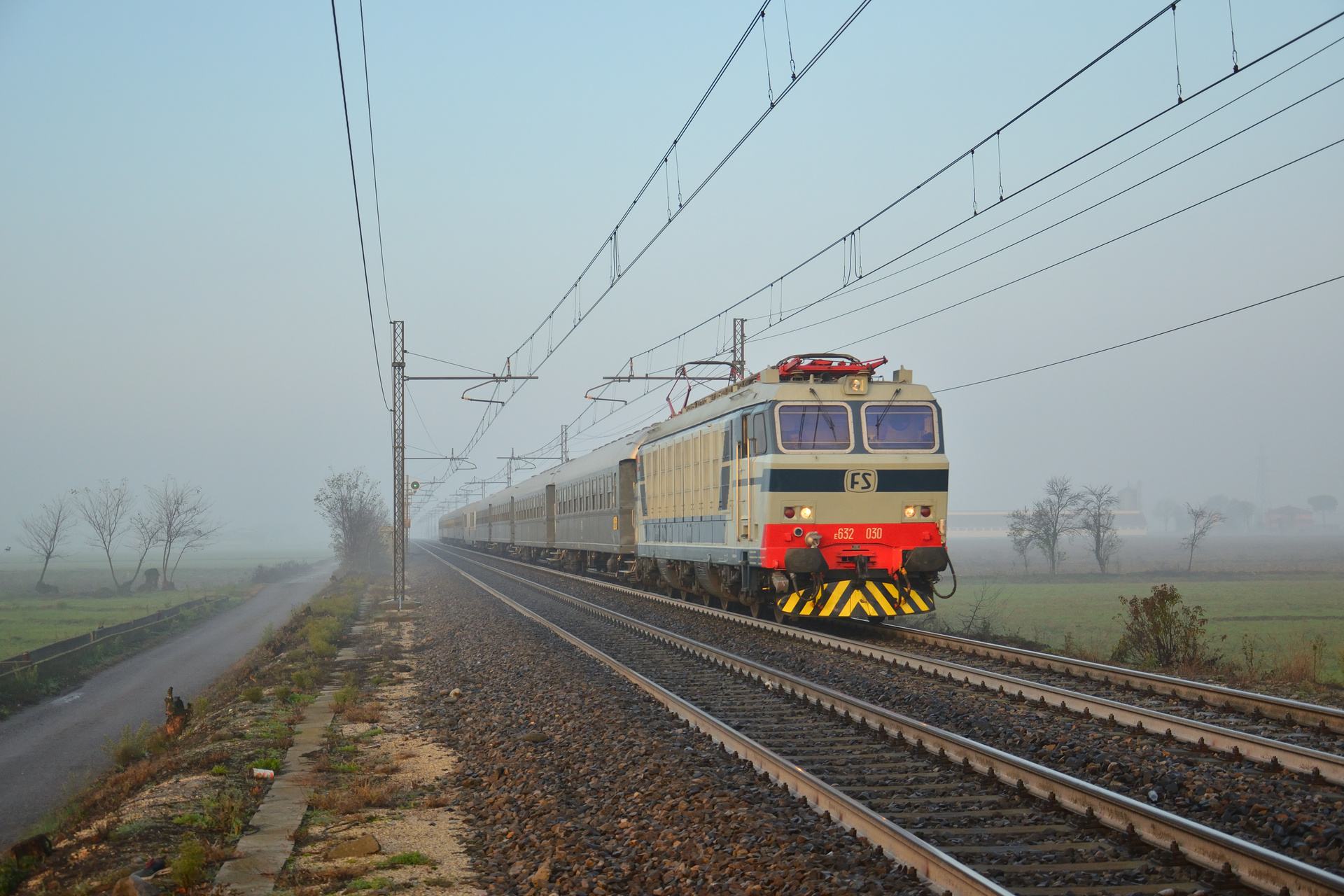

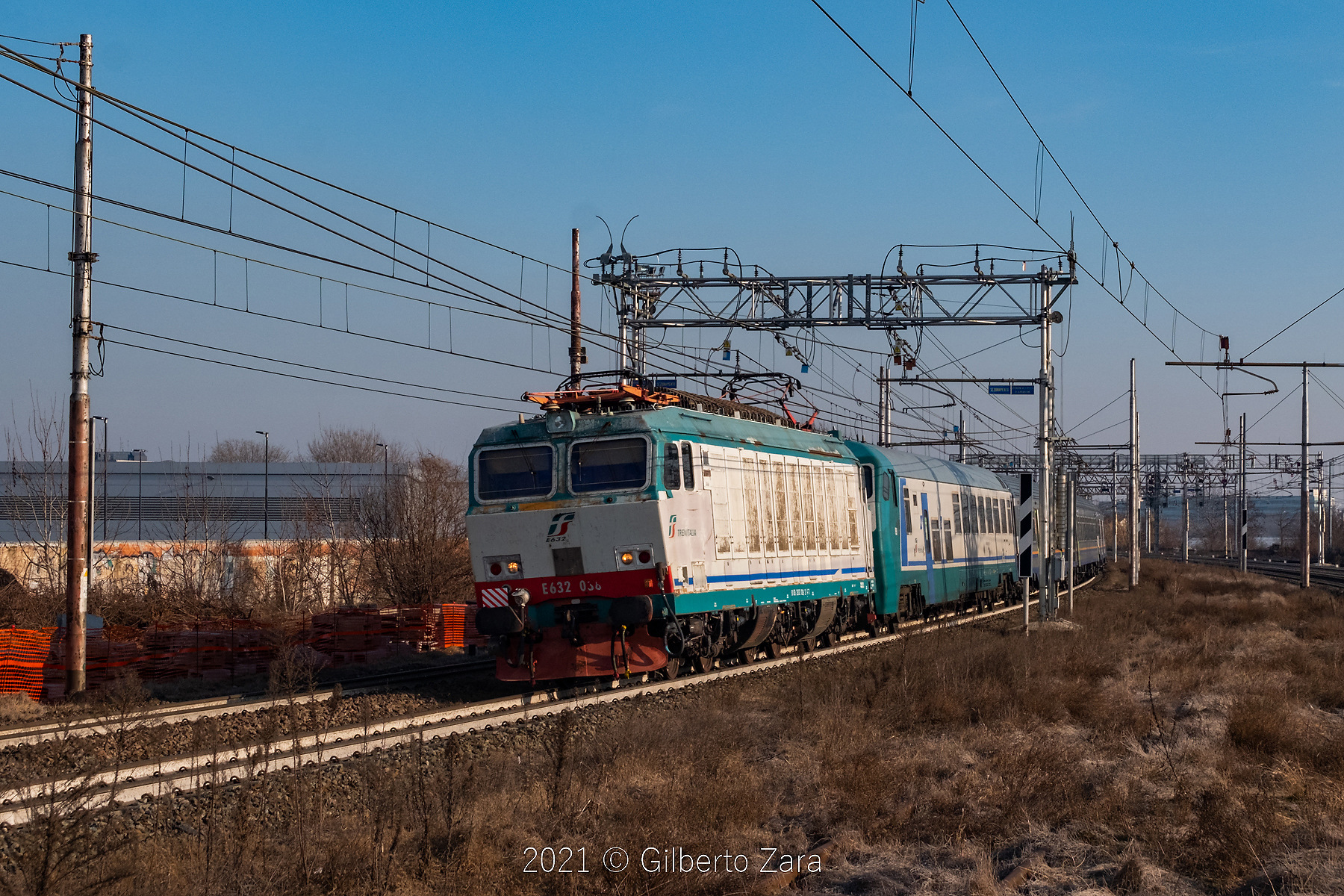

Fiat E632 photos
