Siemens DB 402

Built by Adtranz, Siemens

Top speed

280 km/h

174 mph

Power output

4,800 kW

6,437 hp

Weight

78 t

171,960 lb

Length

20.56 m

67 ft 5 in

Track gauge

1,435 mm

Standard gauge

Years built

1995–1997

46 units

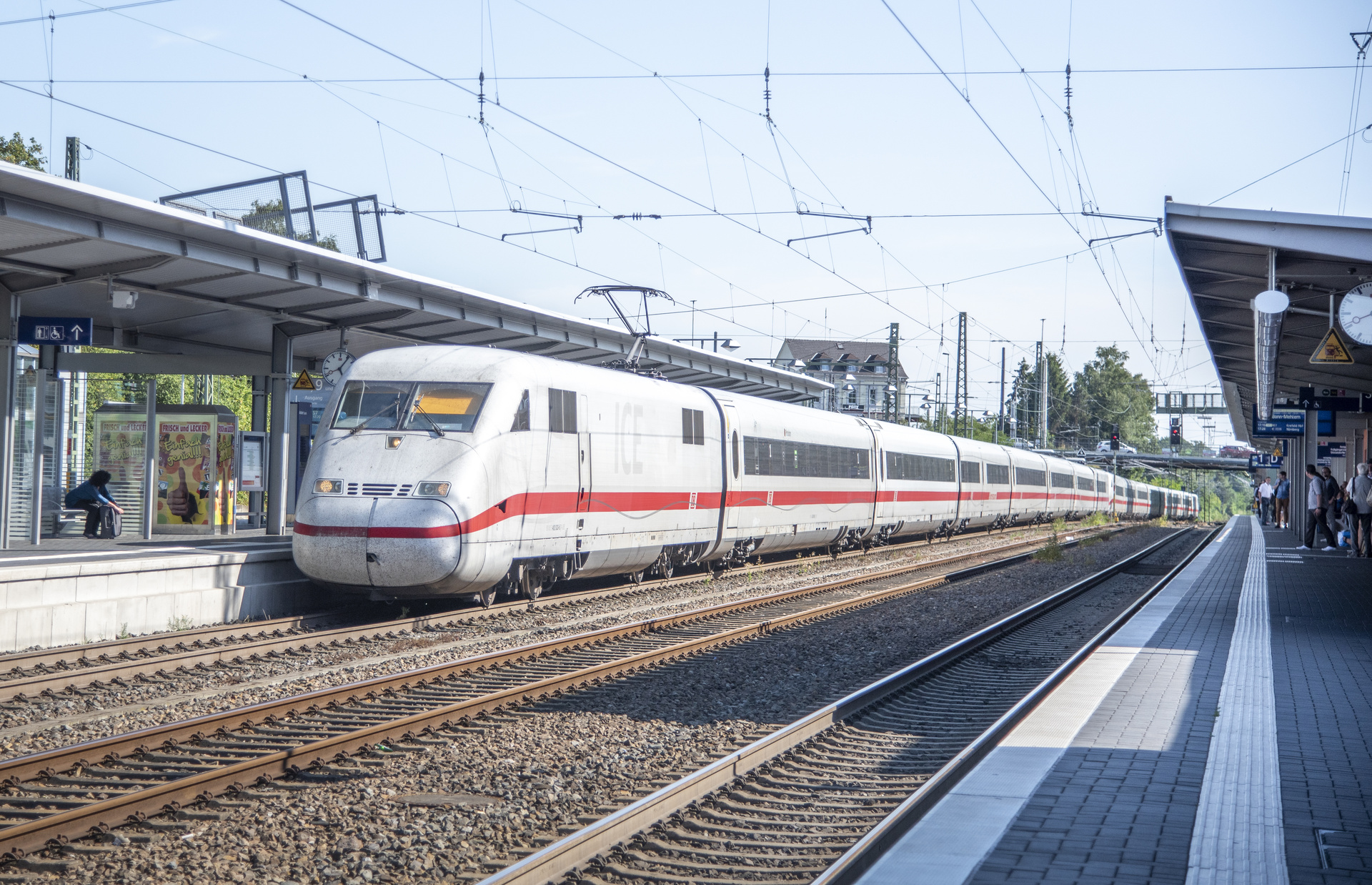

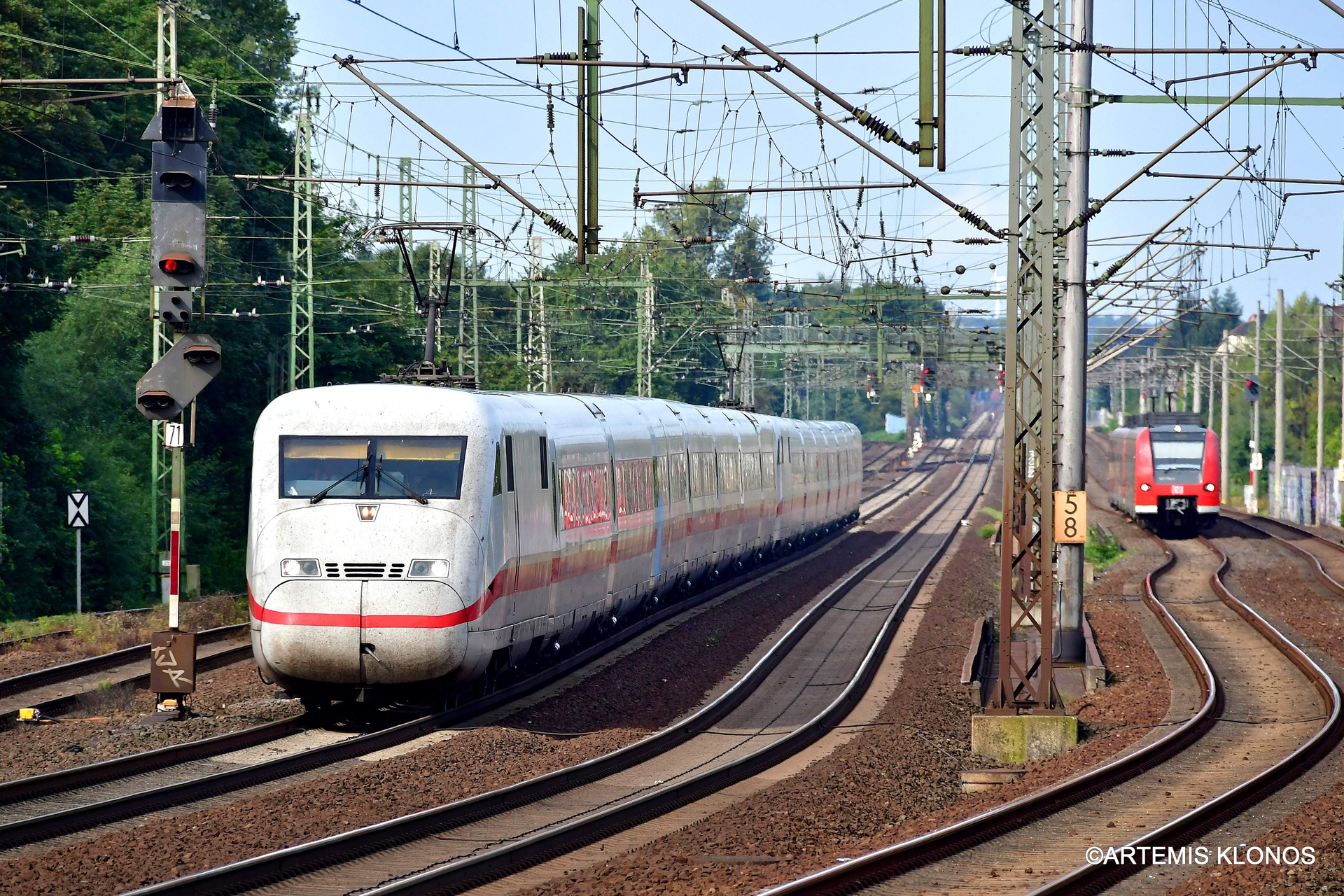

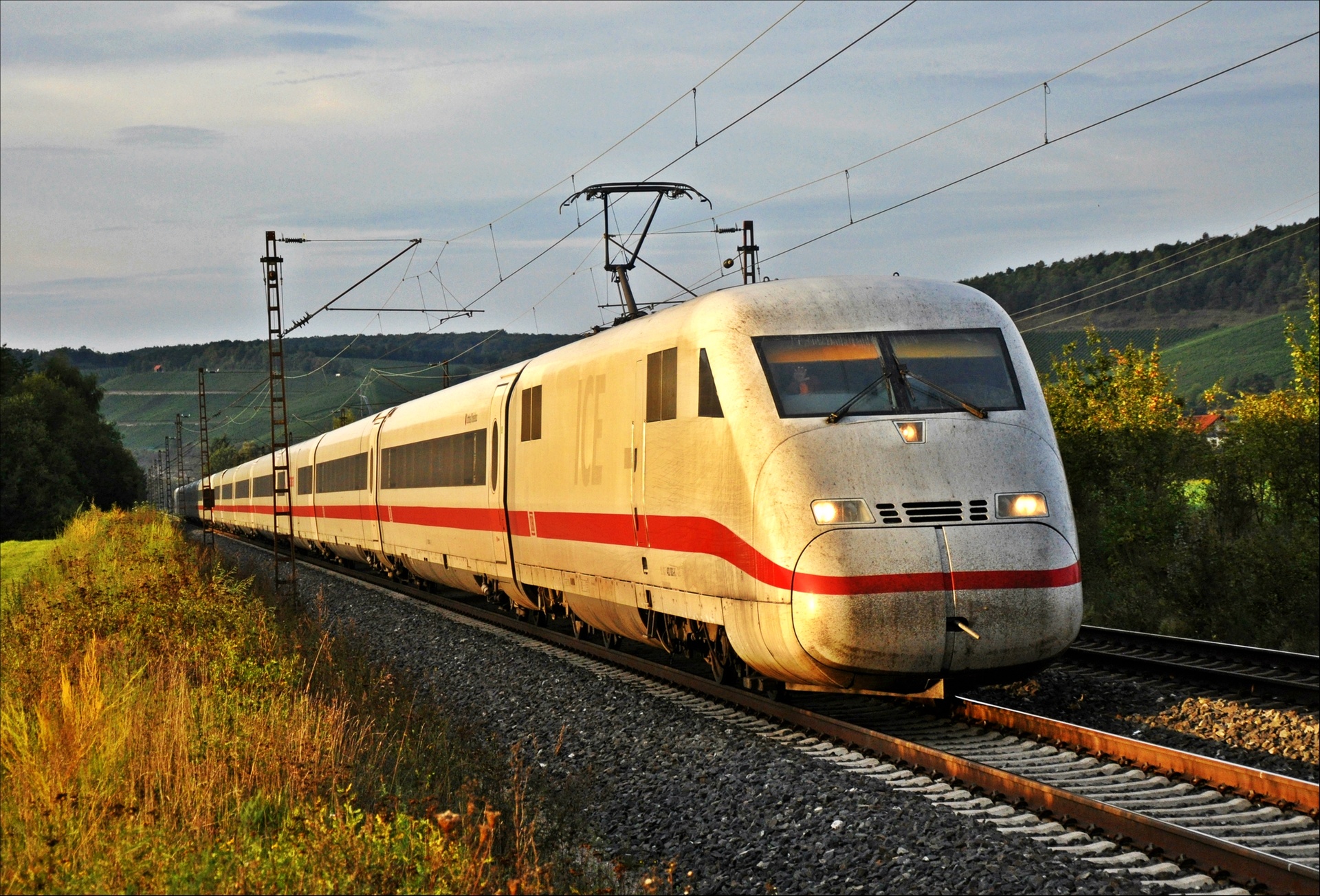

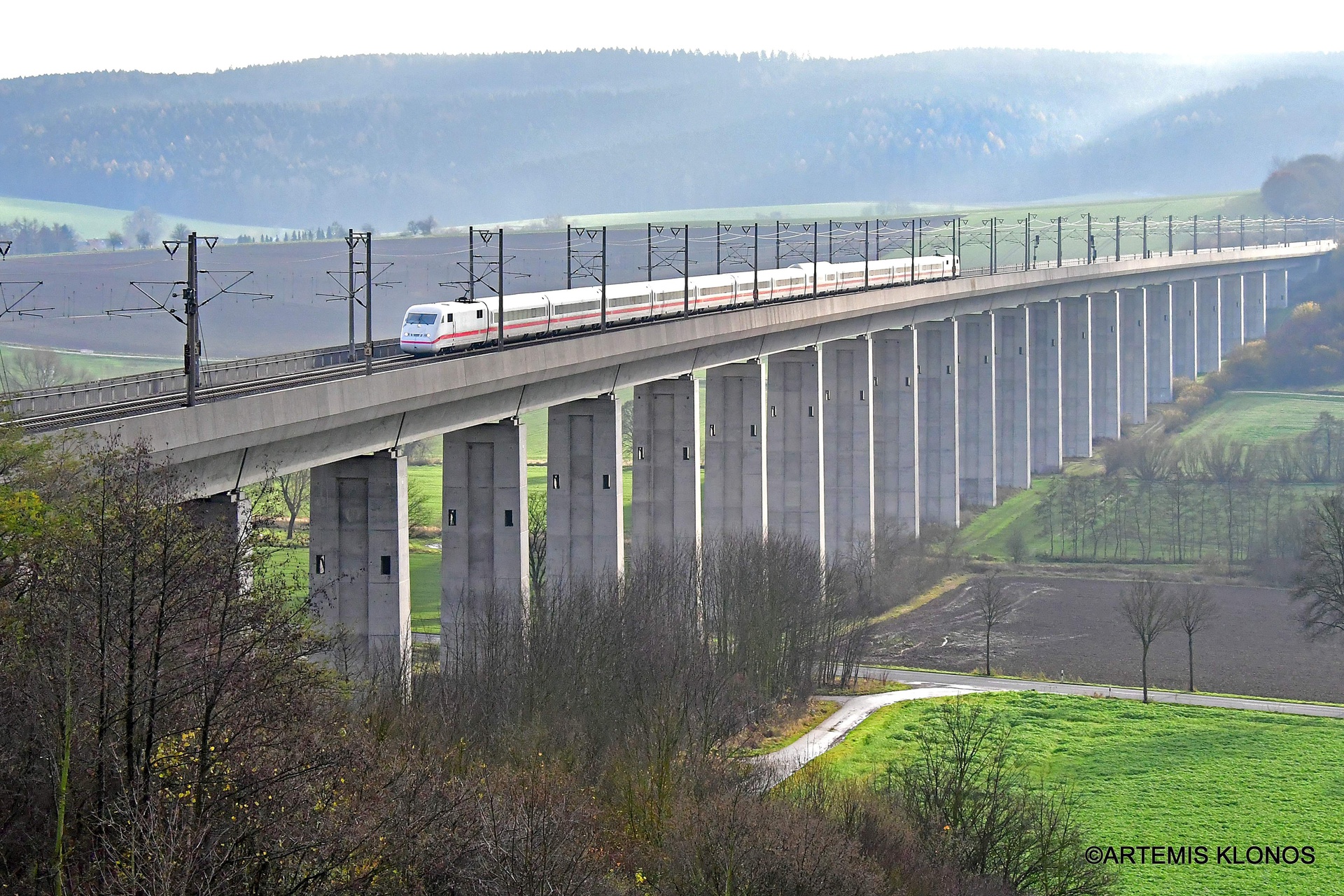

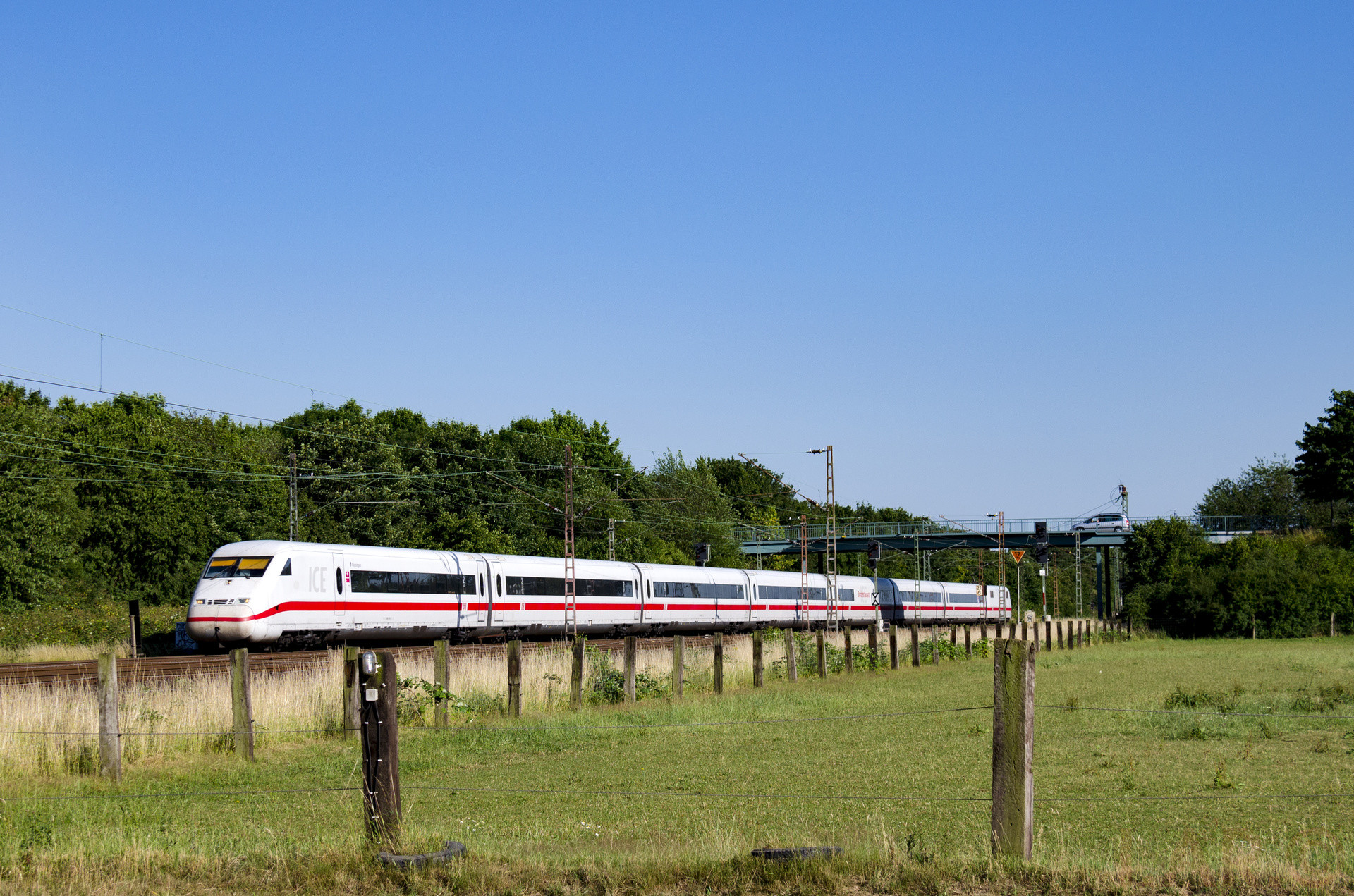

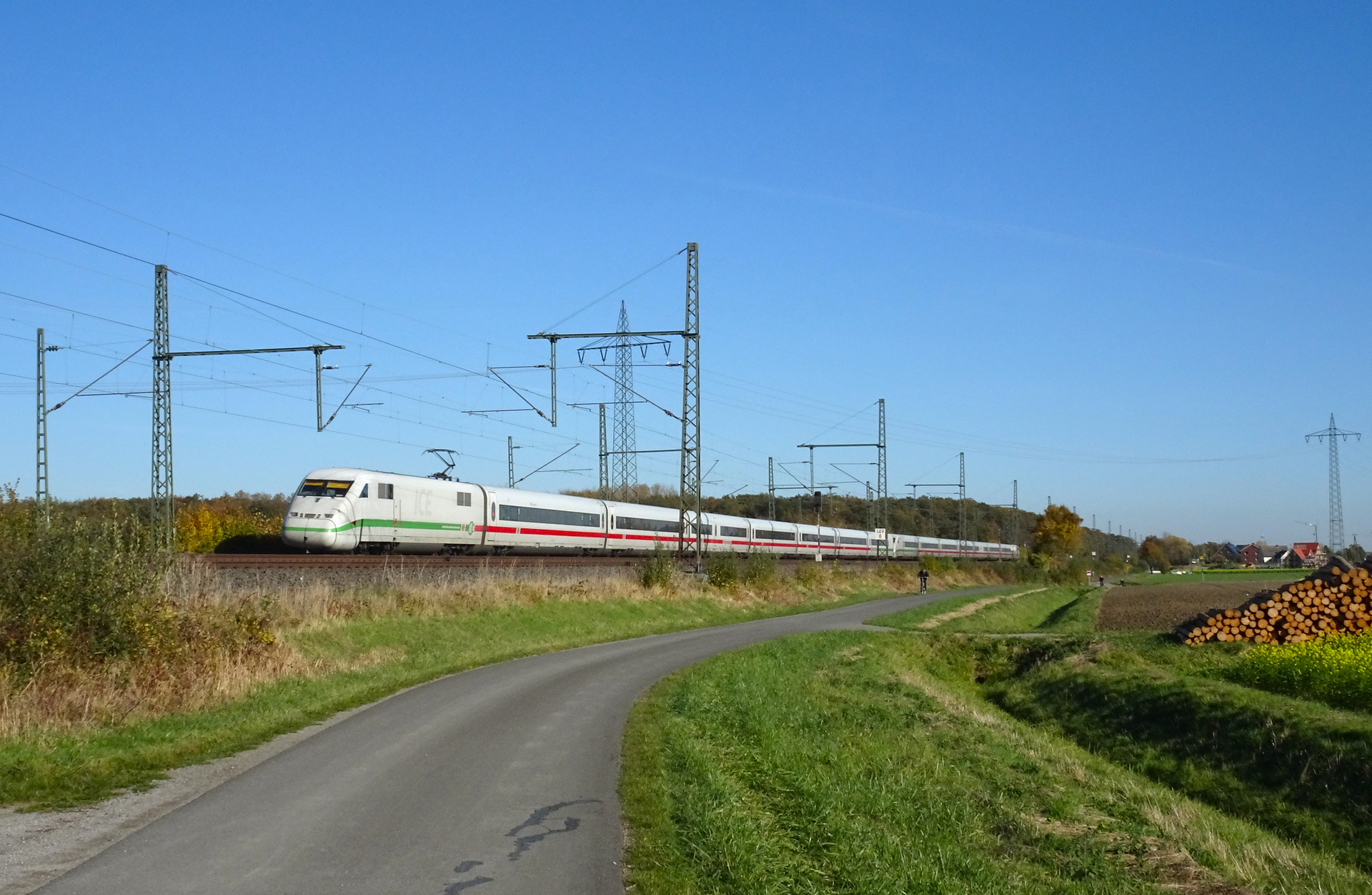

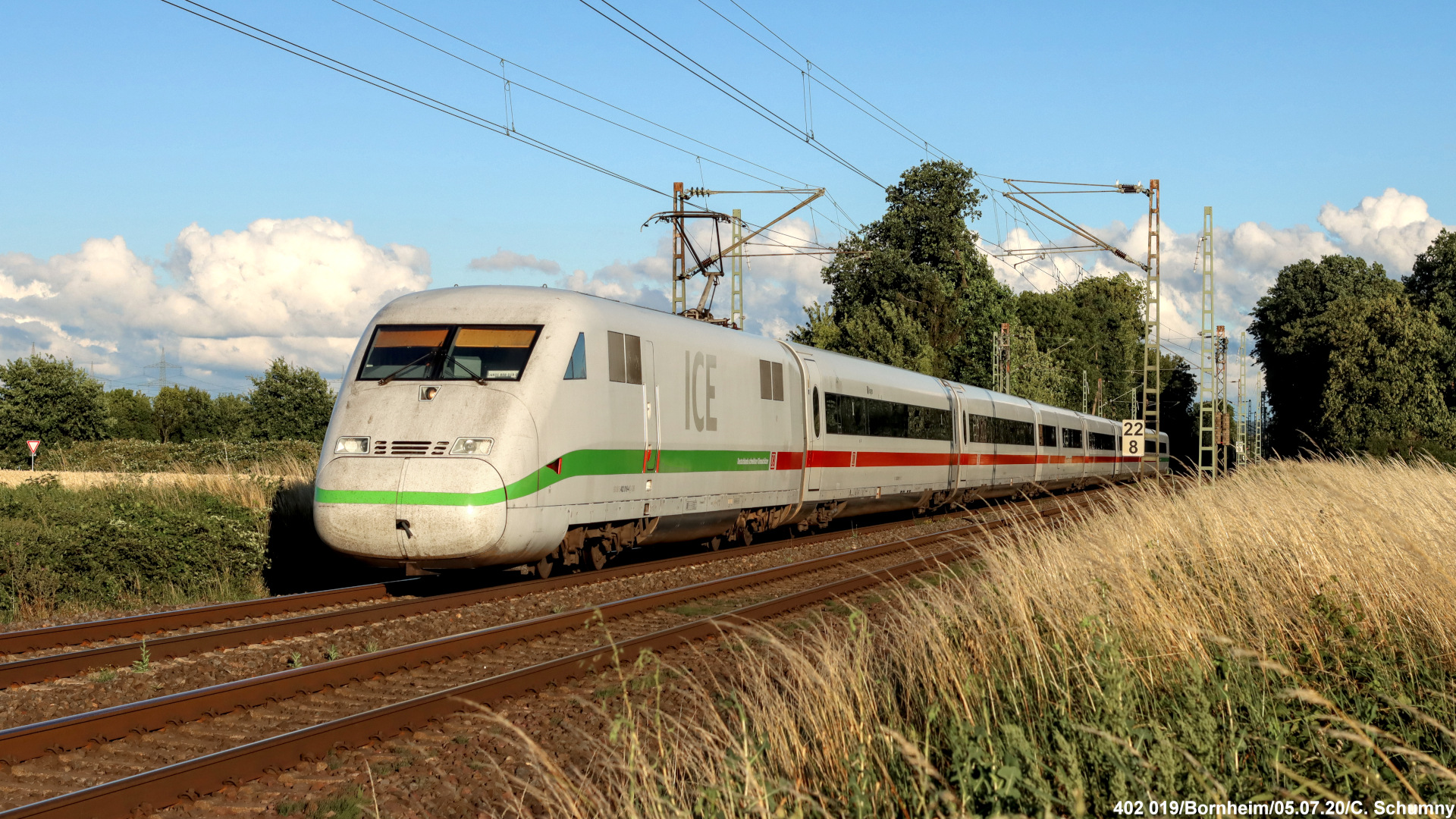

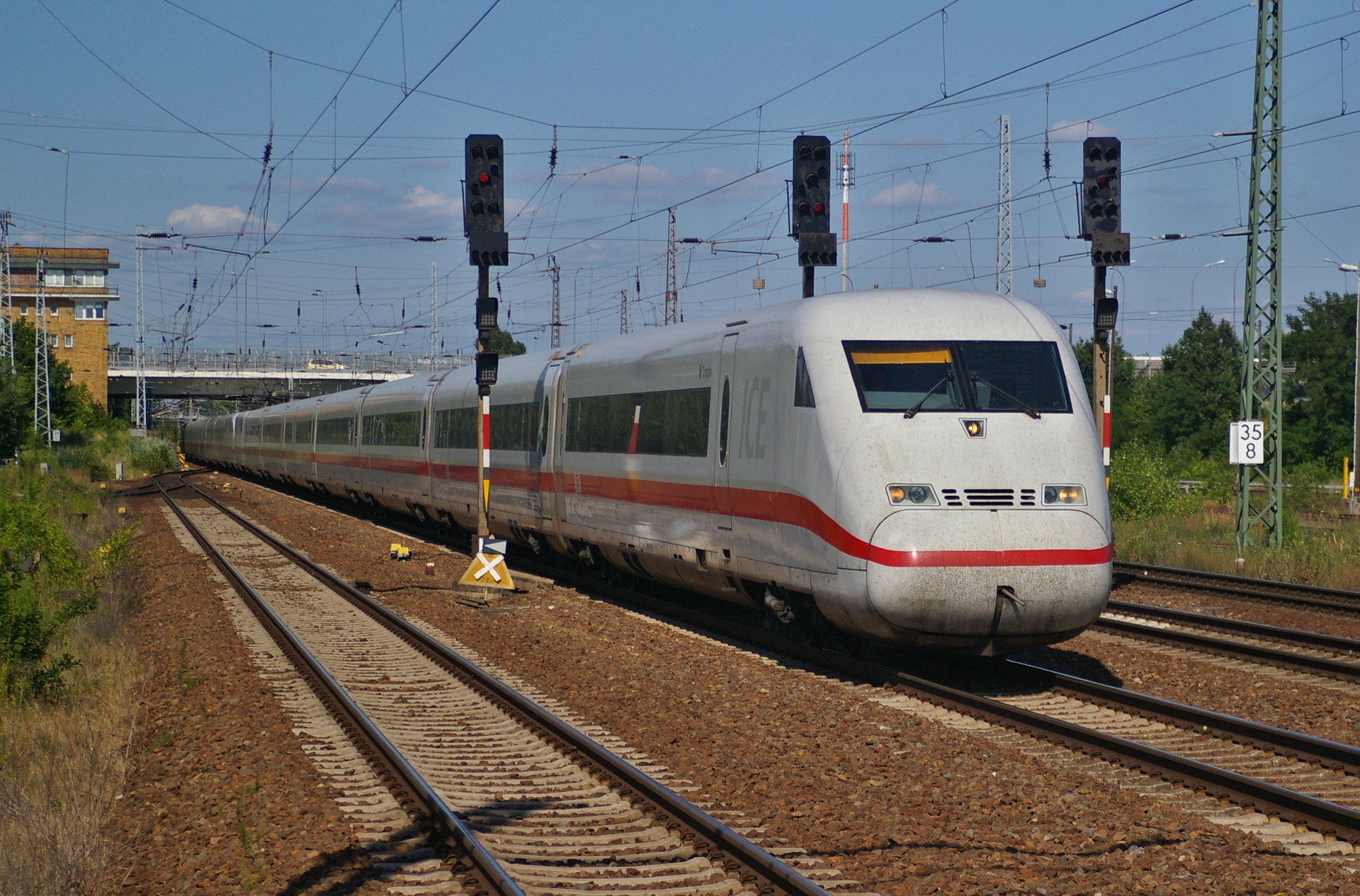

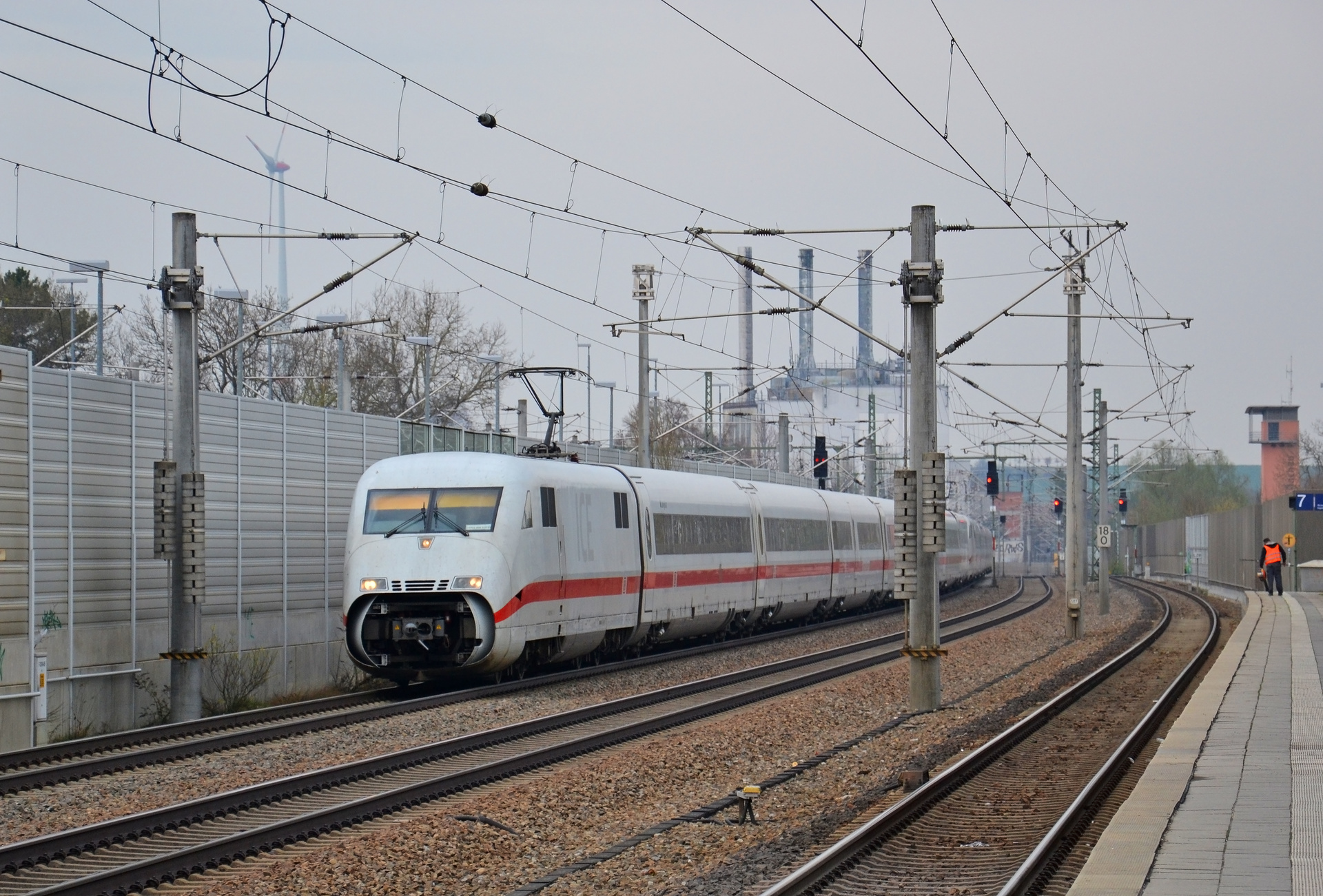

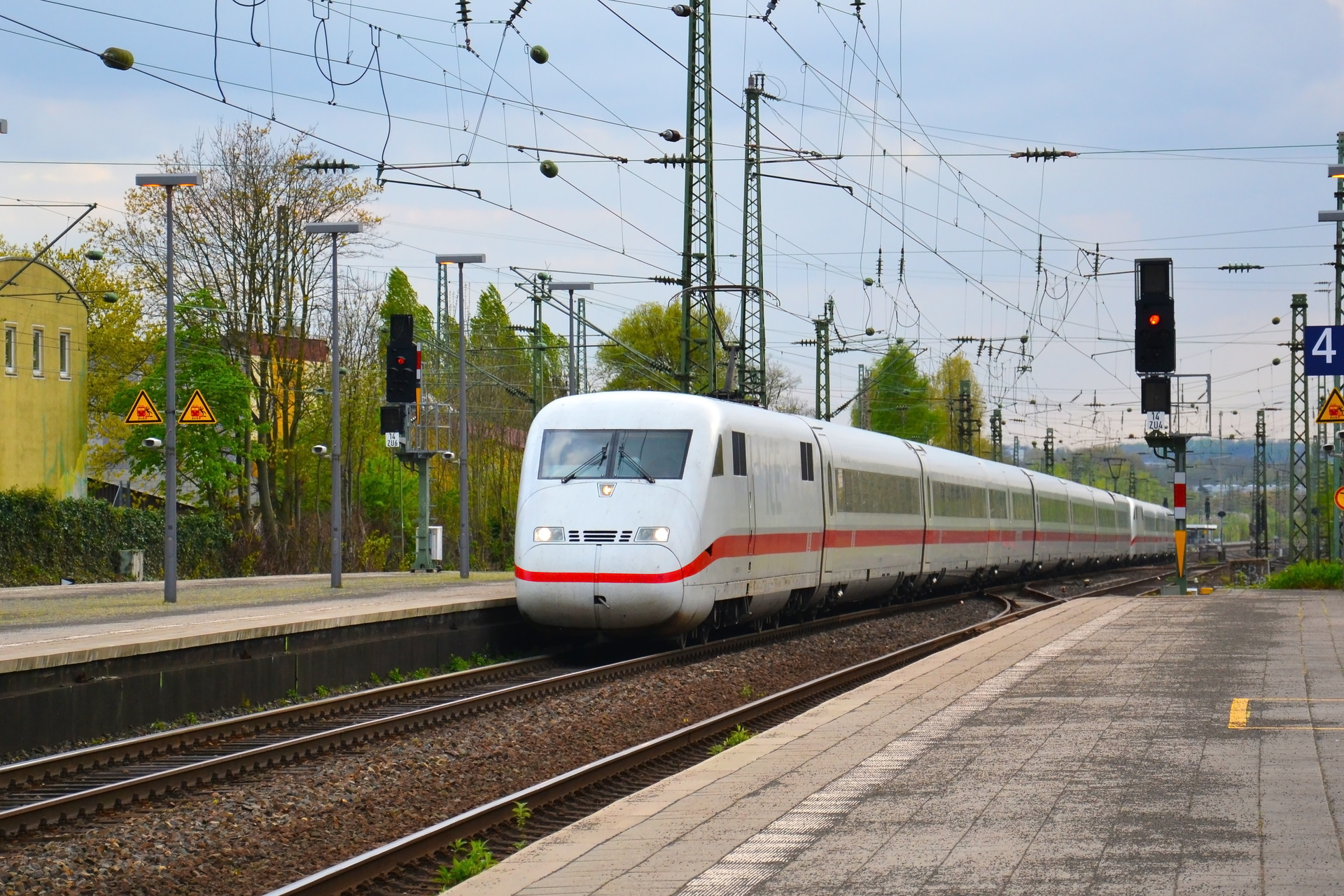

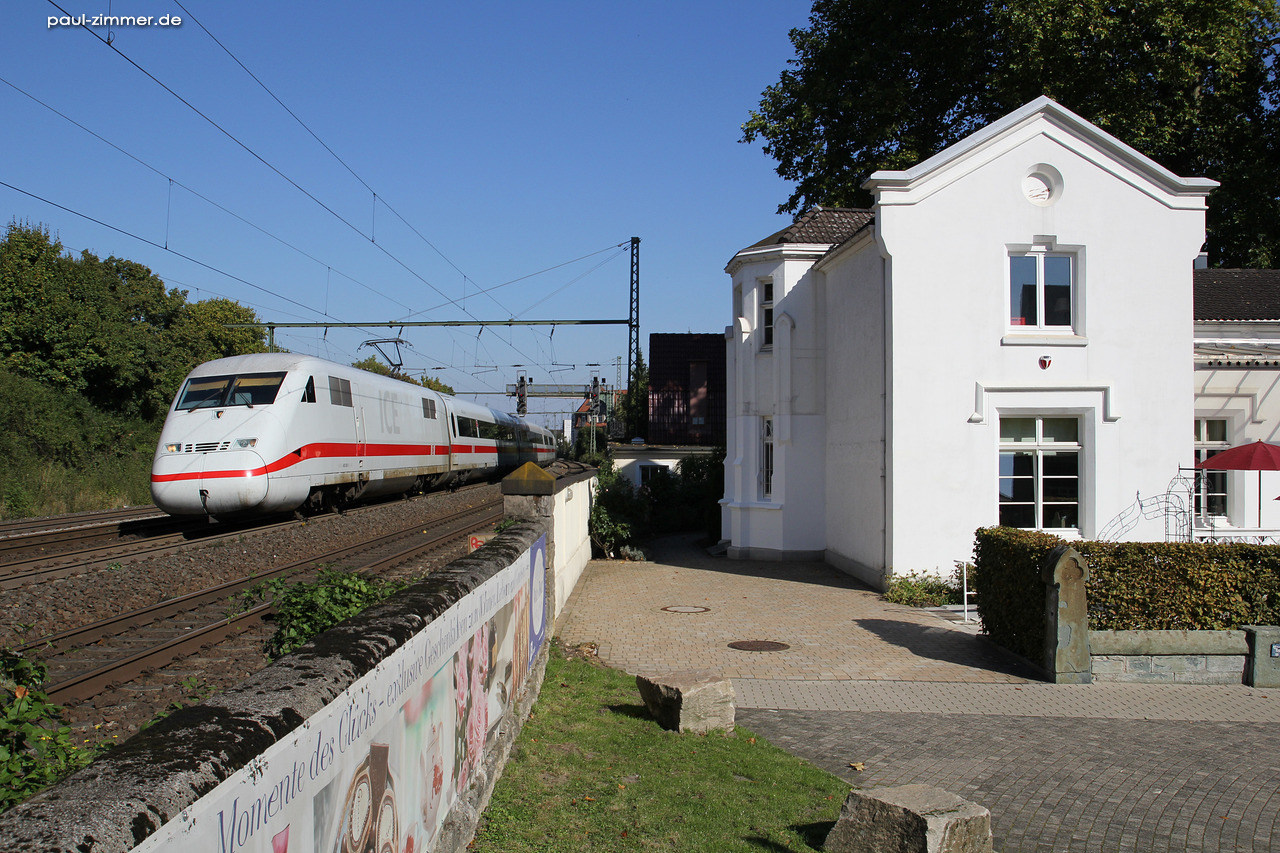

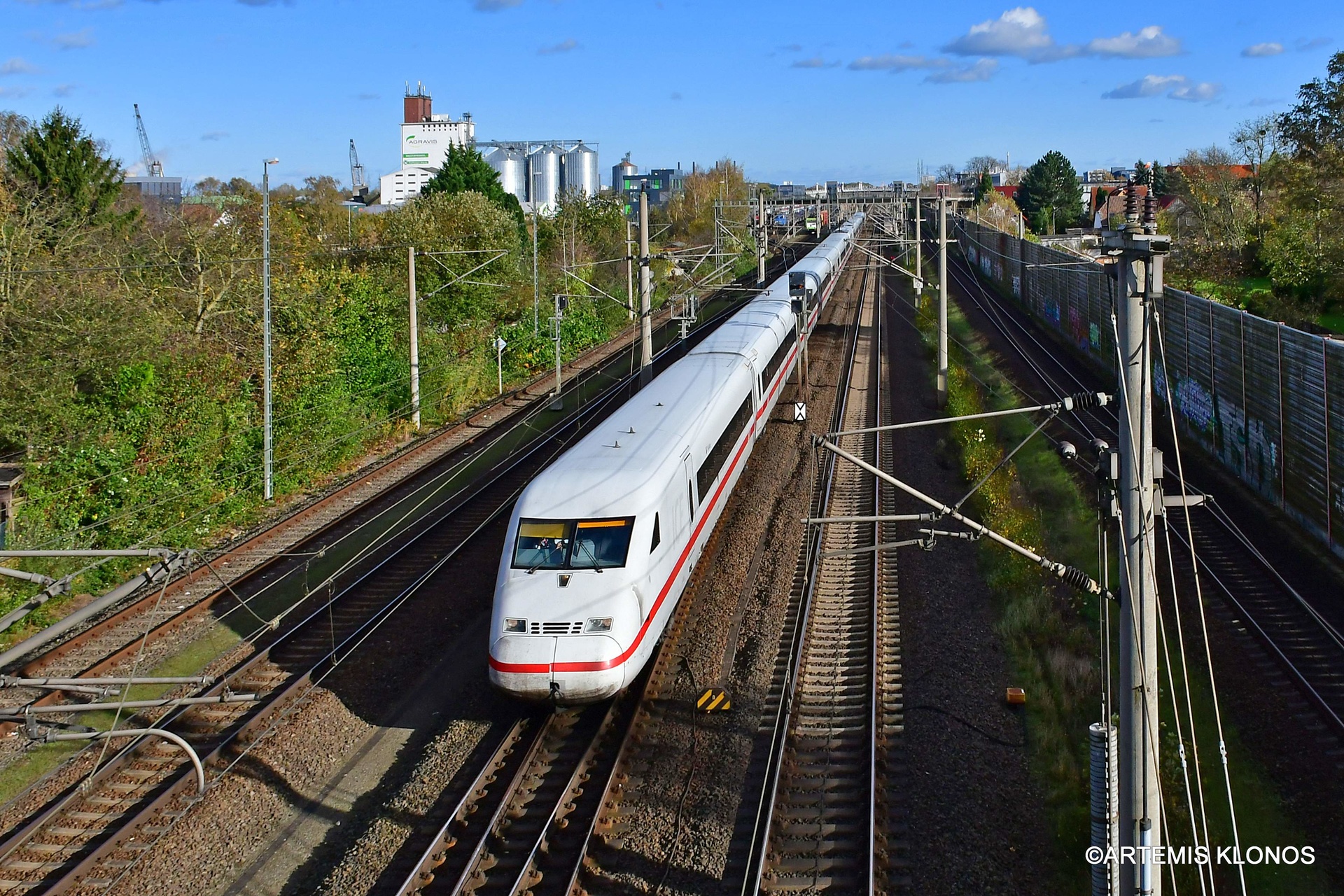

Overview of the Siemens DB 402

Discover the impressive DB 402, a powerful electric locomotive known for its speed and efficiency.

As part of the ICE 2 series, this locomotive boasts a top speed of 280 km/h, making it a vital asset for high-speed rail travel.

Built by Adtranz and Siemens between 1995 and 1997, the DB 402 features a robust design with a power output of 4800 kW, ensuring reliable performance.

This German locomotive, operated by Deutsche Bahn AG, is an excellent example of modern traction technology, characterized by its 1435 mm gauge and Bo'Bo' axle arrangement.

With a length of 20.56 meters and a weight of 78 tons, the DB 402 is engineered for both performance and stability on the tracks.

Siemens DB 402 technical specifications

	Value	Imperial / US
Series	ICE 2
Family	ICE
Built by	Adtranz, Siemens · 1995–199746 units
Top speed	280 km/h174 mph	174 mph
Power output	4,800 kW6,437 hp	6,437 hp
Tractive effort	200 kN44,962 lbf	44,962 lbf
Electric systems	15 kV AC 16.7 Hz
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
UIC axle arrangement	Bo'Bo'
Length	20.56 m67 ft 5 in	67 ft 5 in
Width	3.07 m10 ft 1 in	10 ft 1 in
Height	3.84 m12 ft 7 in	12 ft 7 in
Weight	78 t171,960 lb	171,960 lb
