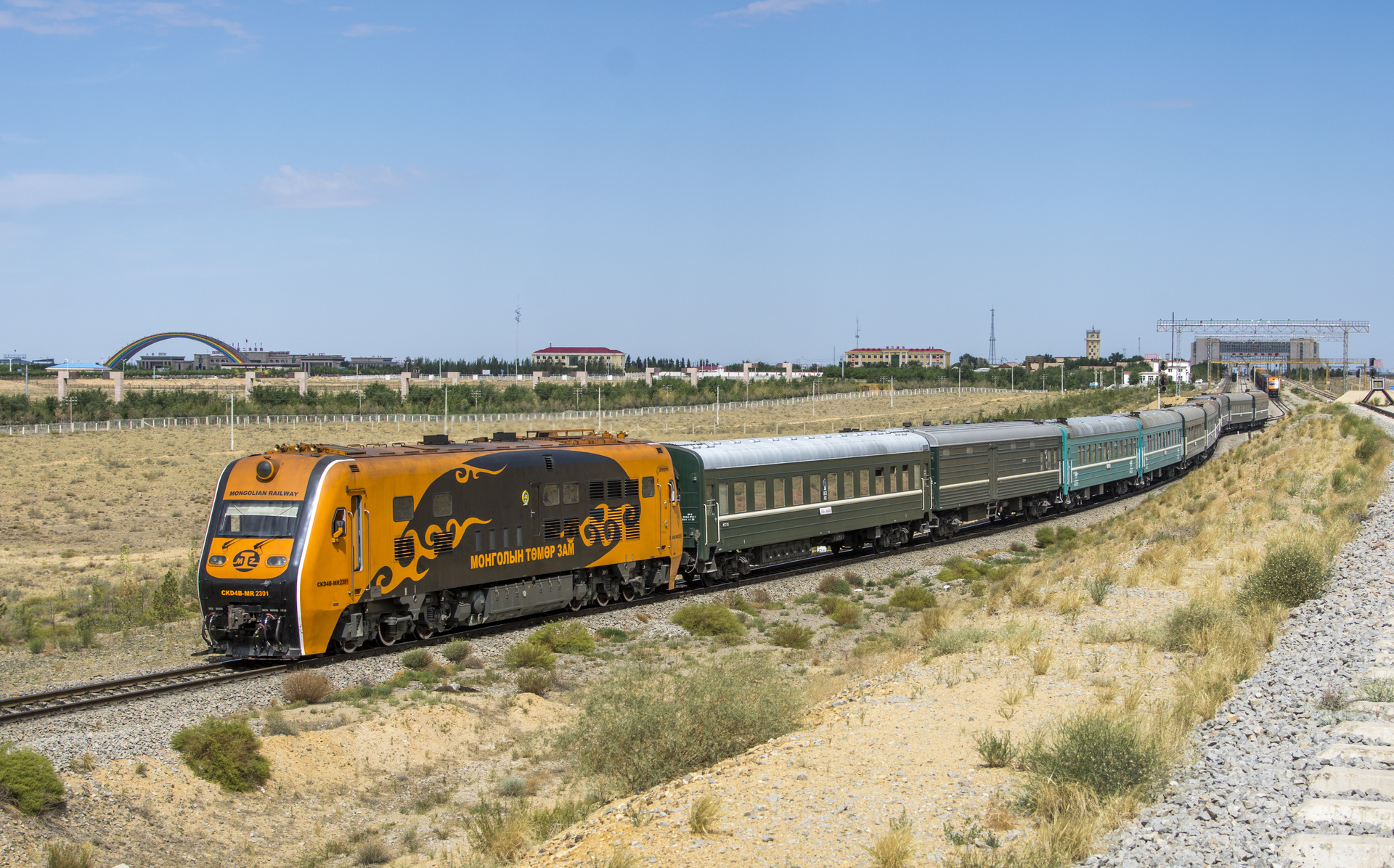

CRRC Dalian CKD4B – photo 1© trainspo.com
Diesel locomotive

CRRC Dalian CKD4B

Built by CNR Dalian

Top speed
100 km/h
62 mph
Power output
2,650 kW
3,554 hp
Length
22.45 m
73 ft 8 in
Track gauge
1,520 mm
Russian broad gauge
Years built
2009
30 units
Axle arrangement
Co'Co'

Overview of the CRRC Dalian CKD4B

Discover the robust CKD4B diesel locomotive, a powerful workhorse designed for demanding railway operations.

This versatile locomotive, built by CNR Dalian in 2009, boasts a formidable 2650 kW power output, driven by a CRRC Dalian 16V240ZJD prime mover.

With a top speed of 100 km/h and a substantial axle load of 23 tons, the CKD4B is well-equipped for heavy hauling.

Its 1520 mm gauge and Co'Co' wheel arrangement ensure reliable performance on broad gauge tracks.

Seen in operation with Boldtumur Eruu Gol LLC and Ulaan-Baatar railway in Mongolia, the CKD4B plays a vital role in regional transportation.

CRRC Dalian CKD4B technical specifications

Value
SeriesDF4
Built byCNR Dalian · 200930 units
Top speed100 km/h62 mph
Power output2,650 kW3,554 hp
Prime moverCRRC Dalian 16V240ZJD
Track gauge1,520 mmRussian broad gauge4 ft 11⅞ in
UIC axle arrangementCo'Co'
Length22.45 m73 ft 8 in
Axle load23 t50,706 lb
Source of the data: www.crrcgc.ccView this model on trainspo.com Spotted an error? Let us know

Operators of the CRRC Dalian CKD4B

Railway companies that have operated the CKD4B, with the class designation used by each of them.

OperatorClassCountry
Boldtumur Eruu Gol LLCBTEG CKD4BMongolia
Ulaan-Baatar railwayUBTZ CKD4B-MR3000Mongolia

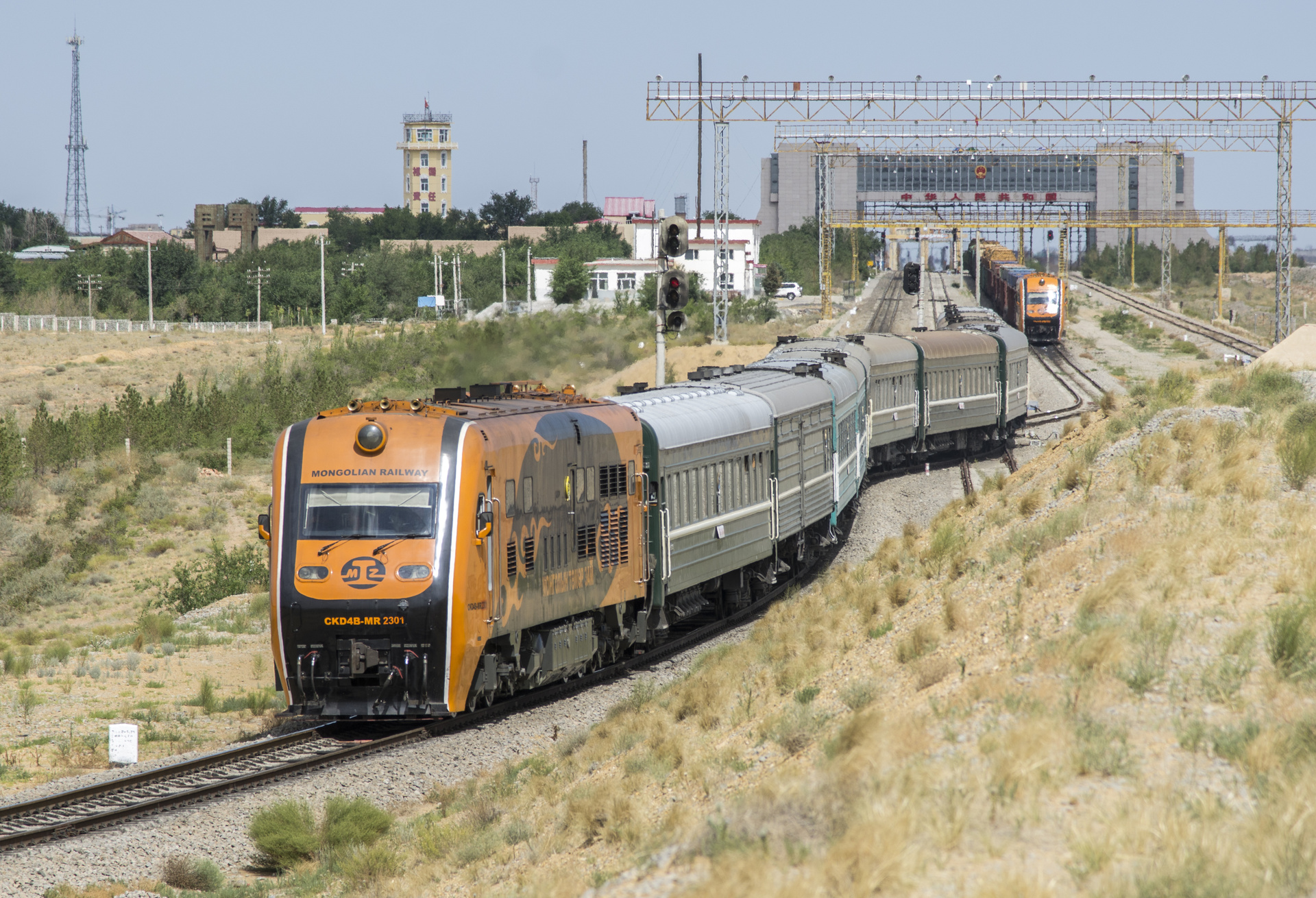

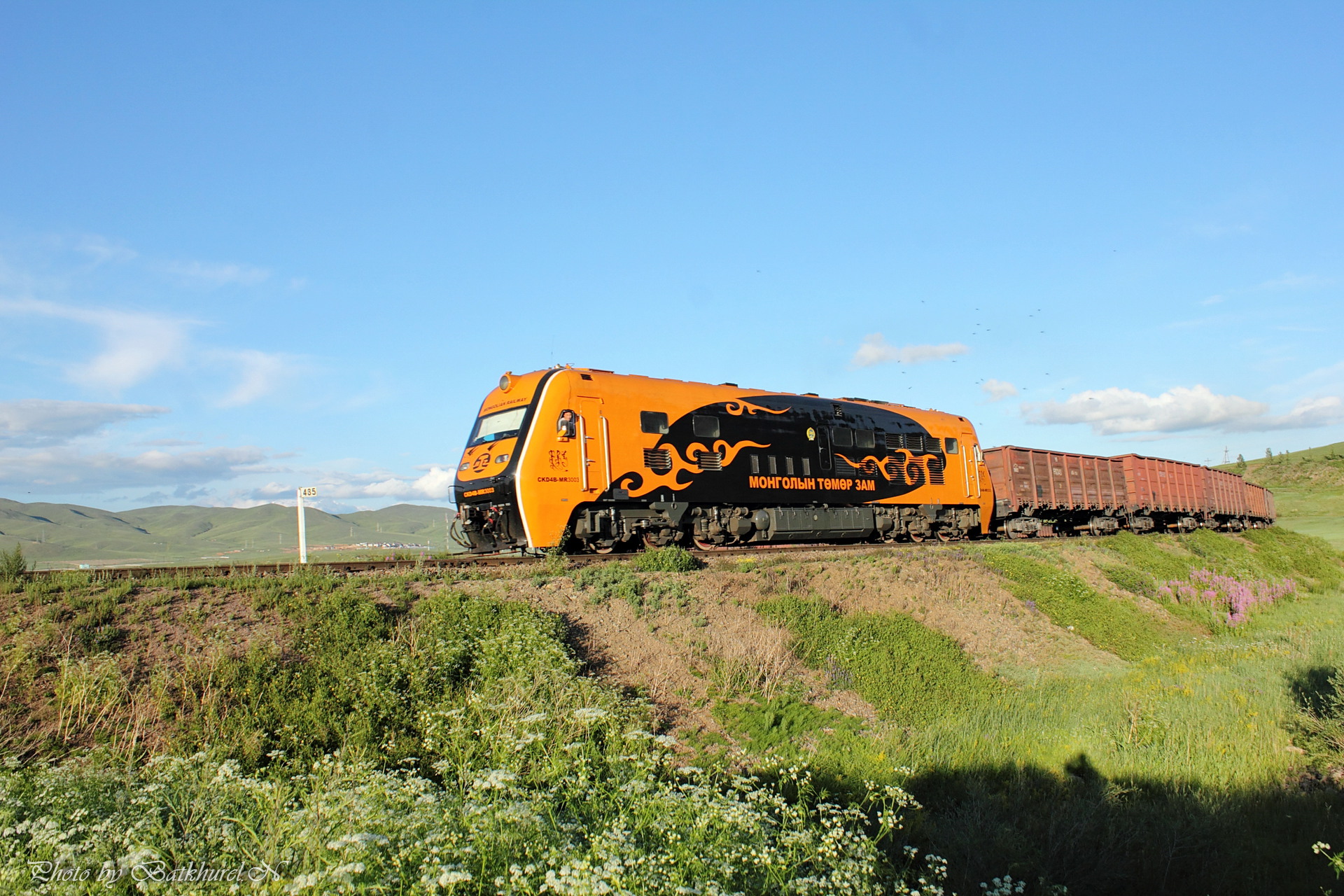

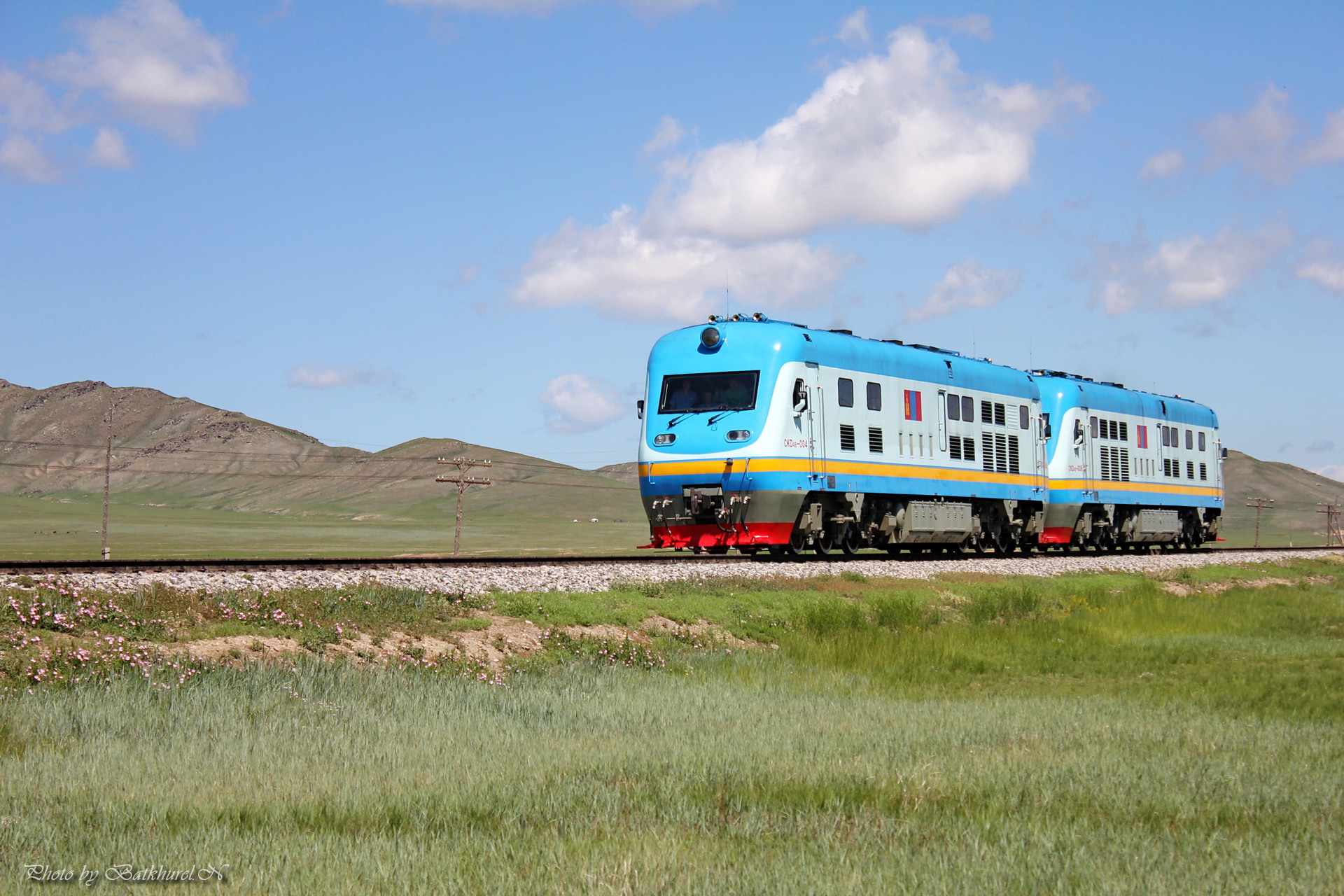

CRRC Dalian CKD4B photos

Photos © their respective authors, shared on trainspo.com. They may show liveries or variants that differ from the specifications above.
