Fiat ETR 480

Built by Fiat

Top speed

250 km/h

155 mph

Power output

5,880 kW

7,885 hp

Weight

409 t

901,690 lb

Track gauge

1,435 mm

Standard gauge

Years built

1997–1998

15 units

Overview of the Fiat ETR 480

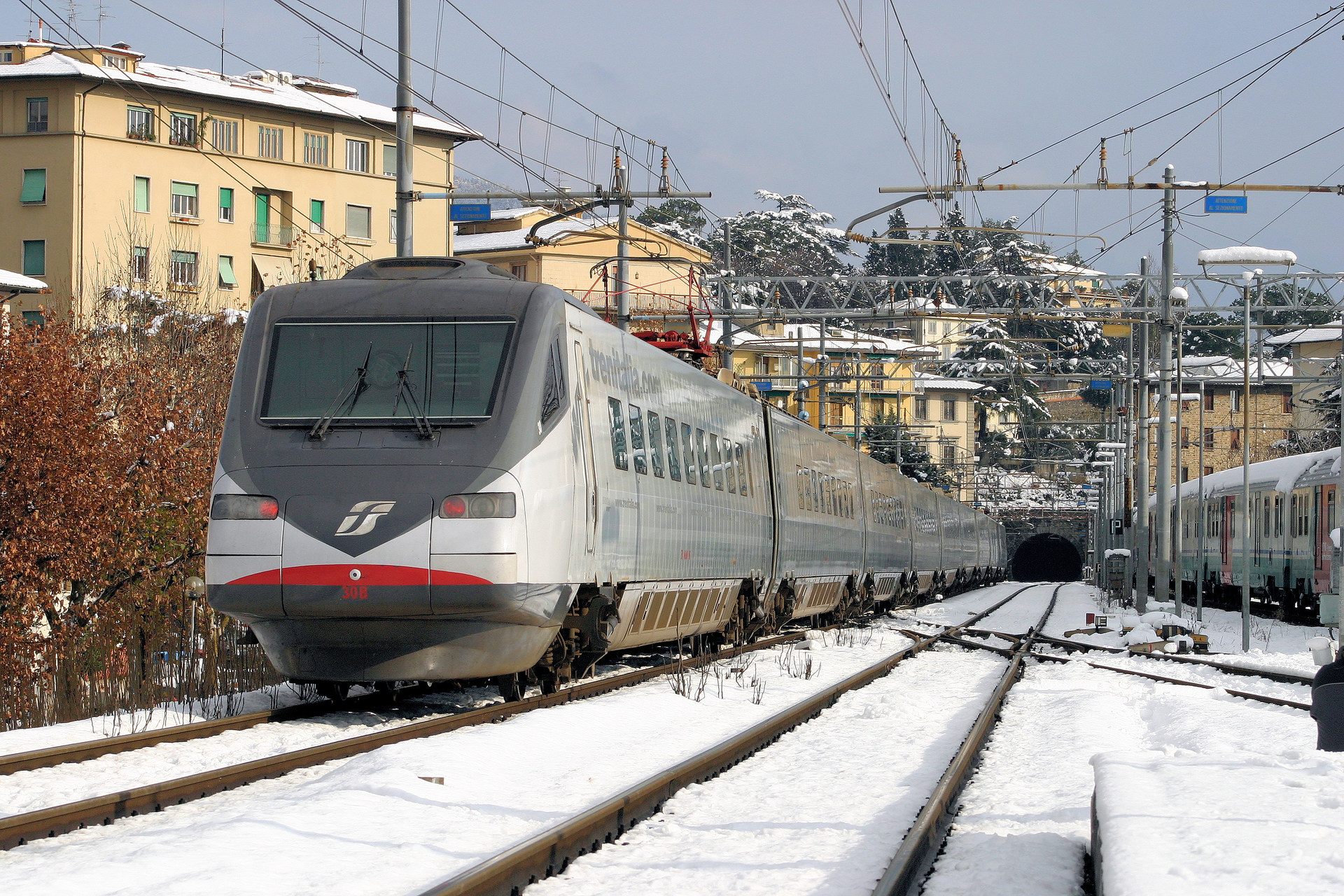

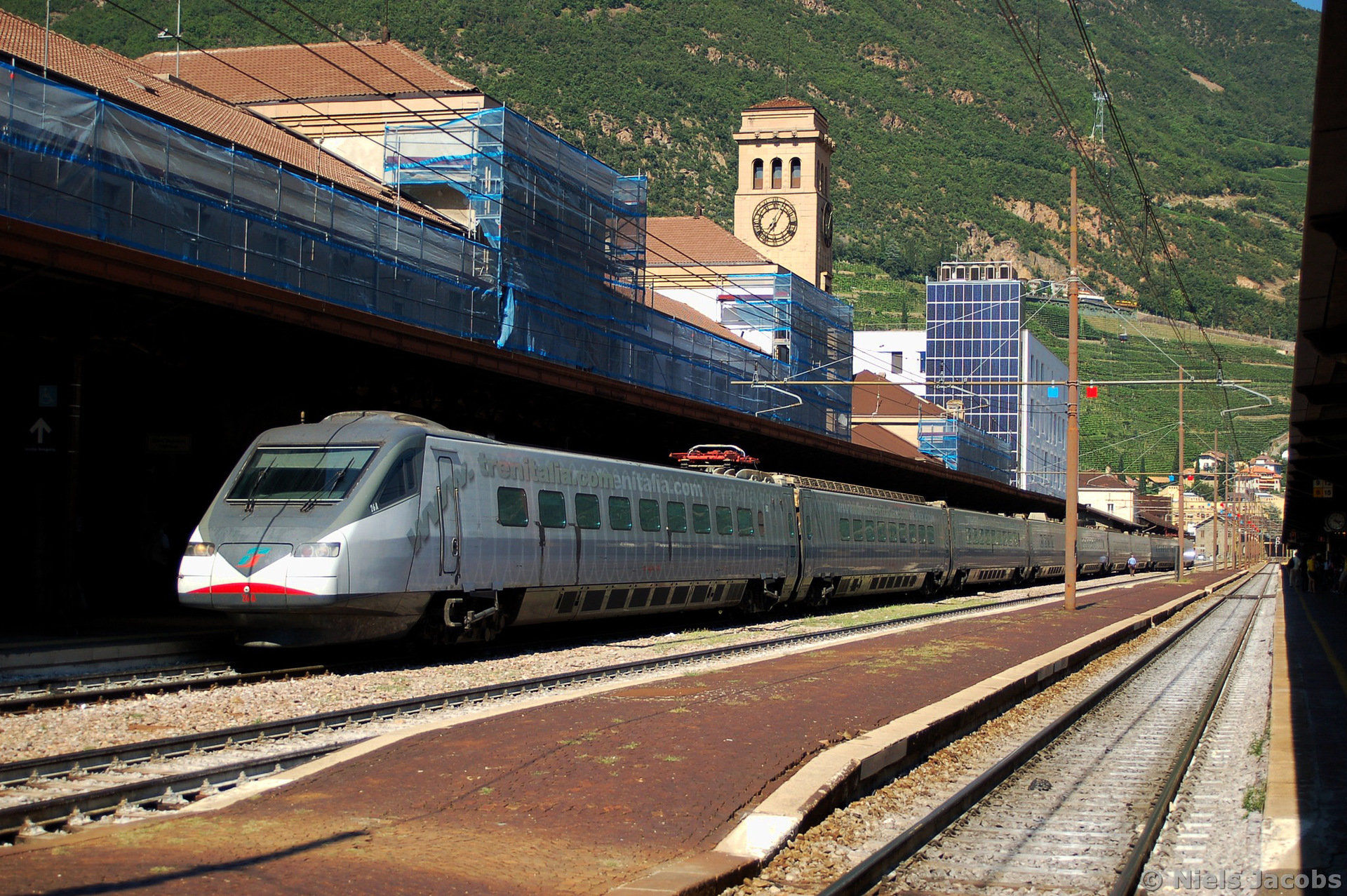

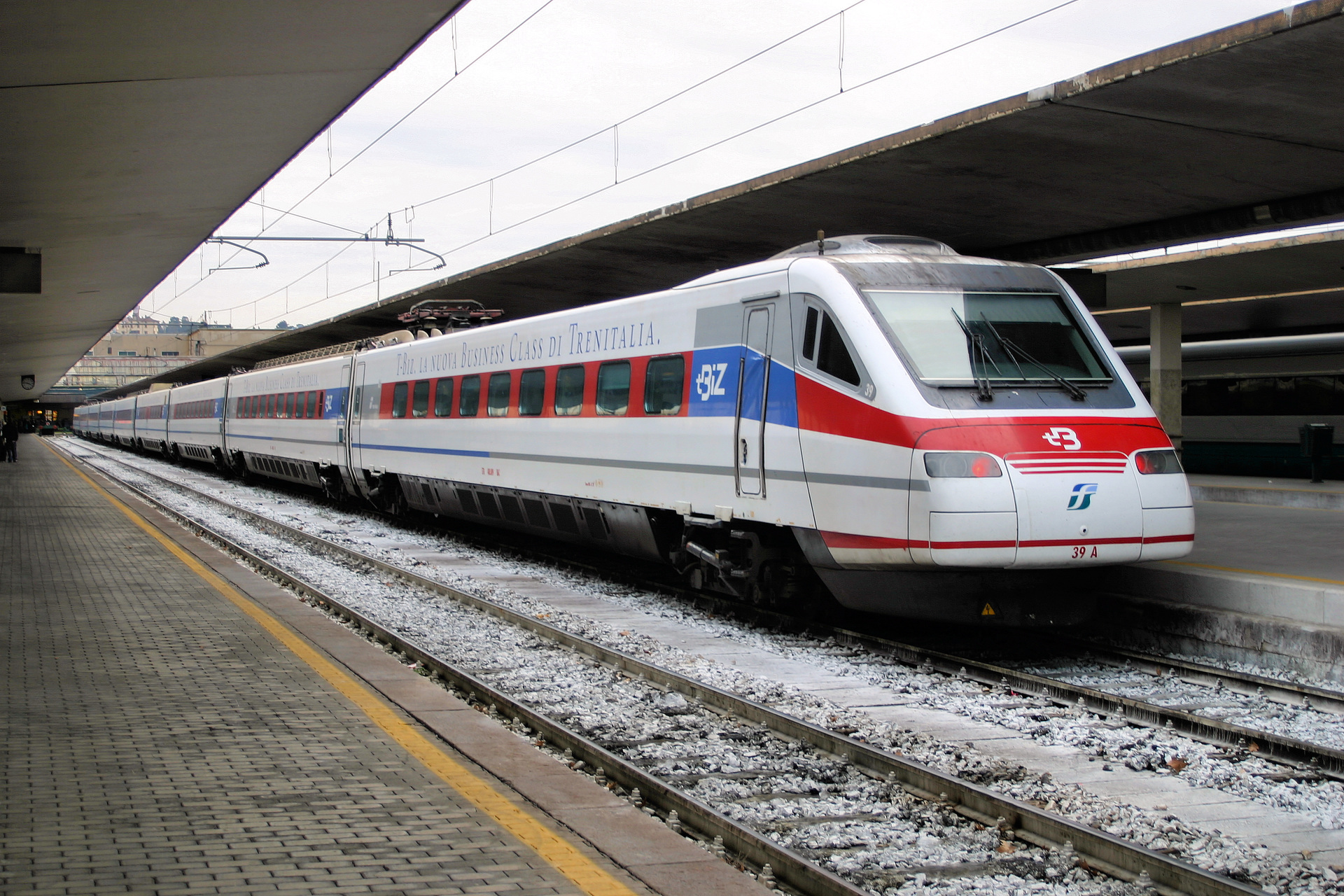

The ETR 480, a notable member of the Pendolino family and specifically the Second Generation Pendolino series, is an Italian electric multiple unit (EMU) built by Fiat between 1997 and 1998.

These high-speed trains, operated by Italian State Railways (FS ETR 480), are designed for efficient travel with a top speed of 250 km/h.

The ETR 480 boasts a considerable capacity of 480 seats and is configured in a 9-car formation (6M3T).

With a standard gauge of 1435 mm, a total car length of 236.6 meters, and a weight of 409 tons, these EMUs are equipped with 3 kV DC electric systems and a powerful output of 5880 kW, making them a significant part of Italy's rail infrastructure.

Fiat ETR 480 technical specifications

	Value	Imperial / US
Series	Pendolino Second Generation
Family	Pendolino
Built by	Fiat · 1997–199815 units
Top speed	250 km/h155 mph	155 mph
Power output	5,880 kW7,885 hp	7,885 hp
Electric systems	3 kV DC
Track gauge	1,435 mmStandard gauge4 ft 8½ in	4 ft 8½ in
Formation	9 cars (6M3T)
Capacity	480 seats
Car length	236.6 m776 ft 3 in	776 ft 3 in
Weight	409 t901,690 lb	901,690 lb
